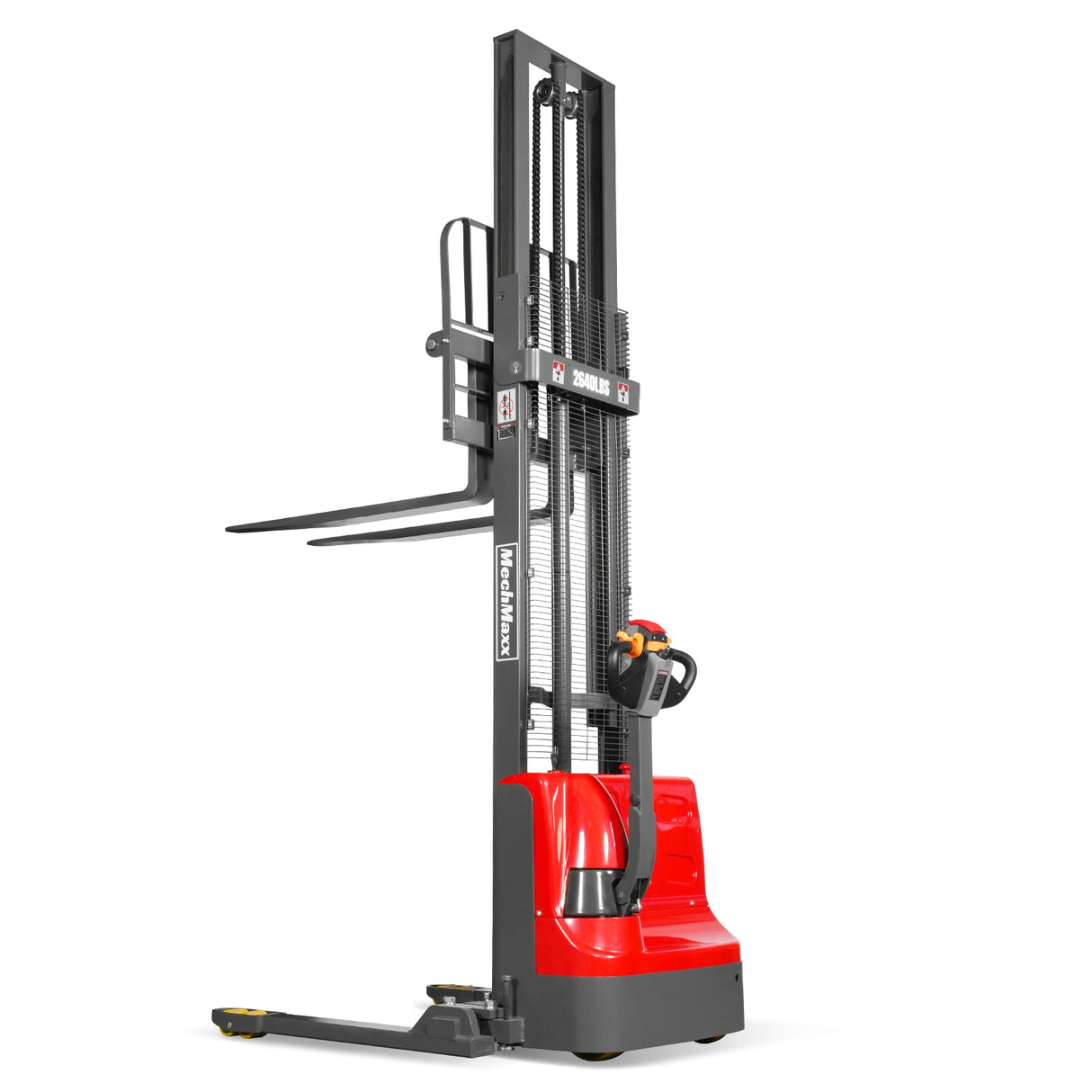

MechMaxx 2640 lb Lithium Electric Straddle Stacker with 138" Lift, Model F26-138S

The MechMaxx F26 Series is a fully electric straddle stacker engineered for efficient, high-performance material handling in warehouses, distribution centers, and industrial environments. With powered drive and lift, it delivers smooth operation, precise control, and reduced operator fatigue — making it a major upgrade over semi-electric equipment.

Designed for demanding workflows, this unit combines a high-capacity lithium battery system, fast charging capability, and a durable steel frame to support consistent, multi-shift performance.

Key Features & Benefits

• Fully Electric Drive & Lift System – effortless forward/reverse travel and lifting streamline operations and increase productivity
• 2,640 lb Load Capacity – provides stable handling for standard pallet loads in daily operations
• 138" Maximum Lift Height – extended reach for higher shelving, maximizing vertical storage space
• High-Capacity Lithium Battery – built-in 24V/60Ah lithium-ion battery delivers long runtime with opportunity charging for continuous use
• Fast Built-In Charger – integrated 24V/30A charger allows quick, convenient on-board charging
• American Curtis Controller – ensures smooth acceleration, responsive handling, and reliable performance
• Powerful 2.2 kW Lift Motor – provides strong, efficient lifting for demanding applications

Adjustable & Versatile Design

• Fork width adjusts from 8.3" to 33.5"
• Straddle legs adjust from 35.4" to 51.2" (inside width)
• Designed to accommodate a wide variety of pallet sizes and load types

Built for Tight Spaces

With a 53" turning radius and turtle mode for precise control, the F26 Series performs exceptionally well in narrow aisles and confined warehouse environments.

Operator Comfort & Control

• Ergonomic integrated handle with intuitive controls
• Dual butterfly travel controls and lift/lower functions
• Turtle mode, horn, and emergency reverse within reach
• Gas spring support system reduces vibration and operator fatigue

Stability & Safety Features

• Load backrest prevents cargo from shifting backward
• Polyurethane wheels protect floors and ensure smooth movement
• Emergency reverse button for immediate response
• Electromagnetic braking system for controlled stopping
• Automatic safety-release braking system
• Explosion-proof valve prevents sudden fork drop
• Electronic lift limit switch prevents over-lifting damage
• Protective mesh guard enhances operator safety

Heavy-Duty Construction

• Reinforced double-frame steel design for durability and stability
• Engineered for balanced lifting and long-term reliability
• Built to perform in demanding industrial environments

Battery Care & Maintenance

• Fully charge after each use
• Avoid deep discharge or overcharging
• Charge at least once per month during storage
• Store in a cool, dry environment

Proper maintenance ensures long battery life and safe operation.

Important Note

Due to its size and weight, this unit cannot be unloaded with a lift gate. A forklift or unloading platform is required at delivery.
