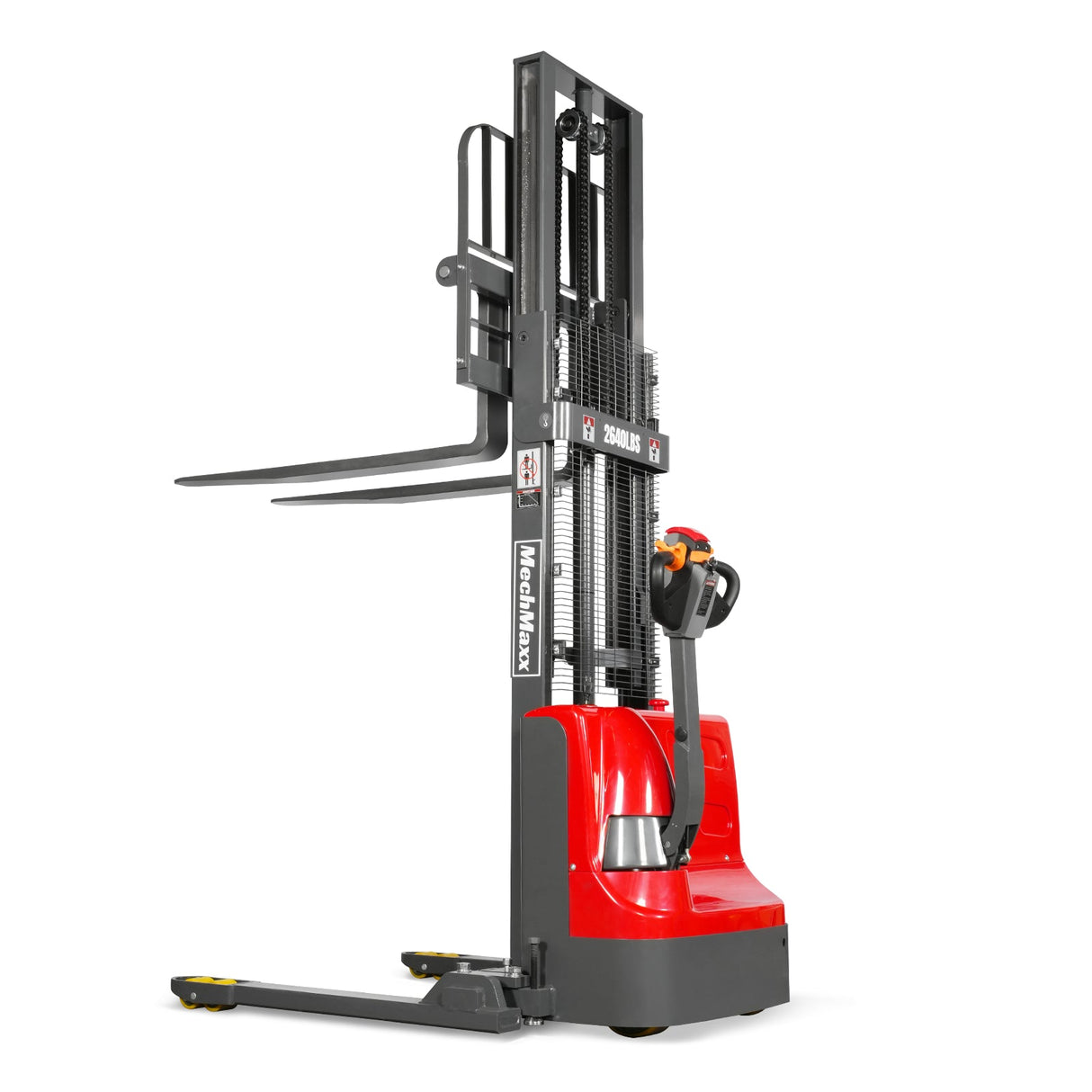

MechMaxx 2640 lb Lithium Electric Straddle Stacker with 98" Lift, Model F26-98S

The MechMaxx F26 Series is a fully electric straddle stacker designed for efficient, reliable material handling in warehouses, distribution centers, and industrial environments. With powered drive and lift, it delivers smooth operation, reduced operator effort, and higher productivity compared to semi-electric alternatives.

Built with a durable frame, precision controls, and a high-capacity lithium battery system, the F26 Series is ideal for multi-shift operations and tight workspace environments.

Key Features & Benefits

• Fully Electric Drive & Lift System – handles forward/reverse travel and lifting effortlessly for improved efficiency and reduced operator fatigue
• 2,640 lb Load Capacity – designed for consistent handling of standard pallet loads
• 98" Maximum Lift Height – perfect for stacking, shelving, and vertical storage applications
• High-Performance Lithium Battery – built-in 24V/60Ah lithium-ion battery delivers long runtime with opportunity charging capability
• Fast Built-In Charger – integrated 24V/30A charger ensures quick, convenient on-board charging
• American Curtis Controller – provides smooth acceleration, responsive handling, and stable performance
• Powerful 2.2 kW Lift Motor – delivers strong, efficient lifting for demanding workloads

Adjustable & Versatile Design

• Fork width adjusts from 8.3" to 33.5"
• Straddle legs adjust from 35.4" to 51.2" (inside width)
• Accommodates a wide range of pallet sizes and load types

Built for Tight Spaces

With a 53" turning radius and turtle mode for precision control, this stacker is ideal for narrow aisles, confined storage areas, and busy warehouse environments.

Operator Comfort & Control

• Ergonomic integrated handle with intuitive controls
• Dual butterfly travel controls and lift/lower buttons
• Horn, turtle mode, and emergency reverse button within reach
• Gas spring support reduces vibration and operator fatigue

Stability & Safety Features

• Load backrest prevents cargo from shifting backward
• Polyurethane wheels protect floors and ensure smooth travel
• Emergency reverse button for immediate response
• Electromagnetic braking system for controlled stopping
• Automatic safety-release braking system
• Explosion-proof valve prevents sudden fork drop
• Electronic lift limit switch protects equipment at max height
• Protective mesh guard enhances operator safety

Durable Construction

• Reinforced double-frame steel structure for long-term durability
• Designed to maintain stability and balance under load
• Built for continuous use in demanding environments

Battery Care & Maintenance

• Fully charge after each use
• Avoid deep discharge or overcharging
• Charge at least once per month during storage
• Store in a cool, dry environment

Proper battery care ensures long service life and safe operation.

Important Note

Due to its size and weight, this unit cannot be unloaded with a lift gate. A forklift or unloading platform is required at delivery.
