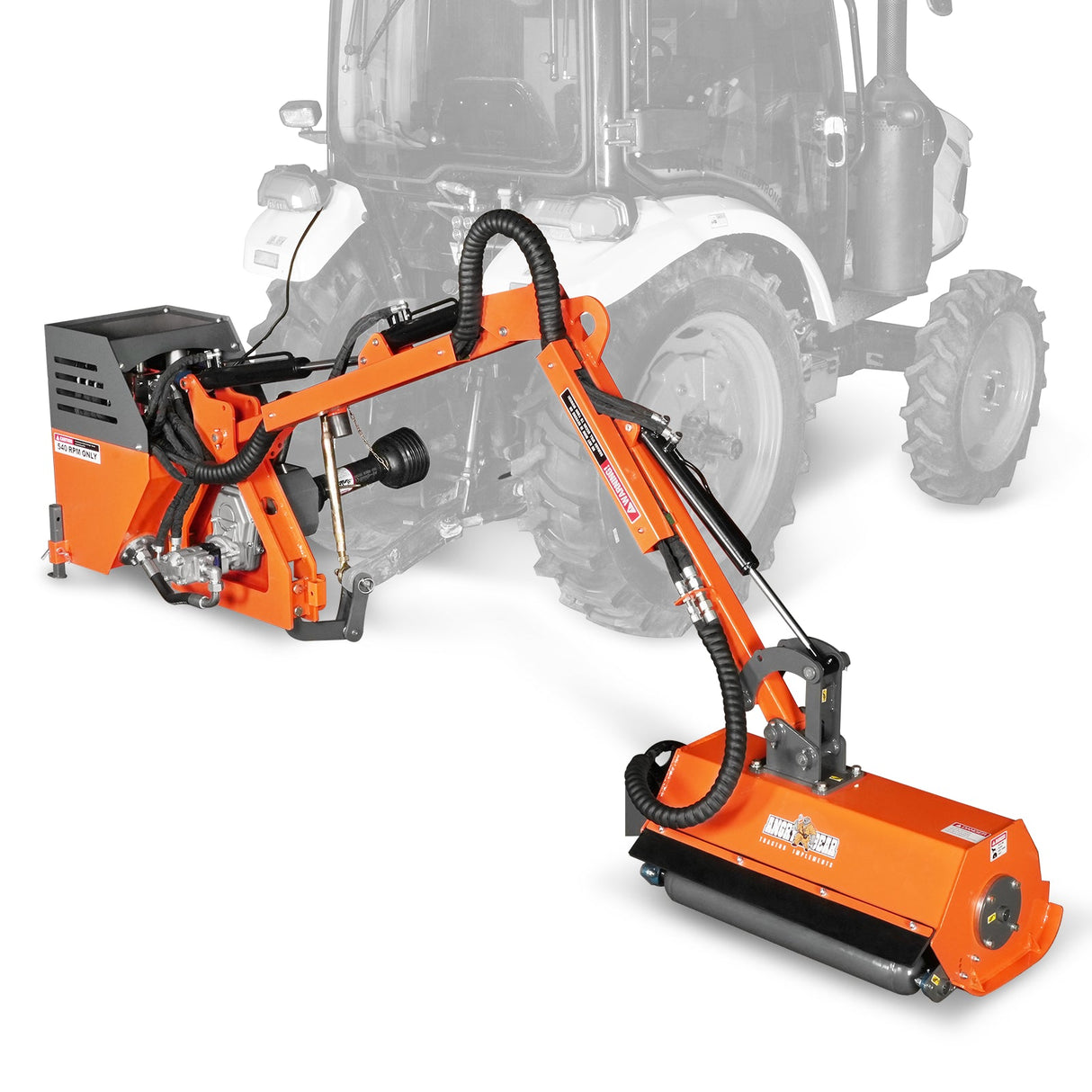

MechMaxx 31.5" Remote Control Boom Mower with 11'2" Reach, 3-Point Hitch, Minimum 20HP, Model ERM80

The MechMaxx ERM80 boom mower is engineered for precision vegetation control in hard-to-reach areas where standard mowers can't operate. Designed for tractors with a 3-point hitch and 540 RPM PTO, this unit delivers extended reach, flexible positioning, and safe remote operation for roadside, embankment, and property maintenance.

With its compact 31.5-inch cutting head and long boom arm reach, the ERM80 allows operators to mow slopes, ditches, fence lines, and elevated areas with efficiency and control.

Key Features & Benefits

• 31.5" Cutting Width – delivers clean, consistent cuts while maintaining maneuverability in tight or uneven terrain
• Wireless Remote Control Operation – control boom movement and cutting head functions from a safe distance, reducing operator exposure to debris
• Extended Reach Capability – perfect for mowing embankments, ditches, roadsides, and hard-to-access zones
• Max Vertical Reach: ~11.2 ft up / ~4.8 ft down; Max Horizontal Reach: ~8.86 ft; Rotation Range: 176°
• Heavy-Duty Boom Arm Construction – built for stability and precision under demanding working conditions
• 24 Hammer Flails – heavy-duty hammer blades deliver powerful cutting and fine mulching
• Direct Drive Cutter Head – designed for long-term durability and efficient power transfer
• Ideal for grass and light vegetation – best suited for maintenance mowing, not thick branches or heavy brush
• 540 RPM PTO Driven – connects directly to tractor PTO for consistent performance
• Independent Tandem Pump System – ensures stable hydraulic flow and smooth boom operation
• Hydraulic System: flow rate 50 L/min, pressure 20 MPa, oil tank capacity 70L
• Premium Italian CMR Gearbox – high-quality drivetrain components built for durability and efficiency
• Heavy-Duty Steel Frame – designed for long service life in commercial and agricultural use
• Adjustable Roller Bar – maintains consistent cutting height across uneven terrain
• Adjustable Support Stand – provides stability during storage and transport
• Minimum tractor requirement: 20 HP; Category 1, 3-Point Hitch; 540 RPM PTO
• Ideal for roadside and municipal maintenance, ditches, embankments, fence lines, traffic islands, and commercial grounds

Documents

• Product Manual
