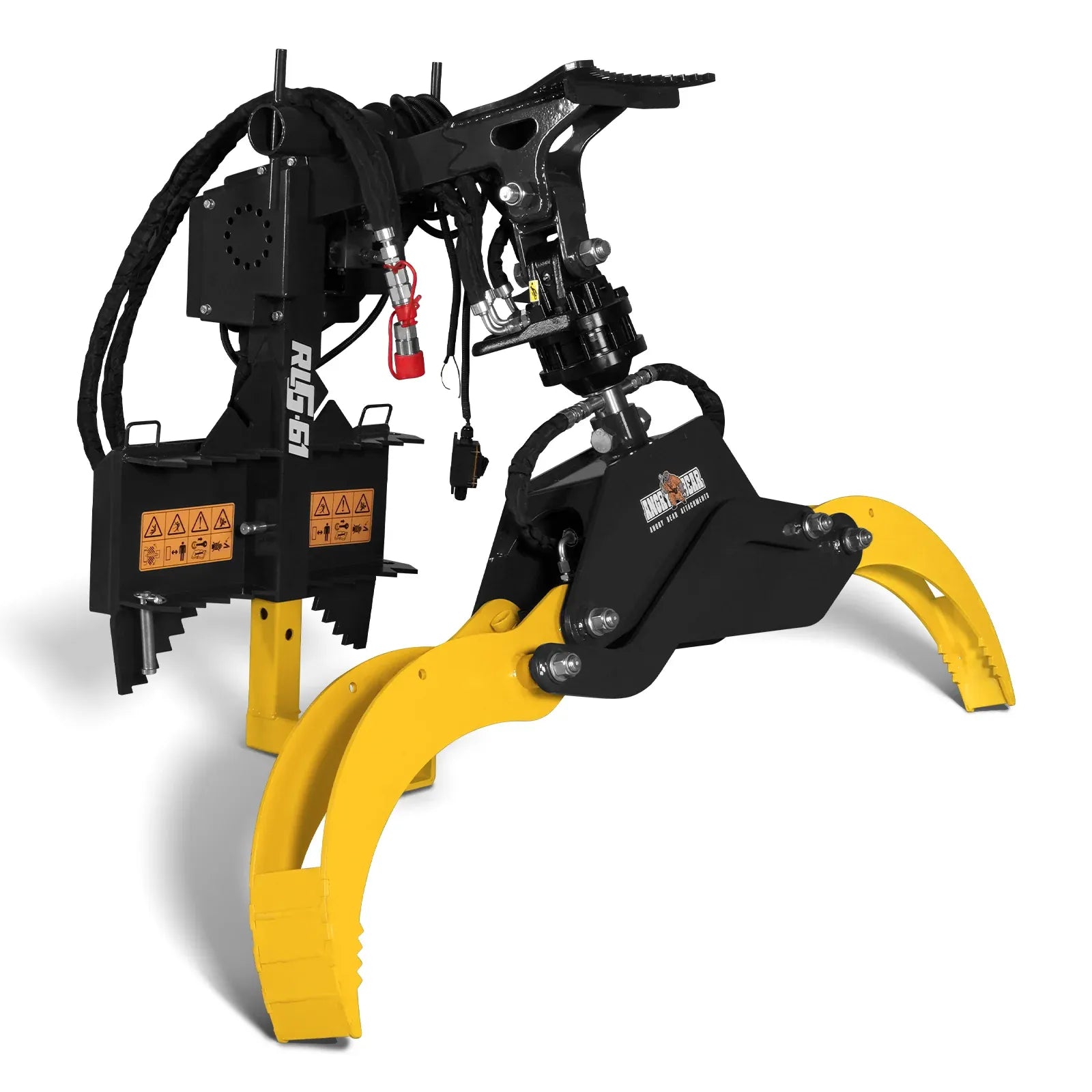

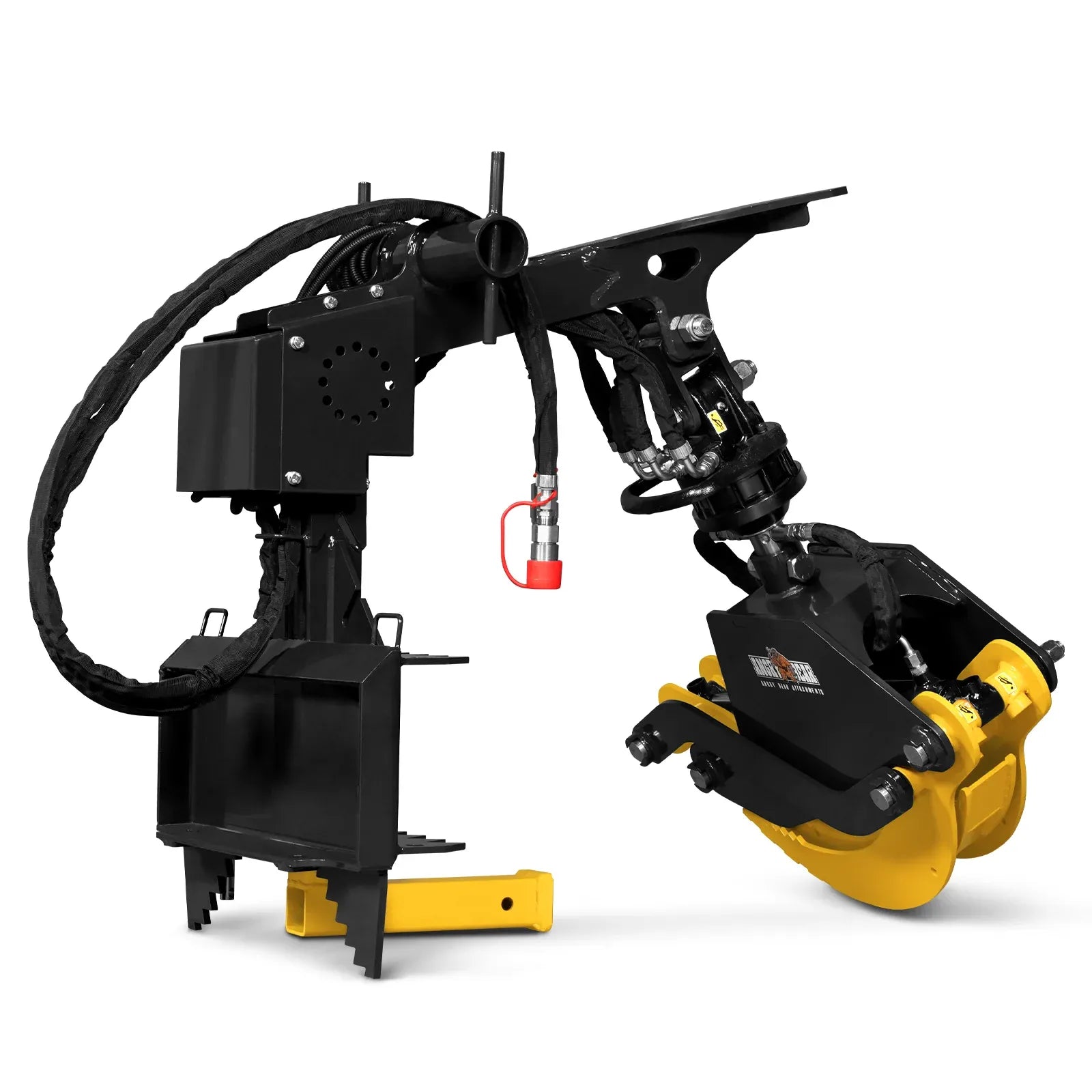

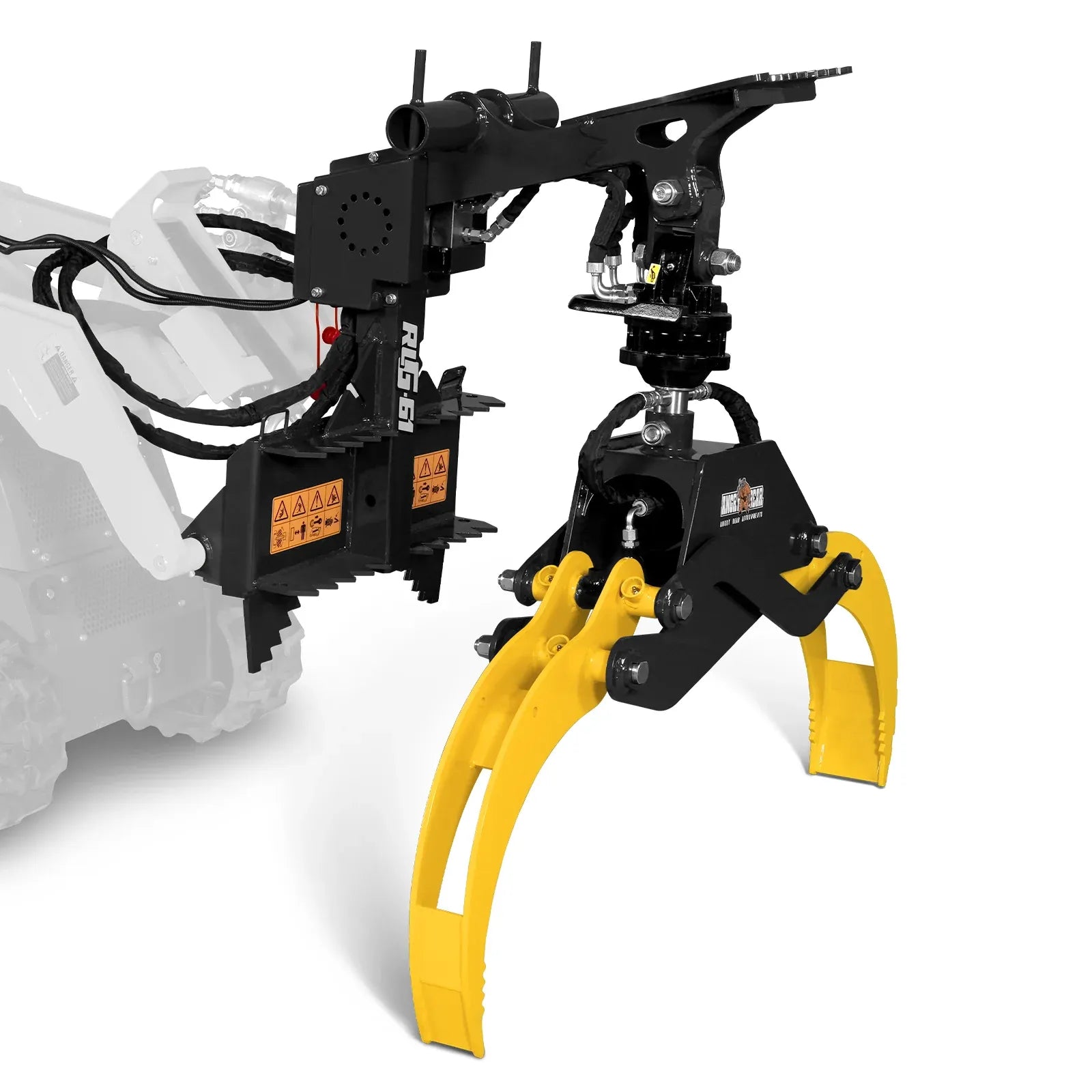

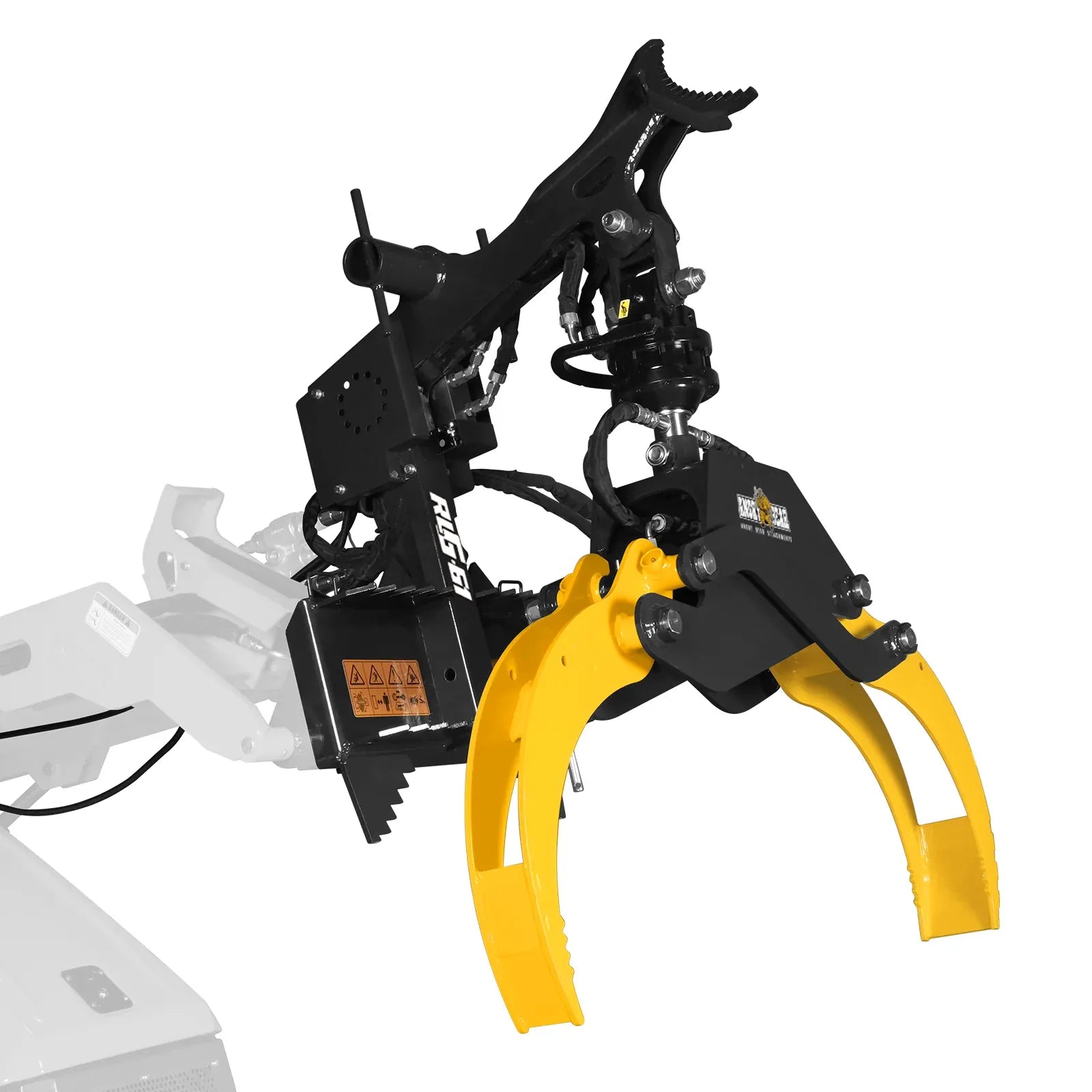

MechMaxx 59" Hydraulic Rotating Log Grapple Attachment for Mini Skid Steer with 1500 lb Lift Capacity and 360° Rotation
SKU: 150502 | Model: RLG61
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

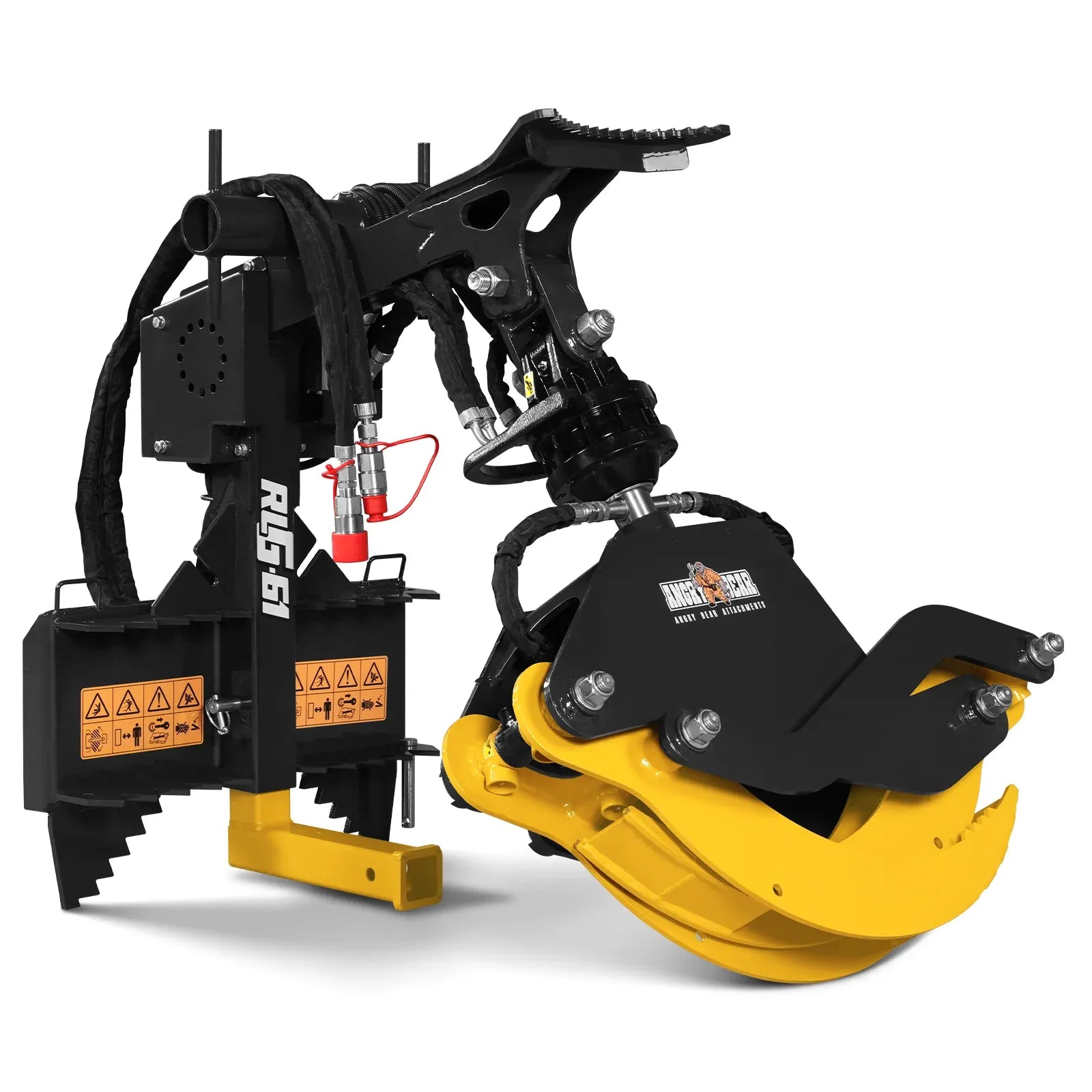

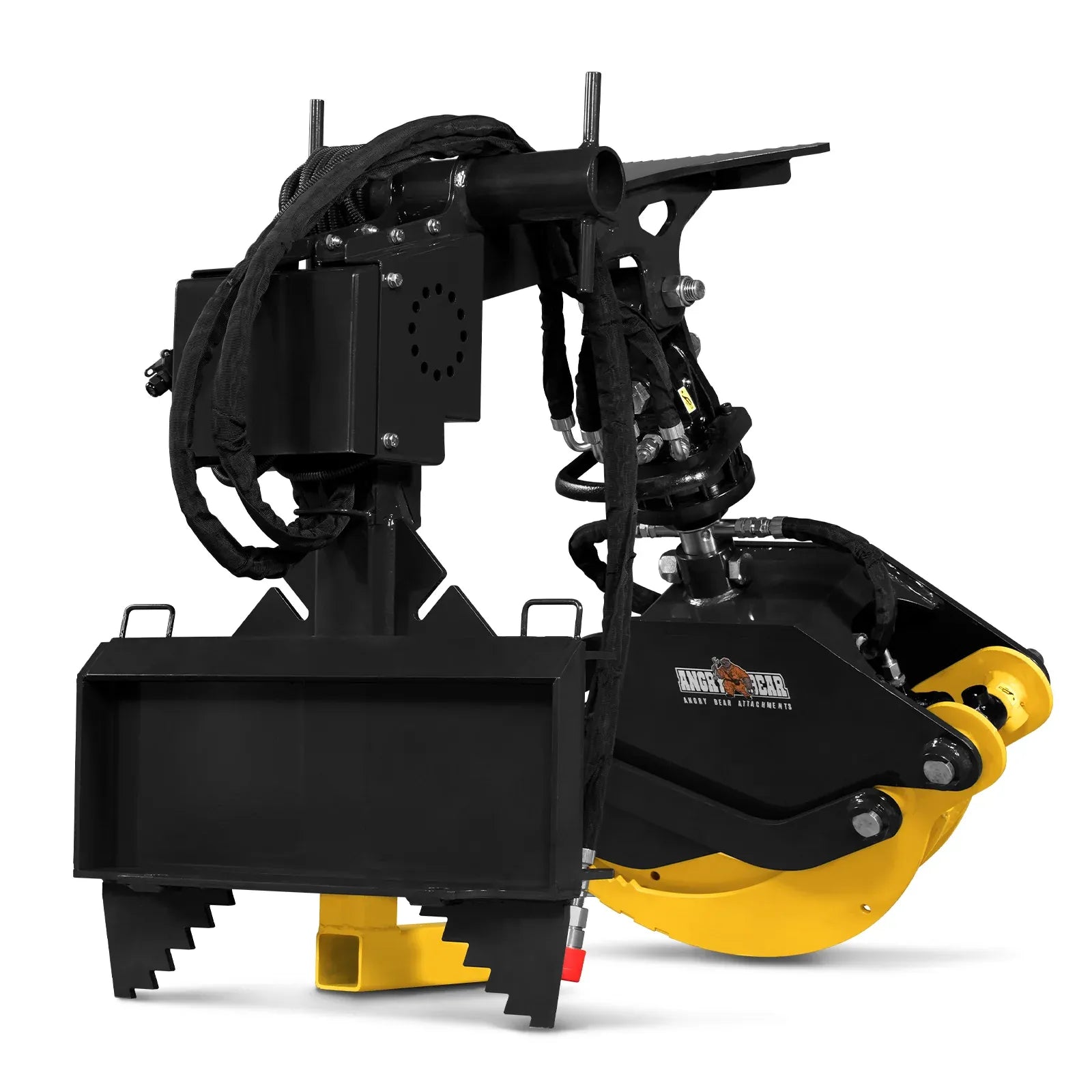

The RLG61 grapple attachment is designed for heavy-duty material handling and forestry applications, offering a powerful and versatile solution for skid steer operators.
Equipped with a 1.5-ton power swivel and a wide 59-inch grapple opening, this attachment can lift loads of up to 1,500 lbs with ease, making it suitable for handling logs, brush, and other materials.
With a hydraulic flow requirement of 8–12 GPM and a pressure rating of 2900 PSI, the RLG61 delivers consistent and reliable performance across a wide range of tasks and working conditions.

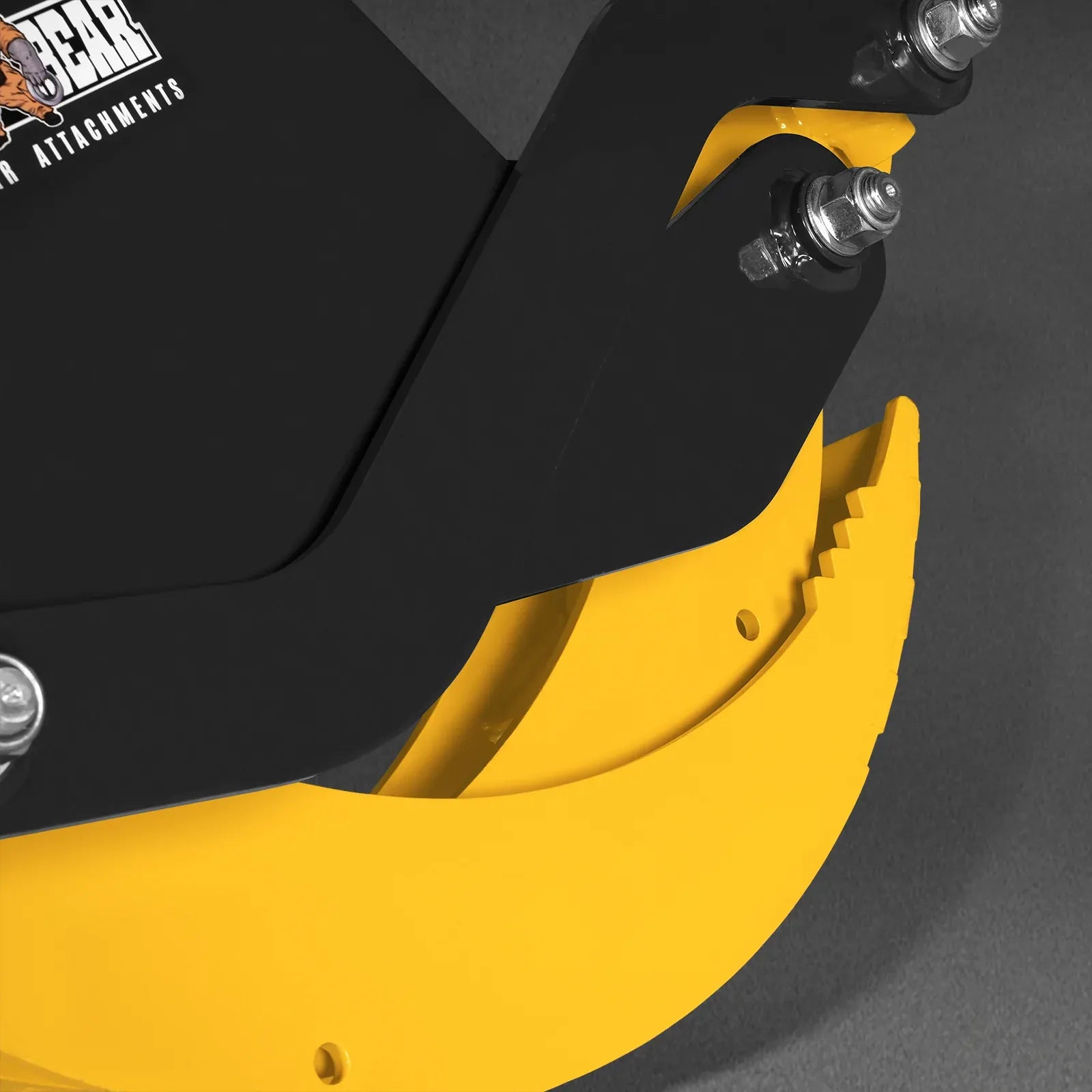

Constructed with a high-strength steel body and a Q690-grade grapple arm, this attachment is built for durability and long-term use in demanding environments.

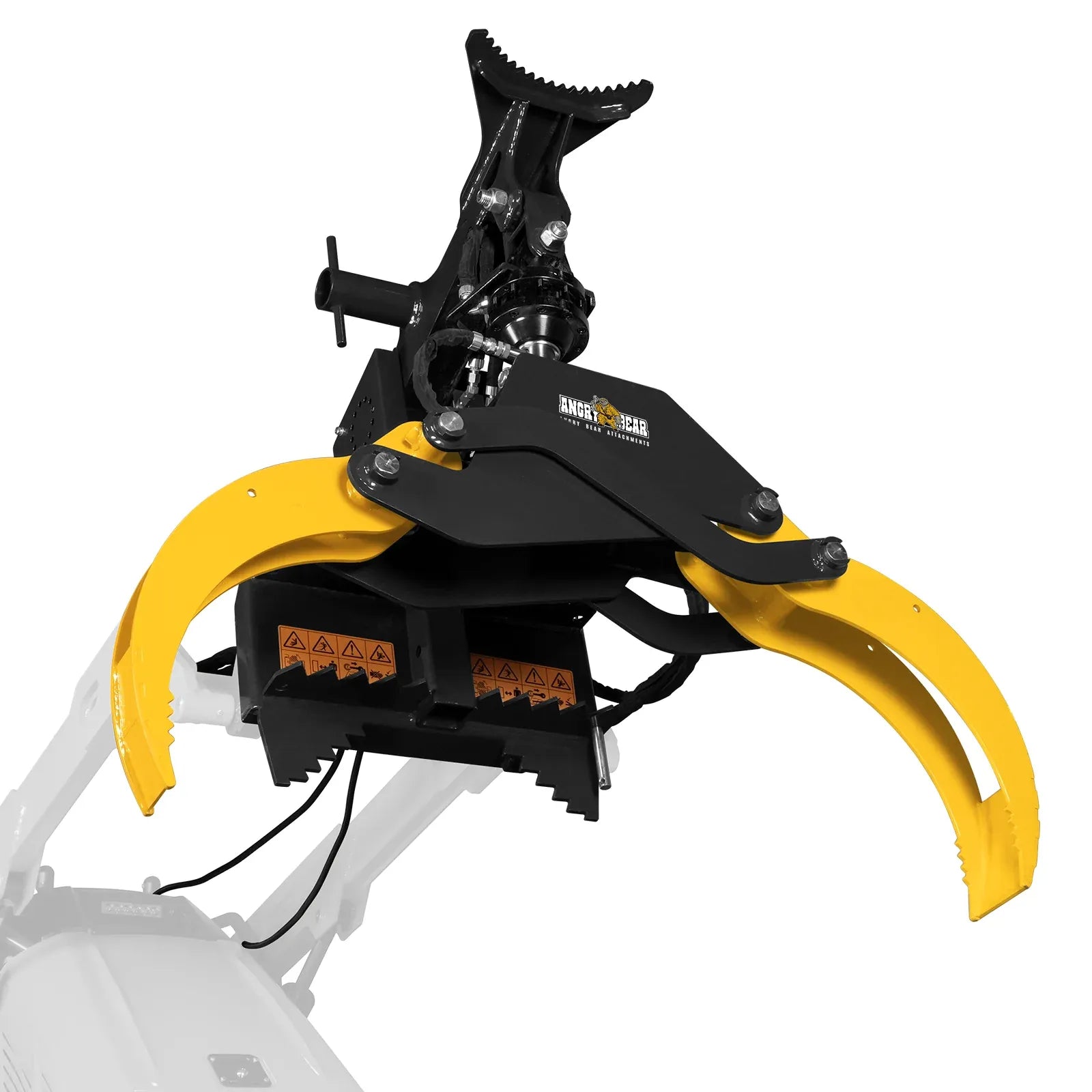

Additional features include a full 360-degree swivel for enhanced maneuverability, internal hose routing for added protection, and an integrated whaletail tree pusher for improved handling of forestry materials.
Important:

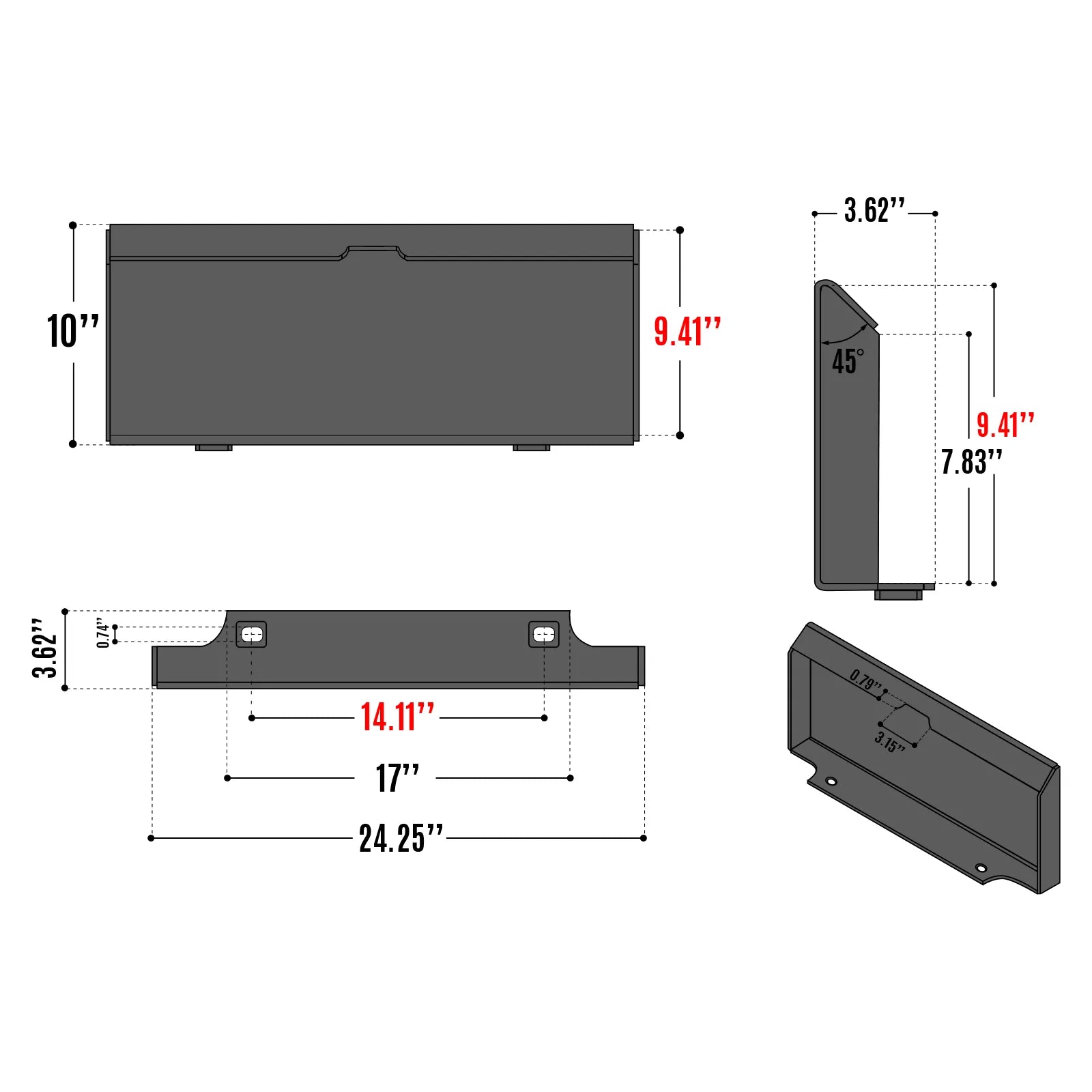

- Please verify compatibility with your skid steer prior to purchase to ensure proper fitment and avoid any issues related to mismatched dimensions.
| Specifications | Details |
|---|---|
| Lift Capacity | 1500 lbs |
| Grapple Opening | 59 in |
| Hydraulic Cylinder | 2 in |
| Rotator Power Capacity | 1.5 tons |
| Rotational Ability | 360° One Direction Rotation |
| Flow Range Low | 8 gal/min |
| Flow Range High | 12 gal/min |
| Hydraulic Pressure | 2900 psi |
| Maximum Static Axial Load | 30 kN |
| Package Method | Iron Frame With Film |
| Finish | Durable Powder Coated Finish |
| Warranty | 1 Year |
| Packing Size | 43 x 35 x 35 in |
| Weight (N.W./G.W.) | 266 / 456 lbs |
