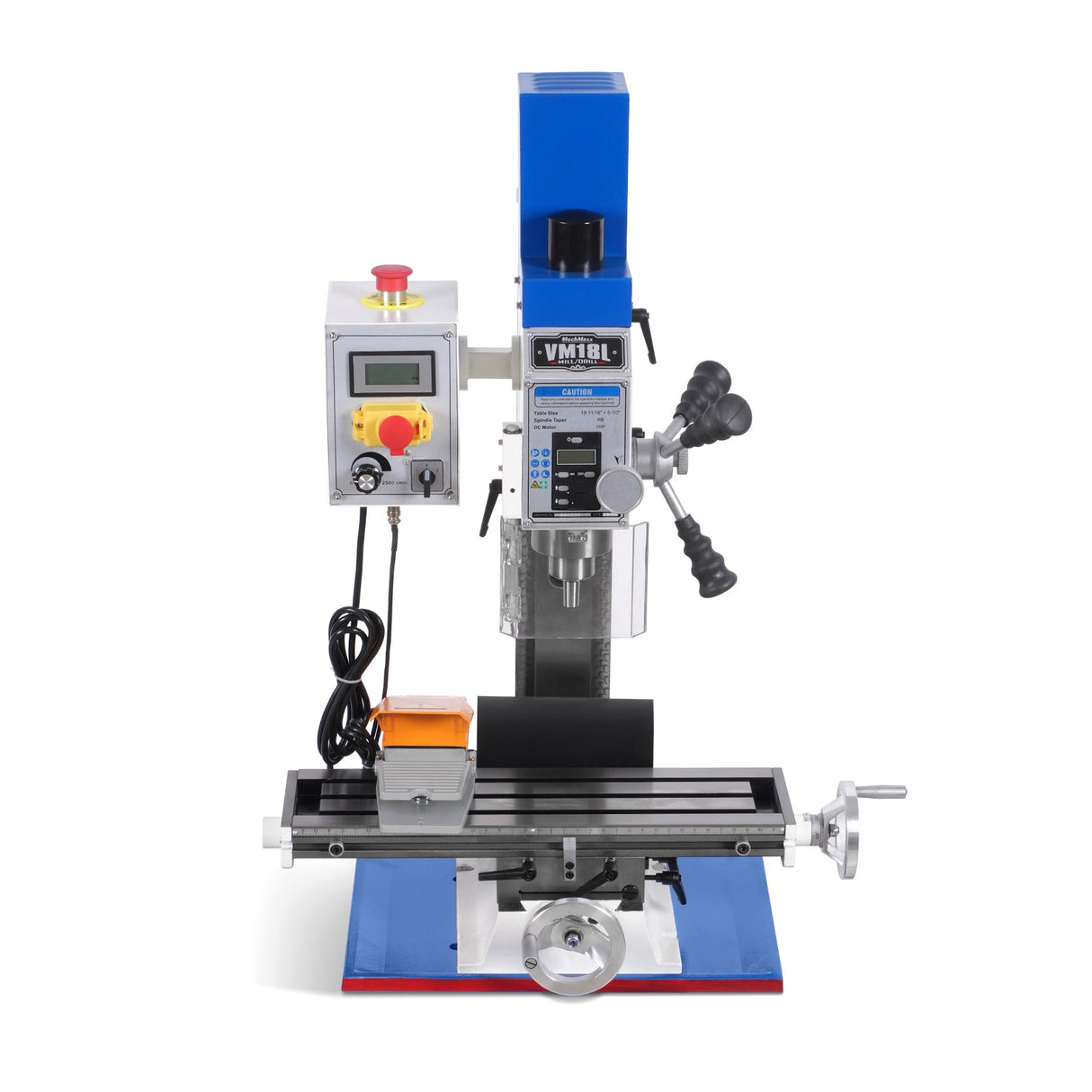

MechMaxx 6x20 Benchtop Mill Drill Machine with Variable Speed and Brushless Motor, Model VM18L
MechMaxx 6x20 Benchtop Mill Drill Machine with Variable Speed and Brushless Motor, Model VM18L is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx 6x20 Benchtop Mill Drill Machine with Variable Speed and B...
The MechMaxx VM18L is a 6\" x 19-5/8\" benchtop mill drill machine built for machinists, metalworkers, and garage shop operators who need precision milling, drilling, and tapping in a compact footprint. Powered by a 1 HP brushless DC motor with continuously variable speed from 0 to 2,500 RPM.
Key Features
- 1 HP DC brushless motor — variable speed 0–2,500 RPM, low maintenance
- R8 spindle taper with ±90° head tilt
- 5-1/2” x 19-5/8” work table with 3 T-slots
- Square column with dovetail slide — rigid, stable positioning
- Belt drive system — smooth, low-vibration cutting
- 3/4” drilling capacity, 1/2” end milling, 2” face milling
- 110V single-phase power
VM18L Specifications
| Specifications | Details |
|---|---|
| Motor Power | 1 HP DC Brushless, 110V Single-Phase |
| Speed Range | 0–2,500 RPM (Variable) |
| Spindle Taper | R8 |
| Spindle Travel | 2” (50mm) |
| Head Tilt Angle | ±90° |
| Drilling Capacity | 3/4” (18mm) |
| End Milling Capacity | 1/2” (12mm) |
| Face Milling Capacity | 2” (50mm) |
| Table Size | 5-1/2” x 19-5/8” (140 x 500mm) |
| X-Axis Travel | 8-5/8” (220mm) |
| Y-Axis Travel | 6-5/16” (160mm) |
| Z-Axis Travel | 10-27/32” (275mm) |
| Overall Dimensions | 20” x 19” x 31” |
| Machine Weight | 180 lbs (net) |
