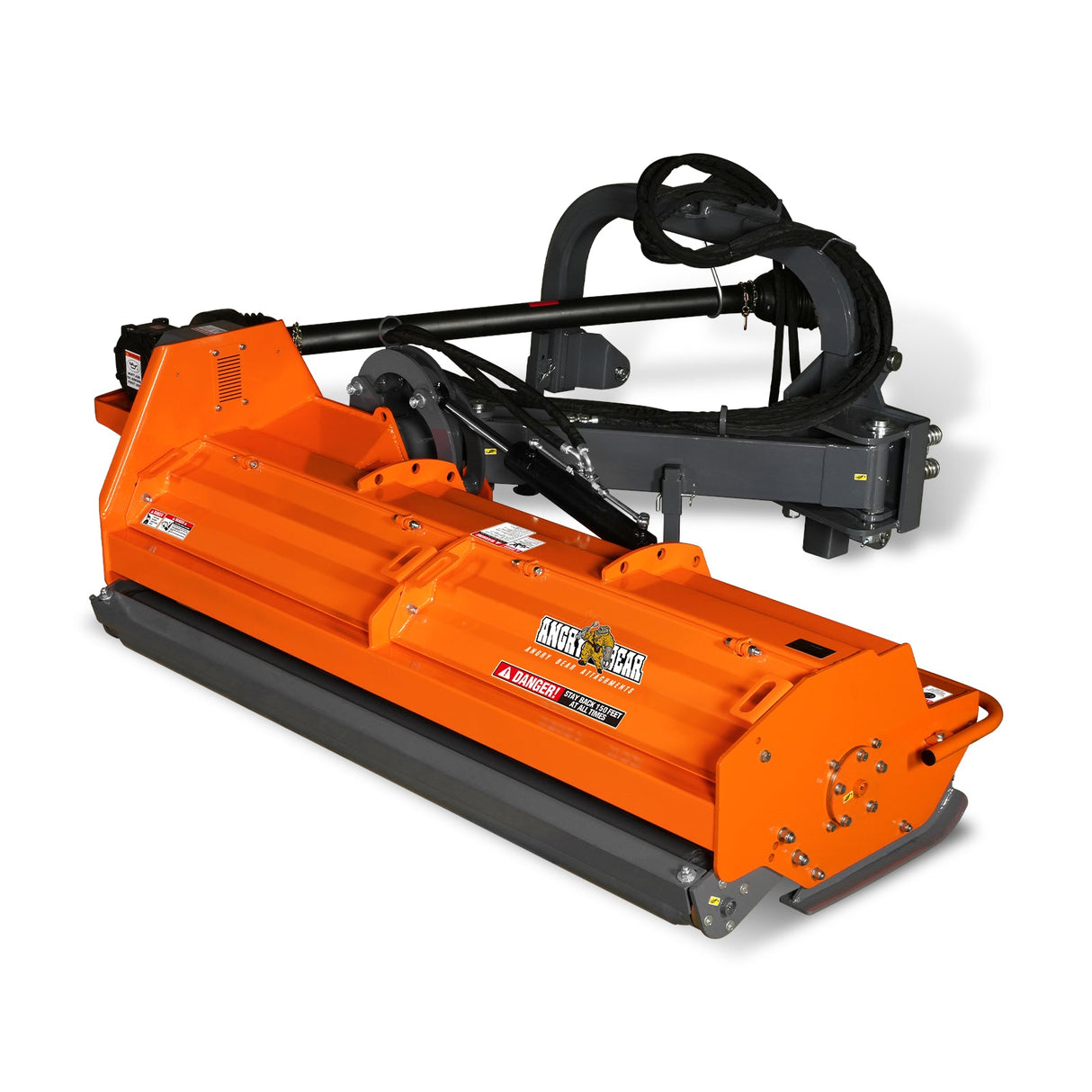

MechMaxx 78" Heavy Duty Offset Verge Flail Mower with CMR Gearbox, 80–110HP, Model VBM78

Trimming ditches, roadsides, embankments, and shorelines doesn't have to be a headache. The MechMaxx VBM78 hydraulic flail mower is purpose-built to tackle heavy overgrowth in hard-to-reach areas, combining extended reach, powerful mulching capability, and rugged construction for demanding environments.

Designed for professional land maintenance, this mower delivers clean, consistent results while reducing manual labor and improving overall efficiency.

Key Features & Benefits

• 78-Inch Wide Cutting Deck – covers more ground in less time, ideal for large properties, fields, and roadside work
• Hydraulic Side Shift & Offset Reach – extends beyond the tractor to cut fence lines, ditch edges, and tight areas
• Hydraulic Tilt Function (90° Up / 55° Down) – perfect for slopes, embankments, and vertical trimming applications
• Heavy-Duty Hammer Blades (18 Total) – aggressive cutting and mulching performance for dense grass and brush
• Efficient Mulching Action – finely shreds material to promote fast decomposition and reduce cleanup
• Designed for 80–110 HP tractors; operates at 540 RPM PTO for optimal cutting efficiency
• Handles dense grass, brush, and overgrowth with ease
• Rated cutting capacity up to 6 inches (material dependent)
• Italian CMR Gearbox (65HP Rated) – provides consistent power transfer and long-term durability
• SKF Shaft Bearings – designed for high-load applications, runs cooler, smoother, and quieter
• Externally Mounted Rotor Bearings – simplifies maintenance and future repairs
• Dynamically Balanced Rotor System – reduces vibration for smoother and safer operation
• Spring-Loaded Anti-Collision Protection – helps absorb impact and protect the machine from rocks and obstacles
• Openable Rear Cover Panel – quick access for blade replacement and clearing debris
• Adjustable Rear Roller – precise cutting height control for consistent results on uneven terrain
• Category 2, 3-Point Hitch – built for larger tractors and heavy-duty use
• Included PTO Shaft (1-3/8" Z6) – ready for quick hookup to most tractors; driveline length 73"–126"
• Tilt Range: 90° Up / 55° Down; offset reach up to ~122 inches from center
• Ideal for contractors, municipalities, farms, and large properties

Important Delivery Note

This unit exceeds standard liftgate limits. Customer must have a forklift, tractor, or unloading equipment available at delivery.

Documents

• Product Manual
