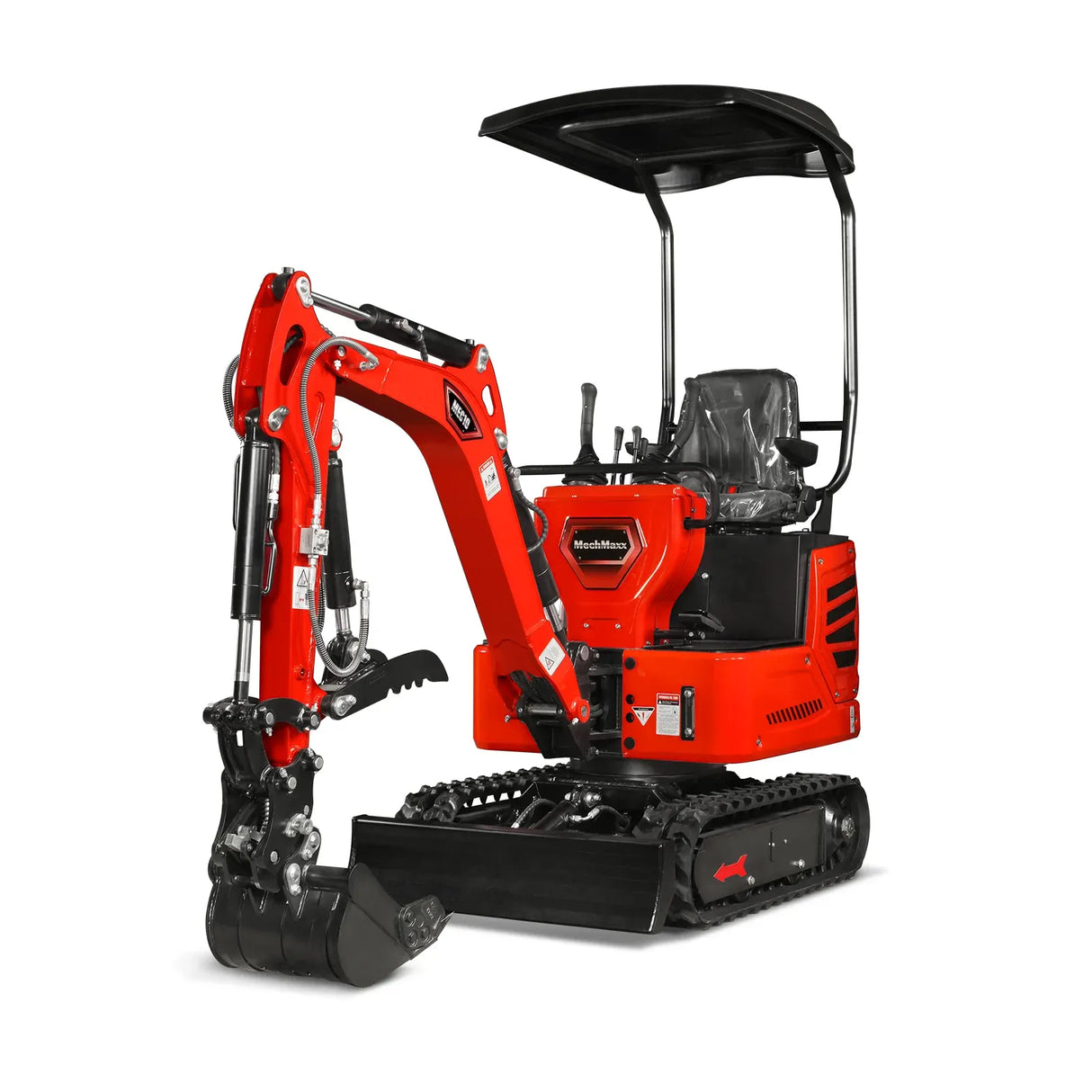

MechMaxx Mini Compact Excavator with HONDA GX390 Engine, 65.7" Max Digging Depth, 2280 lb Operating Weight, Model MEC10
MechMaxx Mini Compact Excavator with HONDA GX390 Engine, 65.7" Max Digging Depth, 2280 lb Operating Weight, Model MEC10 is backordered and will ship as soon as it is back in stock.
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx Mini Compact Excavator with HONDA GX390 Engine, 65.7"...

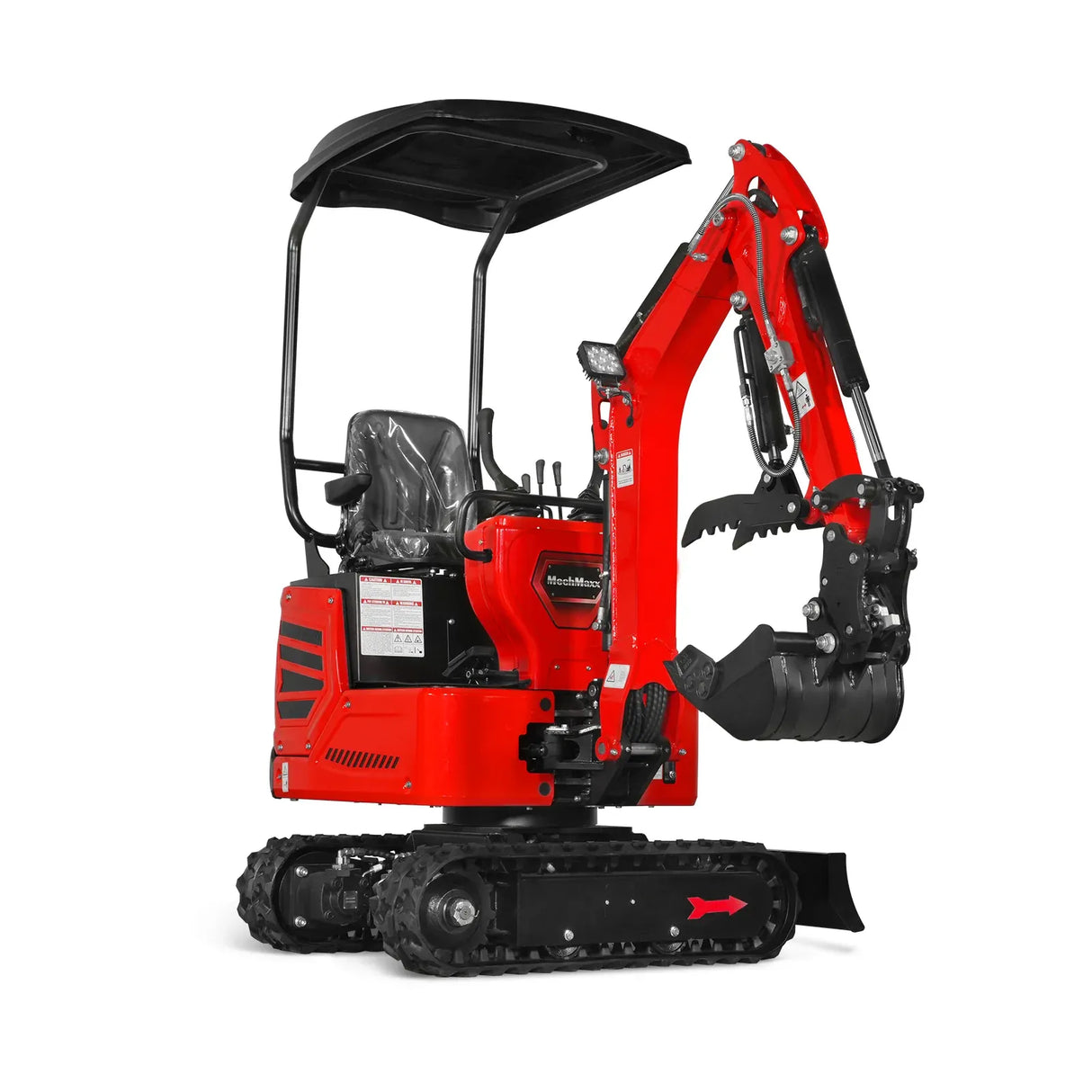

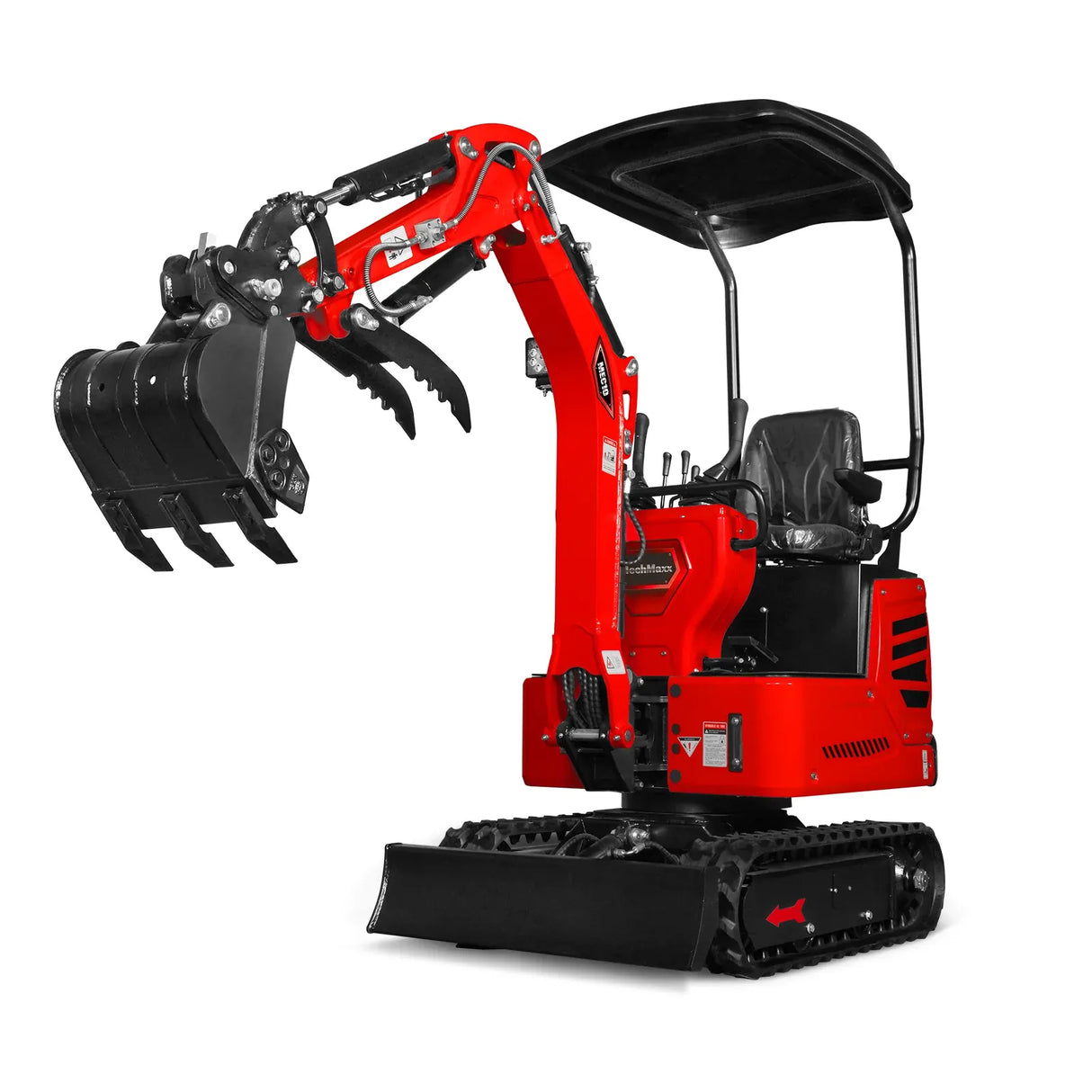

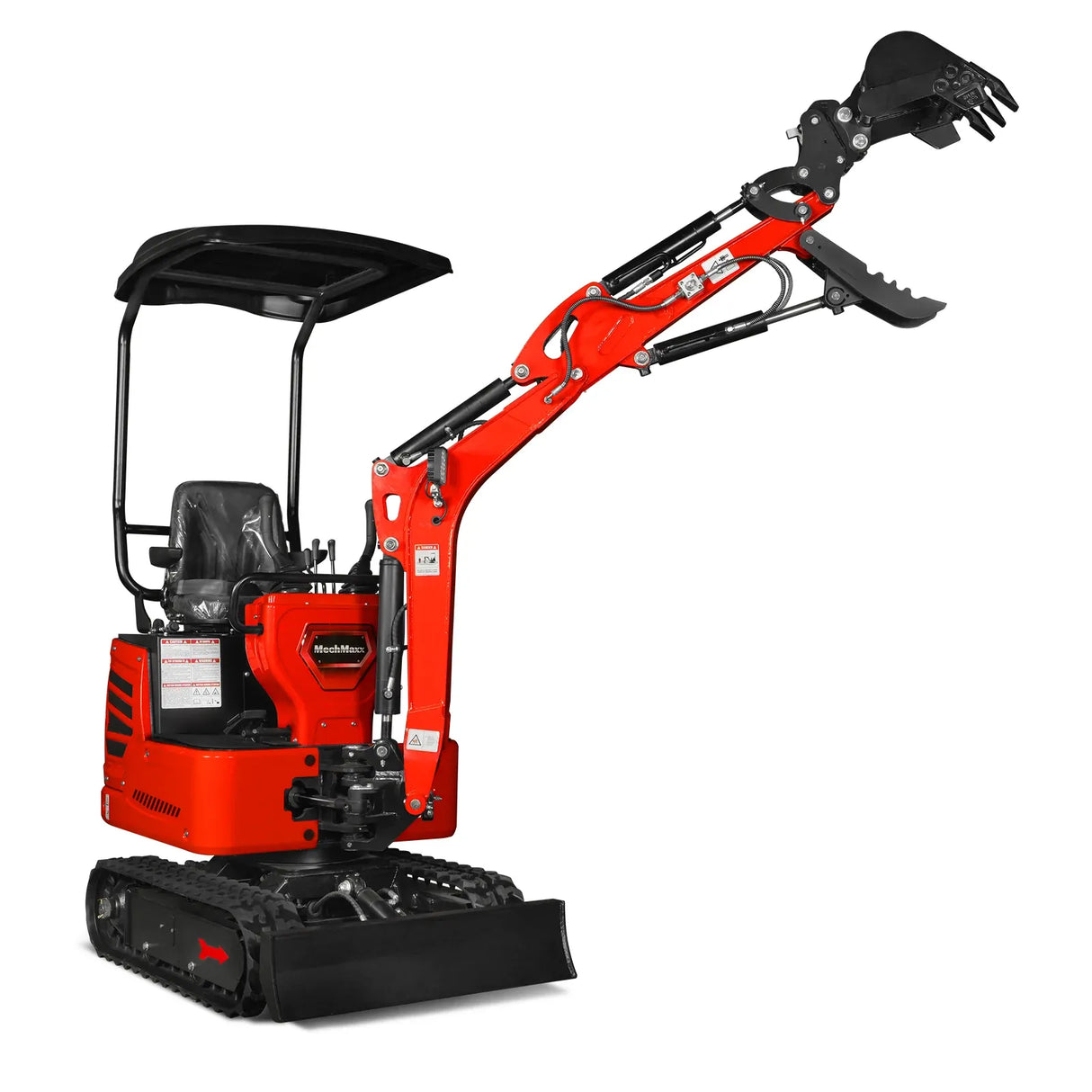

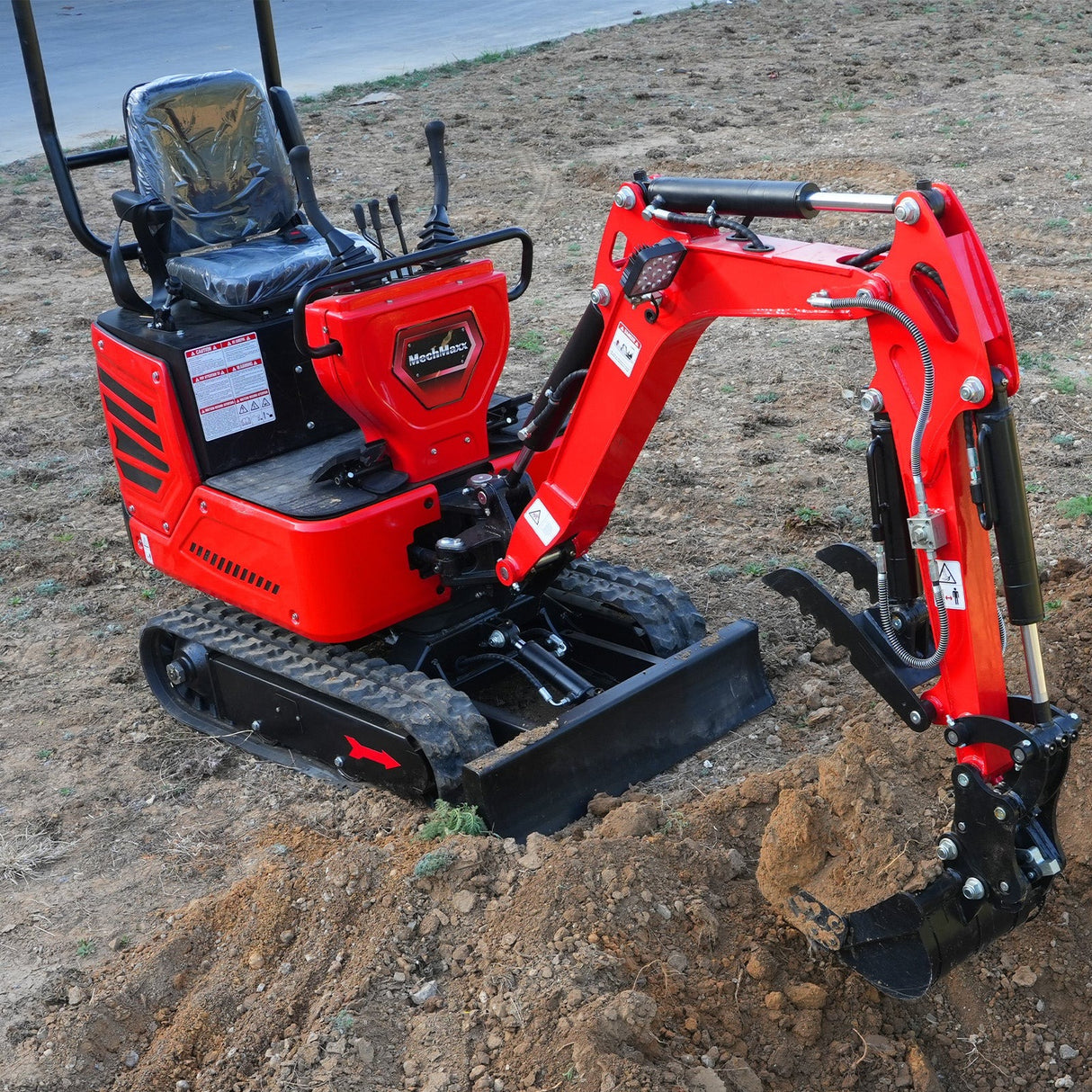

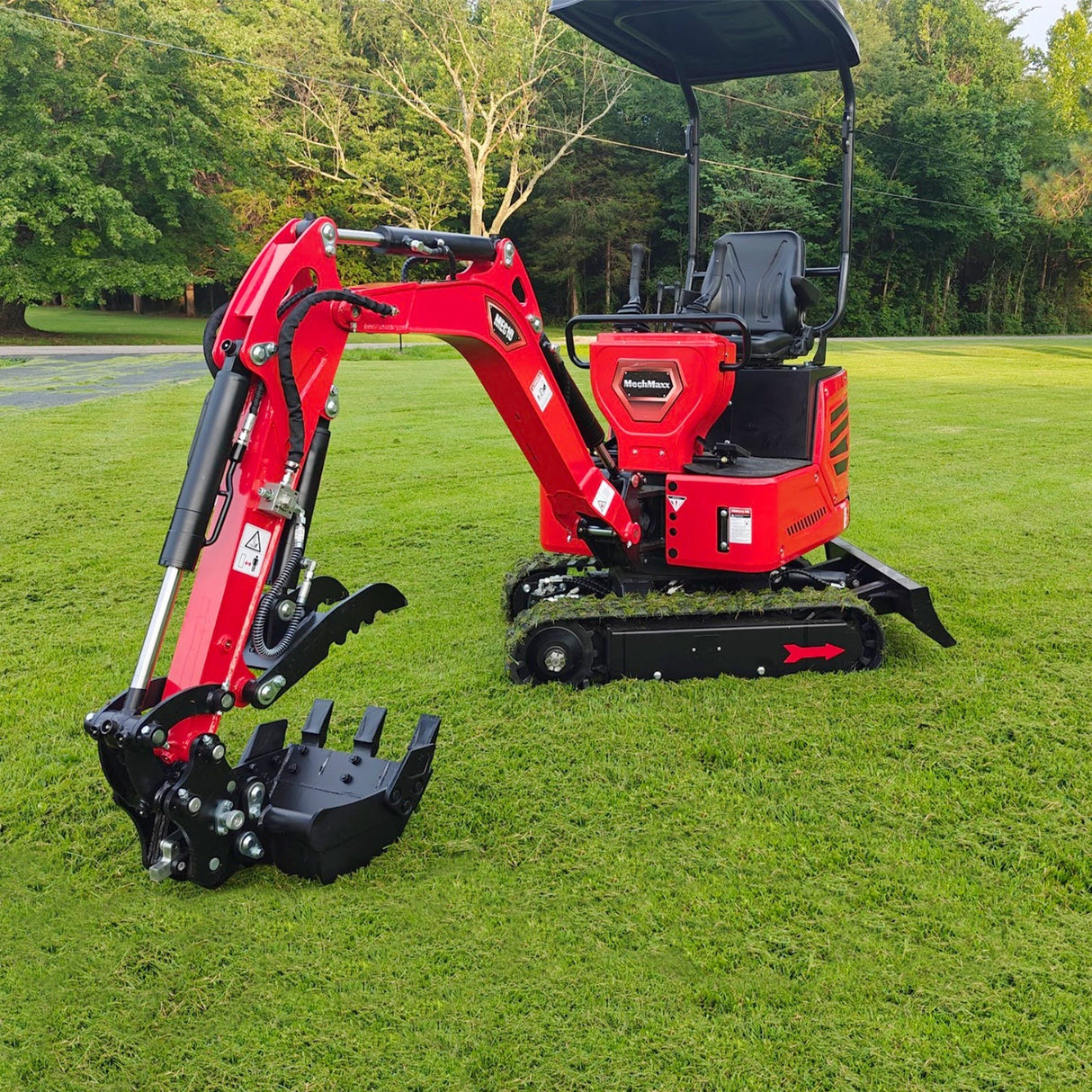

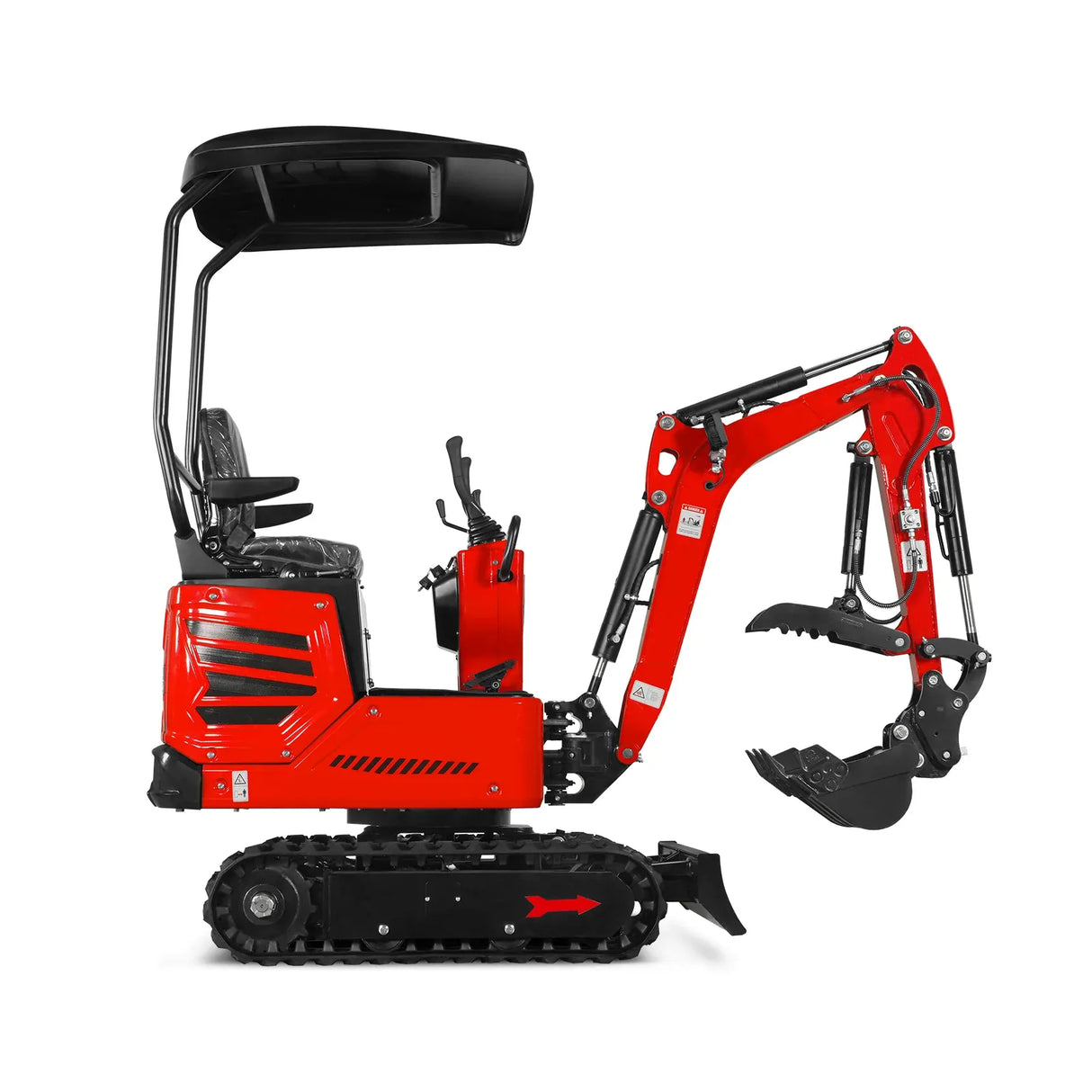

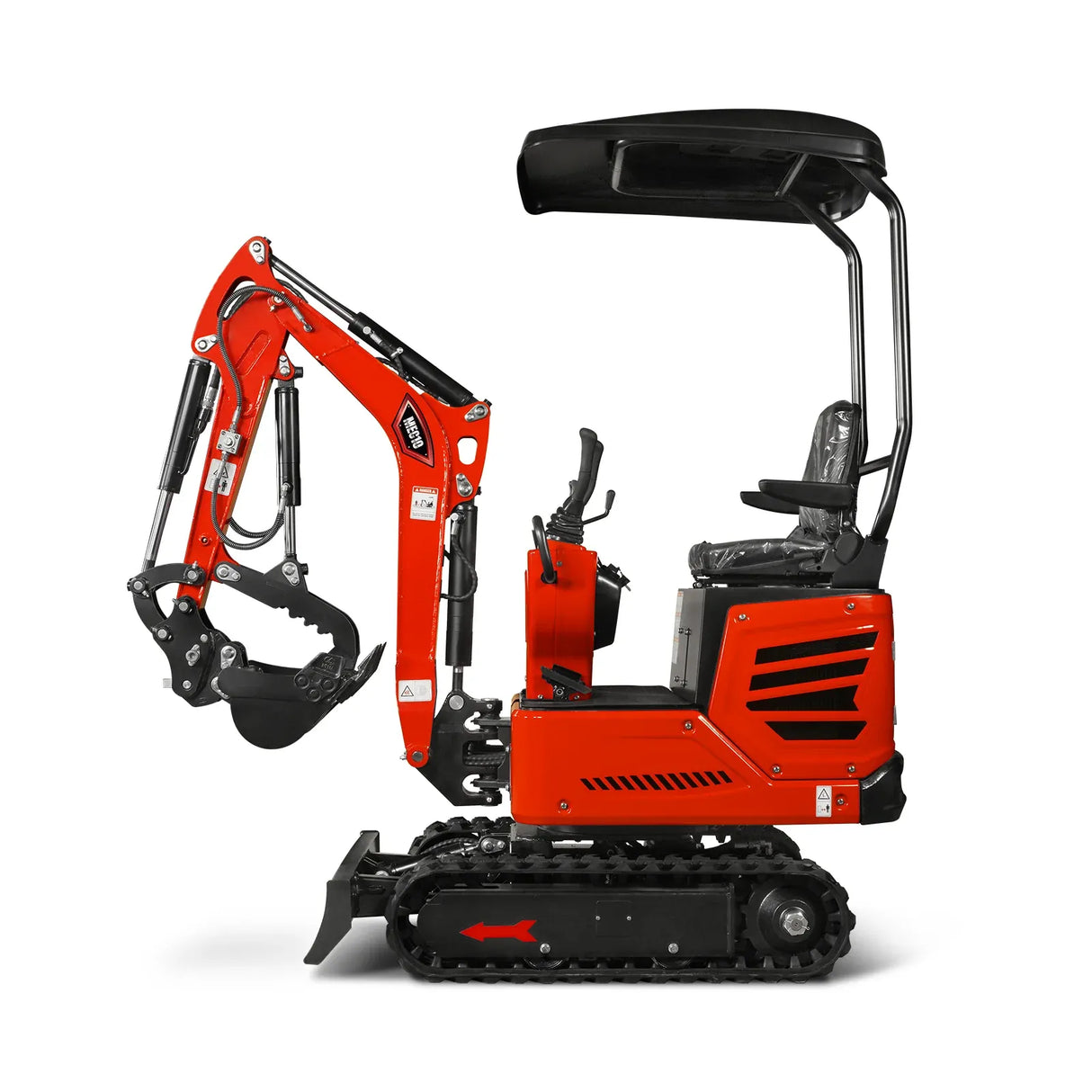

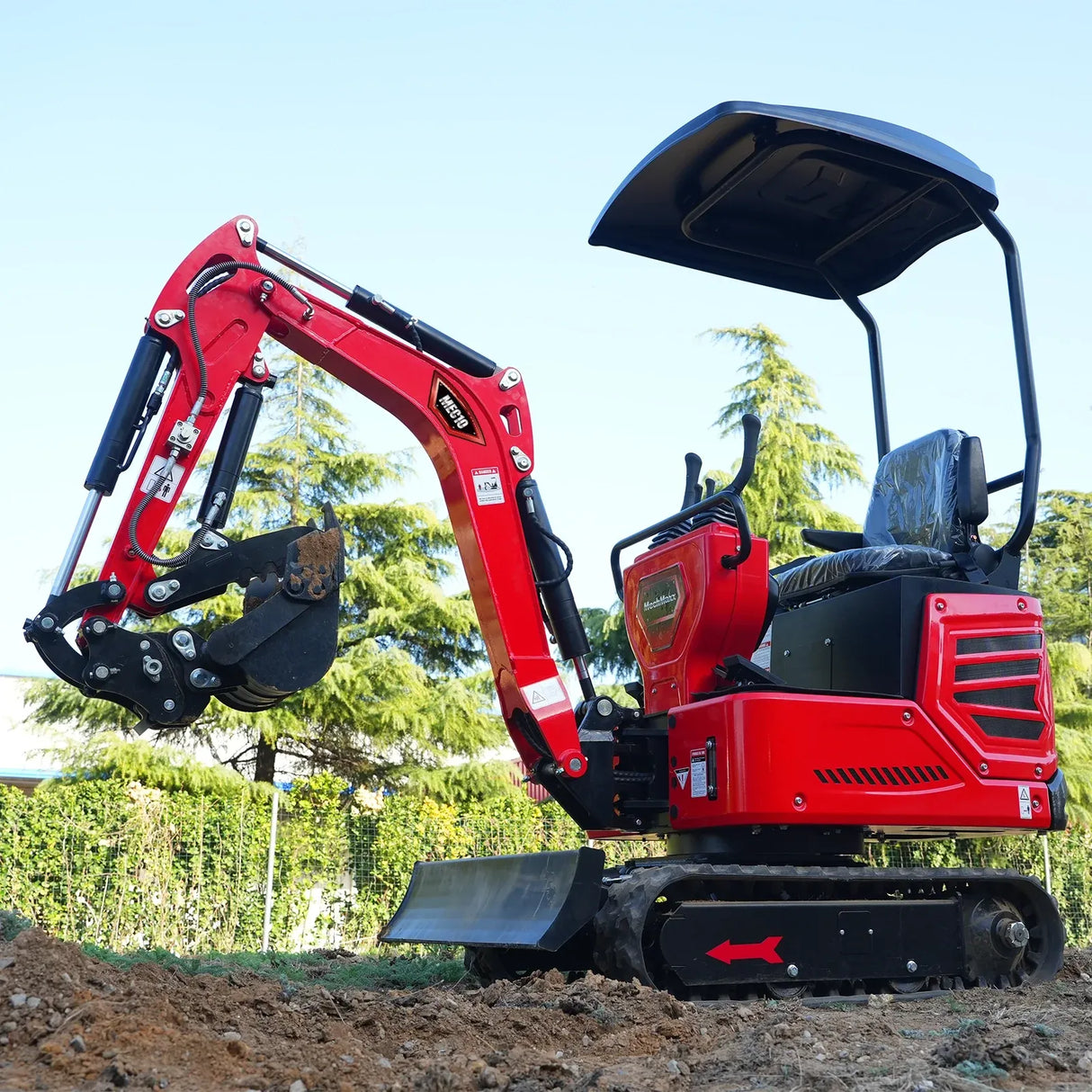

The MEC10 mini excavator is designed for efficient operation in narrow lanes, alleys, backyards, gardens, and other confined spaces. Its compact footprint allows it to work effectively in tight or hard-to-reach areas.

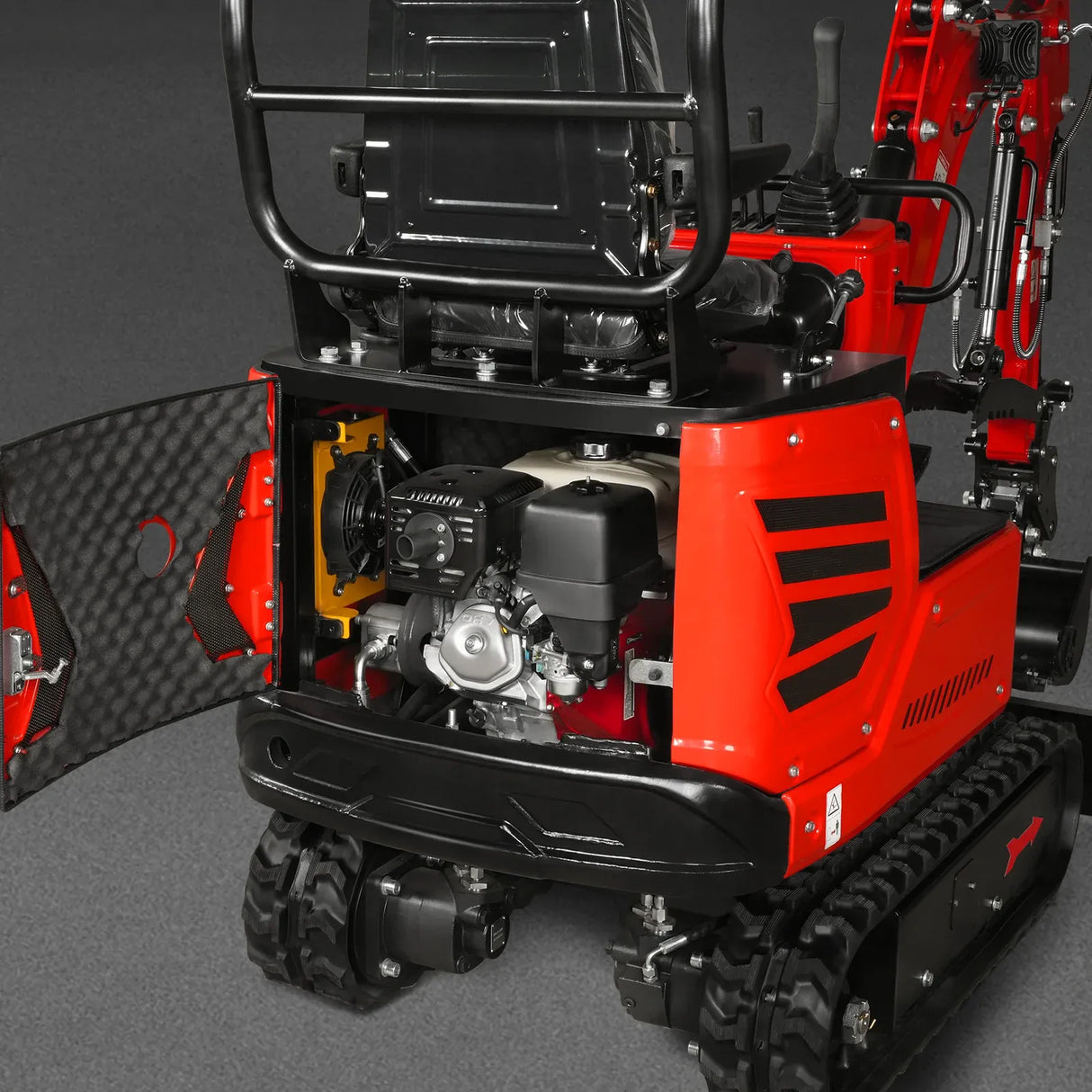

Powered by a 389cc 11.7HP air-cooled Honda GX390 engine, the machine delivers reliable performance with a high compression ratio for improved fuel efficiency.
The excavator features an enhanced hydraulic system capable of supporting high-flow attachments such as augers, rippers, and mulcher heads (not included), allowing it to handle a variety of demanding tasks including concrete work and vegetation management.

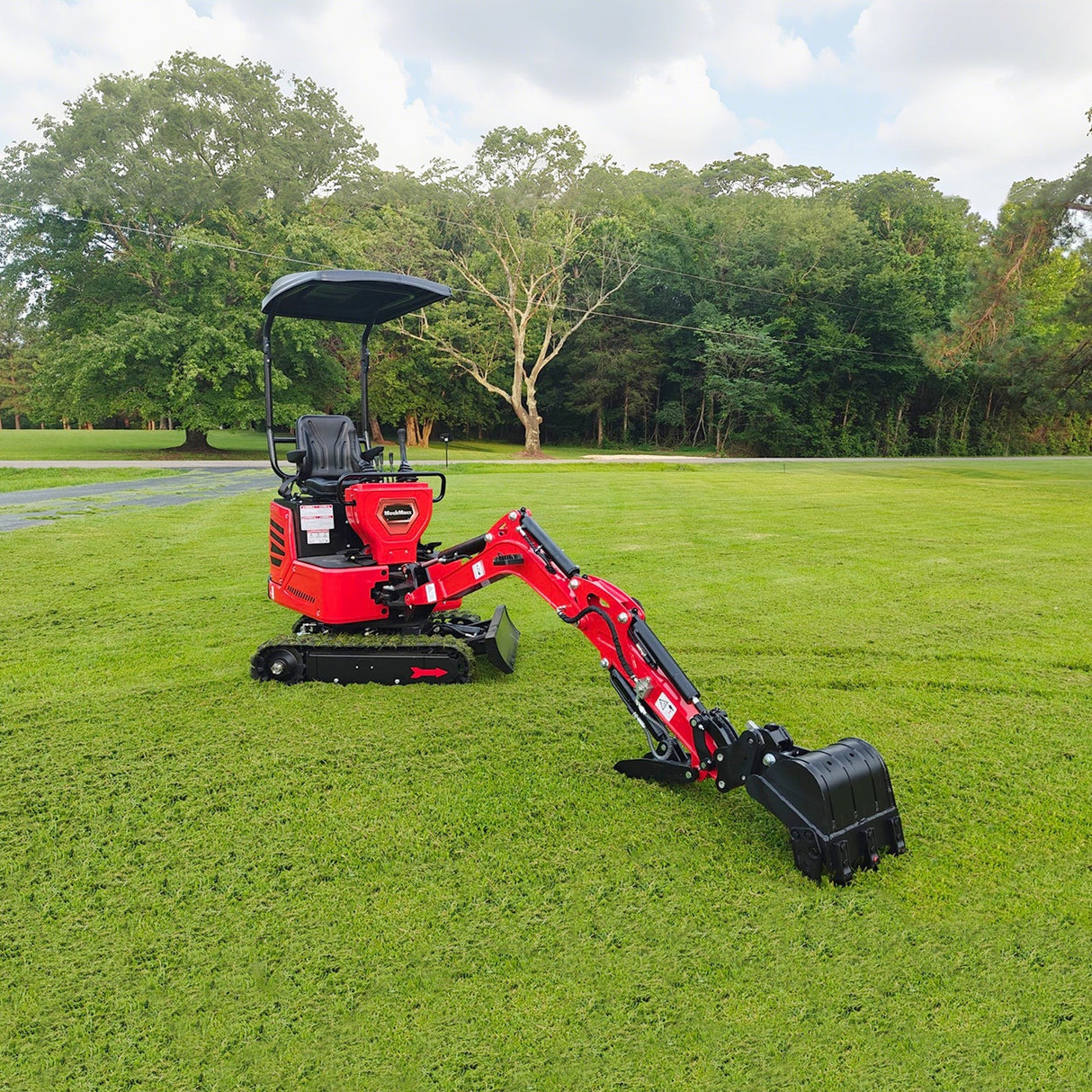

With a digging depth of up to 65.7 inches and a maximum ground digging radius of 119 inches, the MEC10 can reach and operate in tight spaces without the need for frequent repositioning.

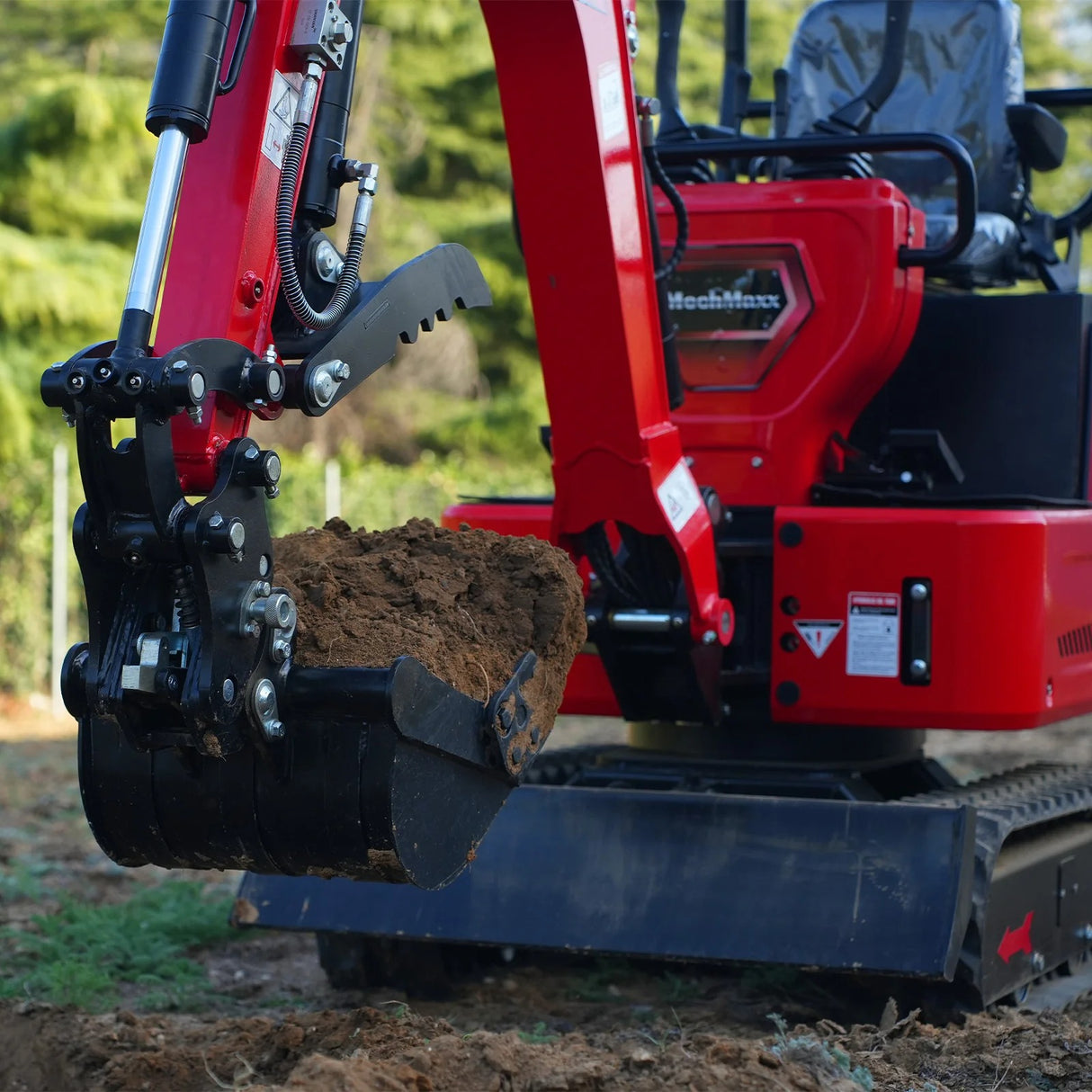

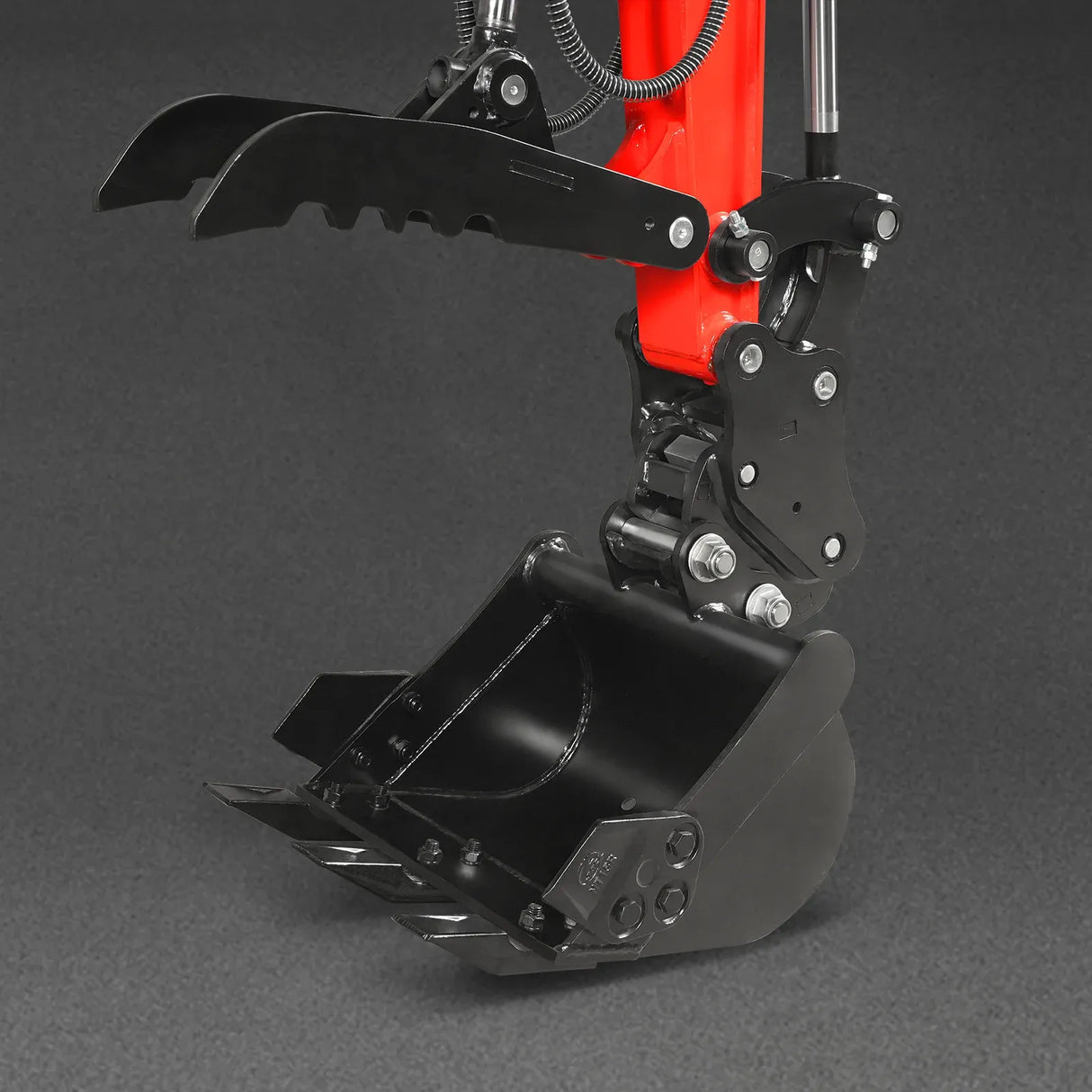

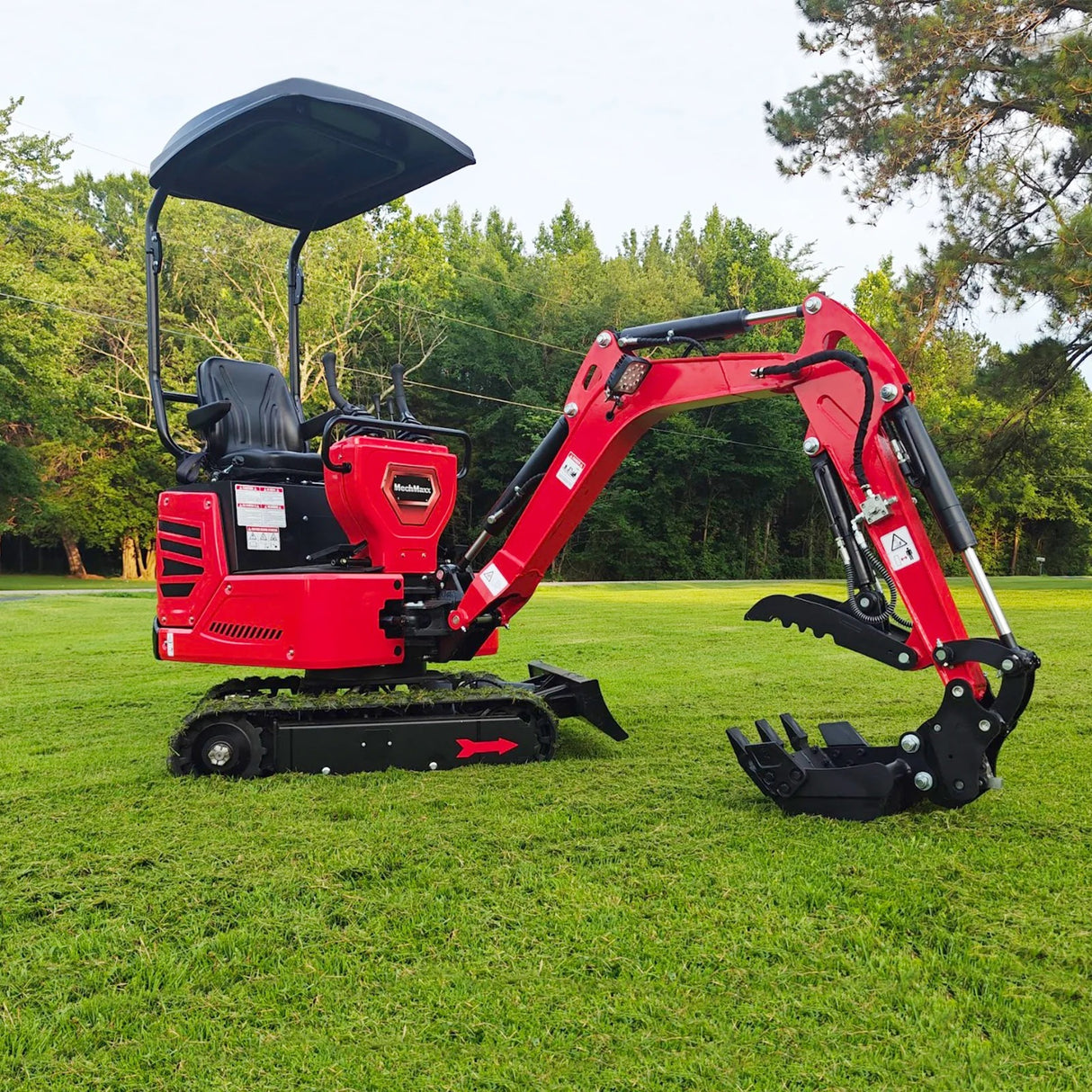

A hydraulic thumb is included for convenient handling of rocks, branches, and debris, with adjustable positioning directly from the operator's seat.
The unit is capable of full 360-degree rotation, providing flexibility and efficiency during operation.
| Specifications | Details |
|---|---|
| Standard Bucket Capacity | 0.7 cu-ft |
| Standard Bucket Width | 15 in |
| Max. Travel Speed | 0.75 mph |
| Slewing Speed | 11 RPM |
| Max. Gradeability | 30° |
| Track Ground Pressure | 5.1 psi |
| Hydraulic Oil Tank Capacity | 3.96 gal |
| Auxiliary Std Flow | 5.7 gal/min |
| Max. Tractive Force | 3035 lbf |
| Arm Digging Force | 1191 lbf |
| Bucket Digging Force | 1619 lbf |
| Rated Lift Capacity | 728 lb |
| Lift Radius | 80 in |
| Operating Weight | 2280 lb |

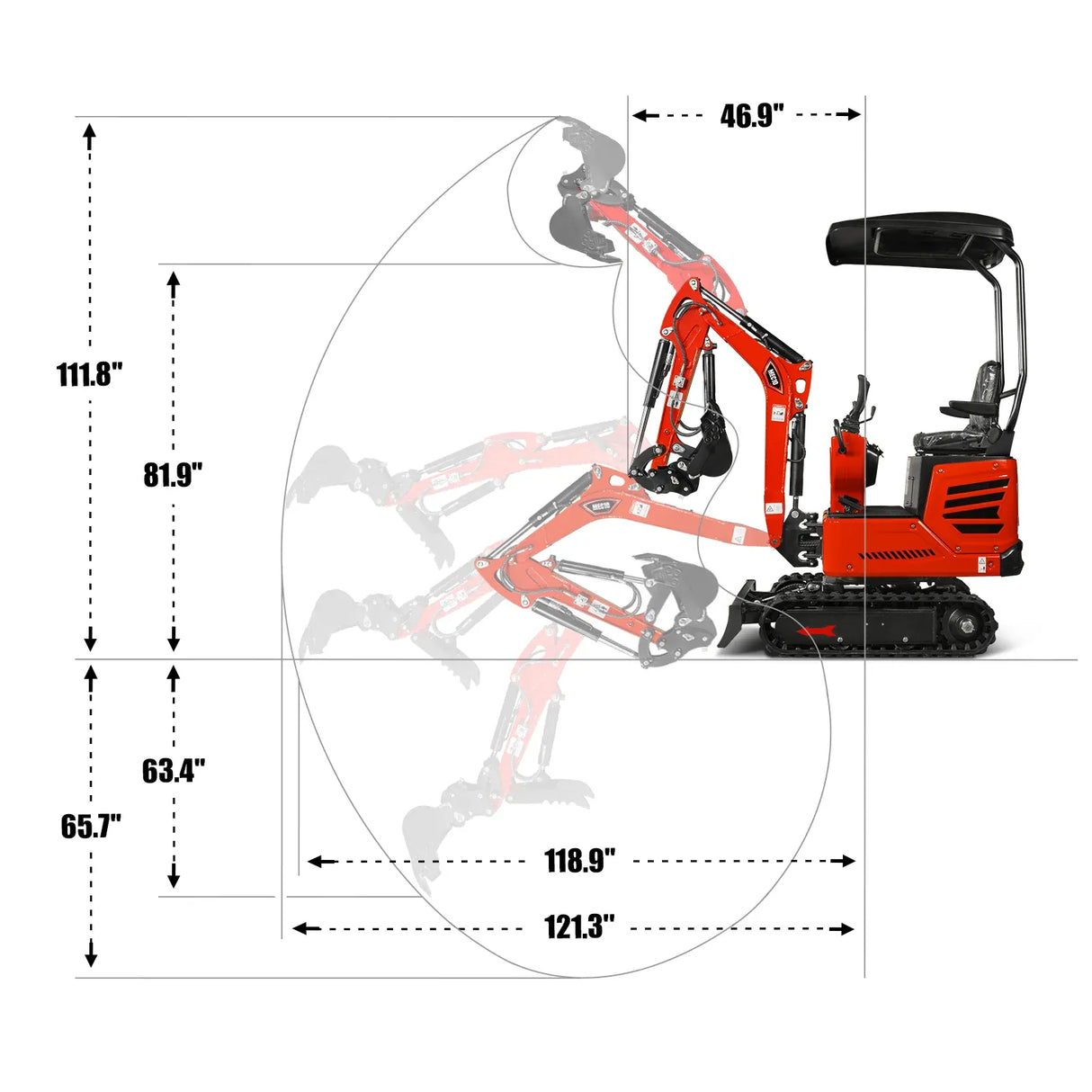

| Max. Digging Radius on Ground | 119 in |
| Max. Digging Depth | 65.7 in |
| Overall Operating Height (Fully Raised) | 111.8 in |
| Max. Digging Radius | 121 in |
| Max. Unloading Height | 81.8 in |
| Max. Vertical Digging Depth | 63.3 in |
| Min. Turning Radius | 46.8 in |
| Max. Lifting Height Dozer Blade | 5.9 in |
| Max. Depth Dozer Blade | 7.4 in |

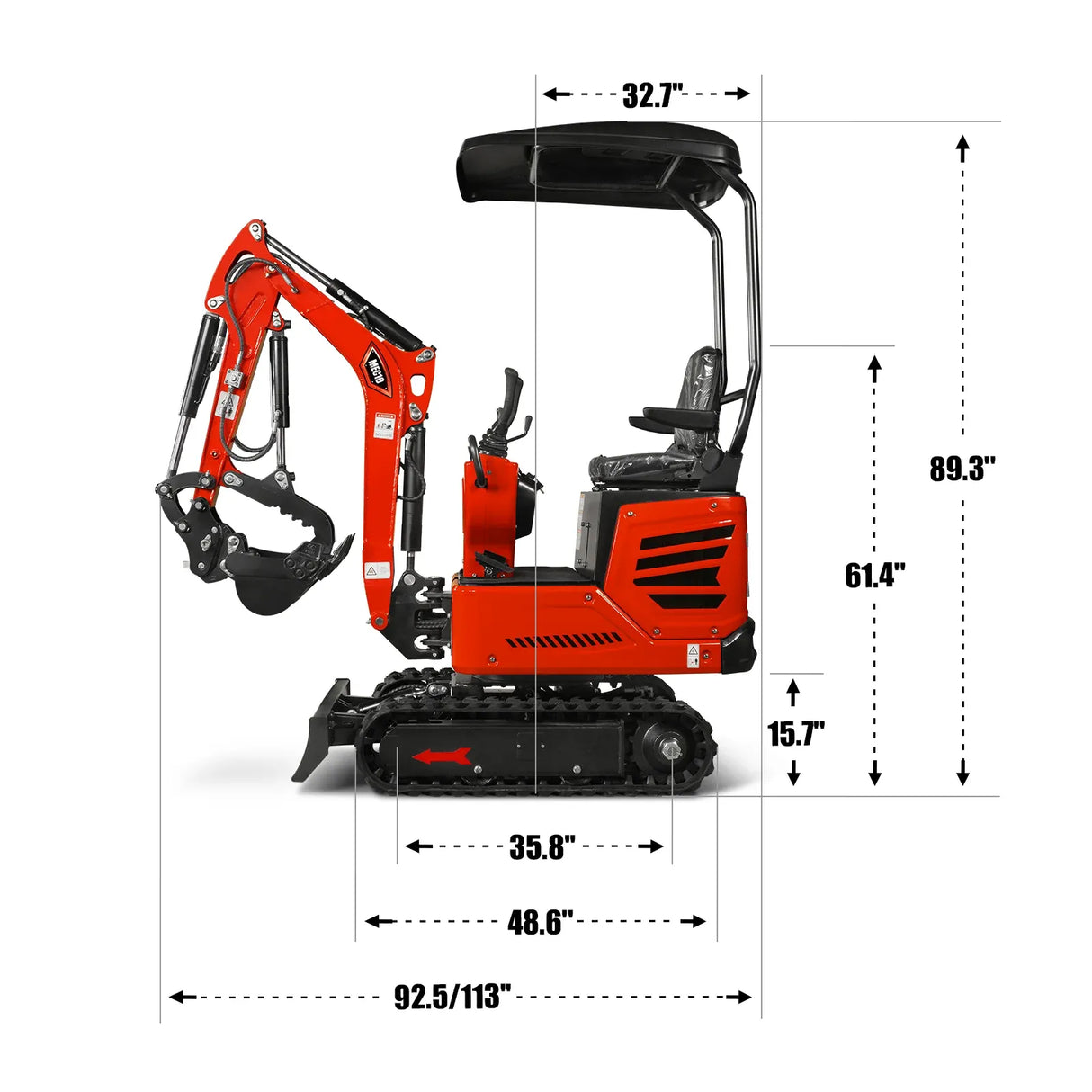

| Wheel Track | 35.8 in |
| Track Length | 48.6 in |
| Upper Chassis Ground Clearance | 15.7 in |
| Counterweight Turning Radius | 32.6 in |

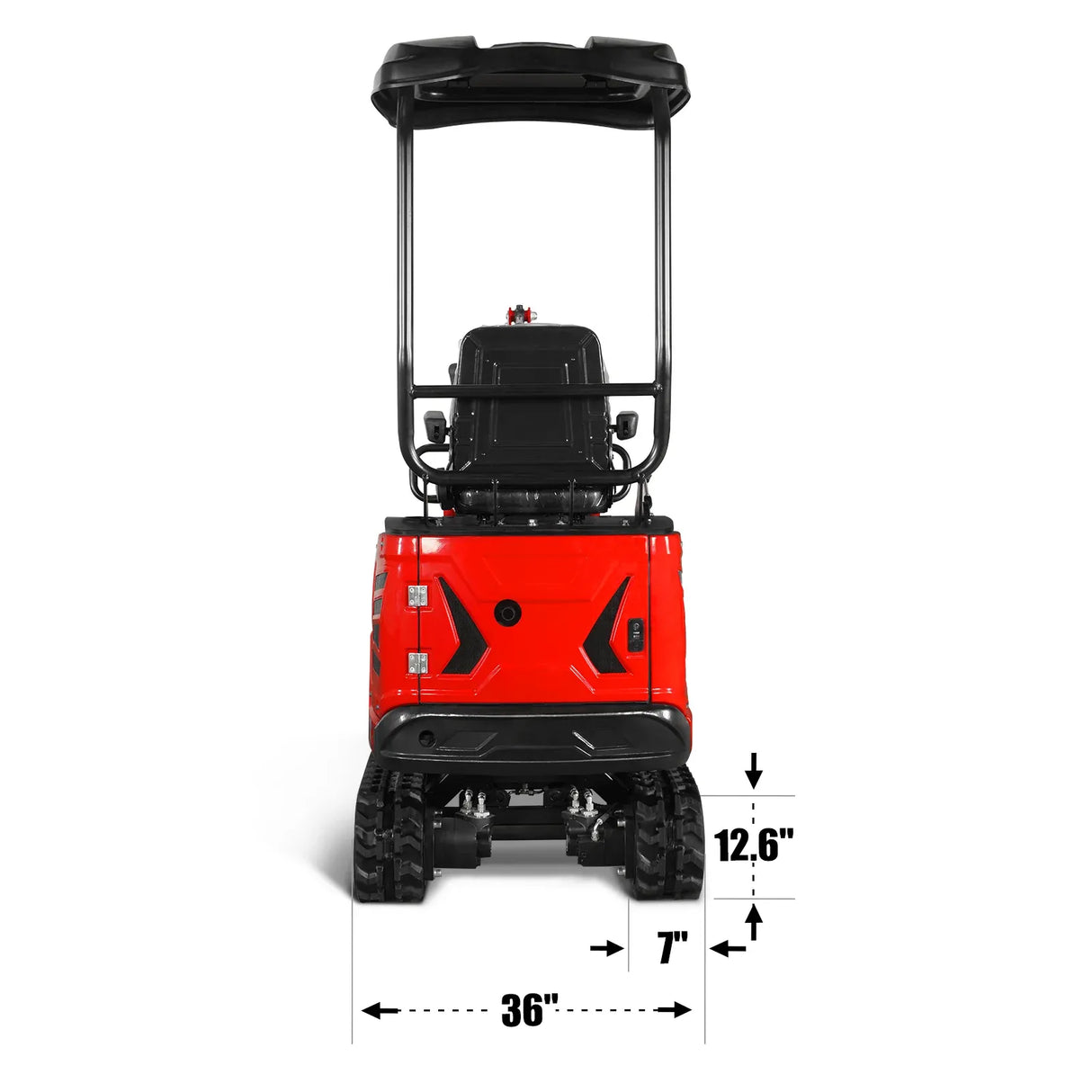

| Chassis Width | 36 in |
| Track Width | 7 in |
| Track Height | 12.6 in |
| Transportation Length | 92.5 / 113 in |
| Height of Seat to Ground | 61.4 in |
| Overall Height | 89.3 in |

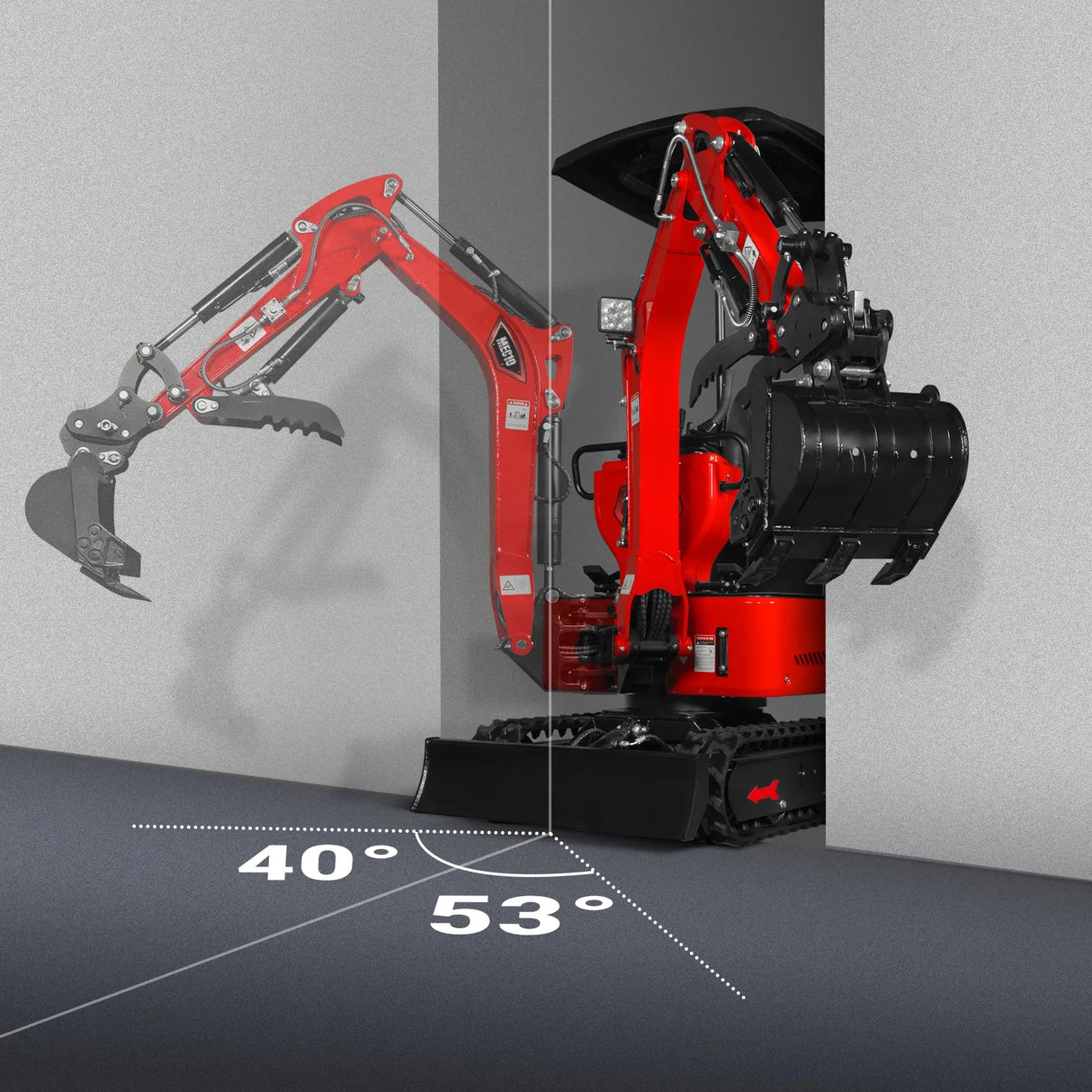

| Boom Swing – Right | 40° |
| Boom Swing – Left | 53° |
| Engine Model | Honda GX390 |
| Displacement | 389 cc; 11.7 HP |
| Engine Type | 4-stroke, overhead valve, single cylinder |
| Start Type | Electric Start |
| Rated Power | 8.7 kW / 3600 RPM |
| Max. Net Torque | 26.5 N·m / 2500 RPM |
| Fuel Tank Capacity | 1.6 gal |
| Engine Oil Capacity | 0.3 gal |
| Engine Oil Type | 10W-30 |
| Engine Warranty | 1 Year |

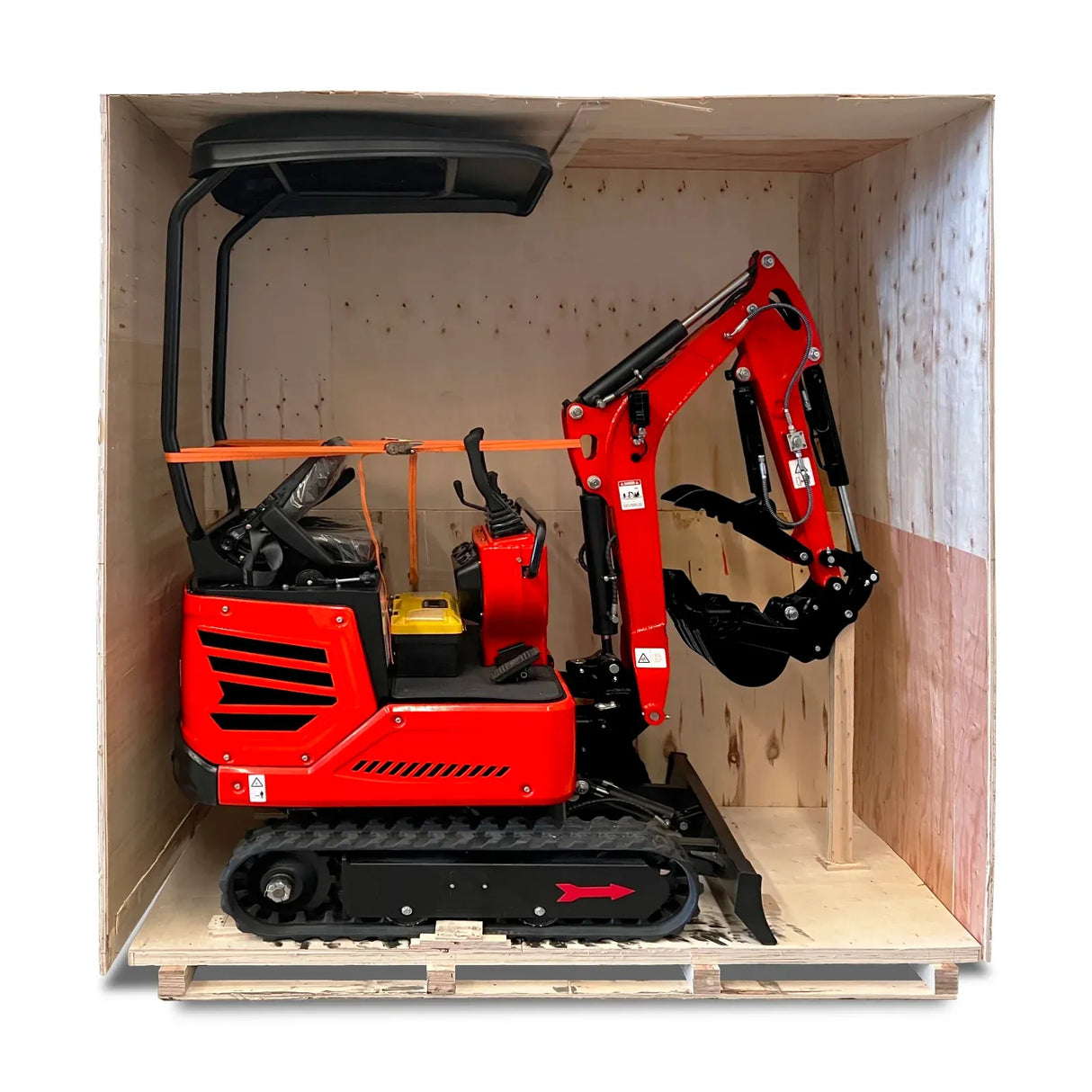

| Package Method | Plywood Case |
| Dimensions | 91 x 40 x 98 in |
| Weight (N.W./G.W.) | 2100 / 2376 lb |
