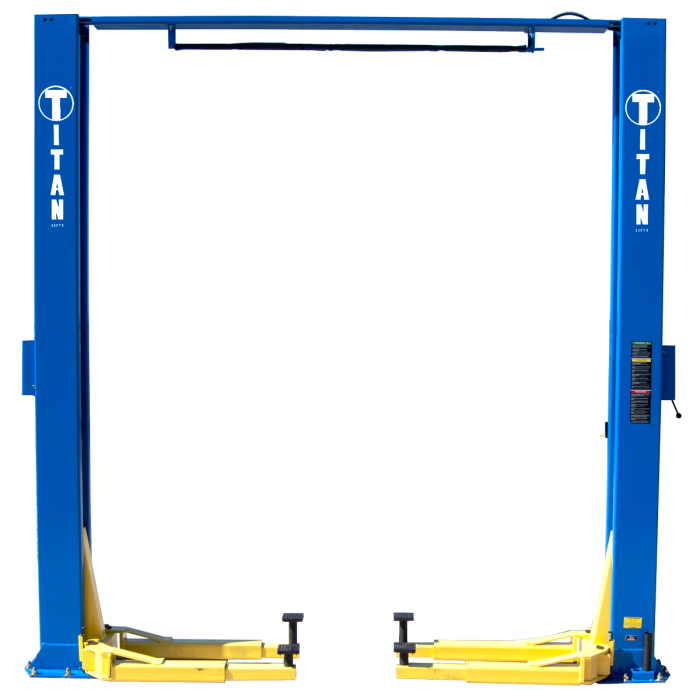

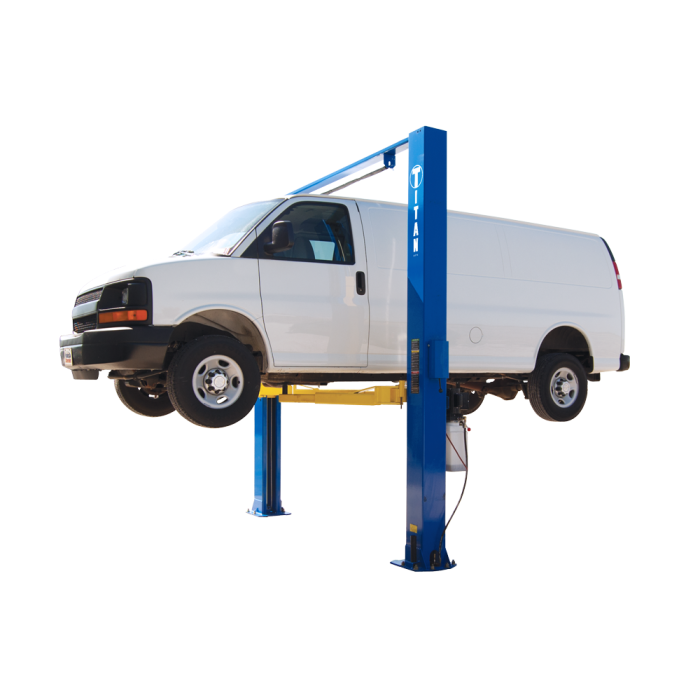

Titan HD2P-10000AC-D 10,000 lb Direct Drive 2-Post Lift

The Titan HD2P-10000AC-D is a 10,000 lb capacity 2-post lift designed with a direct drive hydraulic system for improved efficiency and reduced maintenance. Built for both commercial shops and serious home garages, it offers a step up in performance over standard 9K lifts.

Direct Drive System with Fewer Moving Parts

Unlike traditional chain-over-roller designs, this lift uses a direct drive hydraulic setup, minimizing wear components and reducing long-term maintenance requirements. Many professionals prefer this system for its smoother operation and simplified design.

Asymmetric Arm Design with Clear Floor Layout

The asymmetric arm configuration allows for easier vehicle positioning and door clearance, while the clear floor design eliminates obstructions between columns. This makes it ideal for efficient workflow in tight shop environments.

Built for Stability, Safety, and Daily Use

Constructed with a symmetric column structure and reinforced components, this lift is engineered for durability and consistent performance. The single-point safety release and automatic arm restraints help ensure safe operation during lifting and lowering.

Installation Requirements

For proper installation, the lift must be mounted on a level concrete surface with a minimum thickness of 4 inches and 3,000 PSI strength. Adequate curing time and proper anchoring are required for safe operation.

Key Features

• 10,000 lb lifting capacity
• Direct drive hydraulic lifting system
• Asymmetric arm configuration
• Symmetric column design
• Clear floor layout
• Low-profile automatic arm restraints
• Single-point safety release system
• (4) 5.5" drop-in height adapters included
• Free mounting hardware included
• Durable powder-coated finish
• 1-year hydraulic/electrical warranty
• 5-year structural warranty

Documents

• Manual
• Spec Sheet
