Titan HD2P-12KMSC 12,000 lb 2-Post Lift Master Series

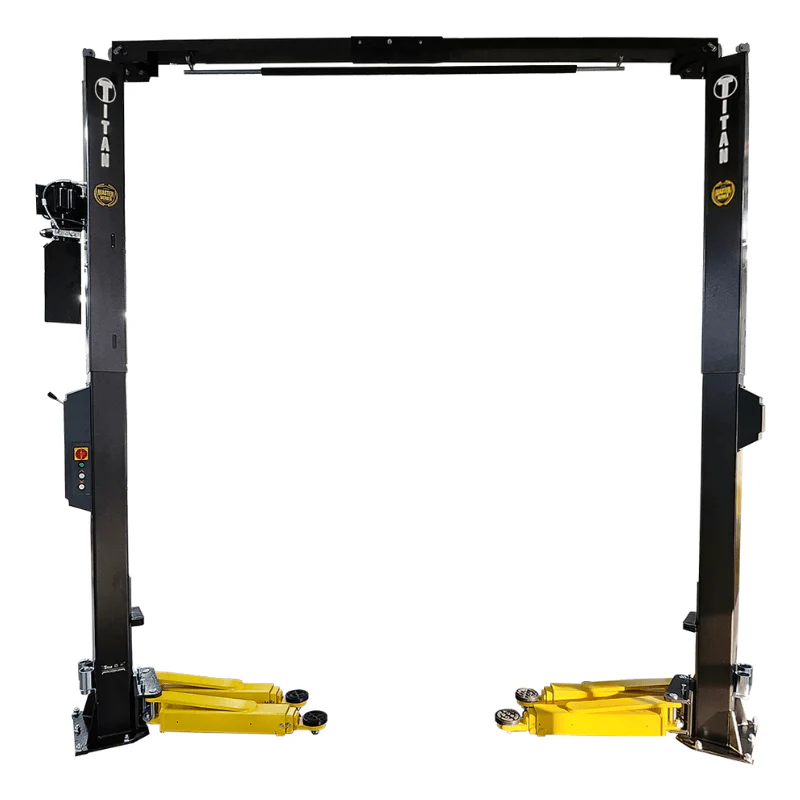

The Titan HD2P-12KMSC Master Series 2-post lift is engineered for both commercial environments and advanced home garages. With a powerful 12,000 lb lifting capacity and clearfloor design, it provides maximum workspace efficiency while handling a wide range of vehicles.
Flexible Column Configuration for Versatile Applications
This lift offers both symmetric and asymmetric column configurations, allowing you to adapt it based on your workspace and vehicle types. With two height options (154" or 176"), it fits a variety of ceiling clearances and shop setups.
Premium Hydraulic Performance and Smooth Operation
Powered by a high-quality hydraulic system, this lift features direct drive cylinders for consistent lifting performance. The one-button operation and included electrical disconnect make it simple and efficient to use in daily operations.
Advanced Safety System with Single Point Locking
Equipped with a single-point lock release, overhead shut-off bar, carriage limit switch, and multiple safety mechanisms, this lift ensures safe and controlled operation. The locking system engages automatically as the lift rises and requires manual release for descent, providing added security.
Built for Durability and Long-Term Reliability
Constructed with heavy-duty steel components and finished with a textured powder coat, this lift is built to withstand demanding use. Features like serviceable arm restraints, European-style carriages, and lifetime nylon slide blocks ensure long-lasting performance.
Key Features
- 12,000 lb lifting capacity
- Symmetric or asymmetric column configuration
- Two height options: 154" or 176"

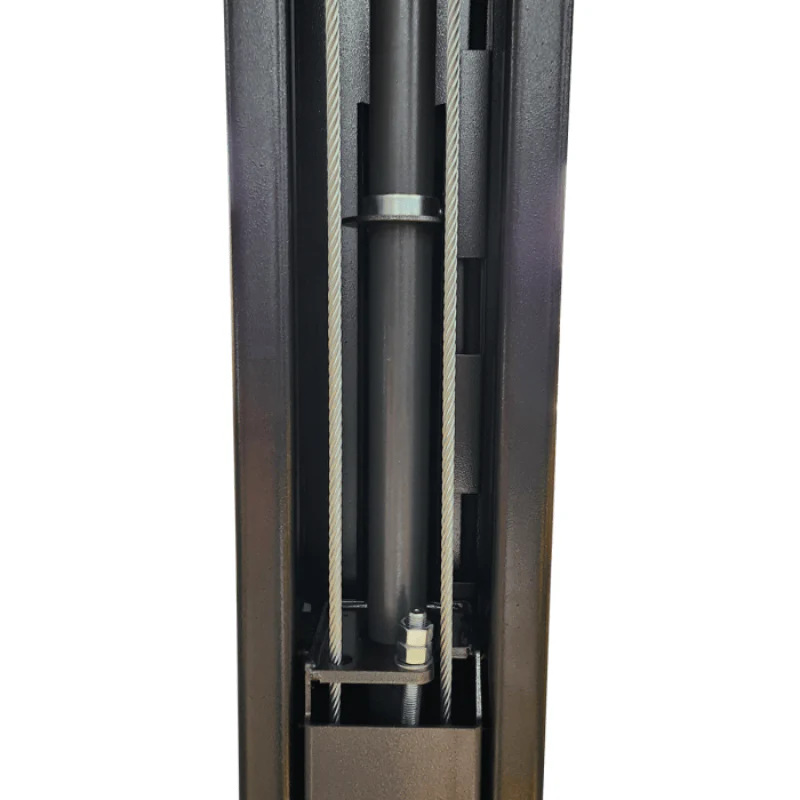

- Direct drive hydraulic cylinders
- Single-point safety lock release

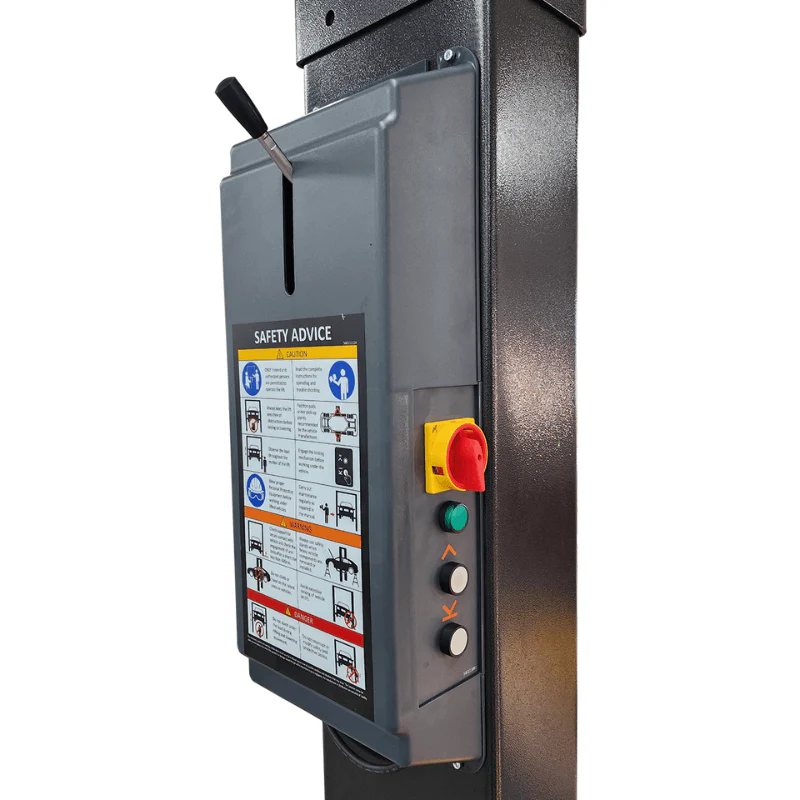

- One-button operation system
- Power-on green LED indicator
- Included electrical disconnect
- Overhead shut-off bar with limit switch
- Carriage limit switch for added safety

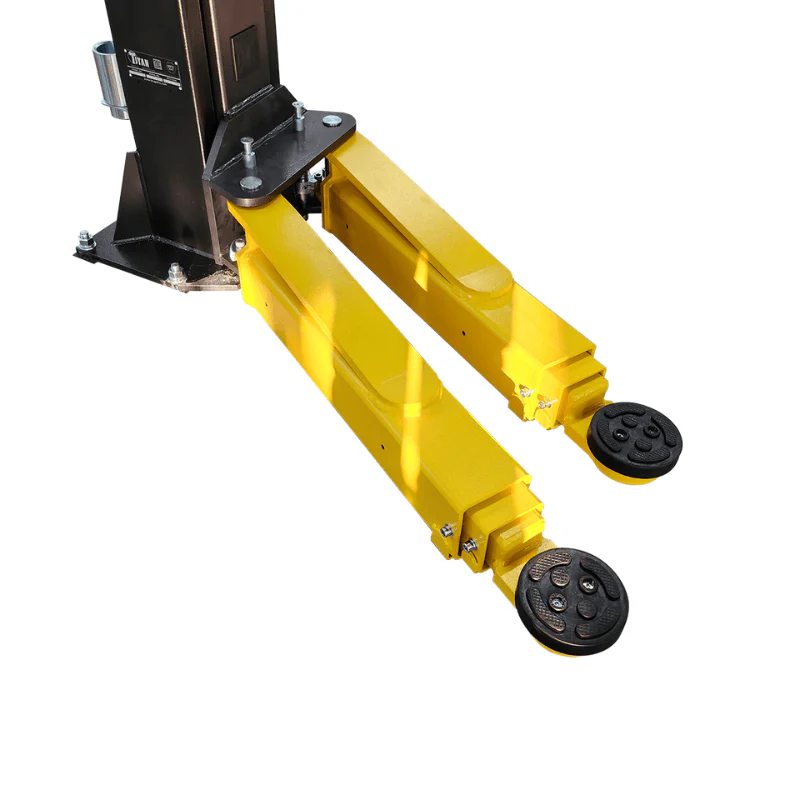

- Four 3-stage arms for maximum reach
- European-style carriages
- Thread-up lifting pads
- 4" truck adapters included
- Rubber door guards

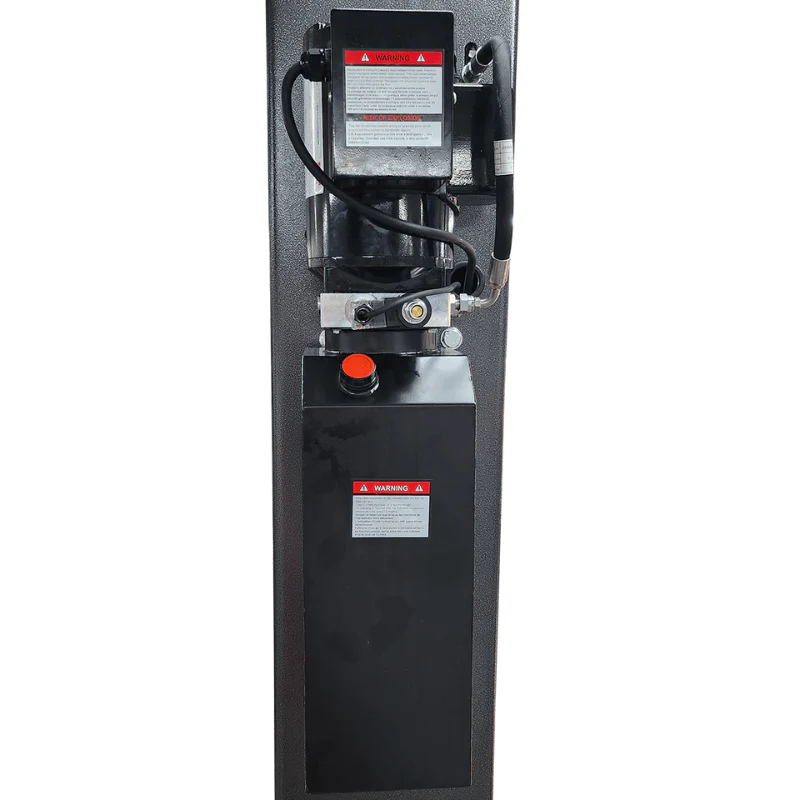

- Steel hydraulic oil reservoir
- Powder-coated hammered dark finish
- Lifetime warranty on nylon slide blocks
- 5-year structural warranty
- 2-year hydraulic/electrical warranty
| Specifications | Details |
|---|---|
| Outside of Baseplates Width (Sym.) | 154-7/8" |
| Inside of Columns Width (Sym.) | 131-3/4" |
| Overall Width with Motor (Sym.) | 160-3/16" |
| Drive-Thru Width (Sym.) | 119" |
| Outside of Baseplates Width (Asym.) | 161-1/2" |
| Inside of Columns Width (Asym.) | 126" |
| Overall Width with Motor (Asym.) | 161-1/2" |
| Drive-Thru Width (Asym.) | 113-3/8" |
| Lifting Height | 4-5/16" – 74-13/16" |
| Overall Height | 153-9/16" or 175-1/4" |
| Lifting Capacity | 12,000 lb |
| Power Unit | 220V, 1 Phase |
| Shipping Weight | 2,190 lb |
| Shipping Length | 113" |
| Shipping Width | 23" |
| Shipping Height | 47" |
