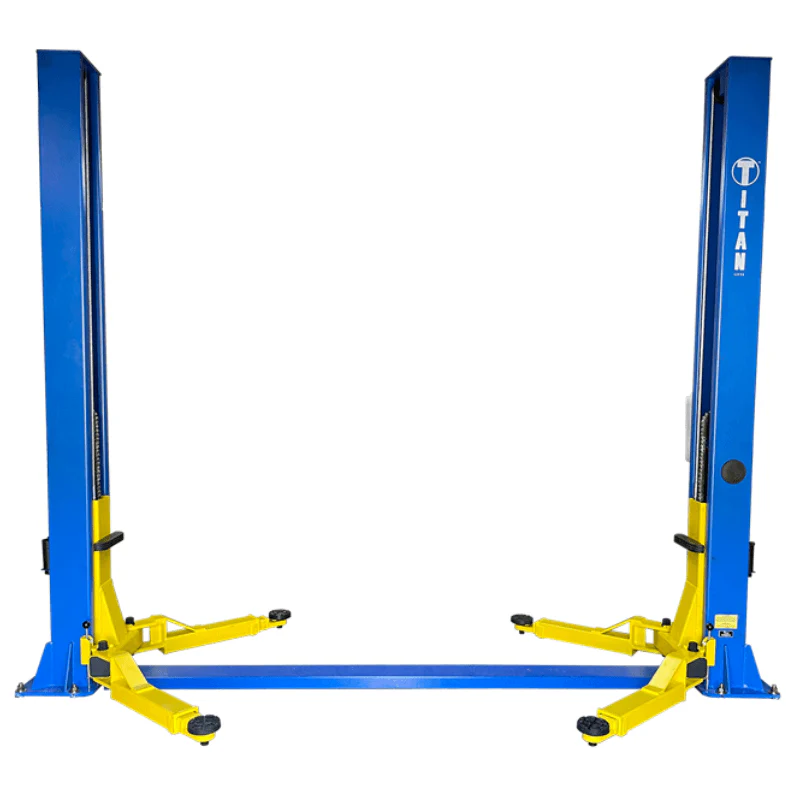

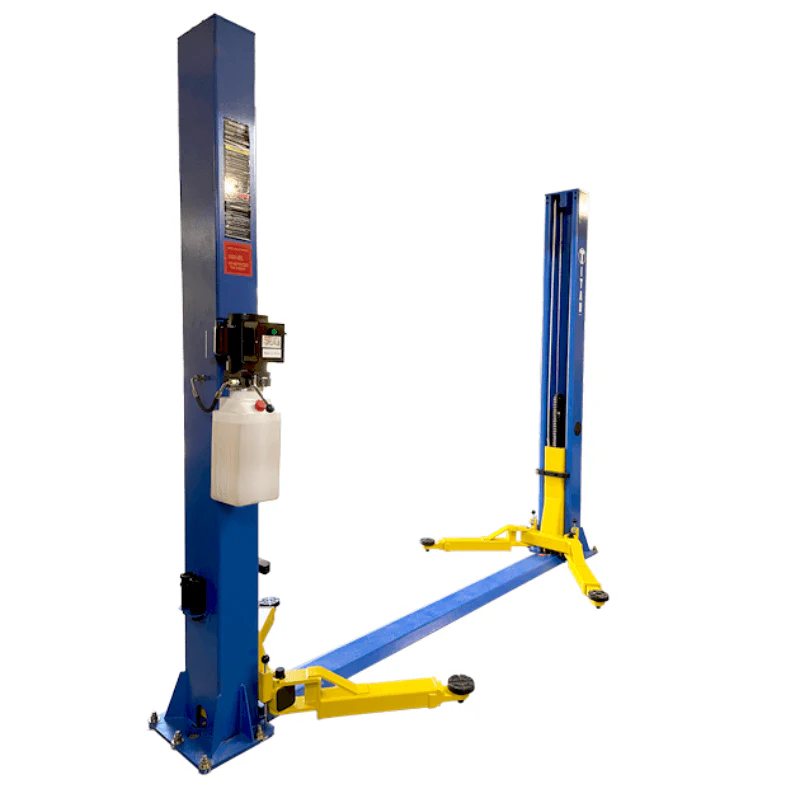

Titan HD2P-9000AF Gen 2 9,000 lb 2-Post Vehicle Lift
Symmetric Design with Low Ceiling-Friendly Height

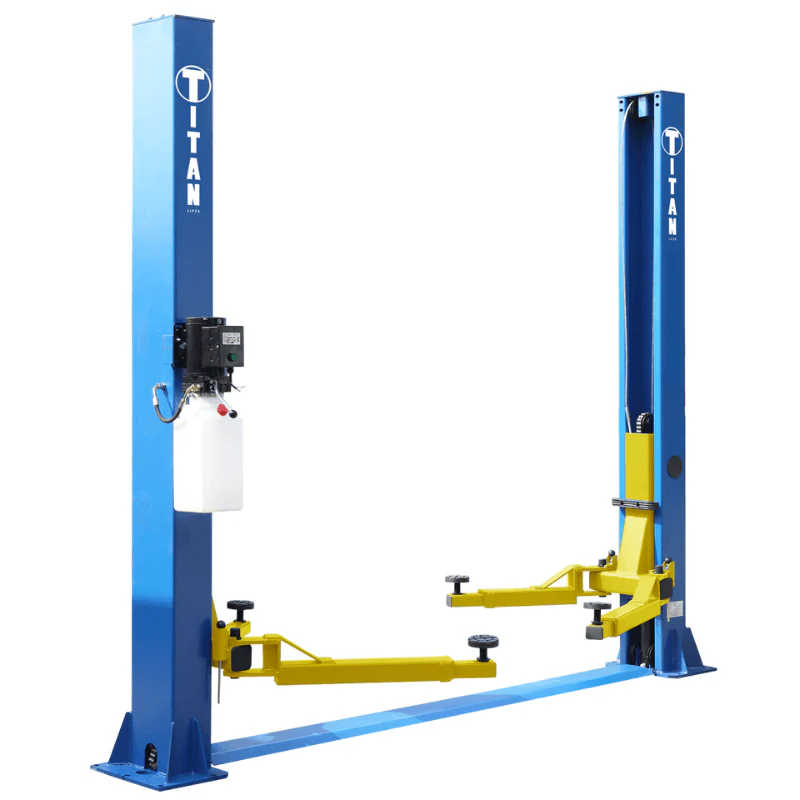

The Titan HD2P-9000AF Gen-2 is a 9,000 lb capacity 2-post lift designed for both professional service shops and serious home garages. Featuring a floorplate configuration, this model is ideal for spaces with lower ceilings while still delivering reliable lifting performance and durability.
Floorplate Design for Low Ceiling Applications
This lift uses a low-profile floorplate system that houses hydraulic lines and cables at the base, making it a great option for garages where overhead clearance is limited. The symmetric arm layout ensures balanced lifting for a wide range of vehicles.

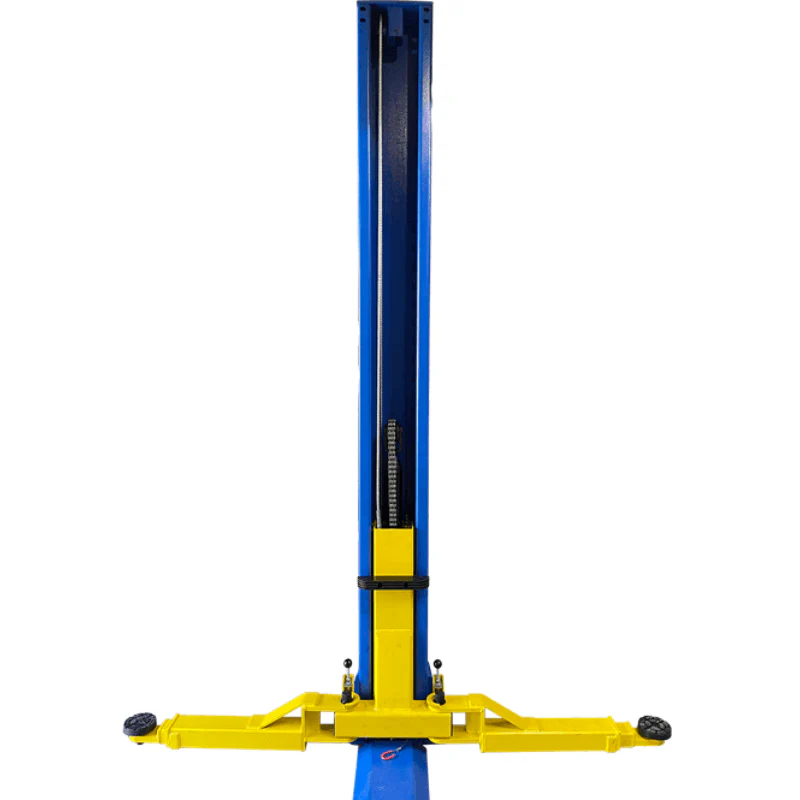

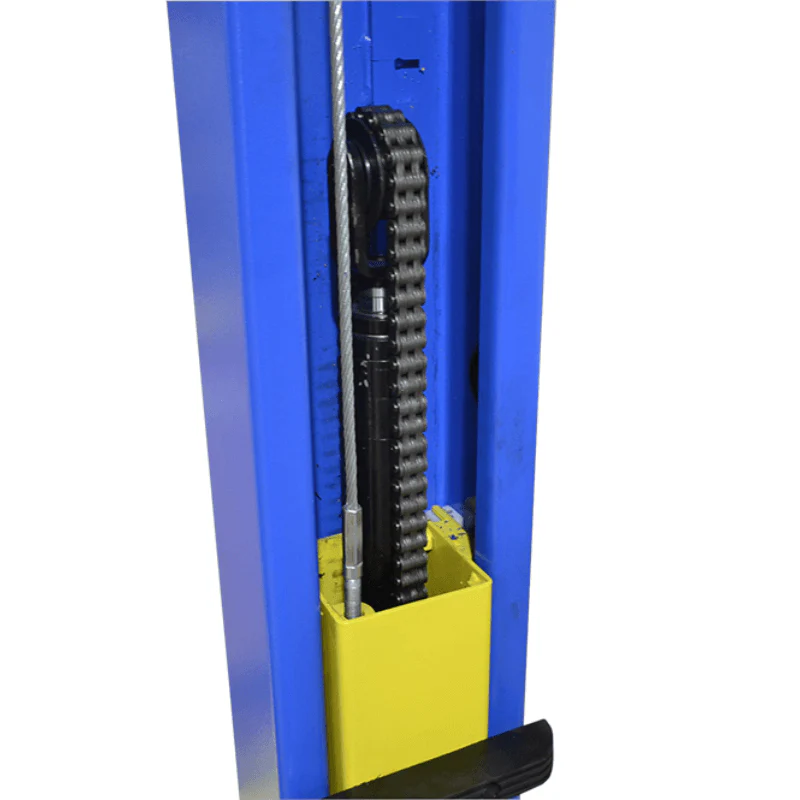

Heavy-Duty Chain Drive System
Built with industrial-grade leaf chains and reinforced steel pulleys, the HD2P-9000AF provides smooth and consistent lifting. The dual-cylinder system works alongside a cable equalization setup to keep both sides lifting evenly during operation.
Dual Safety Release System

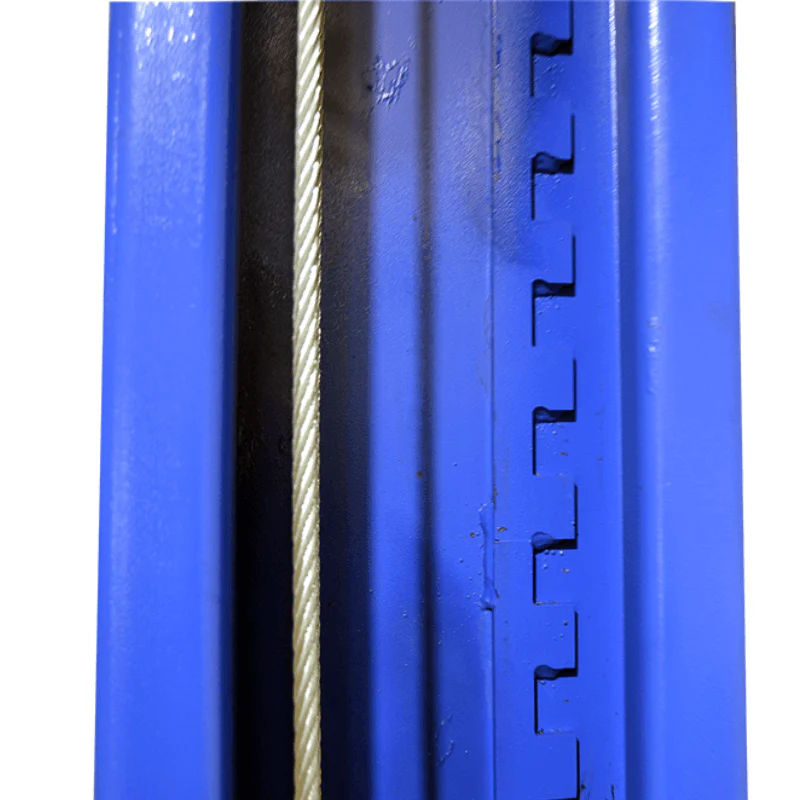

Equipped with a dual-point safety lock release, this lift allows controlled and secure lowering. The mechanical locking system engages automatically as the lift rises, helping ensure stability while working underneath vehicles.
Key Features
- 9,000 lb lifting capacity

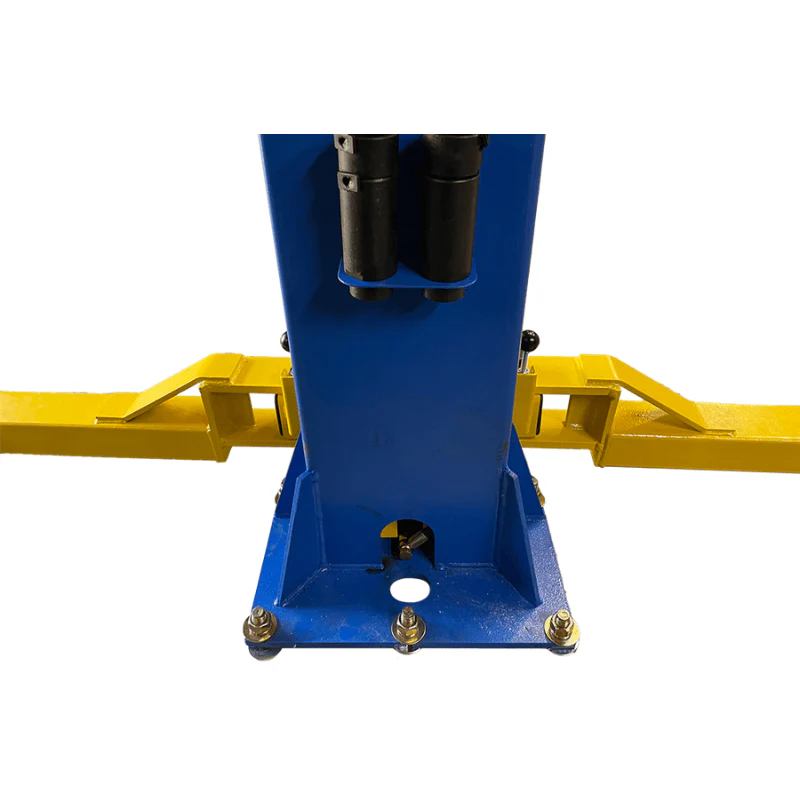

- Floorplate (baseplate) design for low ceiling environments

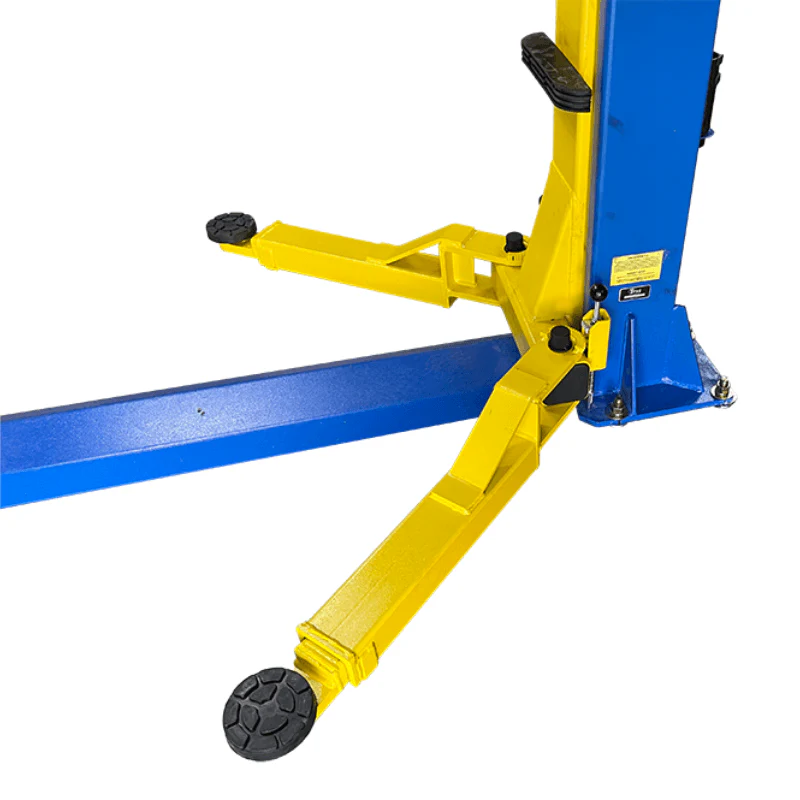

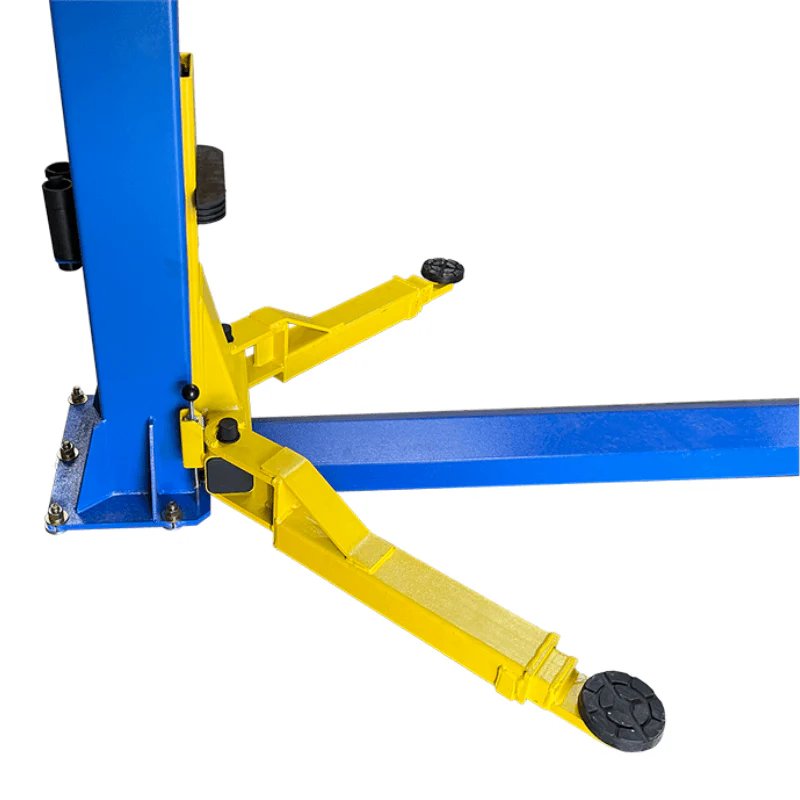

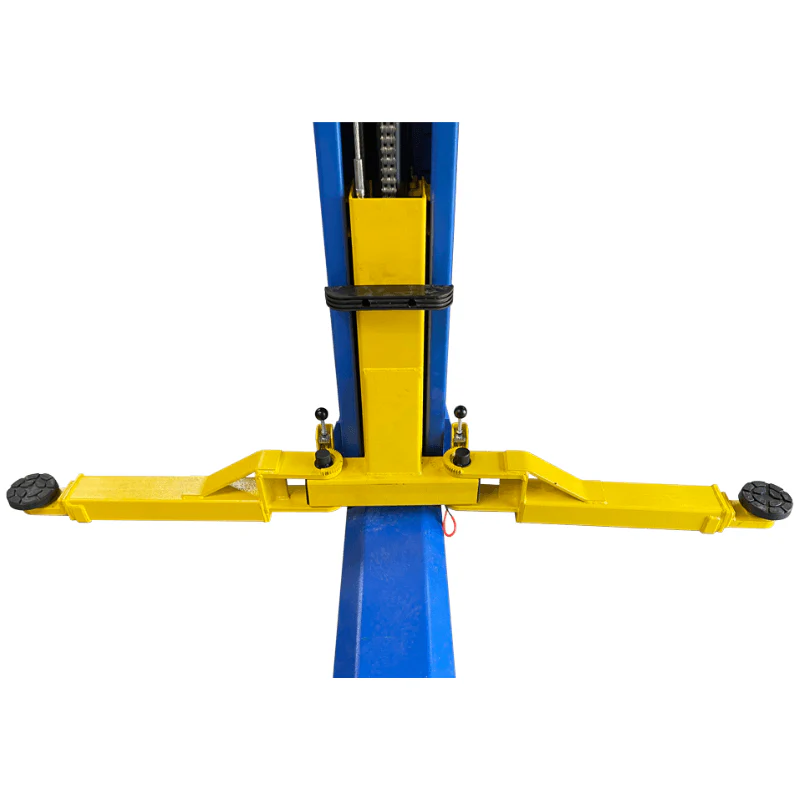

- Symmetric arm configuration
- Commercial-grade construction
- Dual-point safety lock release

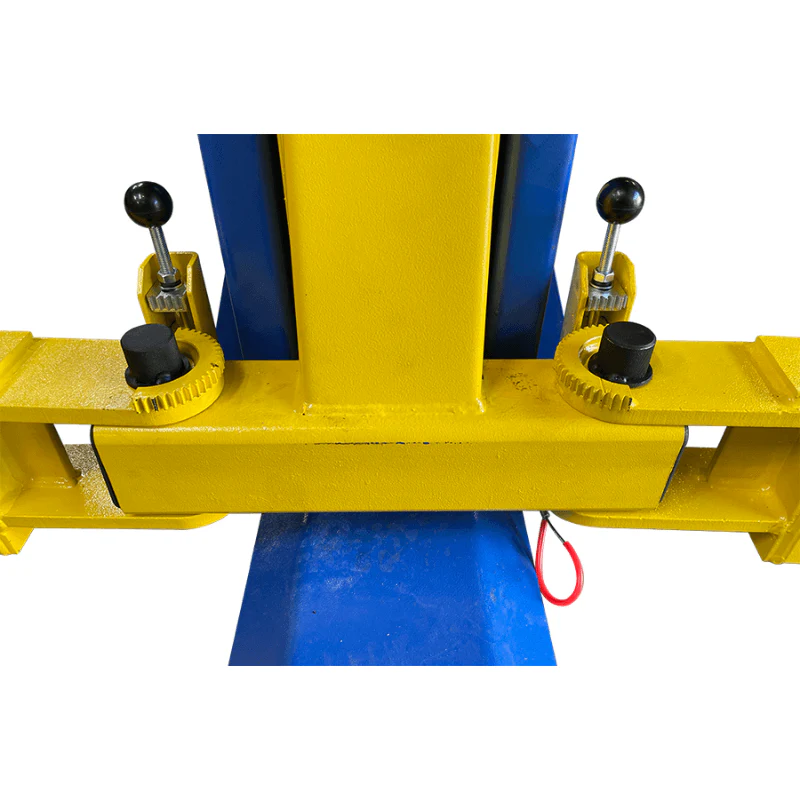

- Low-profile lifting arms with automatic restraints
- Dual hydraulic cylinders with low-friction chain rollers
- Heavy-duty leaf chain system

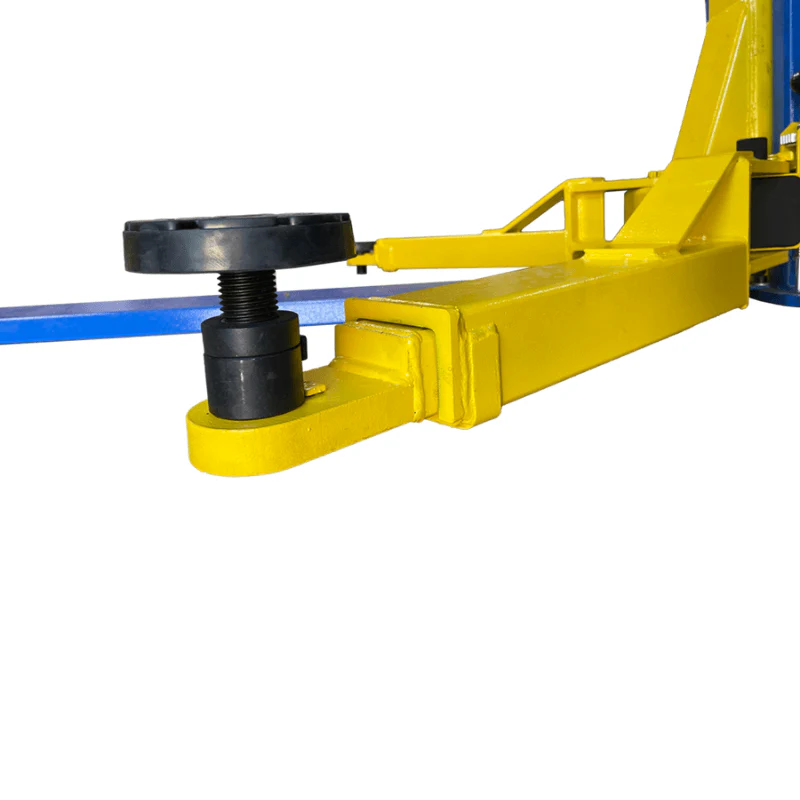

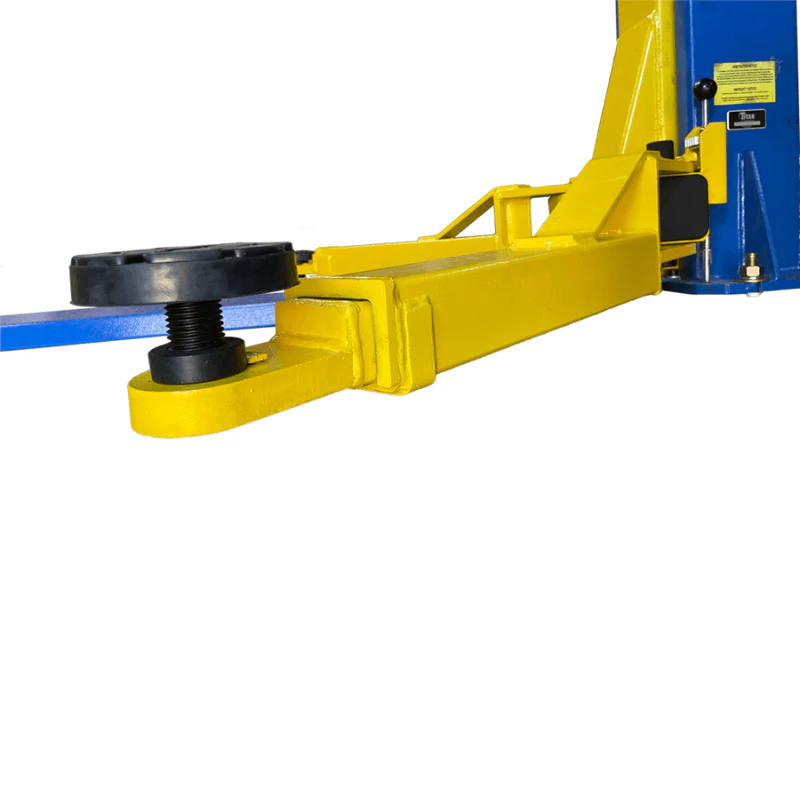

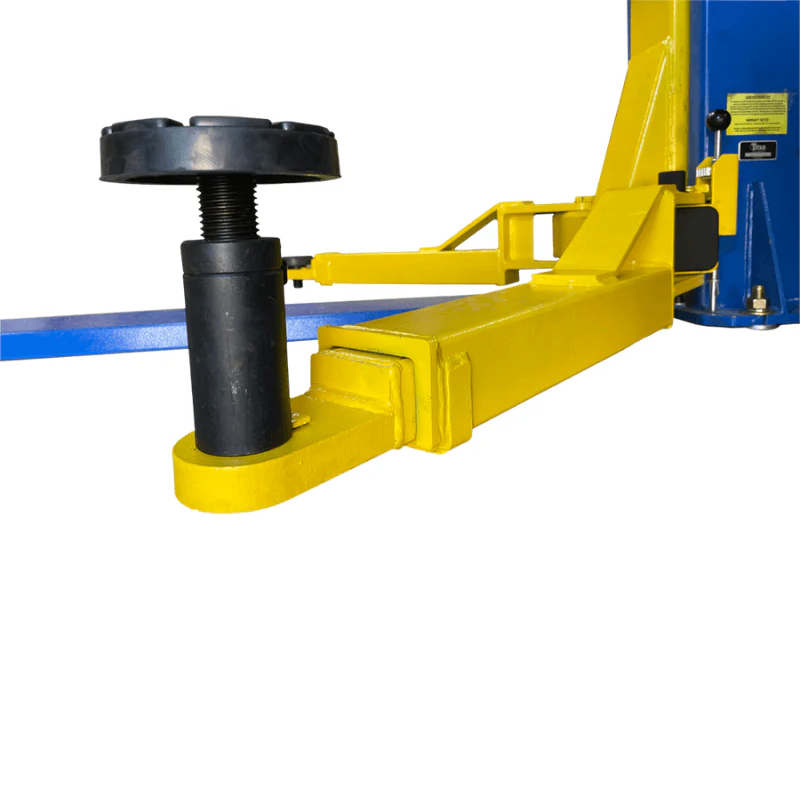

- Threaded lifting pads

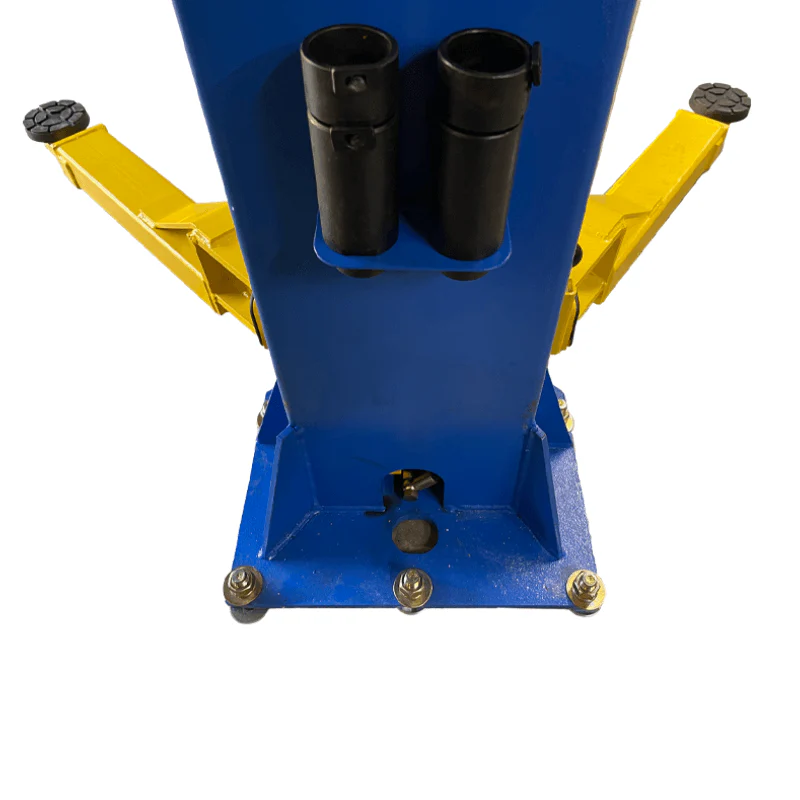

- Stackable truck adapters included
- Internal hose routing with protective guards

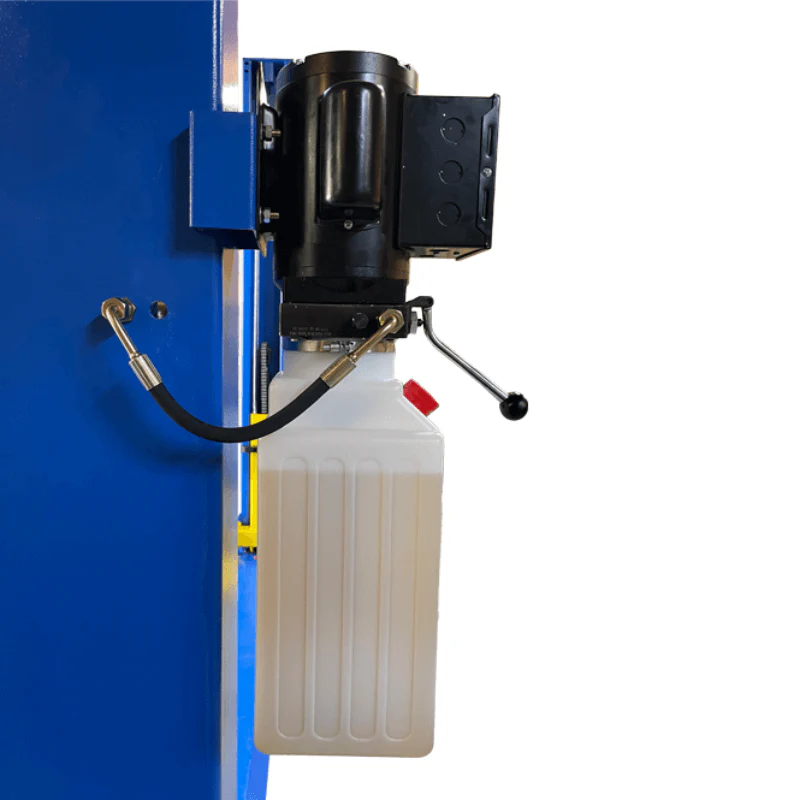

- Space-saving power unit mounting bracket

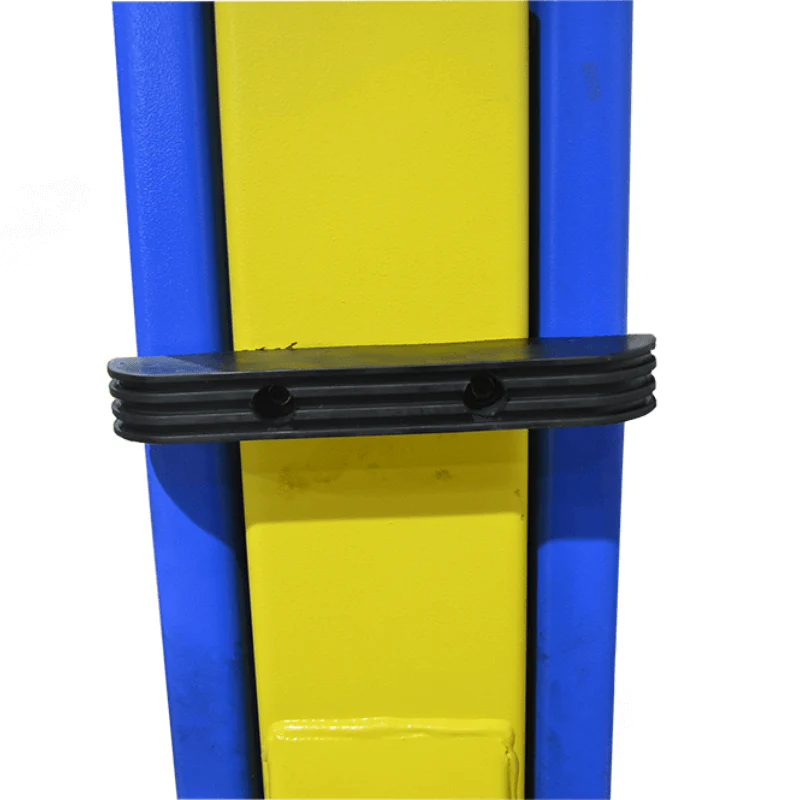

- Rubber door guards and steel components for durability
- Anchor bolt kit included
- Durable powder-coated finish
- 5-year structural warranty
- 1-year electrical/hydraulic warranty
Installation Requirements
- Minimum concrete thickness: 4 inches
- Concrete strength: 3,000 PSI or higher
- Must be installed on level, fully cured concrete surface
| Specifications | Details |
|---|---|
| Lifting Capacity | 9,000 lb |
| Lift Type | Floorplate / Symmetric |
| Overall Height | 112" |
| Overall Width | 134-5/8" |
| Width Between Posts | 110-3/8" |
| Drive-Thru Clearance | 100-5/8" |
| Min Pad Height | 4-5/8" |
| Max Lift Height | 72-3/4" |
| Lifting Speed | ~45 seconds |
| Power Requirement | 220V / 1PH / 60Hz / 20A |
| Shipping Length | 115–118" |
| Shipping Width | 19" |
| Shipping Height | 45" |
| Shipping Weight | ~1,300 lb |
