Titan HD2P-9KMSC 9,000 lb 2-Post Lift Master Series

Master Series Overhead Design with Direct Drive System

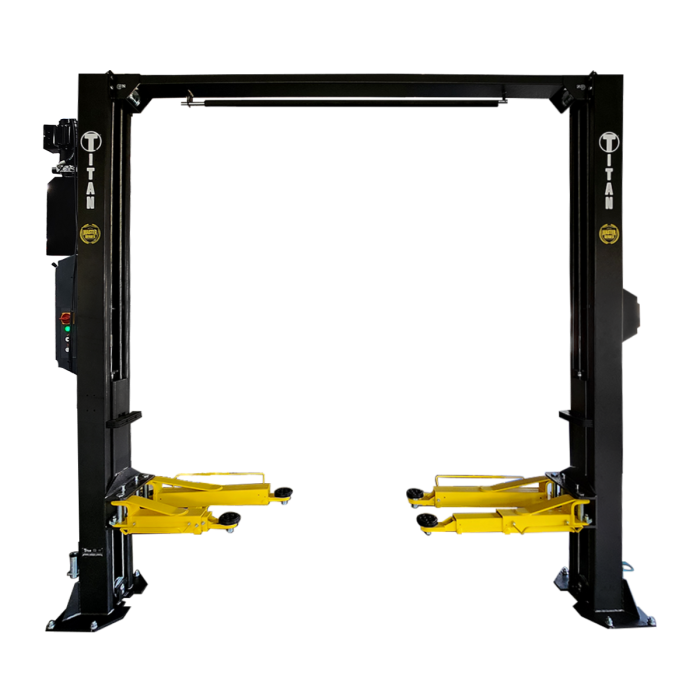

The Titan HD2P-9KMSC is a 9,000 lb capacity clearfloor 2-post lift built for professional shops and serious home garages. Featuring an overhead beam design, this model provides unobstructed floor space between the columns, making it easier to move tools, jacks, and equipment underneath the lift.

Clearfloor Configuration for Maximum Workspace

This lift uses an overhead crossbeam instead of a floorplate, allowing for a clean working area between the posts. The asymmetric arm layout improves vehicle positioning while giving better door clearance for easier entry and exit.

Direct Drive Hydraulic Cylinder System

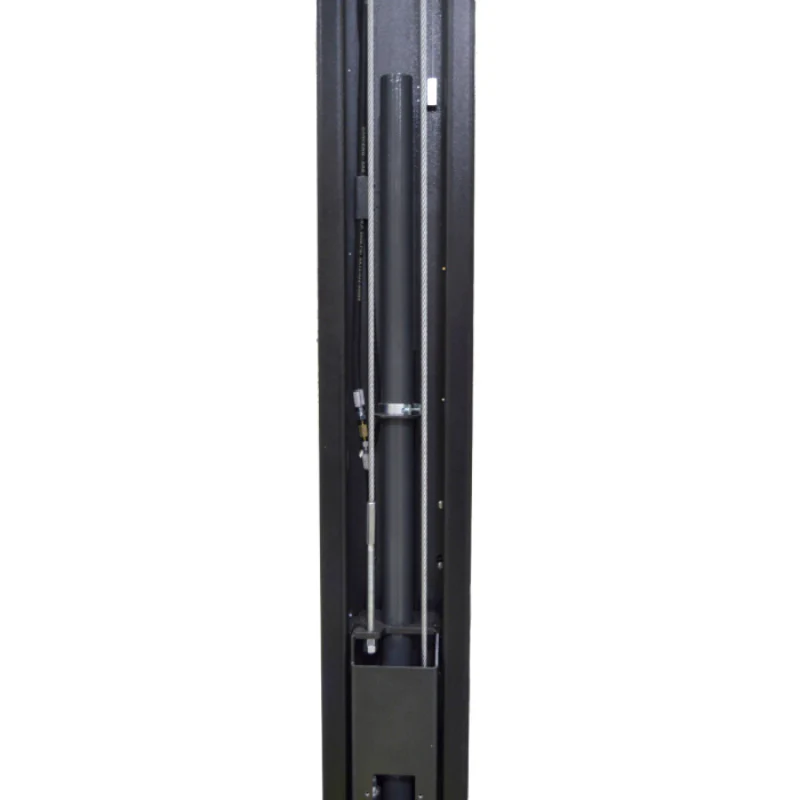

Unlike traditional chain-driven systems, this model uses a direct drive hydraulic cylinder setup. Each cylinder is inverted and mounted through the carriage, delivering strong and consistent lifting force with fewer moving components.

Overhead Safety Shut-Off Protection

An integrated shut-off bar with a limit switch is mounted on the overhead beam to prevent vehicles from contacting the top of the lift. This added safety feature automatically stops upward movement when triggered.

Built-In Safety Locking System

The lift features a ladder-style mechanical locking system that automatically engages as the lift rises. A single-point lock release allows for controlled lowering while keeping both sides synchronized.

Key Features

• 9,000 lb lifting capacity
• Clearfloor (overhead) design
• Direct drive hydraulic cylinders
• Overhead shut-off bar with limit switch

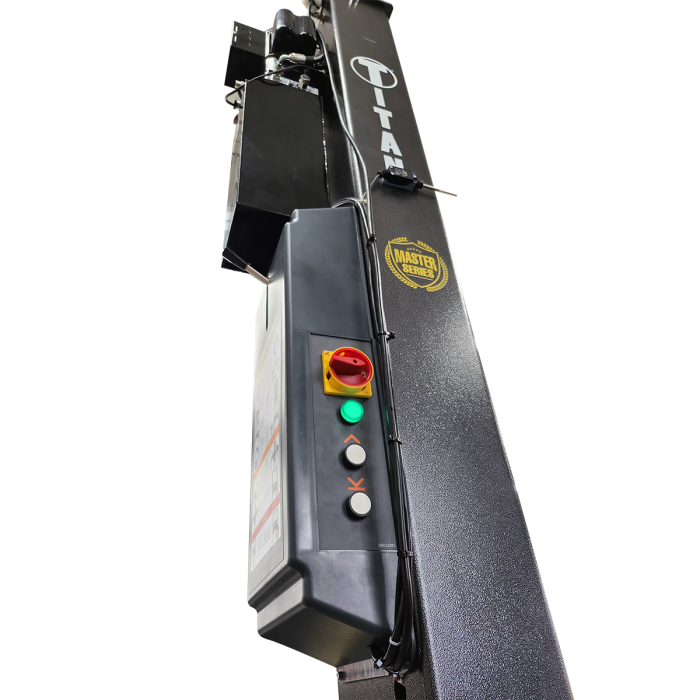

• Single-button lifting operation
• Single-lever lowering control

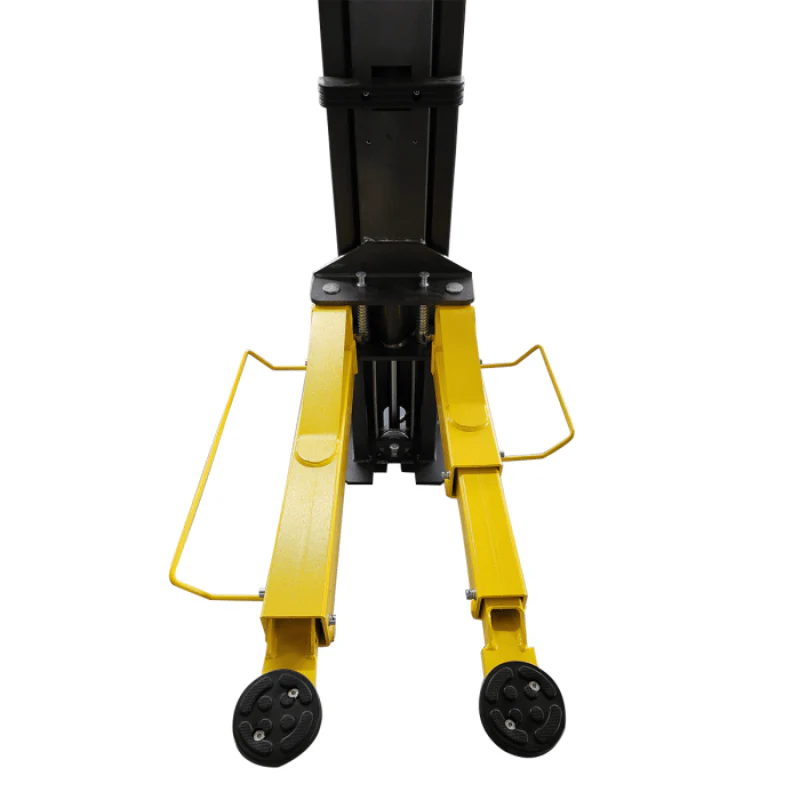

• Asymmetric arm configuration
• 3-stage front arms for flexible reach
• Serviceable arm restraint locks
• Single-point lock release system
• Thread-up lifting pads
• Carriage limit switch
• European-style carriages
• Includes 4" truck adapters
• Rubber door guards and steel toe guards
• Steel hydraulic oil reservoir
• Durable textured powder-coated finish
• Lifetime warranty on nylon slide blocks
• 5-year structural warranty
• 2-year electrical/hydraulic warranty

Documents

• Manual
• Spec Sheet
