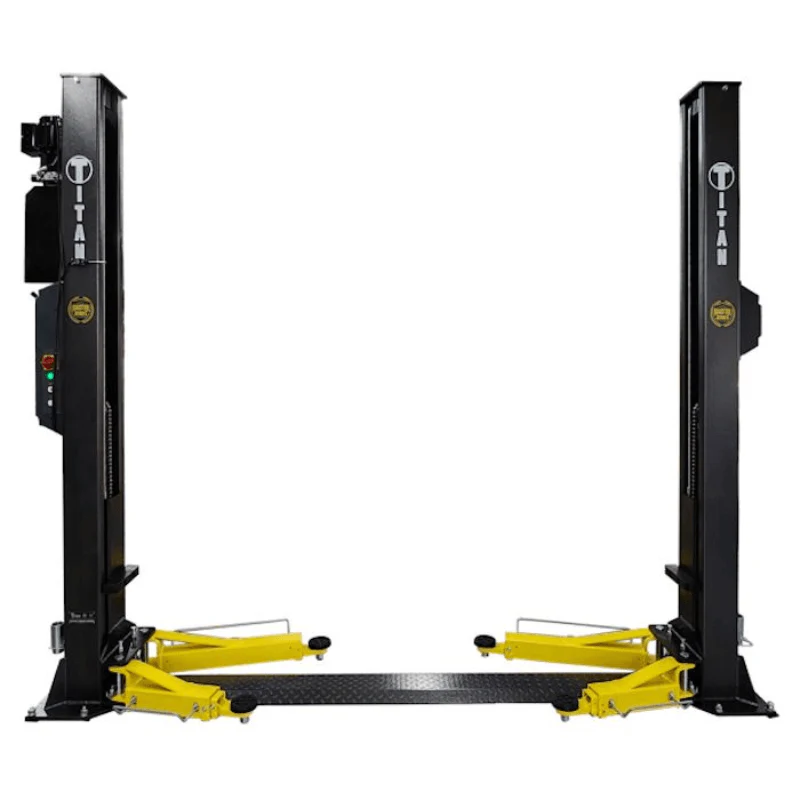

Titan HD2P-9KMSF 9,000 lb 2-Post Lift Master Series

The Titan HD2P-9KMSF is a heavy-duty 9,000 lb capacity 2-post lift designed with a floorplate configuration, making it ideal for garages with lower ceiling heights. Built for both professional shops and home garages, this model features a chain-over-roller hydraulic system for reliable lifting performance.

Floorplate Design for Low Ceiling Applications

Unlike clear floor lifts, this floorplate model eliminates the overhead bar, allowing installation in spaces where height is limited. The asymmetric arm setup improves vehicle access and positioning, making it easier to open doors and work efficiently.

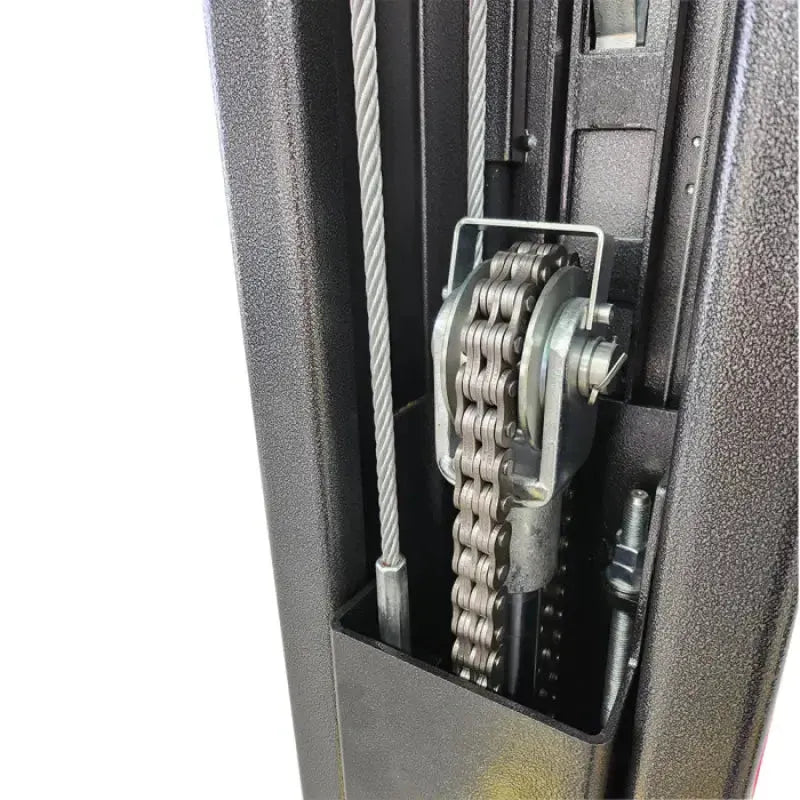

Proven Chain-Over-Roller Hydraulic System

This lift uses dual hydraulic cylinders with a chain-over-pulley design, delivering consistent lifting power and durability. The system is driven by a hydraulic pump capable of producing strong lifting force while maintaining smooth operation.

Built-In Safety and Control Features

Designed with operator safety in mind, the lift includes a single-point lock release, serviceable arm restraint locks, and a carriage limit switch. The ladder-style locking system engages automatically as the lift rises, ensuring secure positioning at working height.

Key Features

• 9,000 lb lifting capacity
• Floorplate design (ideal for low ceilings)
• Chain-over-roller hydraulic cylinders

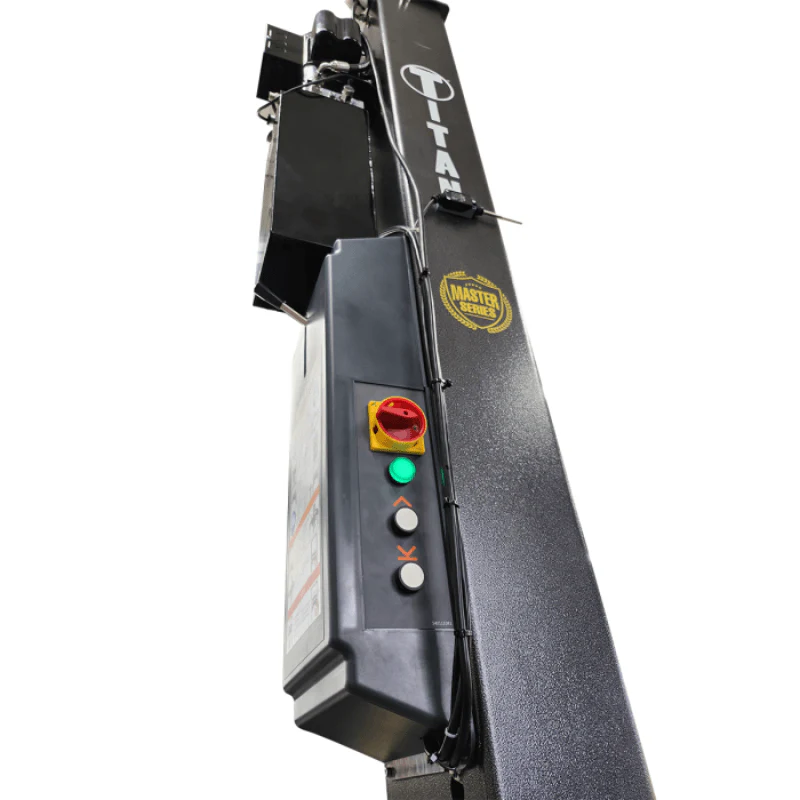

• Single-button lifting operation
• Single-lever lowering control

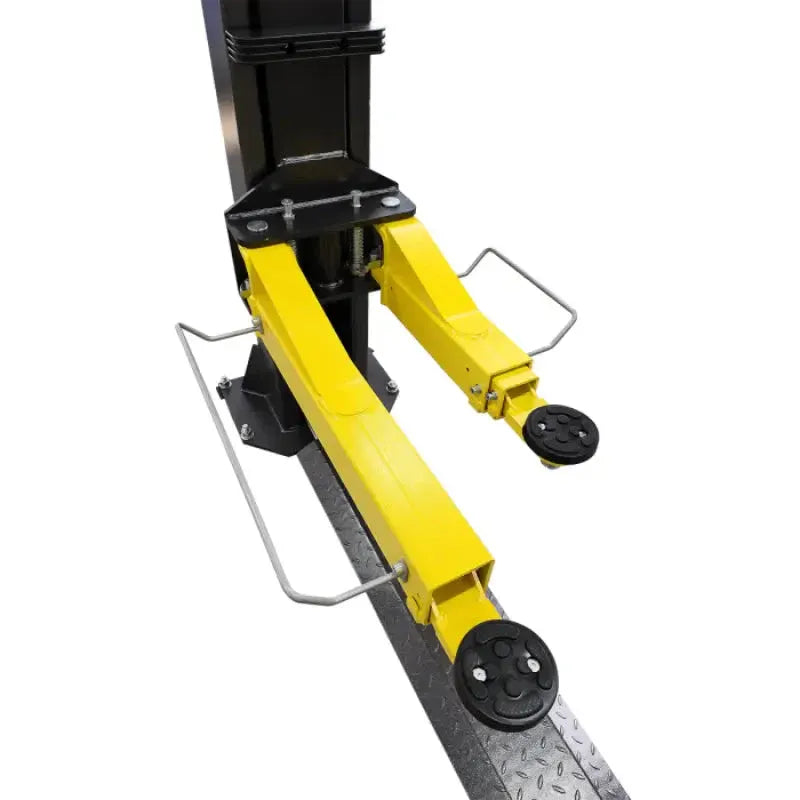

• Asymmetric arm configuration
• 3-stage front arms for flexible positioning
• Serviceable arm restraint locks
• Single-point safety lock release
• Thread-up lifting pads
• Carriage limit switch
• European-style carriages

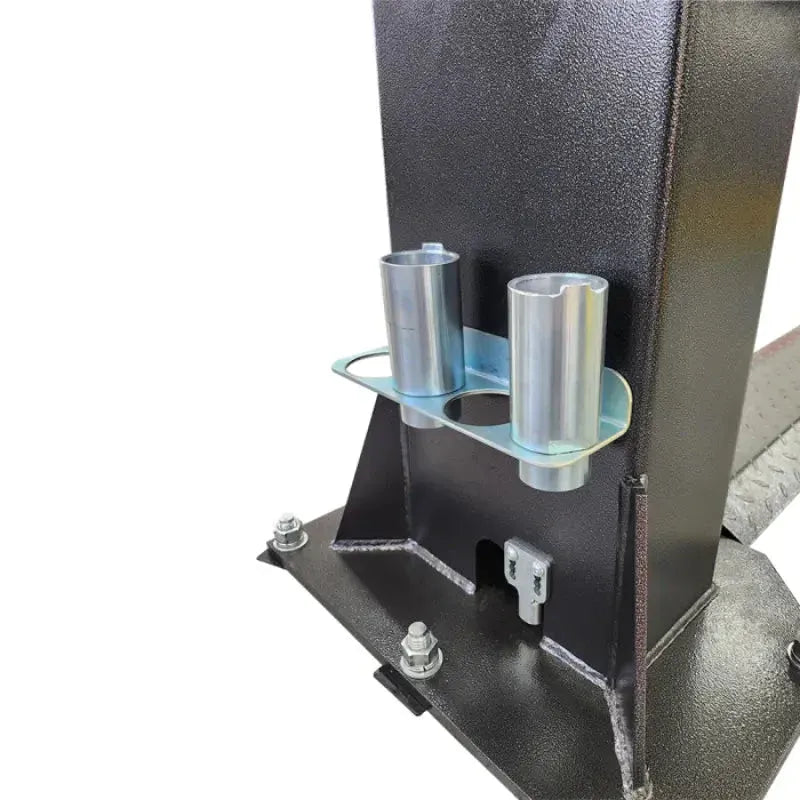

• Includes 4" truck adapters
• Rubber door guards and steel toe guards
• Steel hydraulic oil reservoir
• Durable textured powder-coated finish
• Lifetime warranty on nylon slide blocks
• 5-year structural warranty
• 2-year hydraulic/electrical warranty

Documents

• Manual
• Spec Sheet
