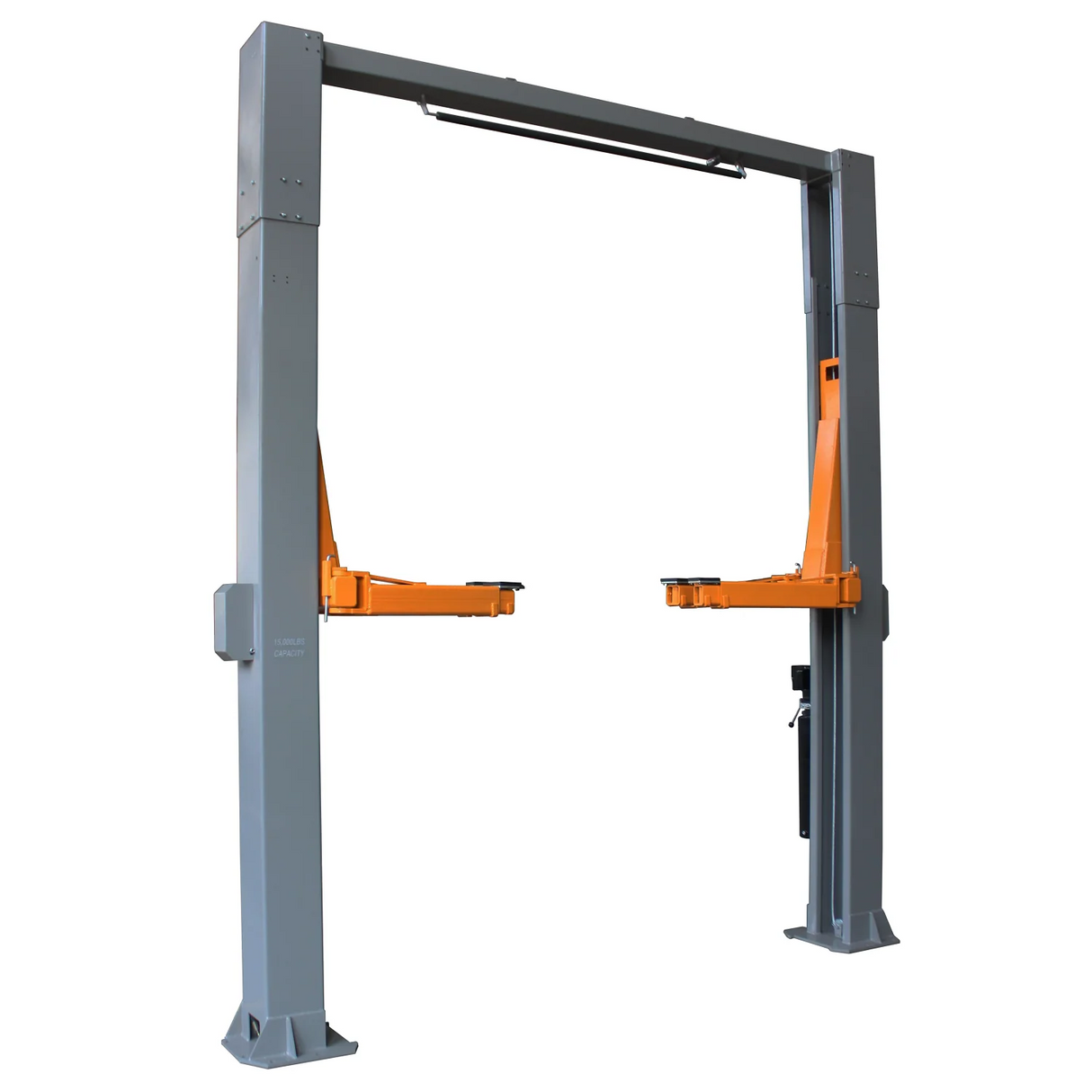

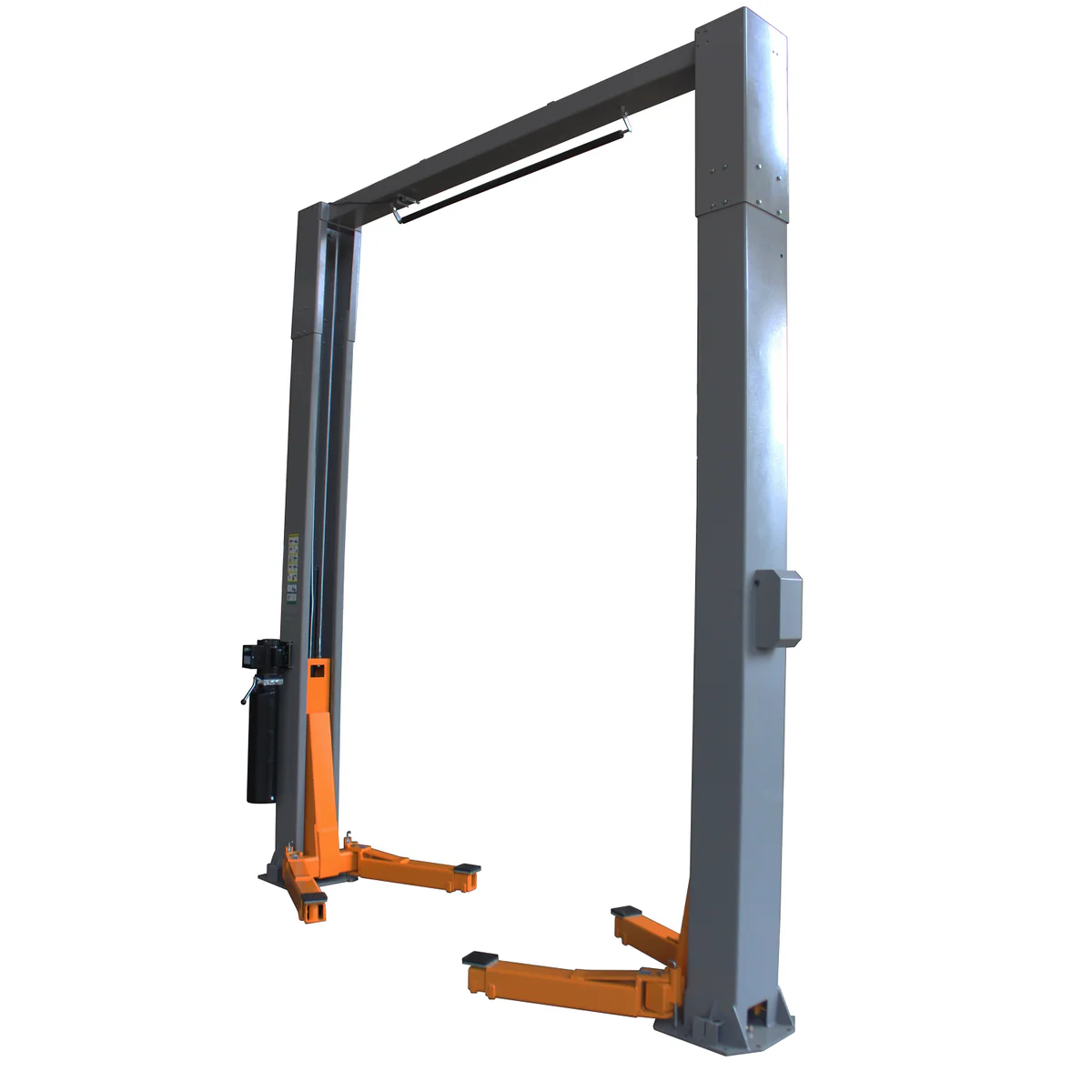

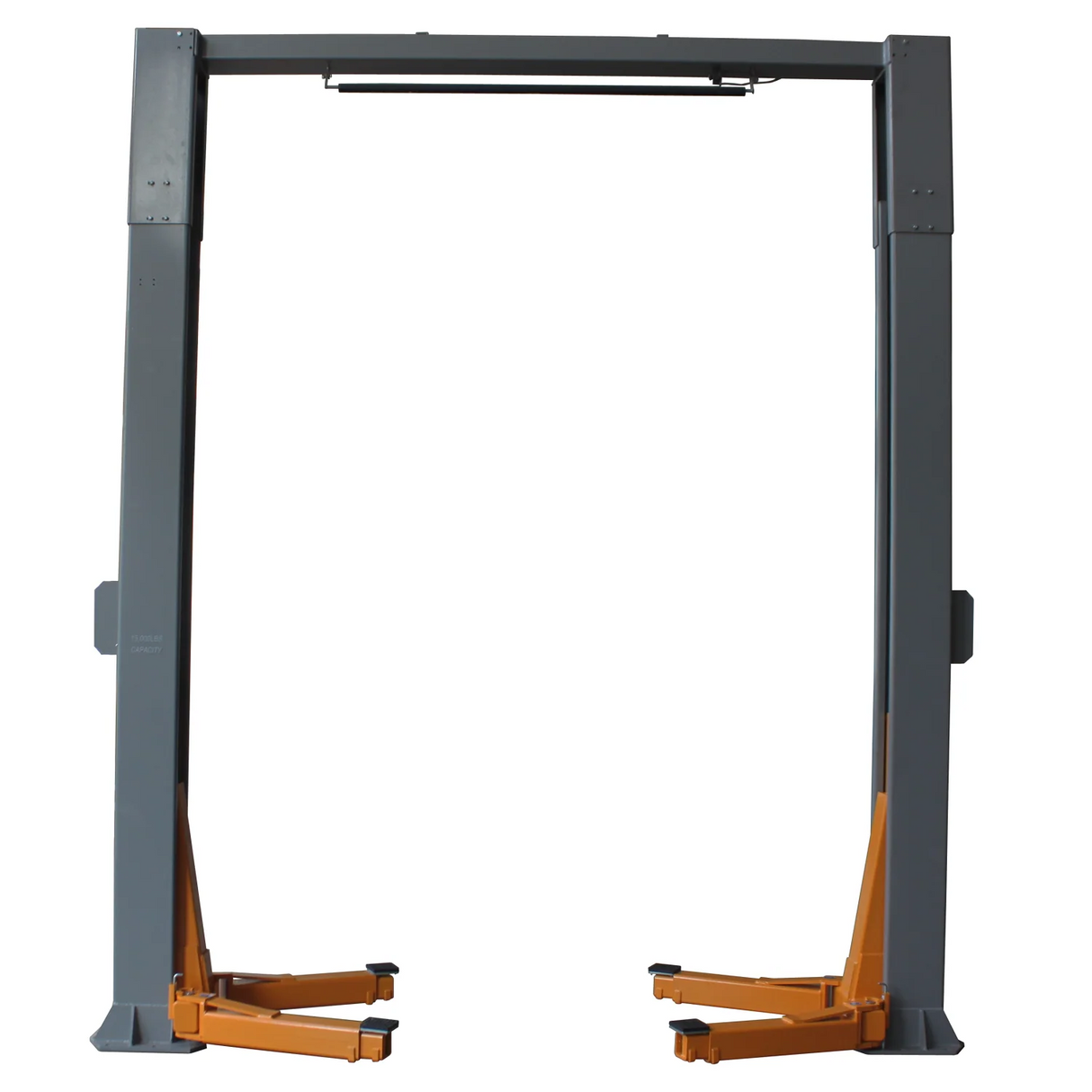

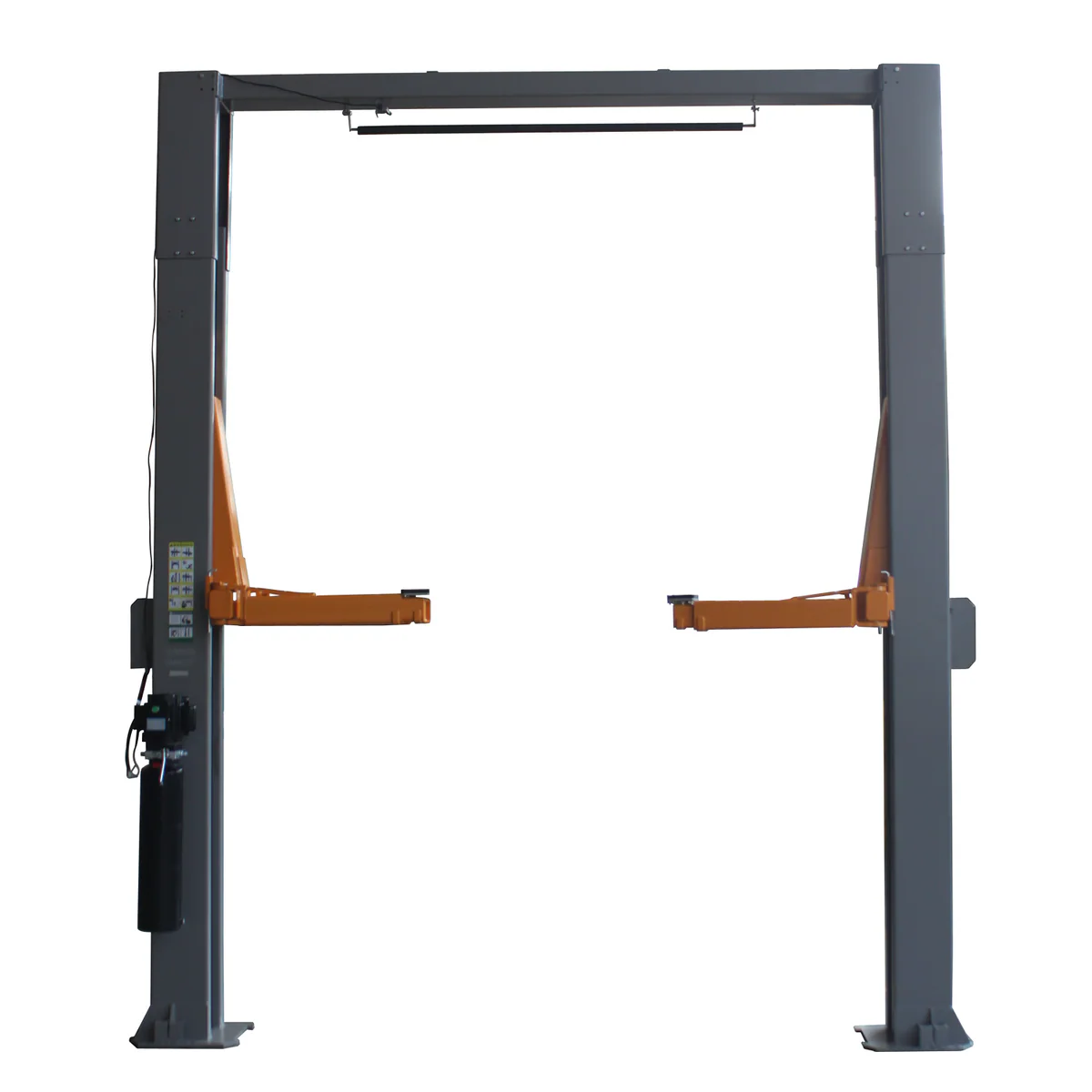

Triumph NTO-20 2-Post Car Lift 20,000 lb Capacity
Triumph NTO-20 2-Post Car Lift 20,000 lb Capacity is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Triumph NTO-20 2-Post Car Lift 20,000 lb Capacity
The Triumph NTO-20S is a heavy-duty two-post lift built for maximum lifting capacity and commercial-grade performance. With a 20,000 lb capacity, this lift is designed to handle large trucks, vans, and heavy-duty vehicles with confidence and stability. Featuring an overhead design, direct-drive hydraulic cylinders, and a single-point lock release system, the NTO-20S provides a clear workspace and efficient operation — making it ideal for high-demand service environments.
Key Features & Benefits
- 20,000 lb lifting capacity for heavy-duty vehicles
- Overhead design for a clear, unobstructed workspace
- Direct-drive hydraulic cylinders for smooth and consistent lifting
- Single-point lock release for simplified operation
- Electric safety cutoff for added protection
- Truck adapters included for expanded vehicle compatibility
- Built for commercial shops and fleet service
- Heavy-duty construction for long-term durability
Performance & Design
The NTO-20S is engineered for high-capacity lifting and daily commercial use, making it ideal for handling larger vehicles. Its overhead configuration allows for improved access underneath the vehicle, enhancing workflow efficiency. The combination of direct-drive cylinders and synchronized lifting system ensures balanced operation, while multiple safety lock positions provide secure working conditions.
Installation Requirements
- 220V power required
- Concrete requirement: 6" slab, minimum 4,000 PSI
- Professional installation recommended
- Indoor use
Ideal Applications
- Heavy-duty truck service shops
- Fleet maintenance facilities
- Commercial repair centers
- High-capacity lifting environments
Why Choose the NTO-20S
The NTO-20S offers increased lifting capacity and wider working space, making it a strong choice for shops that regularly service larger and heavier vehicles while maintaining efficiency and safety.
What's Included
- Two-post lift system
- Direct-drive hydraulic cylinders
- Truck adapters
- Mounting hardware
- Power unit
- Safety lock system
| Specifications | Details |
|---|---|
| Model | NTO-20S |
| Type | Two-Post Overhead Lift |
| Lifting Capacity | 20,000 lbs |
| Overall Height | 170.5" |
| Overall Width | 155" |
| Distance Between Posts | 124" |
| Drive-Thru Width | 113" |
| Lifting Height | 74" |
| Lowered Height | 6" |
| Base Plate Size | 21" x 20" |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | ~40 seconds |
| Motor | 3 HP |
| Voltage | 220V |
| Concrete Requirement | 6" slab, 4,000 PSI |
| Style | Overhead |
