Knockdown Steel Gantry Crane — 4,000 lb of Wide, Tall Lift That Locks in Place

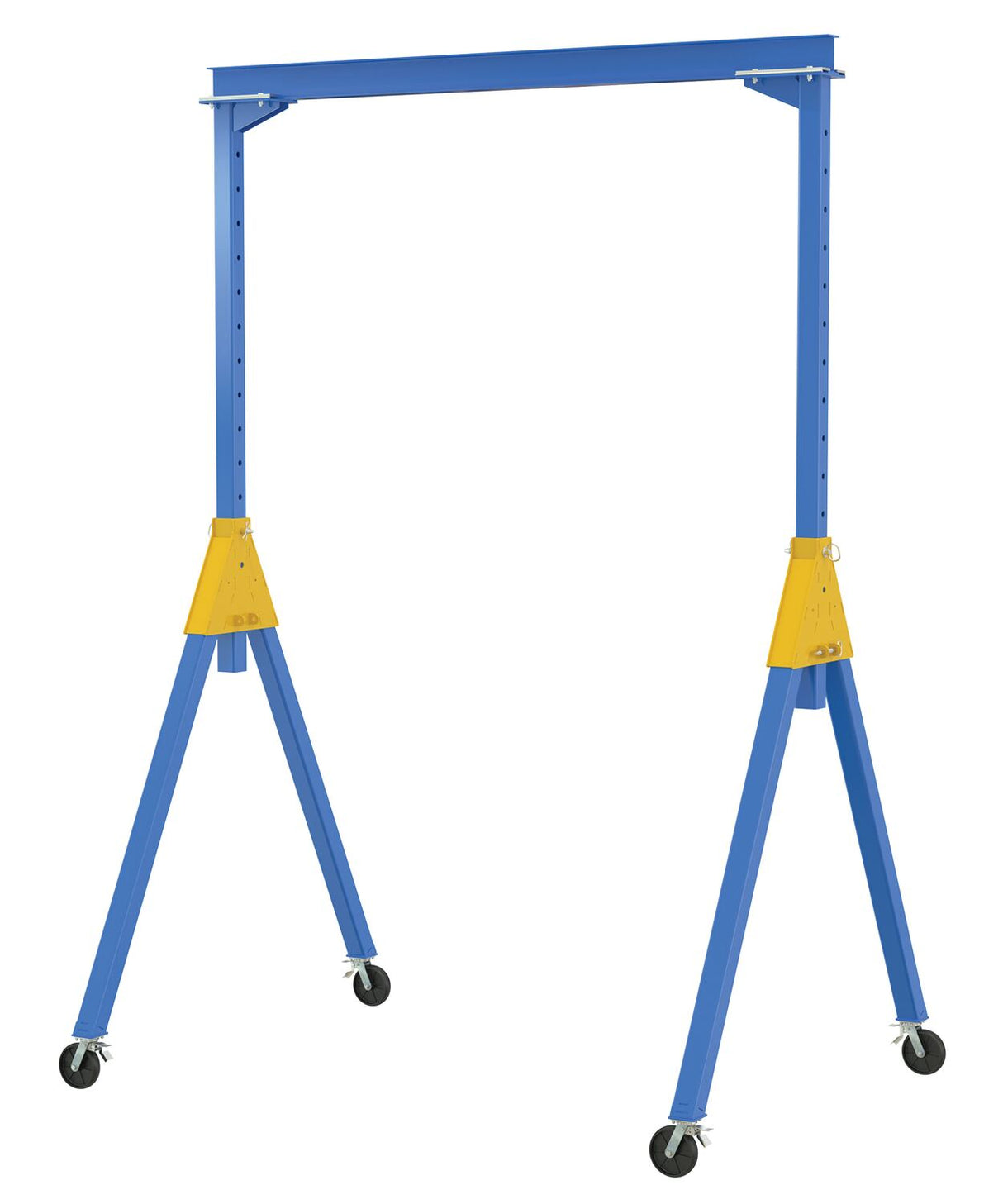

The Vestil AHSN-4-20-16-TLC gantry crane puts a rated 4,000-pound lifting point up to 16 ft usable height under a wide 20-foot span, on a welded steel knockdown frame with four total-locking glass-filled nylon casters.
Built for crews that need mid-tonnage lift with tall reach over a wide area, plus a crane that disassembles for transport. Total-locking casters keep it planted during rigging.
Key Features
- 4,000 lb uniform load capacity — rated for motors, dies, and weldments moved along a long beam.
- Wide 20 ft span with 126″ to 192″ tall clearance — covers a broad footprint and reaches high for long or tall loads.

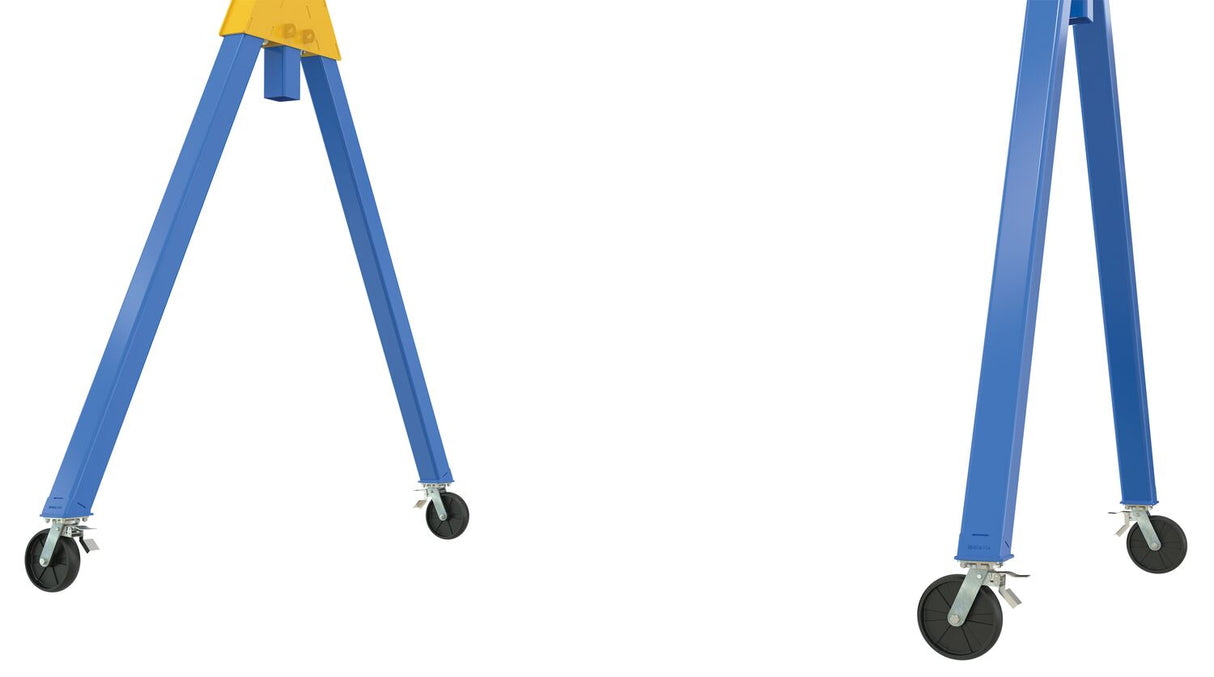

- Four total-locking glass-filled nylon casters — lock wheel and swivel so the crane holds position while you rig and lift, no track required.
- Bolt-together knockdown frame — breaks down into flat sections for compact storage and shipping between job sites.
What to Know Before It Ships
Product Documents
Full Specifications
| Specification | Details |
|---|---|
| Model | AHSN-4-20-16-TLC |
| Uniform Capacity | 4,000 lb |
| Span (Width) | 20 ft |
| Max Usable Height | 16 ft |
| Adjustable Clearance Range | 126″ to 192″ |
| Casters | Total-locking glass-filled nylon (×4) |
| Construction | Welded steel, knockdown (bolt-together) |
| Finish / Color | Blue |
| Compliance | CMAA, ANSI |
| Net Weight | 879 lb |
