Vestil  |  SKU: JIB-FM-40

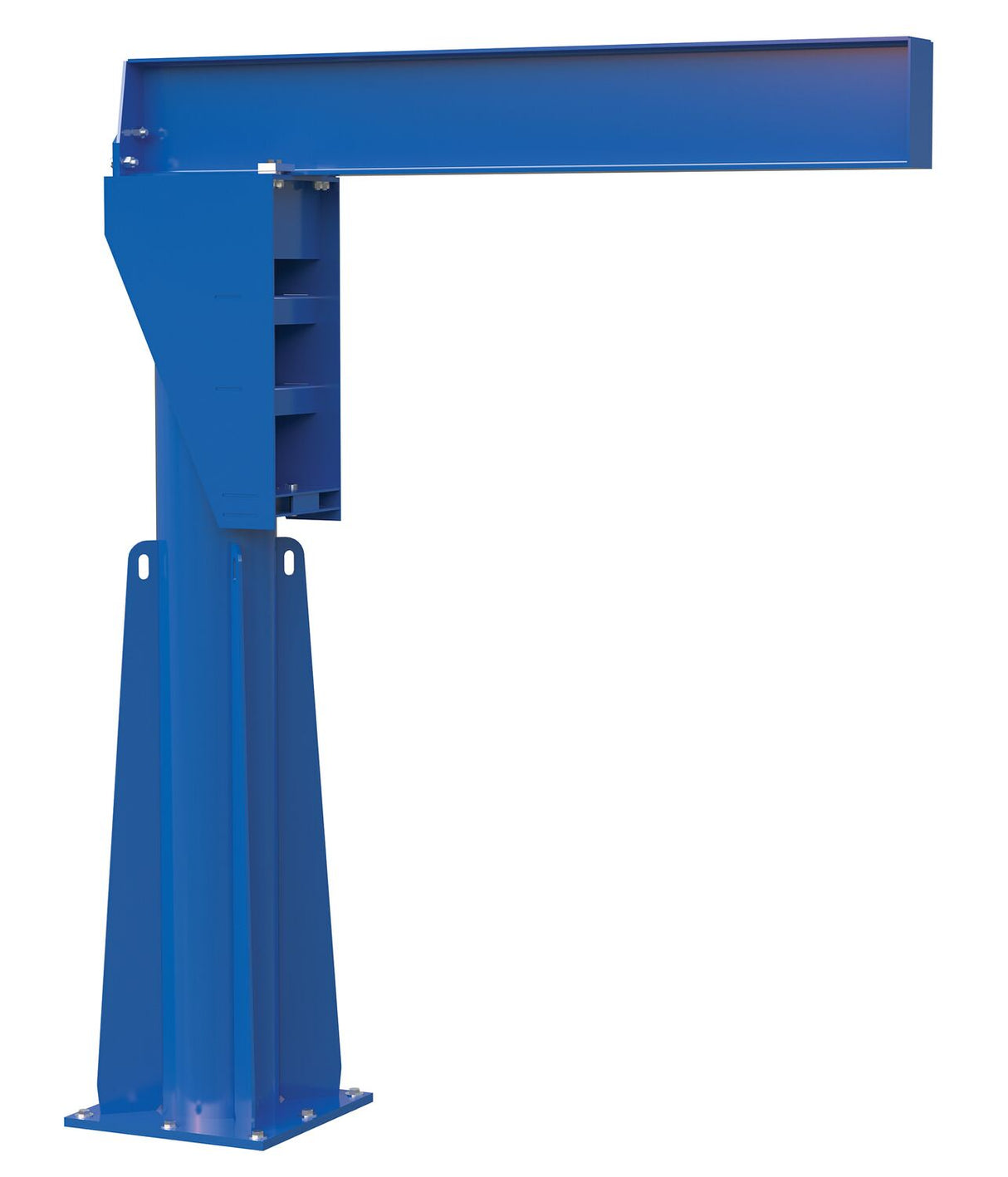

Vestil Jib Crane, Floor Mounted Steel, 4,000 lb Capacity, 80 in I-Beam Boom, 360 Degree Rotation (JIB-FM-40)

$3,971.00
Save $198.55 on this order paying by wire Get 5% off →
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Visa
SSL Secured Checkout

Your payment information is encrypted and never stored

We're Here When You Need Us
Support team
Instant Live Chat
Available now
(888) 885-7067
Call us and talk to a real person, no call center
info@garageautosupplies.com
Email us for in-depth guidance

We're Available When You Need Us. Give Us A Call or Email.

Floor-Mounted Steel Jib Crane — Anchor a 4,000 lb Pivoting Boom at Any Workstation

The Vestil JIB-FM-40 is a floor-mounted jib crane rated for 4,000 pounds on an 80-3/8-inch I-beam boom that swings a full 360 degrees, bolting to a reinforced concrete pad for permanent overhead lifting.

Built for workstations, production cells, loading areas, and maintenance operations that need a fixed, high-capacity pivot point to lift and position awkward or heavy material with less manual strain and steadier workflow.

Key Features

  • 4,000 lb uniform load capacity — the heavy-duty top of the floor-mounted JIB-FM line, sized for large weldments, castings, and machine components.
  • 80-3/8″ I-beam boom, full 360° rotation — swings loads through a complete circle to serve multiple work zones from one anchored column.
  • Solid welded steel construction — a rigid, blue-painted column and boom engineered for dependable service in demanding industrial settings.
  • Eight pre-drilled mounting holes — simplify anchoring the base to a reinforced concrete pad for a stable, permanent installation.

What to Know Before It Ships

✔︎  Keep every lift at or below 4,000 lb — that figure is the load plus your hoist and rigging, not just the part.
✔︎  A hoist and trolley are not included — add a beam trolley plus a chain or electric hoist rated to your load.
✔︎  This is a permanent floor-mounted crane — it requires a reinforced concrete pad and floor anchors through the eight pre-drilled holes.
✔︎  Confirm the 80-3/8″ boom swing radius clears machines and aisles, with about 99-1/4″ of clearance under the I-beam.
✔︎  Anchor hardware suited to your pad is supplied by the installer; verify your slab thickness and rating for the crane plus load.

Product Documents

Full Specifications

Specification Details
Model JIB-FM-40
Uniform Capacity 4,000 lb
I-Beam Boom Length 80-3/8″
Under-Beam to Floor Height 99-1/4″
Rotation 360° (full continuous)
Mounting Floor mounted, 8 pre-drilled holes; reinforced concrete pad required
Construction Solid welded steel
Finish / Color Blue
Net Weight 783 lb
