Aluminum Yard Ramp — Bridge the Ground-to-Trailer Gap at 25,000 lb

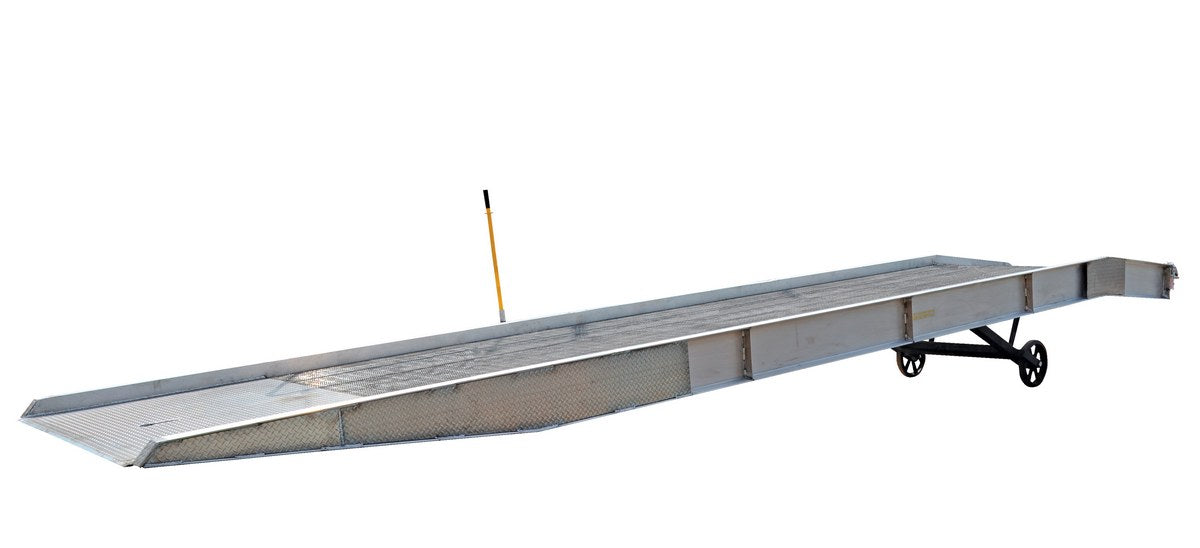

The Vestil AY-258436-L is a portable all-aluminum yard ramp rated for 25,000 lb, with a 78 in usable deck and a manual hydraulic hand pump that adjusts the service height from 45 to 62 inches to meet trailers and ground-level docks.
Built for warehouses, distribution centers, farms, and job sites that load and unload trailers, containers, and railcars without a permanent loading dock. This 36 ft portable yard ramp lets one person position it with a tow vehicle, and its lightweight, rust-resistant aluminum deck keeps the ramp easy to tow and reposition around the yard.
Key Features
- 25,000 lb uniform load capacity — rated for loaded forklifts, pallet jacks, and heavy rolling equipment moving on and off trailers.
- 78 in usable deck between 4 in side curbs — gives fork trucks room to drive on and off while the curbs help prevent run-off at the edges.
- Adjustable service height, 45 in to 62 in — a manual hydraulic hand pump raises and lowers the lip to match a range of trailer and dock heights.
- Lightweight aluminum grating deck — rust-resistant and light to tow, yet rated to carry the full load between ground and trailer.
Check Your Dock Height First
Product Documents
Full Specifications
| Specification | Details |
|---|---|
| Model | AY-258436-L |
| Uniform Capacity | 25,000 lb |
| Usable Deck Width | 78″ |
| Overall Width | 86″ |
| Overall Length | 36 ft (432″) |
| Service Height Range | 45″ to 62″ |
| Grating Deck | Aluminum grating |
| Frame | Welded aluminum |
| Side Curbs | 4″ high aluminum |
| Tires | 18″ × 5″ mold-on rubber |
| Height Adjustment | Manual hydraulic hand pump |
