Steel-Grating Yard Ramp — Load Trailers Anywhere at Up to 25,000 lb

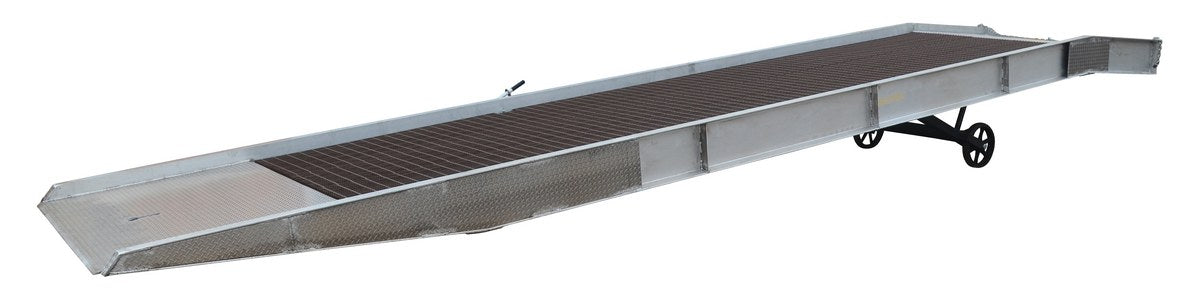

The Vestil SY-259336-L is a portable aluminum-frame, steel-grating yard ramp rated for 25,000 lb, with a 87 in usable deck and a manual hydraulic hand pump that adjusts the service height from 45 to 62 inches to meet trailers and ground-level docks.
Built for warehouses, distribution centers, farms, and job sites that load and unload trailers, containers, and railcars without a permanent loading dock. This 36 ft portable yard ramp lets one person position it with a tow vehicle, and its open steel grating lets rain, snow, and ice fall through so the drive surface stays traction-safe in outdoor, year-round use.
Key Features
- 25,000 lb uniform load capacity — rated for loaded forklifts, pallet jacks, and heavy rolling equipment moving on and off trailers.
- 87 in usable deck between 4 in side curbs — gives fork trucks room to drive on and off while the curbs help prevent run-off at the edges.
- Adjustable service height, 45 in to 62 in — a manual hydraulic hand pump raises and lowers the lip to match a range of trailer and dock heights.
- Serrated steel grating deck — open grating lets rain, snow, and ice fall through so the drive surface stays traction-safe outdoors.
Will This Work at Your Dock?
Product Documents
Full Specifications
| Specification | Details |
|---|---|
| Model | SY-259336-L |
| Uniform Capacity | 25,000 lb |
| Usable Deck Width | 87″ |
| Overall Width | 95″ |
| Overall Length | 36 ft (432″) |
| Service Height Range | 45″ to 62″ |
| Grating Deck | Serrated steel grating |
| Frame | Welded aluminum |
| Side Curbs | 4″ high aluminum |
| Tires | 18″ × 5″ mold-on rubber |
| Height Adjustment | Manual hydraulic hand pump |
