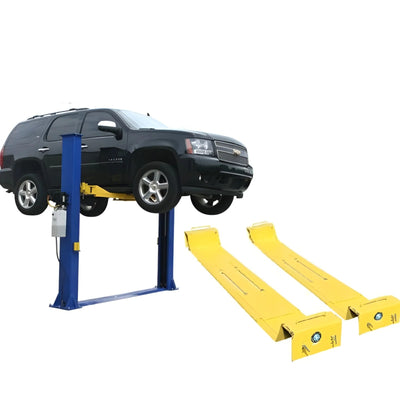

Atlas 9OHSC Overhead 2-Post Lift with Lawn Mower Adapter Combo
SKU: ATEATTD-9OHSC-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

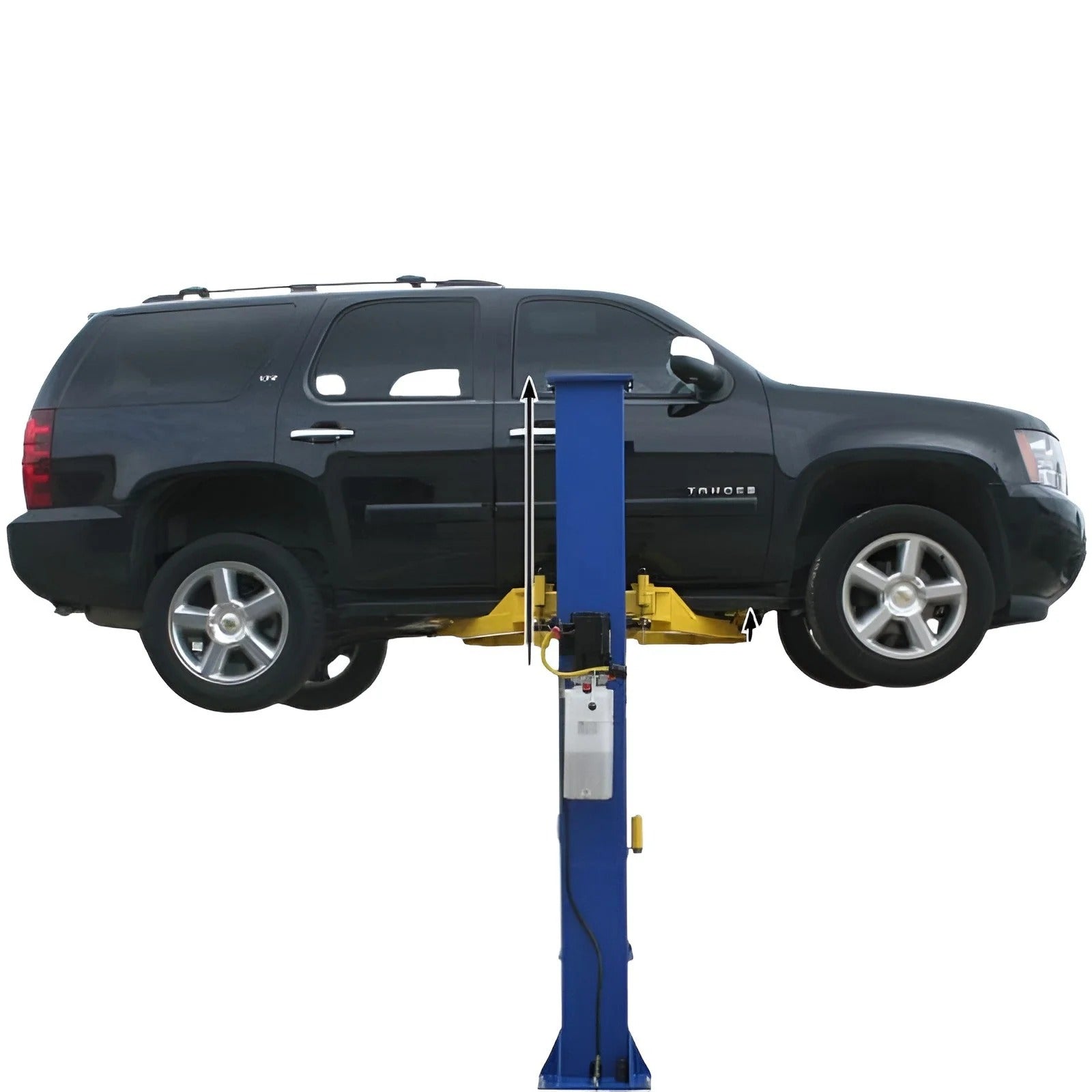

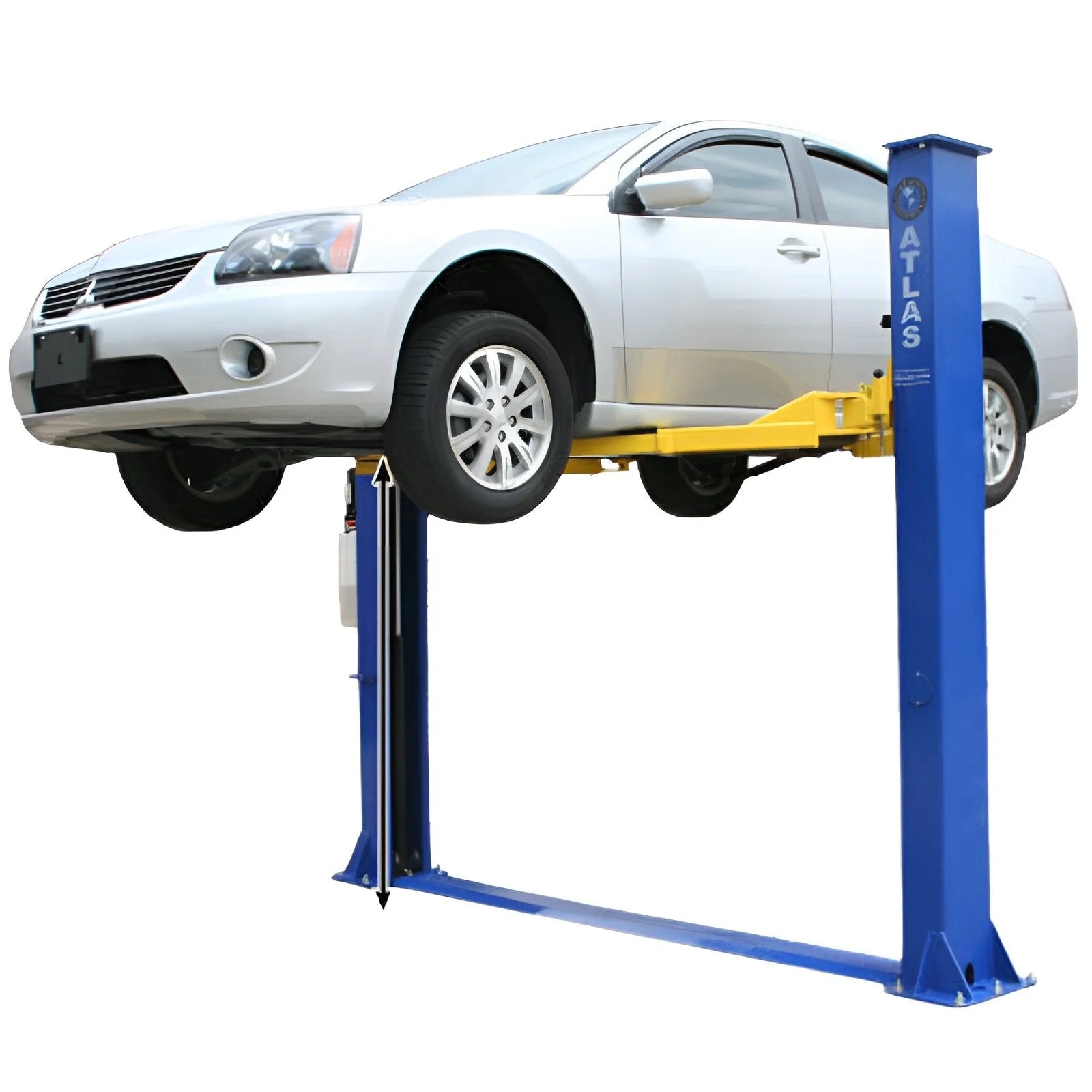

Versatile Lift for Vehicles and Equipment
The Atlas 9OHSC combo package combines a 9,000 lb overhead 2-post lift with a Lawn Mower Adapter (LMA), giving you the ability to lift both standard vehicles and smaller equipment such as ATVs, UTVs, and lawn tractors. This setup is ideal for home garages and smaller commercial shops that need flexibility in one system.

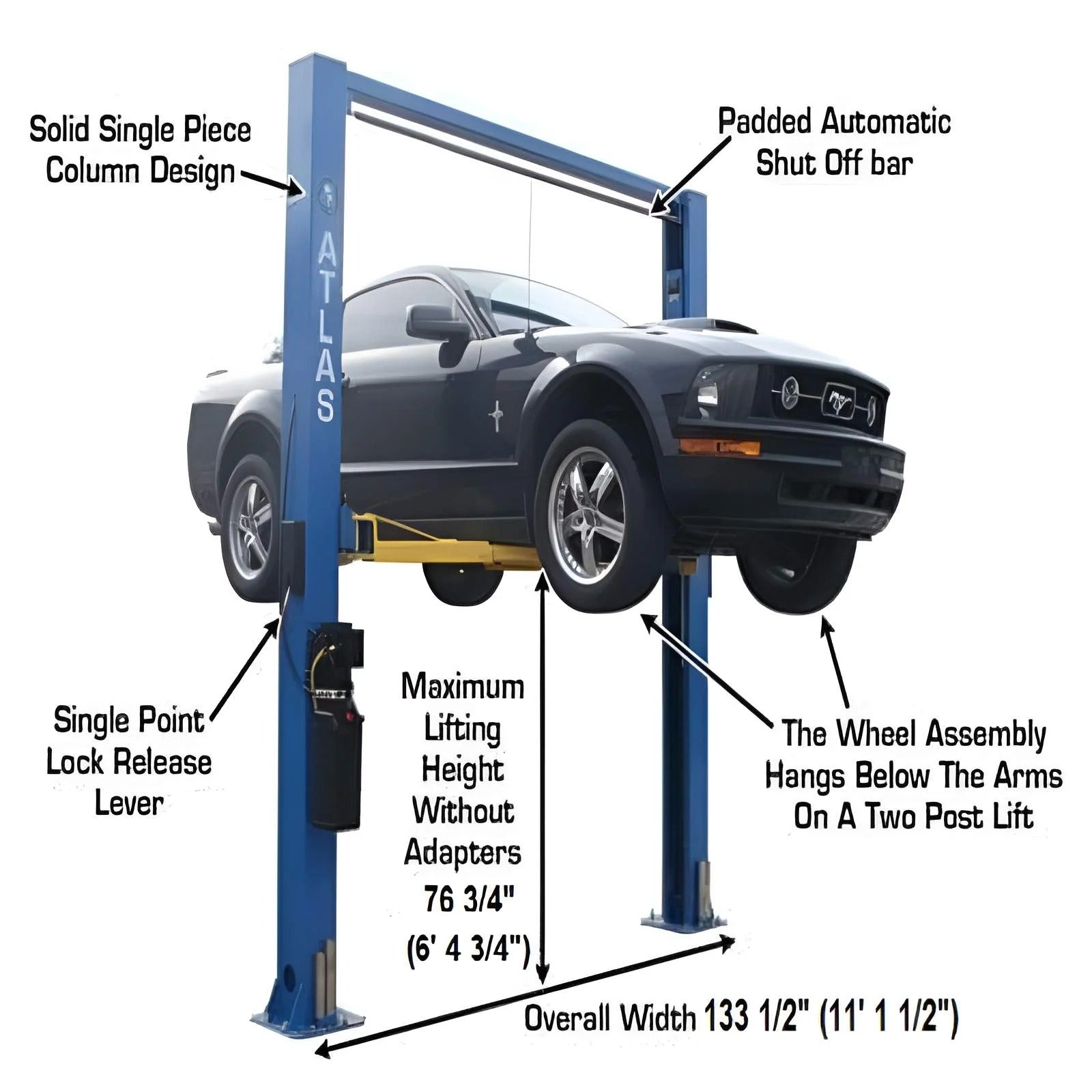

Strong Overhead Design with Open Floor Layout

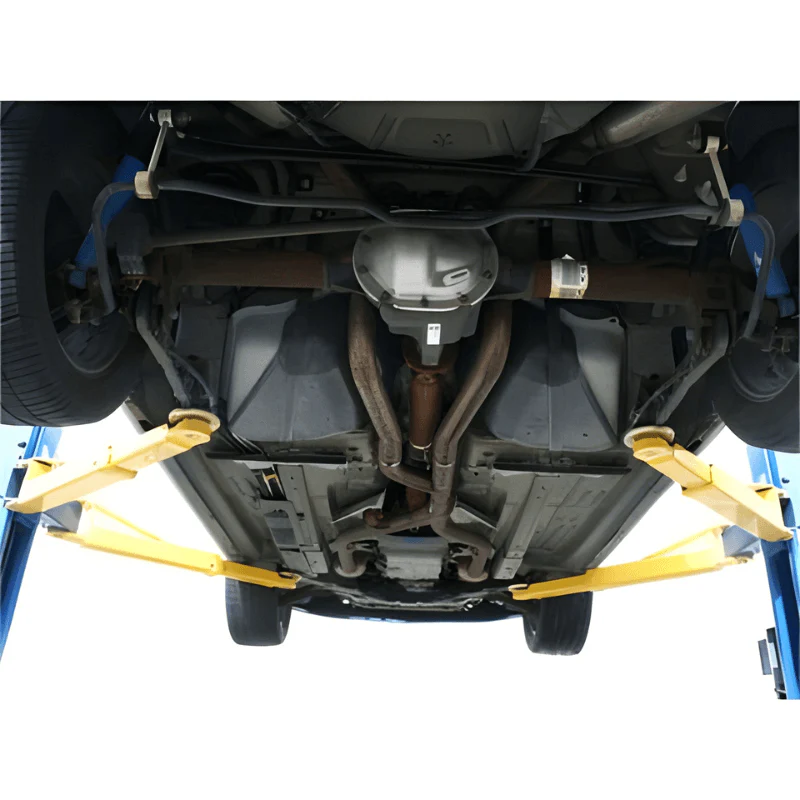

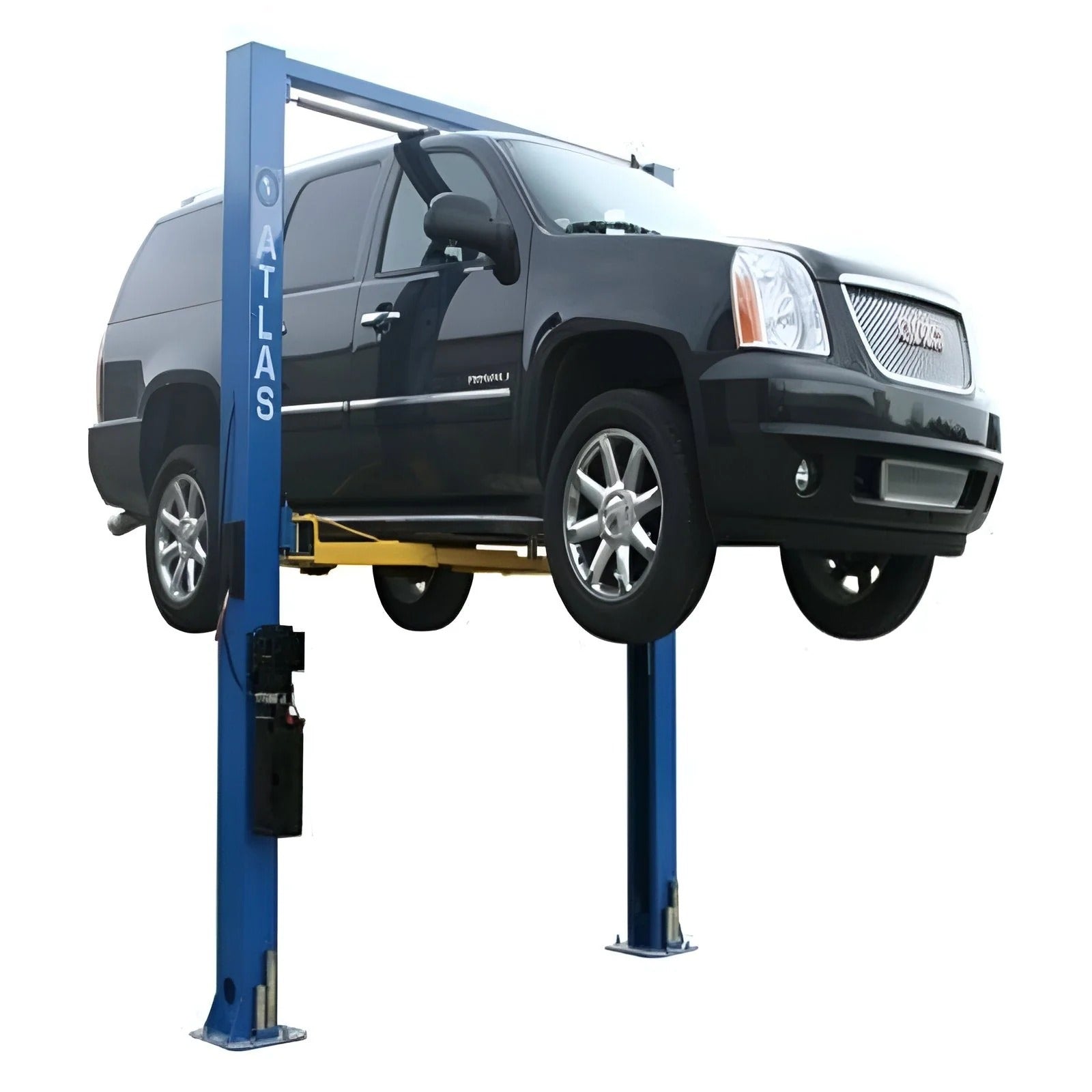

The 9OHSC features an overhead configuration with an open-floor design, allowing clear access beneath the vehicle. Its single-piece column construction and extended carriage provide added strength and stability when lifting vehicles up to 9,000 lbs.
Built for Reliable Performance
Equipped with dual hydraulic chain-drive cylinders and automatic arm restraints, this lift delivers consistent lifting performance and secure positioning. The single-point lock release system makes operation simple, while rubber carriage guards help protect vehicle doors during use.

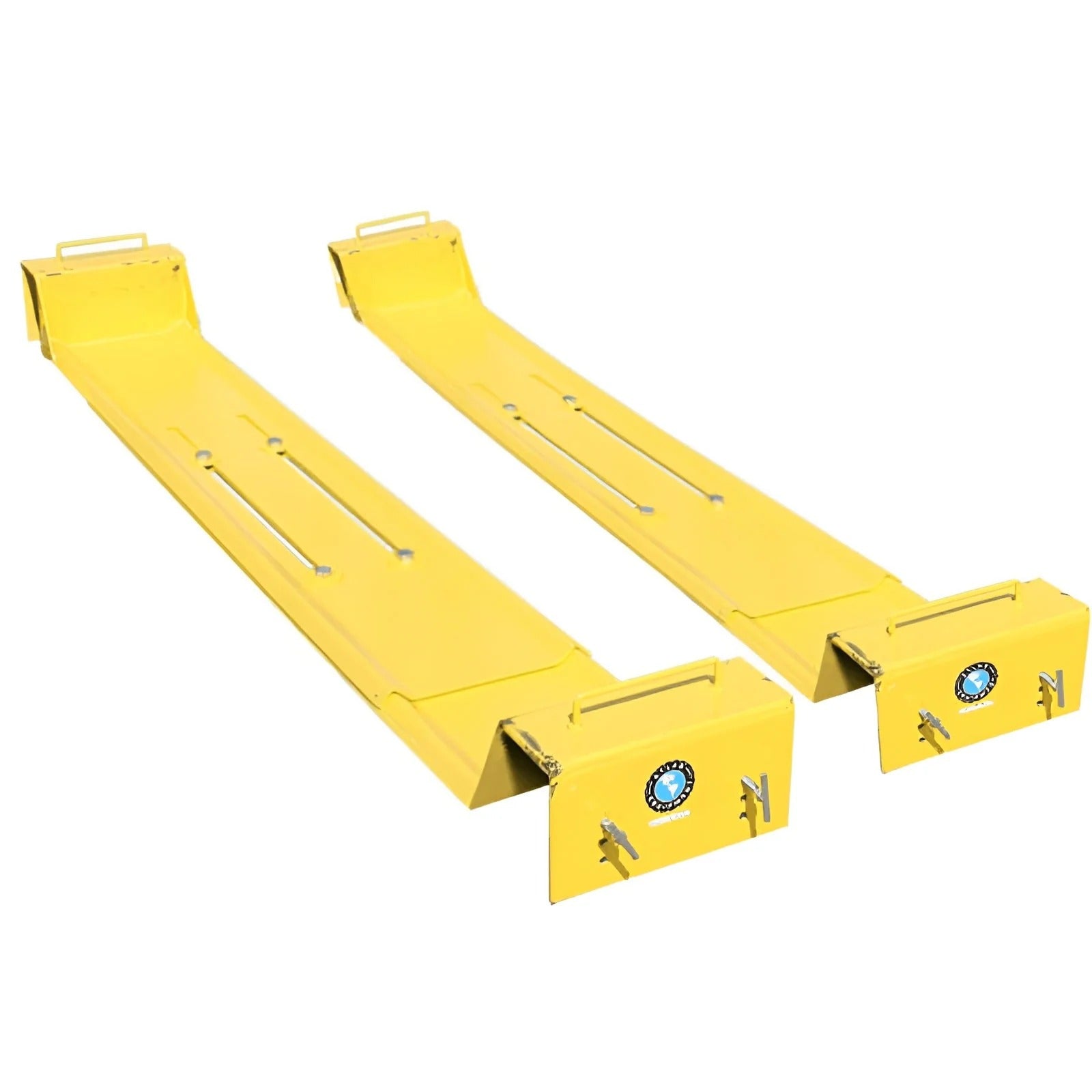

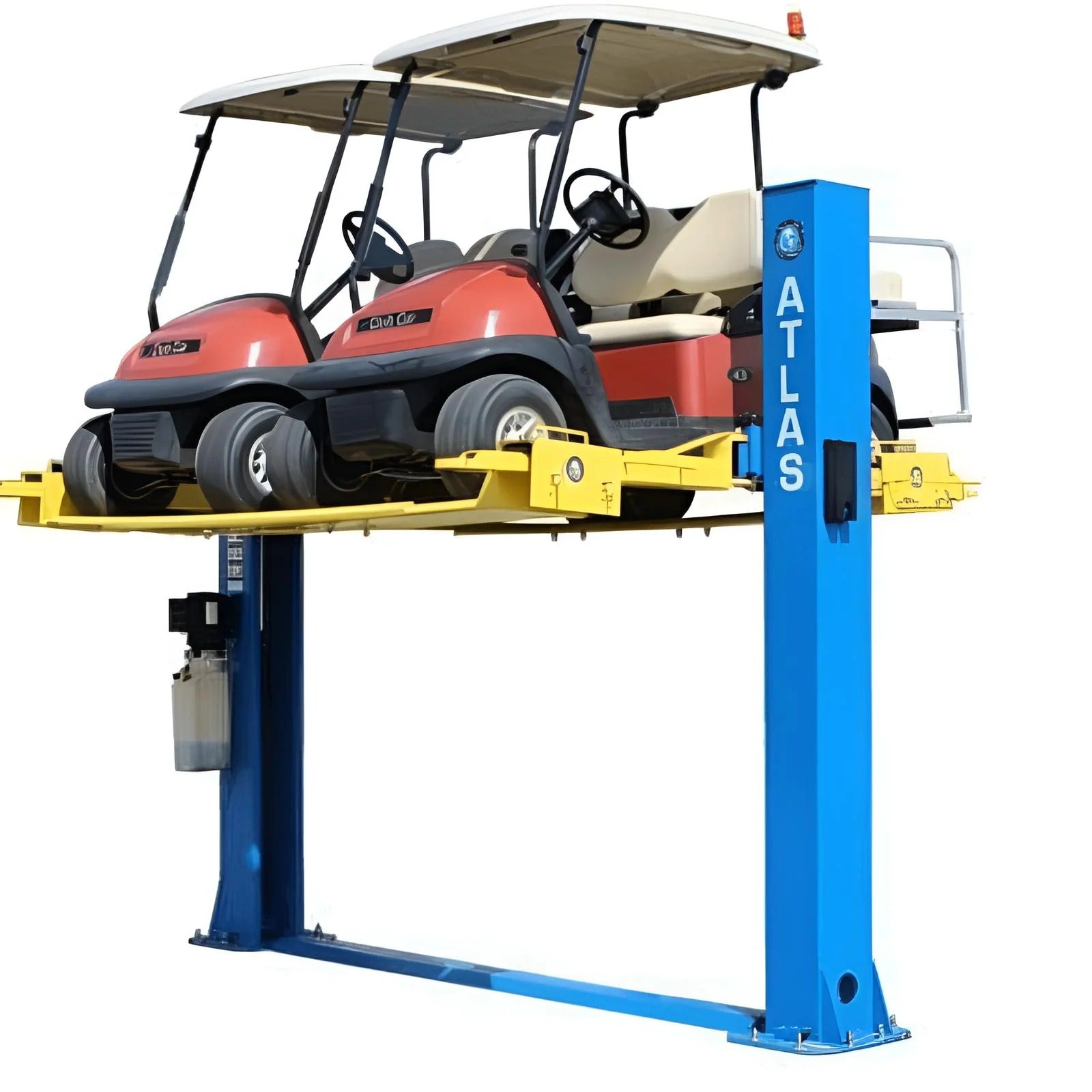

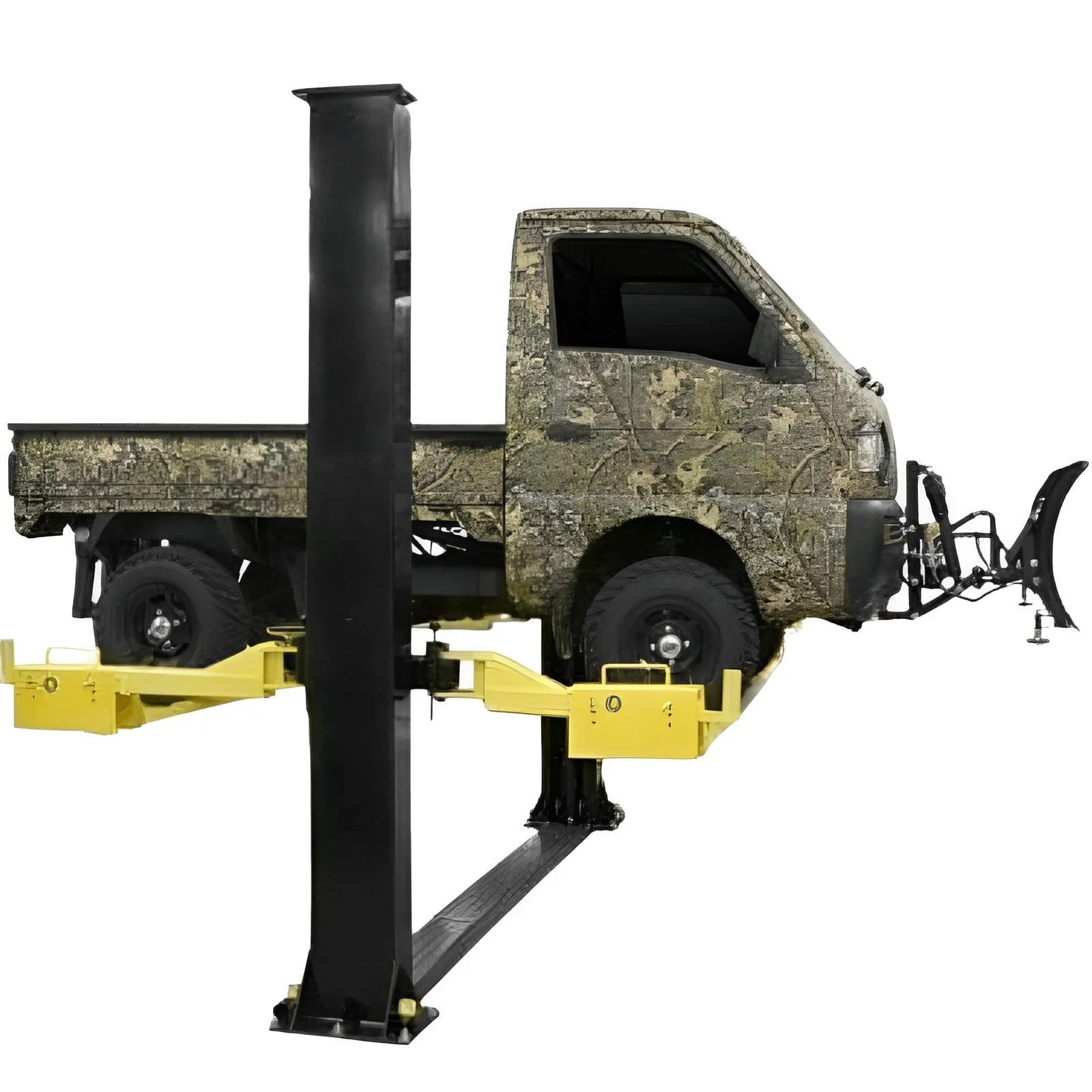

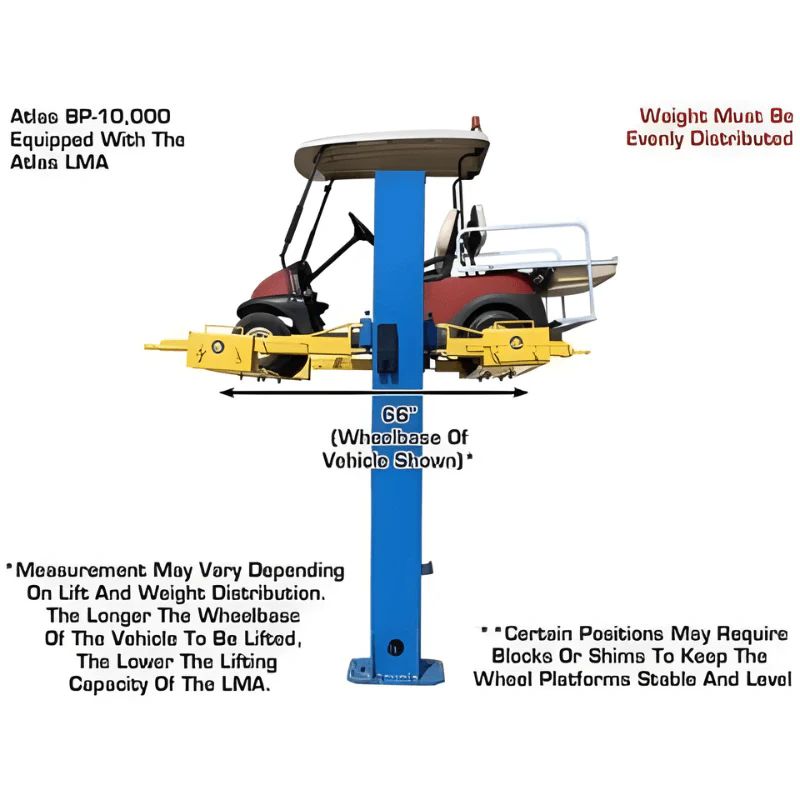

Expanded Capability with Lawn Mower Adapter

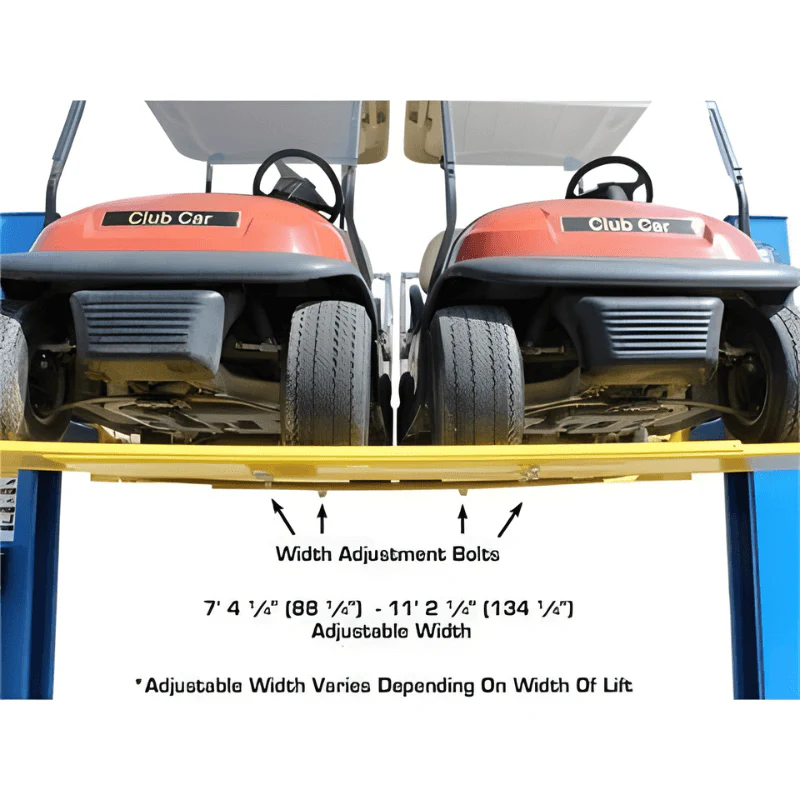

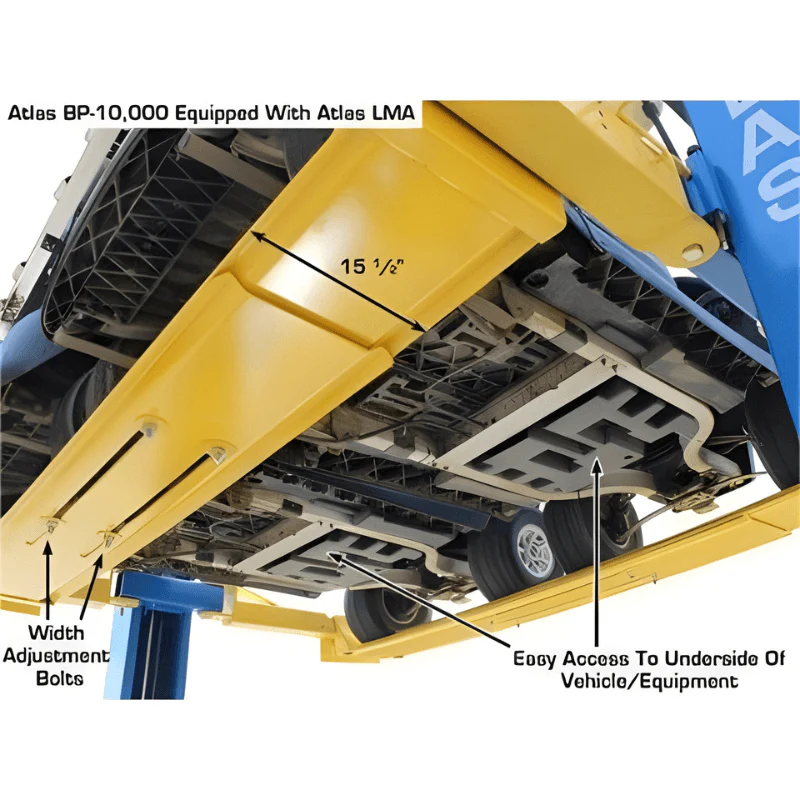

The included LMA allows you to lift smaller equipment in addition to vehicles. It is adjustable to fit different wheelbases and can be positioned along the lift arms depending on the load. Capacity will vary depending on configuration and setup.
Key Features
- 9,000 lb lifting capacity
- Overhead, open-floor design
- Single-piece column construction

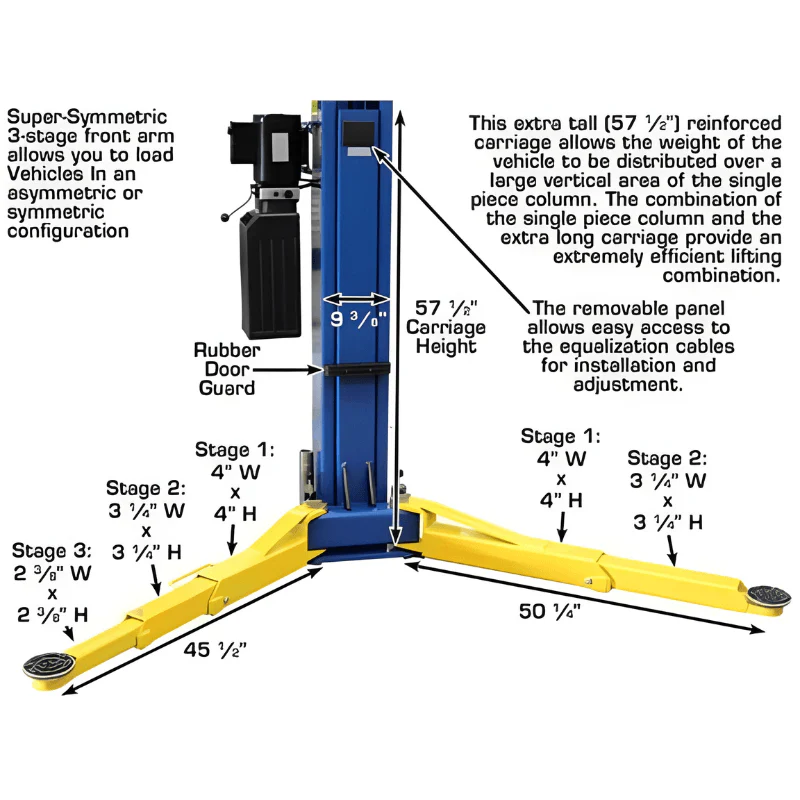

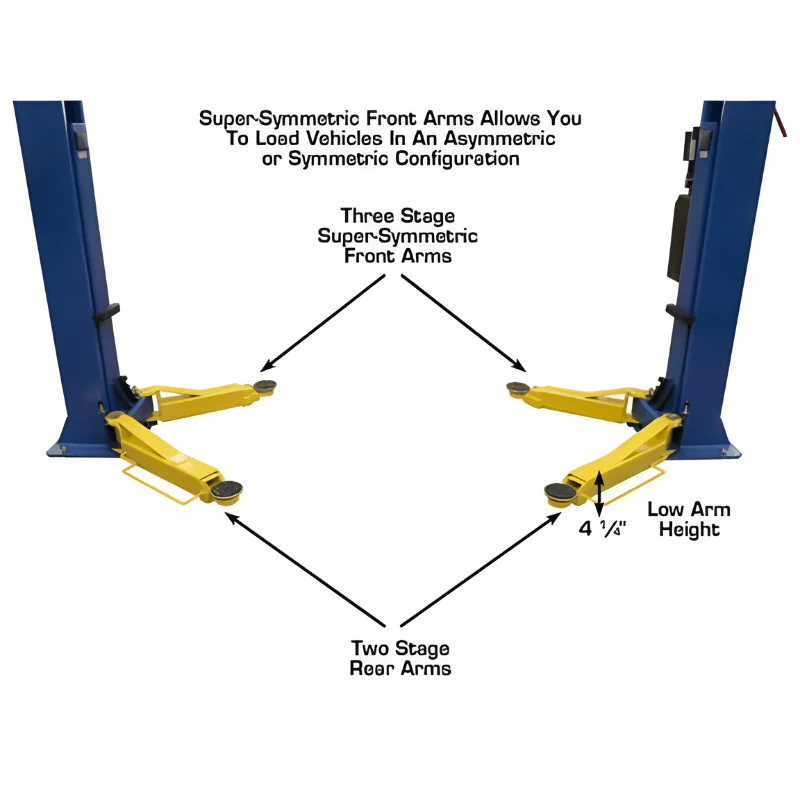

- 3-stage front arms and 2-stage rear arms

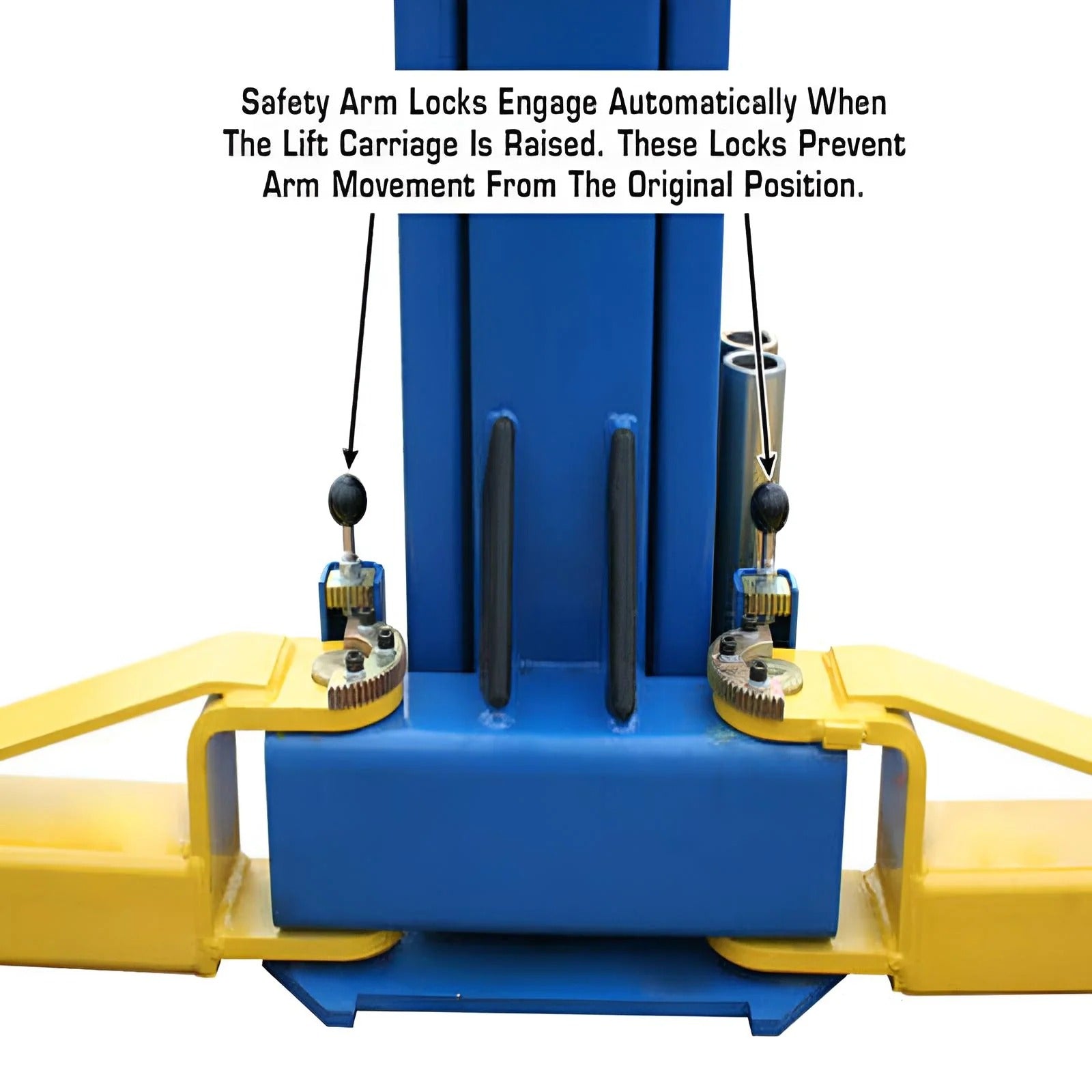

- Automatic arm restraints

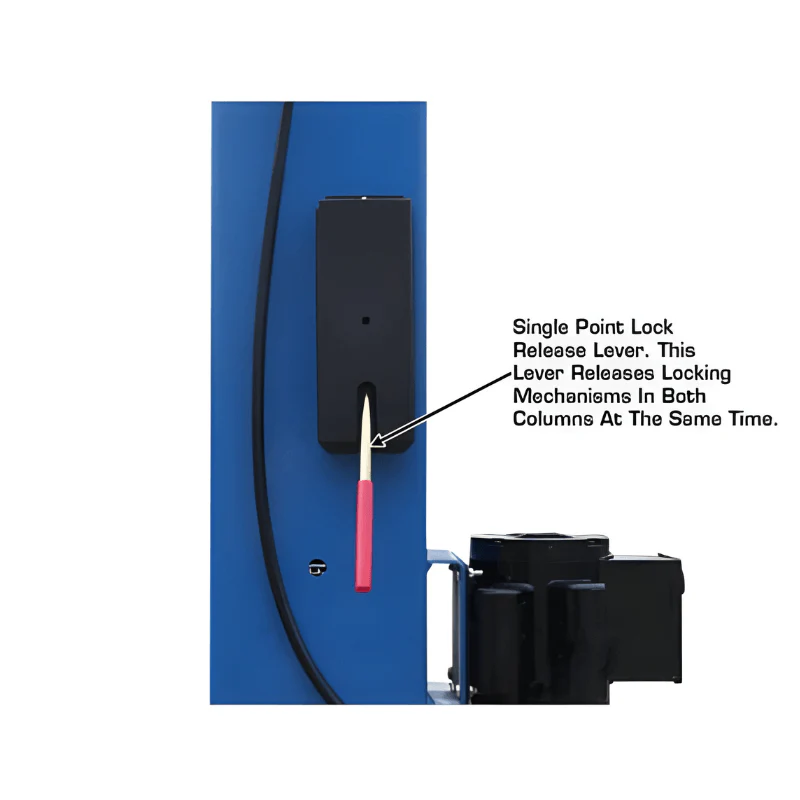

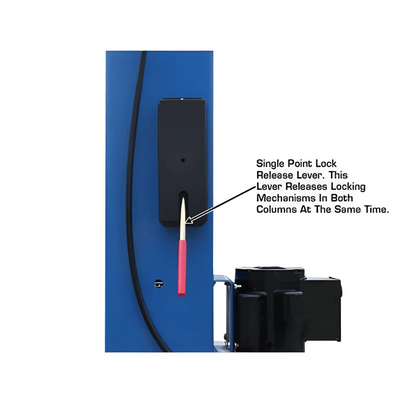

- Single-point lock release
- Rubber guards on carriages
- Dual hydraulic chain-drive cylinders

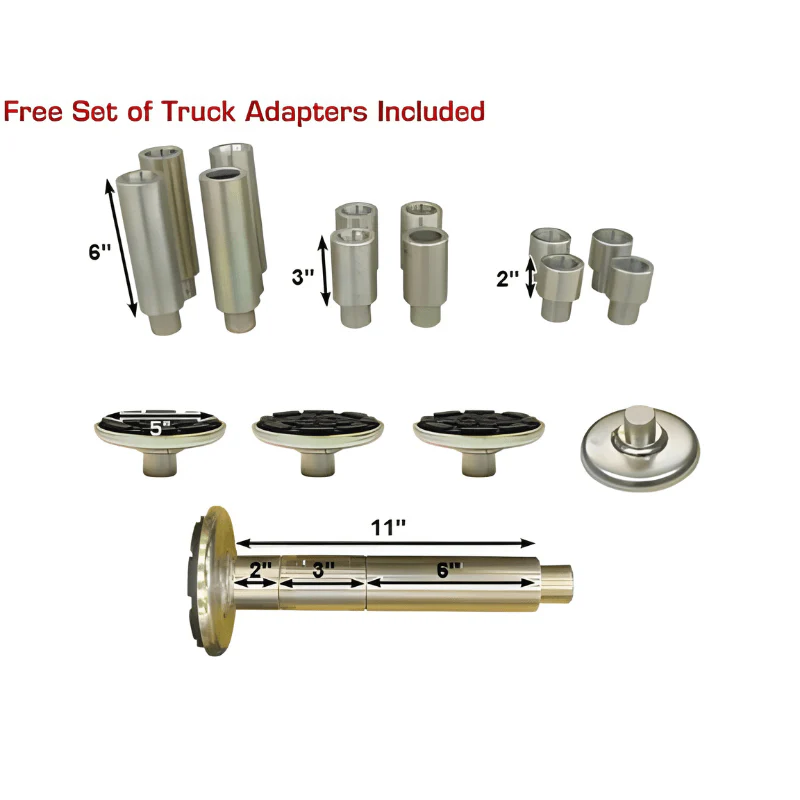

- Includes 12-piece truck adapter set

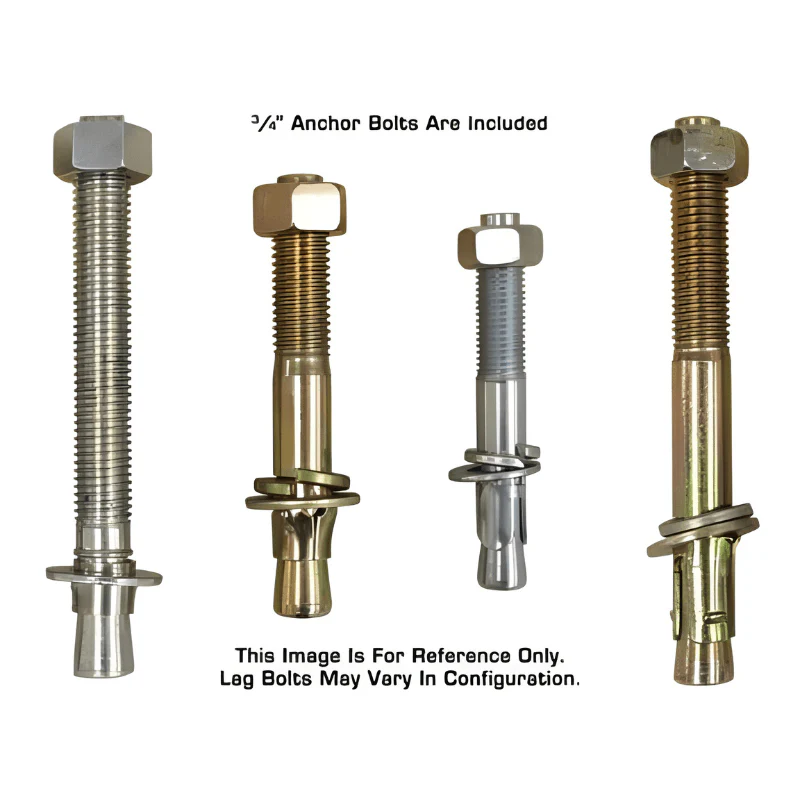

- Mounting hardware included
- Includes Lawn Mower Adapter (LMA)
- Freight prepaid
Atlas ATTD-9OHSC-SS
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb. |

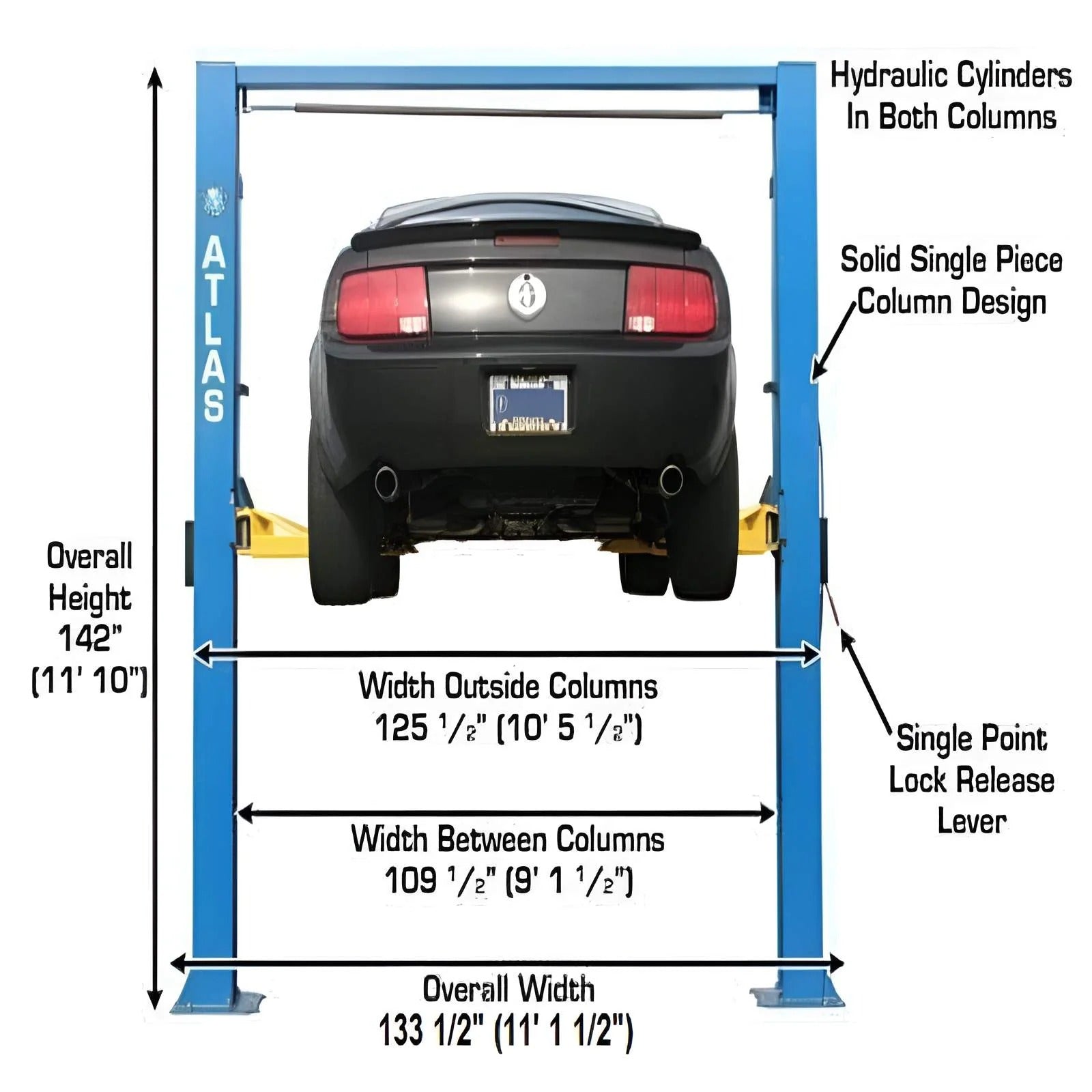

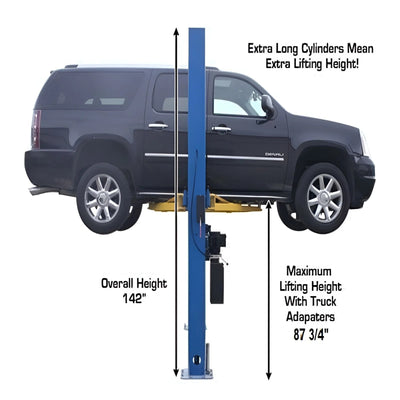

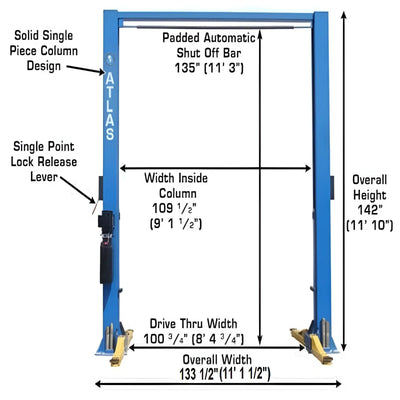

| Overall Height | 142" (11' 10") |
| Overall Floor Width | 133 1/2" (11' 1 1/2") |
| Outside Column to Outside Column | 125 1/2" (10' 5 1/2") |

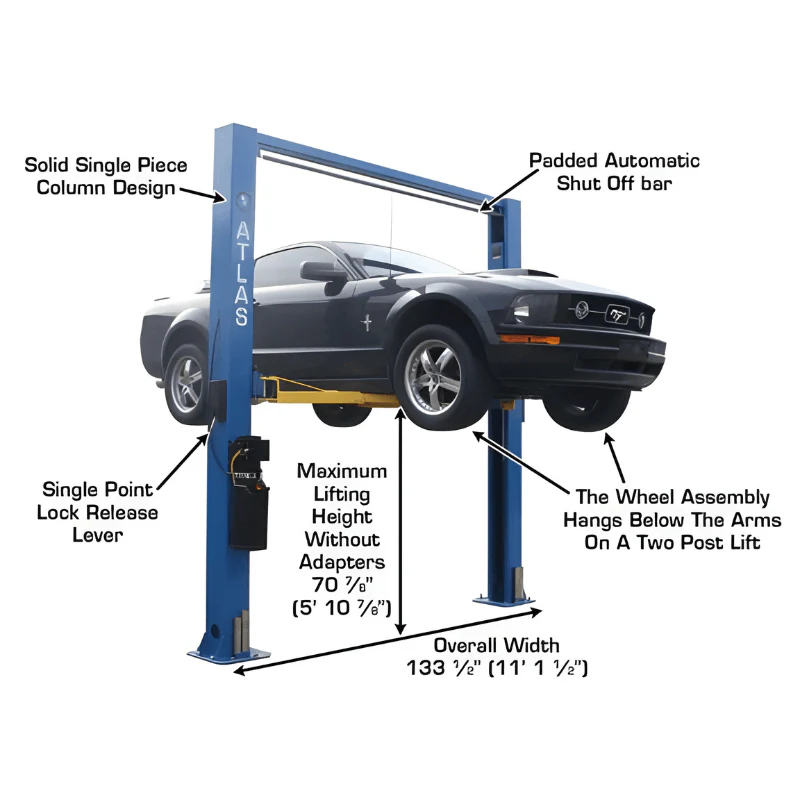

| Maximum Lift Height (Without Adapters) | 76 3/4" |

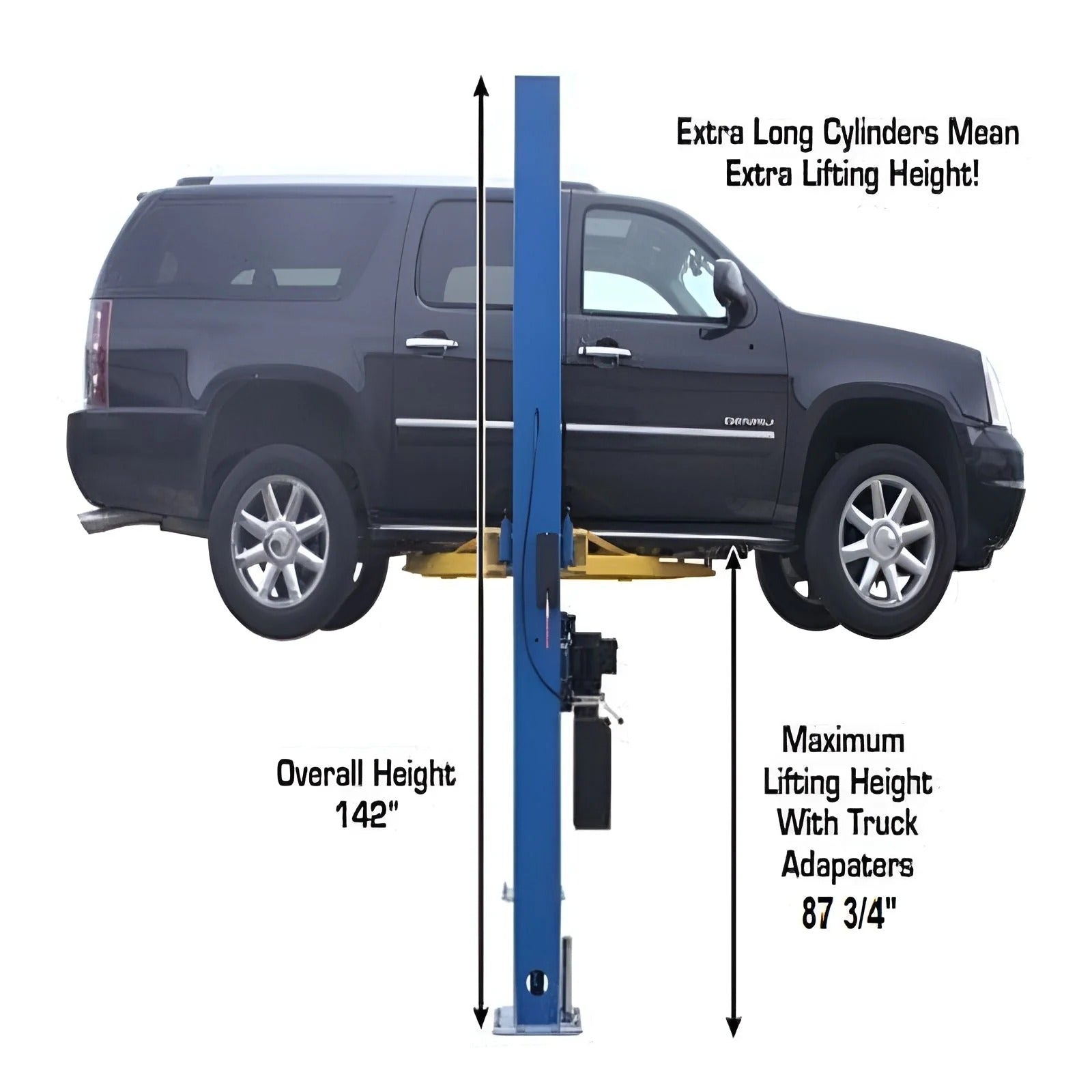

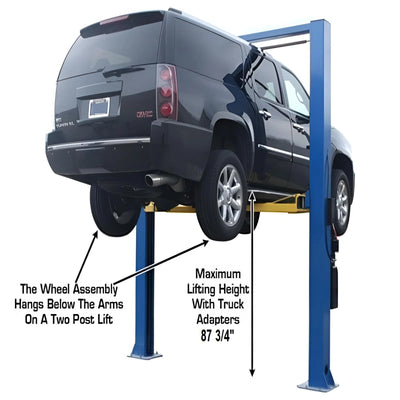

| Maximum Lift Height (With Adapters) | 87 3/4" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/2" (9' 1 1/2") |
| Drive Thru | 100 1/2" (8' 4 1/2") |

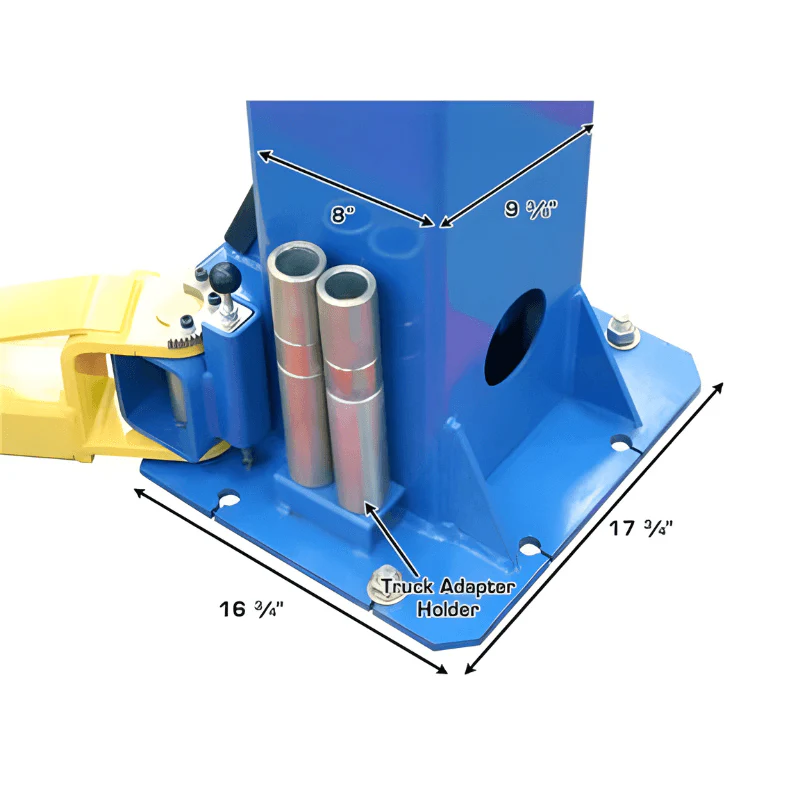

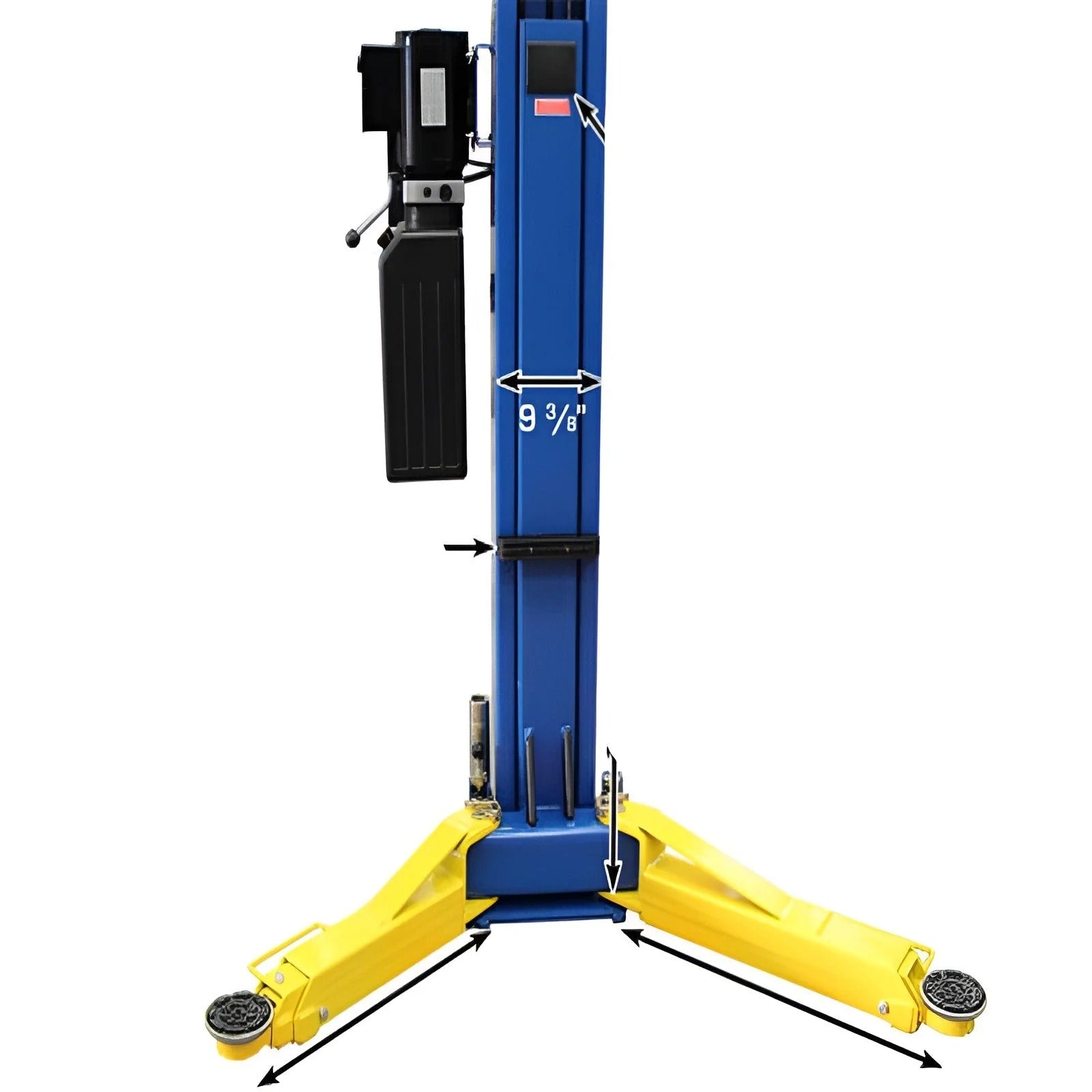

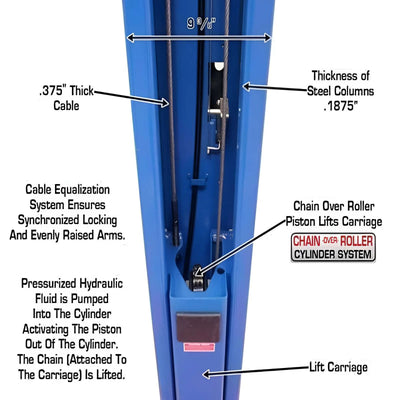

| Column Size | 8" x 9 3/8" |
| Column Thickness of Steel | 5mm |
| Base of Lift | 16 3/4" x 17 3/4" |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

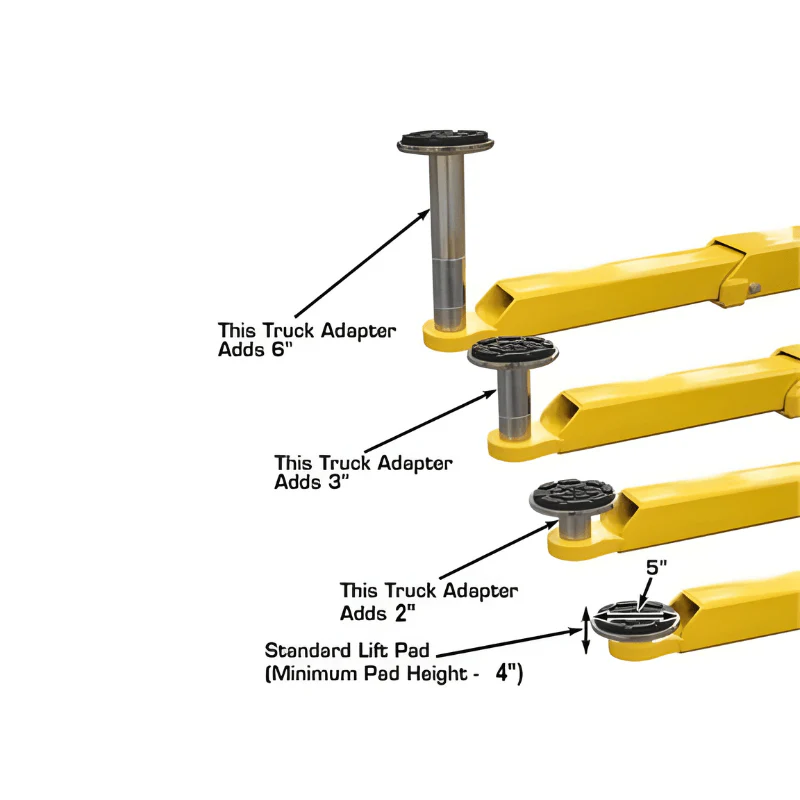

| Adapter Heights | 4 Each: 2", 3", 6" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" concrete with 3,000 PSI rating |
| Shipping Weight | 1,430 lbs. |

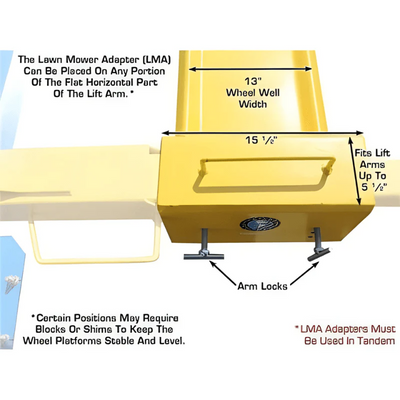

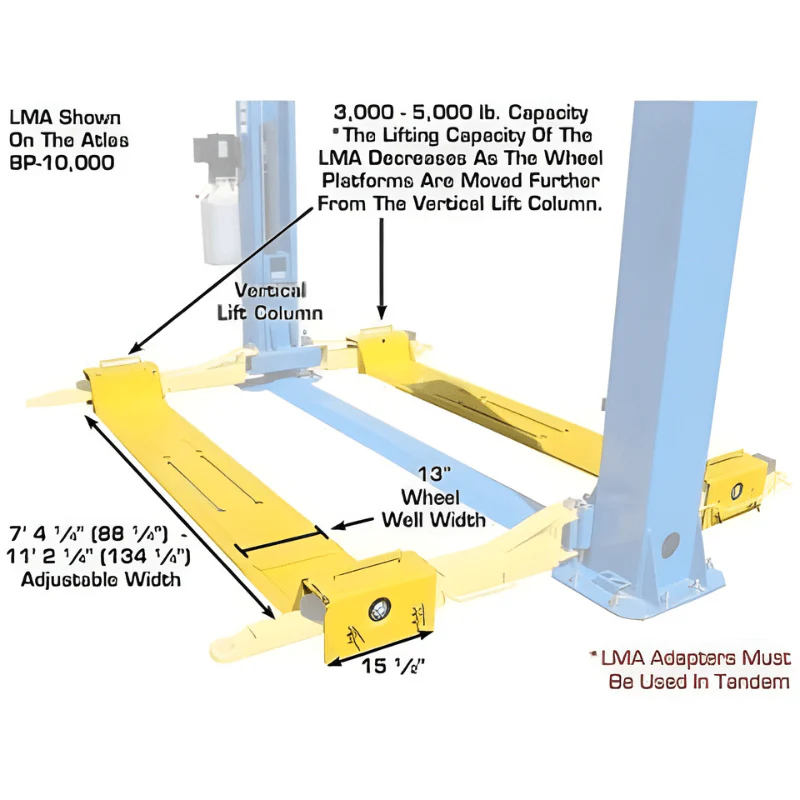

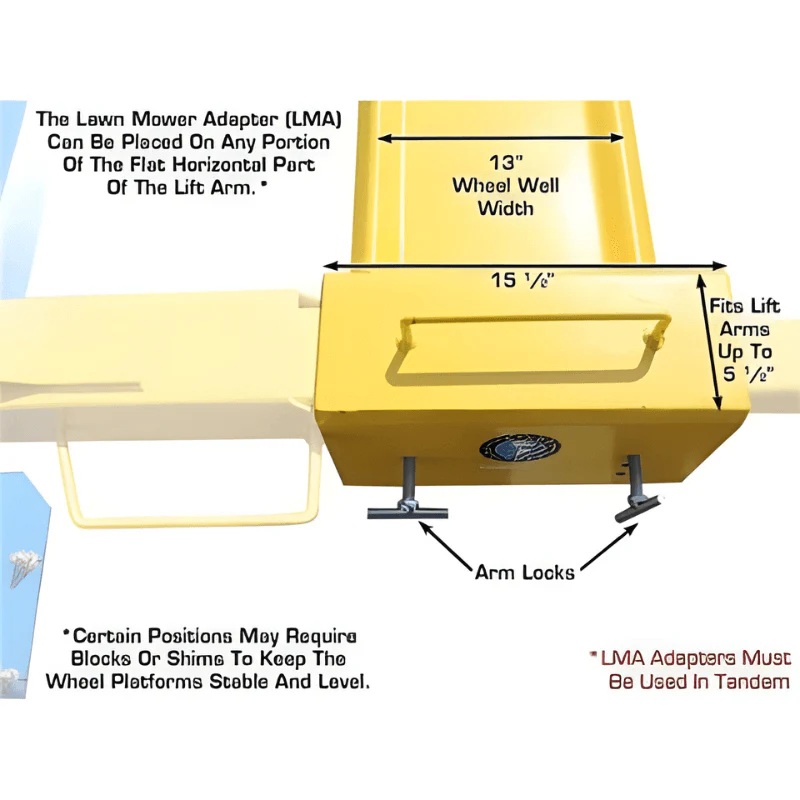

Atlas LMA
| Specifications | Details |
|---|---|
| Capacity | Up to 5,000 lbs. |

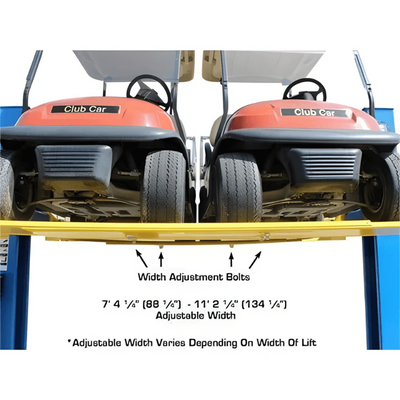

| Adjusts in Width | 8' – 11' |
| Wheel Base | 32" – 90" |
| Wheel Well Width | 12" |
| Thickness of Steel | 3/16" |
| Fits Lift Arms Up To | 5 1/2" wide |

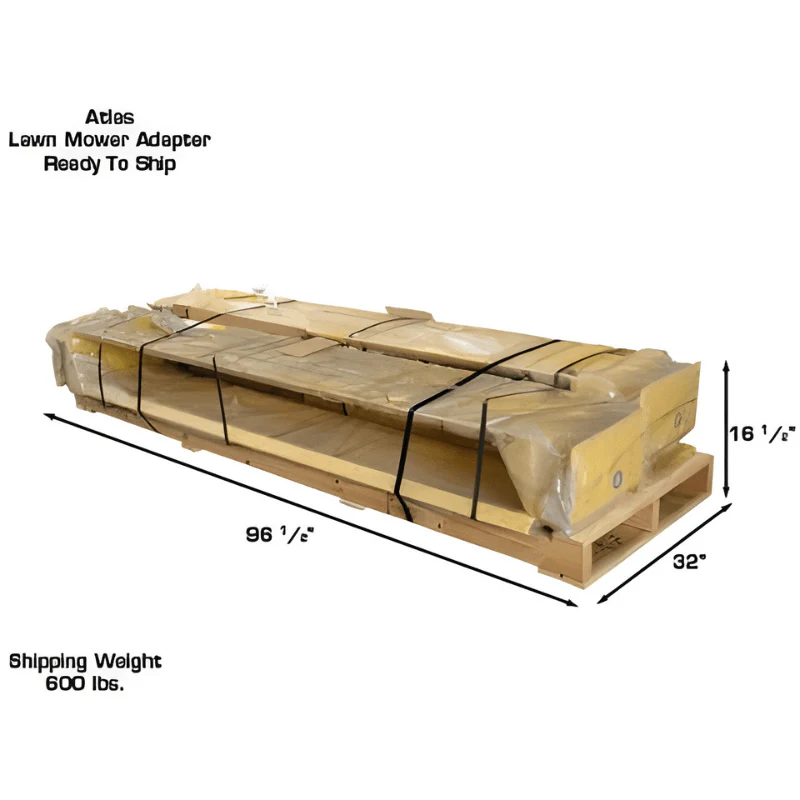

| Shipping Weight | 600 lbs. |
Note: Specifications may vary by lift and wheelbase.
