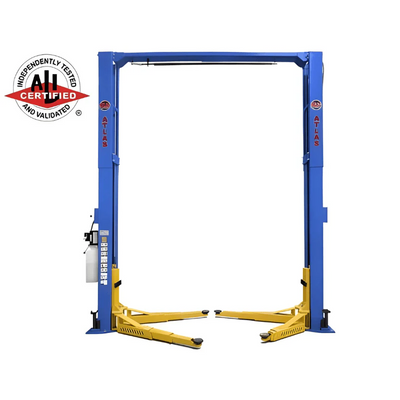

Atlas PVL12 ALI Certified 12,000 lb Overhead 2-Post Lift
SKU: ATEAP-PVL12
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

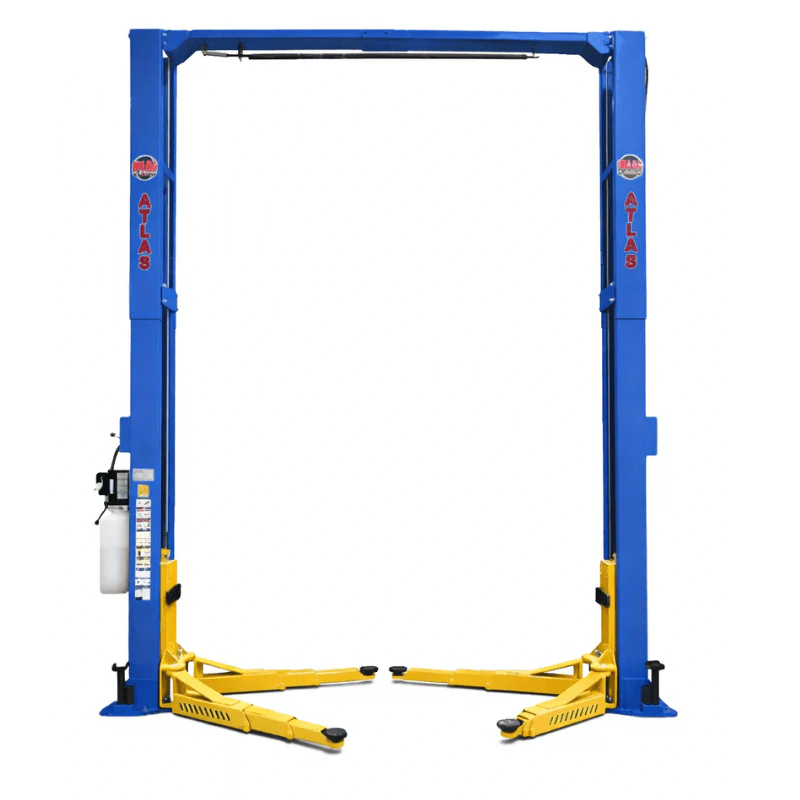

The Atlas Platinum PVL12 is a heavy-duty, ALI-certified 2-post lift designed for professional shops that require strength, flexibility, and reliable performance. With a 12,000 lb lifting capacity, it is built to handle a wide range of vehicles, from passenger cars to long wheelbase trucks, vans, and commercial vehicles.
This lift features an extra tall and extra wide design, providing the clearance and space needed for larger vehicles. The adjustable height options allow it to be configured based on ceiling requirements, while the low pad height ensures compatibility with both low-profile cars and larger trucks.
Equipped with 3-stage symmetric arms, the PVL12 offers excellent reach and balanced lifting. Automatic arm restraints, padded shut-off bar, and thick rubber door guards help protect both the vehicle and operator during use. The direct-drive hydraulic cylinders provide smooth, consistent lifting performance with fewer moving parts.
Built for durability and long-term use, the lift includes a premium ALLY power unit, certified for electrical compliance and designed to maintain consistent torque while reducing heat buildup. Its reinforced structure and wide column spacing make it ideal for servicing larger vehicles with ease.
Key Features
• ALI certified lift
• 12,000 lb capacity
• Commercial-grade construction
• Extra tall and extra wide design
• Adjustable height options (165" or 177")

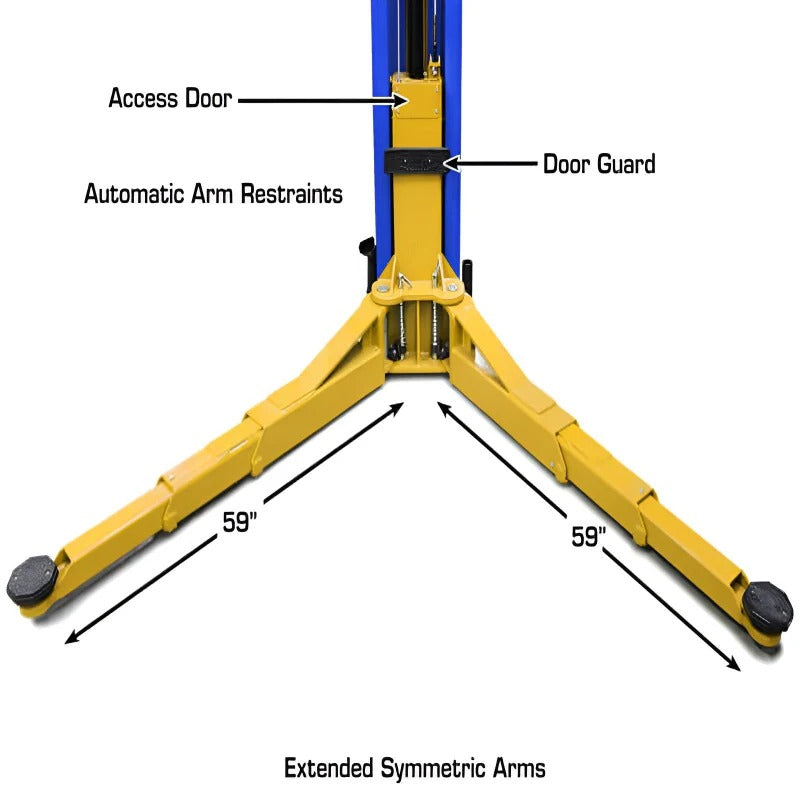

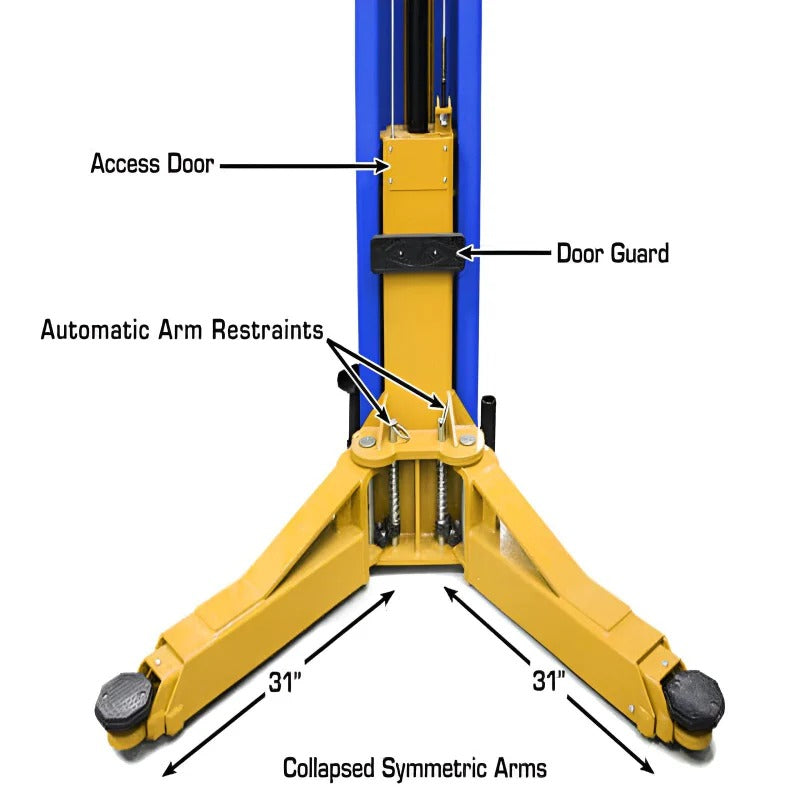

• 3-stage symmetric arms

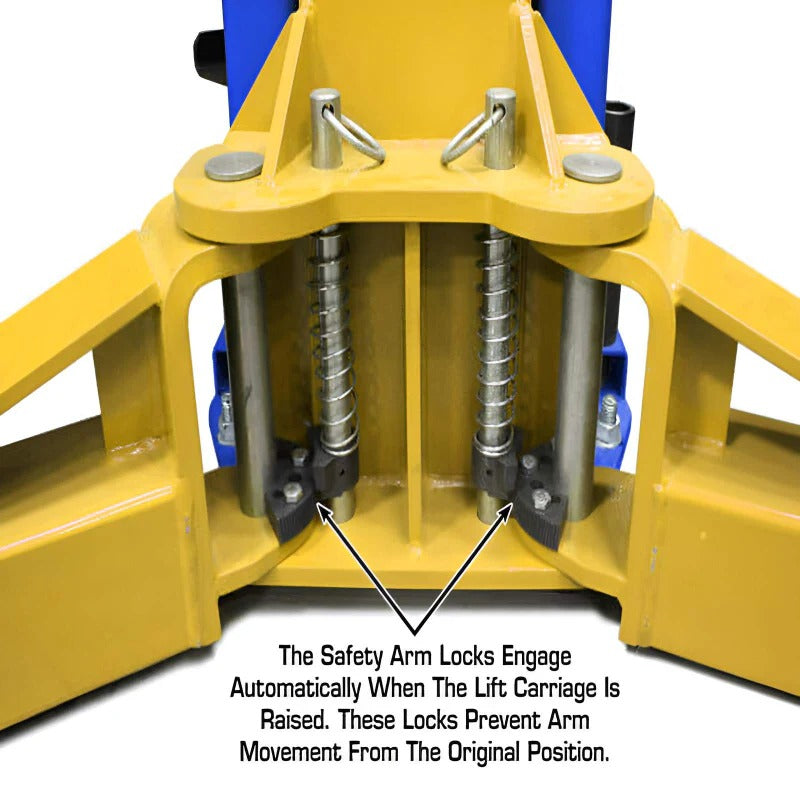

• Automatic arm restraints
• Padded shut-off bar for vehicle protection
• Thick rubber door guards on carriages
• Single-point lock release

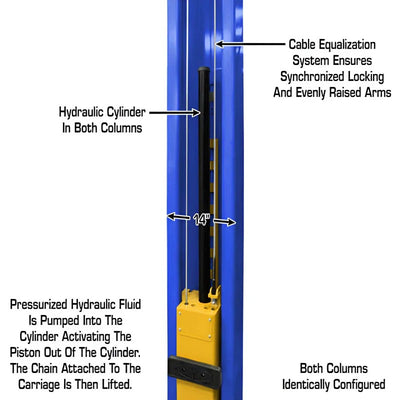

• Direct-drive hydraulic cylinders
• Powder coat finish

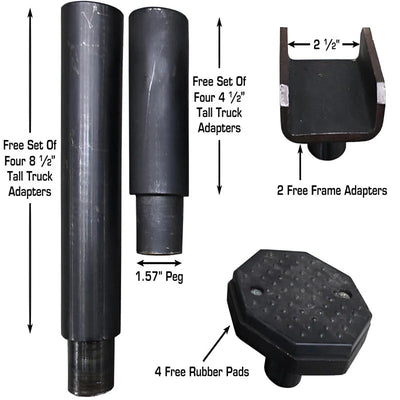

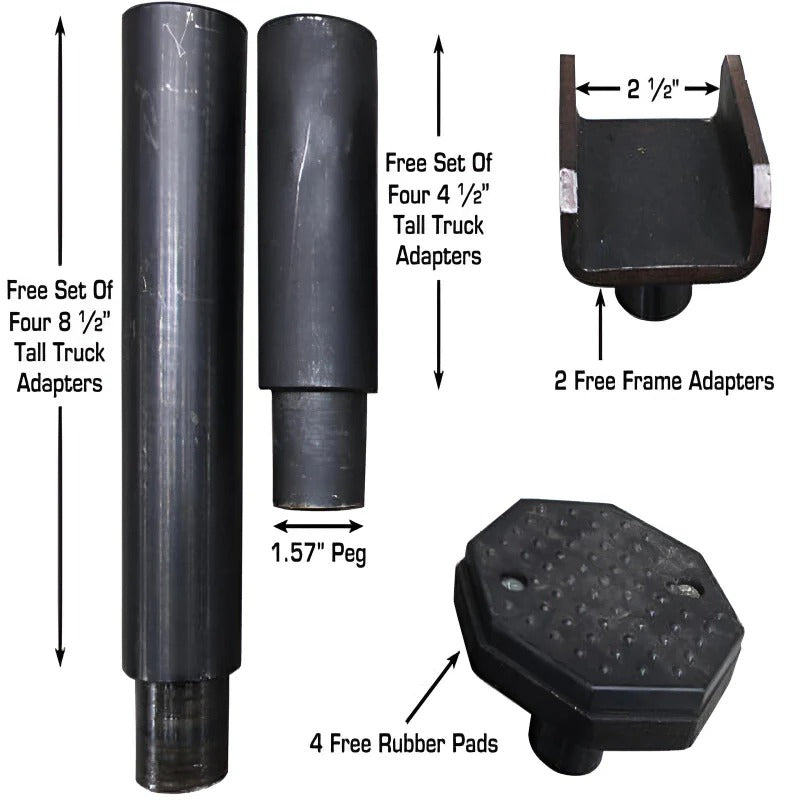

• Free 8-piece truck adapter set included
• Premium ALLY power unit (MET certified)
• Mounting hardware included
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb. |

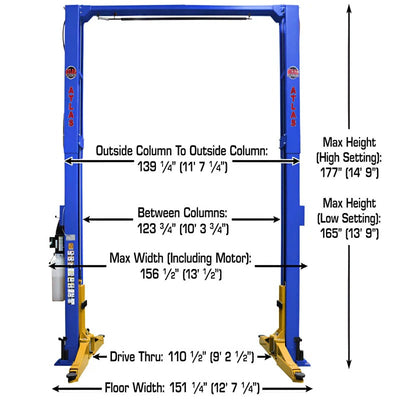

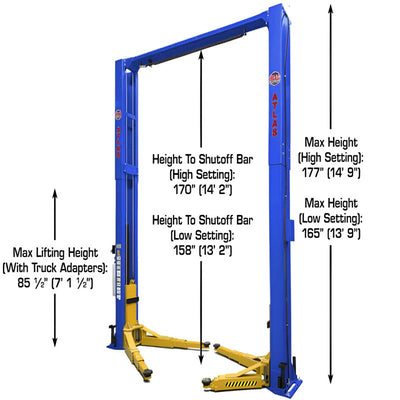

| Overall Height | 165" (13' 9") or 177" (14' 9") |
| Overall Floor Width | 150 3/8" (12' 6 3/8") |
| Outside Column to Outside Column | 139 1/8" (11' 7 1/8") |
| Maximum Lift Height (Without Adapters) | 73 5/8" |
| Maximum Lift Height (With Adapters) | 85 1/2" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 122 5/8" (10' 2 5/8") |
| Drive Thru | 109 5/8" (9' 1 5/8") |
| Column Size | 7 1/2" x 14 1/2" |

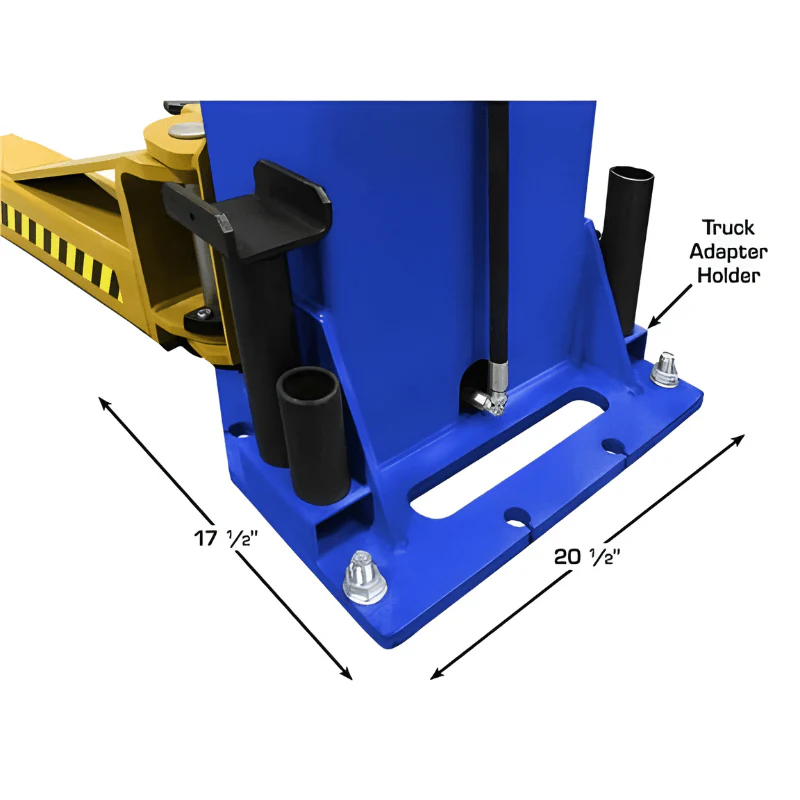

| Base Of Lift | 17 1/2" x 20 1/2" |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each: 4.5", 8.5" |
| Arm Hole/Adapter Peg Size | 1.57" |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
| Structural Warranty | 5 Years |
| Hydraulic Warranty | 2 Years |
| Power Unit Warranty | 2 Years |

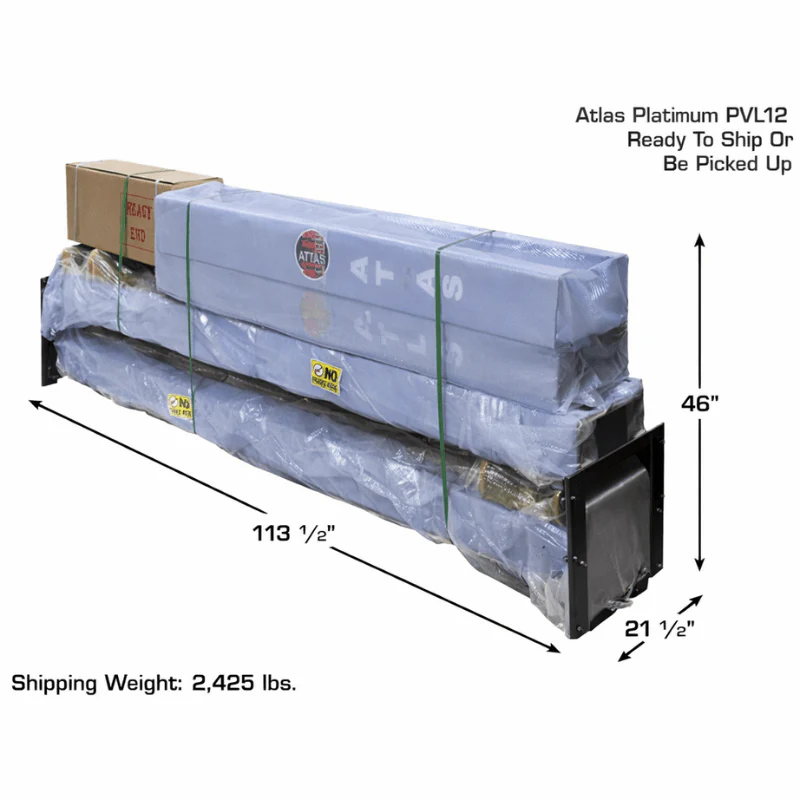

| Shipping Weight | 2,425 lbs. |
