Atlas BP12000X 12,000 lb Baseplate 2-Post Lift – Heavy-Duty Low Ceiling Commercial Lift
SKU: ATEATTD-BP12000X
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

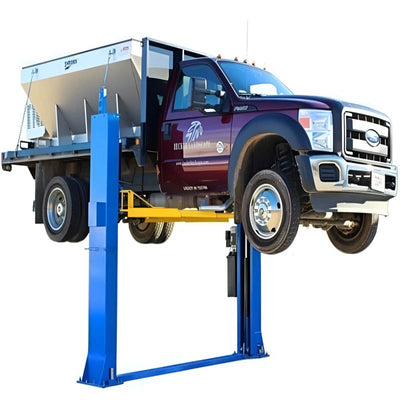

The Atlas BP12000X is a heavy-duty baseplate 2-post lift designed for shops that need strong lifting capability without requiring high ceilings. With an open-top baseplate design and a column height just over 10 feet, this lift is ideal for garages where overhead clearance is limited.
Heavy-Duty 12,000 lb Lifting Capacity
With a 12,000 lb capacity, this lift is built to handle larger vehicles including trucks and commercial applications. Its reinforced structure and oversized columns provide the strength and stability needed for demanding, daily use.
Key Features & Benefits
- 12,000 lb Capacity for cars, trucks, and commercial vehicles
- Baseplate Open-Top Design for low ceiling installations
- Heavy-Duty Commercial Grade Construction
- Adjustable Width Configuration for wider vehicles

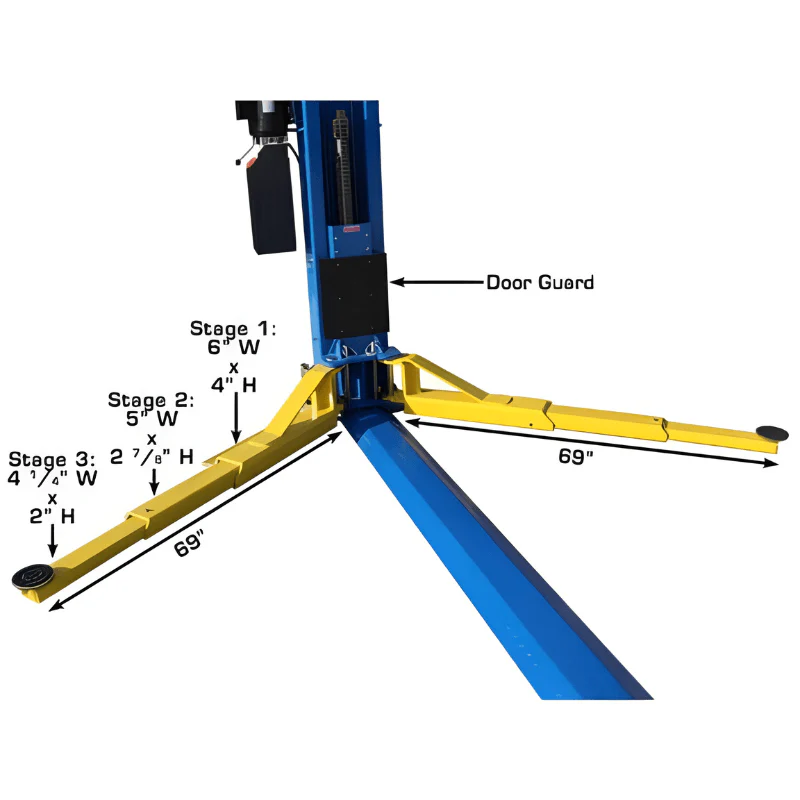

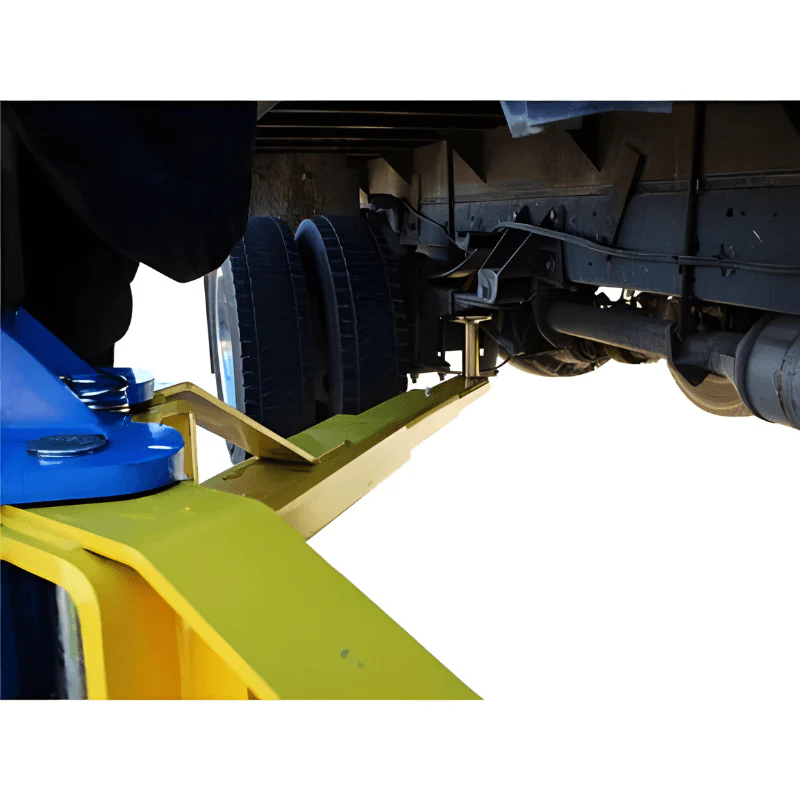

- 3-Stage Symmetric Arms for balanced lifting

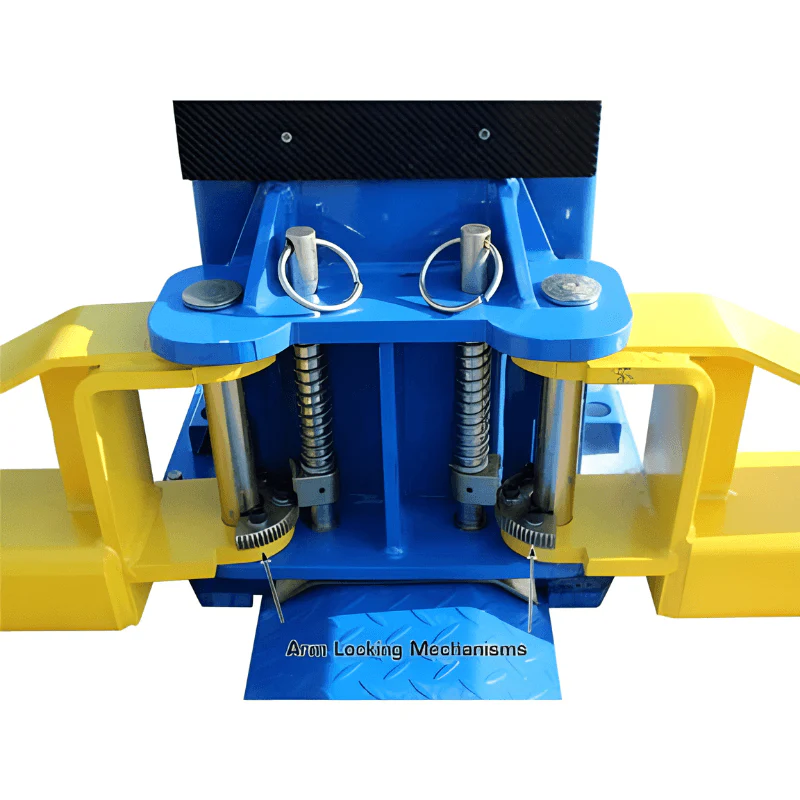

- Automatic Arm Restraints for added safety

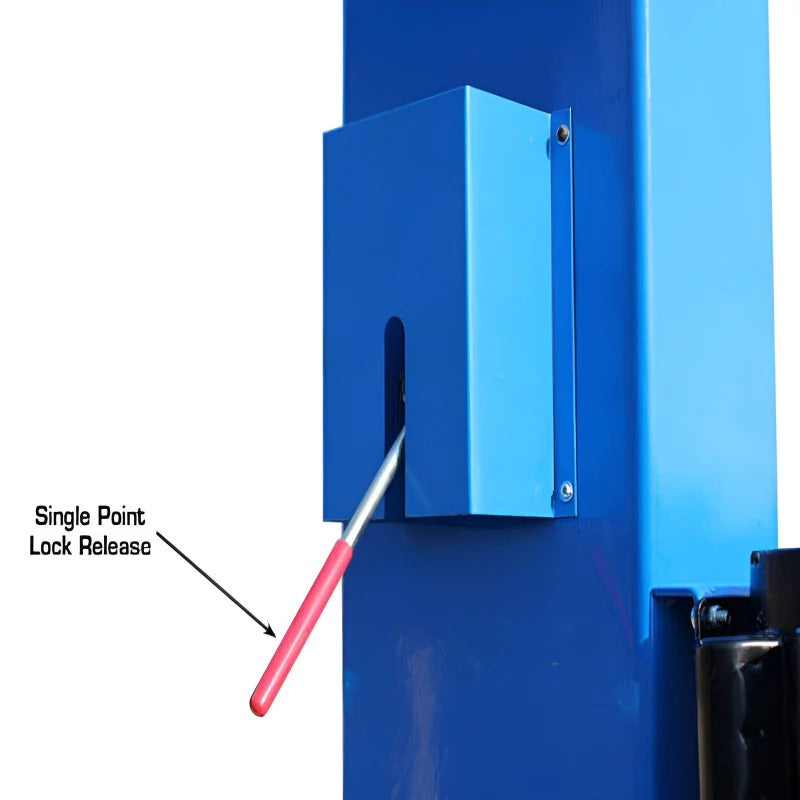

- Single-Point Lock Release system

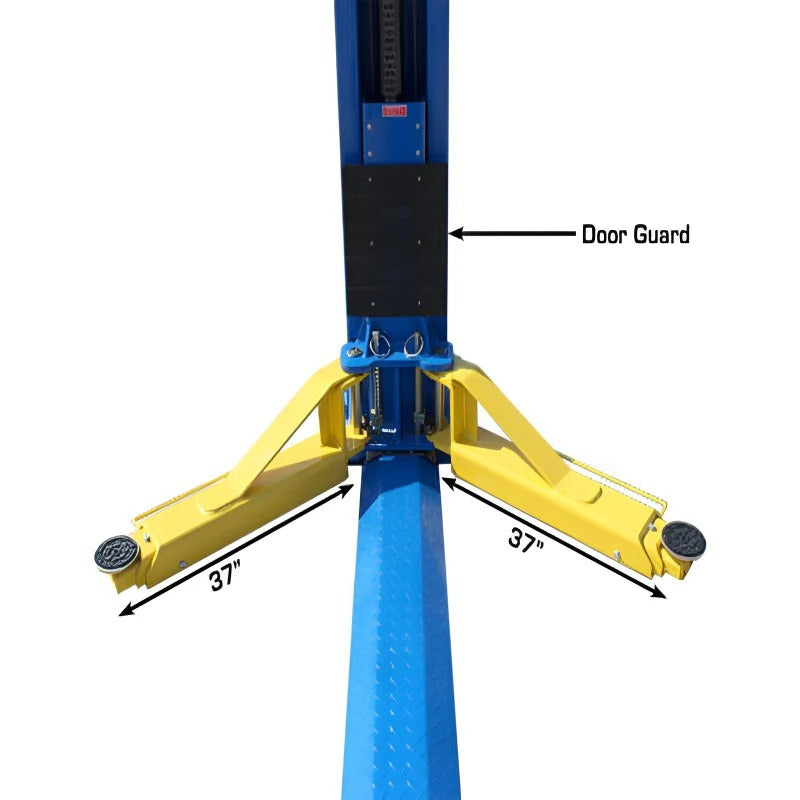

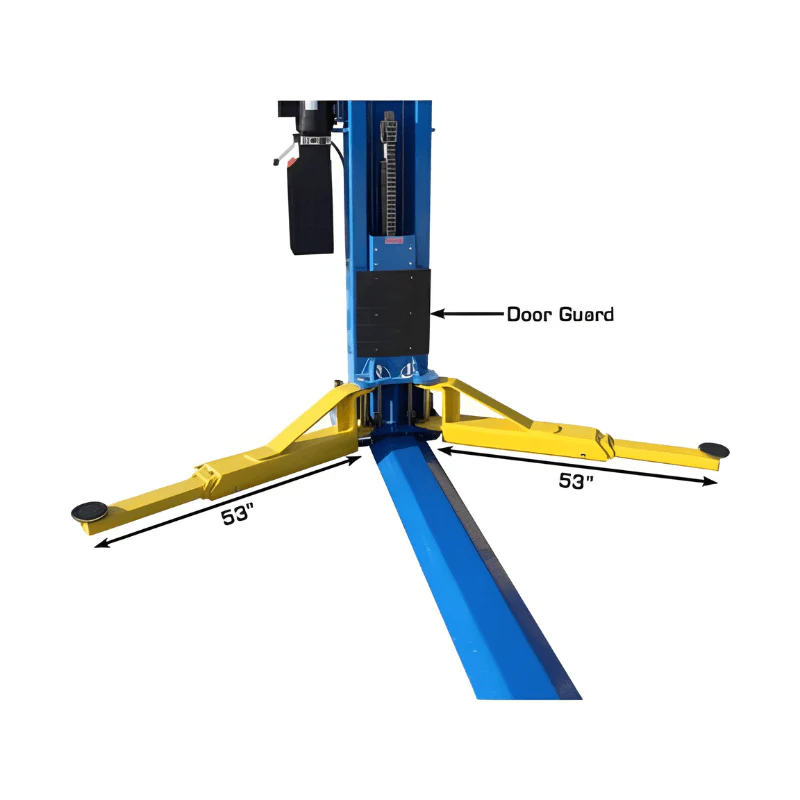

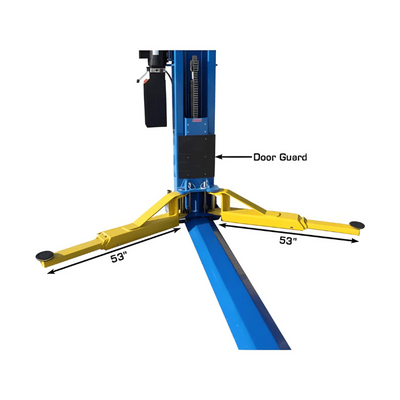

- Rubber Guards on Carriages to help protect vehicle doors

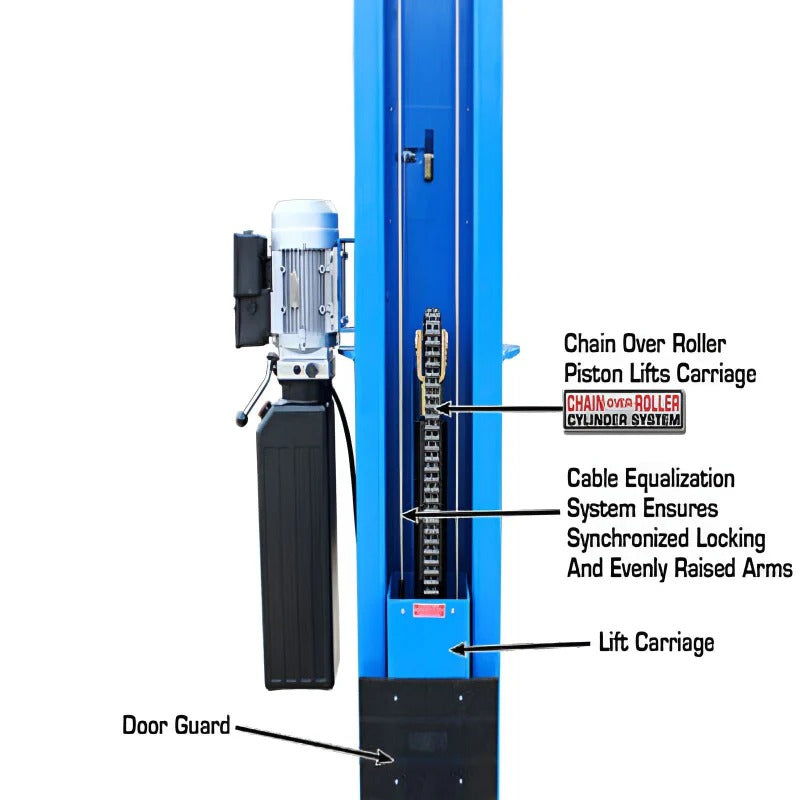

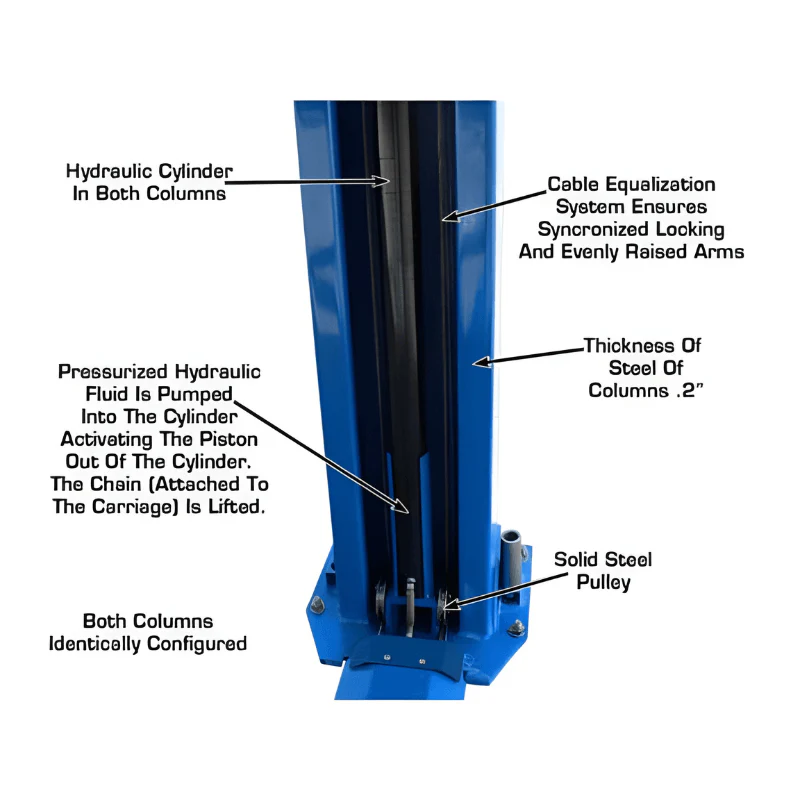

- Dual Hydraulic Chain-Over Cylinders
- Durable Powder-Coated Finish

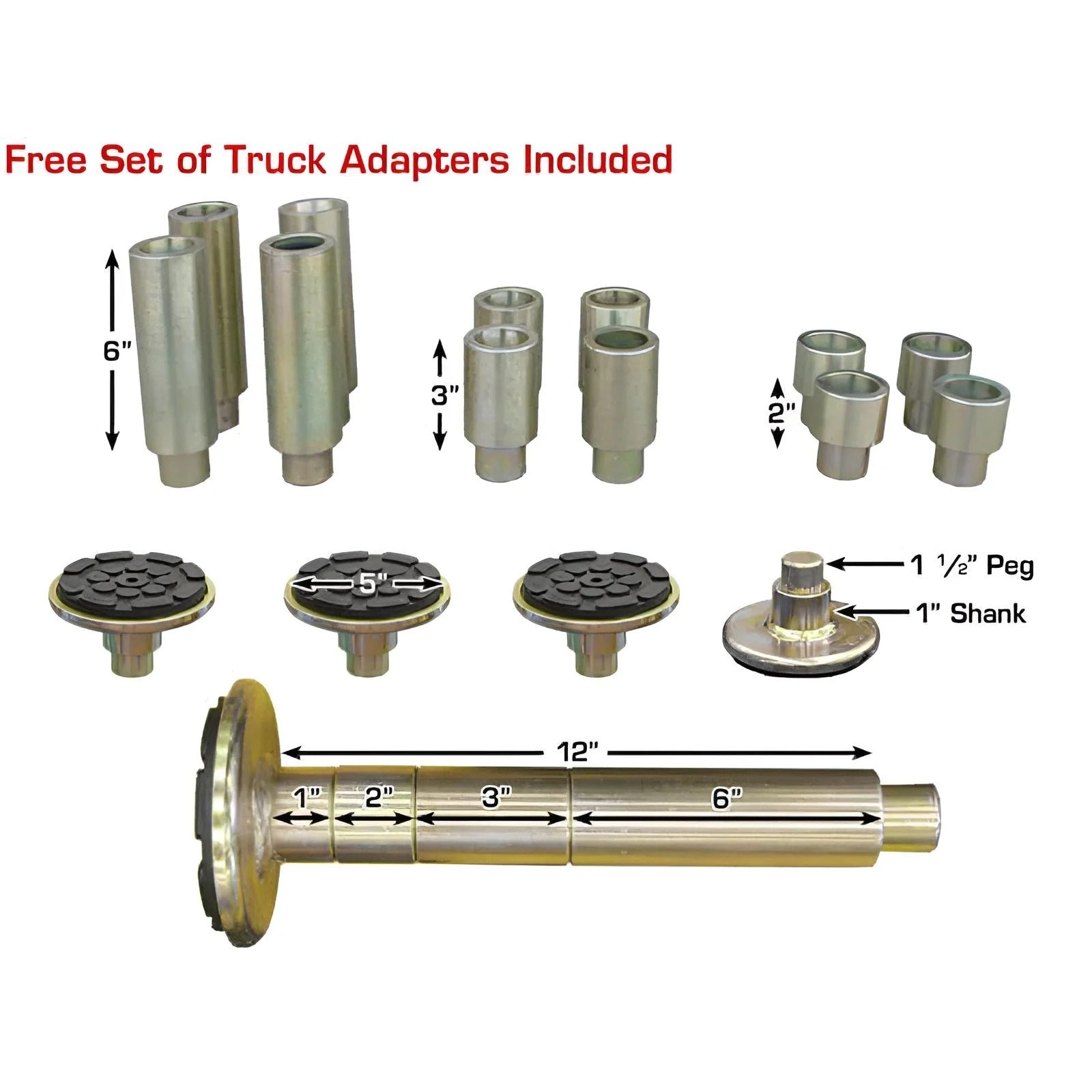

- Includes 12-Piece Truck Adapter Set
- Mounting Hardware Included
Designed for Versatility & Larger Vehicles
The adjustable width settings allow the BP12000X to accommodate wider trucks and trailers, while also improving drive-through access. This flexibility makes it a strong choice for commercial garages working with a variety of vehicle sizes.
Powerful Performance in Limited Spaces
The Atlas BP12000X combines commercial-grade strength with a space-saving baseplate design, making it an ideal solution for shops that need to lift heavier vehicles without upgrading ceiling height.
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb. |

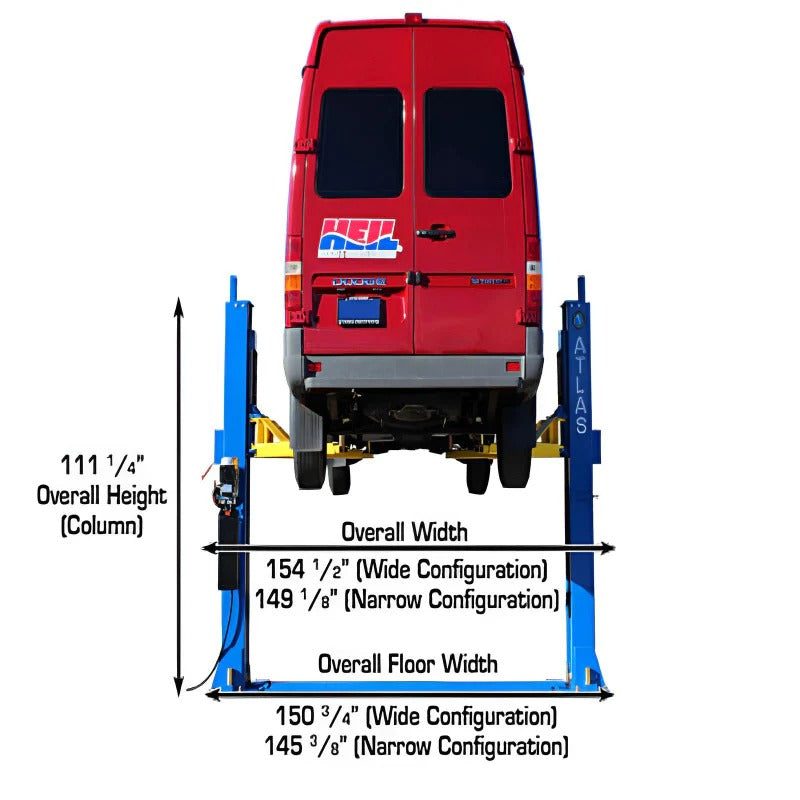

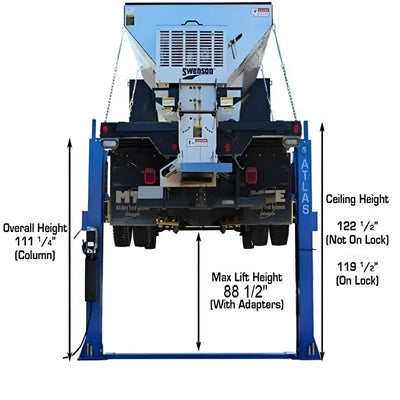

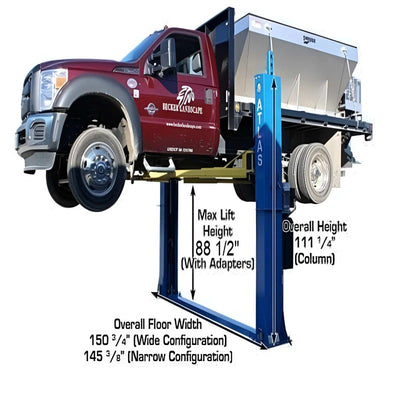

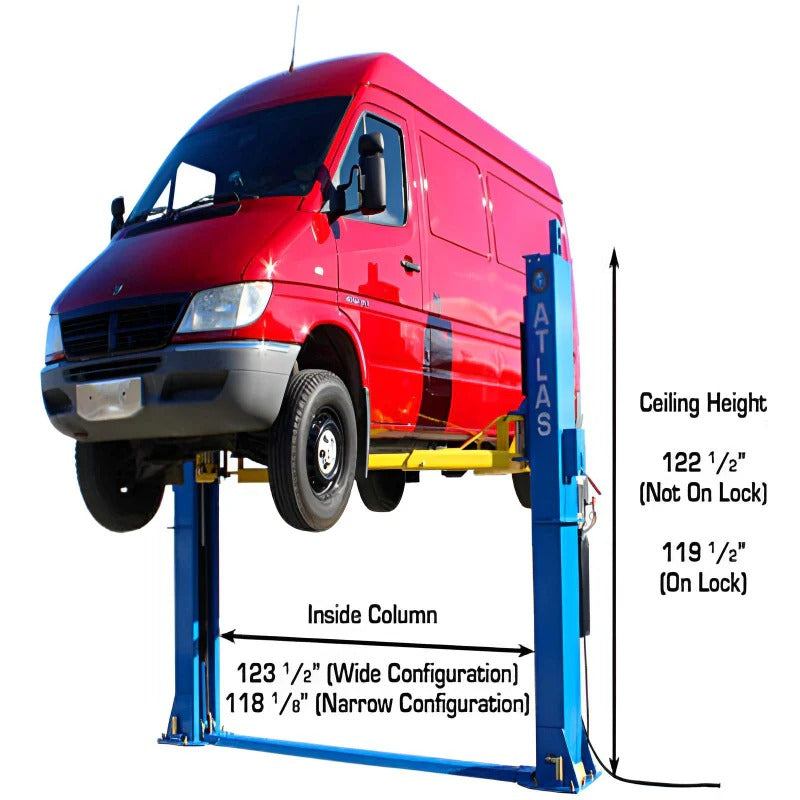

| Overall Height | 122 1/2" (10' 2 1/2") |

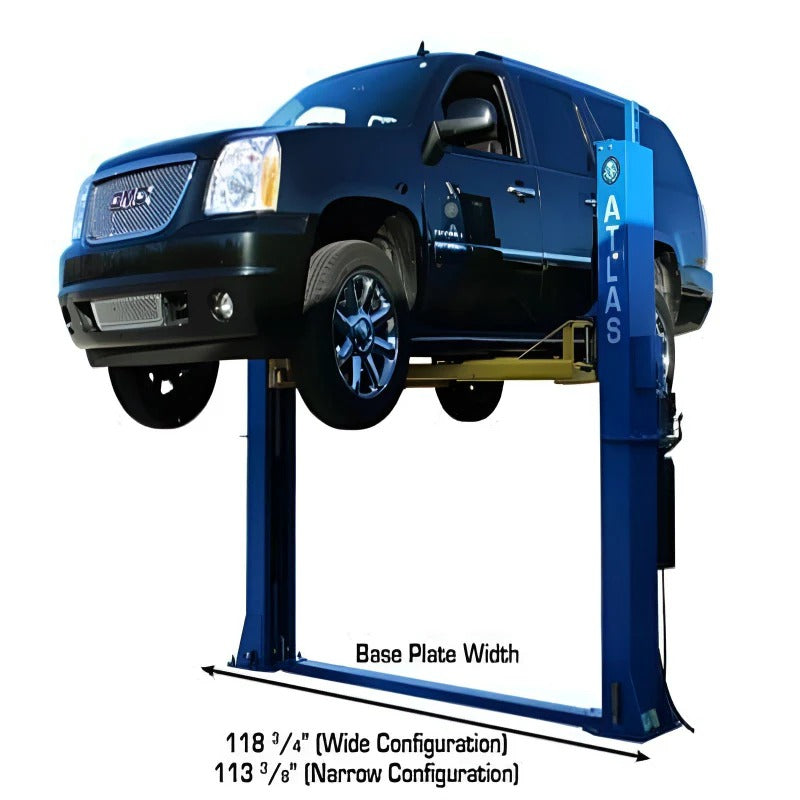

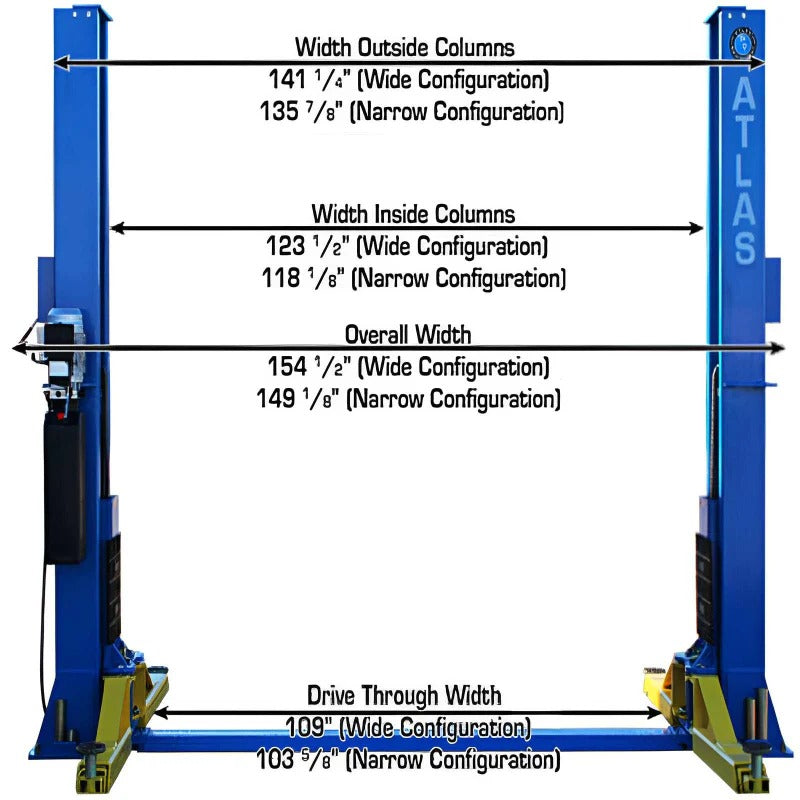

| Overall Floor Width | 149 3/8" (12' 5 3/8") or 154 1/2" (12' 10 1/2") |

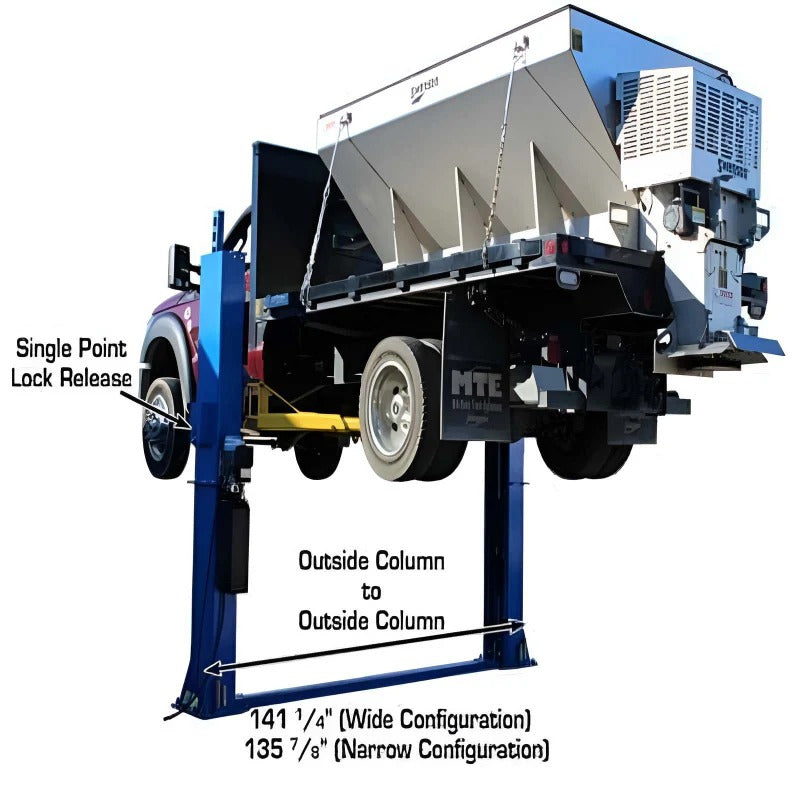

| Outside Column to Outside Column | 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4") |

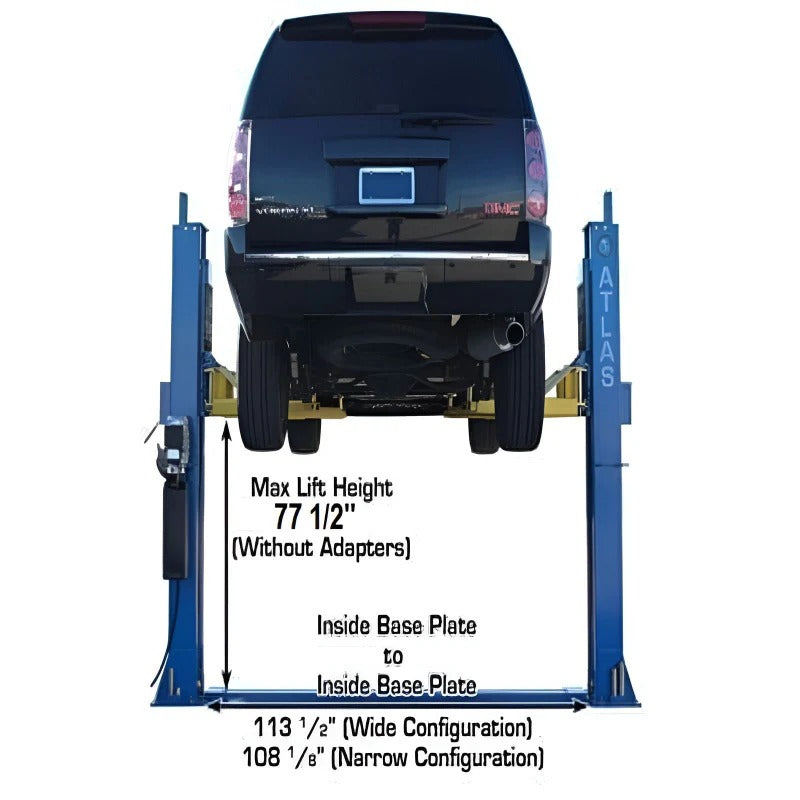

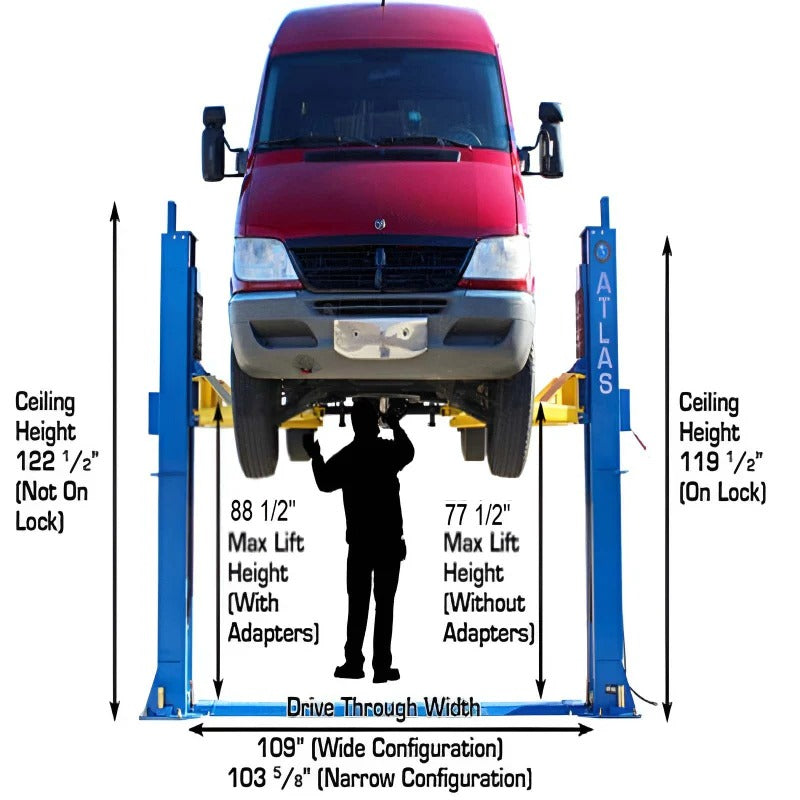

| Maximum Lift Height (Without Adapters) | 77 1/2" |

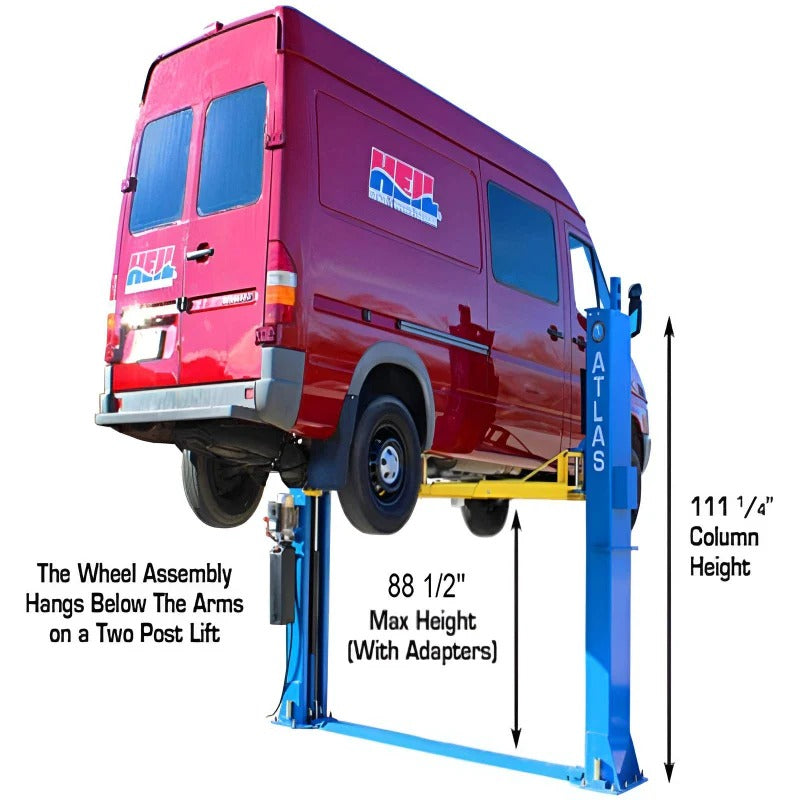

| Maximum Lift Height (With Adapters) | 88 1/2" |

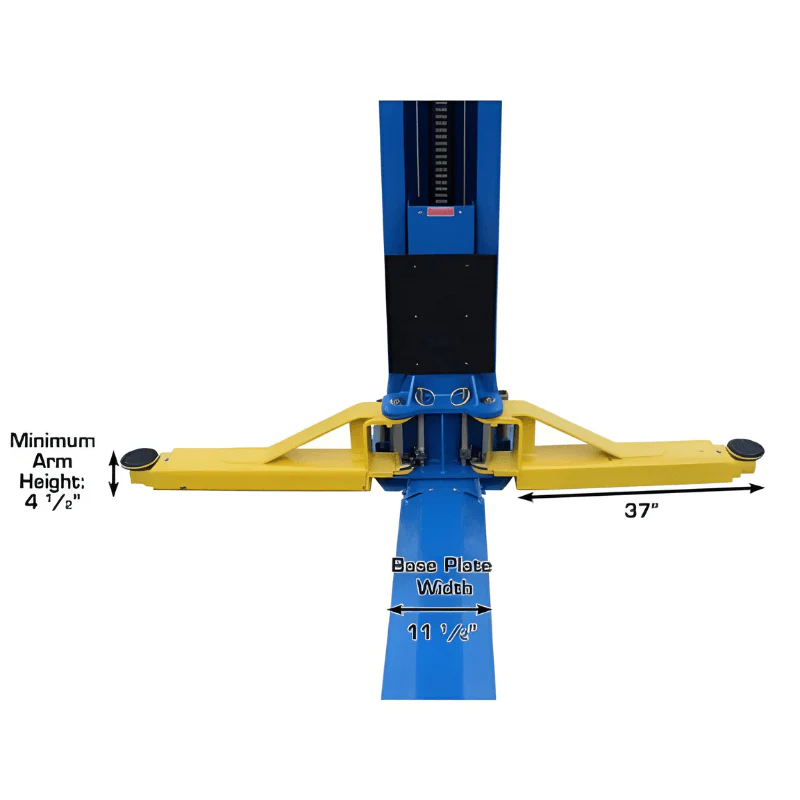

| Minimum Arm Height | 4" |
| Inside Column | 118 1/8" (9' 10 1/8") or 123 1/2" (10' 3 1/2") |

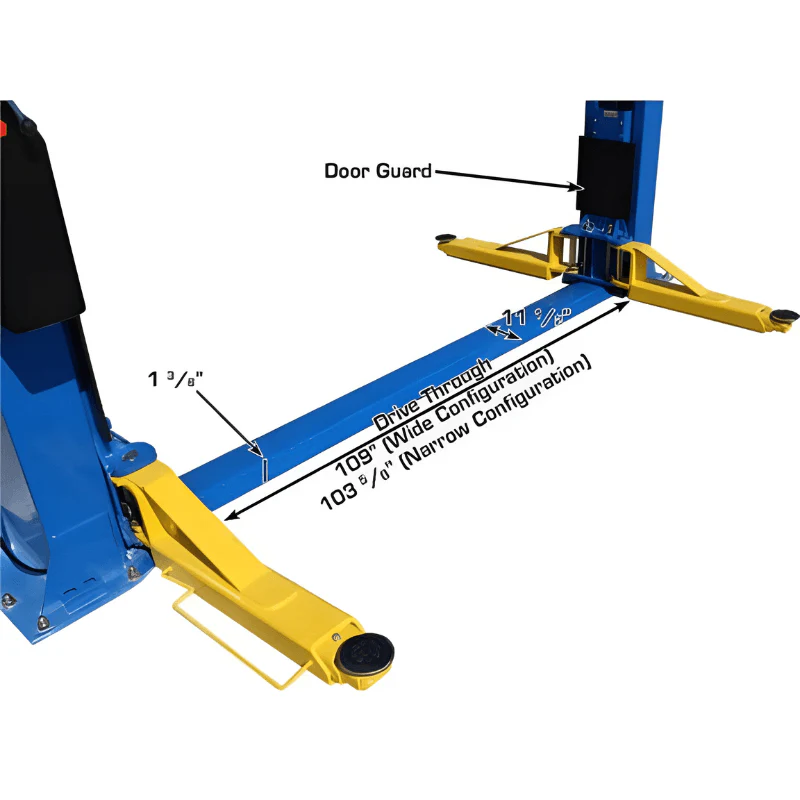

| Drive Thru | 103 5/8" (8' 7 5/8") or 109" (9' 1") |

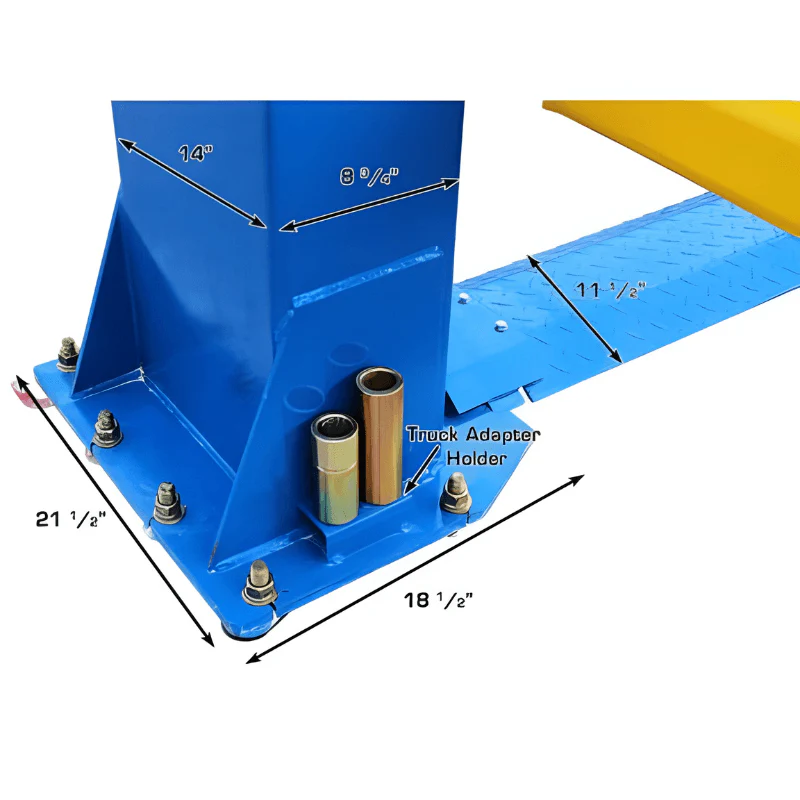

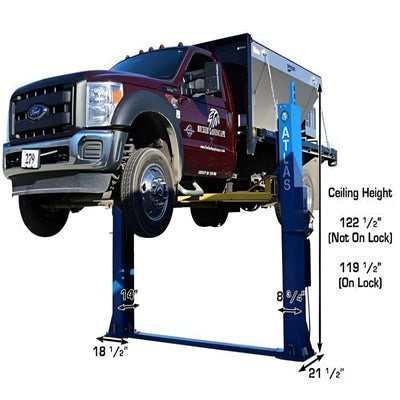

| Column Size | 8 3/4" x 14" |

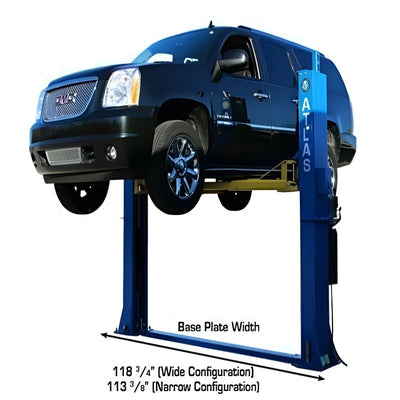

| Base Of Lift | 18 1/2" x 21 1/2" |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

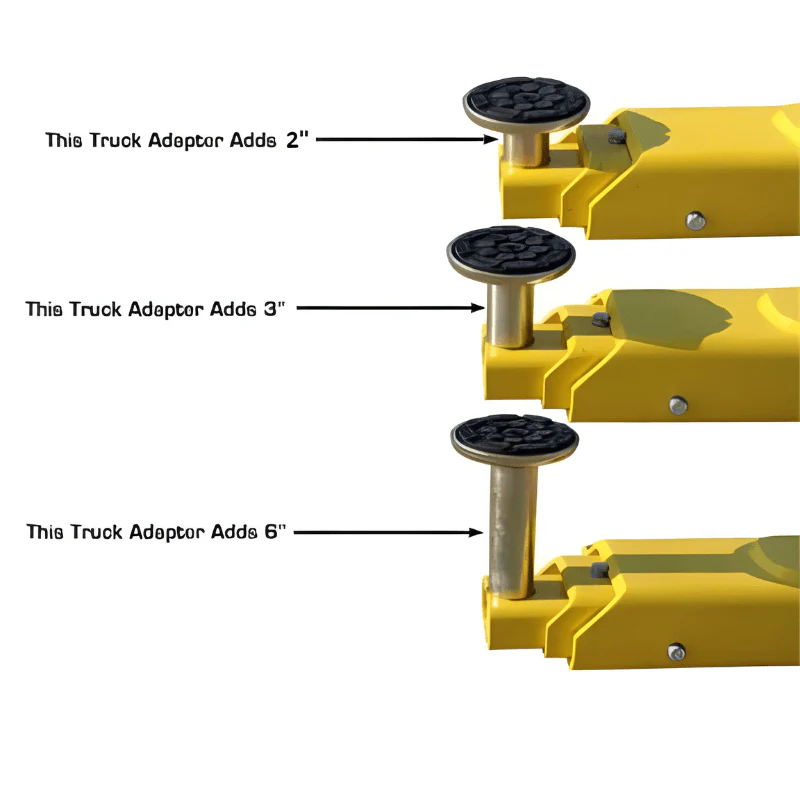

| Adapter Heights | 4 Each: 2", 3", 6" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |

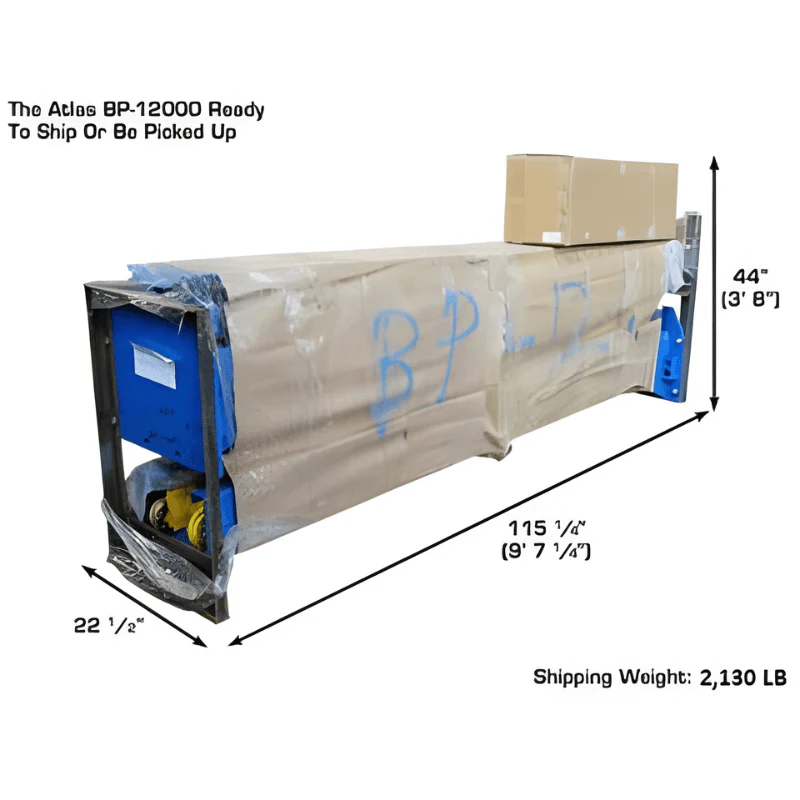

| Shipping Weight | 2,130 lbs. |
