Atlas BP8000 2-Post Lift and Lawn Mower Adapter Combo
SKU: ATEATTD-BP8-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

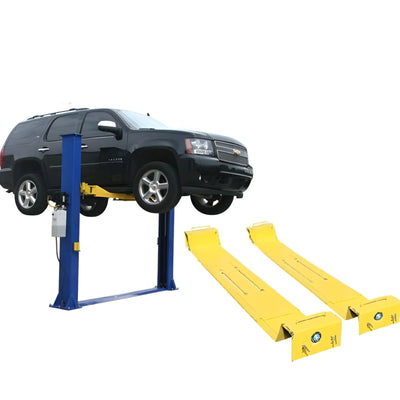

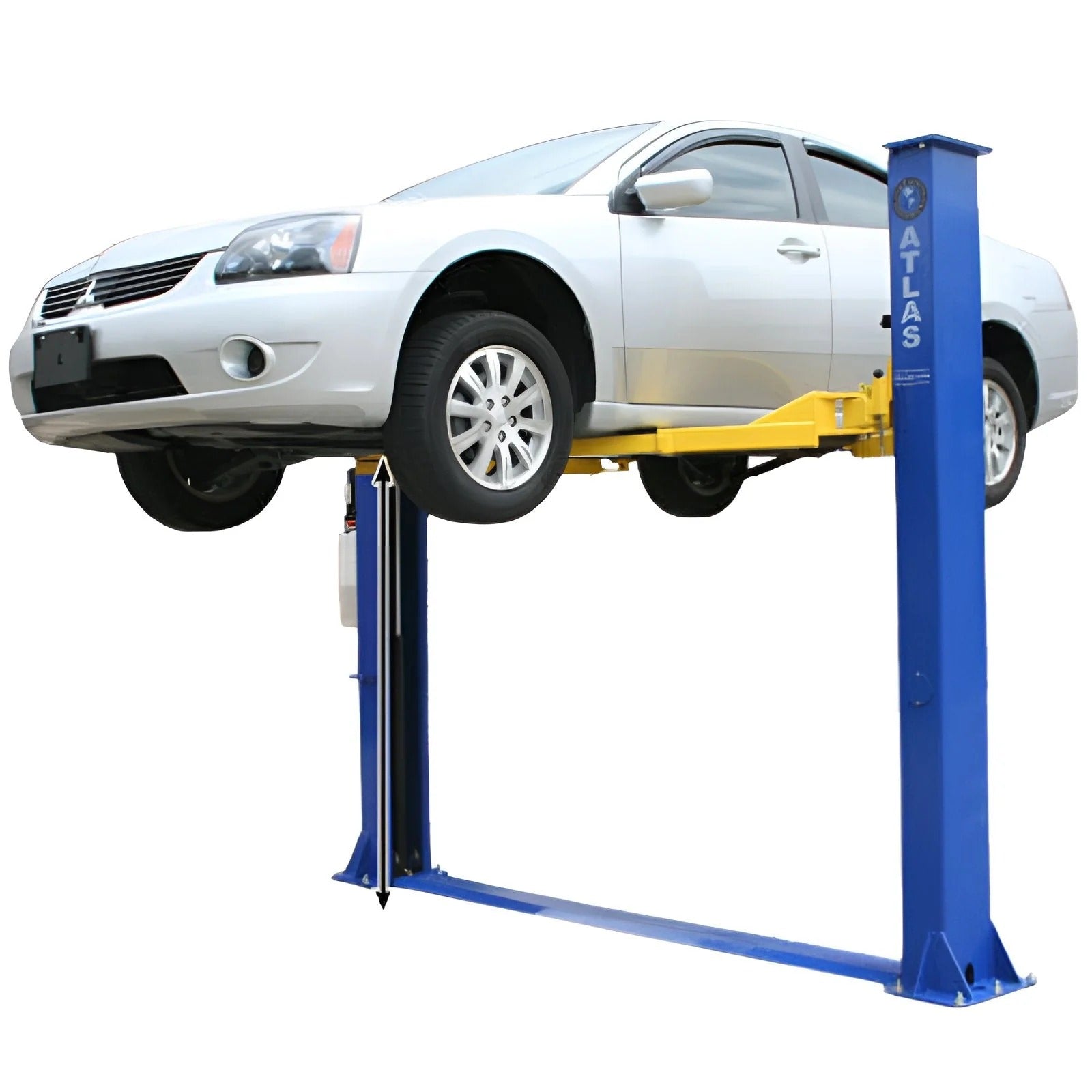

The Atlas BP8000 + Lawn Mower Adapter combo is a versatile lifting solution designed for home garages and light-duty shops that need flexibility without requiring multiple pieces of equipment. This package combines an 8,000 lb capacity baseplate 2-post lift with the Atlas Lawn Mower Adapter (LMA), allowing you to safely lift cars, trucks, lawn tractors, ATVs, UTVs, and other small equipment. The baseplate design makes it ideal for low-ceiling environments, while the adapter transforms the lift into a multi-purpose platform for short wheelbase vehicles.
Key Features & Benefits
- Combo includes BP8000 8,000 lb 2-post lift and Lawn Mower Adapter
- Hobbyist-grade lift (not intended for heavy commercial use)

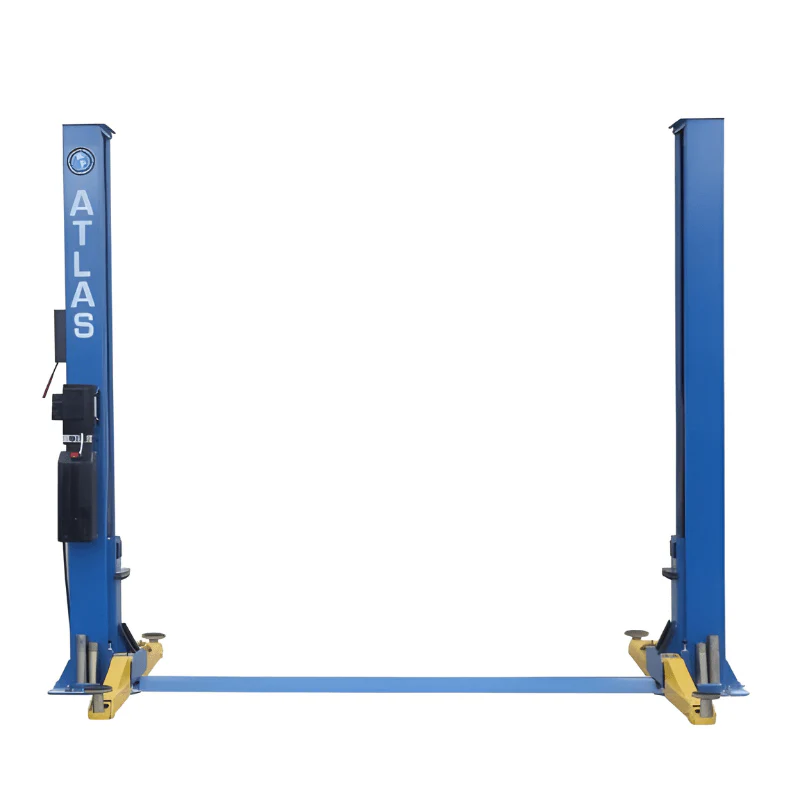

- Baseplate, open-top design ideal for low ceiling garages

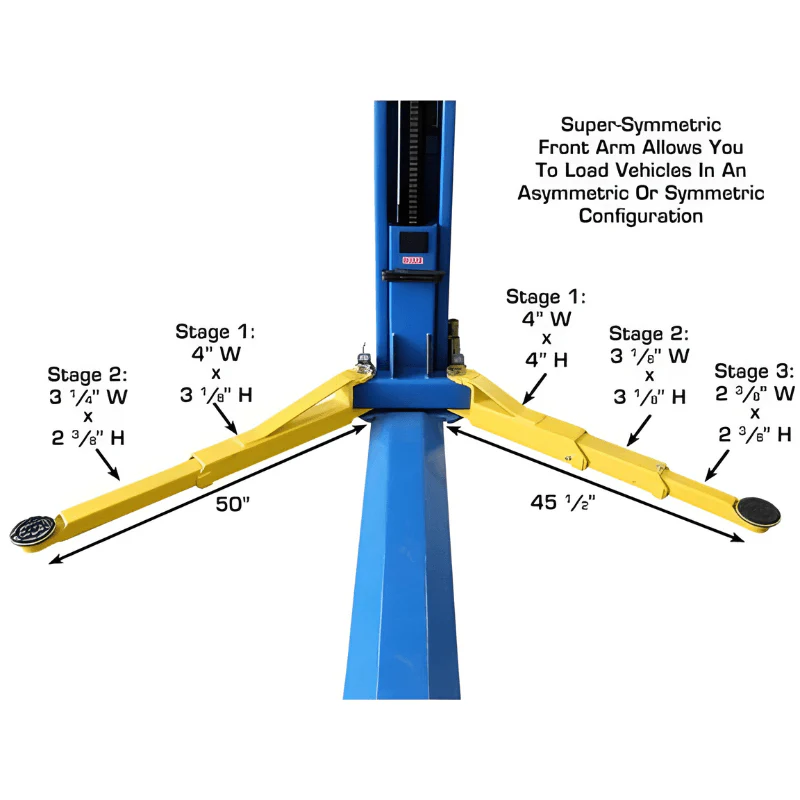

- 3-stage front arms and 2-stage rear arms for flexibility

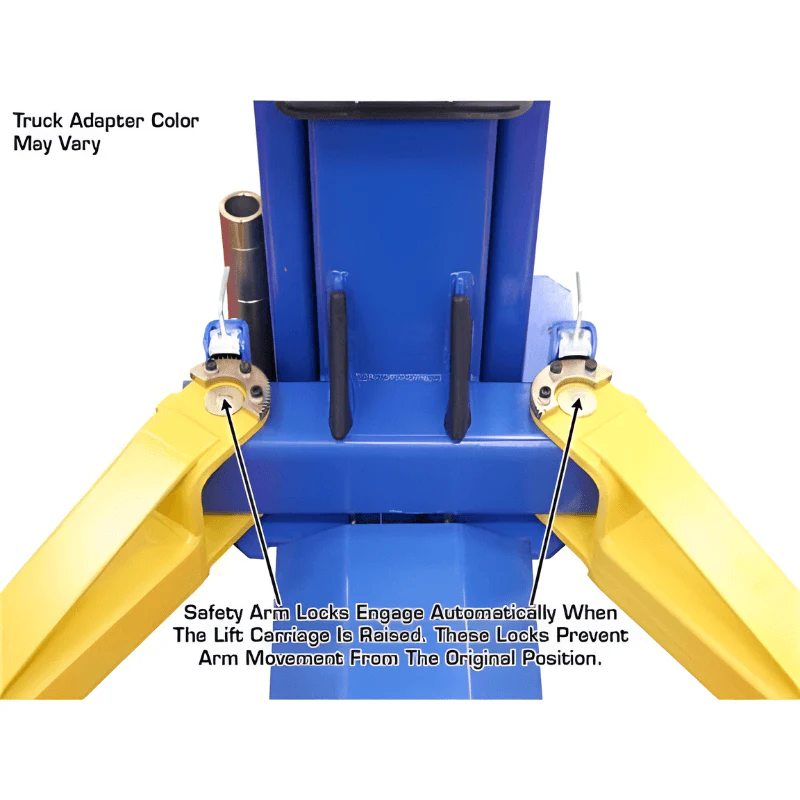

- Automatic arm restraints for added safety

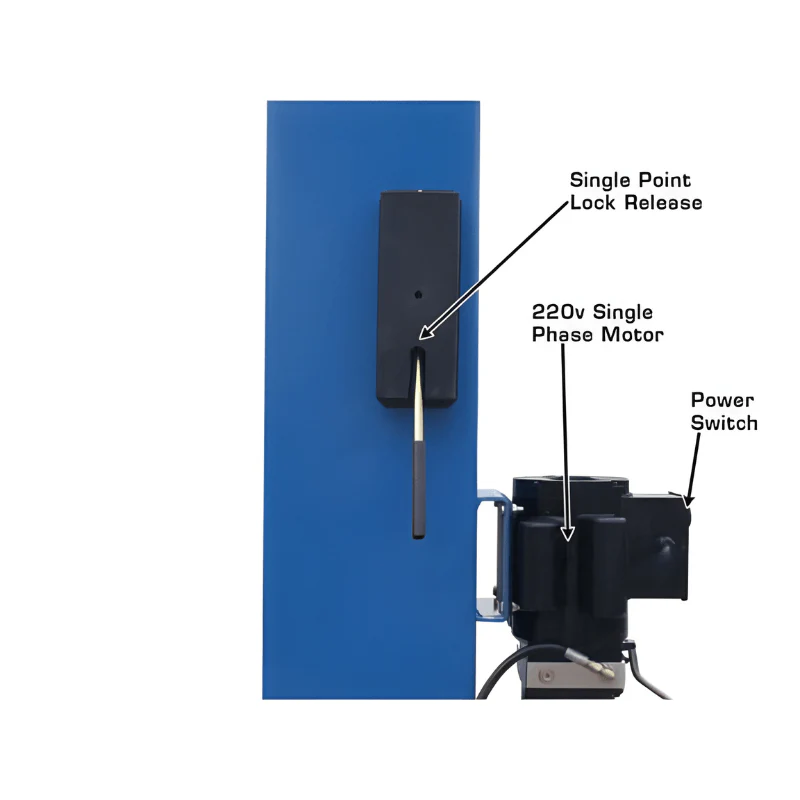

- Single-point lock release system
- Double safety lock system for secure operation

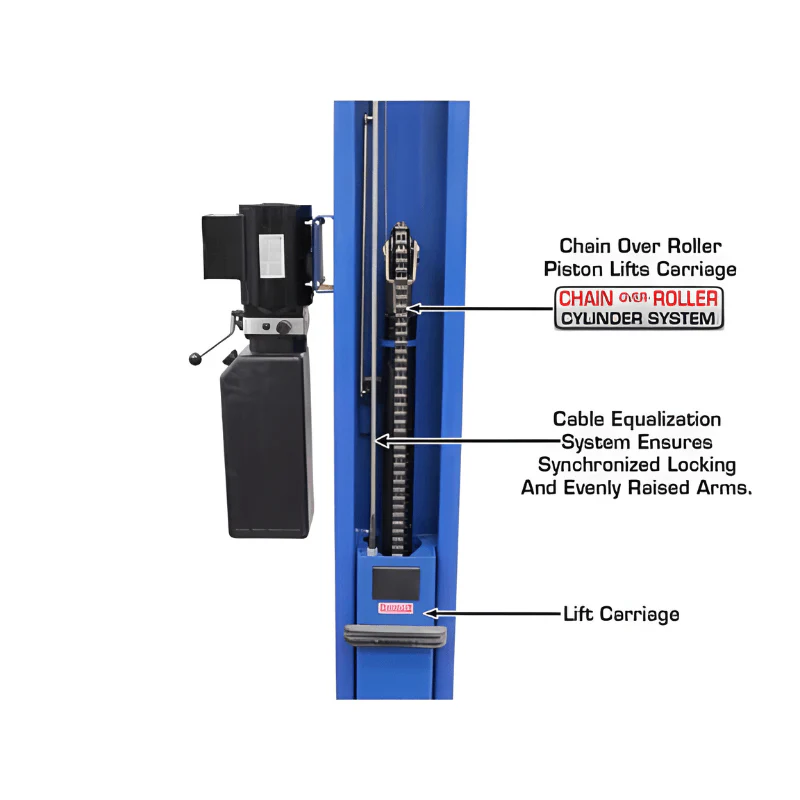

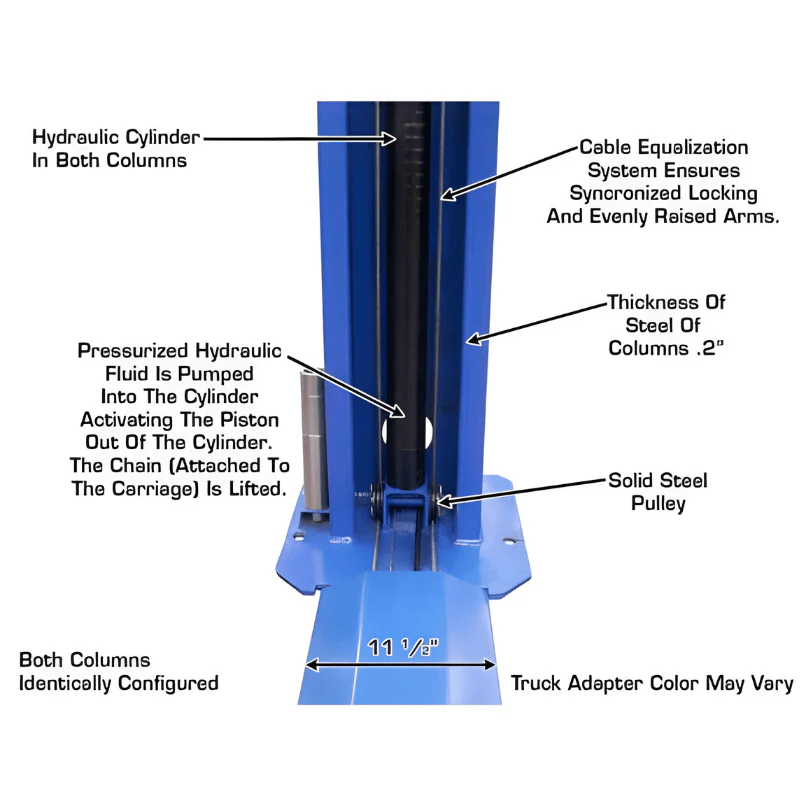

- Dual hydraulic chain-drive cylinders

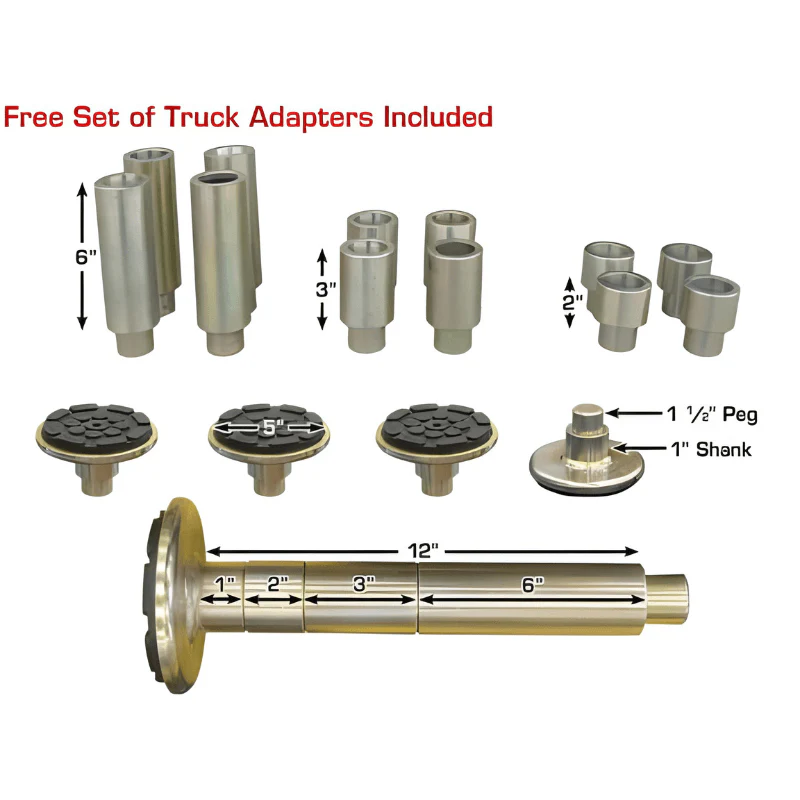

- Includes 12-piece truck adapter set
- Mounting hardware included
- Freight prepaid for this package
2-Post Lift Features (BP8000)
- Designed for garages with ceilings as low as ~9 ft 3 in

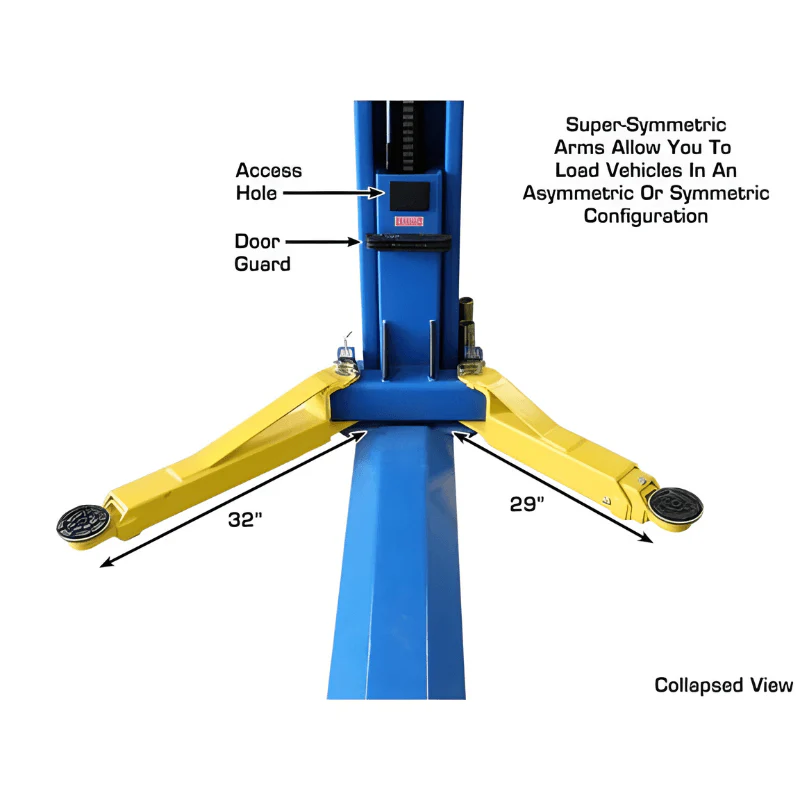

- Super-symmetric arm design for better vehicle positioning
- Compact footprint while maintaining strong lifting capability
- Powder-coated finish for durability
- Ideal for cars, light trucks, and SUVs

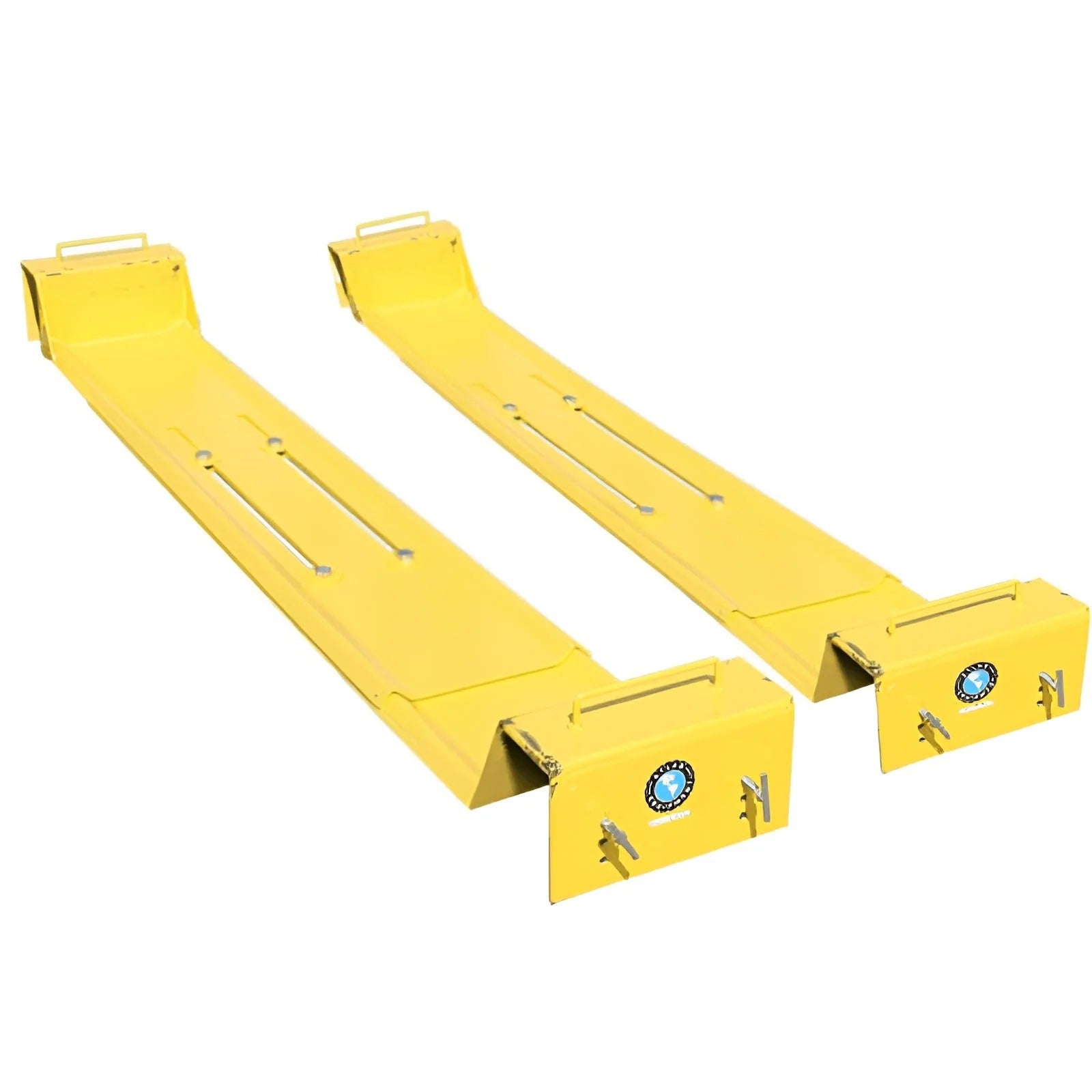

Lawn Mower Adapter Features (LMA)

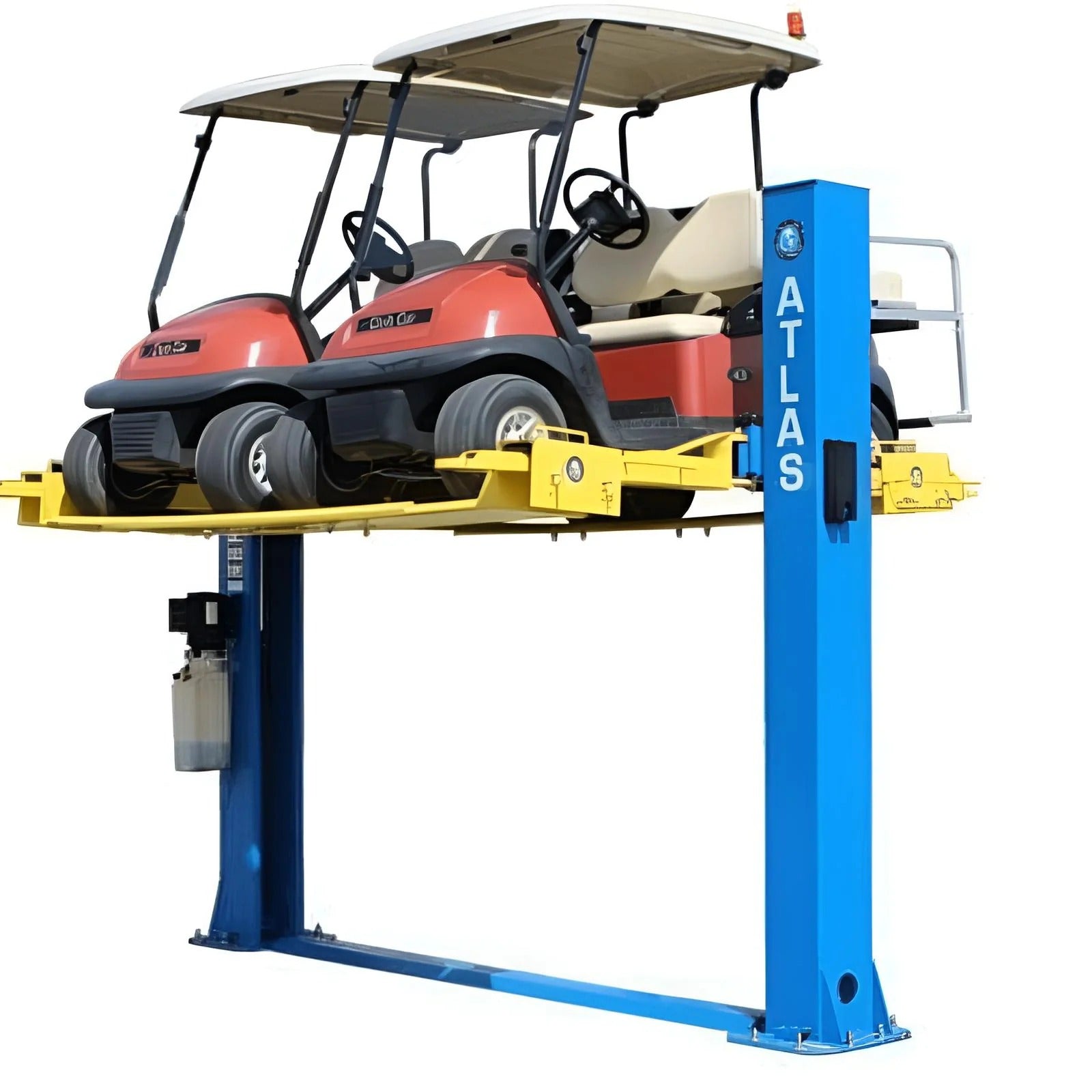

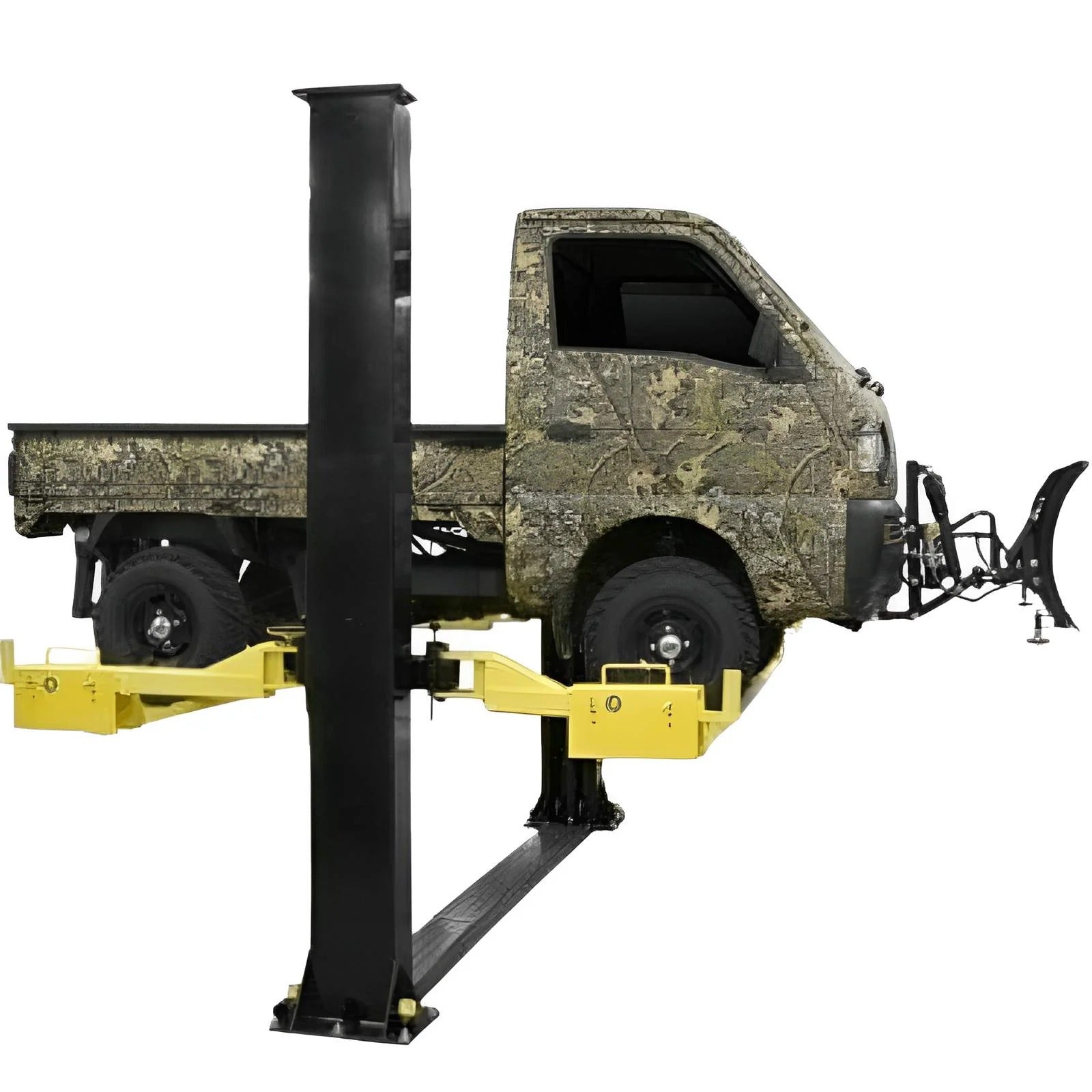

- Converts lift into platform for mowers, ATVs, UTVs, and small vehicles
- Adjustable width from 8' to 11' to fit various wheelbases
- Wheelbase compatibility from 32" to 90"
- Supports up to ~5,000 lbs (varies by lift setup and positioning)
- Can be positioned along lift arms for proper balance
- Fits lift arms up to 5 1/2" wide
- Heavy-duty steel construction for stability
Performance & Use Case
This combo is ideal for users who want maximum functionality from a single lift setup. The BP8000 handles standard vehicle lifting, while the LMA allows safe lifting of smaller equipment that typically cannot be supported by standard lift arms. This makes it perfect for mixed-use environments such as home garages, small repair shops, or power equipment service businesses.
Keep in mind that when using the adapter, total lifting capacity is reduced and depends heavily on proper weight distribution and positioning. Placing the adapter plates closer to the columns increases lifting capacity, while extending them outward reduces it.
| Specifications | Details |
|---|---|
| Model | Atlas® ATTD-BP8000 |
| Capacity | 8,000 LB. |
| Overall Height | 108" (9') |
| Overall Floor Width | 132" (11') |
| Outside Column to Outside Column | 124" (10' 4") |
| Maximum Lift Height (Without Adapters) | 75 1/2" |
| Maximum Lift Height (With Adapters) | 86 1/2" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/8" (9' 1 1/8") |
| Drive Thru | 99" (8' 3") |

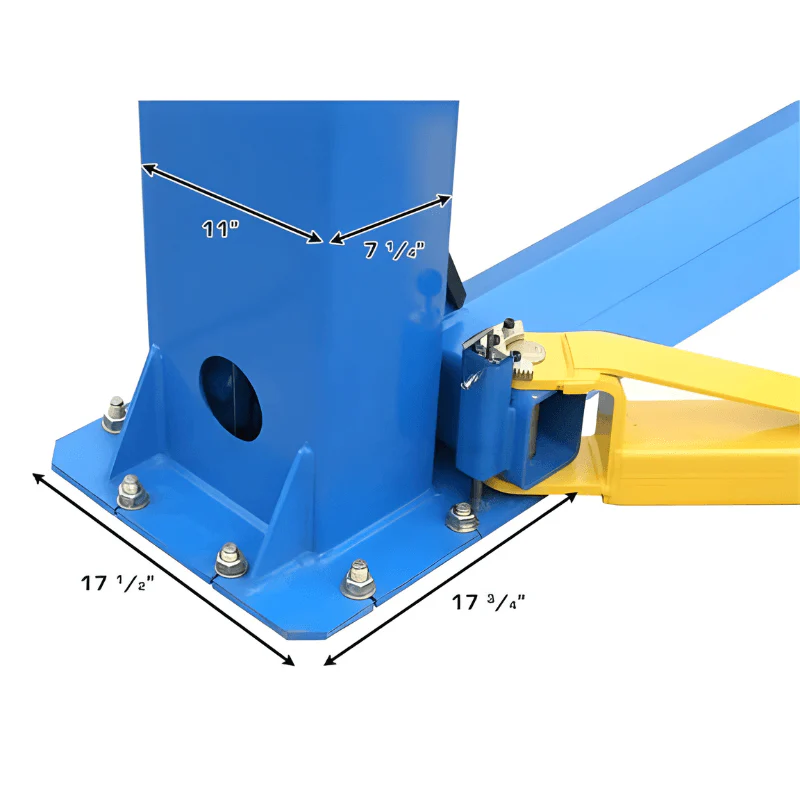

| Column Size | 7 1/4" x 11" |
| Column Thickness of Steel | 6mm |

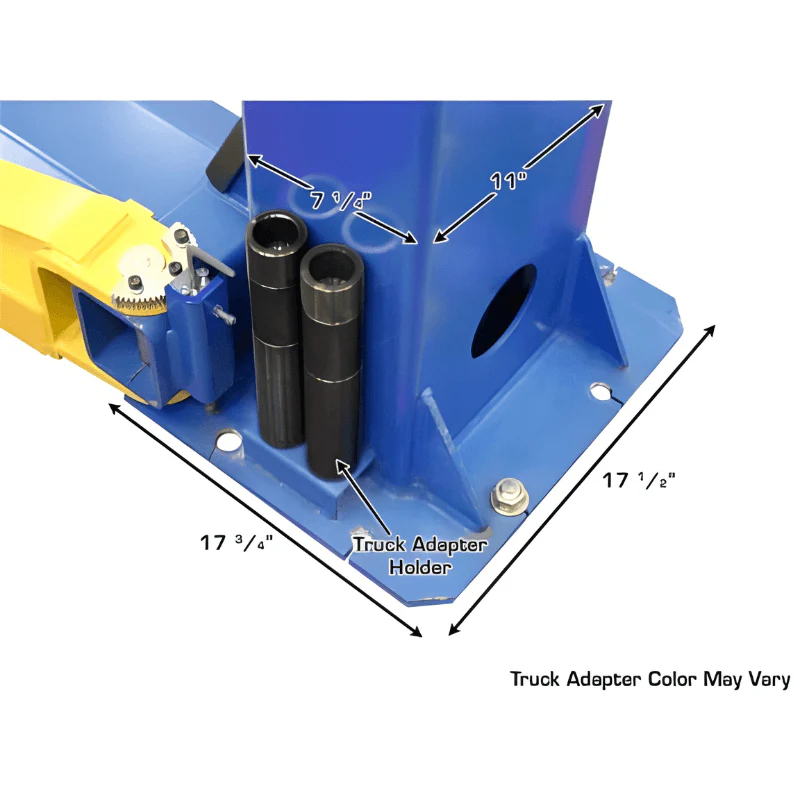

| Base Of Lift | 17 1/2" x 17 3/4" |

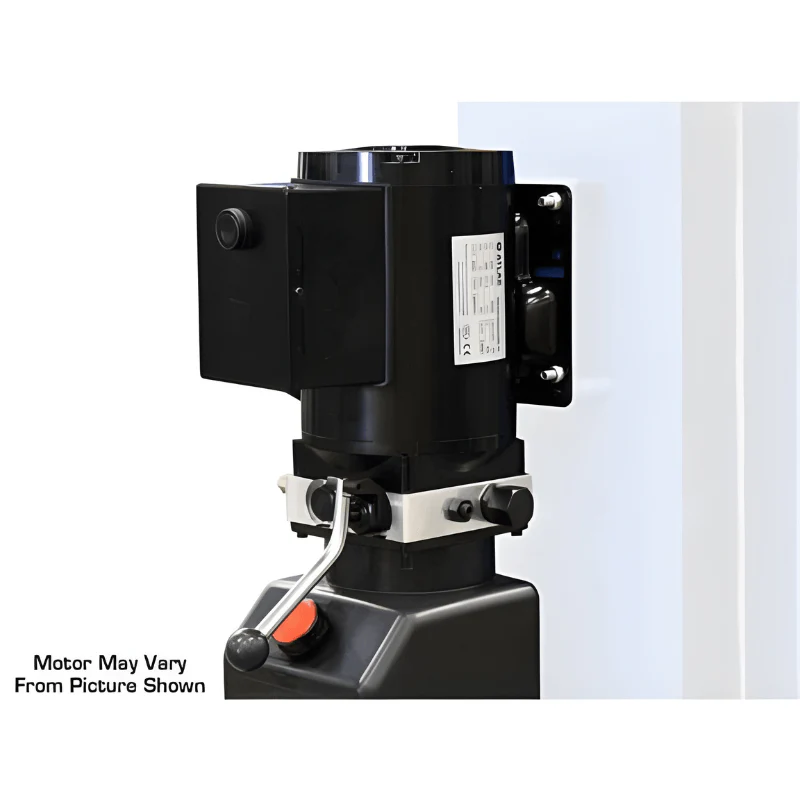

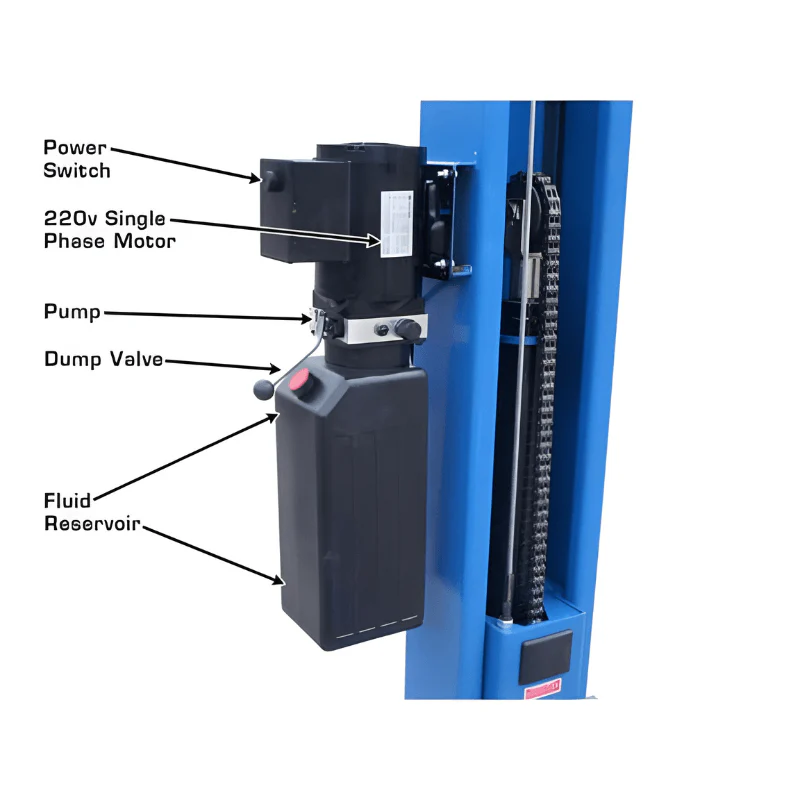

| Motor/Electrical Requirement | 220 volt single (1) phase (A 30 amp breaker is recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |

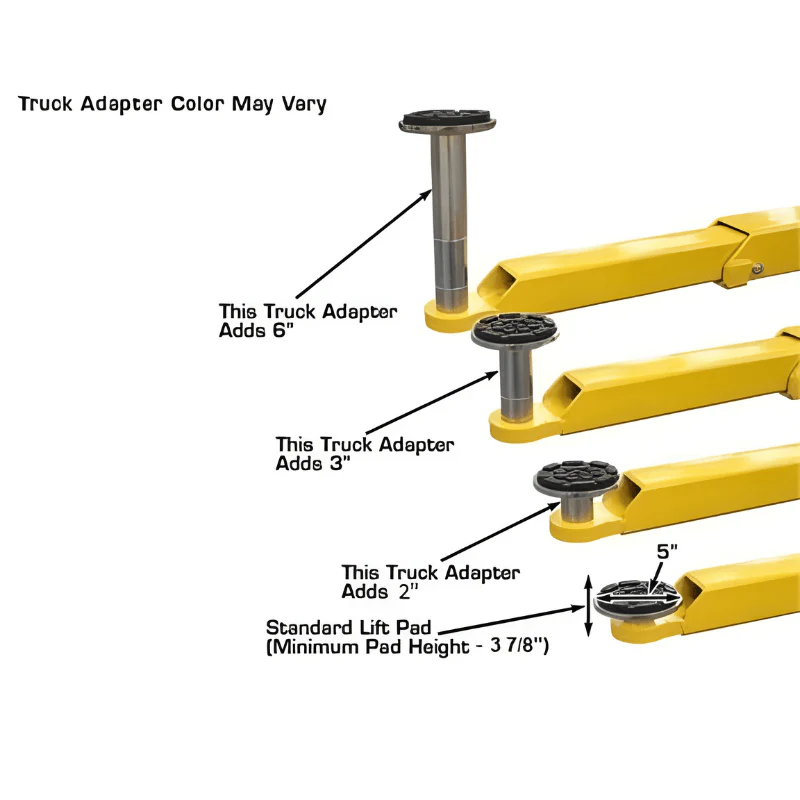

| Adapter Heights | 4 Each 2", 3", 6" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" concrete with 3,000 PSI rating |
| LMA Model | Atlas® LMA (Specifications Vary by Lift and Wheelbase) |
| LMA Capacity | Up to 5,000 lbs. |
| LMA Adjusts in Width | 8' to 11' |
| LMA Wheel Base | 32" to 90" |
| LMA Wheel Well Width | 12" |
| LMA Thickness of Steel | 3/16" |
| LMA Lift Arm Compatibility | Fits lift arms up to 5 1/2" wide |
| Shipping Weight (BP8000) | 1,300 LBS. |
| Shipping Weight (LMA) | 600 lbs. |
