Atlas PVL10 Platinum 2-Post Lift with Extension Kit
SKU: ATEAP-PVL10-EXT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Built for Professional Performance

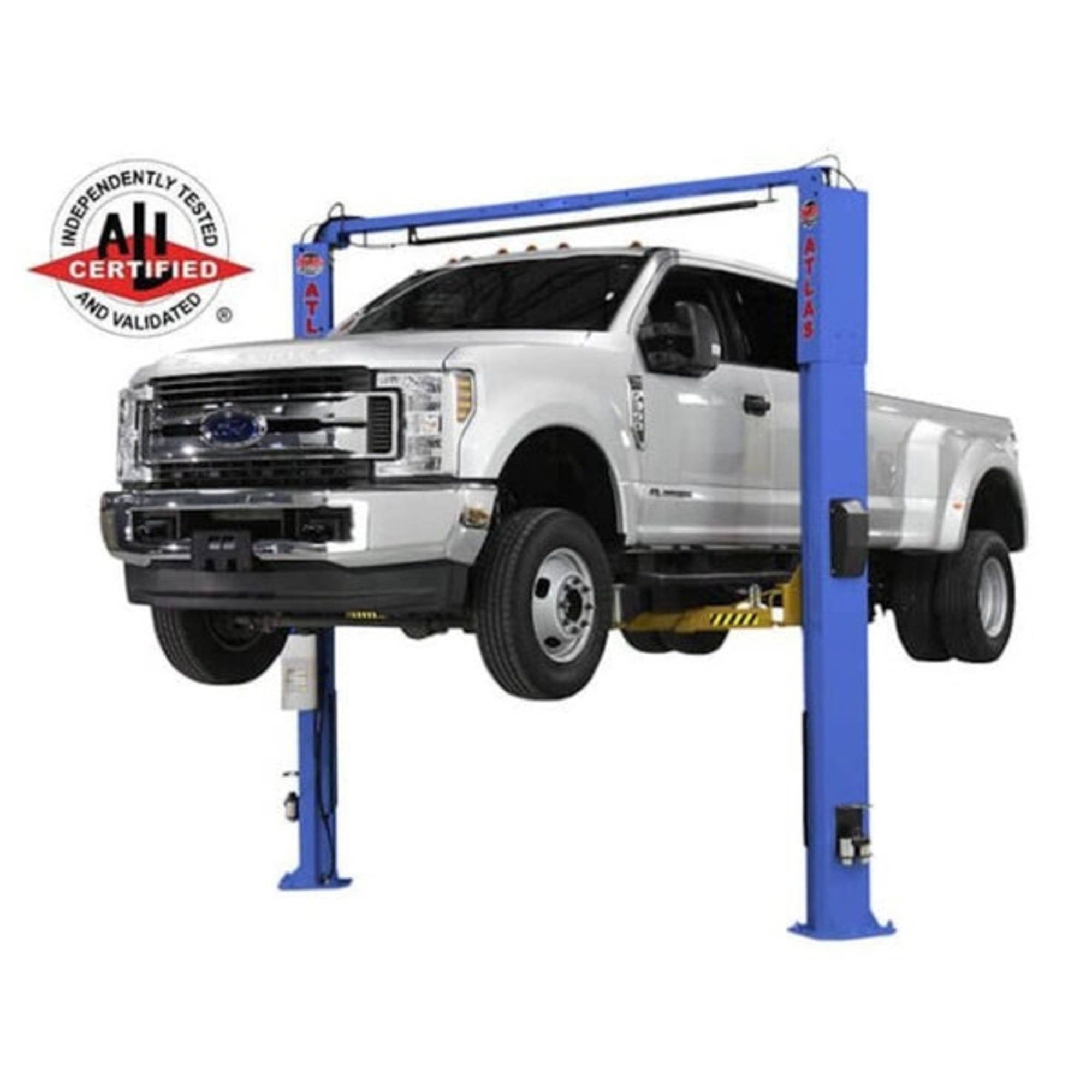

The Atlas Platinum PVL10 is a commercial-grade 2-post lift designed for shops that demand durability, flexibility, and proven lifting performance. With ALI certification and a 10,000 lb capacity, this lift is built to safely handle a wide range of vehicles including cars, SUVs, and light-duty trucks.
Flexible Installation for Maximum Versatility

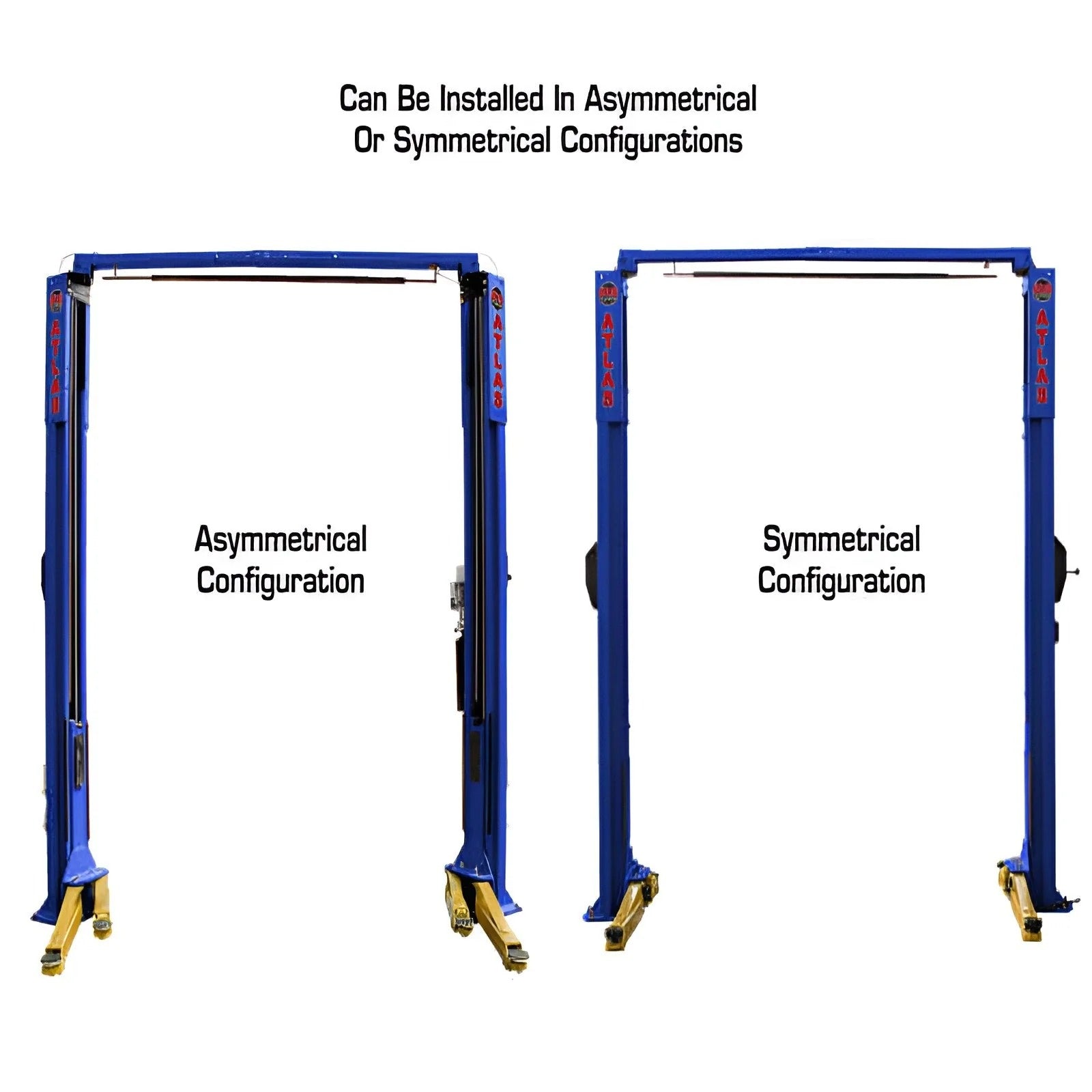

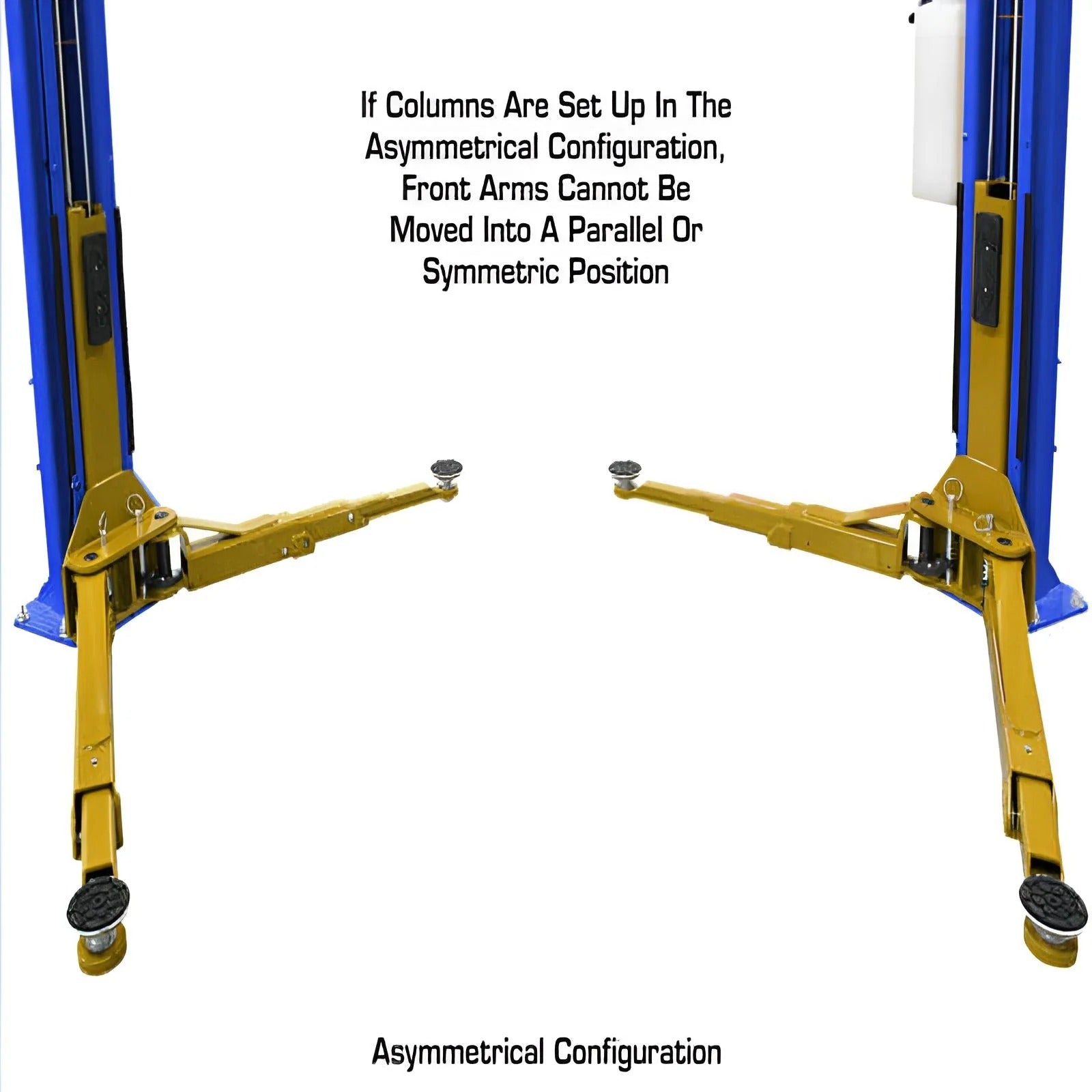

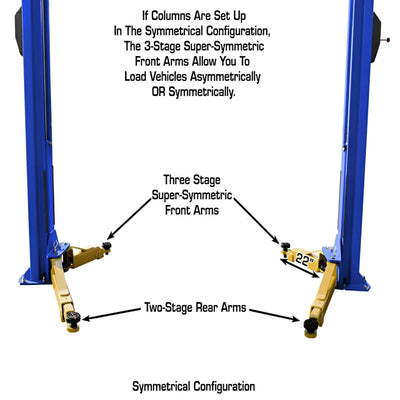

This lift can be installed in either symmetric or asymmetric configurations. The asymmetric setup improves vehicle door clearance and accessibility, while the symmetric option provides a wider working area for larger vehicles—giving you flexibility based on your shop’s needs.
Industry-Proven Column Design
The PVL10 features a reinforced double “S” column design, engineered to increase structural strength and stability. This design has been widely used across thousands of lifts and is known for long-term reliability in demanding environments.
Key Features & Benefits
- 10,000 lb capacity for cars, SUVs, and light-duty trucks
- ALI Certified for safety and compliance
- Symmetric or asymmetric installation options
- Double “S” column design for increased strength
- Includes 2-foot height extension kit

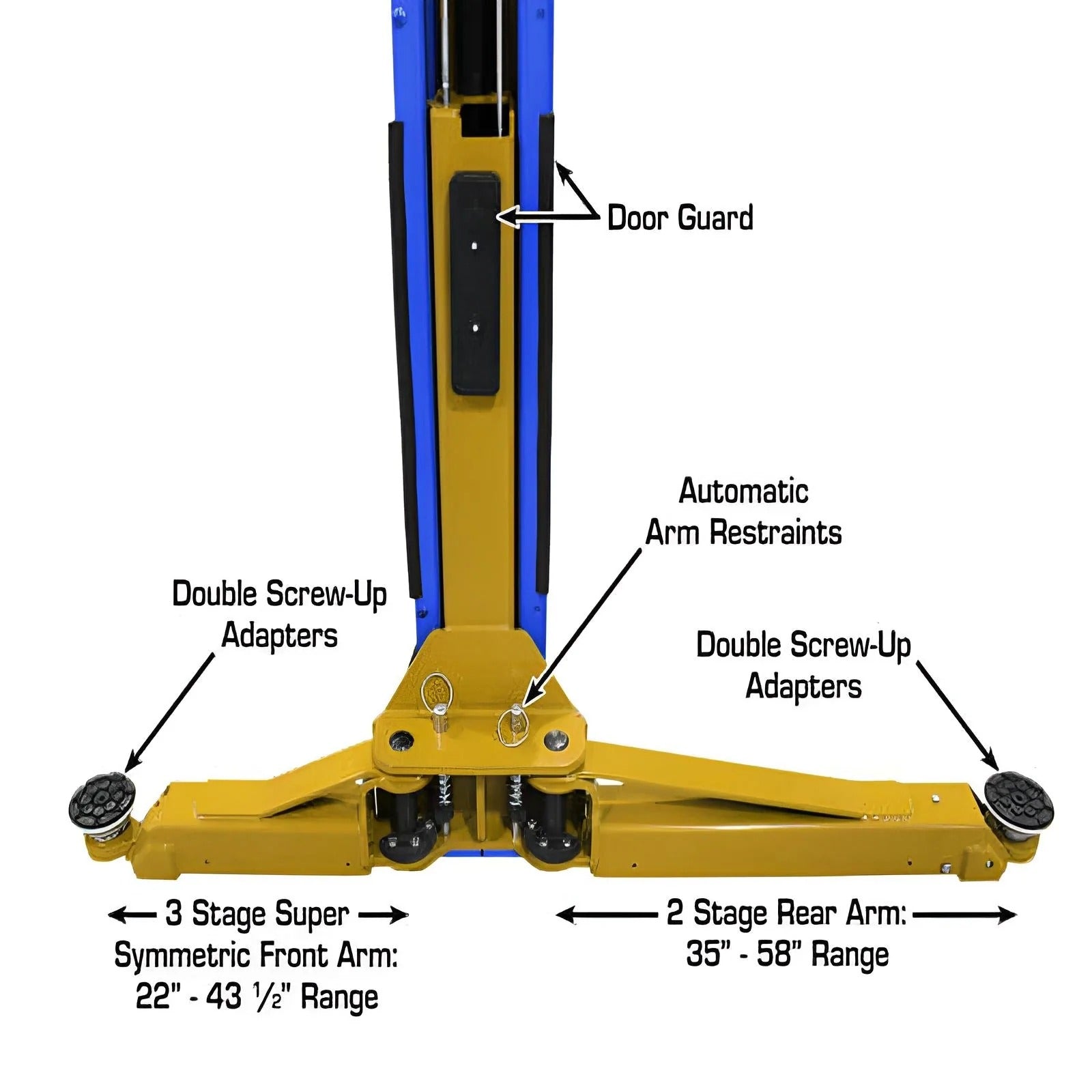

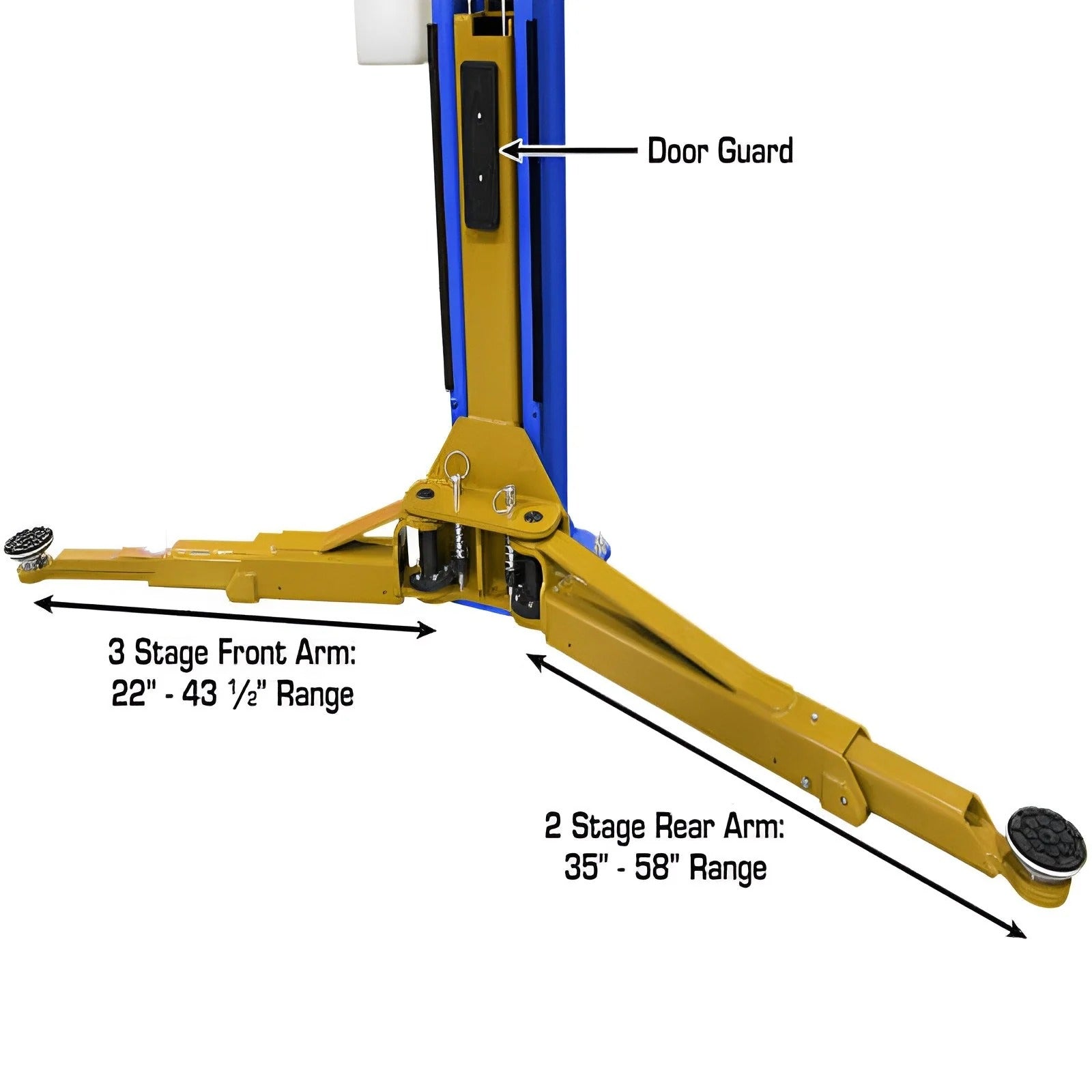

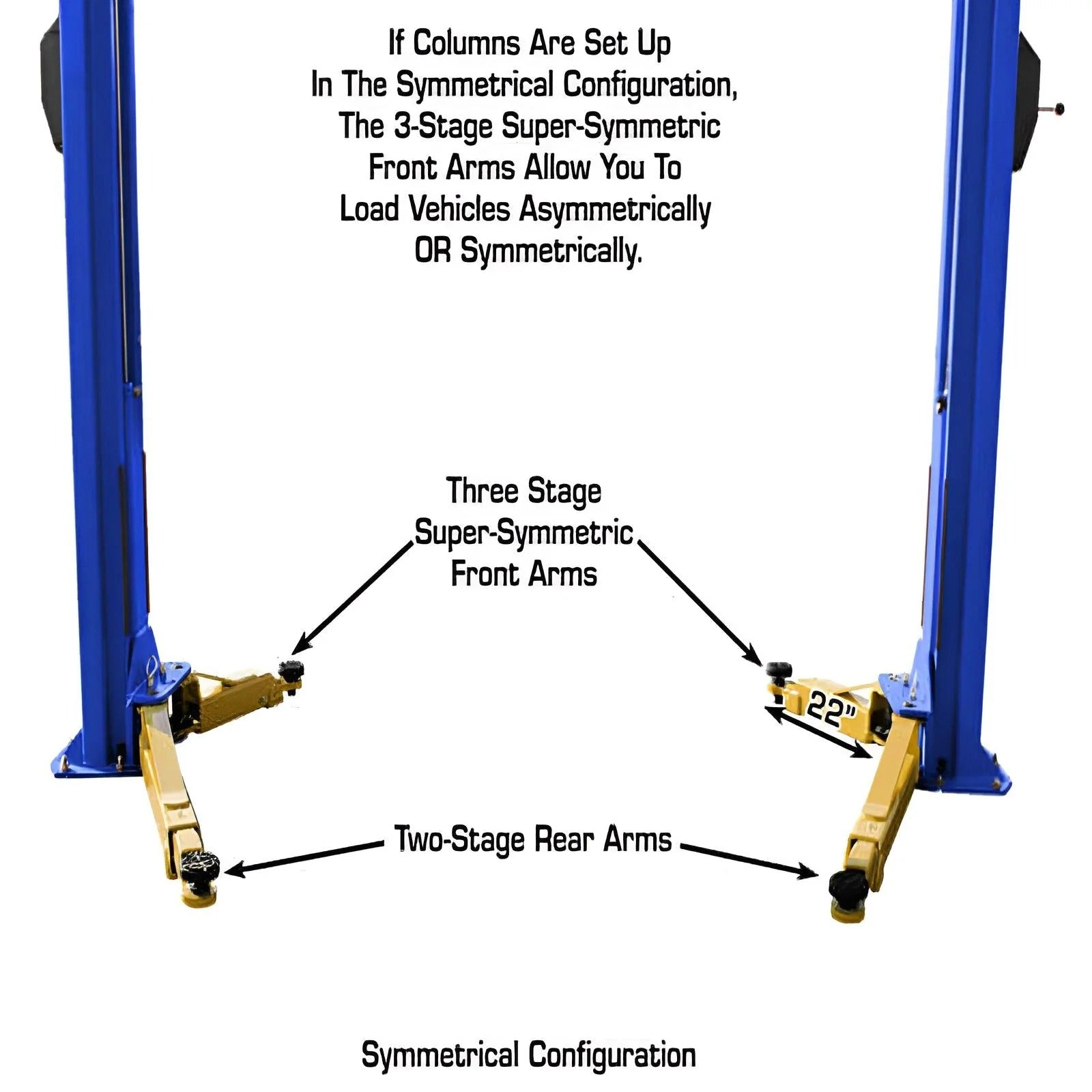

- 3-stage front arms and 2-stage rear arms for flexible positioning
- Single-point lock release system
- Padded carriages and column guards for vehicle protection

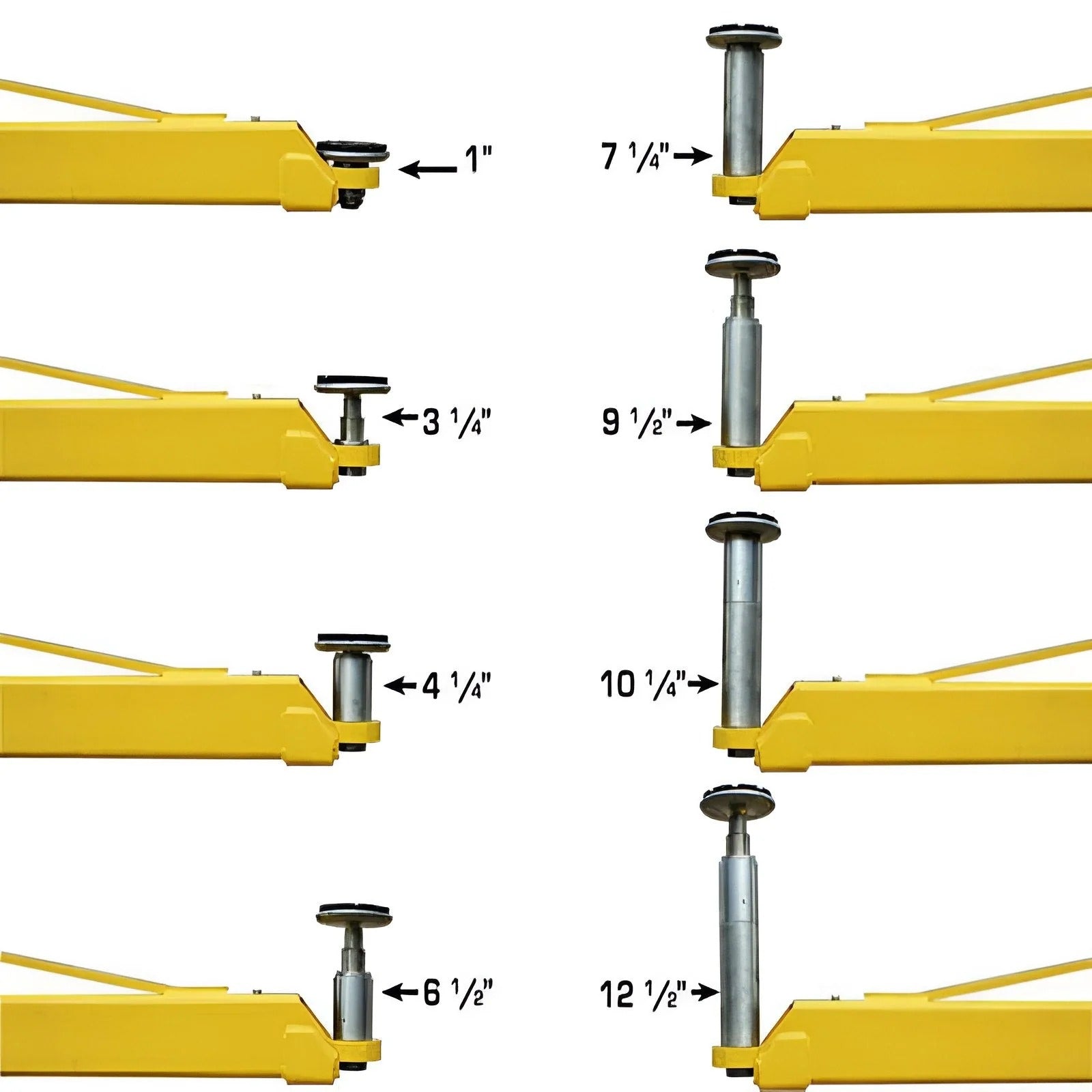

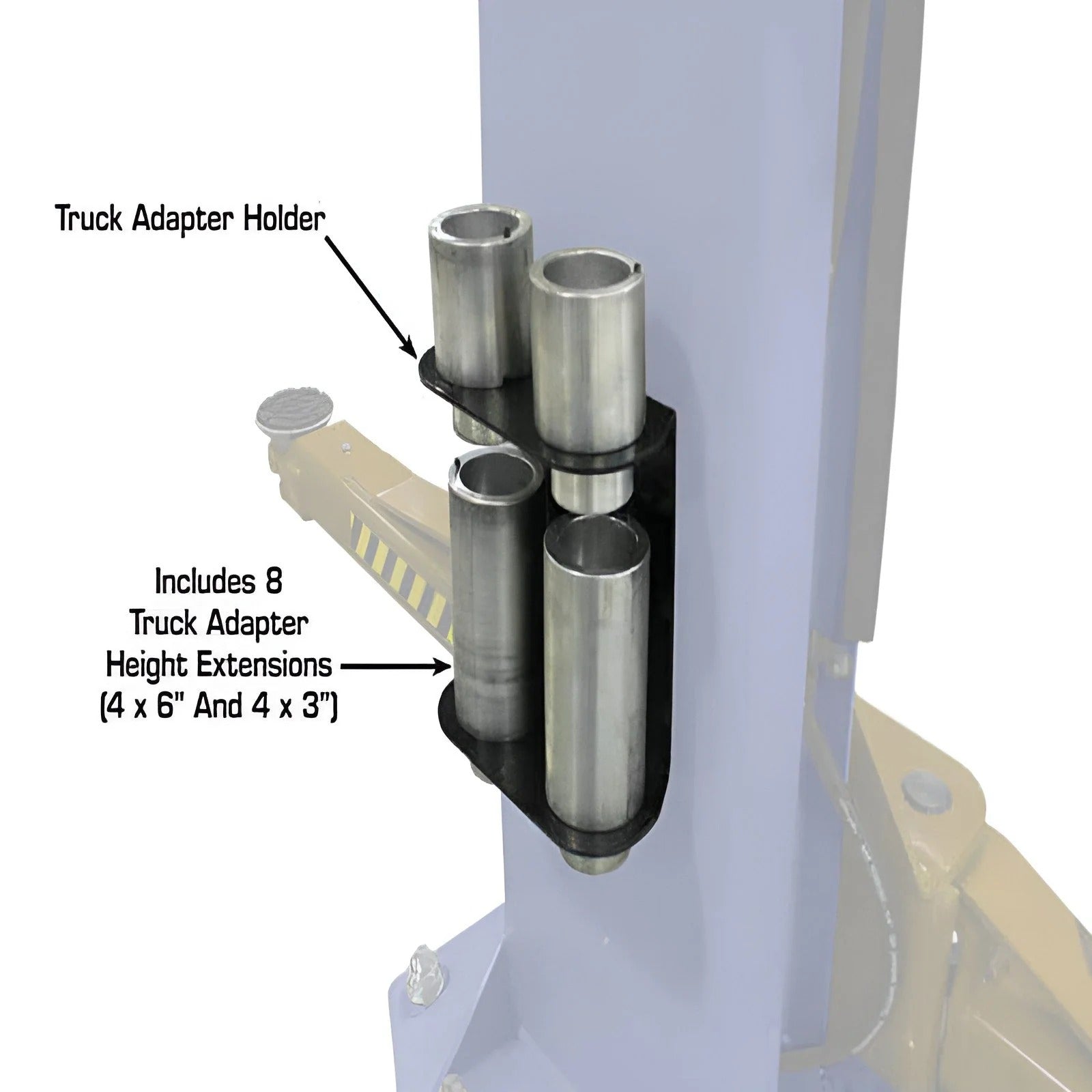

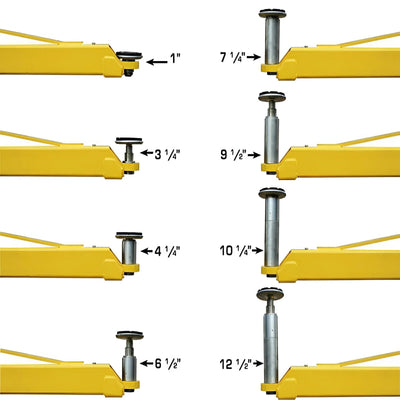

- Includes double screw-up adapters with height extensions
- Free 8-piece truck adapter set
- Durable powder-coated finish

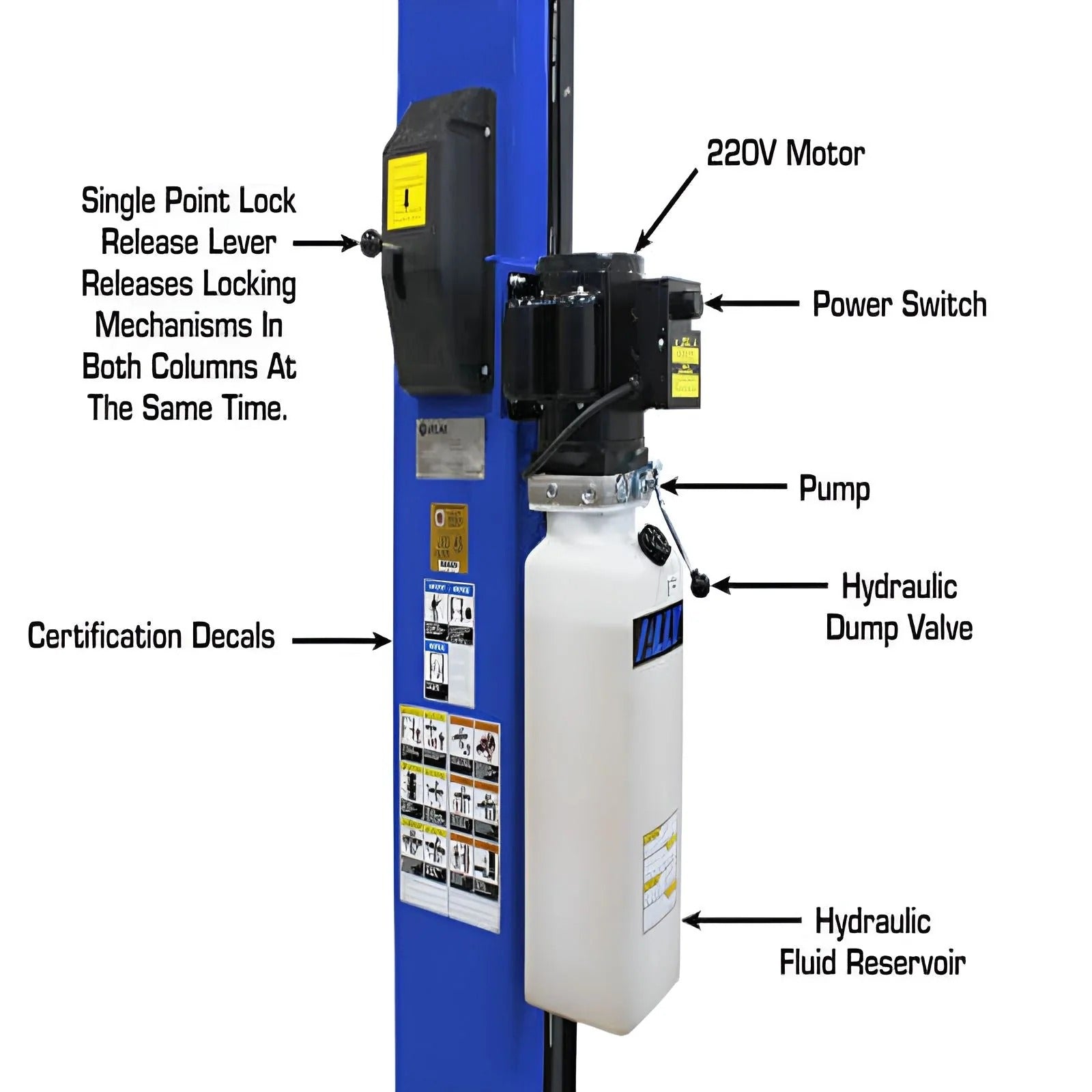

- Premium ALLY hydraulic power unit included
- Mounting hardware included
Designed for Shop Efficiency
With its adjustable configuration, strong lifting system, and premium components, the PVL10 allows technicians to work efficiently across different vehicle types without compromise.
Reliable Power & Long-Term Durability
Equipped with a premium ALLY hydraulic power unit, this lift delivers consistent lifting performance with reduced heat buildup and improved durability over time.
A Smart Investment for Growing Shops
The Atlas Platinum PVL10 combines advanced engineering, flexibility, and dependable performance, making it an excellent choice for shops looking to upgrade their lifting capability while maintaining safety and efficiency.
| Specifications | Details |
|---|---|
| Capacity | 10,000 lb. |

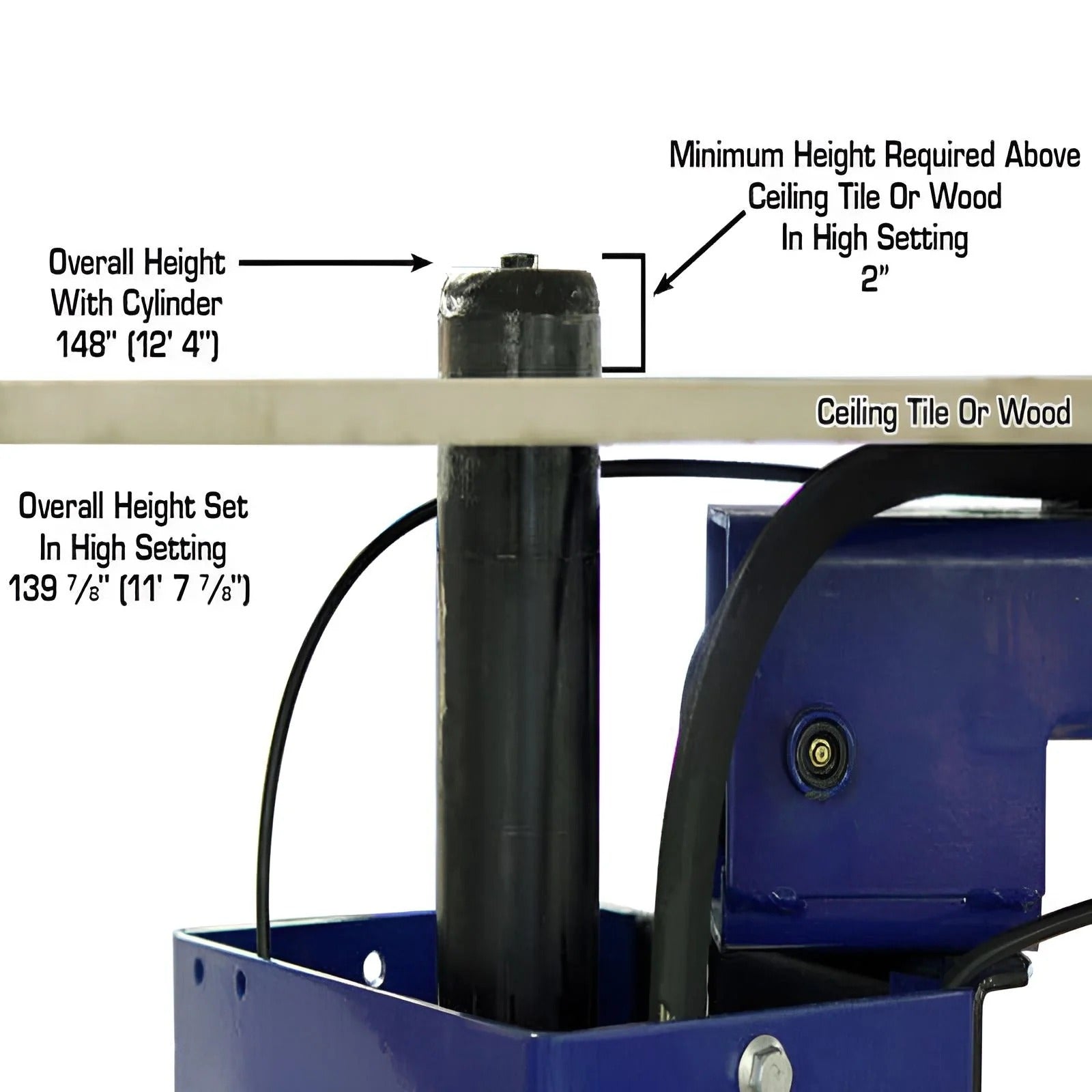

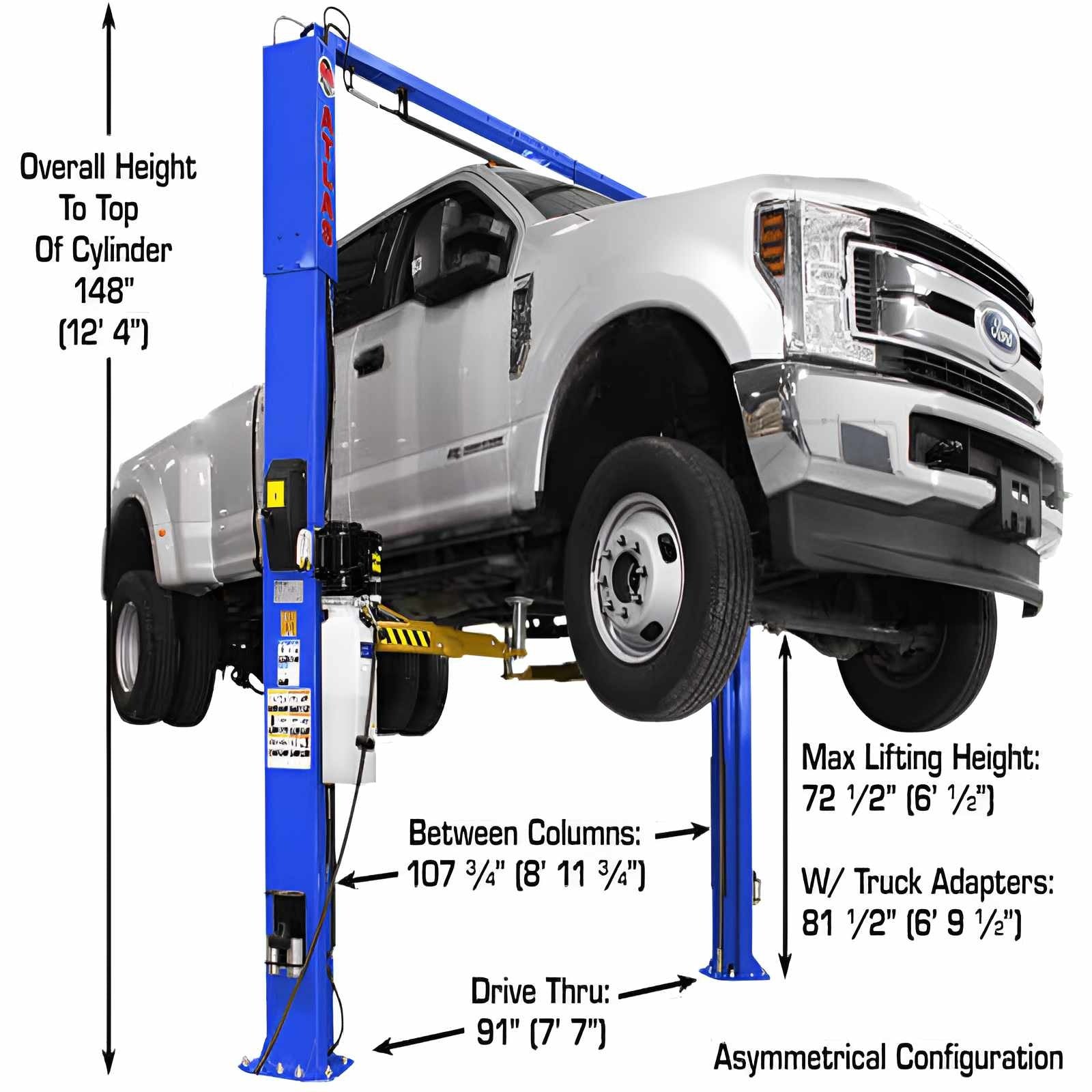

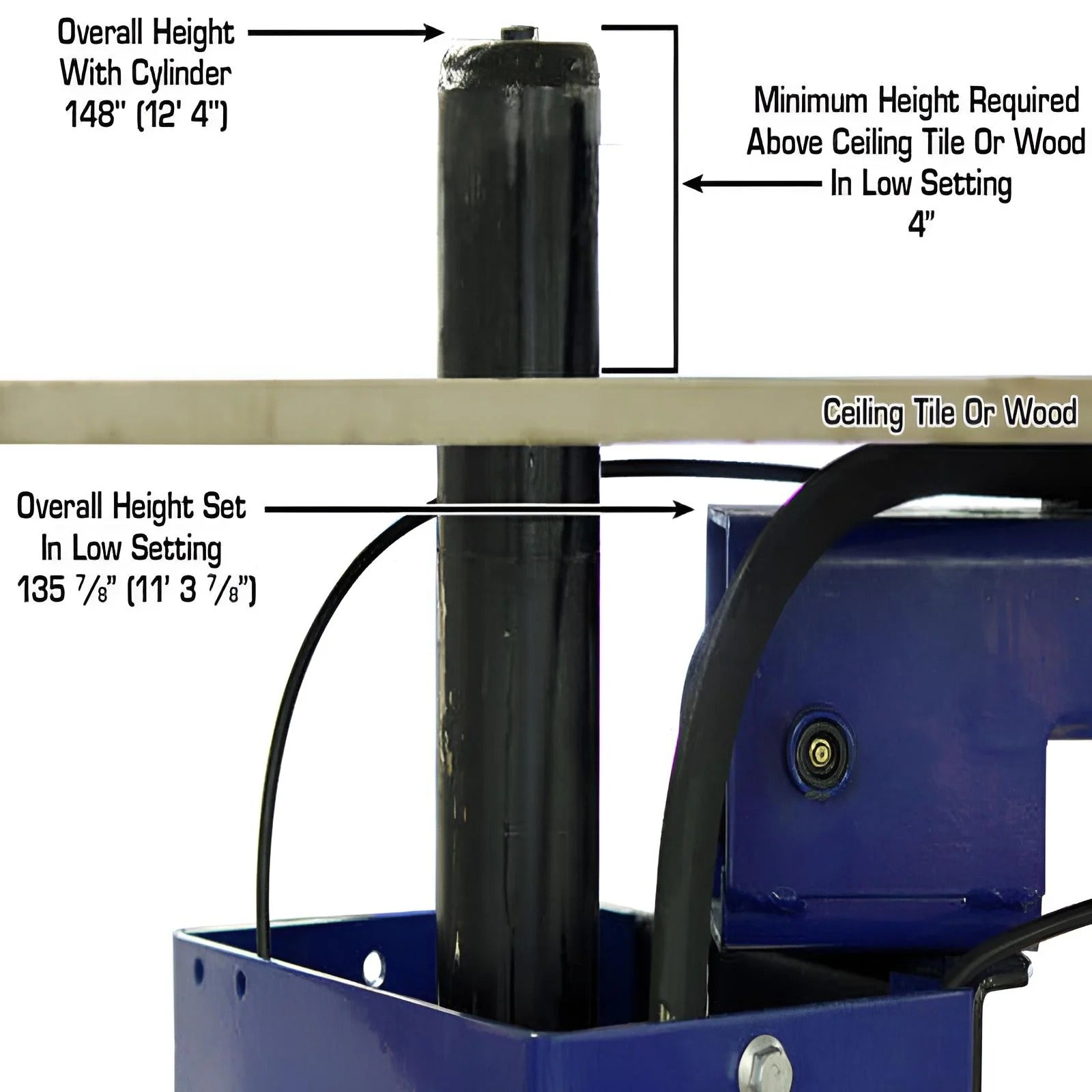

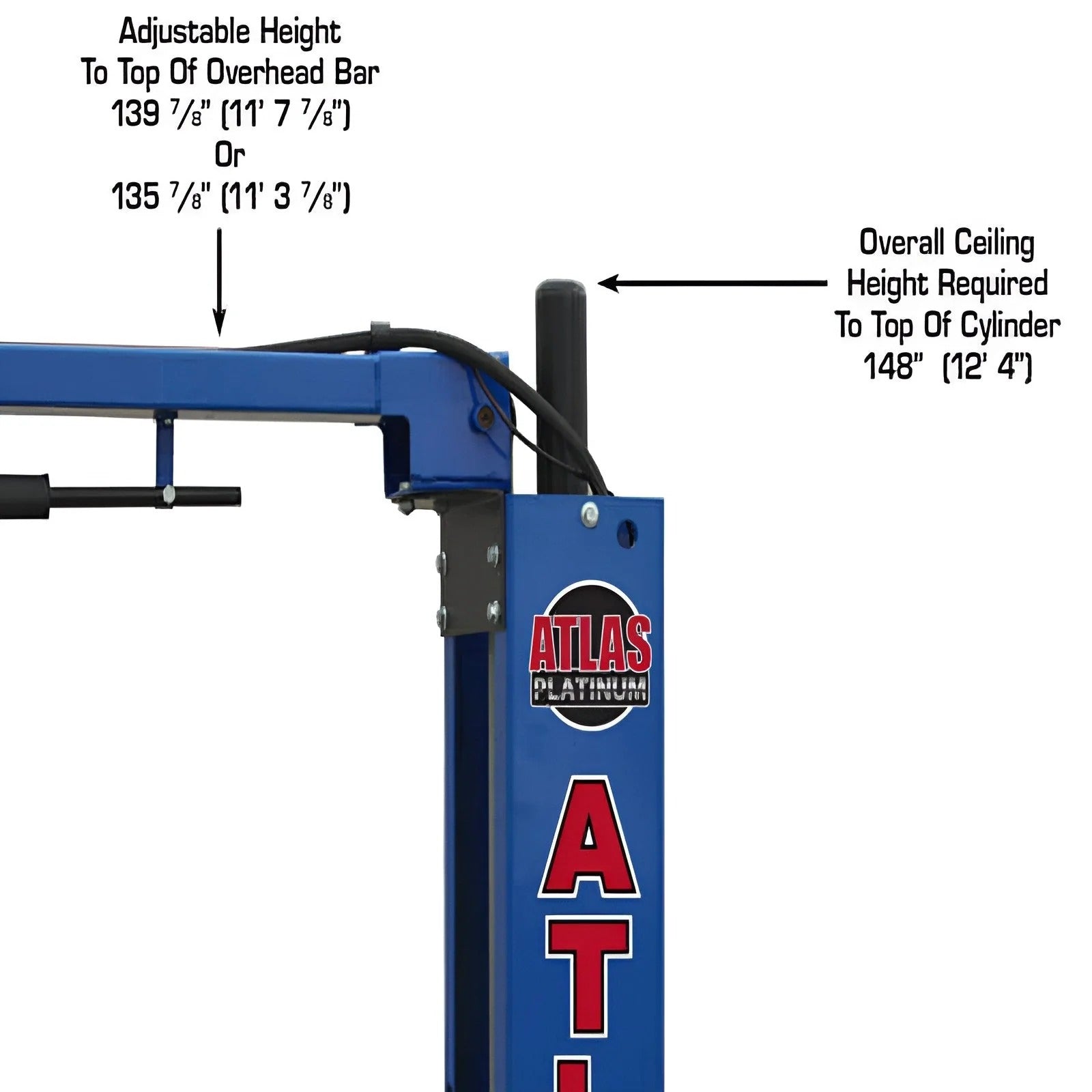

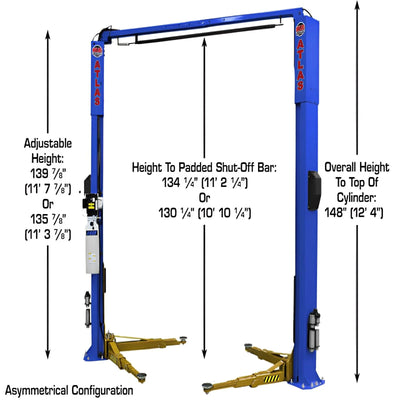

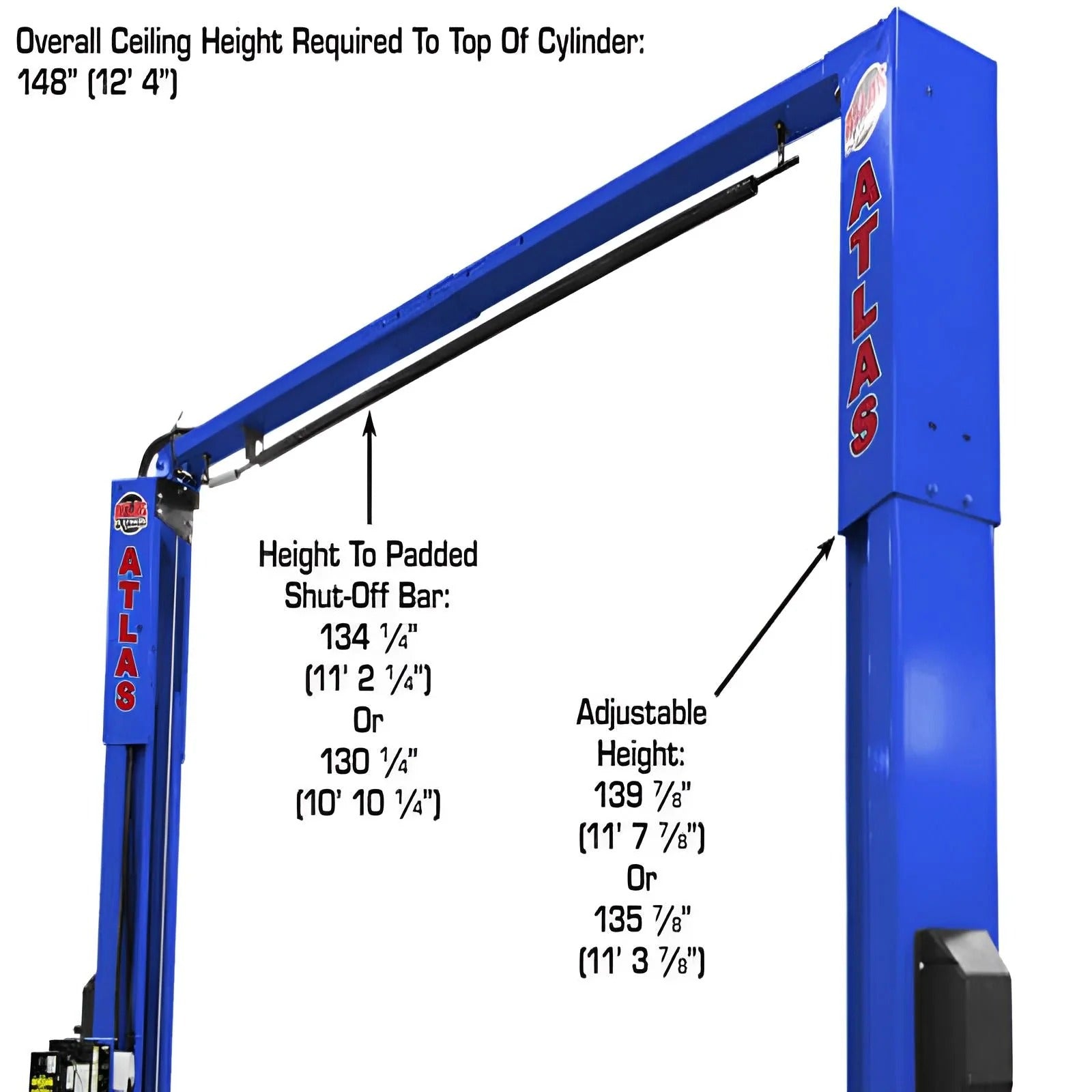

| Overall Height | 159 7/8" (13' 3 7/8") or 163 7/8" (13' 7 7/8") – Cylinder extends to 12' 4" |

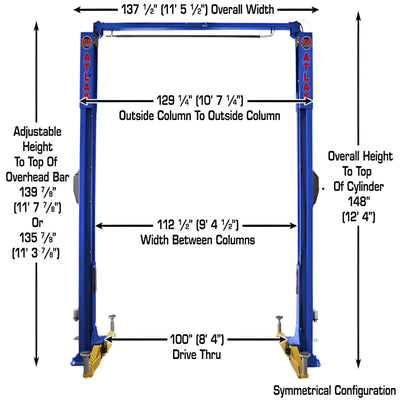

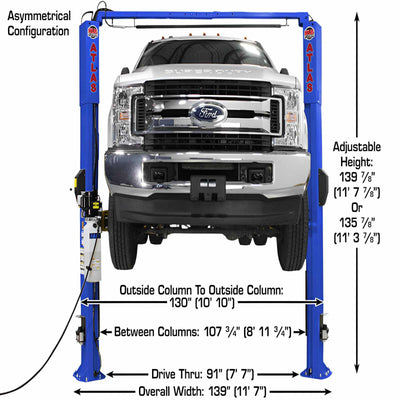

| Overall Width | 139" (11' 7") Asymmetric / 137 1/2" (11' 5 1/2") Symmetric |
| Outside Column to Outside Column | 130" (10' 10") Asymmetric / 129 1/4" (10' 9 1/4") Symmetric |

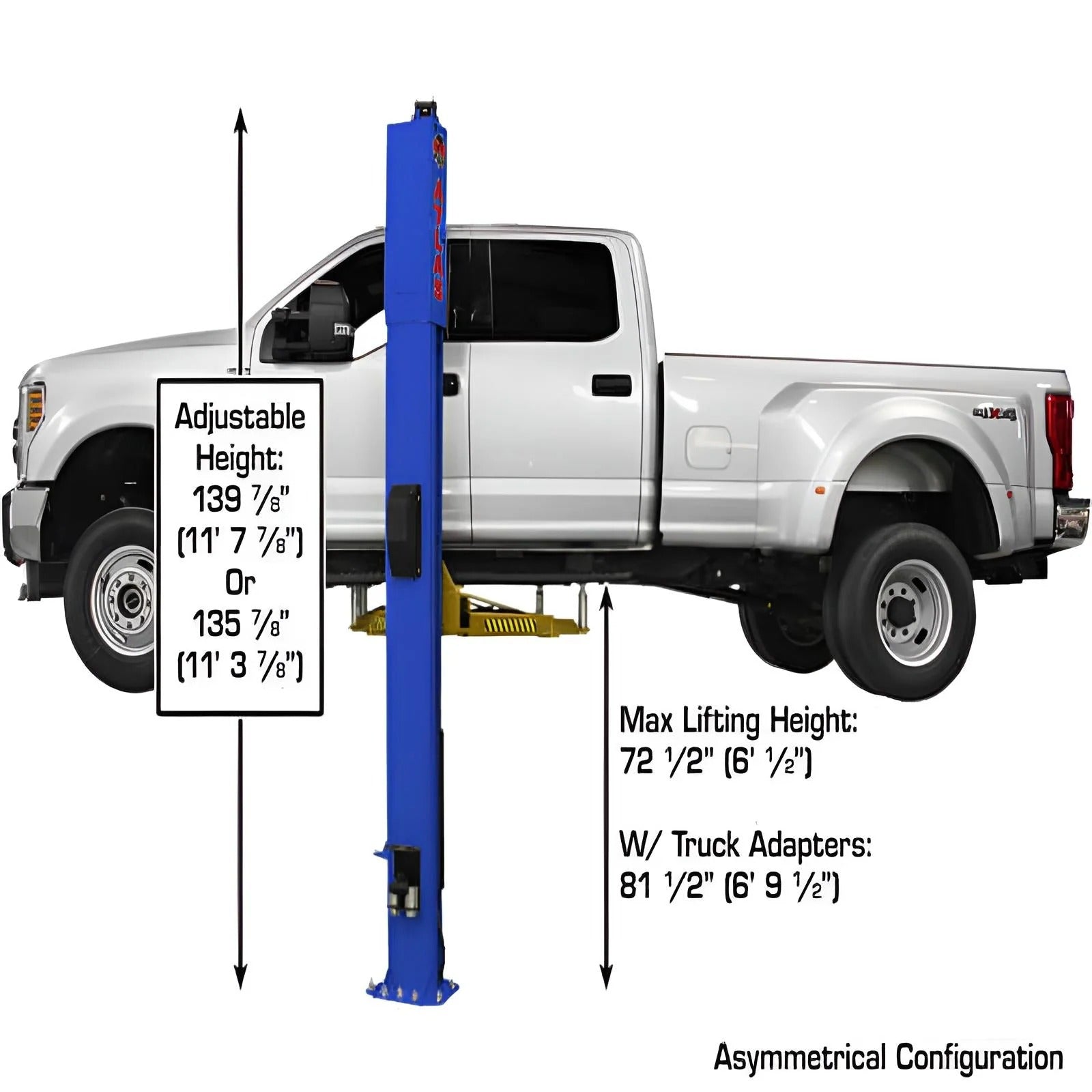

| Maximum Lift Height (Without Adapters) | 72 1/2" |
| Maximum Lift Height (With Adapters) | 81 1/2" |
| Minimum Arm Height | 4" |
| Inside Column | 107 3/4" (8' 11 3/4") Asymmetric / 112 1/2" (9' 4 1/2") Symmetric |
| Drive Thru | 91" Asymmetric / 99 1/2" Symmetric |
| Column Size | 7" x 10 1/4" |
| Column Thickness of Steel | 6mm |
| Base of Lift | 15" x 18" |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,000 lbs. |
| Adapter Heights | 4 Each: 3", 6" |
| Arm Hole/Adapter Peg Size | 2" |
| Concrete Requirement | Minimum 4" concrete with 3,000 PSI rating |
