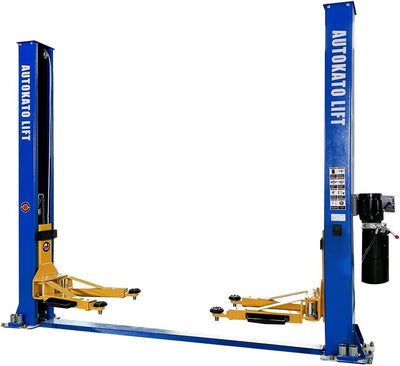

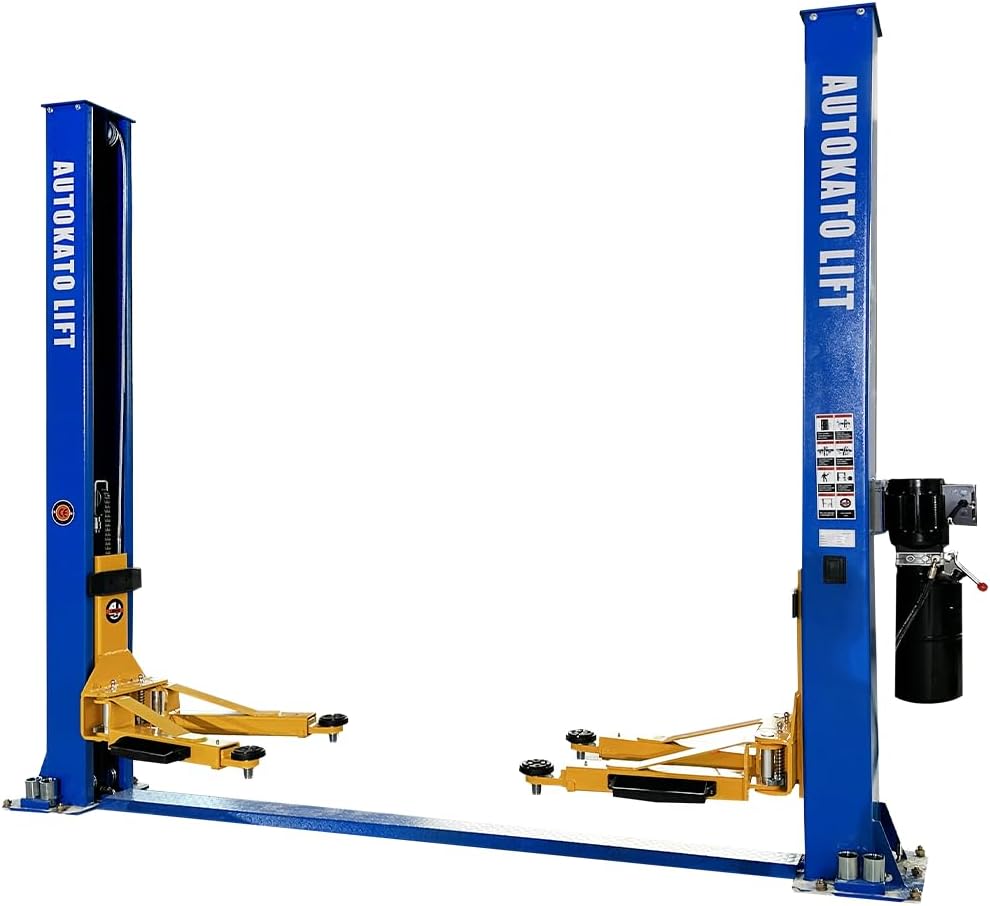

Katool AK-H115Z 11,000 lb 2-Post Car Lift with 3.0HP Motor
SKU: KT-H115Z
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Katool Automotive Equipment AK-H115Z 2 Post Lift is a heavy-duty vehicle lifting solution designed for professional automotive shops, service centers, and serious garage environments. With an 11,000 lb lifting capacity, this lift is built to handle a wide range of passenger vehicles, light trucks, and SUVs while delivering reliable performance and stability.
Engineered with a base plate design and dual hydraulic chain-drive cylinders, the AK-H115Z ensures smooth and balanced lifting operation. Its high-performance hydraulic system, powered by a 220V single-phase motor, provides consistent lifting power for daily shop use. The lift is also tested to meet CE certification standards, including 115% dynamic load and 150% static load capacity testing for added confidence in durability and safety.
Designed for technician convenience, this model features a dual-side manual safety release system, allowing easy and controlled lowering from either side of the lift. Adjustable two-stage arms provide flexible positioning to accommodate different vehicle sizes and lifting points, while screw-on pads and extension adapters help improve contact and stability during operation.
Additional protective features, such as rubber pad door guards, help prevent vehicle damage during use, making this lift a practical and dependable choice for busy service environments. Whether used for general maintenance, inspections, or repair work, the AK-H115Z delivers the strength, safety, and versatility required in a professional shop setting.
Key Features & Benefits
- 11,000 lb Lifting Capacity – Suitable for cars, light trucks, and SUVs

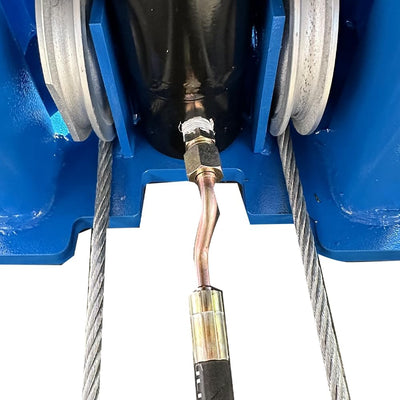

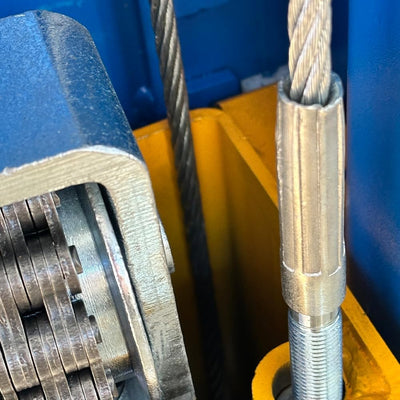

- Dual Hydraulic Chain-Drive System – Ensures smooth, balanced lifting performance
- Base Plate Design – Ideal for shops with lower ceiling height requirements
- Dual-Side Manual Safety Release – Easy and controlled operation from either side

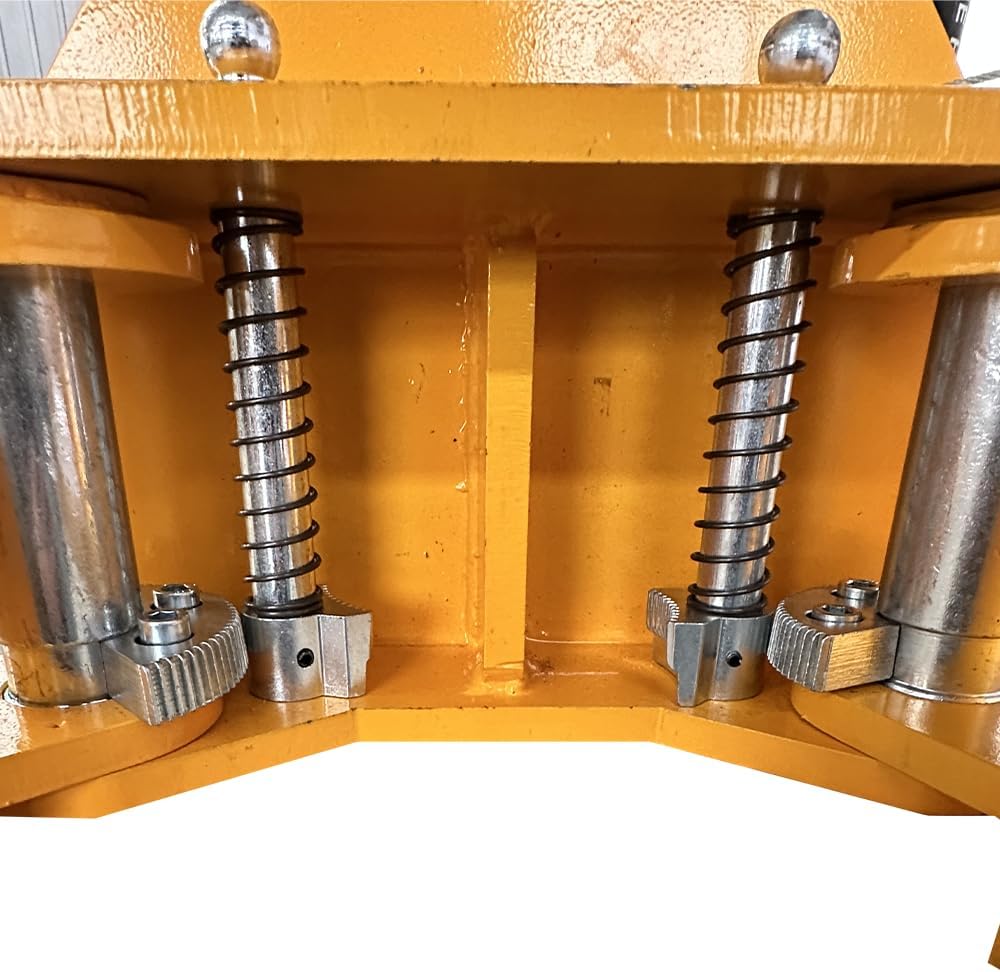

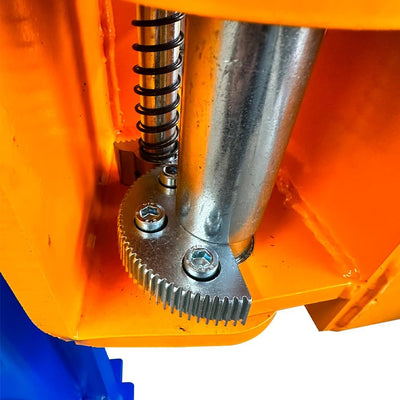

- Two-Stage Adjustable Arms – Flexible positioning for various vehicle types

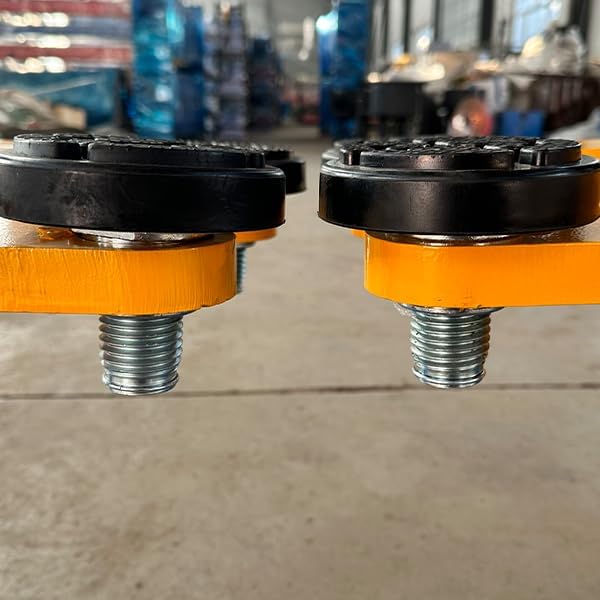

- Screw-On Pads with Extensions – Improves lift point contact and stability (+100mm adapters included)
- Rubber Door Protection Pads – Helps prevent accidental vehicle damage
- High-Performance Hydraulic System – Powered by 220V / 60Hz / 1PH motor
- CE Certified Construction – Tested to 115% dynamic and 150% static load capacity
- Heavy-Duty Build – Designed for consistent use in professional environments

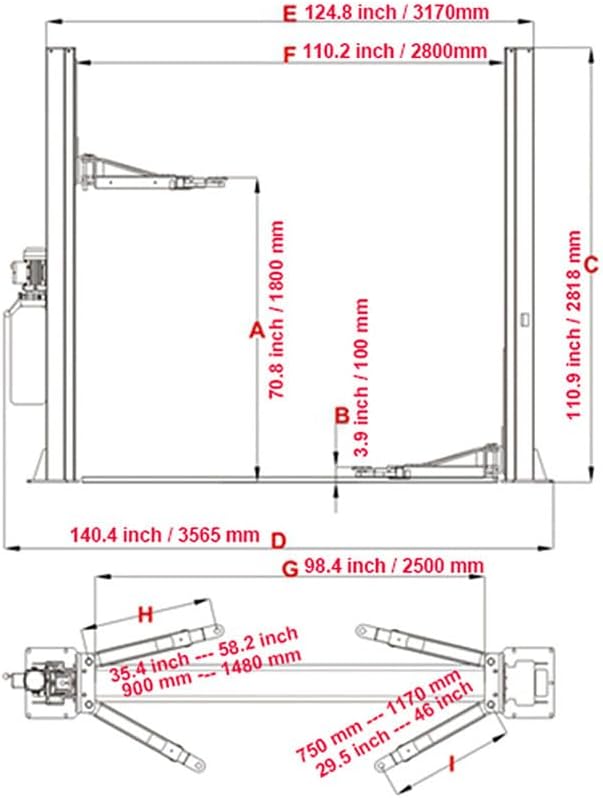

| Specifications | Details |
|---|---|
| Model | AK-H115Z |
| Brand | Katool Automotive Equipment |
| Product Type | 2 Post Car Lift |
| Lifting Capacity | 11,000 lbs (4,500 kg) |
| Maximum Lifting Height | 70.8" (1800 mm) |
| Minimum Height | 4.3" (100 mm) |
| Overall Height | 110.9" (2818 mm) |
| Overall Width | 134.6" (3420 mm) |
| Inside Column Width | 110.2" (2800 mm) |
| Drive-Thru Clearance | 98.4" (2500 mm) |
| Front Arm Reach | 29.5" – 49.2" (750 – 1250 mm, 2-stage) |
| Rear Arm Reach | 29.5" – 49.2" (750 – 1250 mm, 2-stage) |
| Motor | 220V / 60Hz / 1PH / 3KW |
| Hydraulic System | Dual Cylinder, Chain-Drive |
| Net Weight | 615 kg |
| Certification | CE Approved (115% Dynamic / 150% Static Load Tested) |
| Safety Features | Dual-Side Manual Release, Rubber Door Protection Pads |
