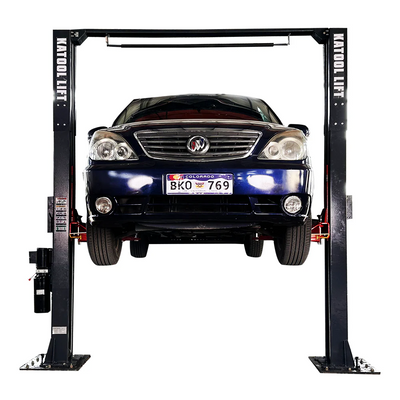

Katool KT-AM120SD 12,000 lb 2-Post Car Lift with Symmetric Arms
SKU: KT-AM120SD
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Katool KT-AM120SD is a 12,000 lb clear-floor two-post lift designed for vehicle service applications where workspace access and positioning flexibility are required. Its asymmetric arm configuration allows improved vehicle placement and door clearance, supporting a range of service tasks on cars, trucks, and SUVs.
With a lifting height of approximately 70.87 inches and a low pad height range, the KT-AM120SD accommodates both lower-profile vehicles and standard service work. The clear-floor design removes obstructions between columns, allowing unobstructed movement beneath the vehicle.
Built with a hydraulic lifting system and reinforced steel structure, this lift is intended for consistent operation in professional environments.
Key Features & Benefits

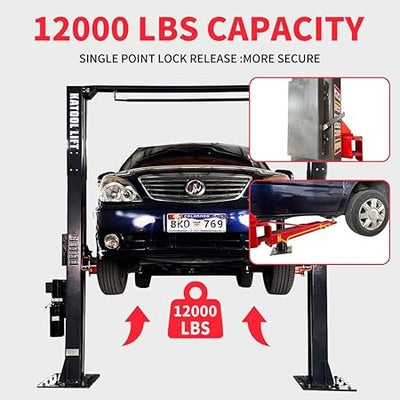

- 12,000 lb Lifting Capacity – Supports cars, trucks, and SUVs
- Clear-Floor Design – Open workspace between columns
- Asymmetric Arm Configuration – Improved vehicle positioning and access
- Single-Point Lock Release – Centralized control for lowering
- Low Pad Height (4.25–4.33") – Compatible with lower-clearance vehicles

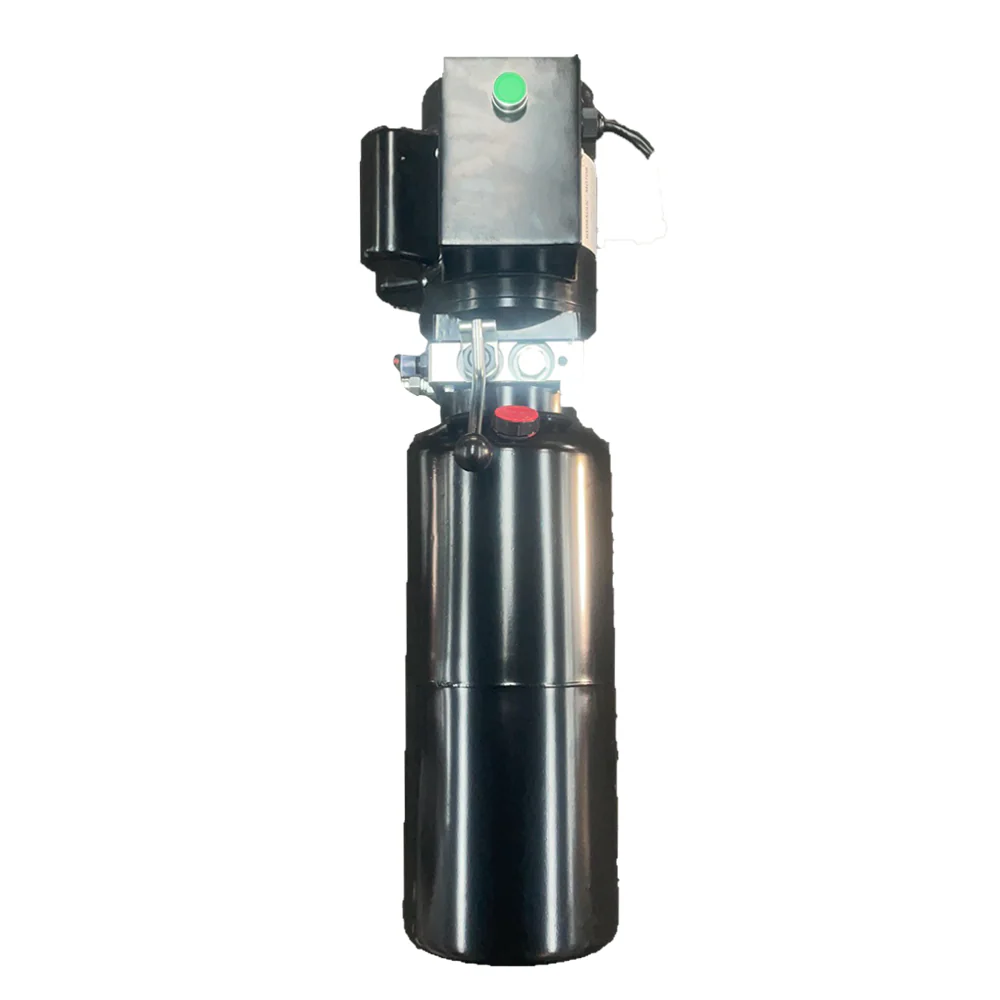

- Hydraulic Lifting System – Controlled lift and descent
- Multiple Lock Positions (12) – Secure positioning during operation
- Heavy-Duty Steel Construction – Built for repeated service use
- Suitable for general automotive service work
- Provides open undercar access with clear-floor layout

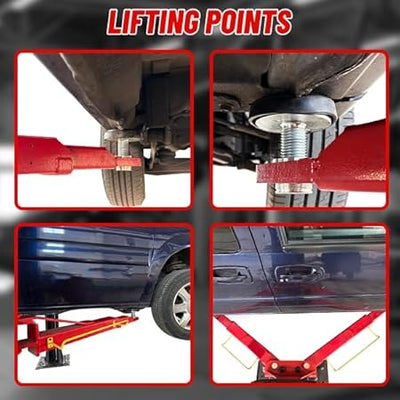

- Supports a range of vehicle sizes and lifting points
- Designed for consistent operation in shop environments
| Specifications | Details |
|---|---|
| Model | KT-AM120SD |
| Product Type | Two-Post Vehicle Lift |
| Lifting Capacity | 12,000 lbs |

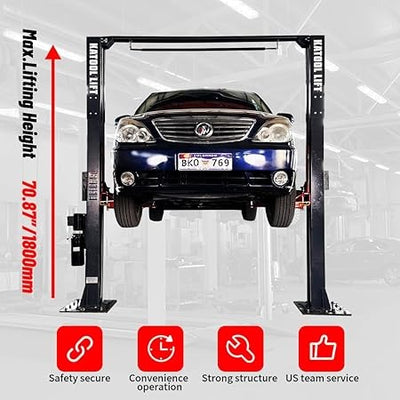

| Max Lifting Height | 70.87 in (1800 mm) |
| Minimum Height | 4.25–4.33 in (110 mm) |
| Overall Height | 143.7–144 in (≈3650 mm) |
| Drive-Thru Clearance | 94 in |
| Motor Power | 4.0 HP |
| Power Requirement | 220V / 60Hz / Single Phase |
| Locking Positions | 12 |
| Construction | Heavy-duty steel |
| Product Weight | ~1,369 lbs |
| Concrete Thickness (Min) | 5.9 in (150 mm) |
| Concrete Strength (Min) | 3,000 PSI |
