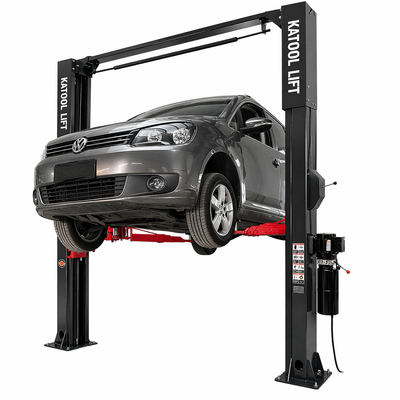

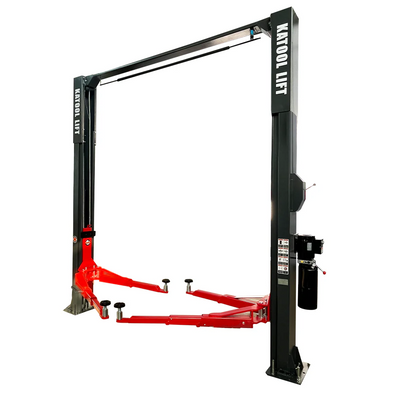

Katool KT-AS110D 11,000 lb Asymmetric 2-Post Car Lift with Single-Point Lock Release
SKU: KT-AS110D
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

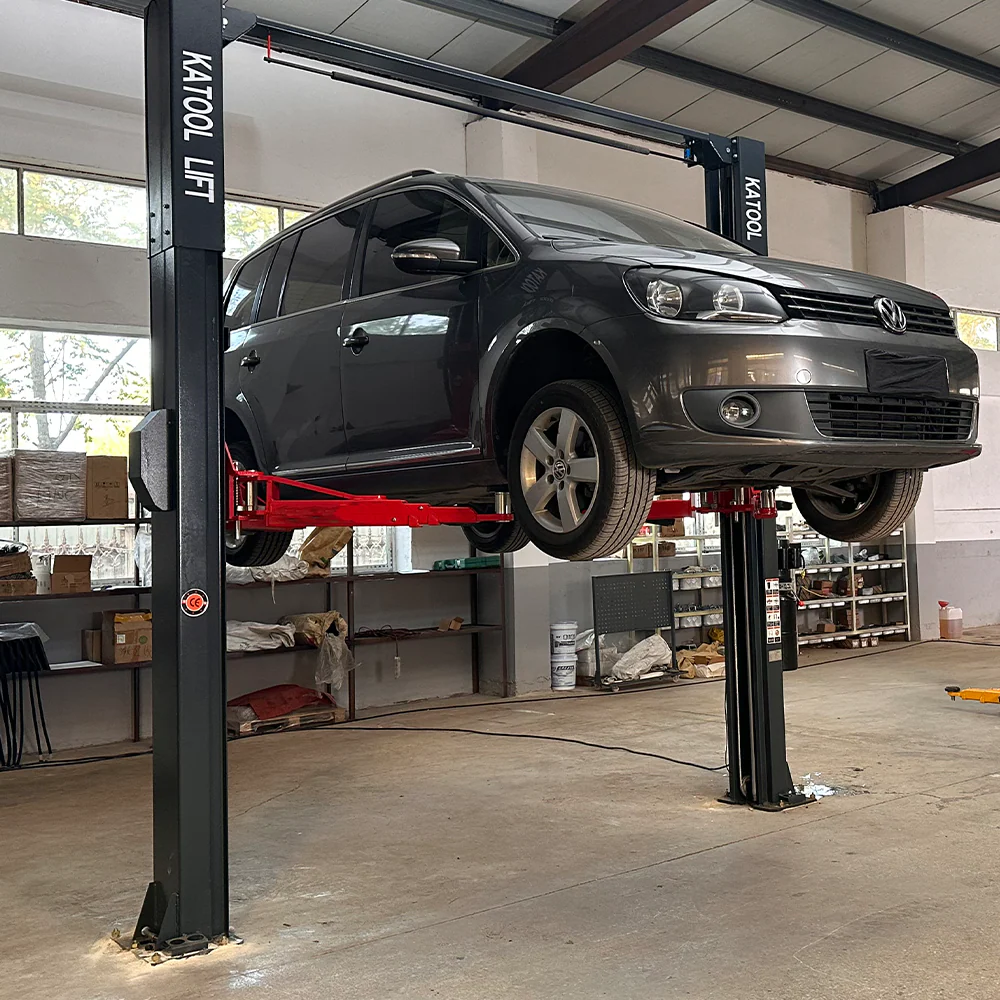

The KT-AS110D is an 11,000 lb two-post lift configured with asymmetric arms and a clear-floor layout to support vehicle service operations across a range of applications. Its design allows improved door access and flexible positioning while maintaining balanced lifting for cars, SUVs, and light trucks.
With a lifting height of approximately 70.75 inches and a low pad height under 4 inches, the KT-AS110D accommodates both standard and lower-clearance vehicles. The direct-drive hydraulic system reduces mechanical complexity, supporting consistent operation with fewer wear components.
Built with reinforced steel construction and tested to established load standards, this lift is intended for repeated use in professional service environments.

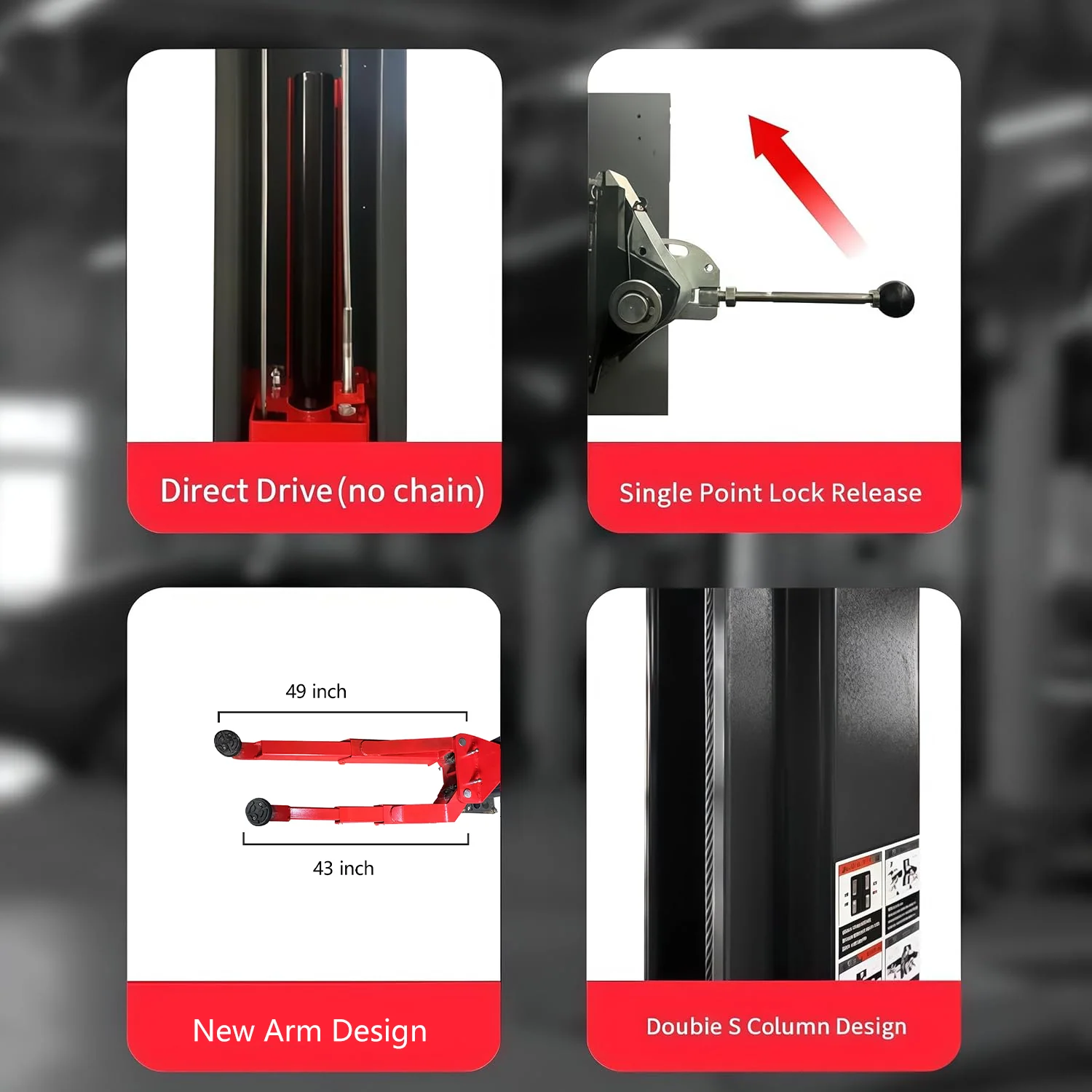

Key Features & Benefits
- 11,000 lb Lifting Capacity – Supports cars, SUVs, and light trucks

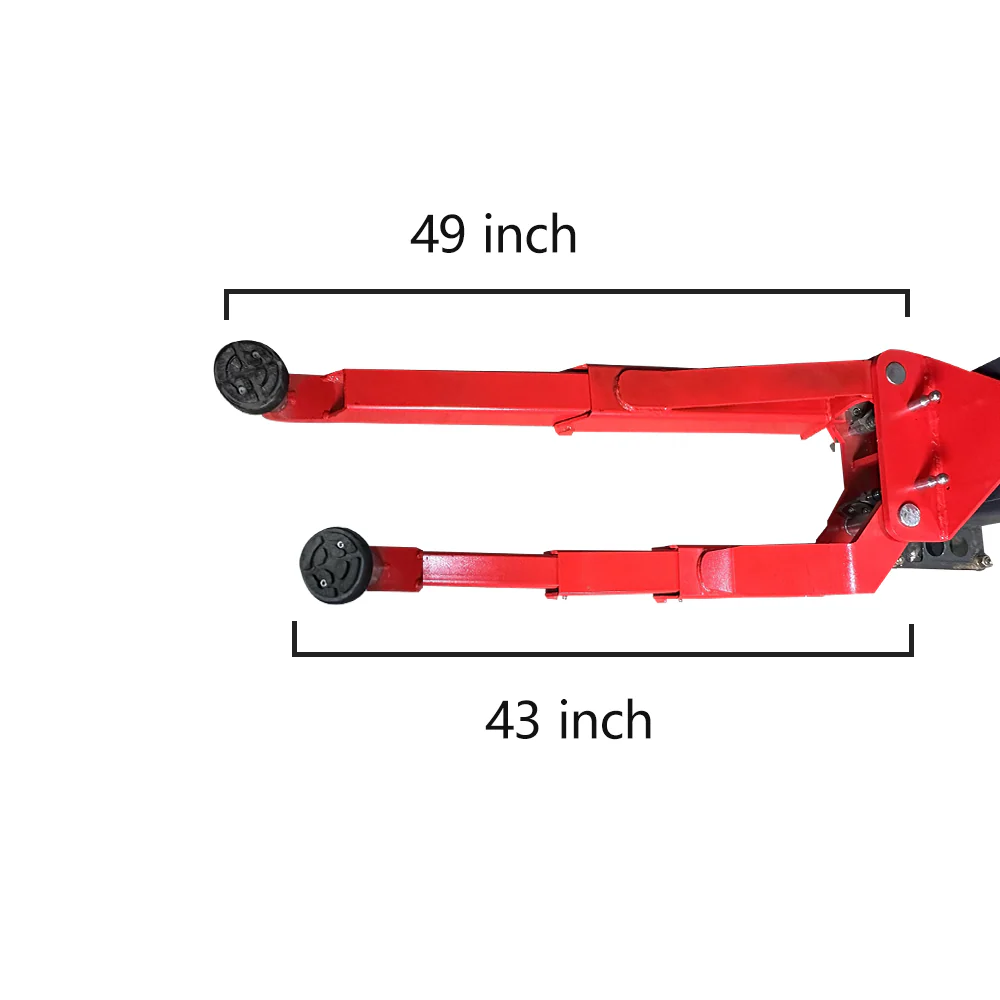

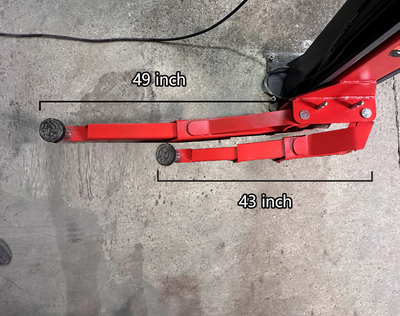

- Asymmetric Arm Design – Improved positioning and door clearance

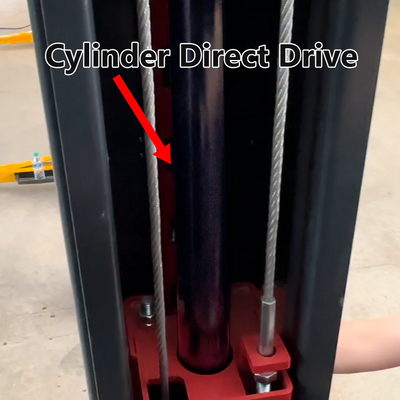

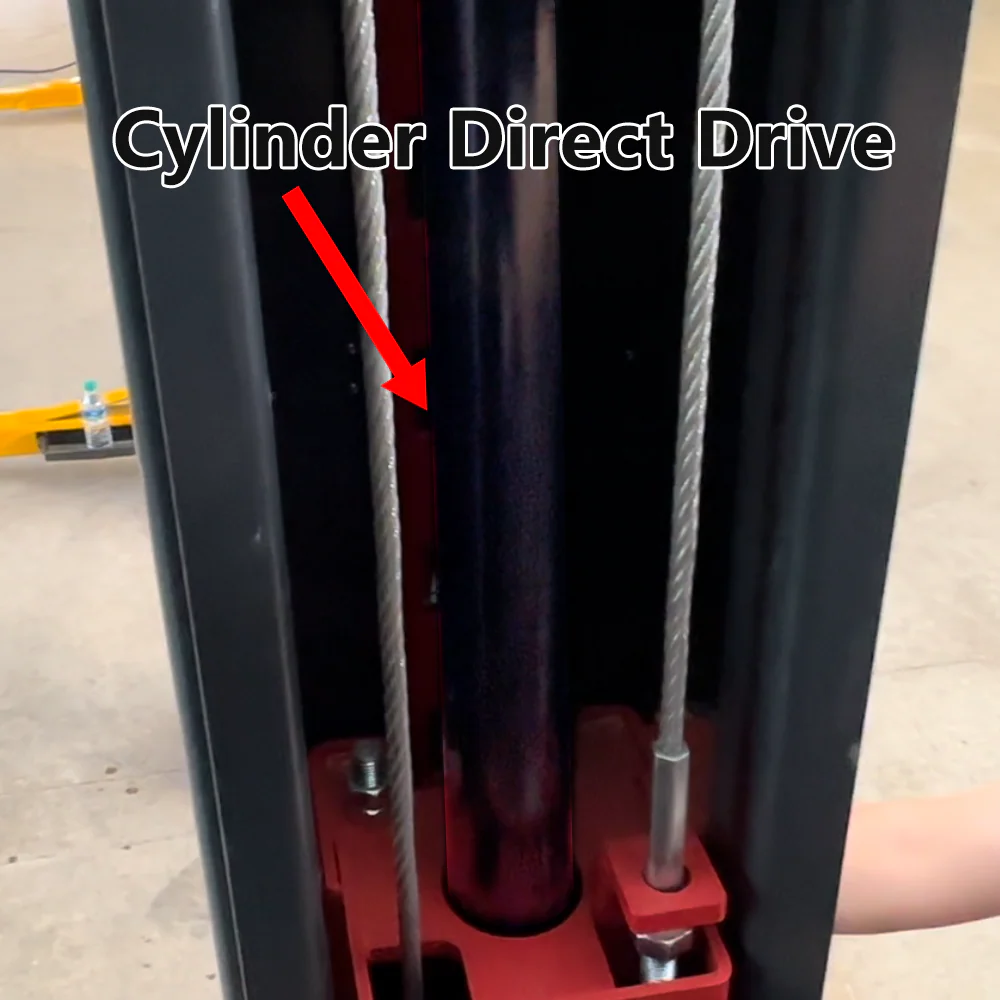

- Direct-Drive Cylinders – Reduced moving parts and consistent lift cycles

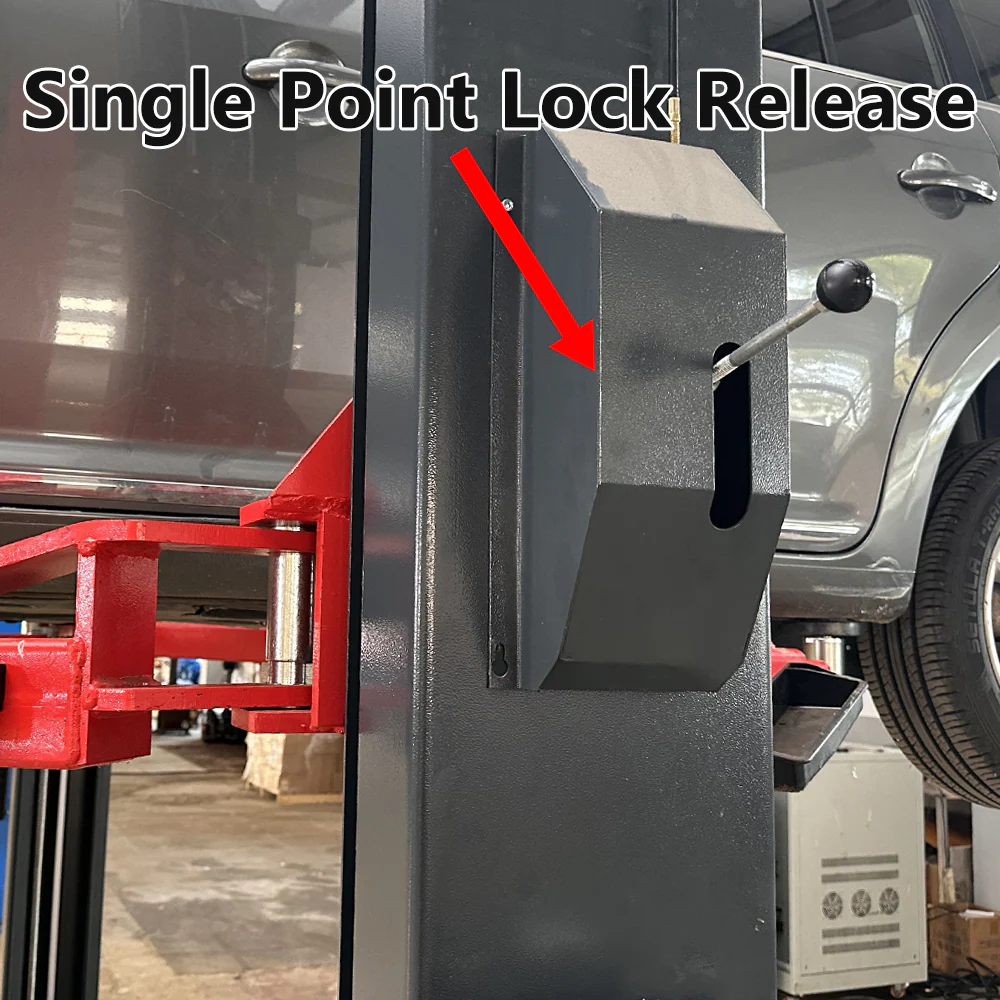

- Single-Point Lock Release – Centralized control for lowering
- Low Pad Height (3.74") – Compatible with lower-clearance vehicles
- Overhead Safety Shutoff Bar – Limits upward travel
- Rubber Door Protection Pads – Helps reduce contact during access
- Adjustable Adapter Extensions (3.94"–6") – Expands lifting point compatibility
- Hydraulic Operation – Controlled lifting and descent
- CE Certified – Tested to 115% dynamic and 150% static load standards
- Suitable for general automotive service work
- Reduced maintenance from direct-drive configuration
- Designed for consistent operation in shop environments
| Specifications | Details |
|---|---|
| Model | KT-AS110D |
| Product Type | Two-Post Vehicle Lift |
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max Lifting Height | 70.75 in (1800 mm) |
| Minimum Height | 3.74 in (95 mm) |

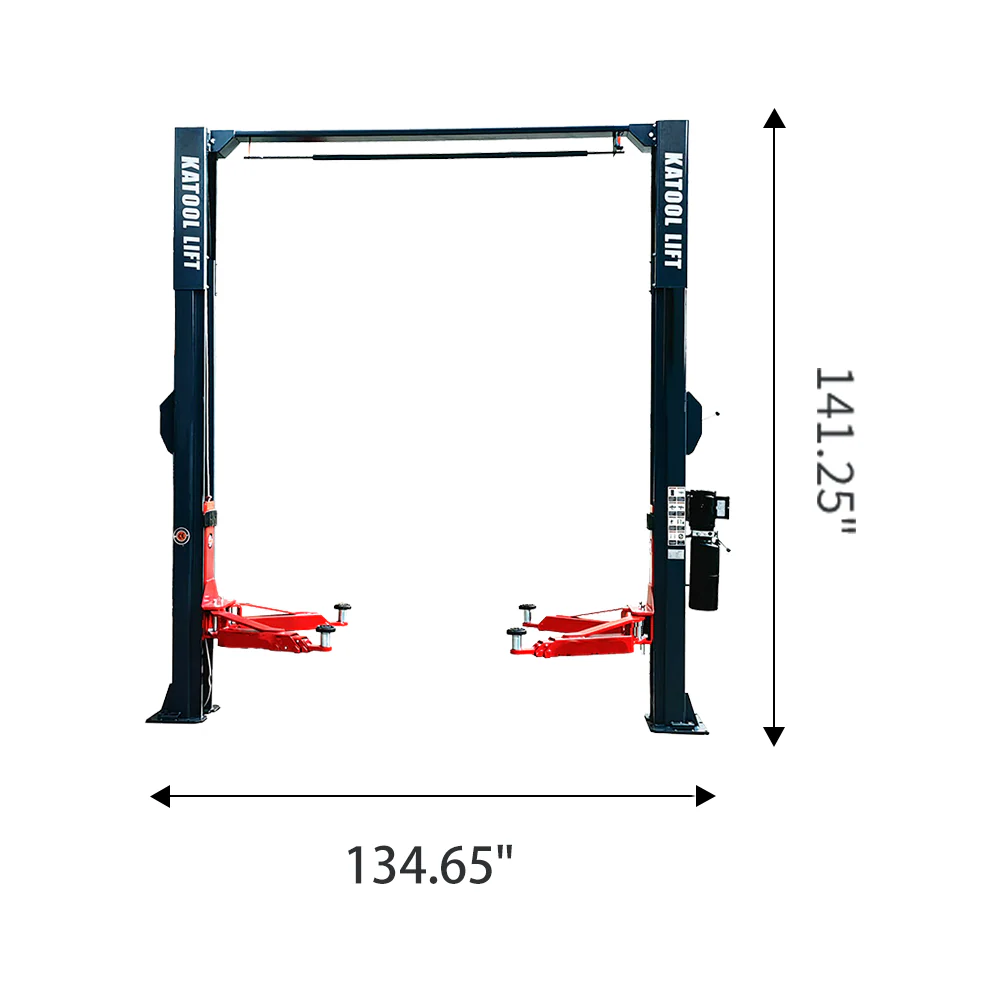

| Overall Height | 141.25 in (3587 mm) |
| Overall Width | 134.65 in (3420 mm) |
| Outside Column Width | 120.4 in (3058 mm) |
| Inside Column Width | 109.37 in (2778 mm) |
| Drive-Thru Clearance | 99.61 in (2530 mm) |
| Motor | 220V / 60Hz / 1PH (110V optional) |
| Net Weight | 1,323 lbs (600 kg) |
| Concrete Thickness (Min) | 5.9 in (150 mm) |
| Concrete Strength (Min) | 3,000 PSI |
