Katool KT-M120 12,000 lb 2-Post Car Lift for Heavy-Duty Shop Use
SKU: KT-M120
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

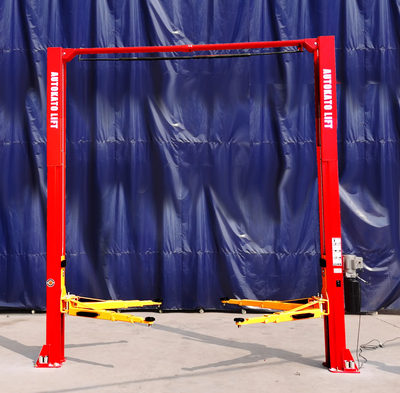

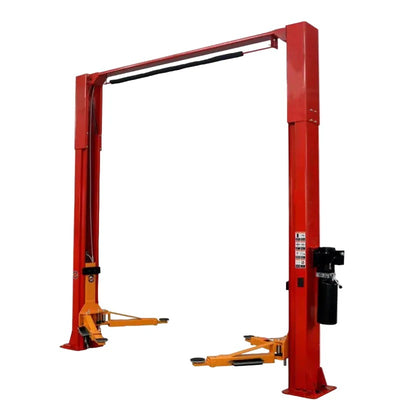

The Katool KT-M120 is a 12,000 lb clear-floor two-post lift designed for vehicle service applications requiring open workspace and balanced lifting performance. Its symmetric arm configuration supports even load distribution, while the clear-floor layout allows unobstructed access beneath the vehicle.
With a lifting height of approximately 70.75 inches and a low pad height, the KT-M120 accommodates a range of vehicles including cars, SUVs, vans, and light trucks. The hydraulic chain-drive system provides synchronized lifting, supporting stable operation across repeated service cycles.
Constructed with reinforced steel components and equipped with integrated safety features, this lift is intended for consistent use in professional environments.
Key Features & Benefits
- 12,000 lb Lifting Capacity – Supports cars, SUVs, vans, and light trucks
- Clear-Floor Design – Open access beneath the vehicle

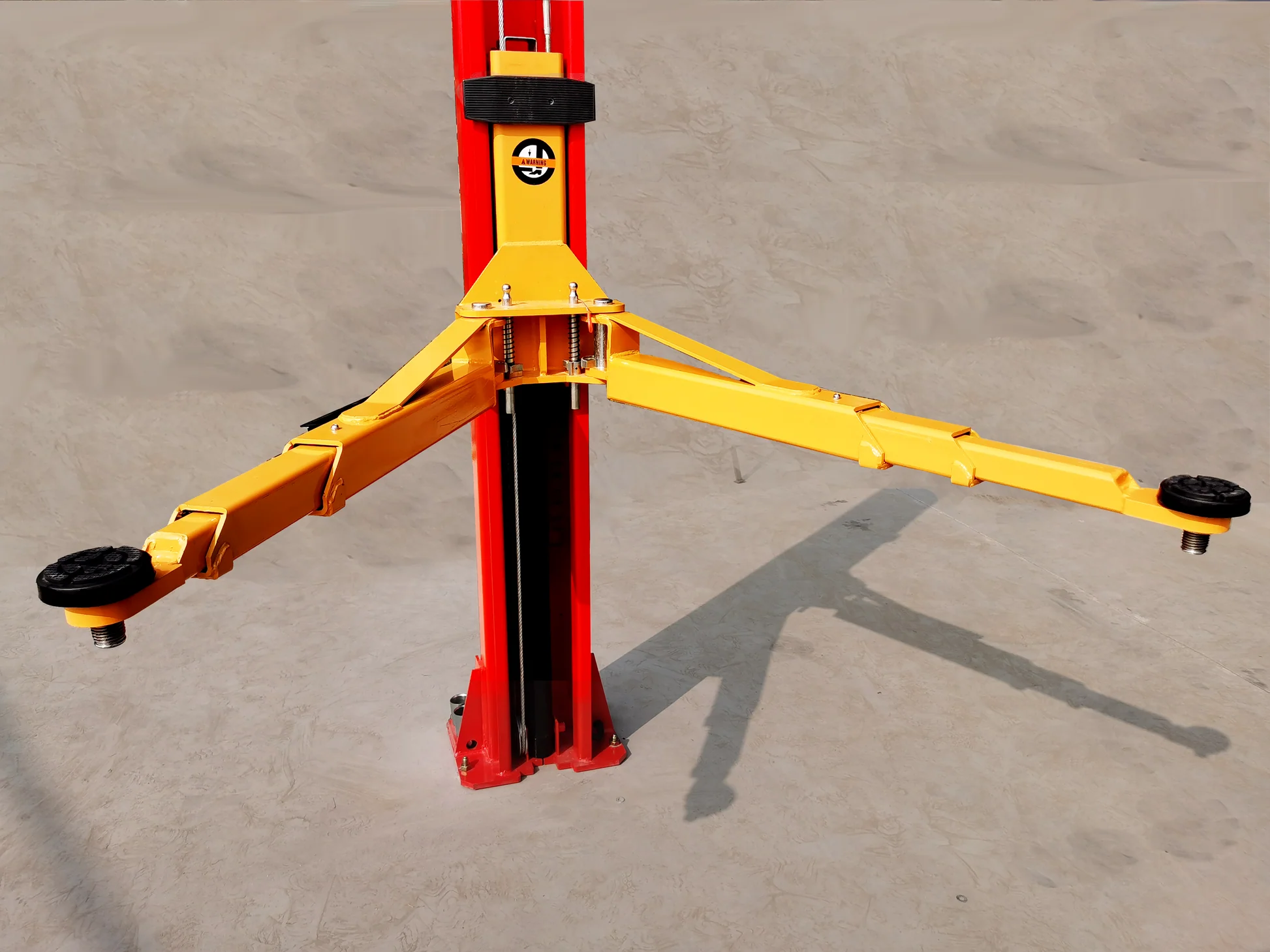

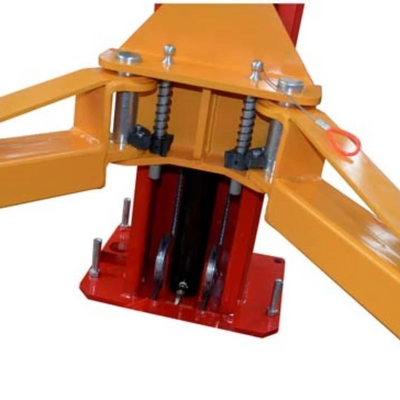

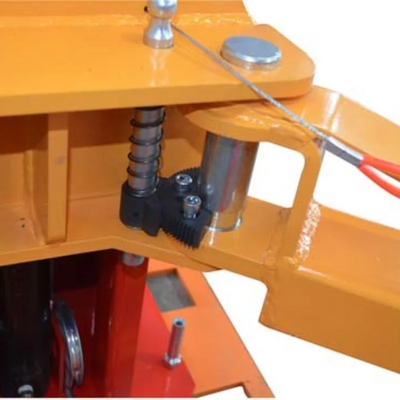

- Symmetric Arm Configuration – Balanced lifting geometry

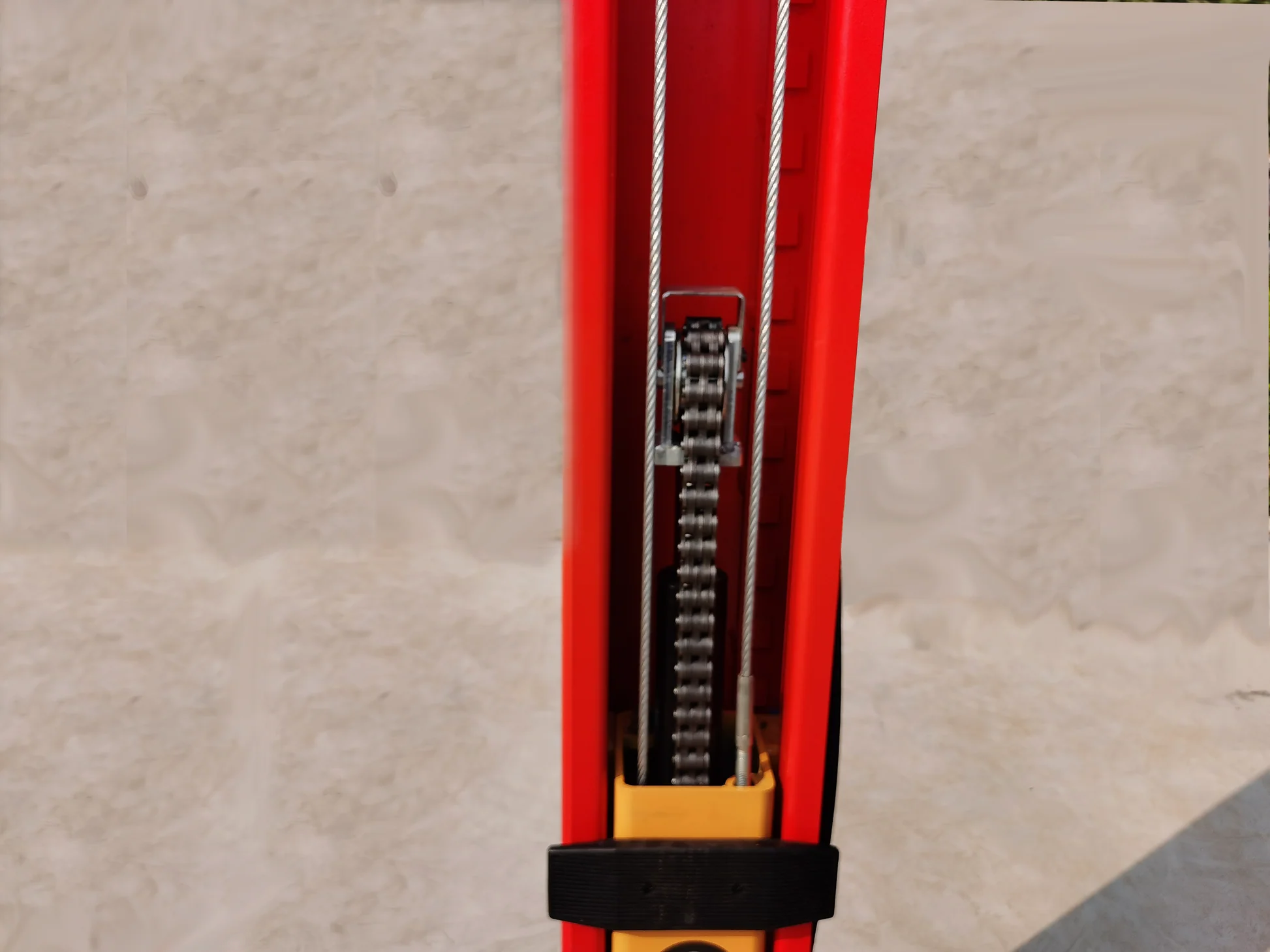

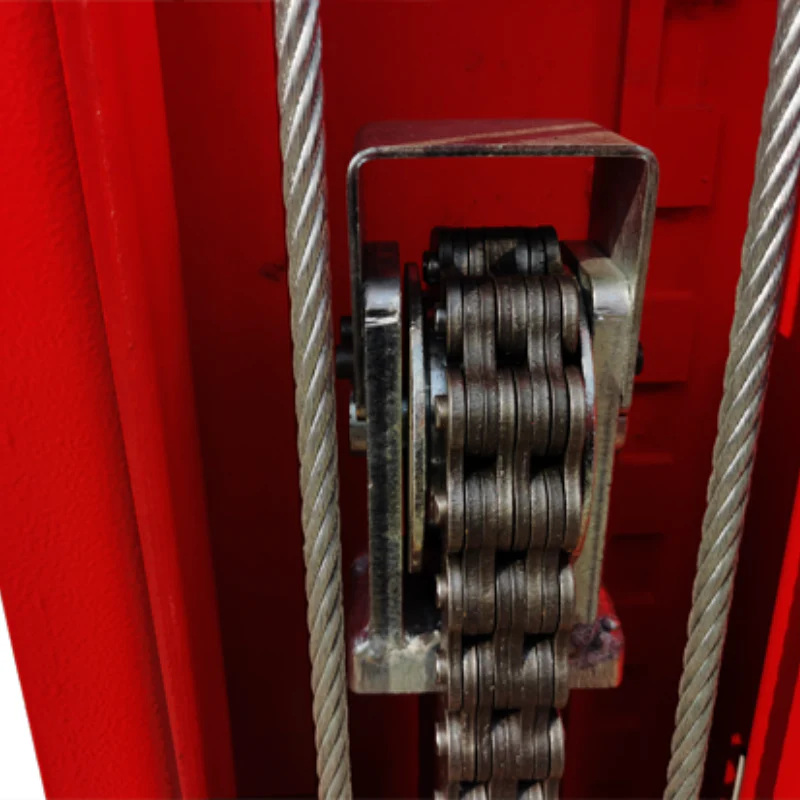

- Dual Hydraulic Chain-Drive System – Synchronized lifting operation
- Manual Lock Release (Dual-Side) – Access from either column
- Low Pad Height (~4.25") – Compatible with lower-clearance vehicles

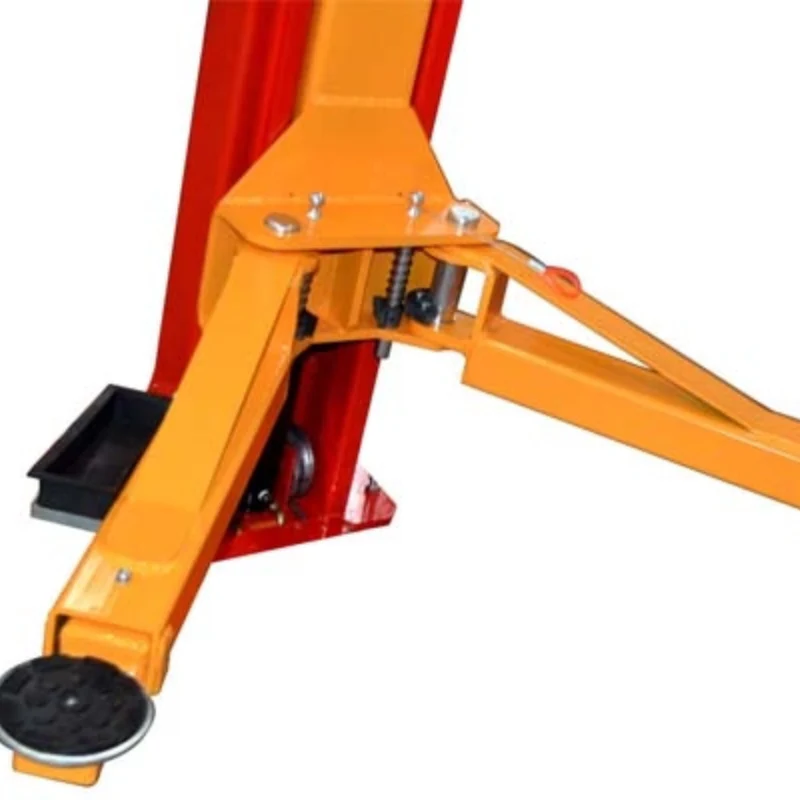

- Adjustable Support Adapters (+30 mm / +120 mm) – Expanded lift point range
- Overhead Safety Shutoff Bar – Limits upward travel

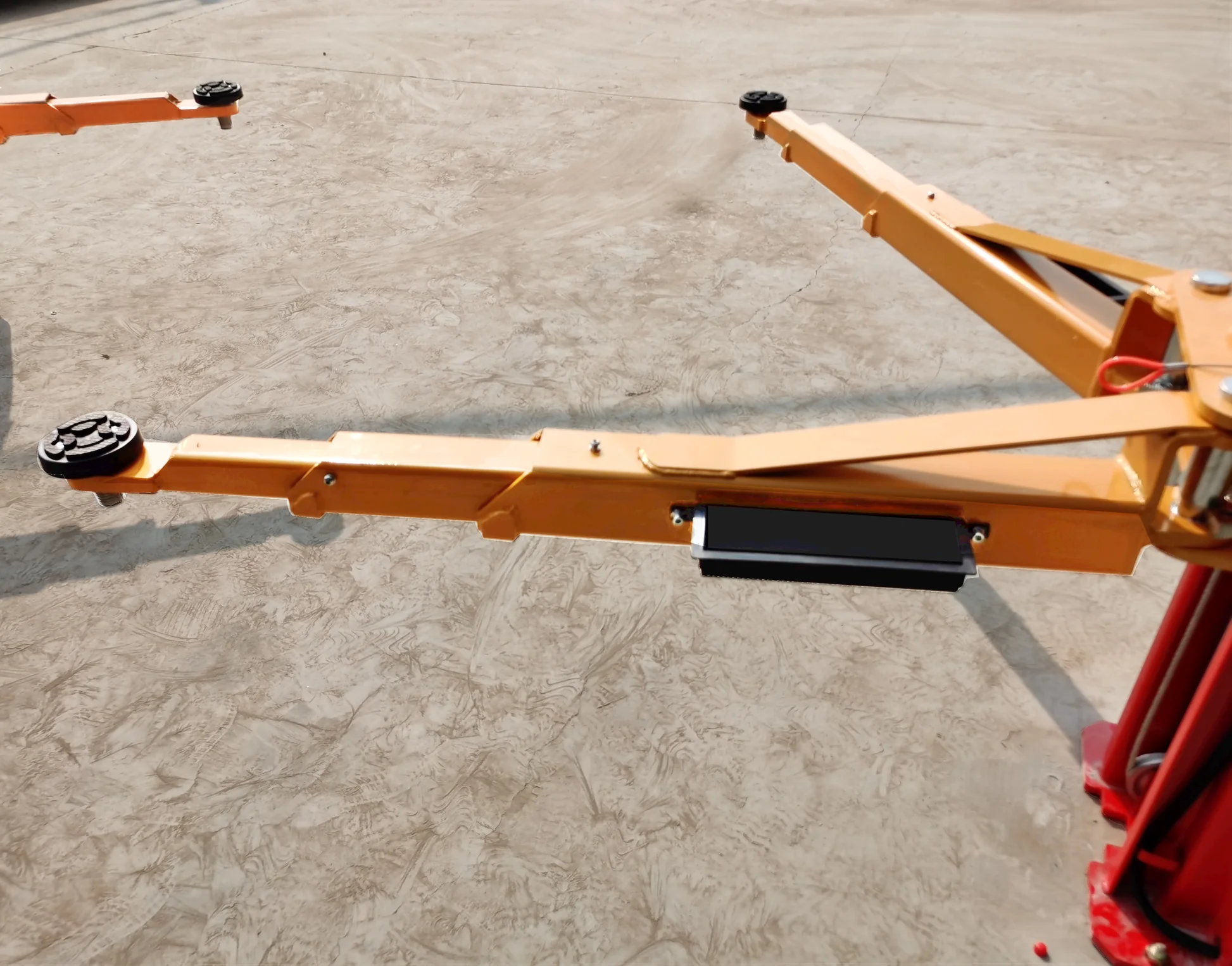

- Rubber Door Protection Pads – Helps reduce contact during access
- Integrated Tool Tray & Guardrails – Added workspace utility and protection
- CE Tested – Load tested to applicable standards
- Suitable for general automotive service work
- Open layout supports undercar access
- Designed for repeated operation in shop environments

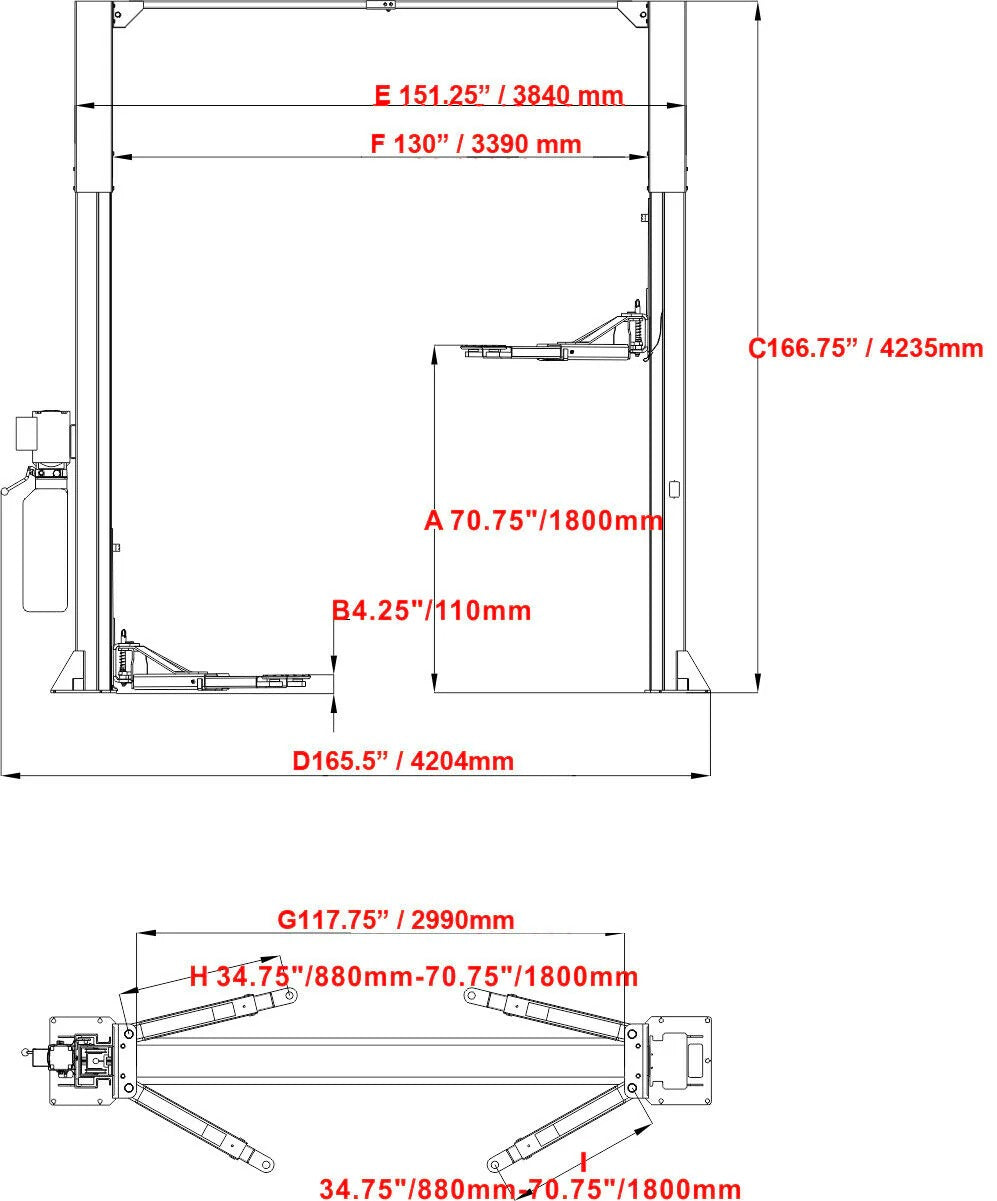

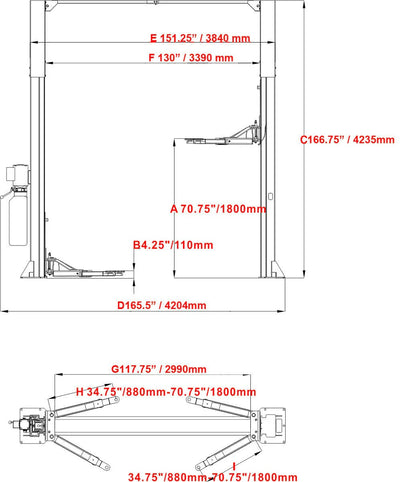

| Specifications | Details |
|---|---|
| Model | KT-M120 |
| Product Type | Two-Post Vehicle Lift |
| Lifting Capacity | 12,000 lbs (5,500 kg) |
| Max Lifting Height | ~70.75 in (1800 mm) |
| Minimum Pad Height | ~4.25 in (110 mm) |
| Overall Height | ~166.75 in (4235 mm) |
| Overall Width | ~165.5 in (4204 mm) |
| Inside Column Width | ~130 in (3390 mm) |
| Drive-Thru Clearance | ~117.75 in (2990 mm) |
| Arm Reach (Front/Rear) | Min: ~31 in / Max: ~51 in (2-stage) |
| Power Requirement | 220V / 60Hz / Single Phase (110V optional) |
| Construction | Heavy-duty steel |
| Net Weight | ~1,500 lbs (680 kg) |
| Concrete Thickness (Min) | 5.9 in |
| Concrete Strength (Min) | 3,000 PSI |
