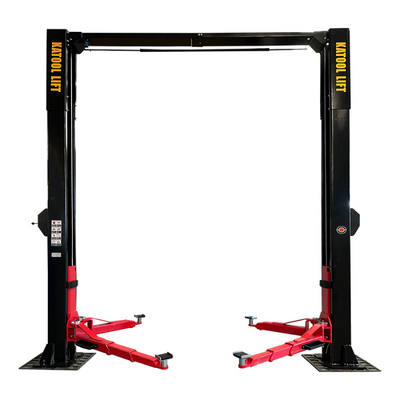

Katool KT-M150D 15,000 lb Heavy-Duty 2-Post Car Lift for Trucks and SUVs
SKU: KT-M150D
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Katool KT-M150D is a 15,000 lb two-post lift designed for higher-capacity vehicle service in commercial shop environments. Its symmetric configuration provides balanced lifting for trucks, vans, and larger vehicles, while the direct-drive hydraulic system supports consistent operation with reduced mechanical complexity.
With a lift height exceeding 72 inches, the KT-M150D provides access to undercar components for maintenance and repair work. The single-point lock release system allows controlled lowering, and the reinforced steel structure is built to handle repeated lifting cycles under load.
Constructed from Q235 and Q245 structural steel and powered by a 220V system, this lift is intended for applications where higher capacity and structural reliability are required.
Key Features & Benefits
- 15,000 lb Lifting Capacity – Supports trucks, vans, and commercial vehicles

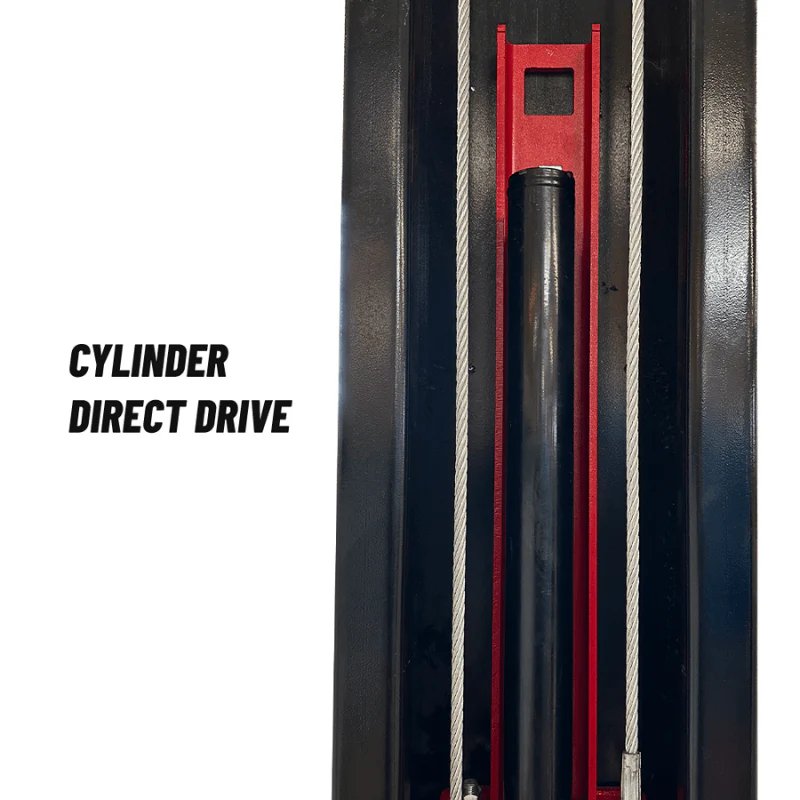

- Direct-Drive Hydraulic System – Fewer moving components and consistent lift cycles
- Symmetric Two-Post Design – Balanced vehicle positioning

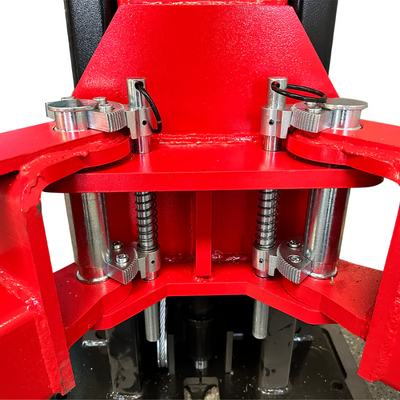

- Single-Point Lock Release – Centralized control for lowering
- 72.83" Lift Height – Access for undercar service
- Heavy-Duty Steel Construction – Q235 / Q245 structural steel
- 220V Power System – Standard commercial electrical configuration
- Built for Repeated Use – Designed for shop environments handling larger vehicles
- Suitable for higher-capacity service applications
- Reduced maintenance from direct-drive configuration
- Designed for consistent operation under load

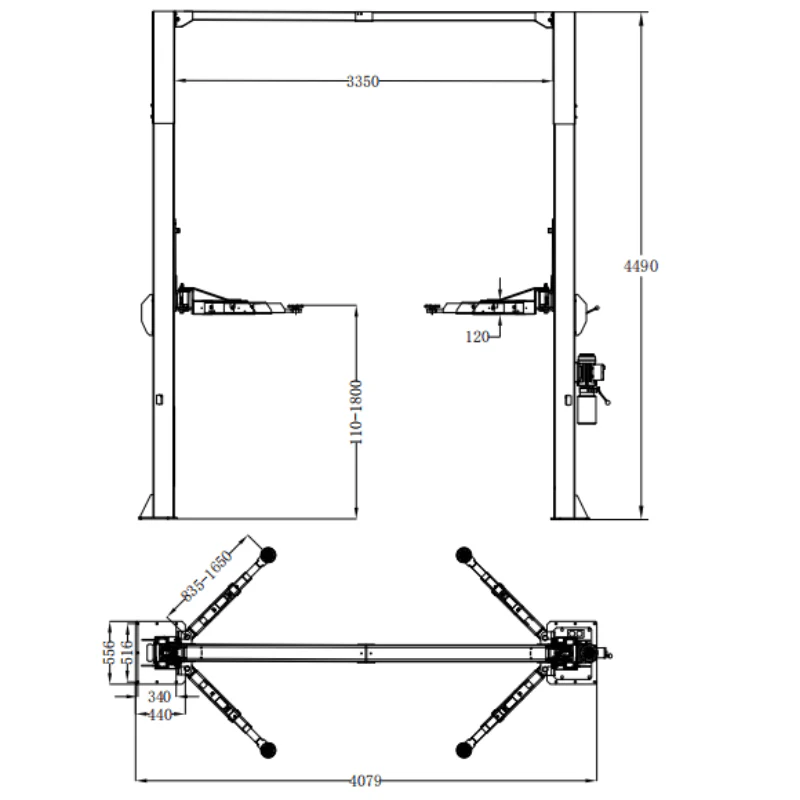

| Specifications | Details |
|---|---|
| Model | KT-M150D |
| Product Type | Two-Post Vehicle Lift |
| Lifting Capacity | 15,000 lbs |
| Max Lifting Height | 72.83 in |

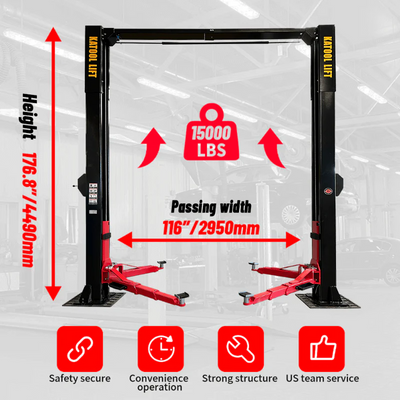

| Overall Height | 176.8 in |
| Drive-Thru Clearance | 116 in |
| Motor | 4 HP / 3 kW |
| Voltage | 220V / 60Hz |
| Design | Symmetric two-post |
| Drive Type | Direct drive |
| Construction Material | Q235 / Q245 steel |
| Concrete Thickness (Min) | 5.9 in |
| Concrete Strength (Recommended) | 3,000 PSI |
