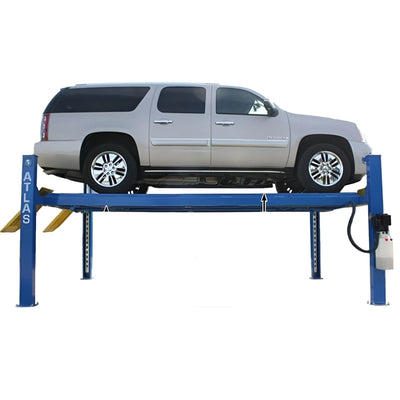

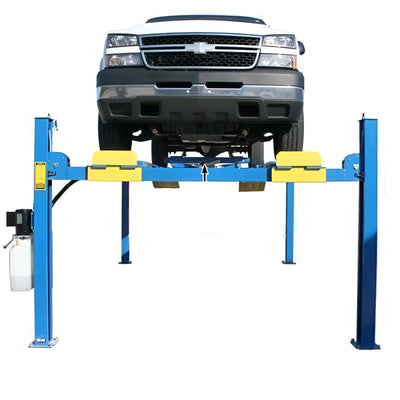

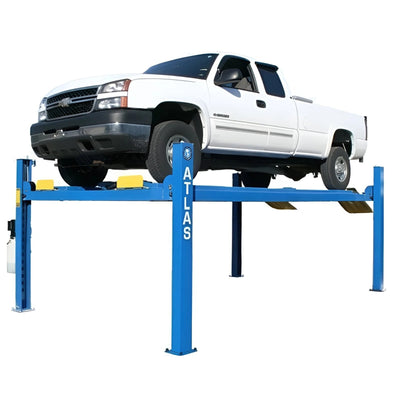

Atlas 12,000 lb 4-Post Alignment Lift with Turntables and Slip Plates for Professional Wheel Alignment
SKU: ATEATTD-412A-FPD
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 12,000 lb 4-post alignment lift is a commercial-grade lifting solution built for professional shops that require precision alignment capability and heavy-duty performance. Designed with extra height, width, and length, this lift accommodates a wide range of vehicles while providing the stability needed for accurate alignments. Built-in slip plates and adjustable alignment turntables allow for precise positioning across different wheelbases, while included runway covers let the lift convert easily for general service use. Powered by a high-strength cable system and an under-runway hydraulic cylinder, this lift offers smoother operation and improved leveling compared to traditional chain-driven systems. Its durable construction and advanced safety features make it a reliable choice for long-term shop use.
Key Features & Benefits
- 12,000 lb lifting capacity for cars, trucks, and SUVs
- Heavy-duty commercial-grade construction
- Extra tall, wide, and long design for larger vehicles

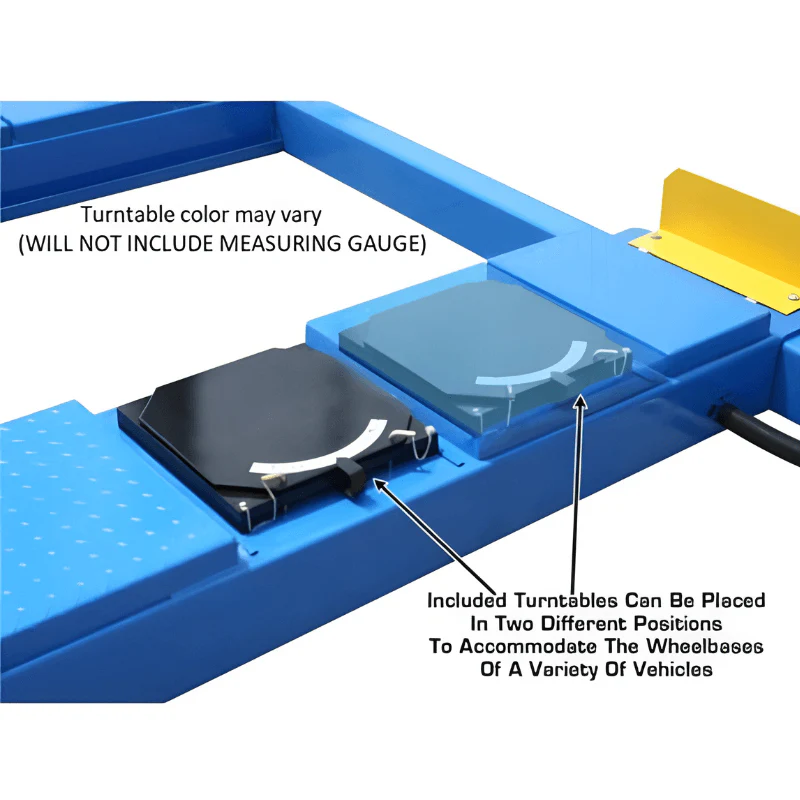

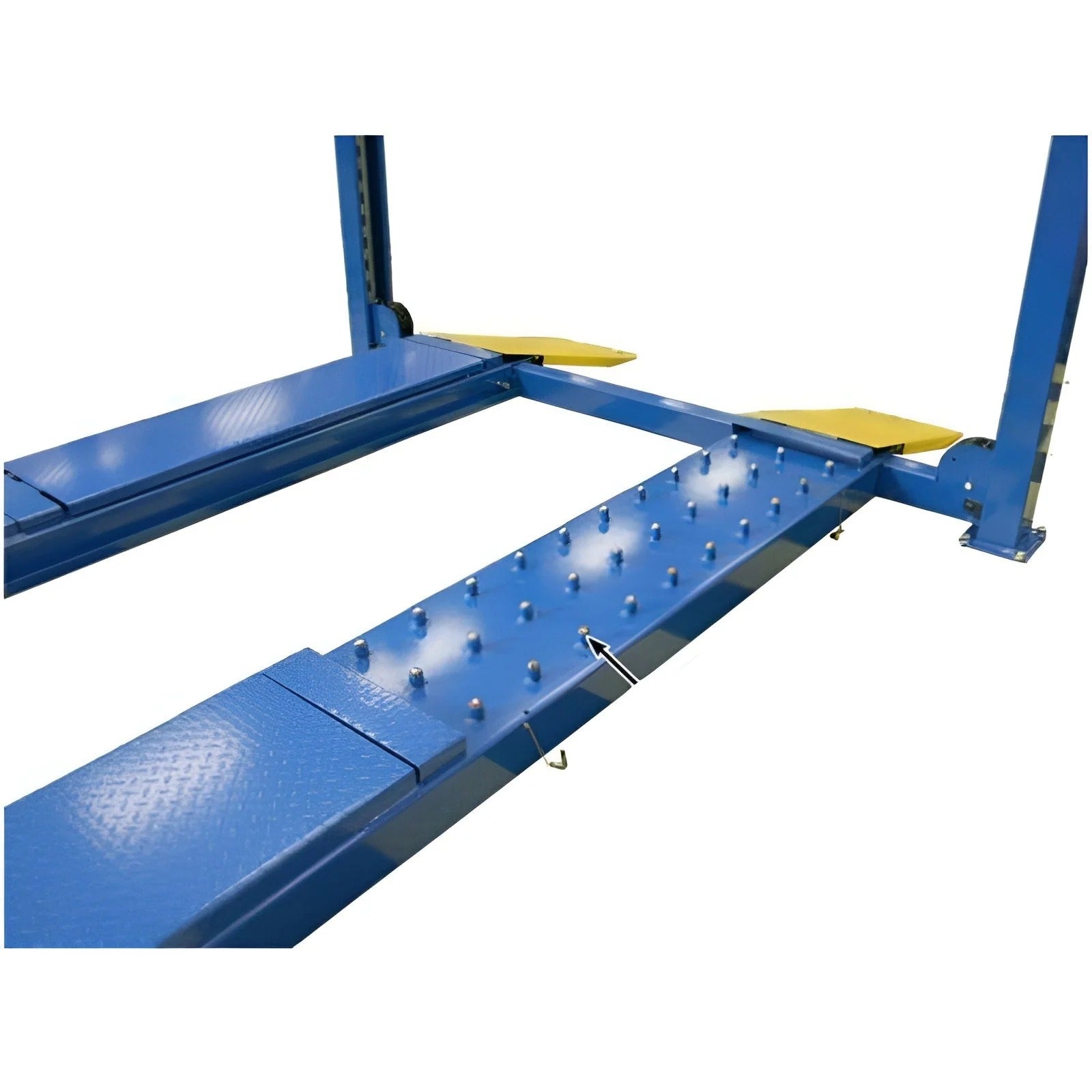

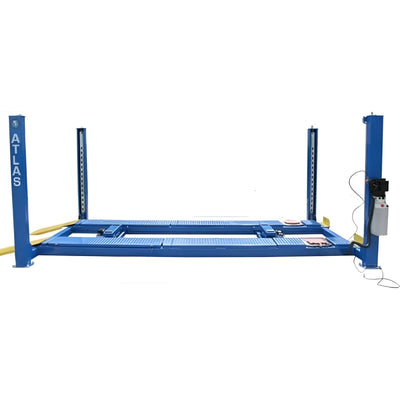

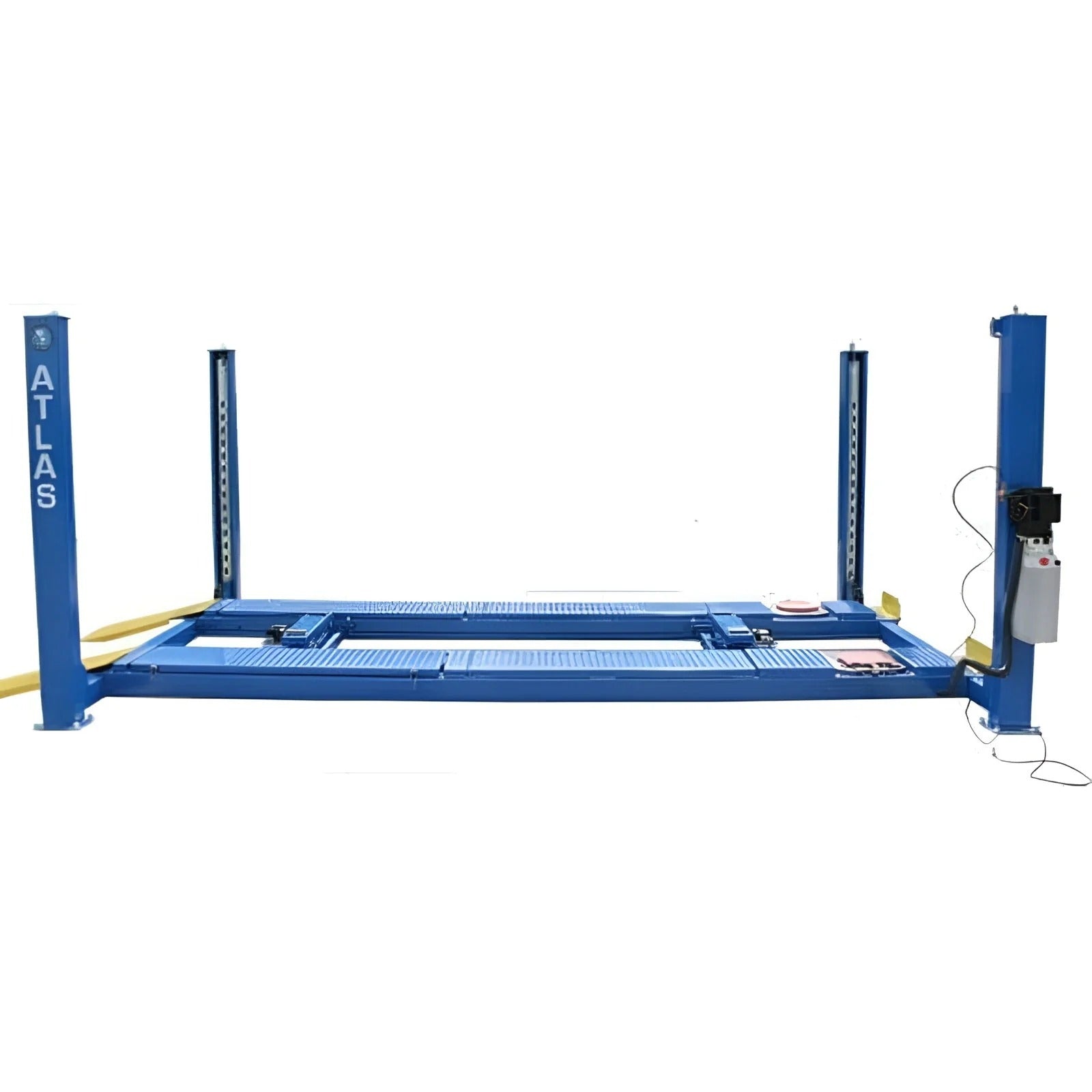

- Built-in slip plates and alignment turntables included
- Multiple turntable positions to accommodate various wheelbases
- Runway covers included for non-alignment use

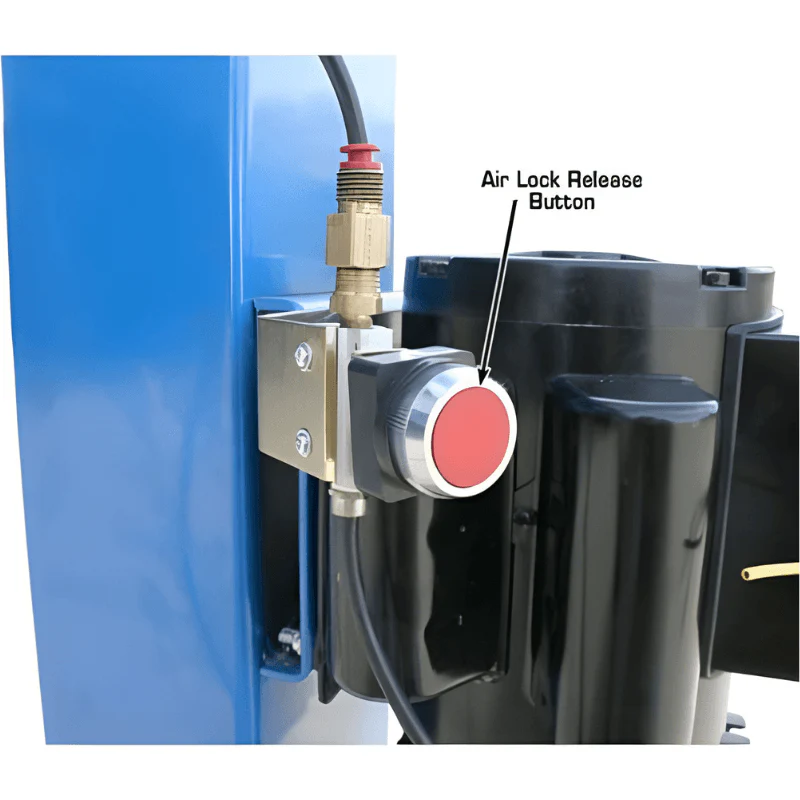

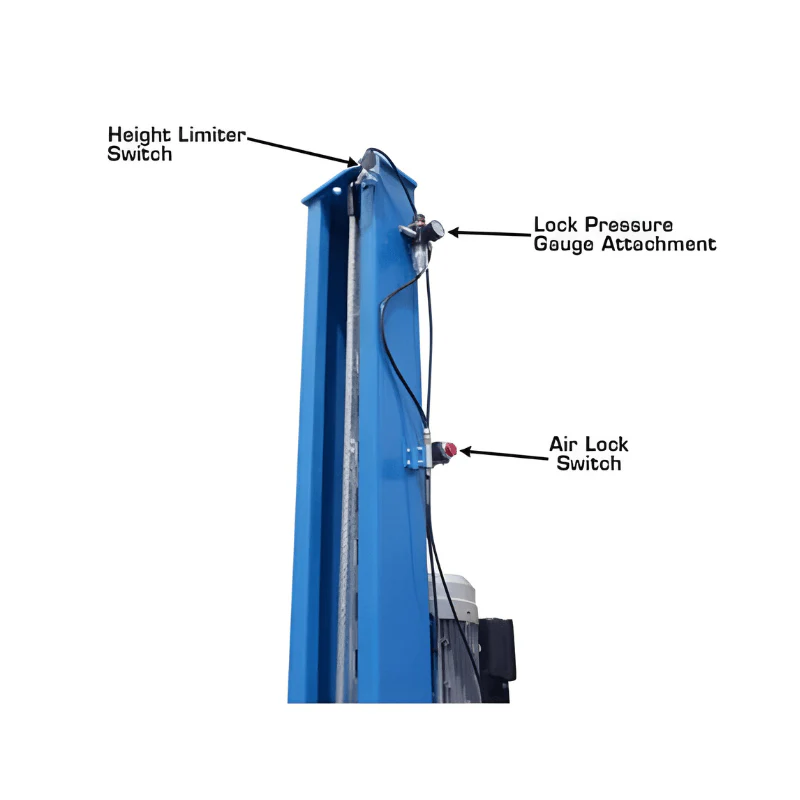

- Air-operated single-point lock release (external air required)
- Lock ladder design with double lock safety system
- Durable powder-coated finish for long-lasting protection

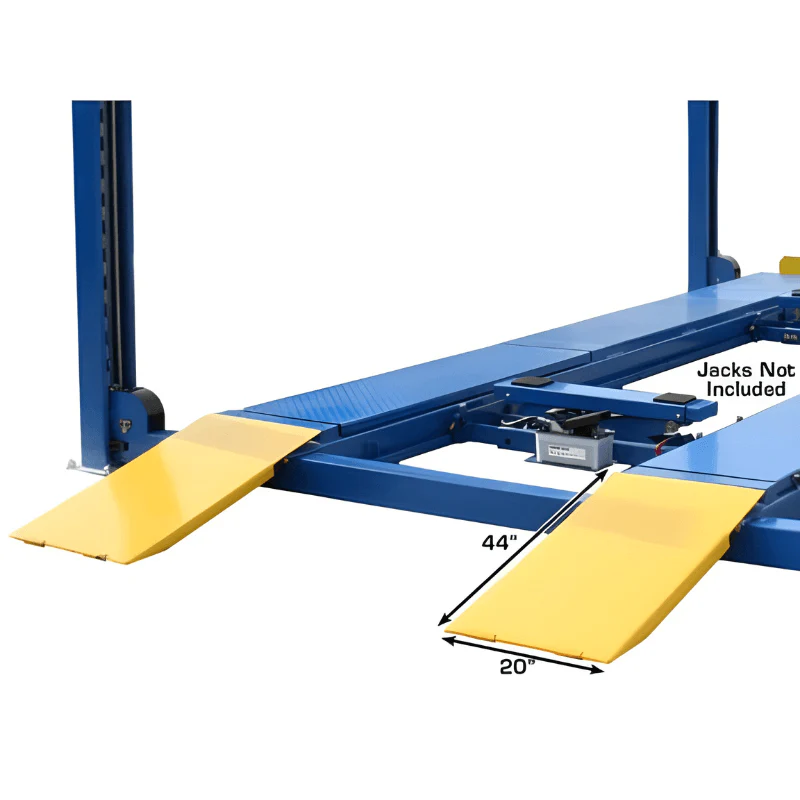

- Steel approach ramps included
- Compatible with rolling bridge jacks (sold separately)
- Optional drive-off ramps and runway extensions available

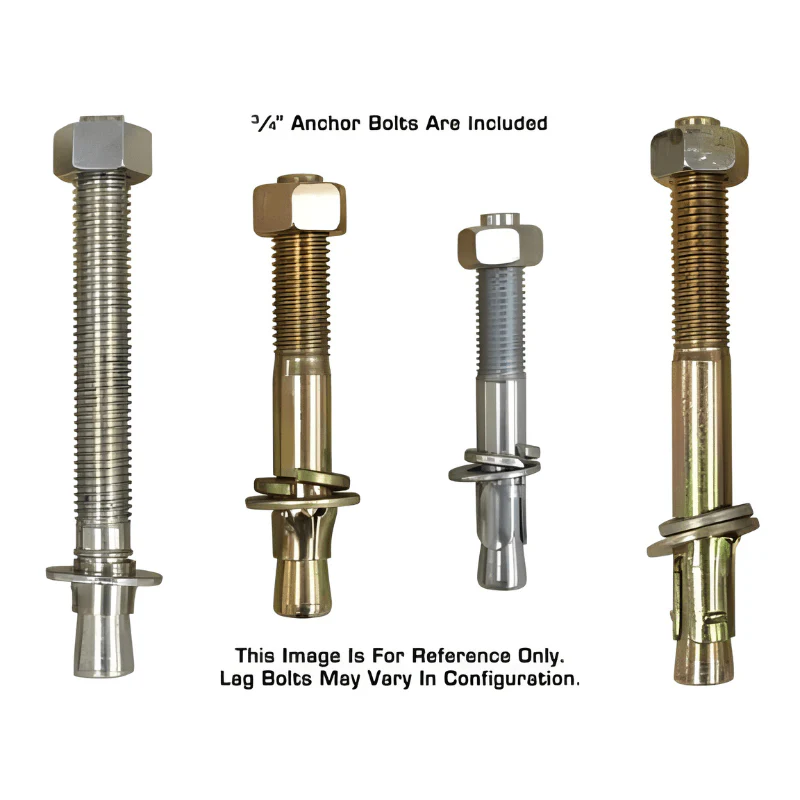

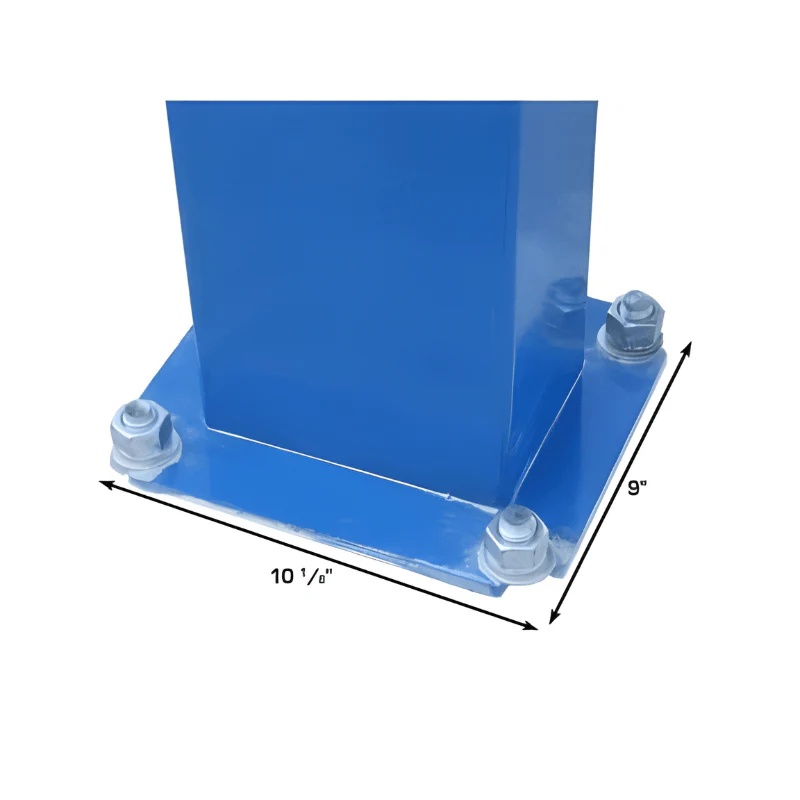

- Mounting hardware included

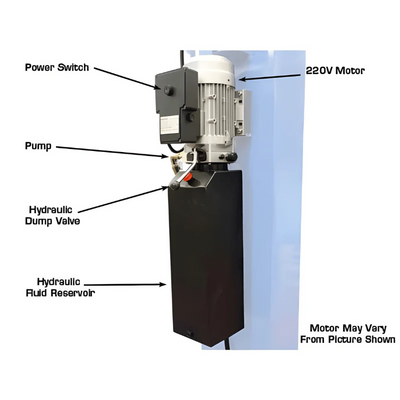

- 220V single-phase operation (30 amp breaker required)
- 5-year structural and 2-year hydraulic warranty
- Freight prepaid for this unit
Performance & Design Highlights

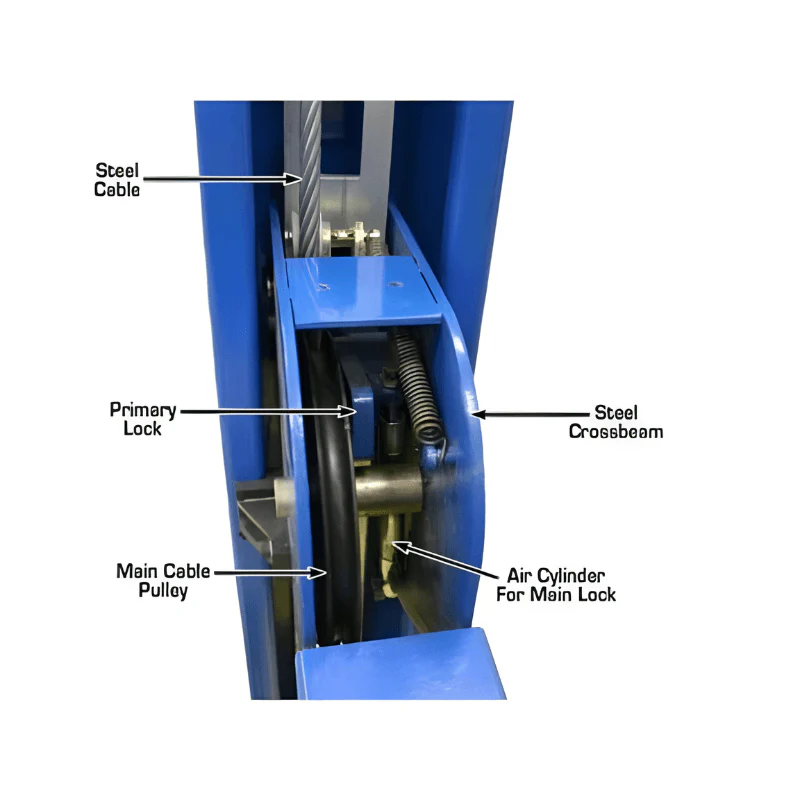

This alignment lift is engineered for shops that demand both versatility and precision. The integrated slip plates and turntables are designed to sit level with the runways, ensuring accurate alignment results without additional setup. The adjustable positioning system allows technicians to work with a wide variety of vehicle sizes. The cable-driven lifting system with an enclosed hydraulic cylinder provides smoother lifting and reduces maintenance compared to exposed chain systems. Additionally, the lift includes built-in tracks for optional rolling bridge jacks, expanding its functionality beyond alignments to general service work.
| Specifications | Details |
|---|---|
| Capacity | 12,000 lbs. |
| Lifting Height, Top of Runway | 77 3/4" (6' 5 3/4") |
| Clearance Under Runways | 70 1/4" (5' 10 1/4") |
| Height of Columns | 89 3/4" (7' 5 3/4") |
| Overall Width | 126 1/4" (10' 6 1/4") w/ motor 135 1/4" (11' 3 1/4") |
| Overall Length w/ Ramps | 236 1/2" (19' 8 1/2") |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Width | 20" |
| Runway Thickness | 7 1/2" |
| Width Between Runways | 43 1/4" w/ Rail 39 3/4" |
| Outside Runway to Outside Runway | 83 1/4" (6' 11 1/4") |
| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85–115 PSI |
| Motor / Electrical Requirement | 220V / 1-phase, 30A breaker required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (NOT INCLUDED) |
| Structural Warranty | 5 Years |
| Hydraulic Warranty | 2 Years |

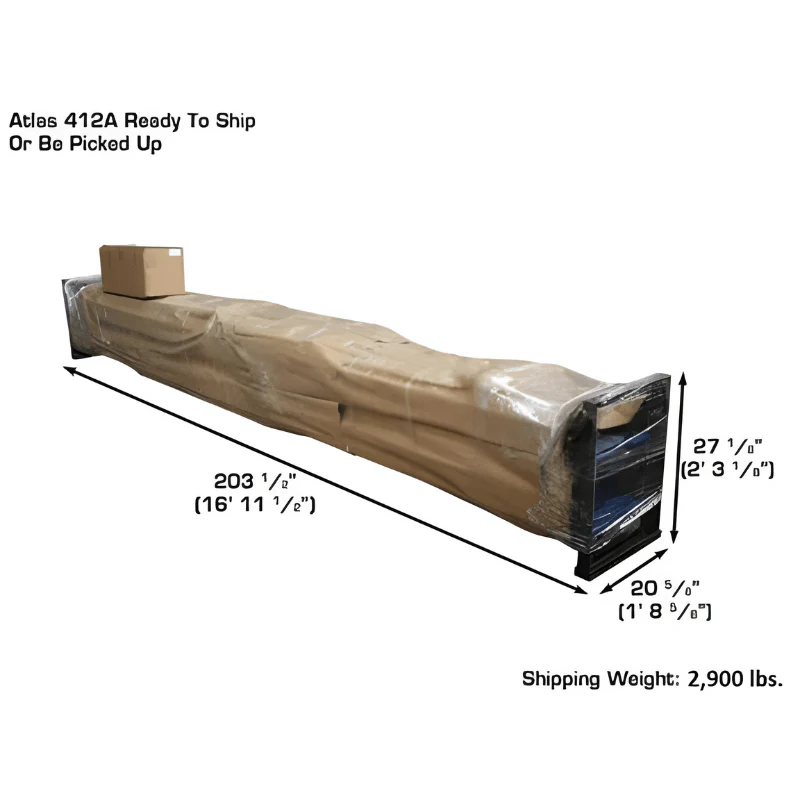

| Shipping Weight | 2,900 lbs. |
