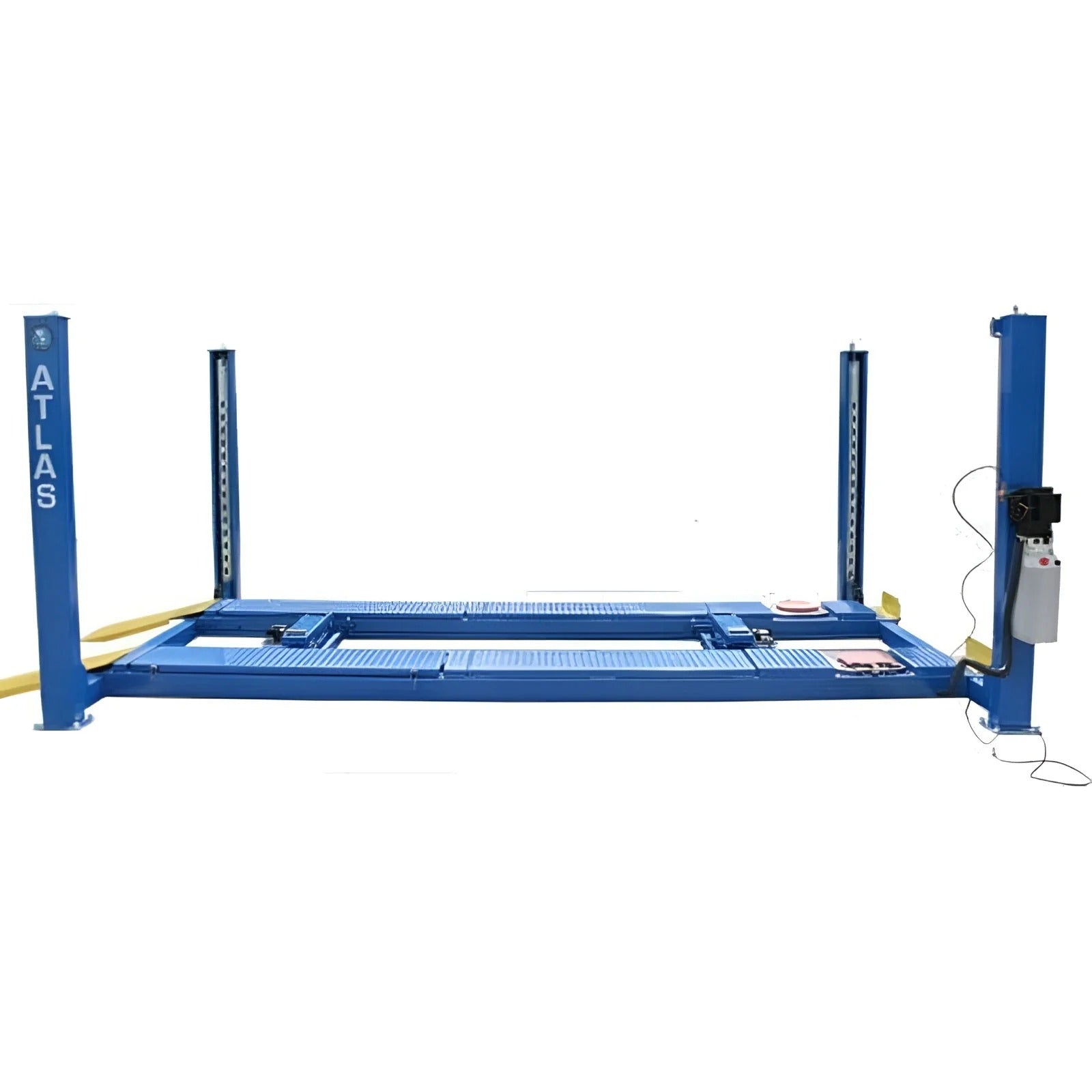

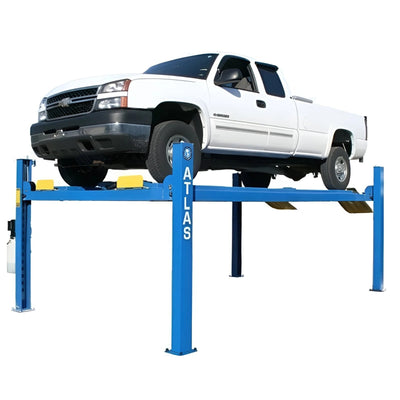

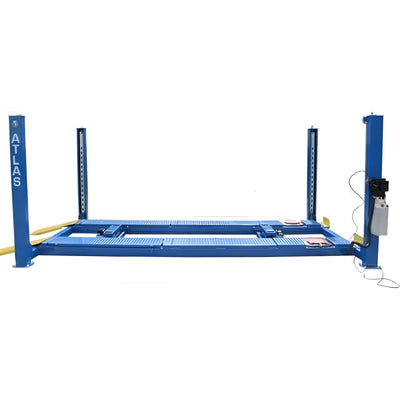

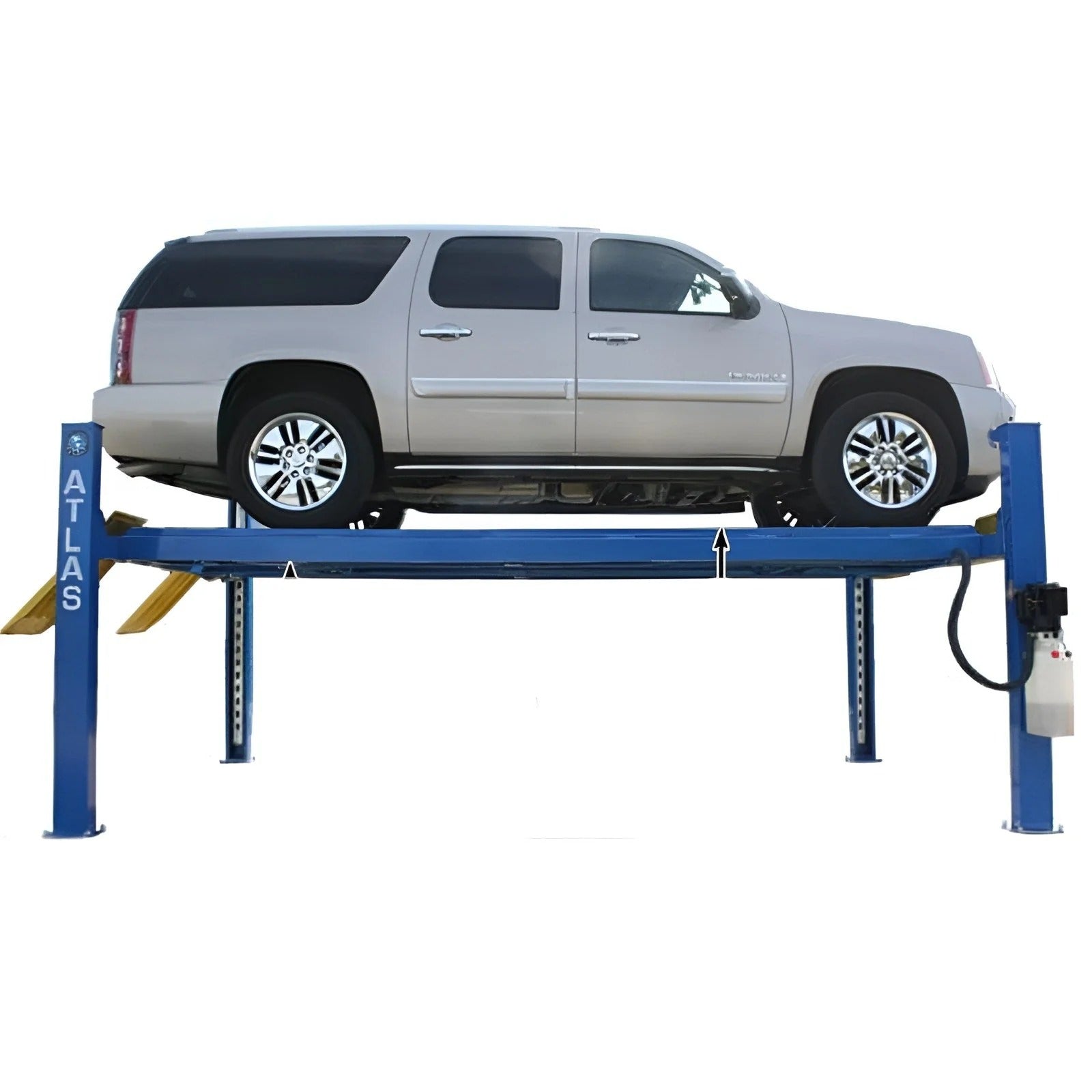

Atlas 12,000 lb 4-Post Alignment Lift with Turntables
SKU: ATEATTD-412AT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Heavy-Duty Alignment Lift for Professional Shops

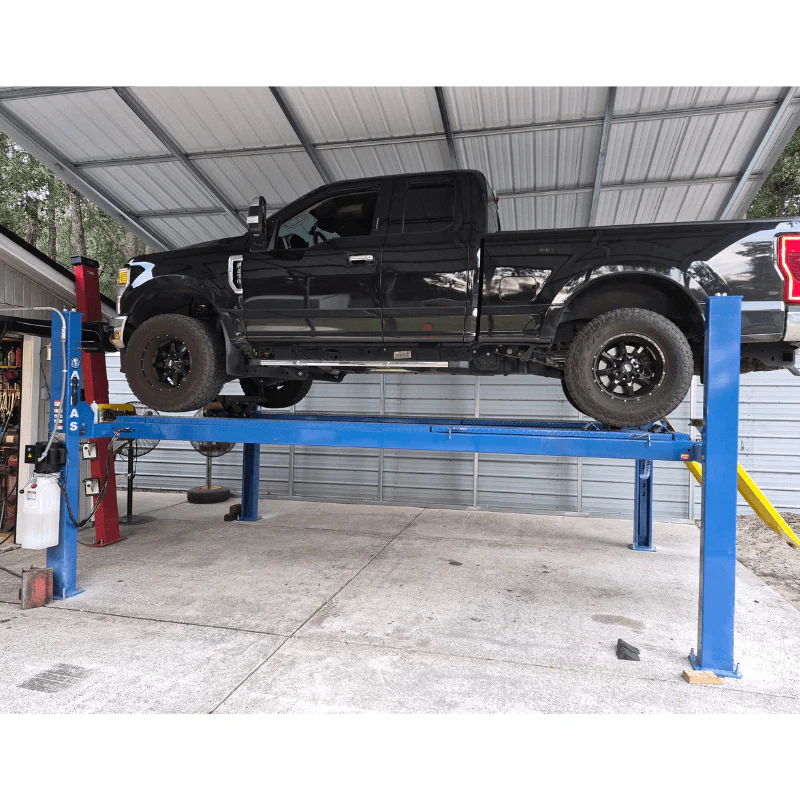

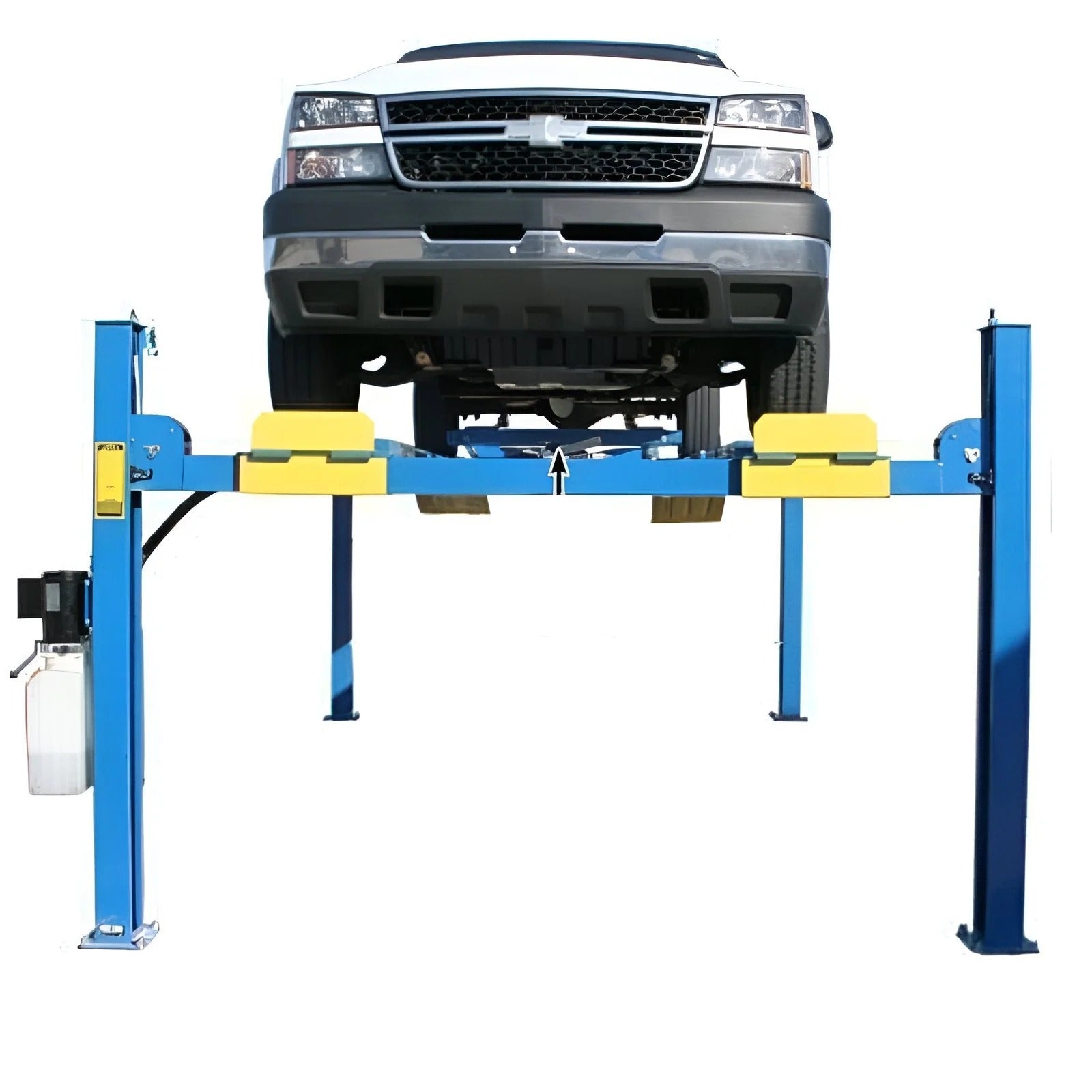

The Atlas 12,000 lb 4-post alignment lift is designed for shops that require precision alignment capabilities along with reliable lifting performance. Built to handle larger vehicles, this lift is ideal for servicing cars, trucks, and commercial vehicles in demanding environments.
Integrated Alignment Capability

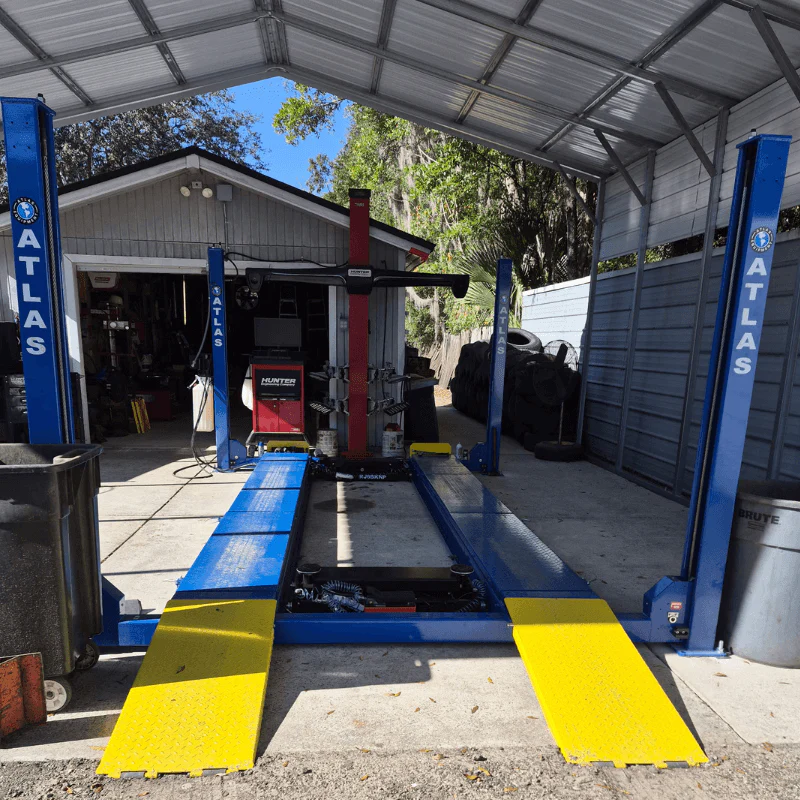

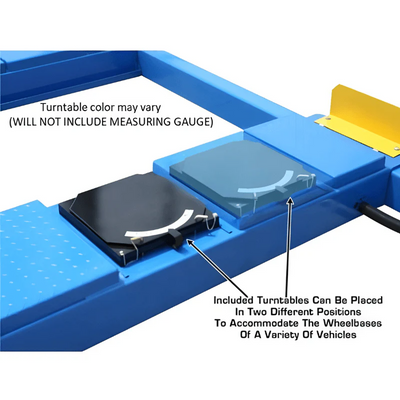

Equipped with built-in turntables, this lift is ready for alignment work right out of the box. The design allows for accurate wheel positioning and smooth operation during alignment procedures, making it a practical solution for full-service automotive shops.
Stable 4-Post Design for Versatility

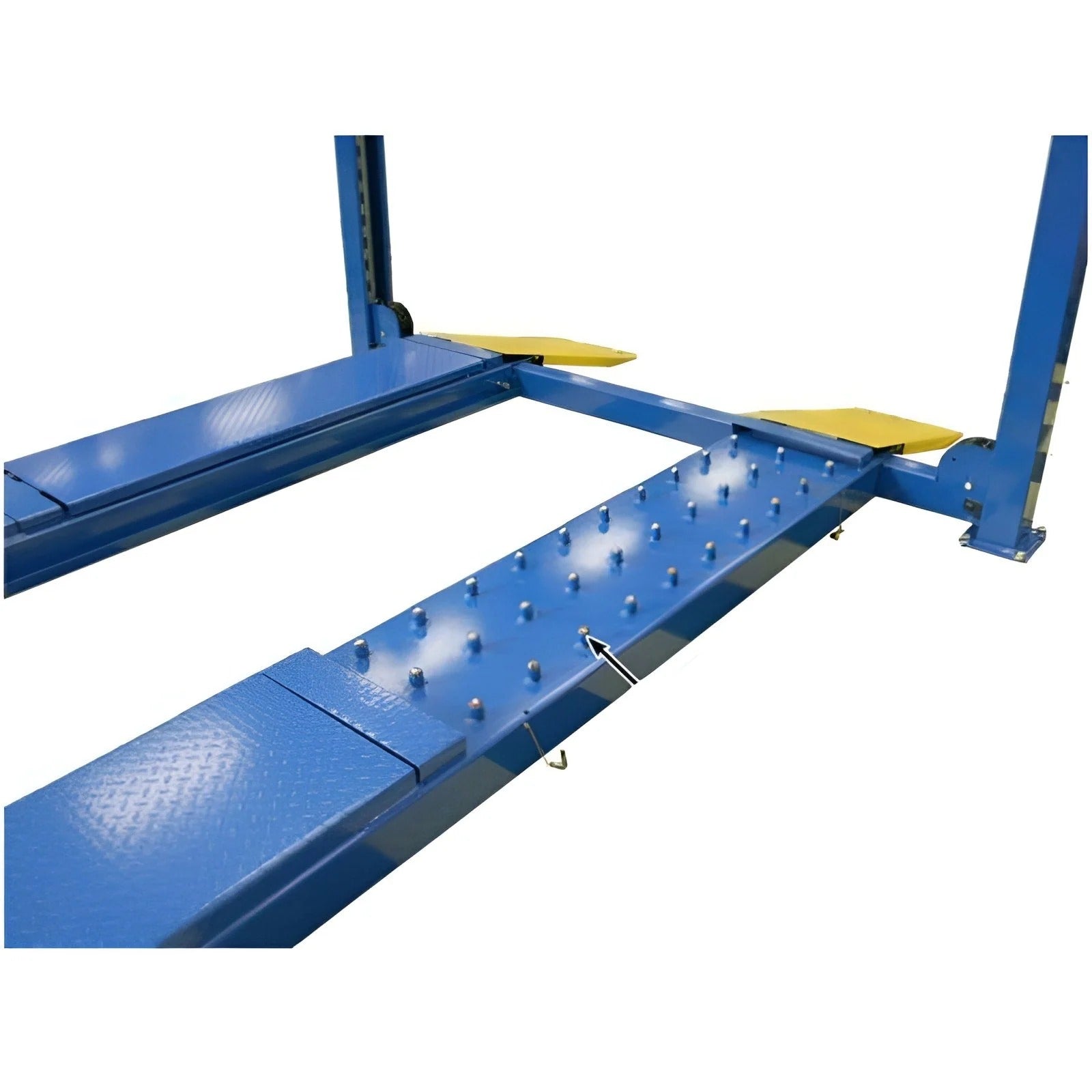

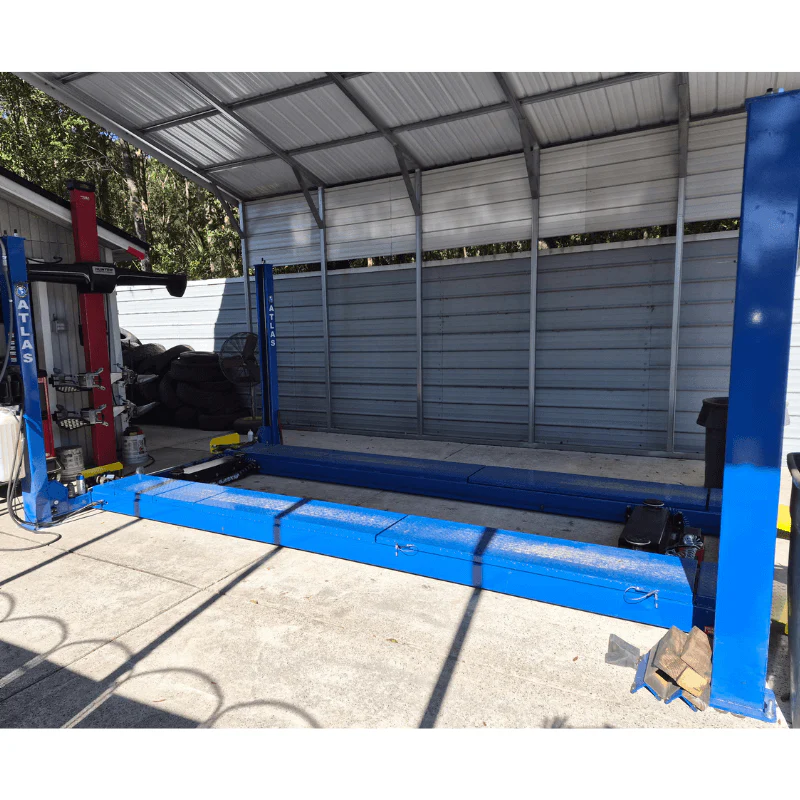

The 4-post configuration provides a stable platform for both alignment work and general service. Drive-on runways make loading vehicles simple, while the heavy-duty construction ensures long-term durability under frequent use.
Key Features
- 12,000 lb lifting capacity
- 4-post alignment lift design
- Integrated turntables for alignment work
- Drive-on runways for easy vehicle positioning
- Heavy-duty construction for professional use
- Designed for cars, trucks, and larger vehicles
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb. |
| Lifting Height | 77 3/4" (6' 5 3/4") |
| Overall Width of Columns (Without Motor) | 126 1/4" (10' 6 1/4") |
| Overall Width of Columns (With Motor) | 135 1/4" (11' 3 1/4") |
| Overall Length With Approach Ramp | 236 1/2" (19' 8 1/2") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Runway Length | 194 1/2" (16' 2 1/2") |

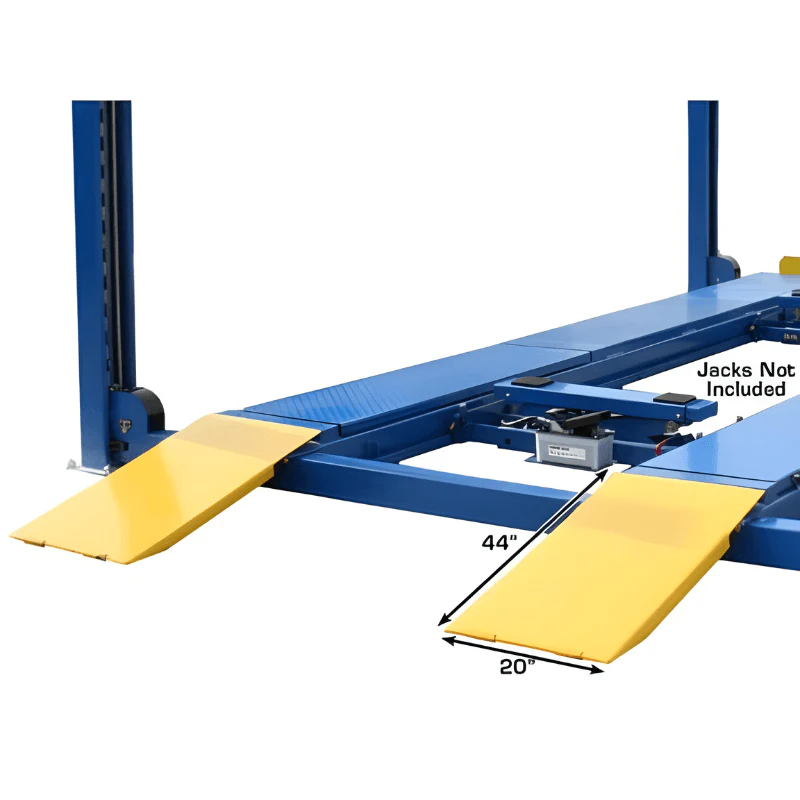

| Runway Width | 20" |
| Thickness of Runway | 7 1/2" |
| Width Between Runways | 43 1/4" (w/ Rail: 39 3/4") |
| Outside Runway to Outside Runway | 83 1/4" (6' 11 1/4") |
| Clearance Under Runways | 70 1/4" (5' 10 1/4") |
| Clearance Between Columns | 112 5/8" (9' 4 5/8") |

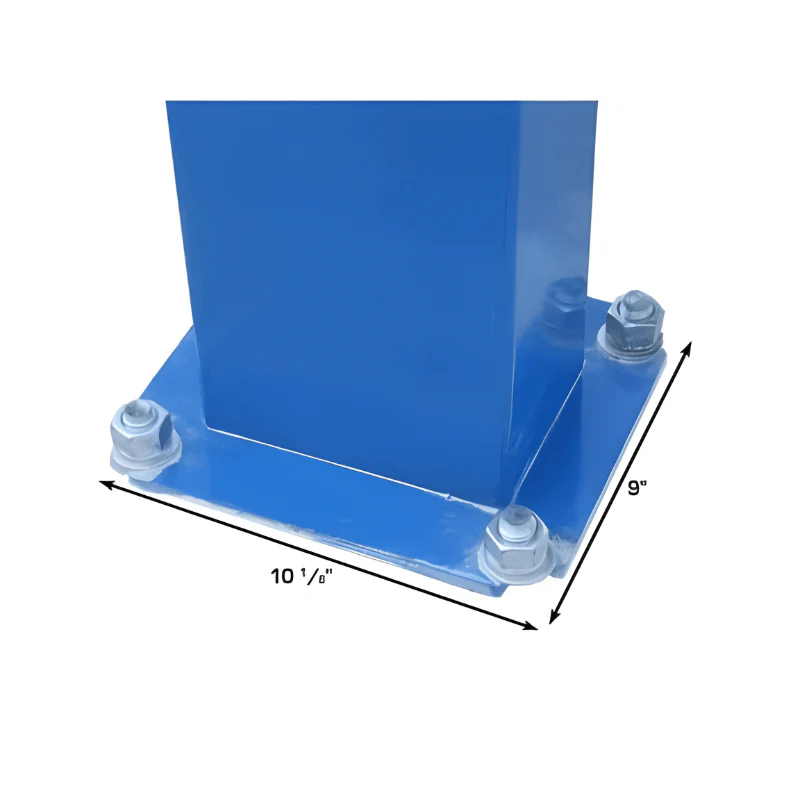

| Height of Columns | 89 3/4" (7' 5 3/4") |
| Maximum Wheel Base | 185" (15' 5") |
| Drive Thru | 98" (8' 2") |

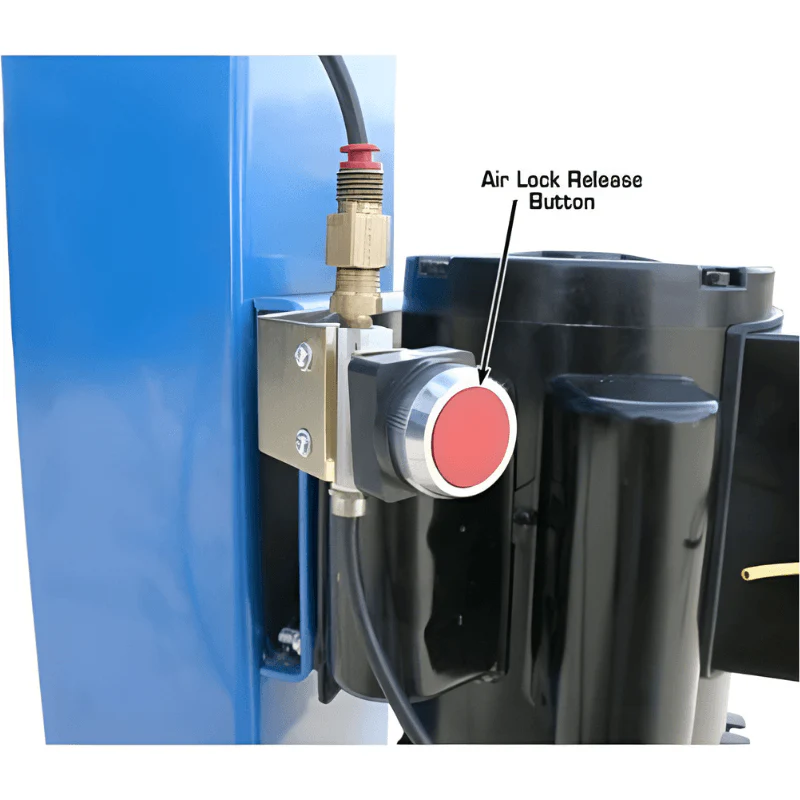

| Air Requirement | 85–115 PSI (External Air Supply Required) |

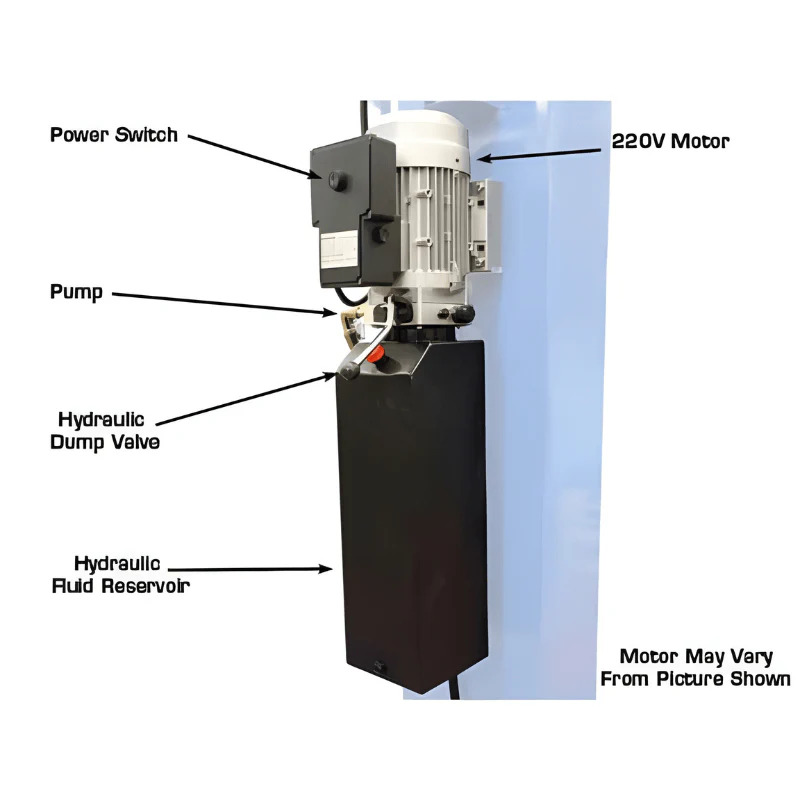

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

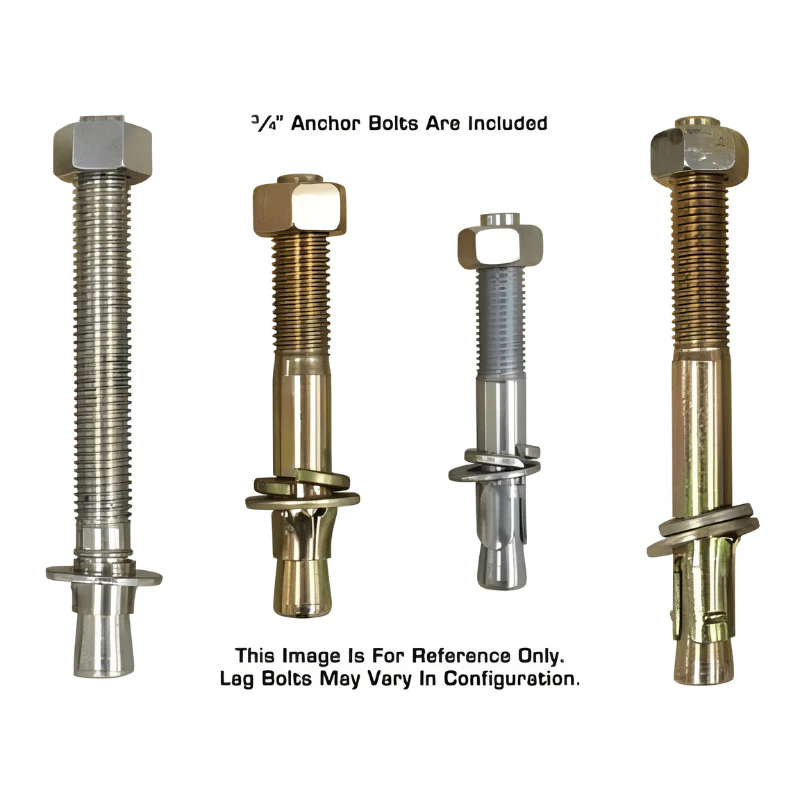

| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |

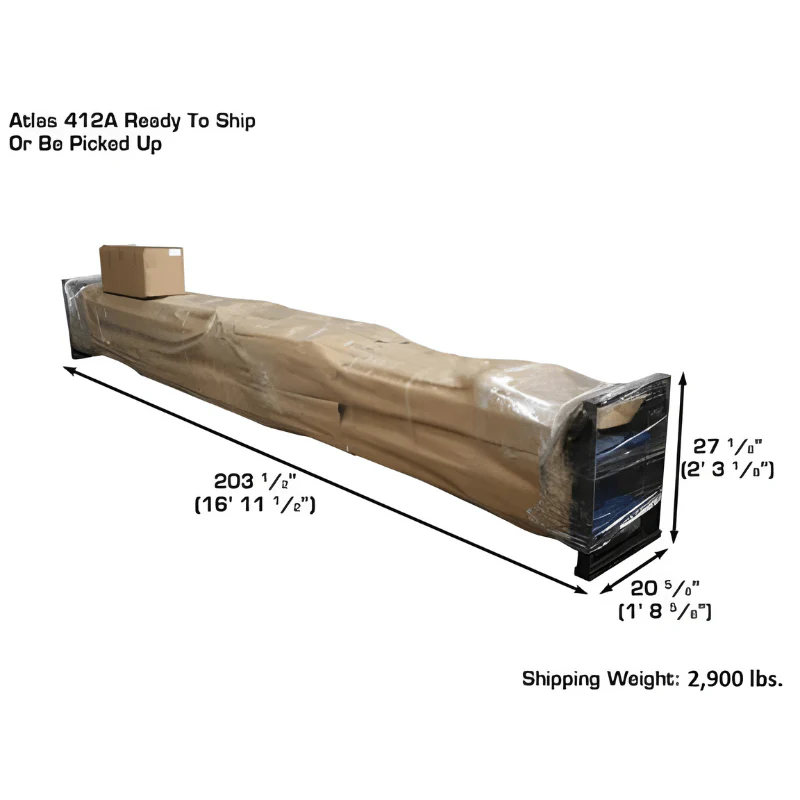

| Shipping Dimensions & Weight | 203 1/2" x 20 5/8" x 27 1/2" – 2,900 lbs. |
