Atlas ALI Certified APEX8 4-Post Lift with Pro-Floor Storage System Combo
SKU: ATEATTD-APEX8-FP8-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Certified Storage Lift with Added Floor Functionality

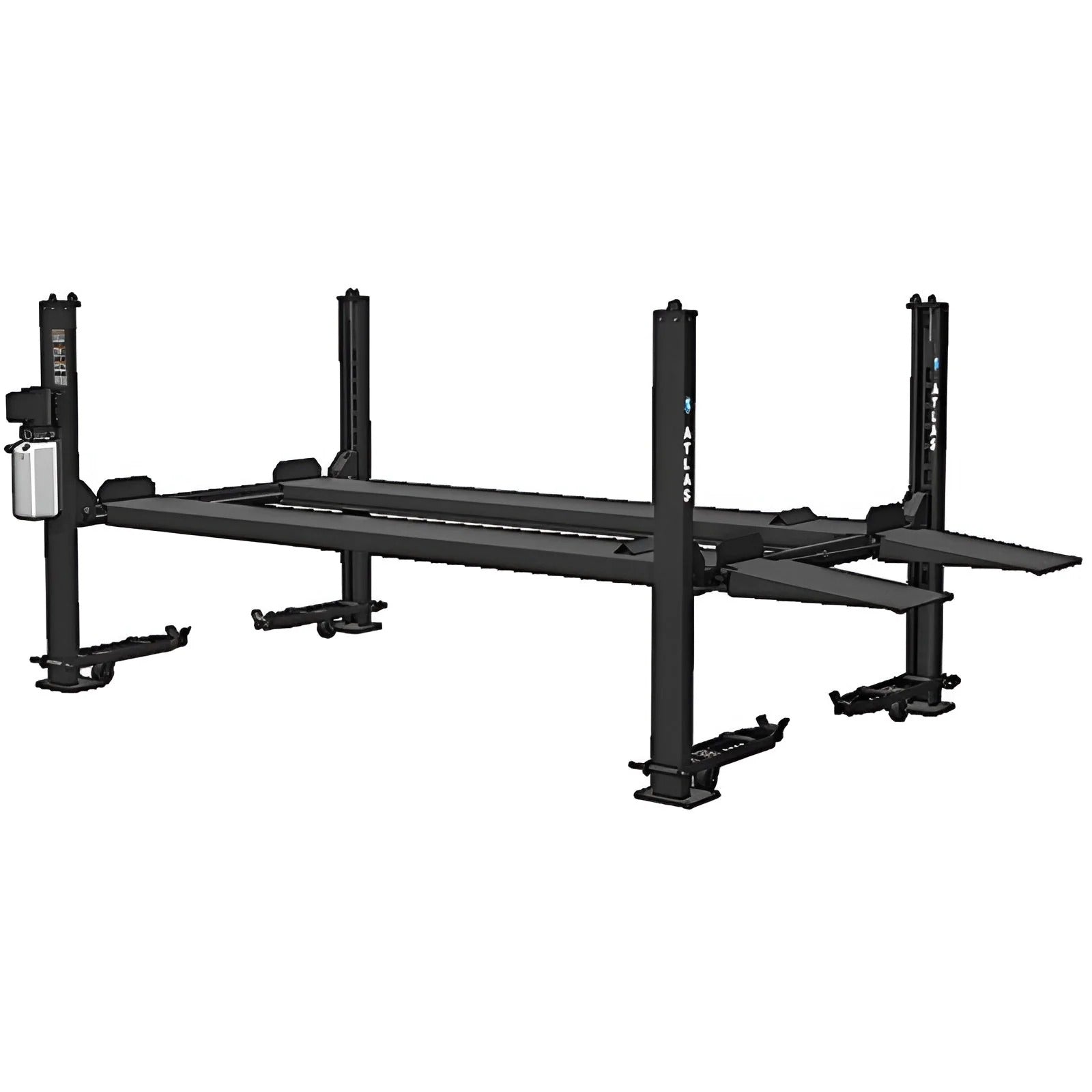

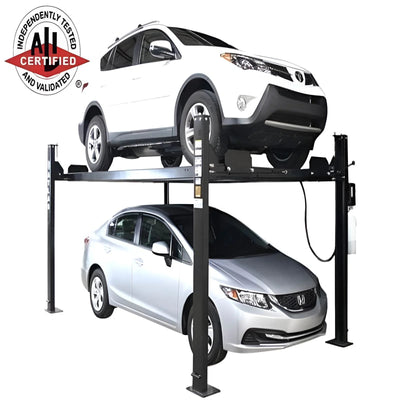

The Atlas APEX8 with Pro-Floor system is a complete solution for vehicle storage and light-duty service. With an 8,000 lb capacity and ALI certification, this lift delivers verified safety and performance while allowing you to maximize garage space by stacking vehicles.
The included Pro-Floor panel system fills the gap between the runways, creating a solid platform for additional storage or workspace above the vehicle.
ALI Certified Performance & Safety
The APEX8 is an ALI Certified version of one of Atlas's most popular 4-post lifts, offering added confidence in safety and construction standards. Its lock ladder design and double lock safety system ensure secure operation, while the single-point lock release simplifies use.
Portable & Flexible Design

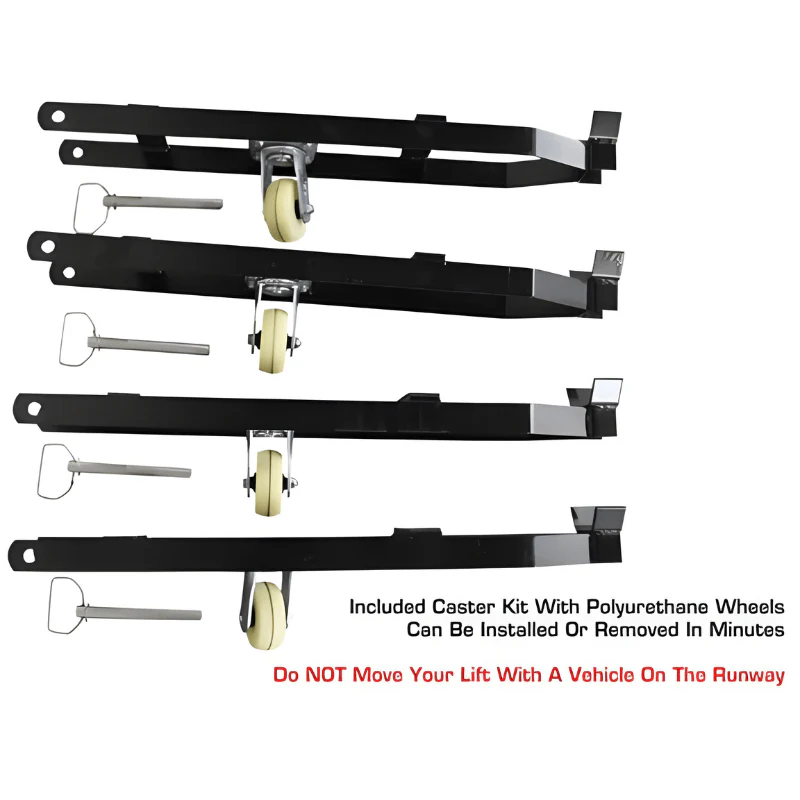

This lift features a freestanding design with an included caster kit, allowing you to move it around your garage as needed. The polyurethane wheels make repositioning smooth and efficient, giving you flexibility in your workspace layout.
Enhanced Storage with Pro-Floor System
The included 8-piece floor panel system expands functionality by creating a continuous surface between the runways. This allows for additional storage above the vehicle while maintaining usable space below.
Key Features
- 8,000 lb lifting capacity
- ALI Certified lift for verified safety standards
- Freestanding, portable design
- Includes Pro-Floor panel system

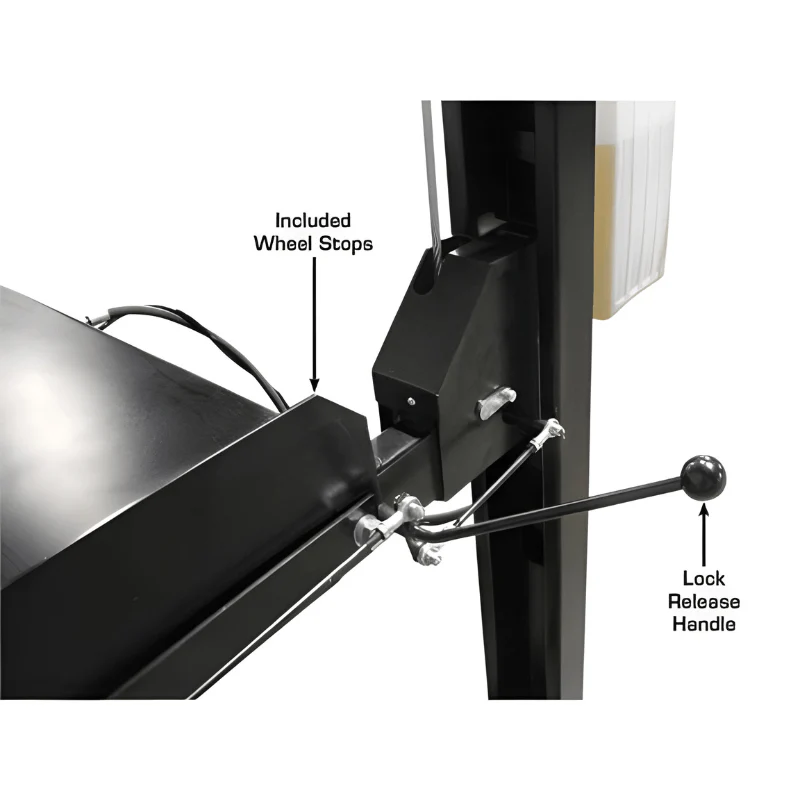

- Single-point lock release system

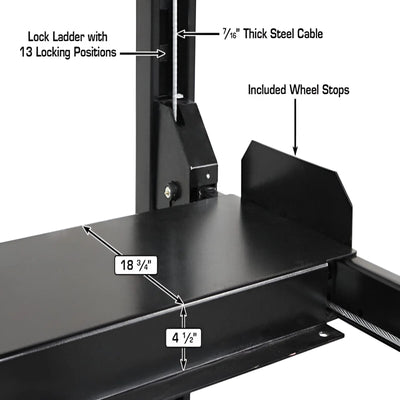

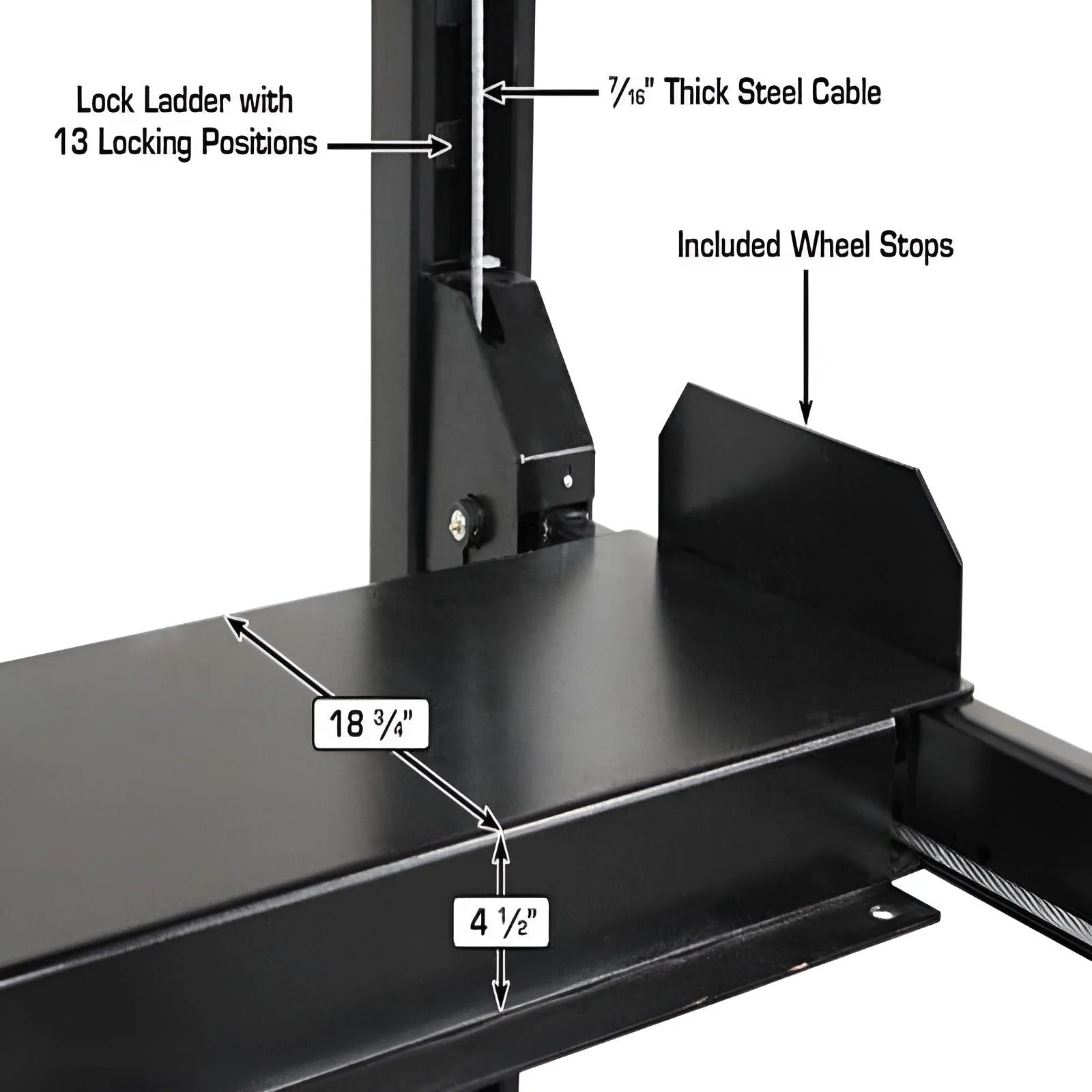

- Lock ladder design with double lock safety system
- Durable powder-coated finish

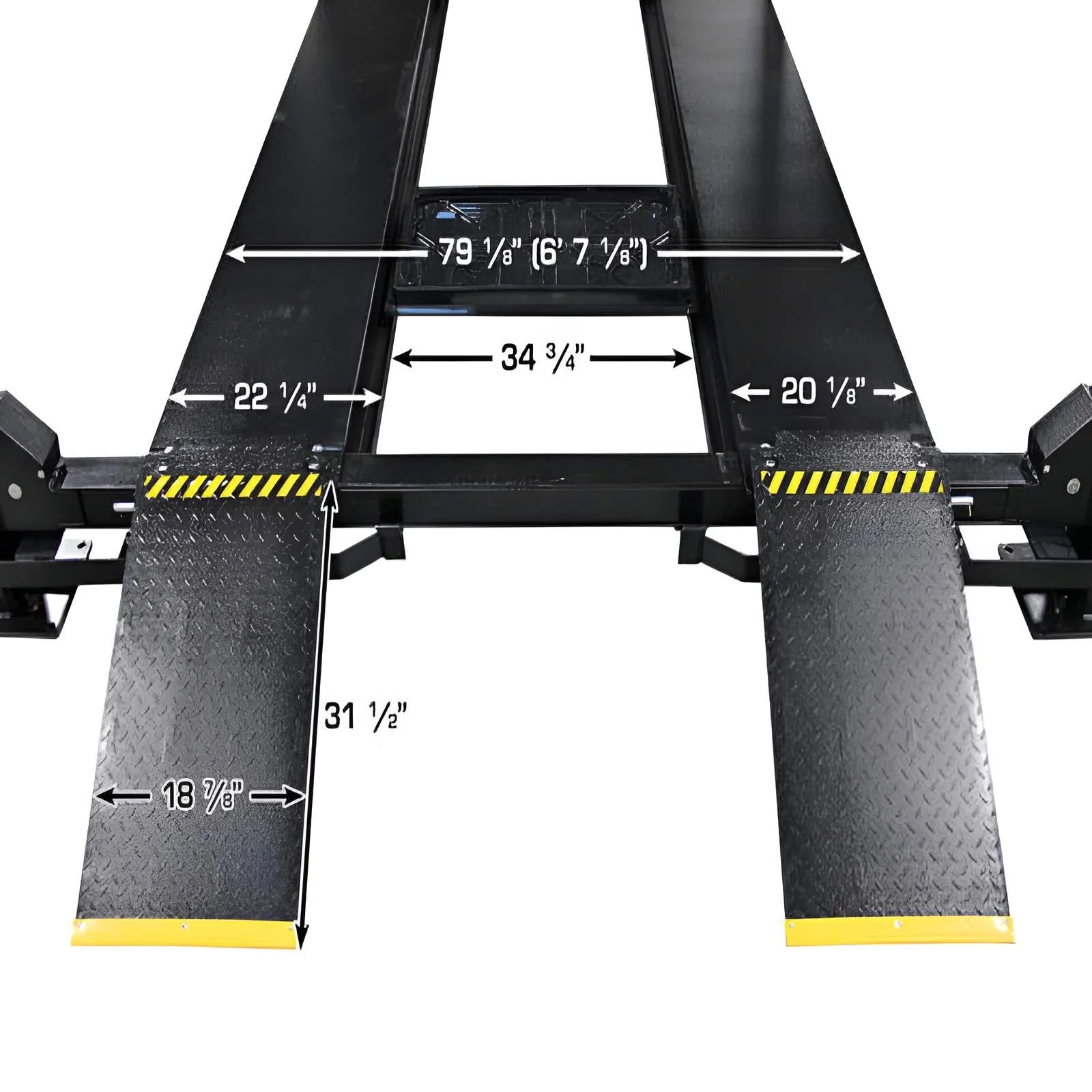

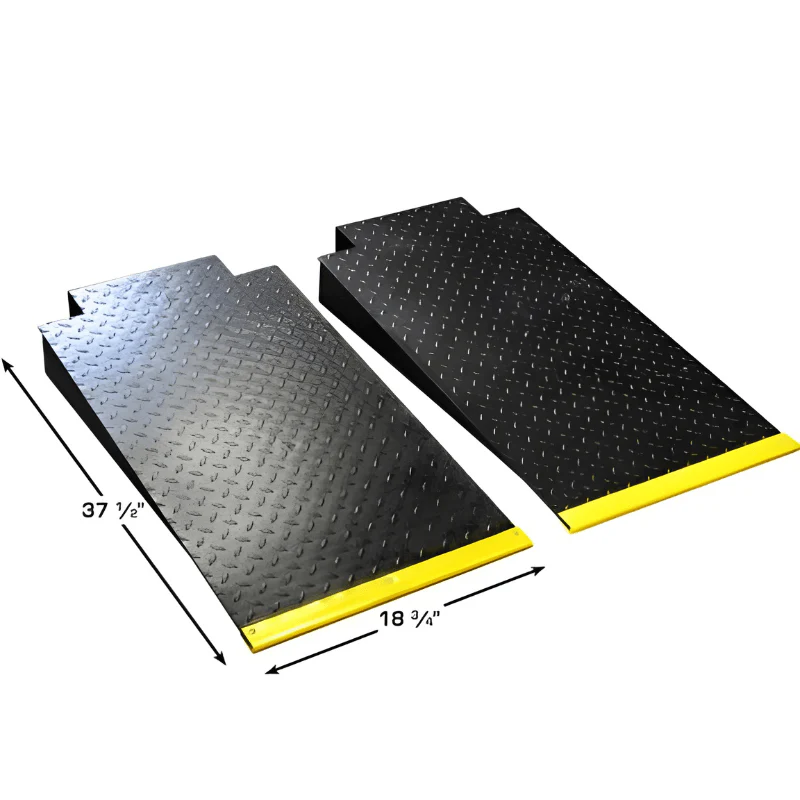

- Steel approach ramps included
- Wheel stops included

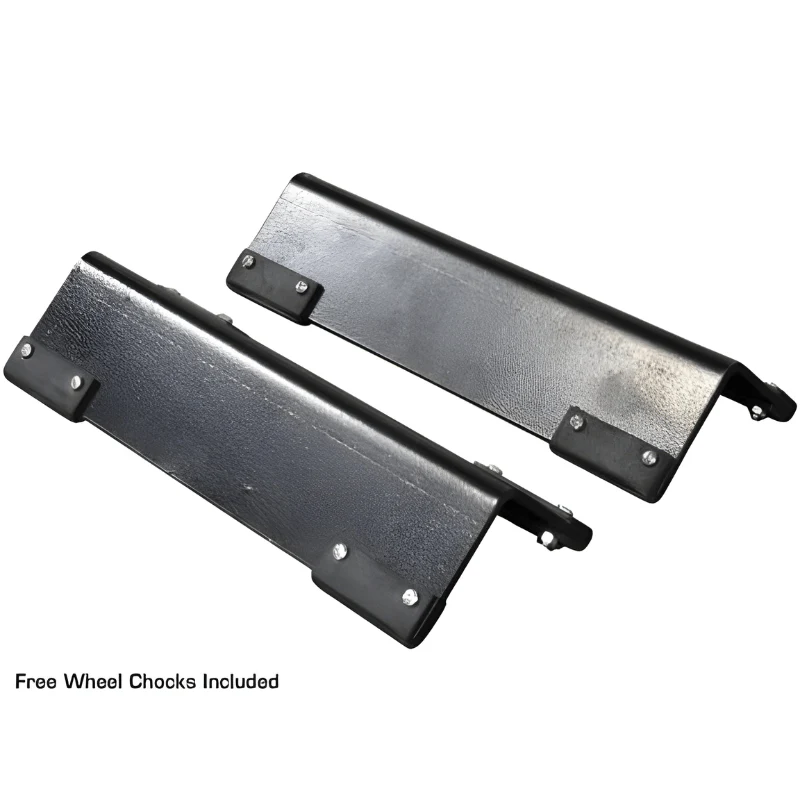

- Two wheel chocks included
- Caster kit with polyurethane wheels included
- Anchor bolts optional (sold separately)
- Designed for storage and light-duty service
- 110V operation (30 amp breaker required)

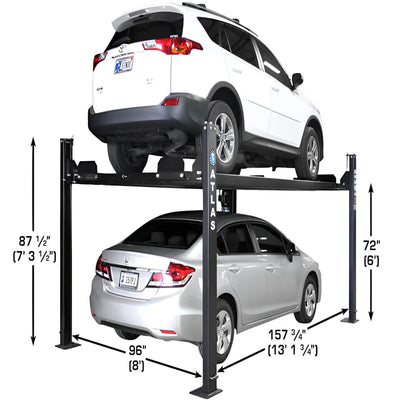

| Specifications | Details |
|---|---|
| Capacity | 8,000 lbs. |

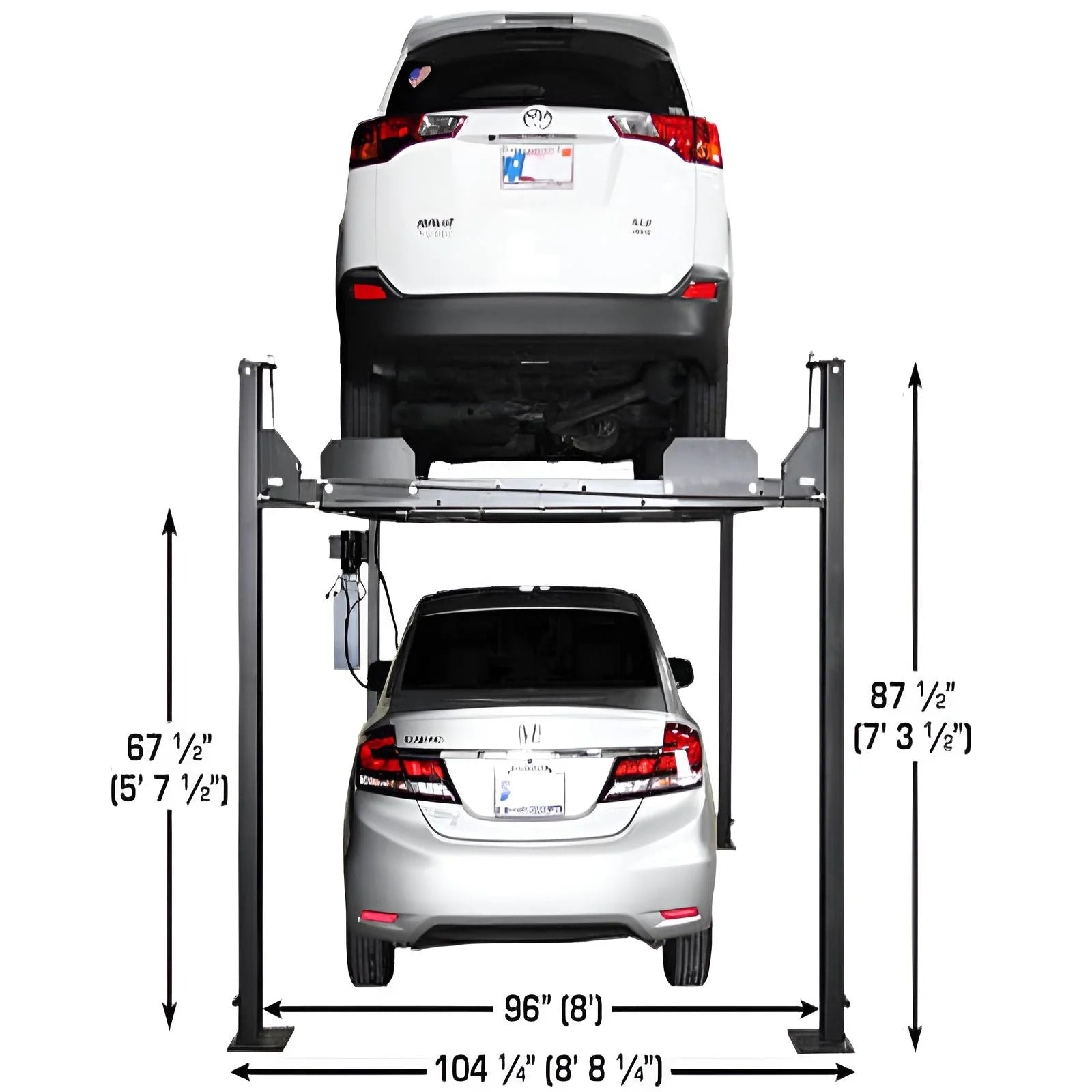

| Lifting Height, Top of Runway | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |

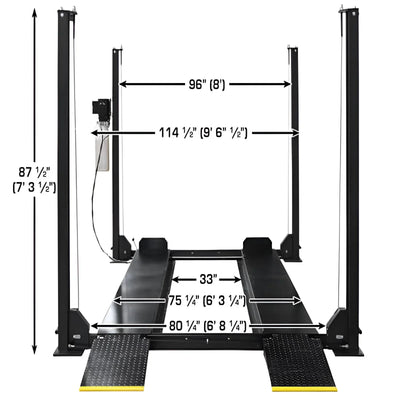

| Height of Columns | 85" (7' 1") |
| Overall Width | 104" (8' 8") / With Motor: 114" (9' 6") |
| Overall Length With Ramps | 207 5/8" (17' 3 5/8") |

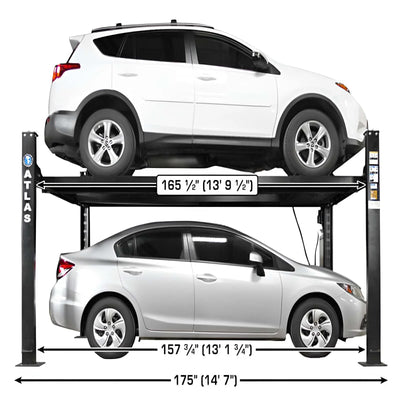

| Runway Length | 169 1/2" (14' 1 1/2") |
| Runway Width | 18 2/4" |
| Runway Thickness | 4 1/3" |

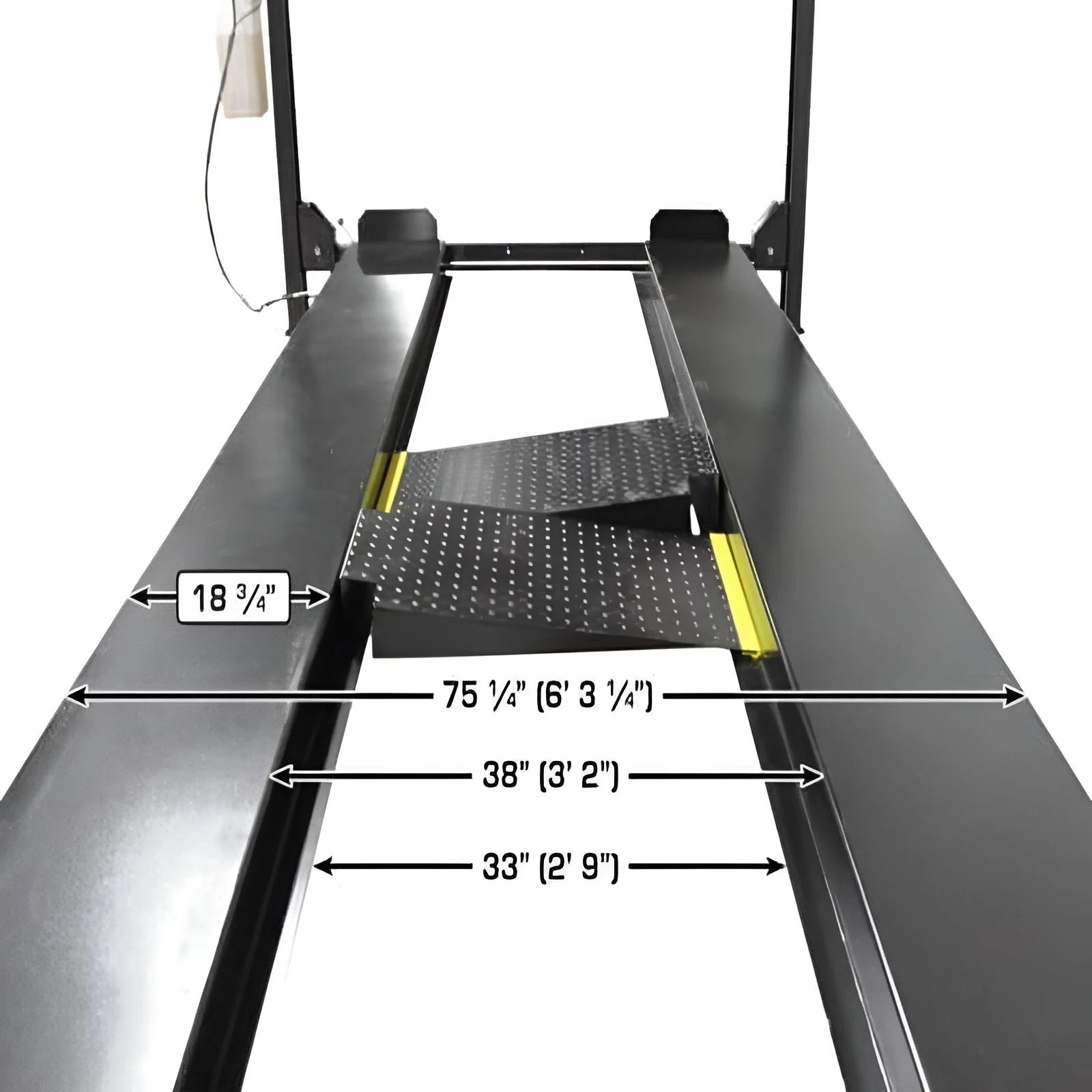

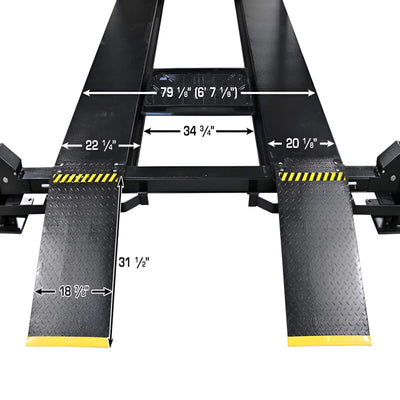

| Width Between Runways | 38" / With Rail: 33" |
| Outside Runway to Outside Runway | 75 1/4" (6' 3 1/4") |
| Clearance Between Columns | 94" (7' 10") |

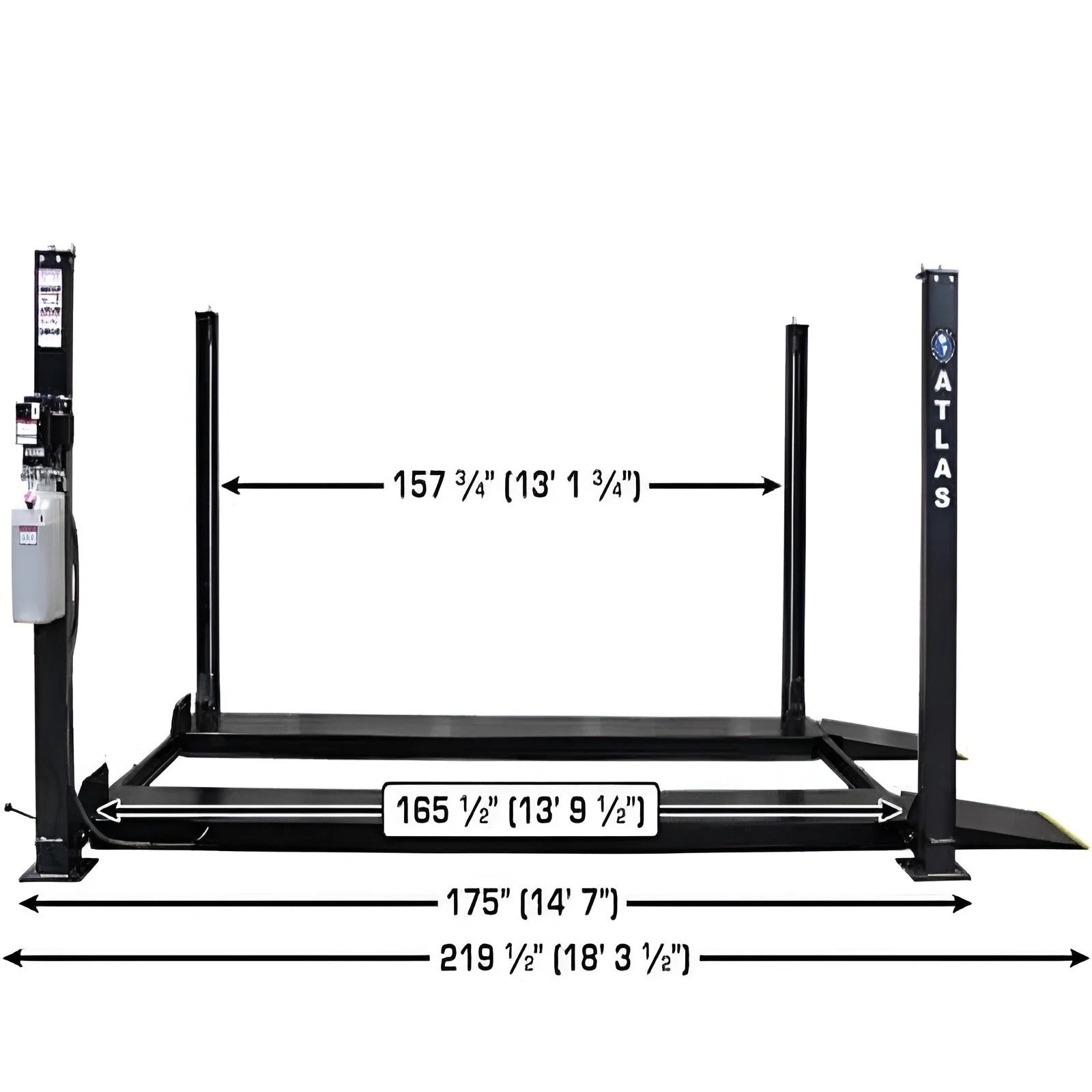

| Length Between Columns | 157 1/3" (13' 1 1/3") |
| Drive Thru | 80 1/4" (6' 8 1/4") |

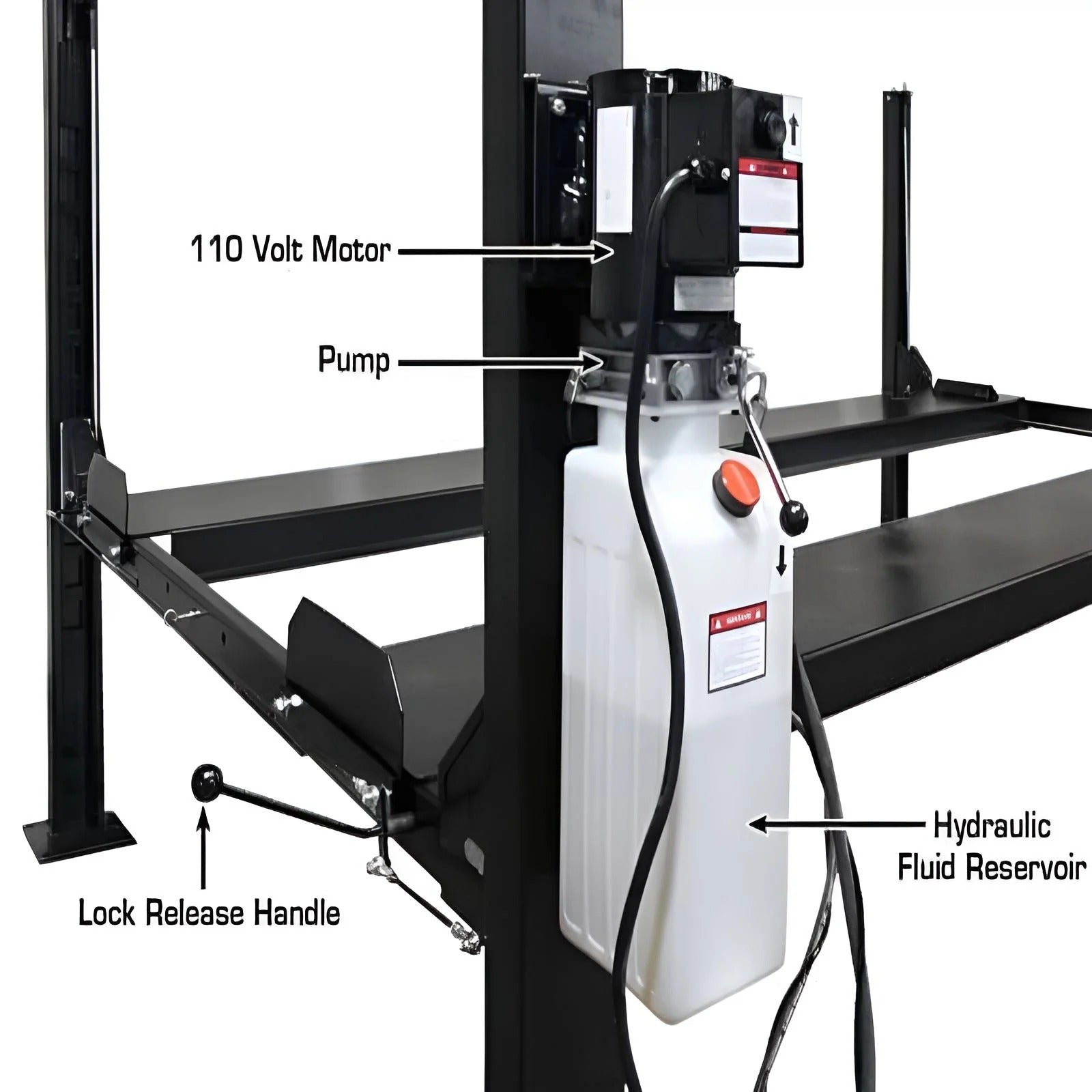

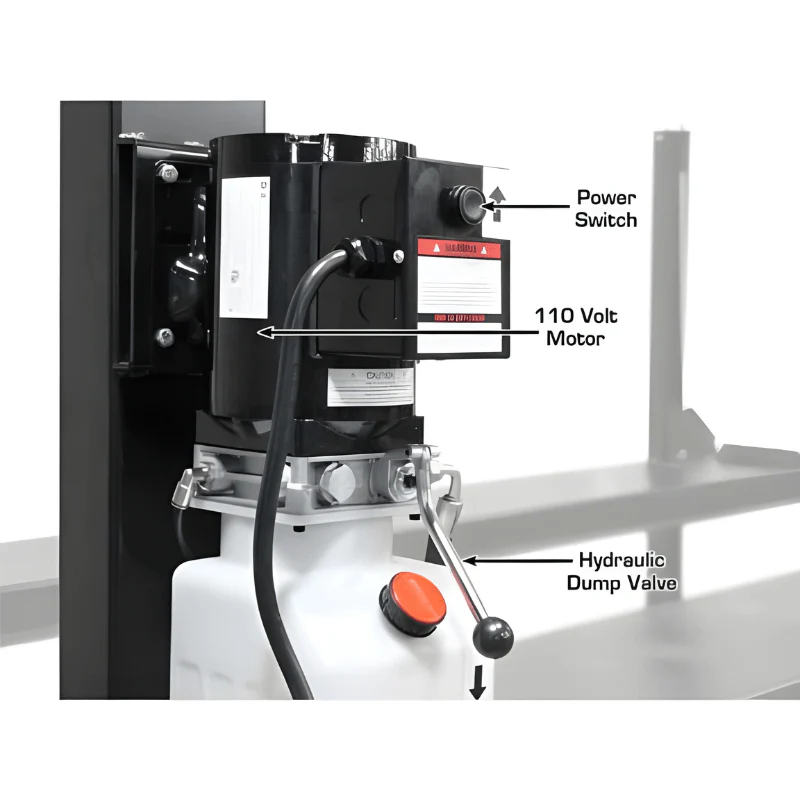

| Motor/Electrical Requirement | 110V, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 2,000 lbs. |

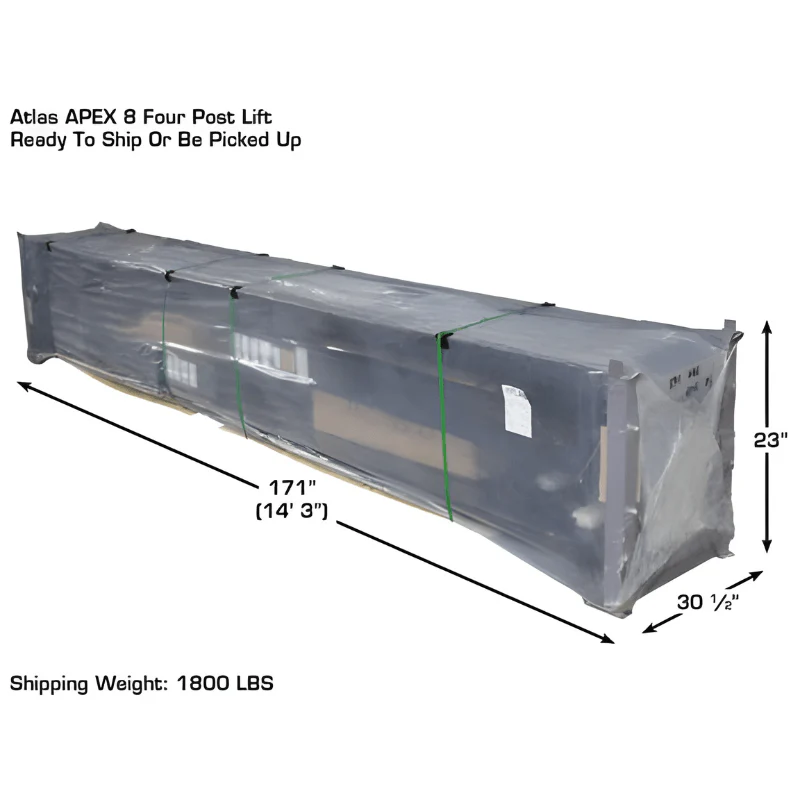

| Pallet Size | 171" L x 23" T x 30 1/2" W |
