Atlas APEX 8 ALI Certified 8,000 lb 4-Post Lift – Heavy-Duty Garage Storage Lift
SKU: ATEATTD-APEX8
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

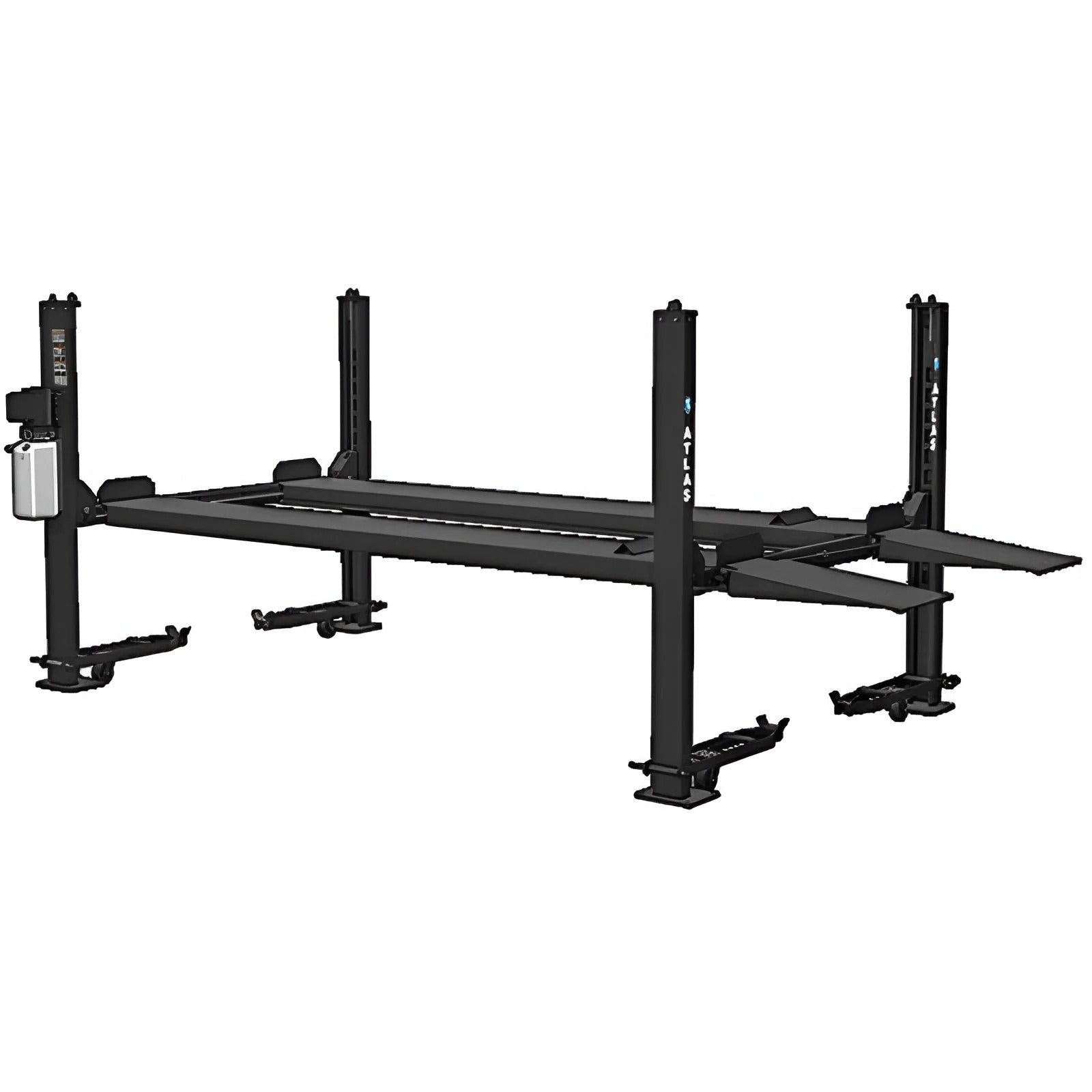

The Atlas APEX 8 is an ALI Certified 8,000 lb 4-post lift designed for homeowners and restoration enthusiasts who need a reliable way to maximize garage space. Built for both vehicle storage and light-duty service, this lift allows you to safely stack vehicles while maintaining easy access and stability.
With a freestanding, portable design and included caster kit, the APEX 8 offers flexibility that traditional fixed lifts cannot match. Whether you're organizing your garage or working on vehicles, this lift delivers convenience, safety, and performance.
Built for Storage & Flexibility
Engineered as a premium version of the popular Garage PRO series, the APEX 8 provides added strength and certification for peace of mind. Its heavy-duty construction and ALI certification ensure it meets strict safety standards, making it a dependable choice for long-term use.

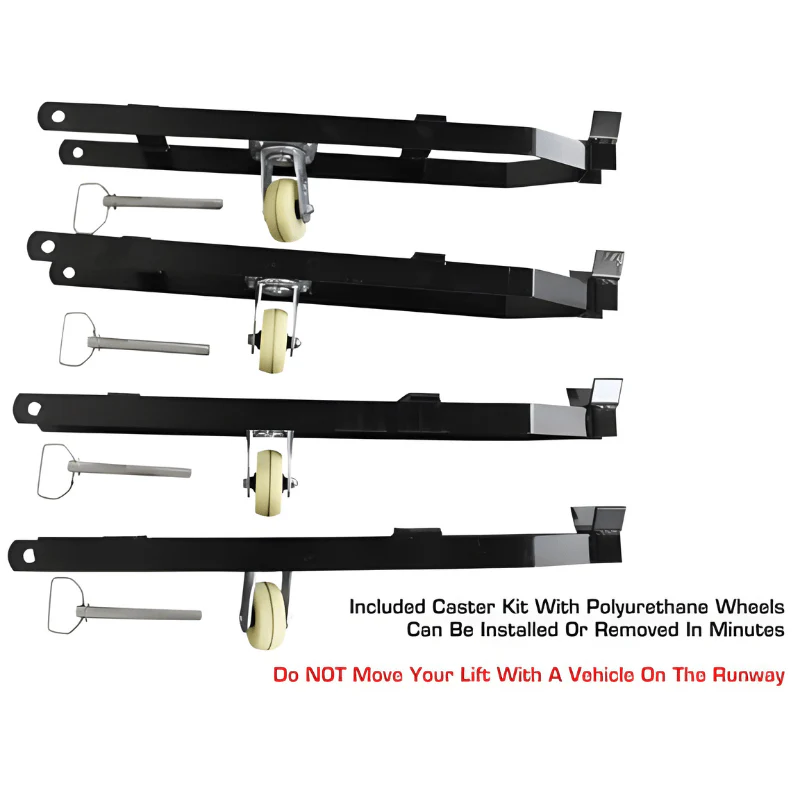

The included caster kit with polyurethane wheels allows you to reposition the lift as needed, giving you the freedom to move it between bays or adjust your layout without permanent installation.
Key Features & Benefits

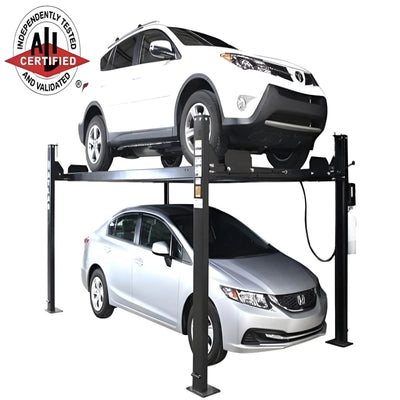

- ALI Certified for verified safety and performance
- 8,000 lb Capacity for cars, SUVs, and light trucks
- Free Standing Portable Design
- Powder-Coated Finish for durability

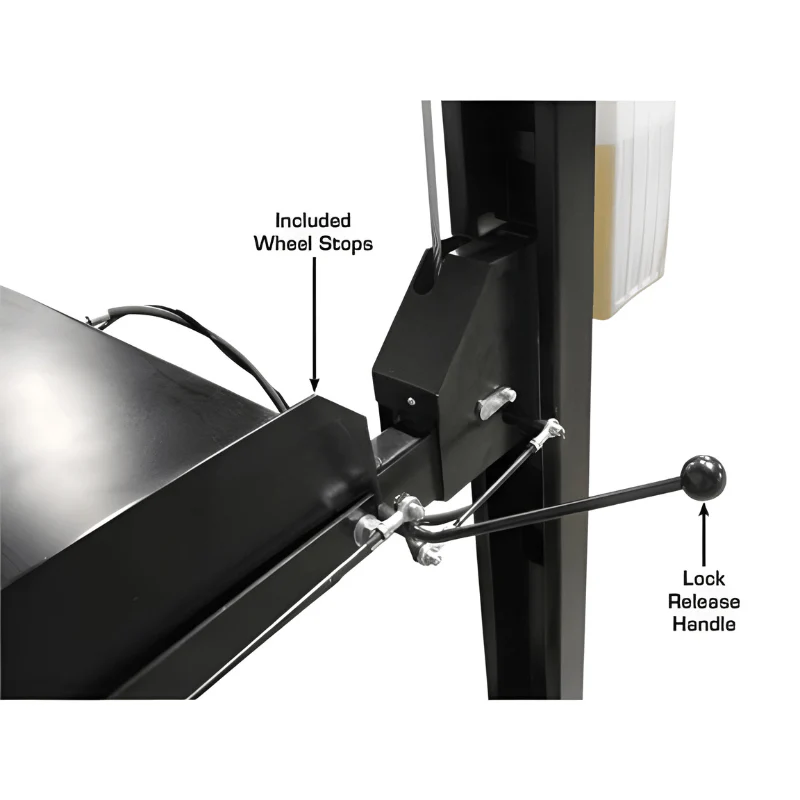

- Single Point Lock Release system

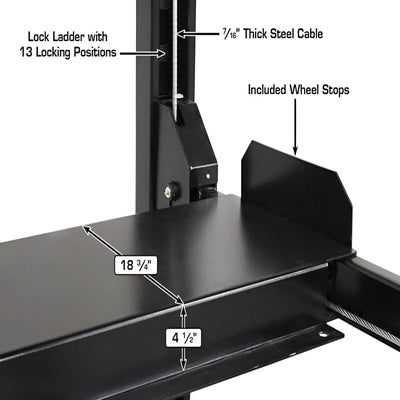

- Lock Ladder Design for secure positioning
- Double Lock Safety System
- Steel Approach Ramps Included

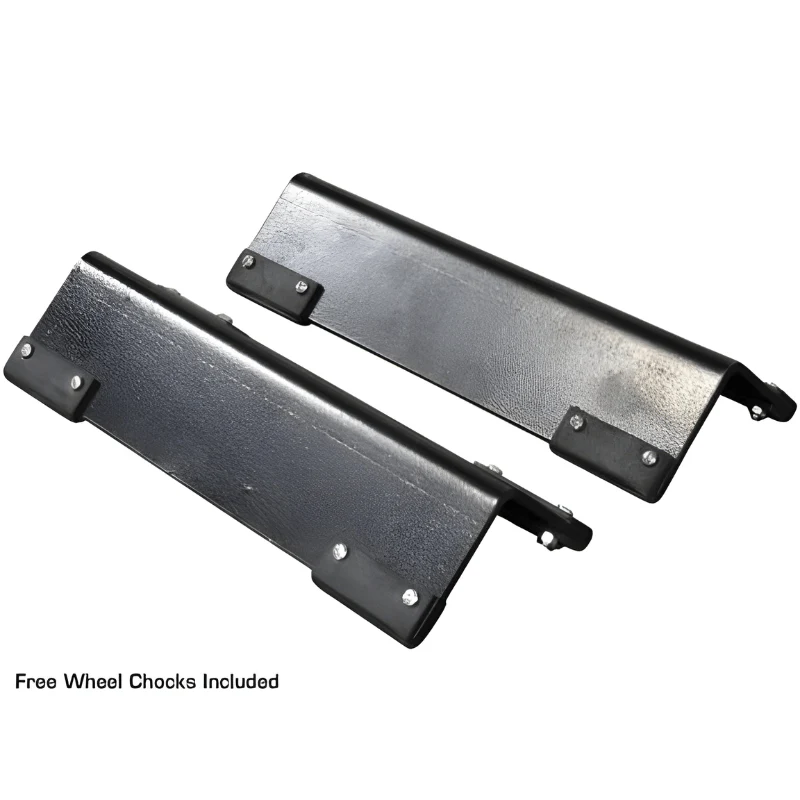

- Wheel Stops and Two Wheel Chocks Included
- Caster Kit with Polyurethane Wheels Included
- Optional Anchor Bolts available (sold separately)
- Ideal for vehicle storage or light service work

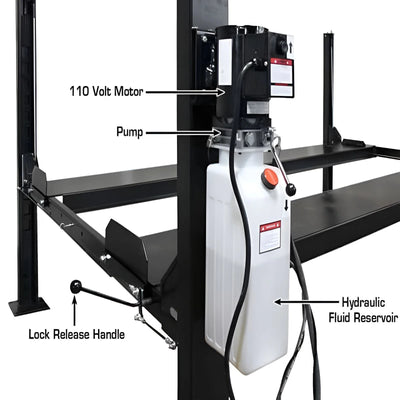

- 110V Operation (30 amp breaker required)
Ideal for Home Garages & Collectors
The Atlas APEX 8 is perfect for users who need to double their parking space without sacrificing accessibility. It's especially well-suited for car collectors, hobbyists, and restoration shops that want a safe and flexible storage solution.
Certified Safety & Long-Term Value
With ALI certification and a durable design, the APEX 8 provides added confidence compared to standard hobbyist lifts. Backed by a 5-year structural warranty and 2-year hydraulic coverage, this lift is built to deliver reliable performance for years to come.

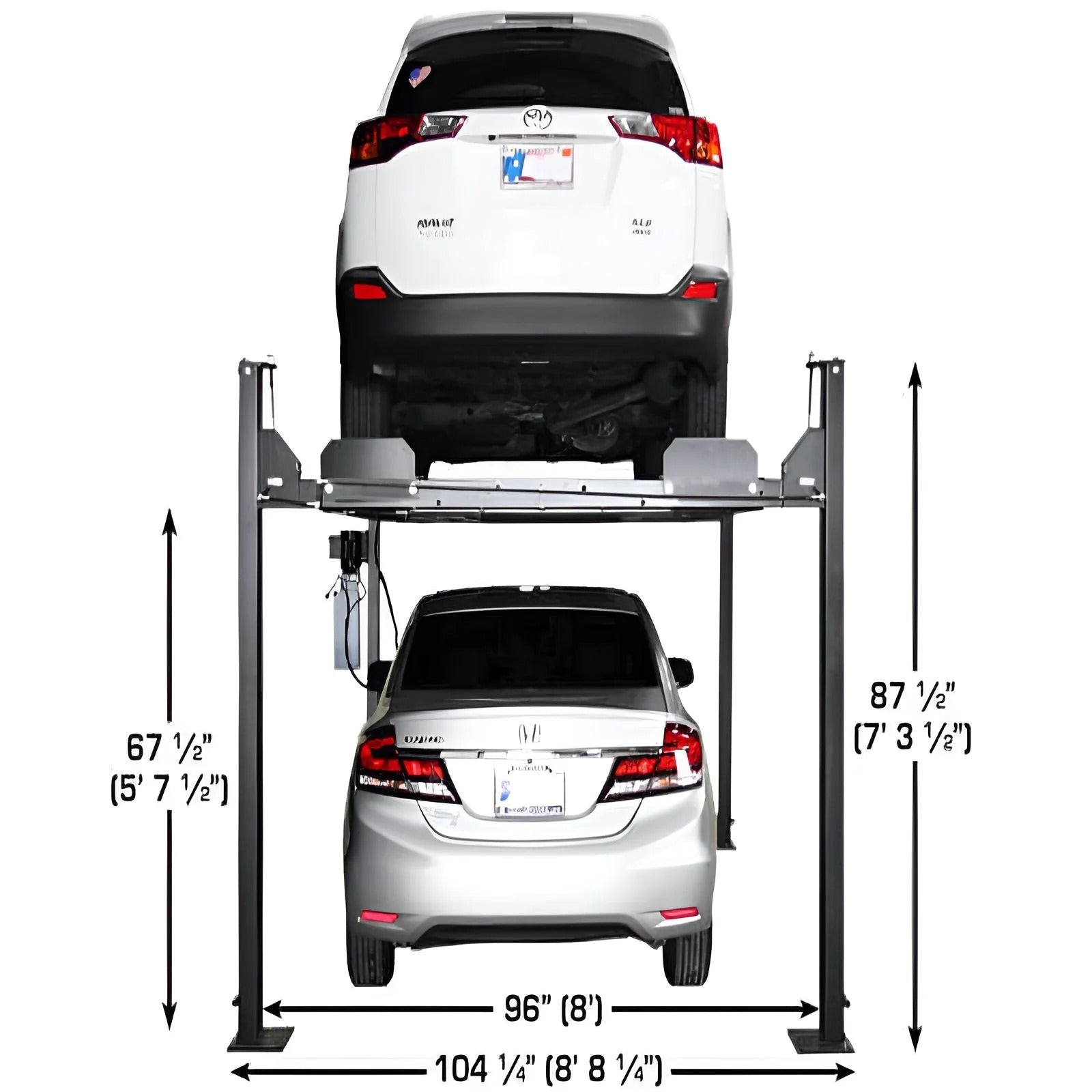

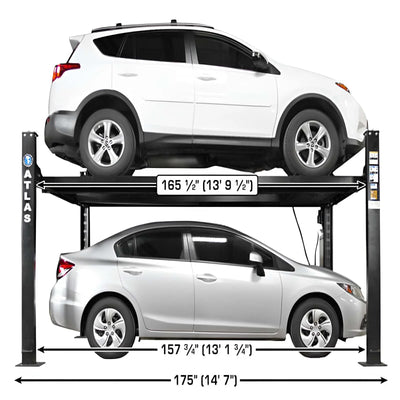

| Specifications | Details |
|---|---|
| Capacity | 8,000 lb. |

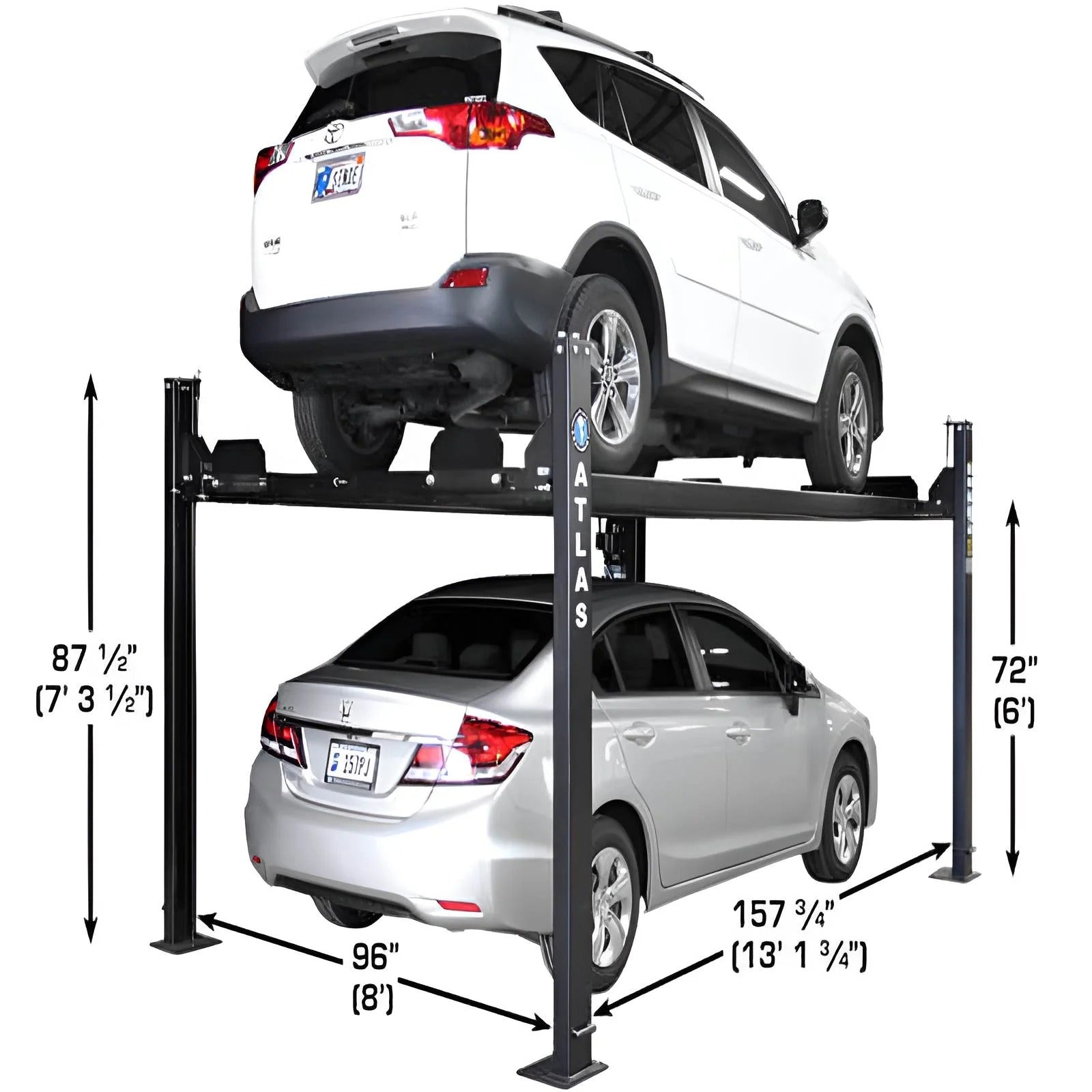

| Lifting Height To Top of Runway | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |
| Height of Columns (Including Nuts) | 86 5/8" (7' 2 5/8") |

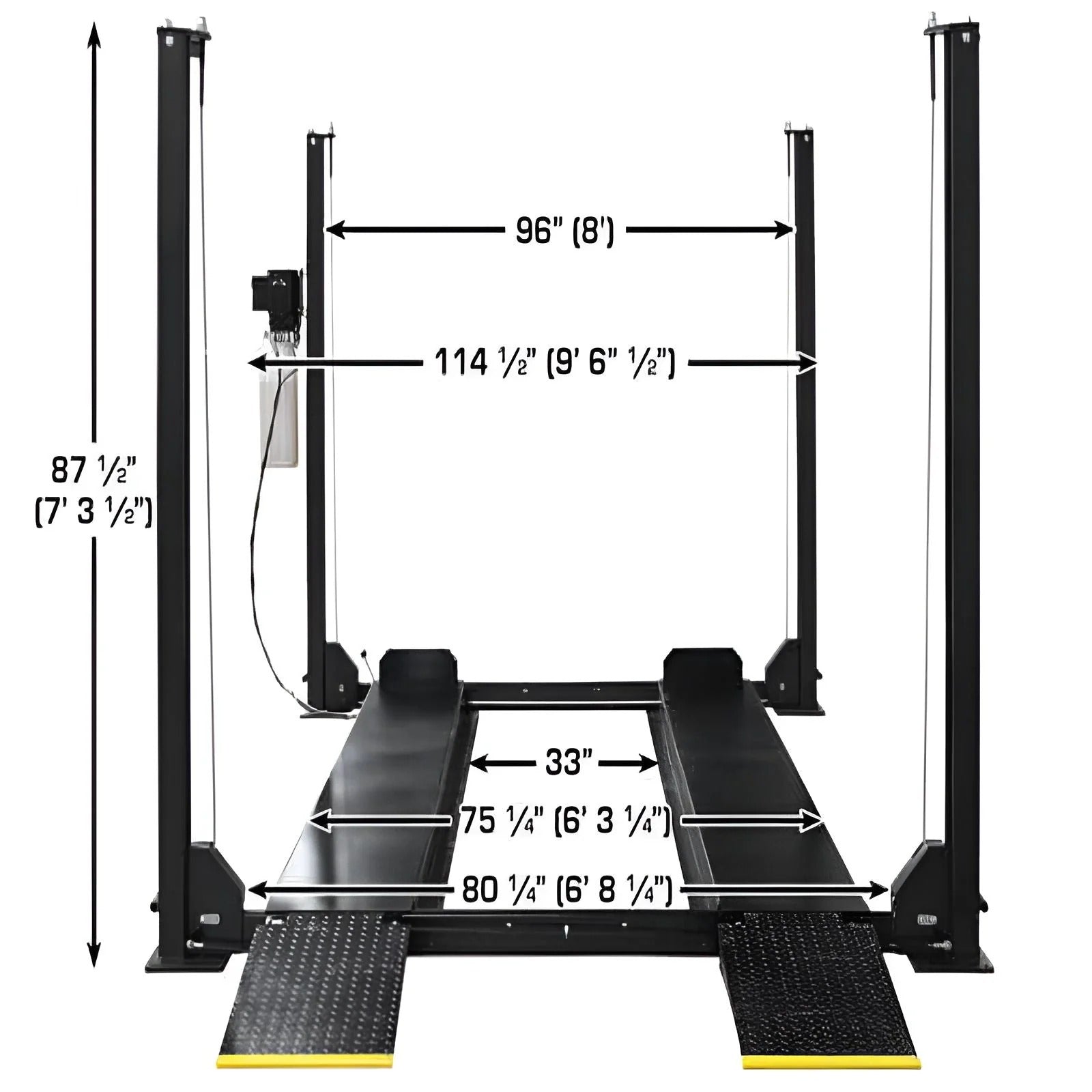

| Overall Width (Without Motor or Casters) | 104" (8' 8") |
| Overall Width (With Motor) | 114" (9' 6") |

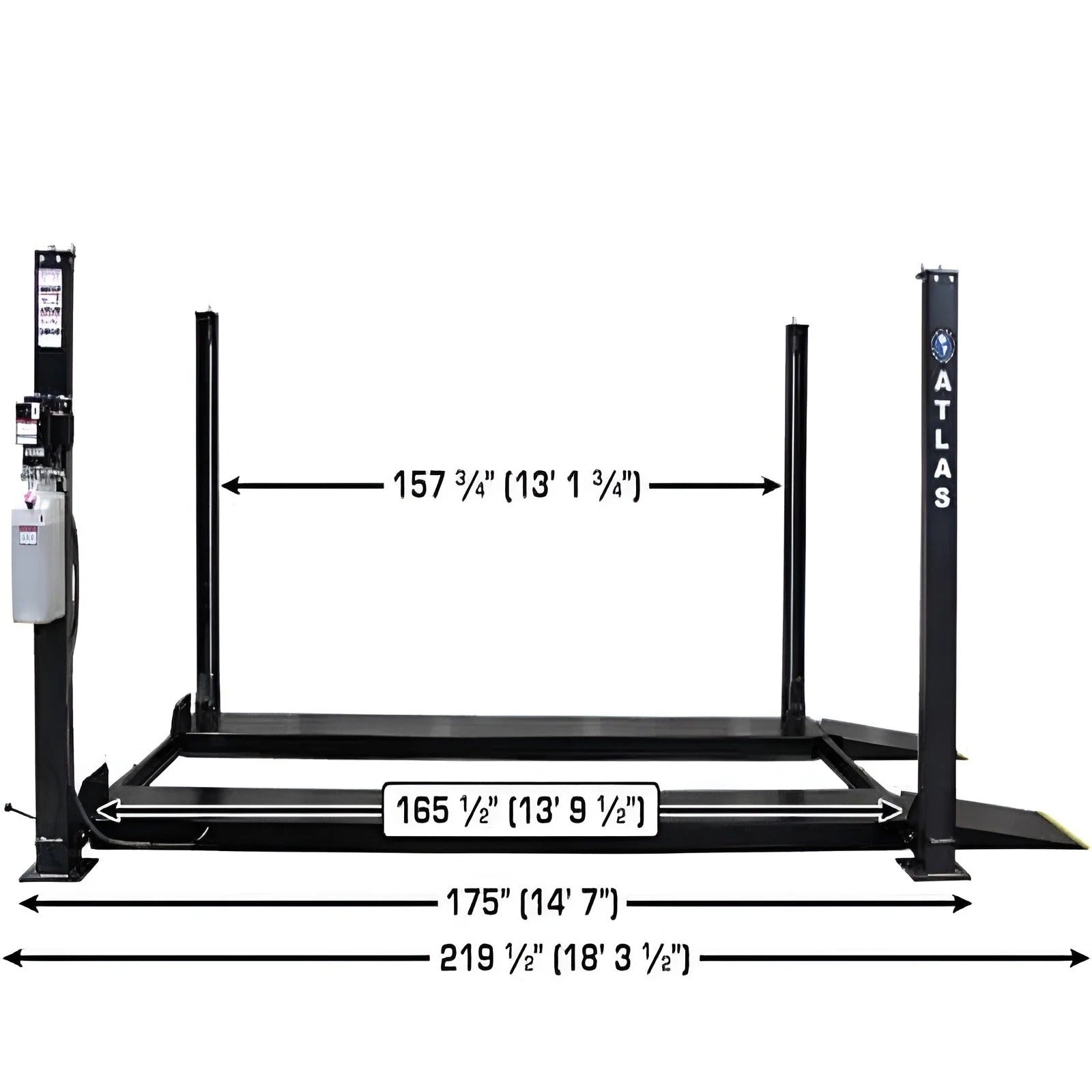

| Overall Length without Approach Ramps | 186 1/2" (15' 6 1/2") |
| Overall Length with Approach Ramps | 207 5/6" (17' 3 5/6") |

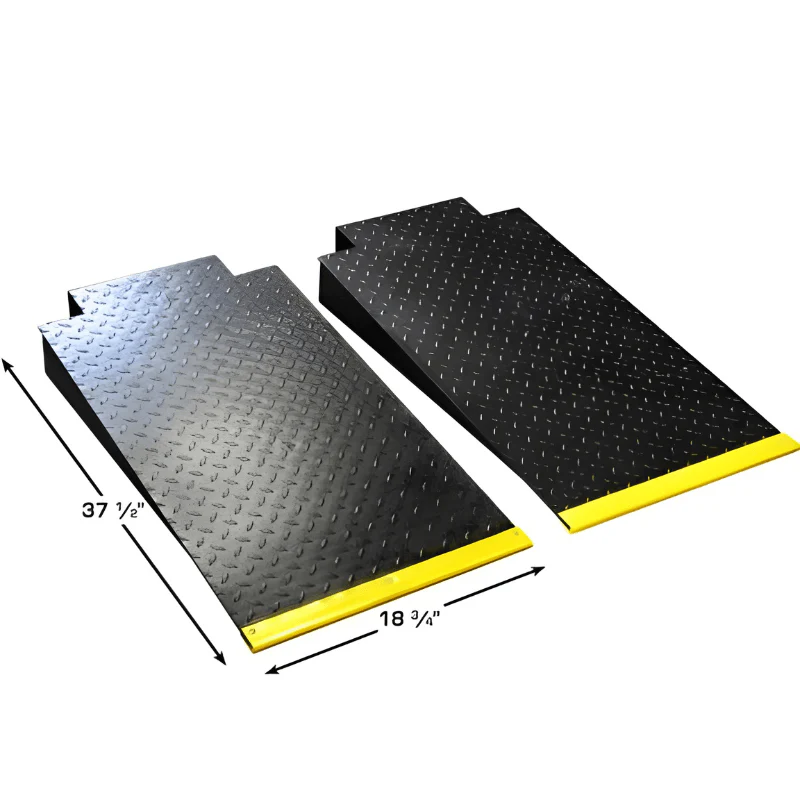

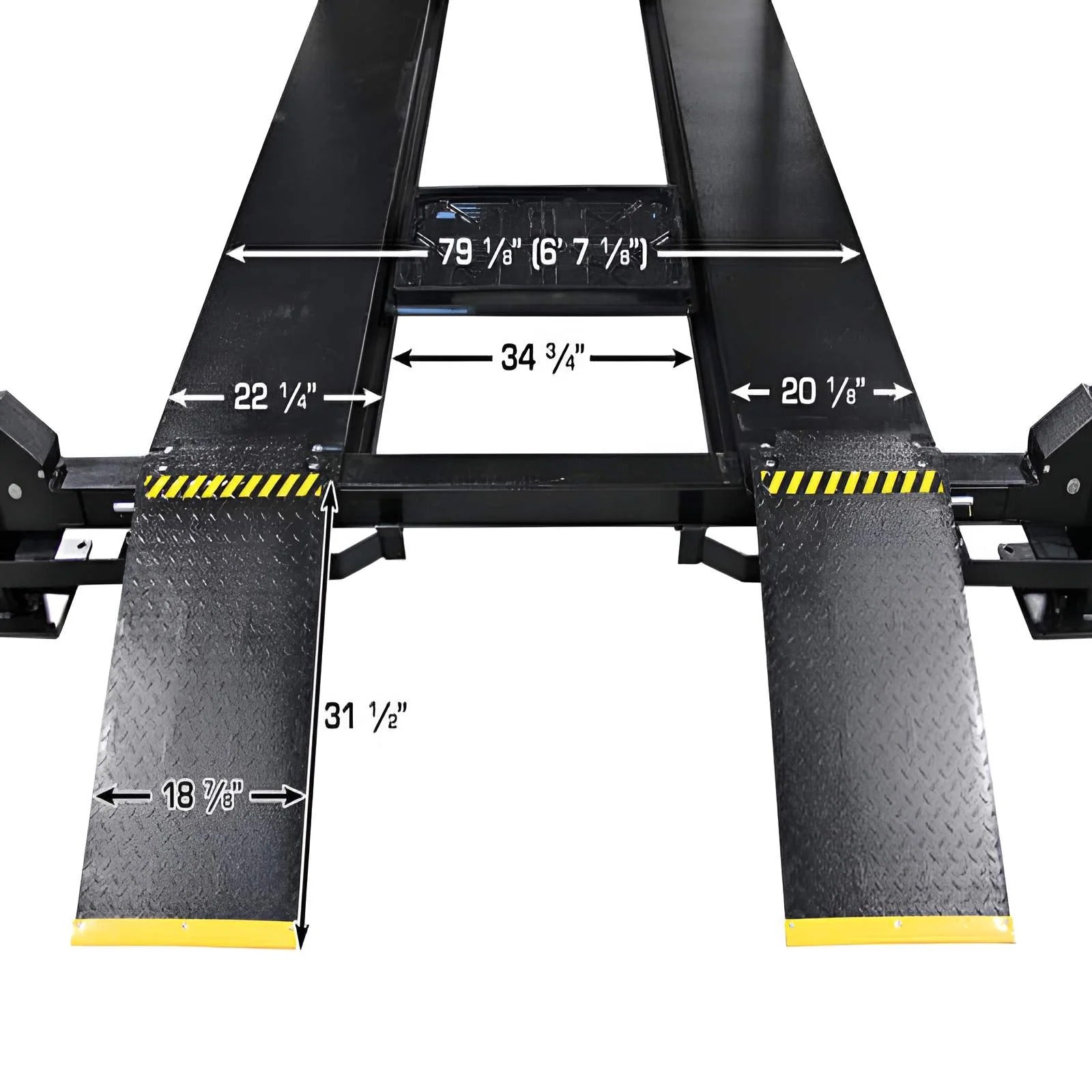

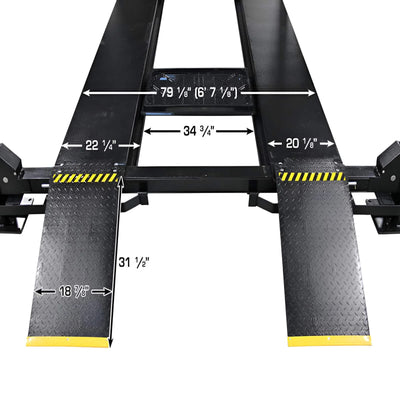

| Approach Ramps | 37 1/2" (3' 1 1/2") |

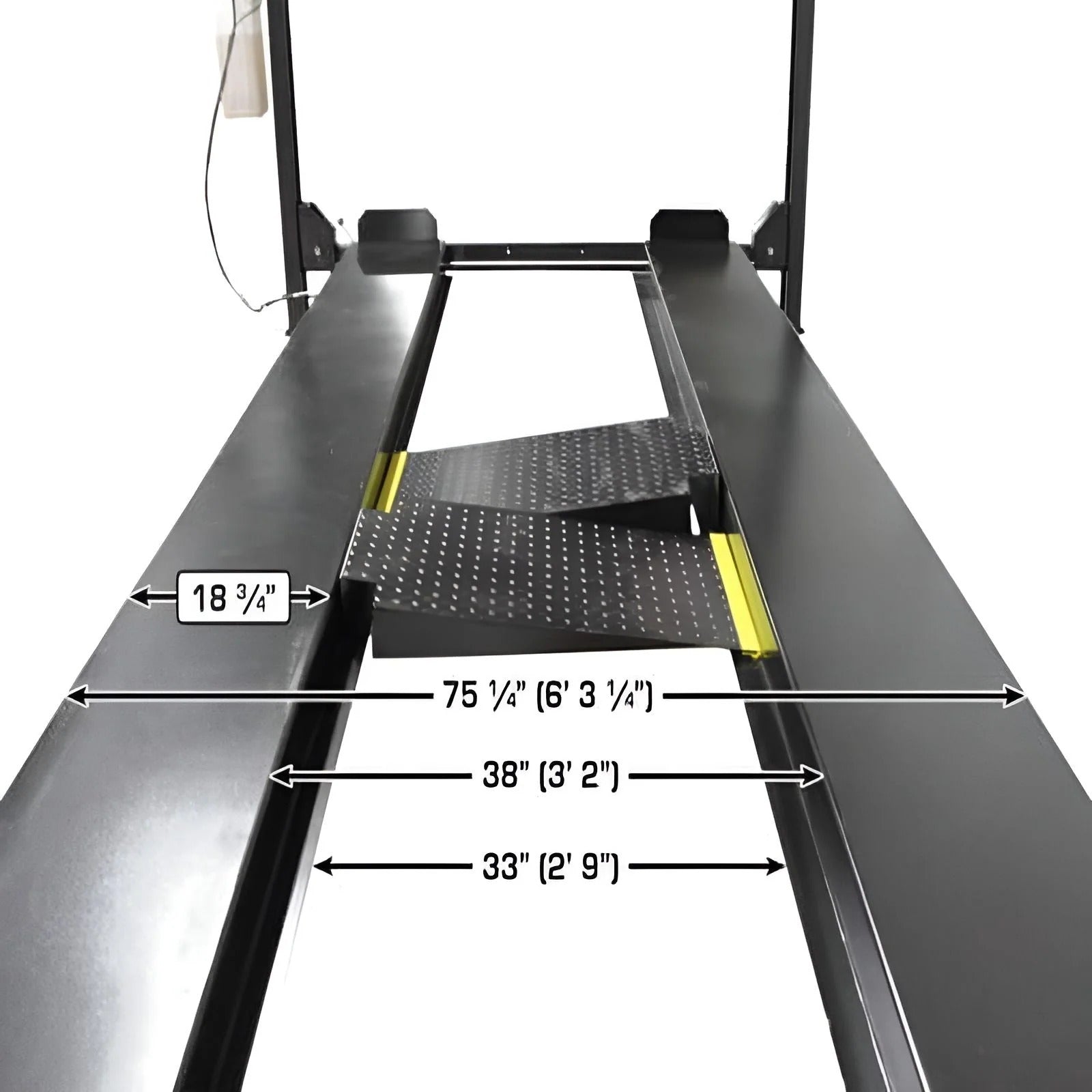

| Runway Width | 18 2/3" |
| Runway Rail Width | 2 1/2" |
| Runway Length | 169 1/2" (14' 1 1/2") |
| Runway Thickness | 4 1/3" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 33" (2' 9") |
| Outside Runway to Outside Runway | 75 1/4" (6' 3 1/4") |
| Clearance Between Columns | 94" (7' 10") |
| Length Between Columns | 157 1/3" (13' 1 1/3") |
| Maximum Wheel Base | 154" (12' 9") |
| Drive Thru (Outside of tire to outside of tire) | 80 1/4" (6' 8 1/4") |

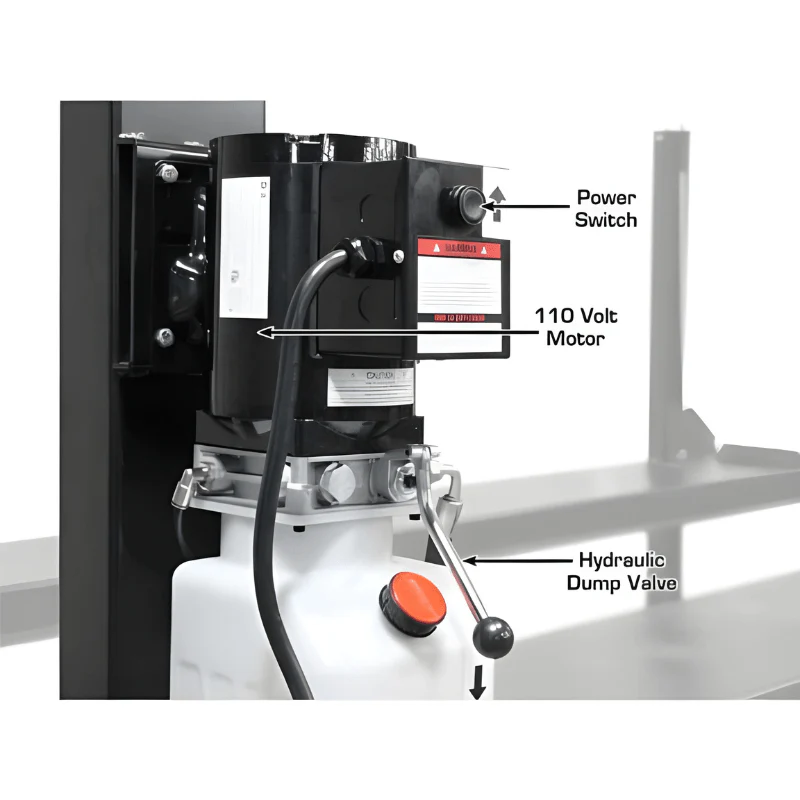

| Motor/Electrical Requirement | 110V, 30 AMP Breaker Required |

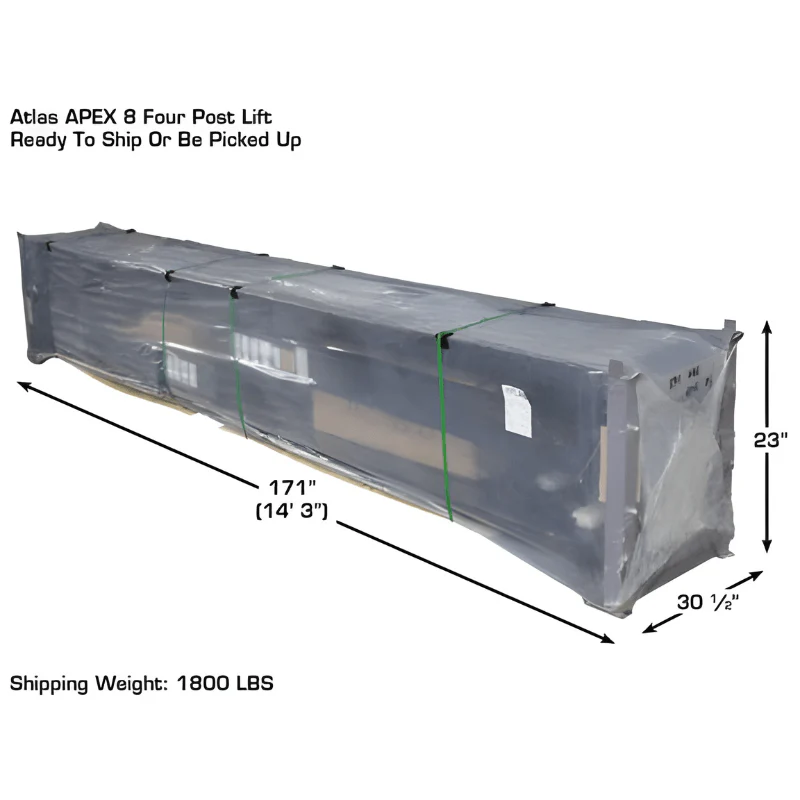

| Shipping Weight | 2,000 lbs. |
Documents
Atlas® APEX 8 - ALI Certified, Hobbyist 4 Post Lift
