Atlas APEX9 ALI Certified 9,000 lb Capacity 4-Post Vehicle Lift
SKU: ATEAPEX9
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas APEX9 is a premium ALI-certified 4-post lift designed for both commercial shops and serious home garages that need maximum size, strength, and versatility. With a true 9,000 lb capacity, this lift is engineered to handle everything from compact cars to long wheelbase trucks and diesel duallys.

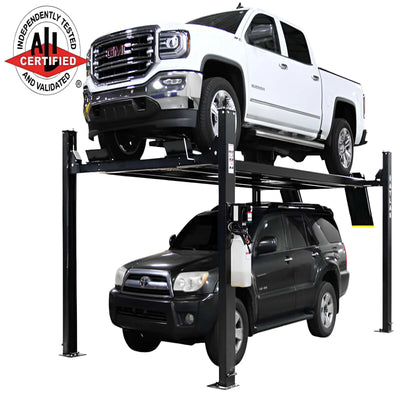

Built with an extra tall, extra wide, and extra long design, the APEX9 stands out as one of the most capable portable lifts available. The extended runways accommodate long vehicles, while the wide drive-thru clearance allows larger trucks and duallys to fit comfortably. The increased lifting height also makes it ideal for stacking vehicles—perfect for maximizing garage space.
Despite its heavy-duty construction, the lift remains fully portable thanks to the included caster kit with polyurethane wheels. It also features integrated tracks between the runways, allowing the use of rolling bridge jacks for added service capability beyond simple storage.
Constructed with diamond-plated runways, a lock ladder system, and a double lock safety system, the APEX9 delivers both durability and safety. It includes a full set of accessories, making it a complete solution for storage and light service work.
Features and Benefits
- ALI certified lift
- 9,000 lb capacity
- Free-standing portable design
- Heavy-duty construction
- Extra tall, extra wide, and extra long design
- Powder coat finish
- Diamond-plated runways

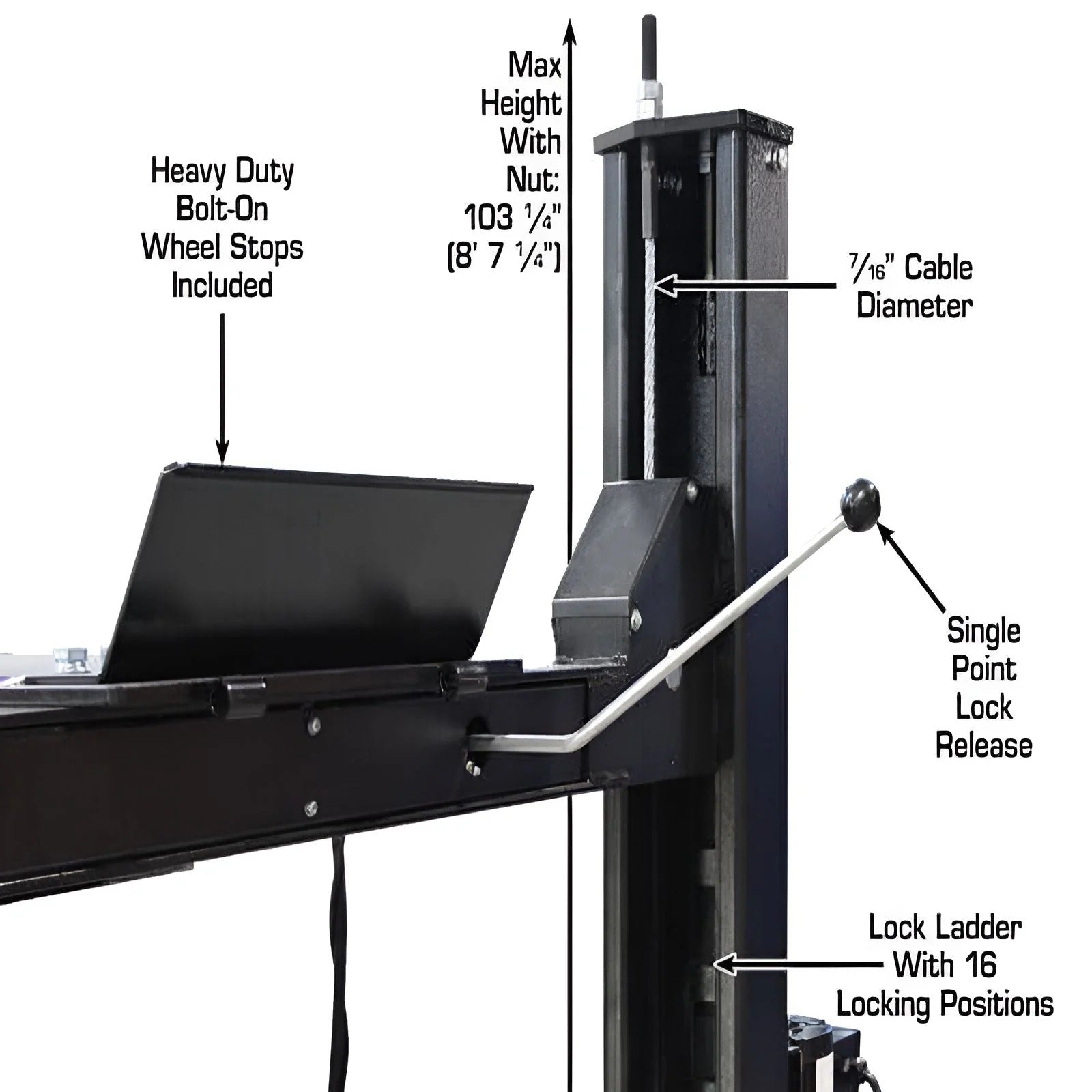

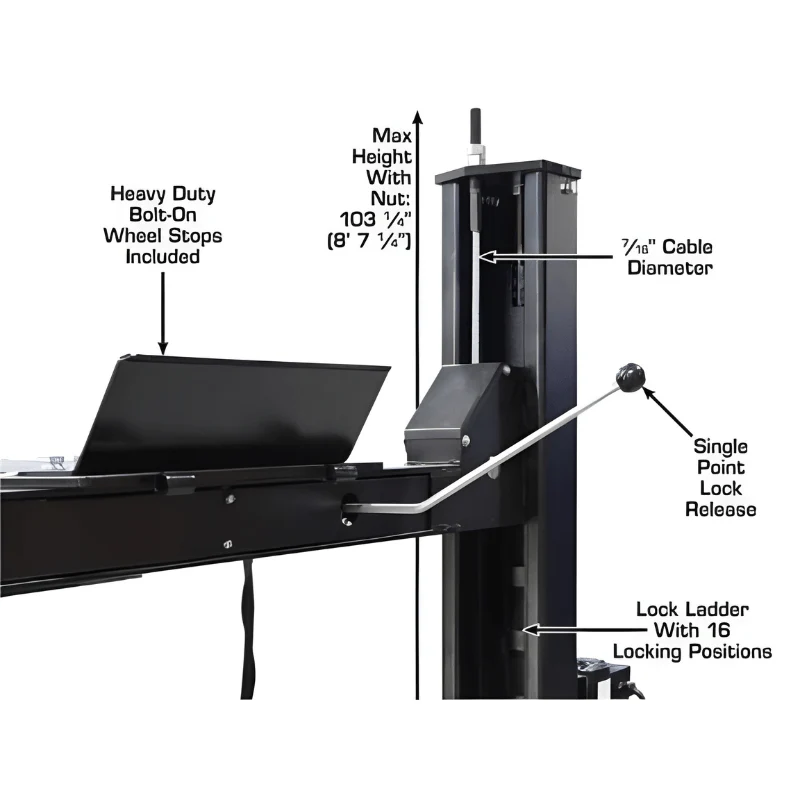

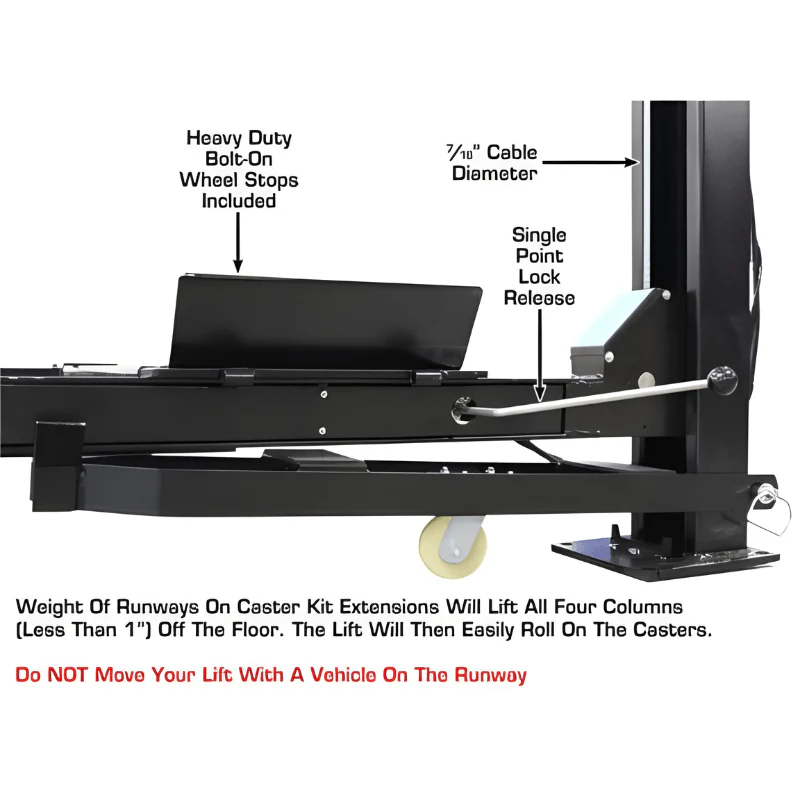

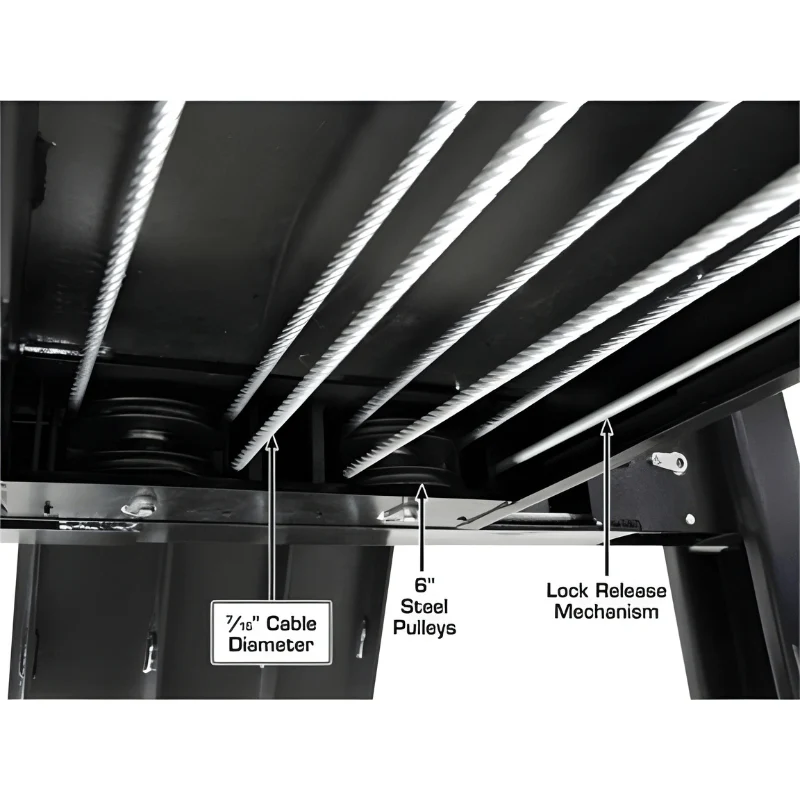

- Single-point lock release
- Lock ladder design
- Double lock safety system
- Steel approach ramps included
- Steel jack tray included
- Four plastic drip trays included

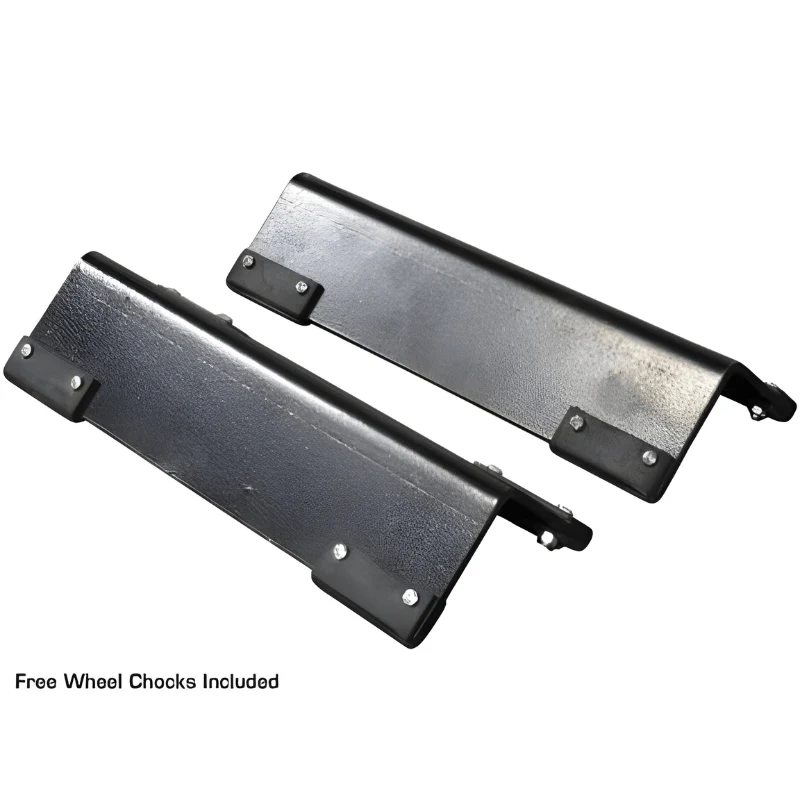

- Two wheel chocks included

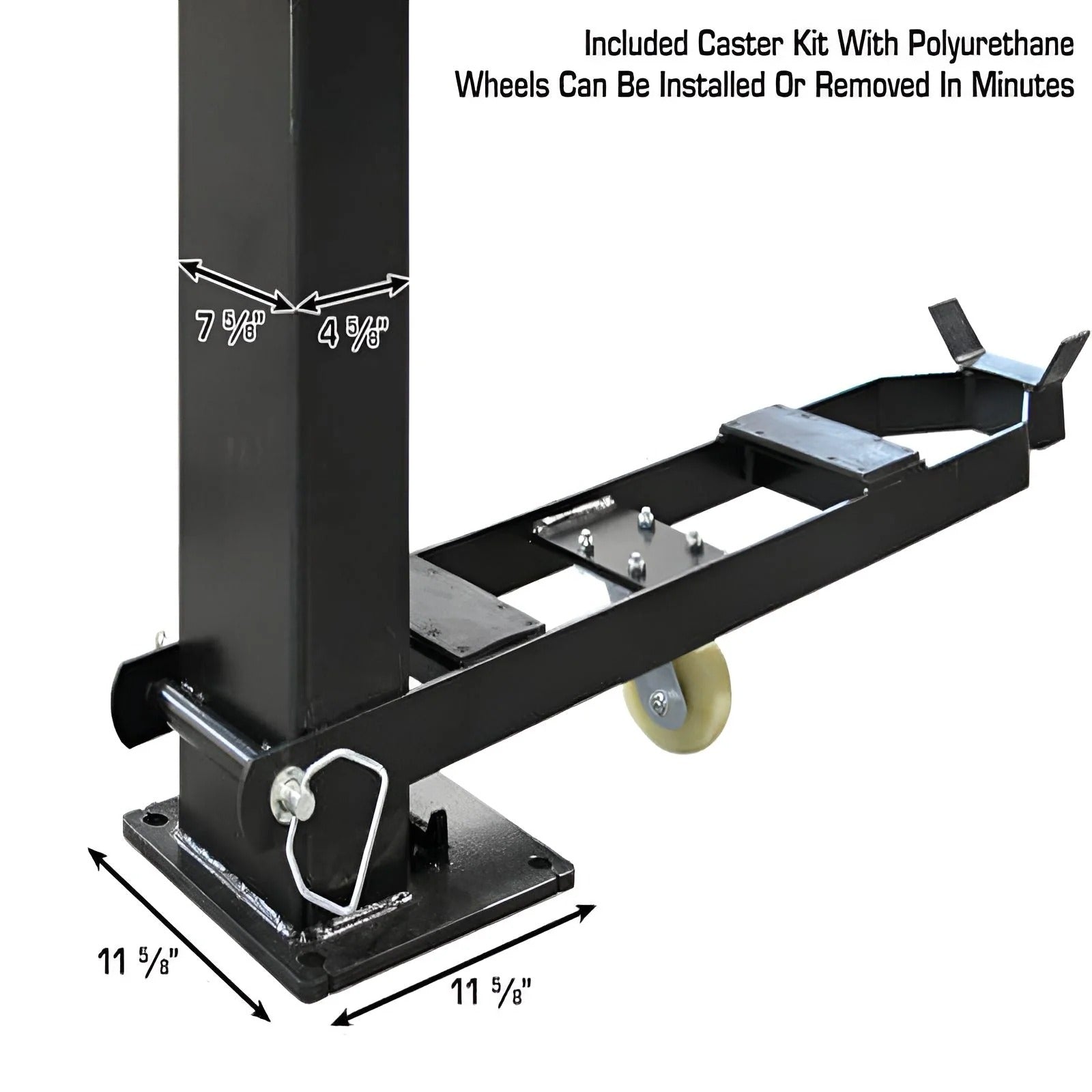

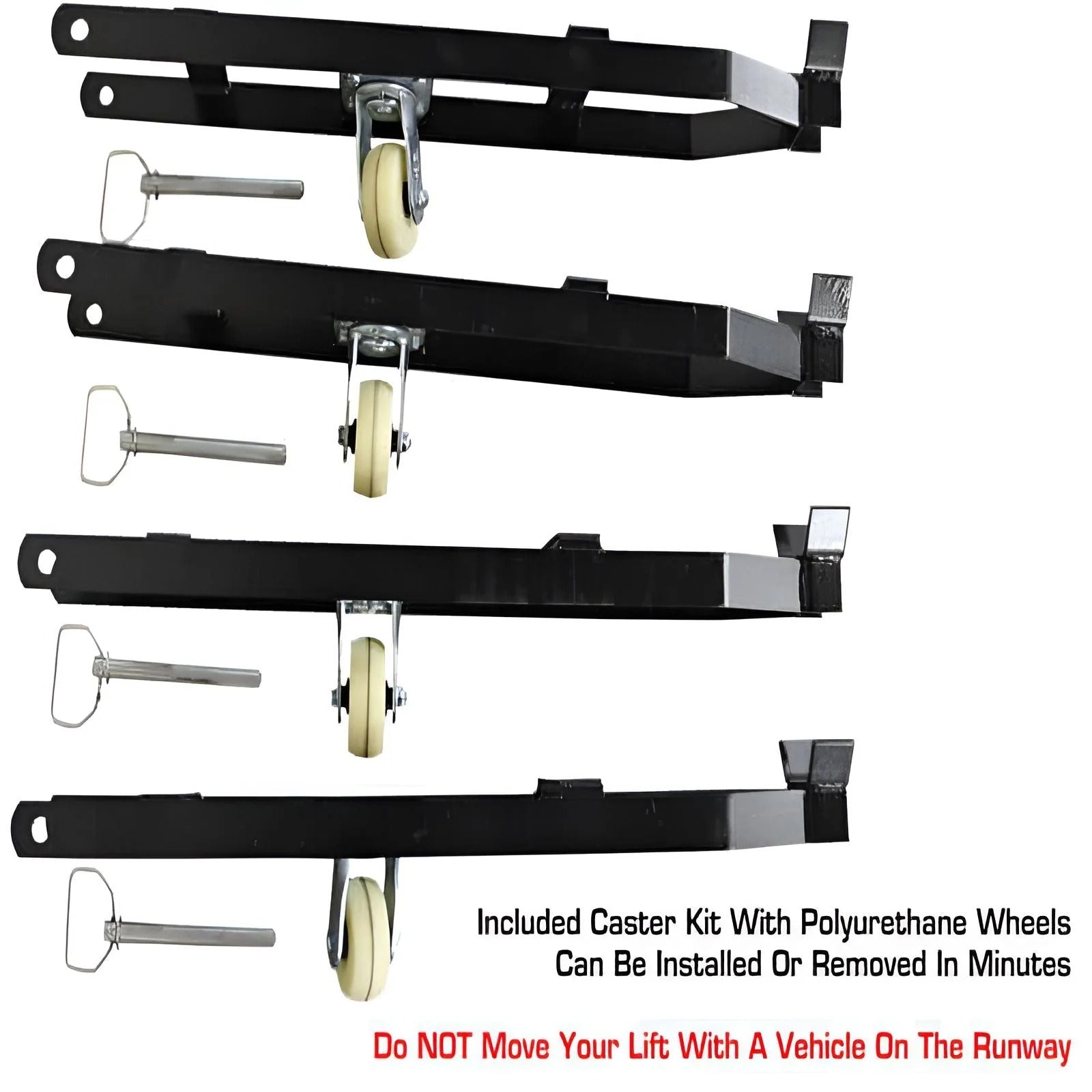

- Caster kit with polyurethane wheels included
- Compatible with rolling bridge jacks
- Anchor bolts optional
- Ideal for storage or working on vehicles
- 110V operation (30 amp breaker required)
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb. |
| Lifting Height To Top of Runway | 86" (7' 2") |

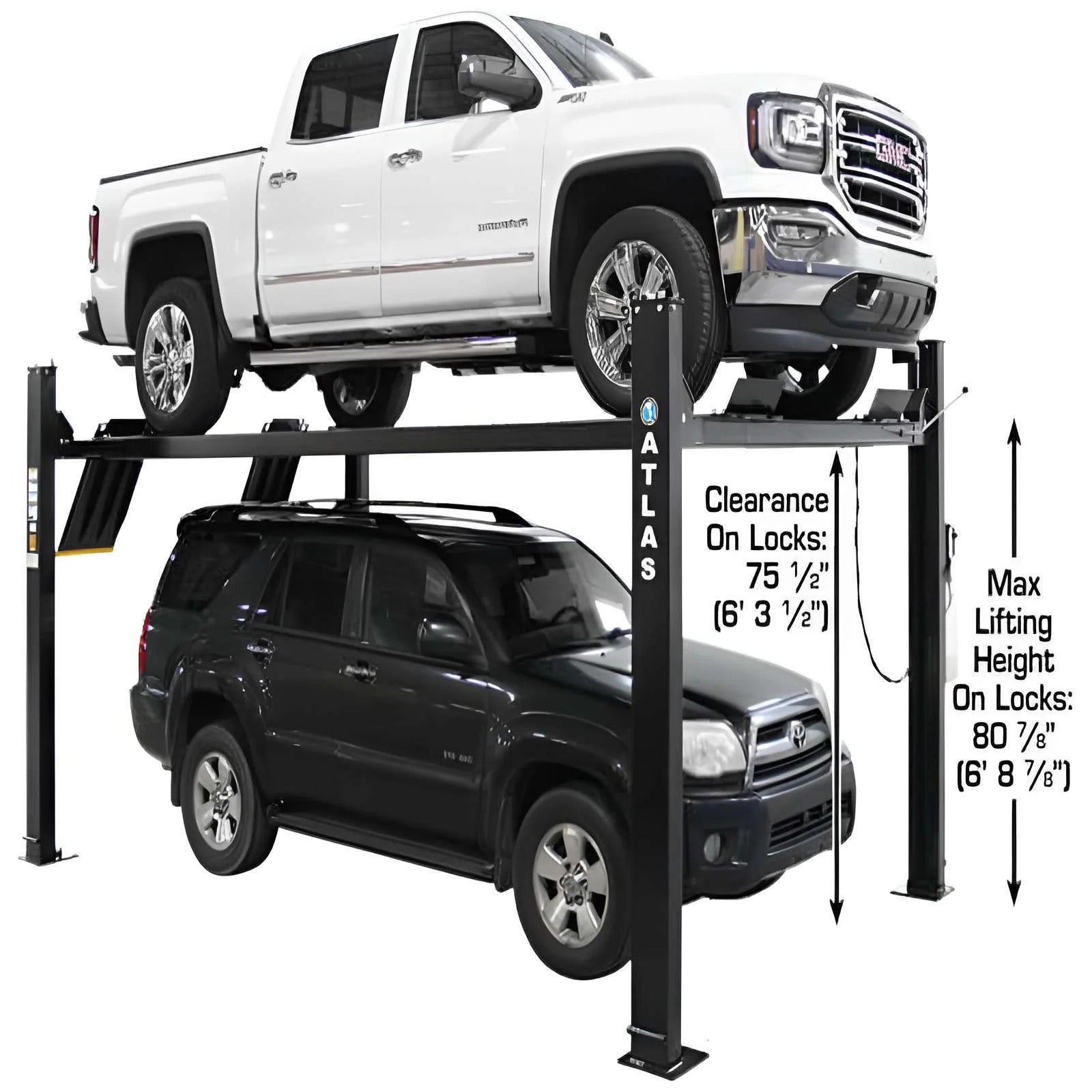

| Clearance Under Runways | 81 1/4" (6' 9 1/4") |

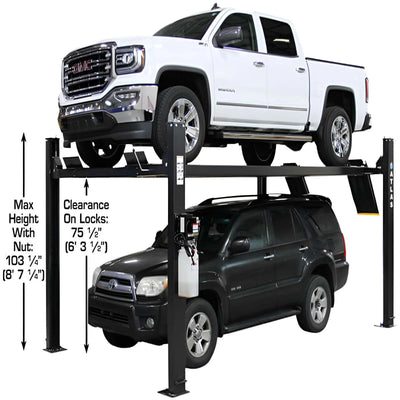

| Height of Columns | 99" (8' 3") |

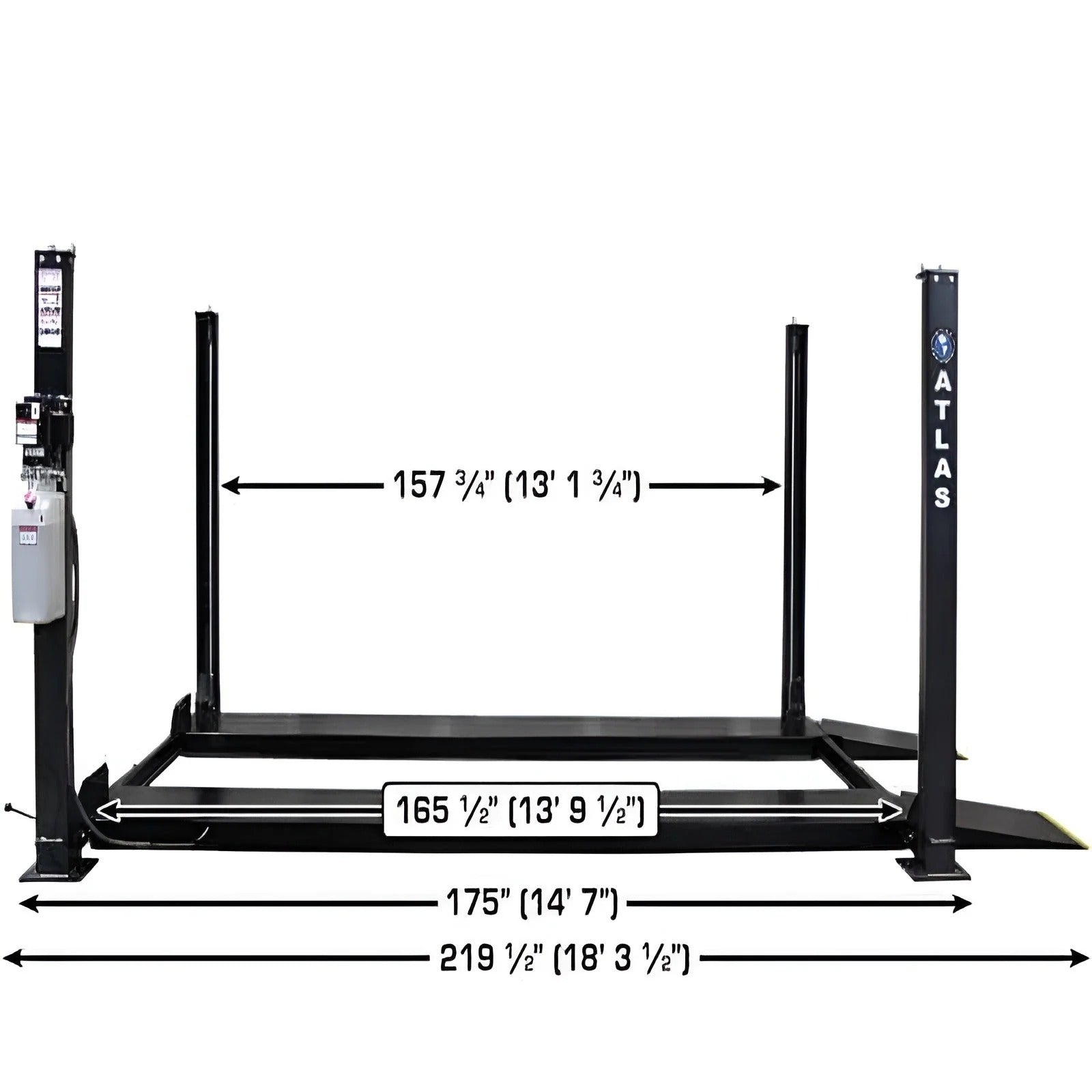

| Overall Width (Without Motor or Casters) | 121 7/8" (10' 1 7/8") |

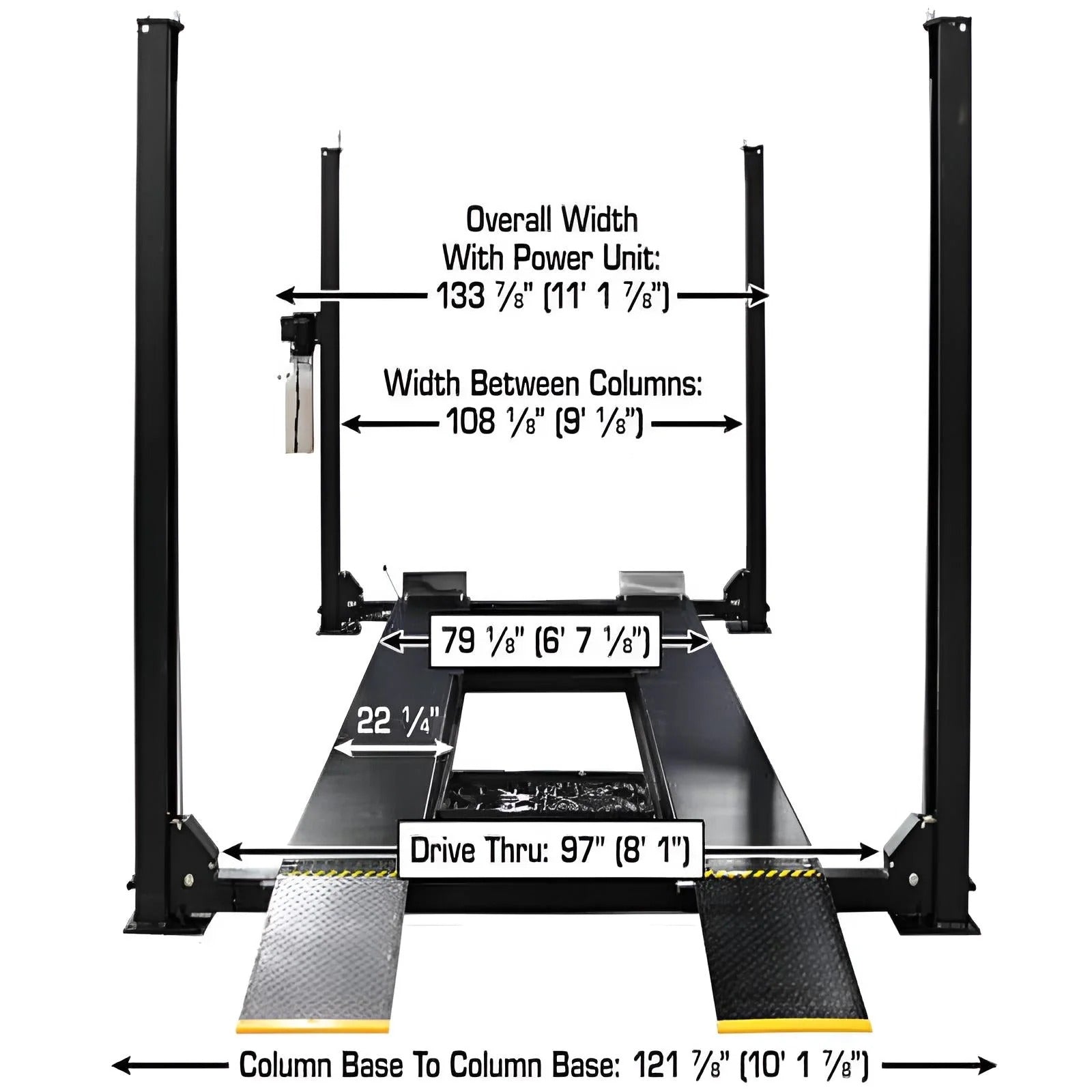

| Overall Width (With Motor) | 133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps | 204" (17') |
| Overall Length with Approach Ramps | 227 1/2" (18' 11 1/2") |

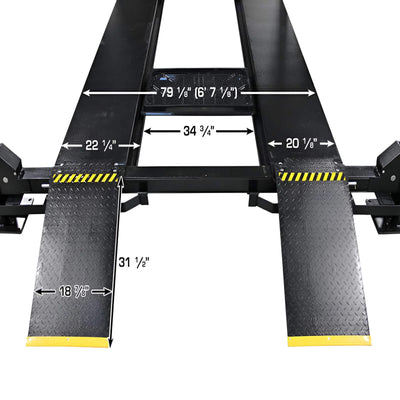

| Approach Ramps | 31 1/2" |

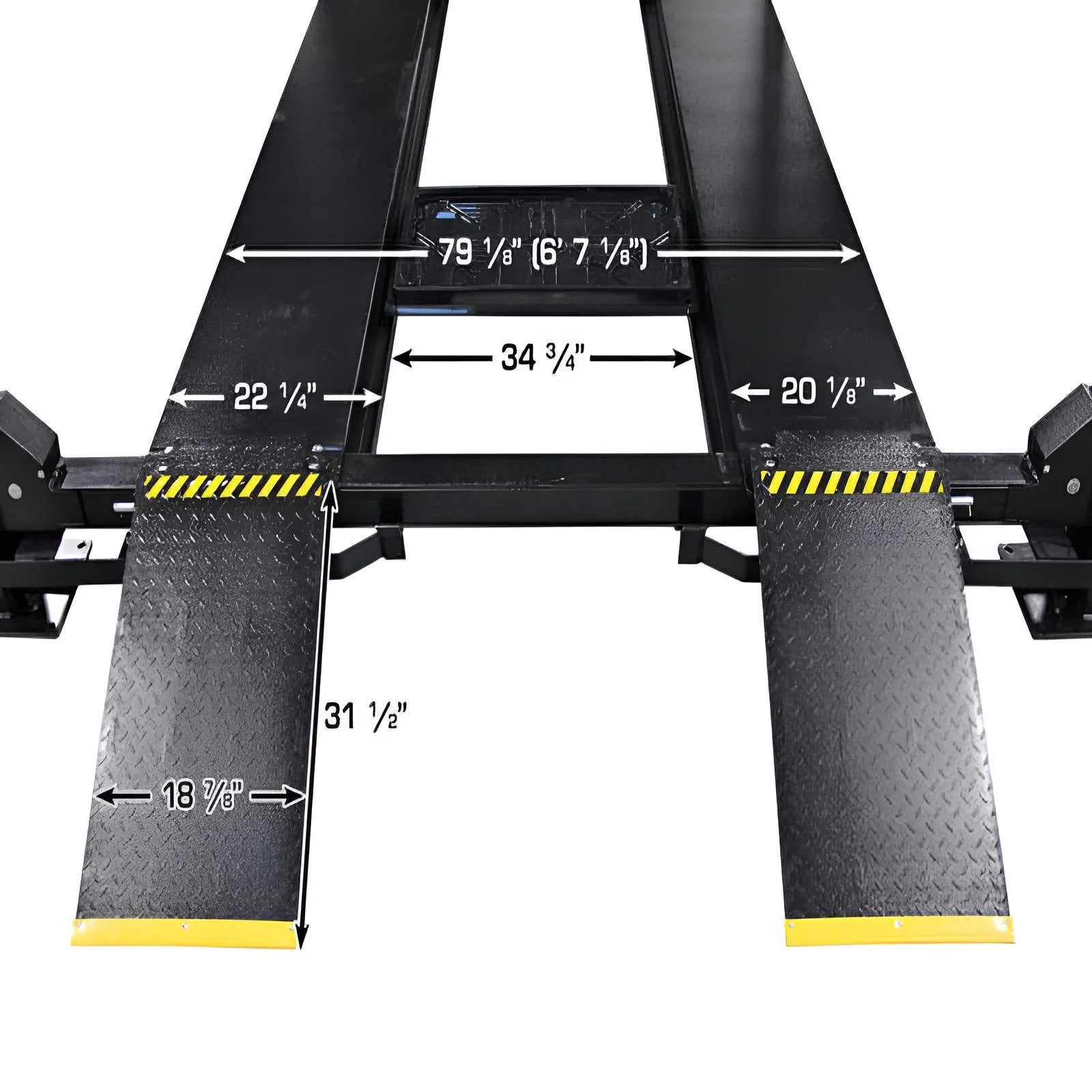

| Runway Width | 20 1/8" |
| Runway Rail Width | 2" |
| Runway Length | 196 1/2" (16' 4 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 38 7/8" (3' 2 7/8") |
| Width Between Runway Rails | 34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway | 79" (6' 7") |

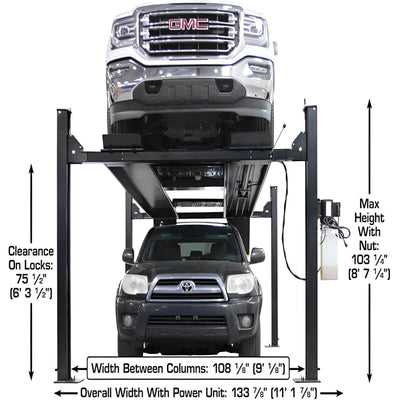

| Clearance Between Columns | 108 1/8" (9' 1/8") |

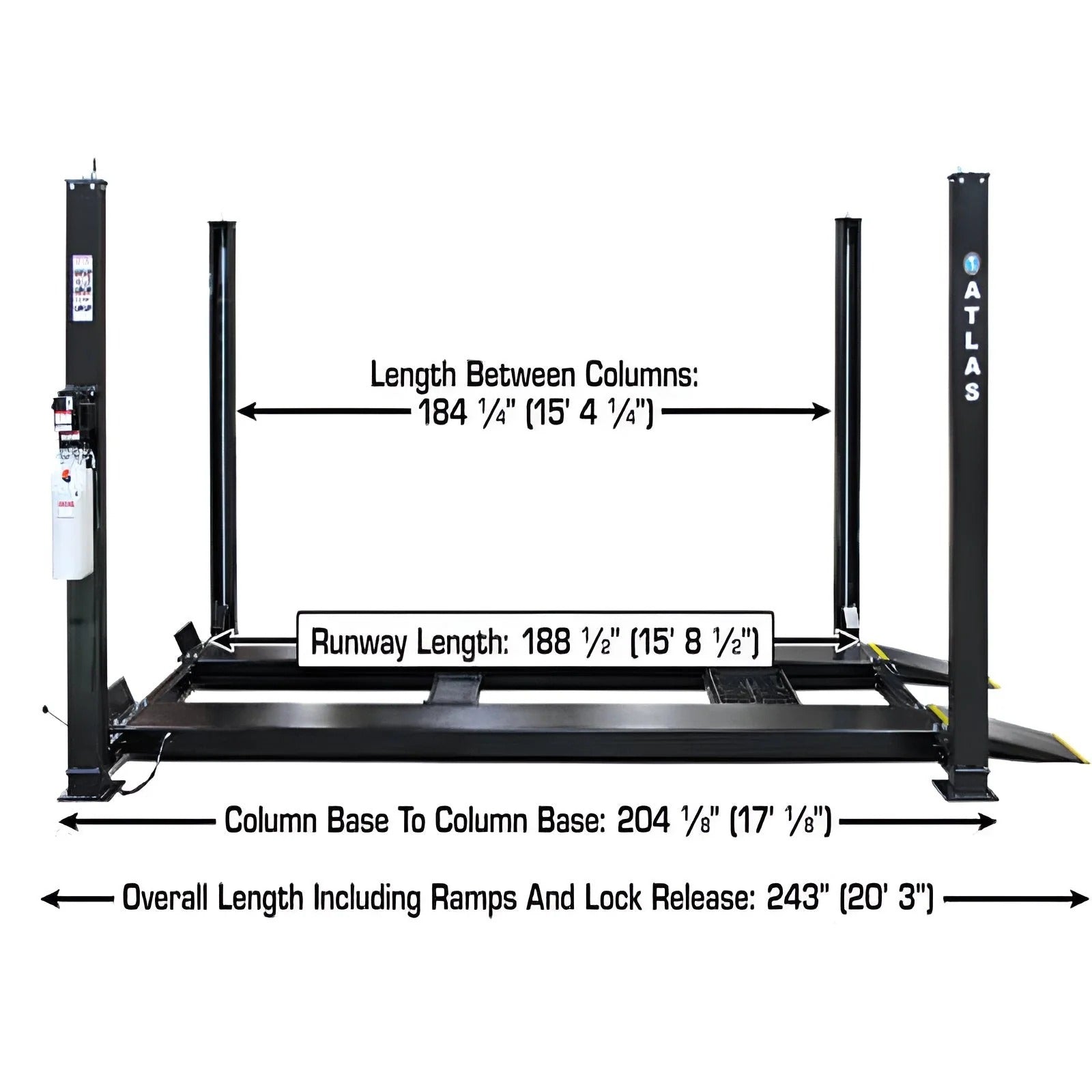

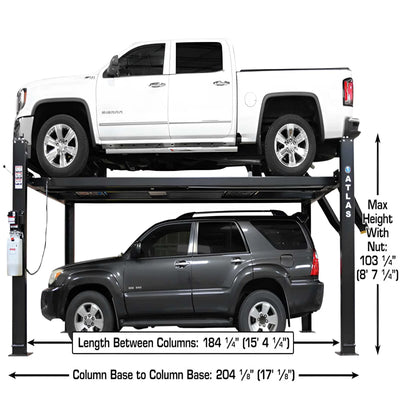

| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Maximum Wheel Base | 184" (15' 4") |
| Drive Thru (Outside of tire to outside of tire) | 98 5/8" (8' 2 5/8") |

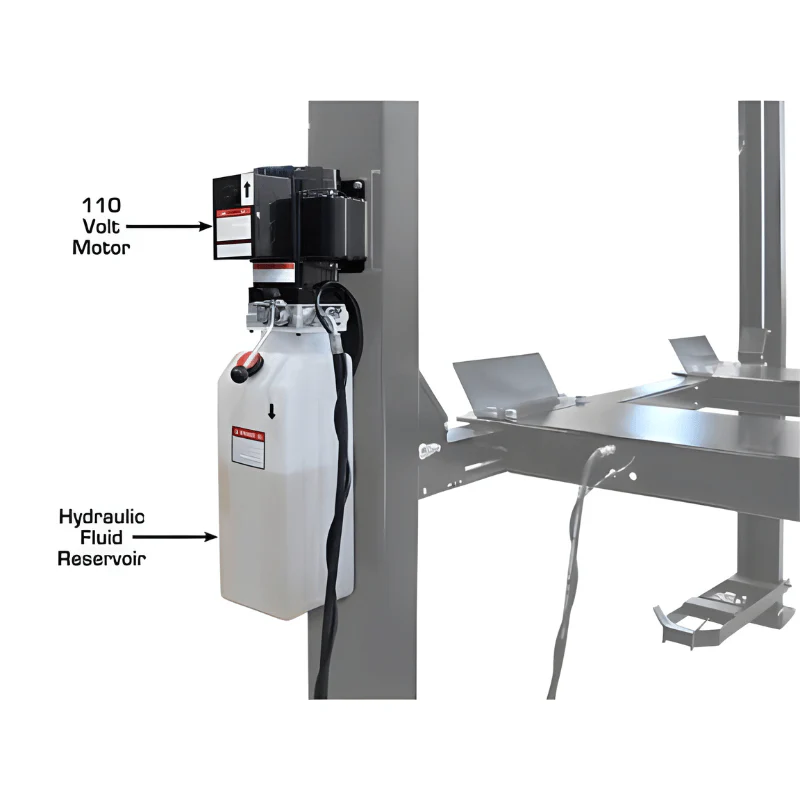

| Motor/Electrical Requirement | 110V, 30 AMP Breaker Required |
| Structural Warranty | 5 Years (Parts Only) |
| Hydraulic Warranty | 2 Years (Parts Only) |

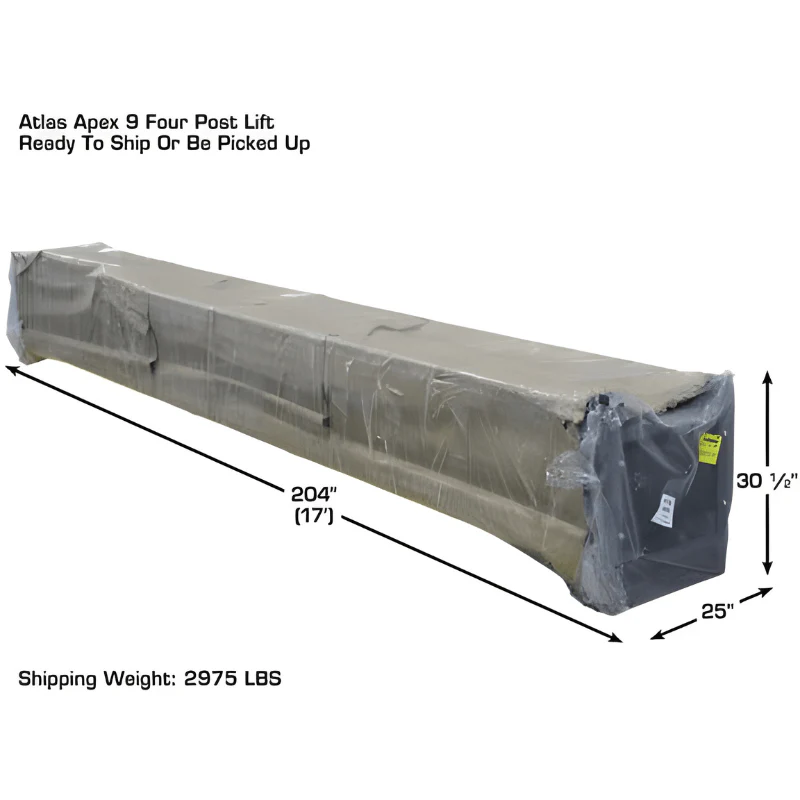

| Shipping Weight | 2,975 lbs. |
