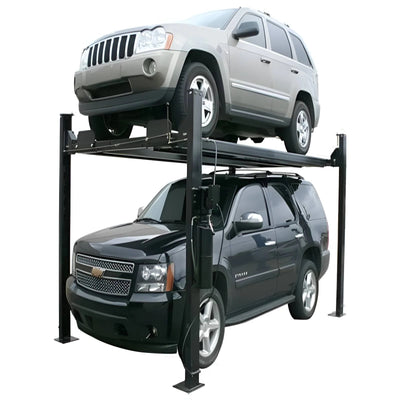

Atlas Garage PRO 8000EXT 8,000 lb Extra Tall 4-Post Vehicle Lift
SKU: ATEXH-PRO8000EXT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

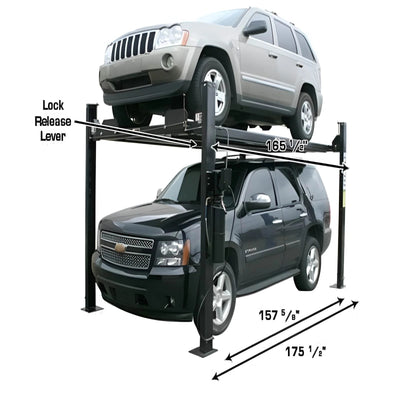

The Atlas Garage PRO8000EXT is a true 8,000 lb capacity 4-post lift designed for home garages and restoration shops that need additional lifting height without increasing overall footprint. This extra-tall model allows users to park taller vehicles such as SUVs and trucks underneath while storing another vehicle above.
Engineered for efficiency, the PRO8000EXT provides increased lifting height while maintaining a compact runway length, helping conserve valuable garage space compared to longer “tall” lift alternatives. With 79 inches of clearance under the runways, it offers practical storage capability for a wide range of vehicle types.
The lift features a free-standing, portable design and includes a caster kit with polyurethane wheels, allowing it to be easily moved between work areas or repositioned as needed. The system also includes diamond-plated runways for added traction and durability, along with a double lock safety system and lock ladder design for secure operation.
Designed for convenience, the lift is equipped with a single-point lock release and operates on a 110V electrical system (30 amp breaker required). Included accessories such as drip trays, a steel jack tray, wheel stops, and rubber wheel chocks enhance usability for both storage and light service work.
This model is ideal for homeowners and restoration environments where lifts are not cycled continuously throughout the day, offering a balance of performance, convenience, and space efficiency.
Features and Benefits
- 8,000 lb capacity
- Free-standing portable design
- Extra tall configuration for increased storage clearance
- Diamond-plated runways

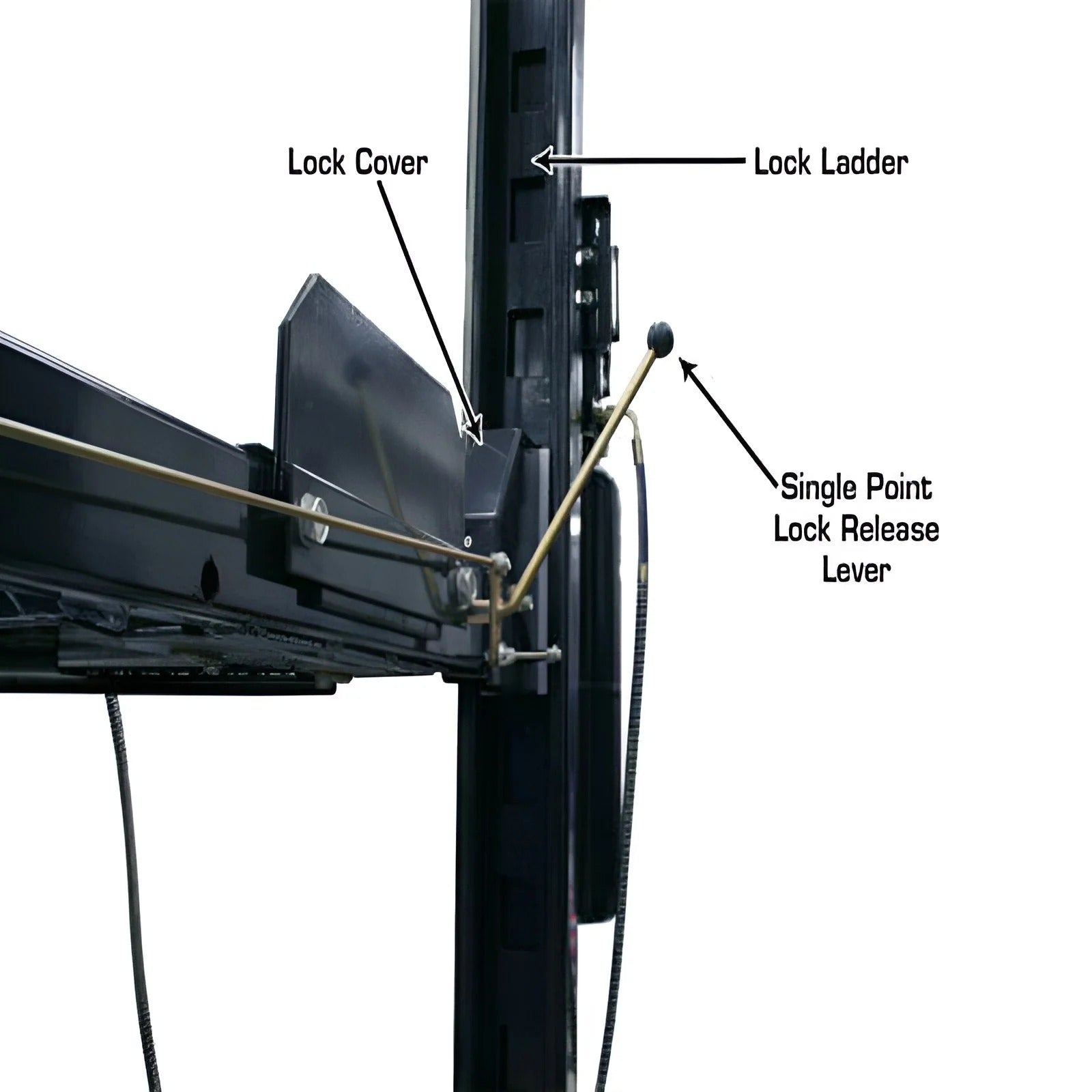

- Single-point lock release

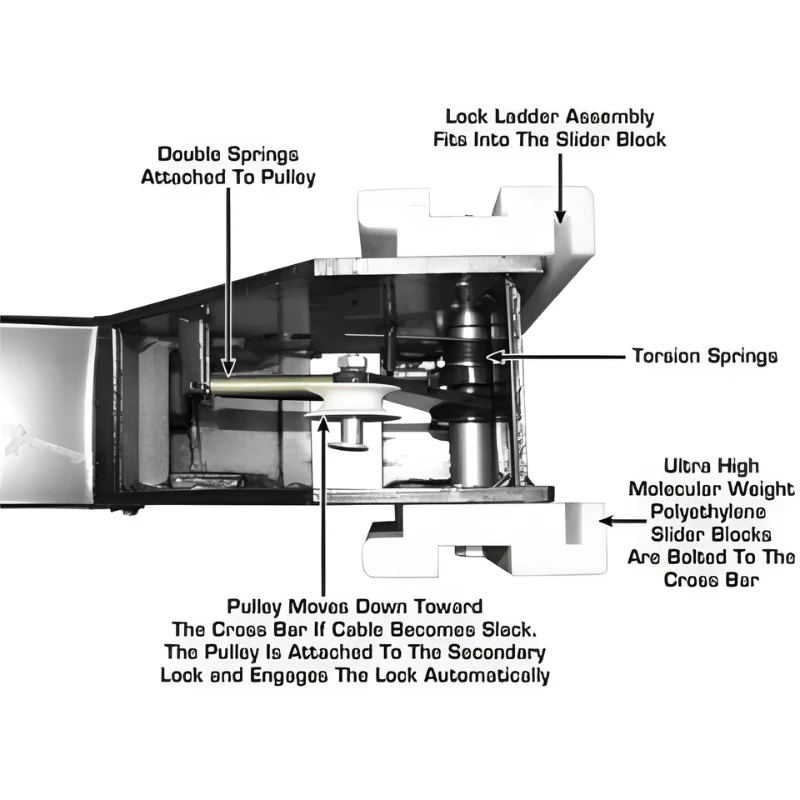

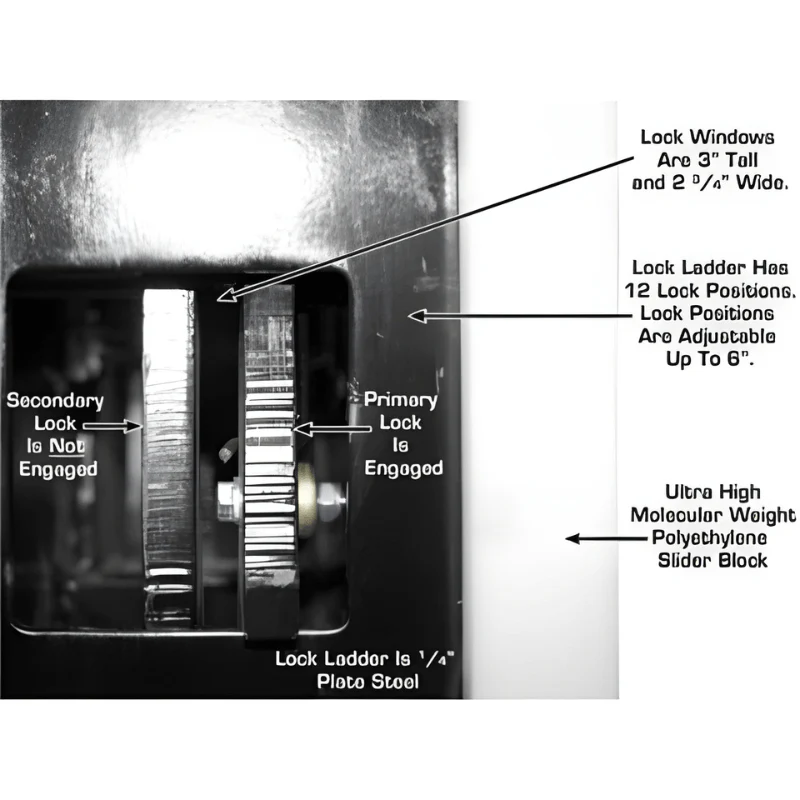

- Lock ladder design

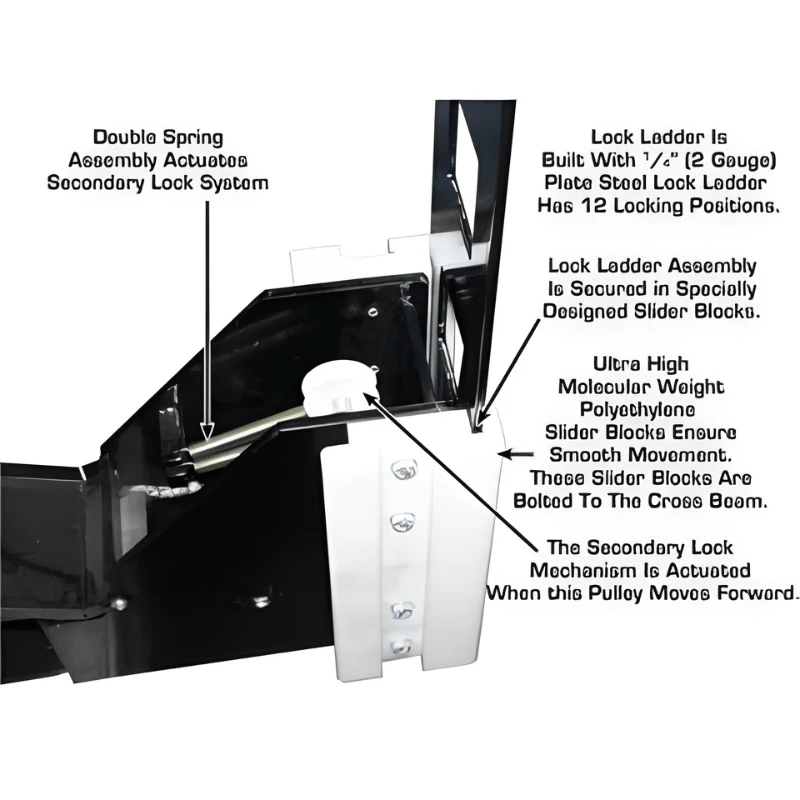

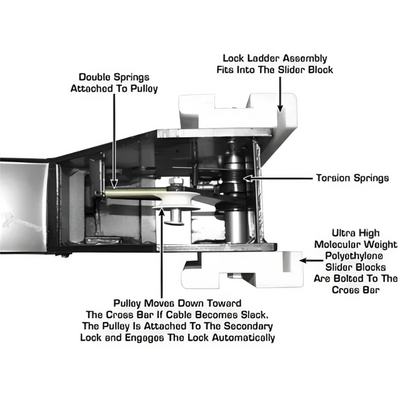

- Double lock safety system

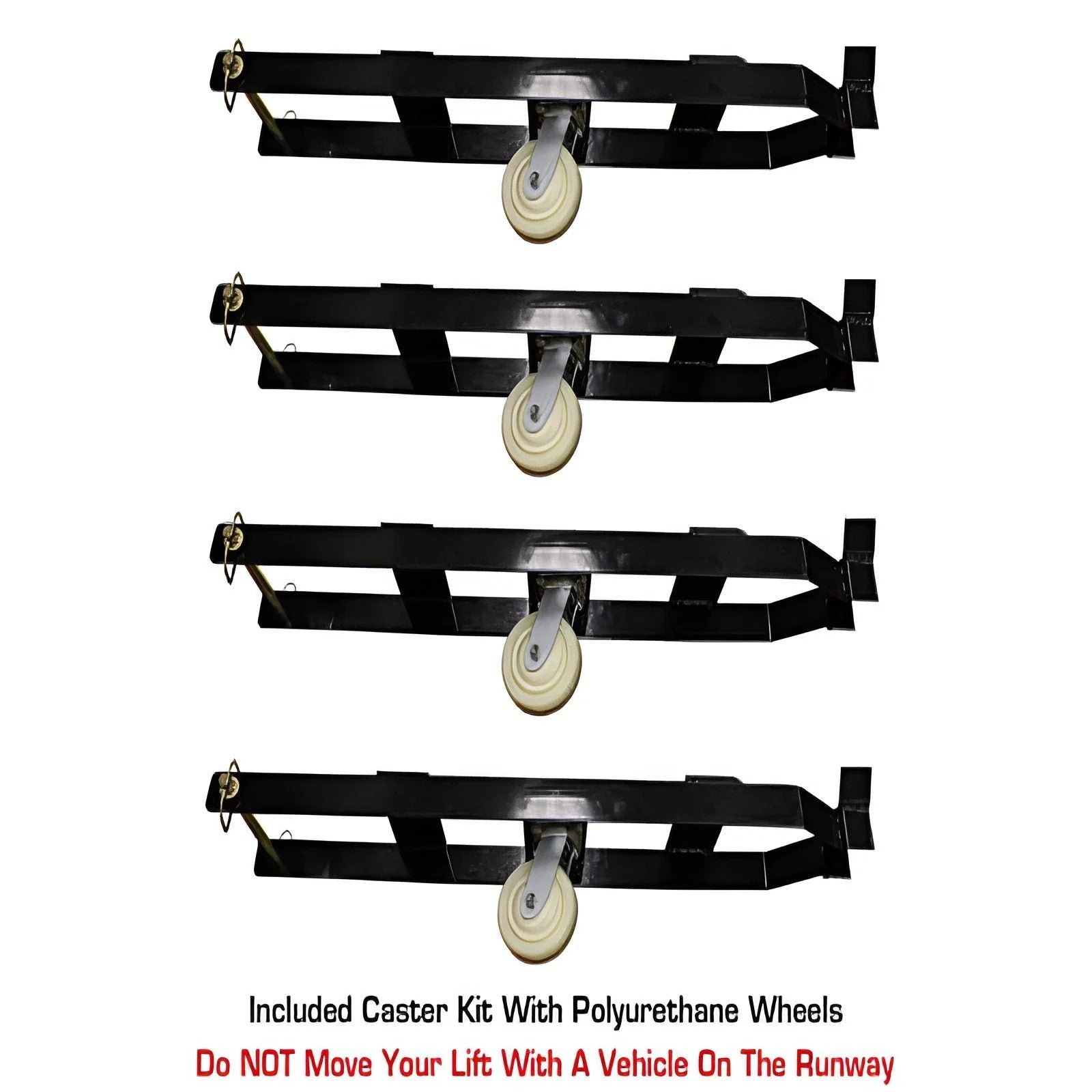

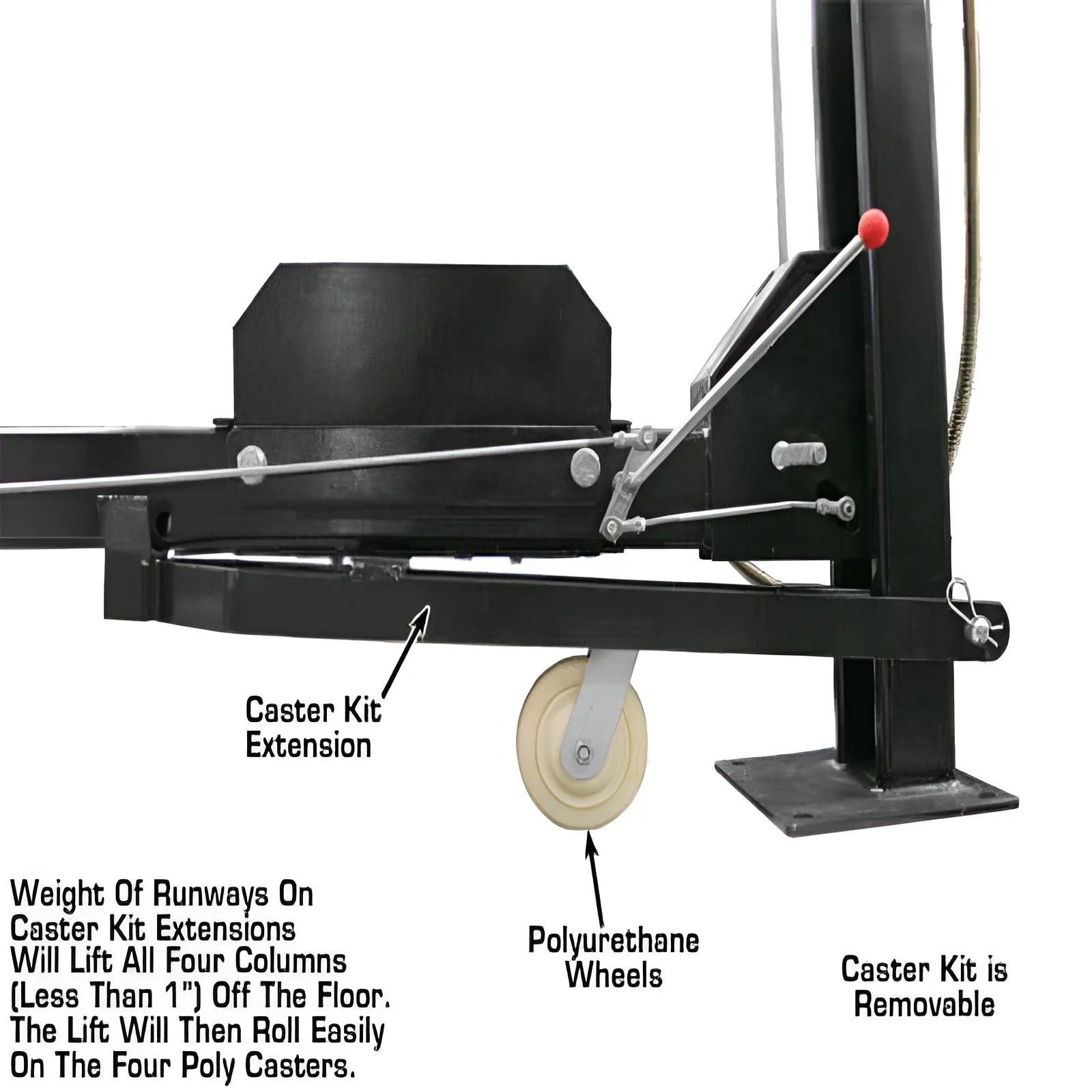

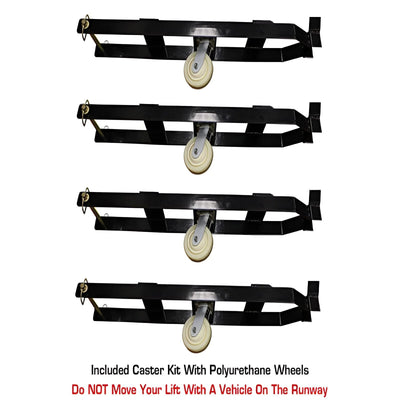

- Caster kit with polyurethane wheels included

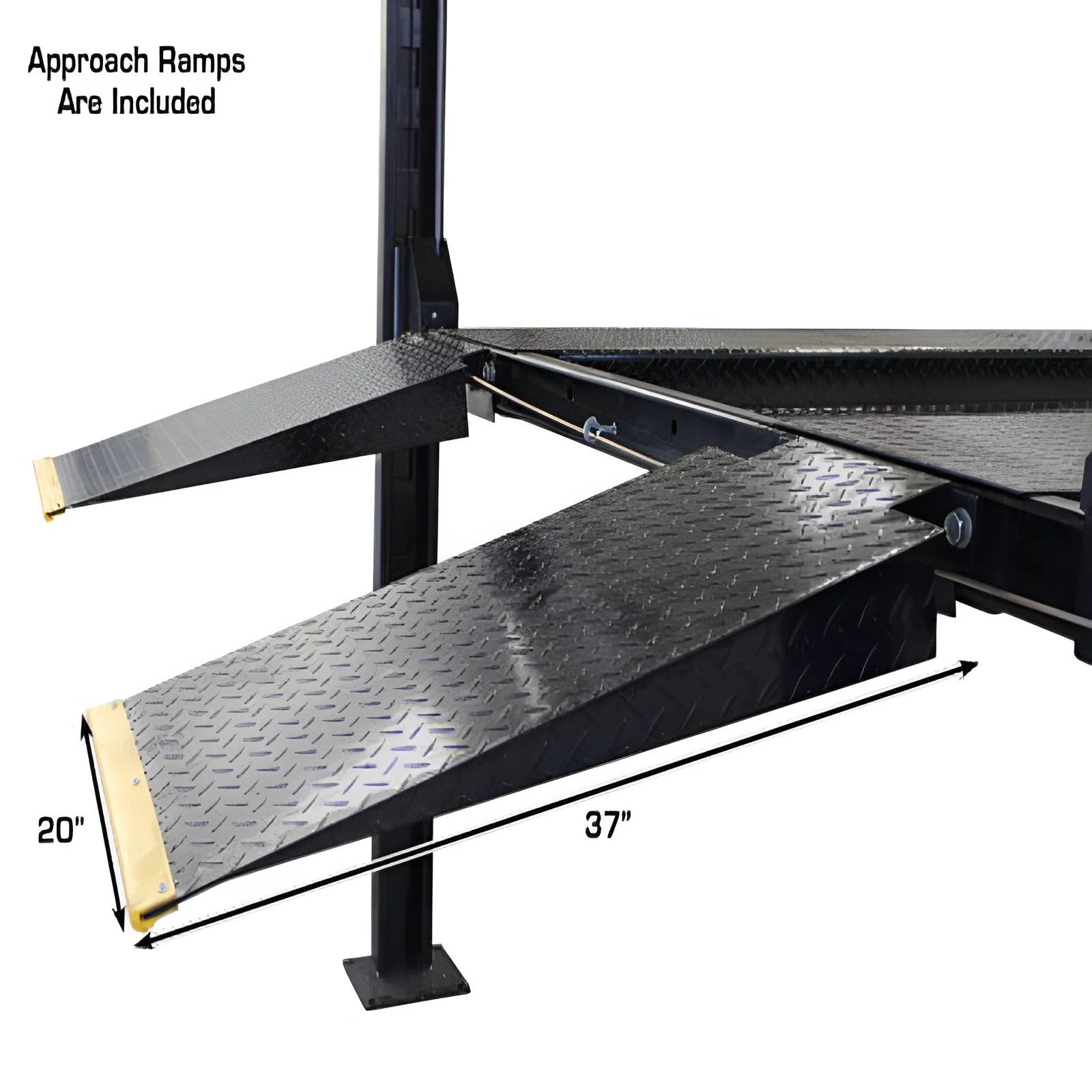

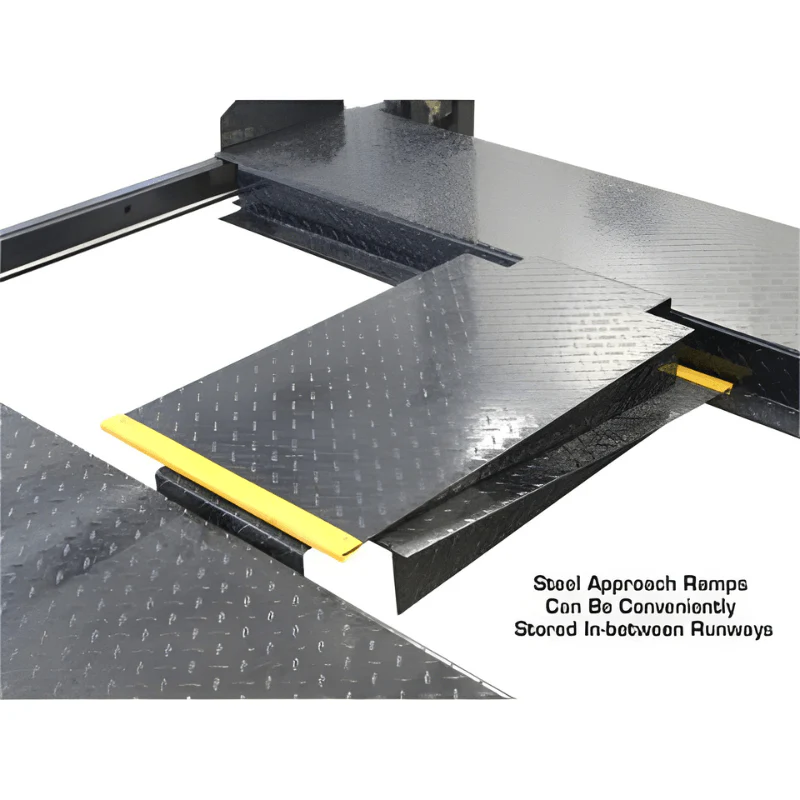

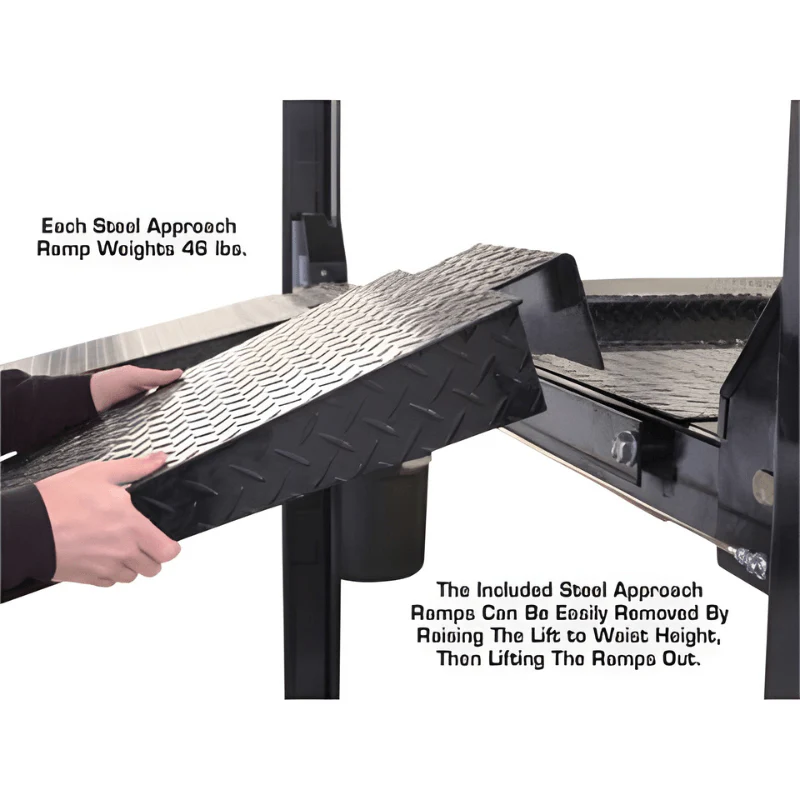

- Steel approach ramps included

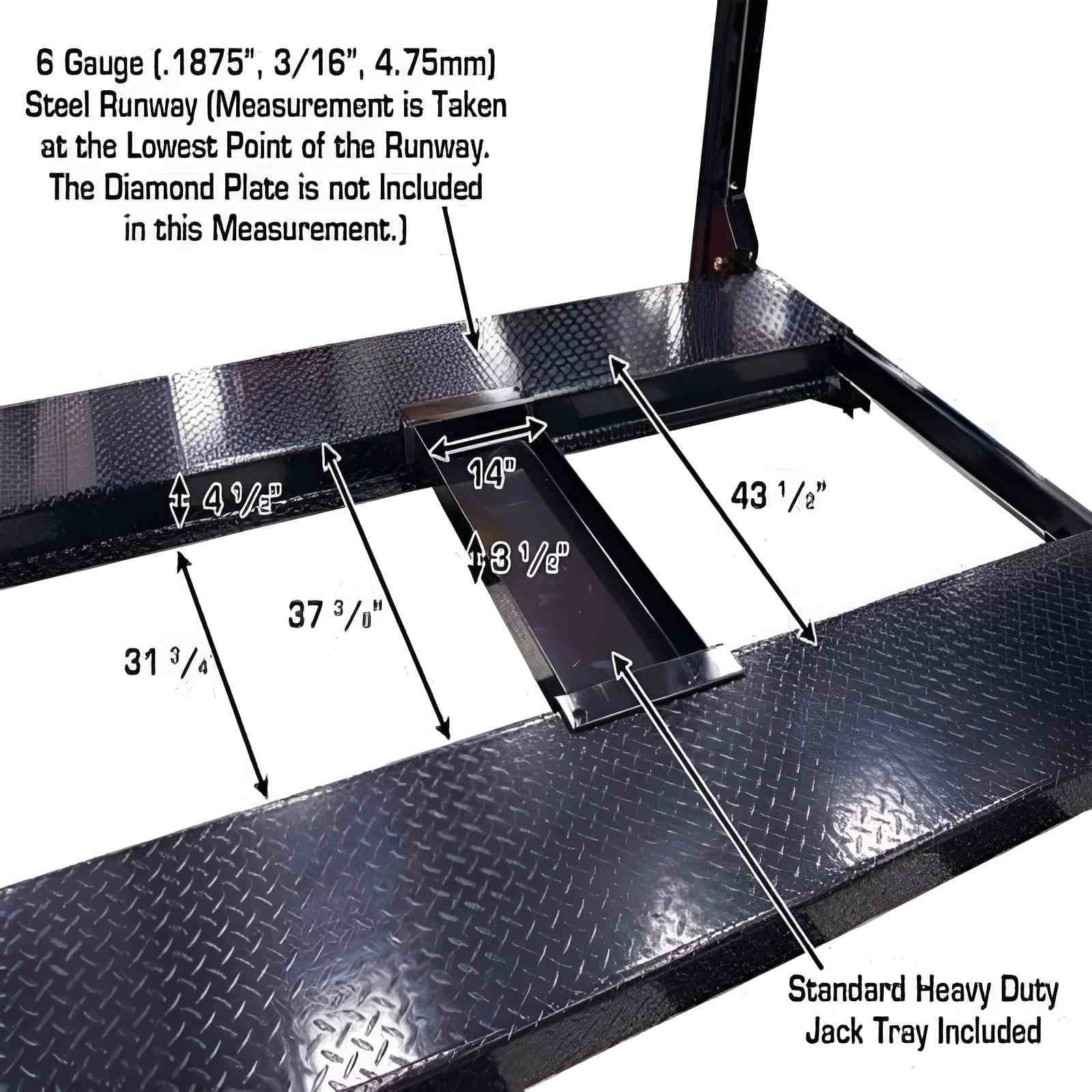

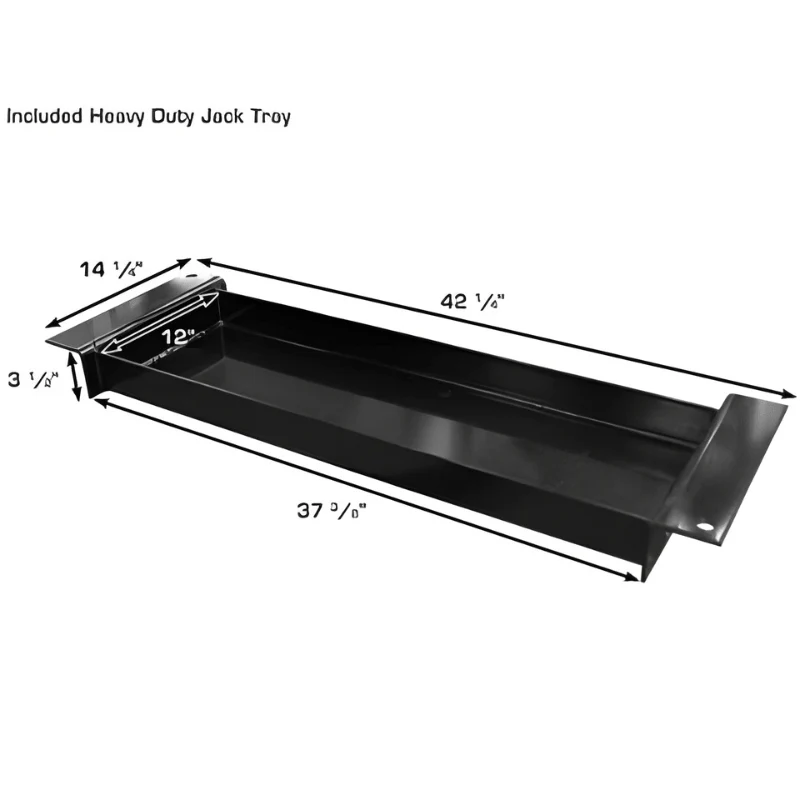

- Steel jack tray included
- 4 plastic drip trays included
- 4 wheel stops included

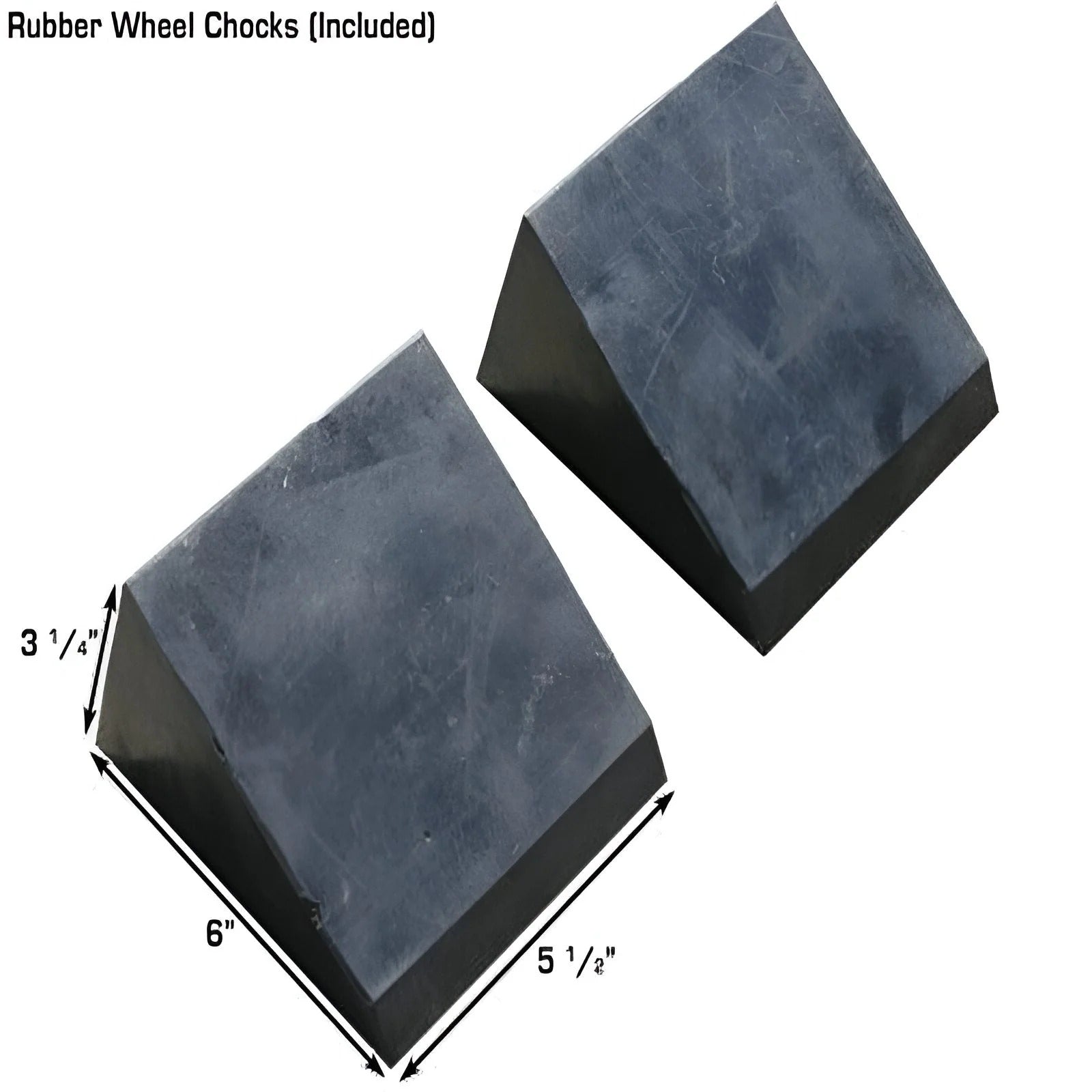

- 2 rubber wheel chocks included
- Suitable for vehicle storage and light service work
- 110V electric operation (30 amp breaker required)
- 2-year structural warranty, 1-year hydraulic warranty (parts only)

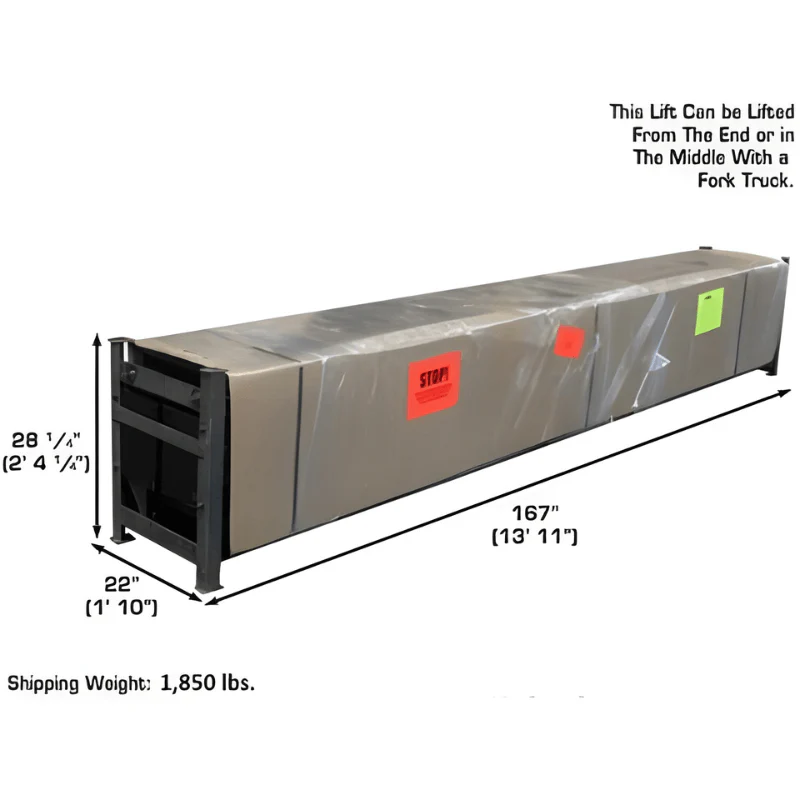

- Shipping weight: 1,850 lbs

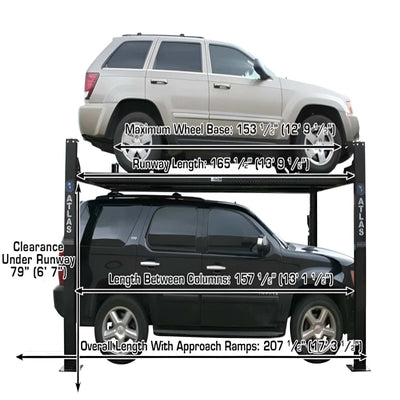

| Specifications | Details |
|---|---|
| Capacity | 8,000 lb |

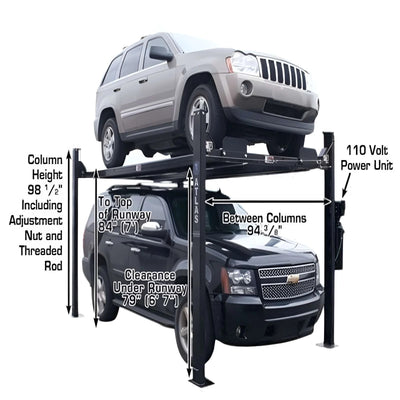

| Lifting Height To Top Of Runway | 84 1/4" (7’ 1/4") |
| Clearance Under Runways | 79" (6’ 7") |
| Height Of Columns | 98 1/2" (8’ 2 1/2") |

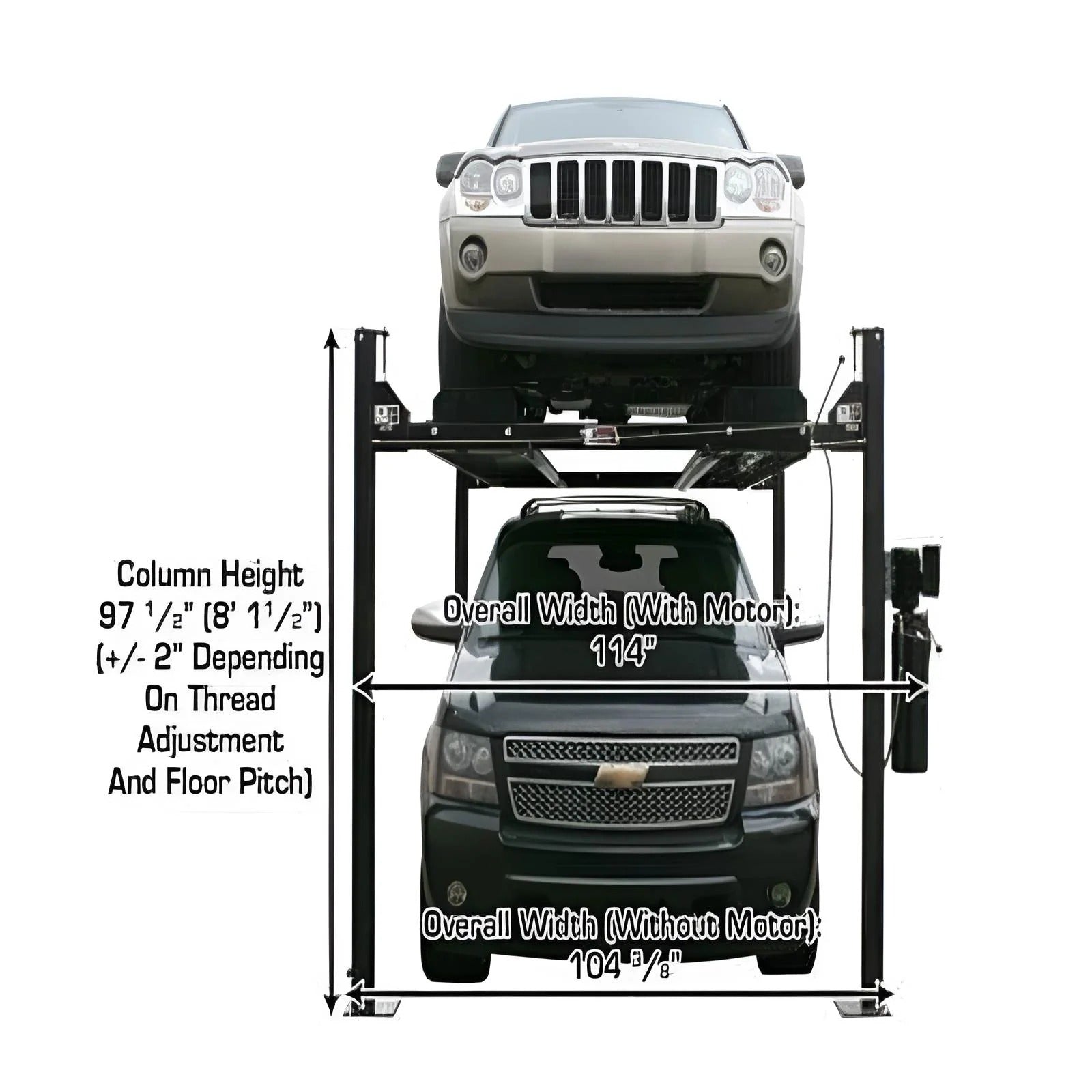

| Overall Width (Without Motor) | 104 1/2" (8’ 8 1/2") |
| Overall Width (With Motor) | 115" (9’ 7") |
| Overall Length With Approach Ramp | 206 3/4" (17’ 2 3/4") |
| Approach Ramp | 37" (3’ 1") |
| Runway Width | 21 1/4" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length | 165 3/4" (13’ 9 3/4") |
| Runway Thickness | 4 1/2" |

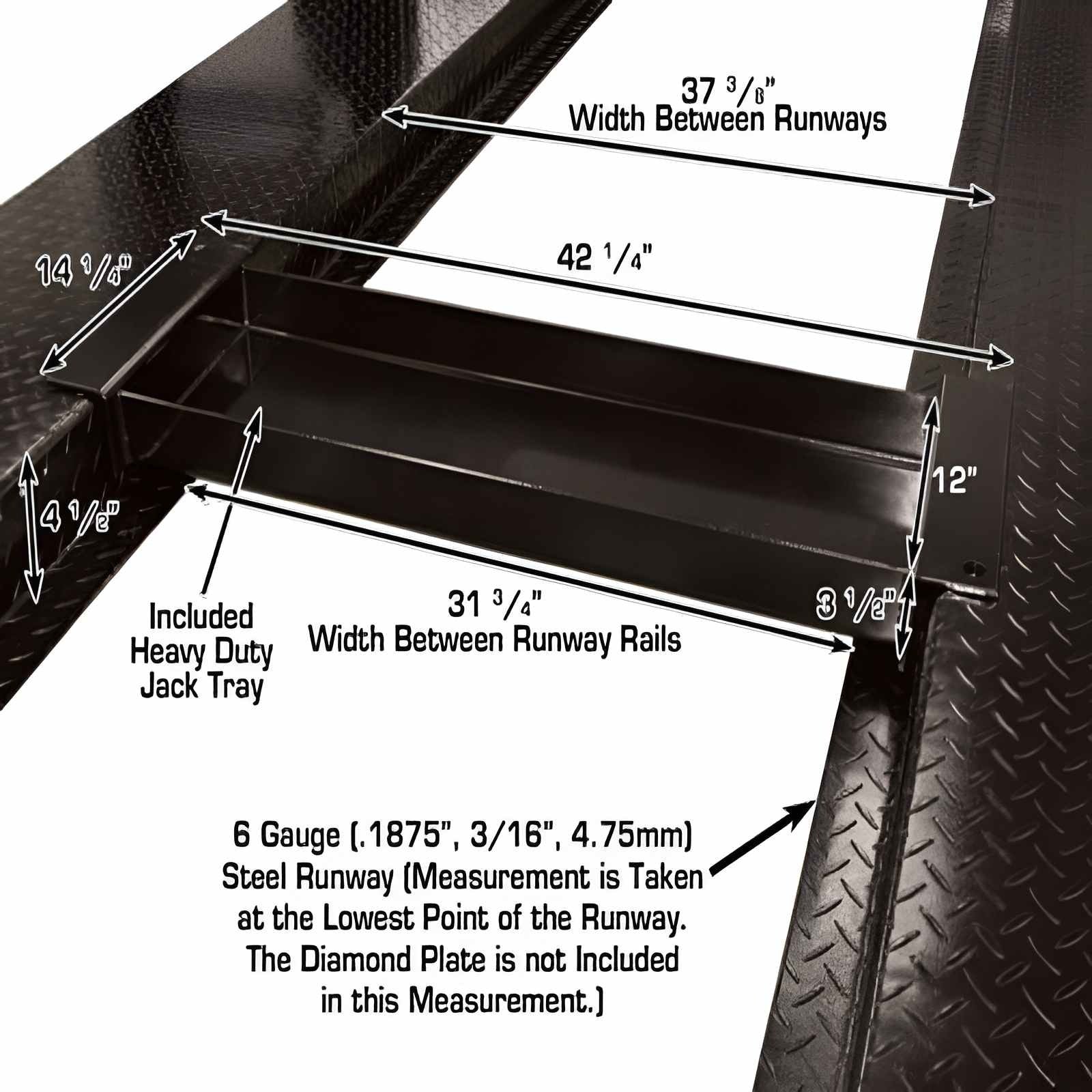

| Width Between Runways | 37" (3’ 1") |
| Width Between Runway Rails | 31 1/2" (2’ 7 1/2") |
| Outside Runway To Outside Runway | 74 5/8" (6’ 2 5/8") |

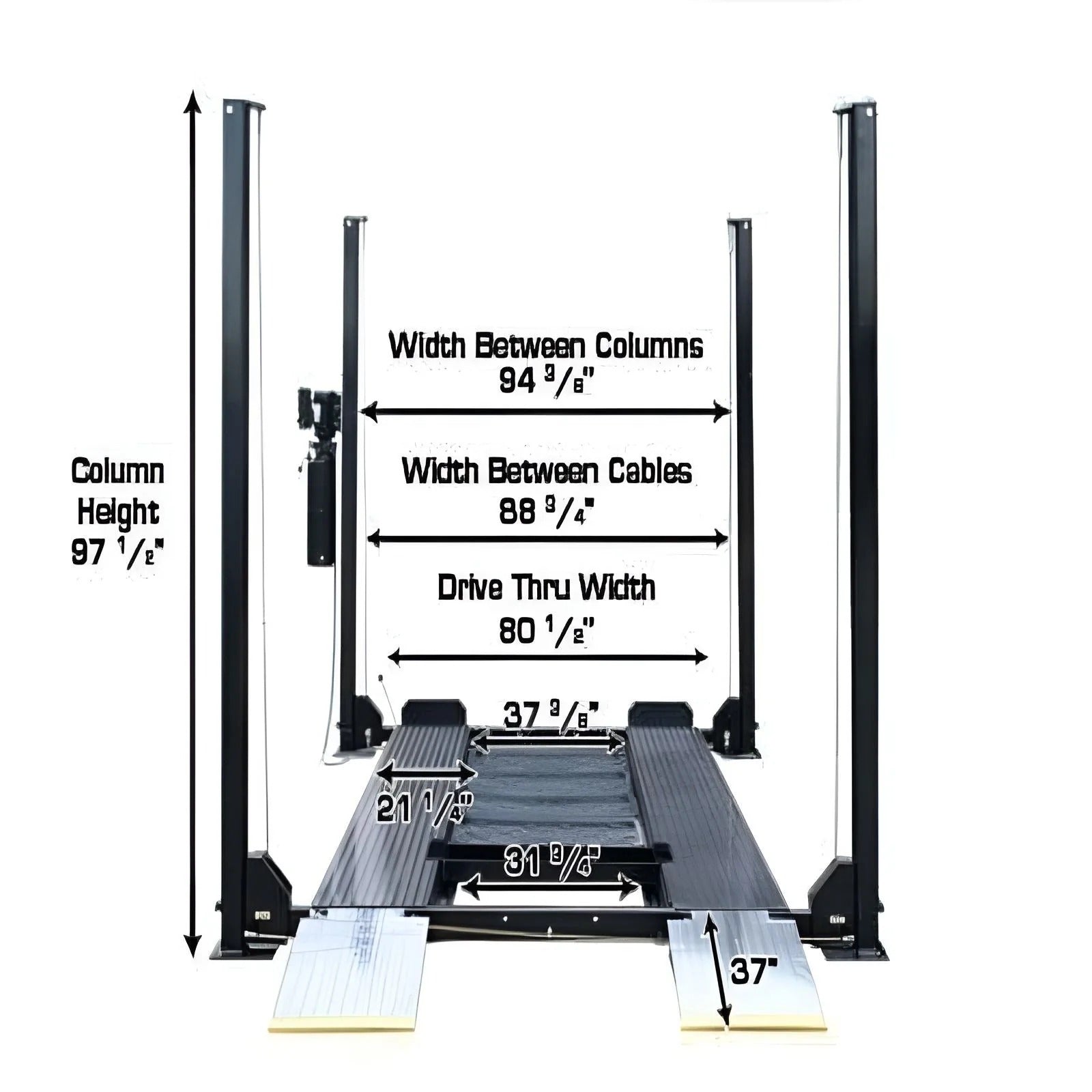

| Clearance Between Columns | 94 1/2" (7’ 10 1/2") |
| Length Between Columns | 157 1/2" (13’ 1 1/2") |
| Maximum Wheel Base | 153 1/2" (12’ 9 1/2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 80 1/2" (6’ 8 1/2") |

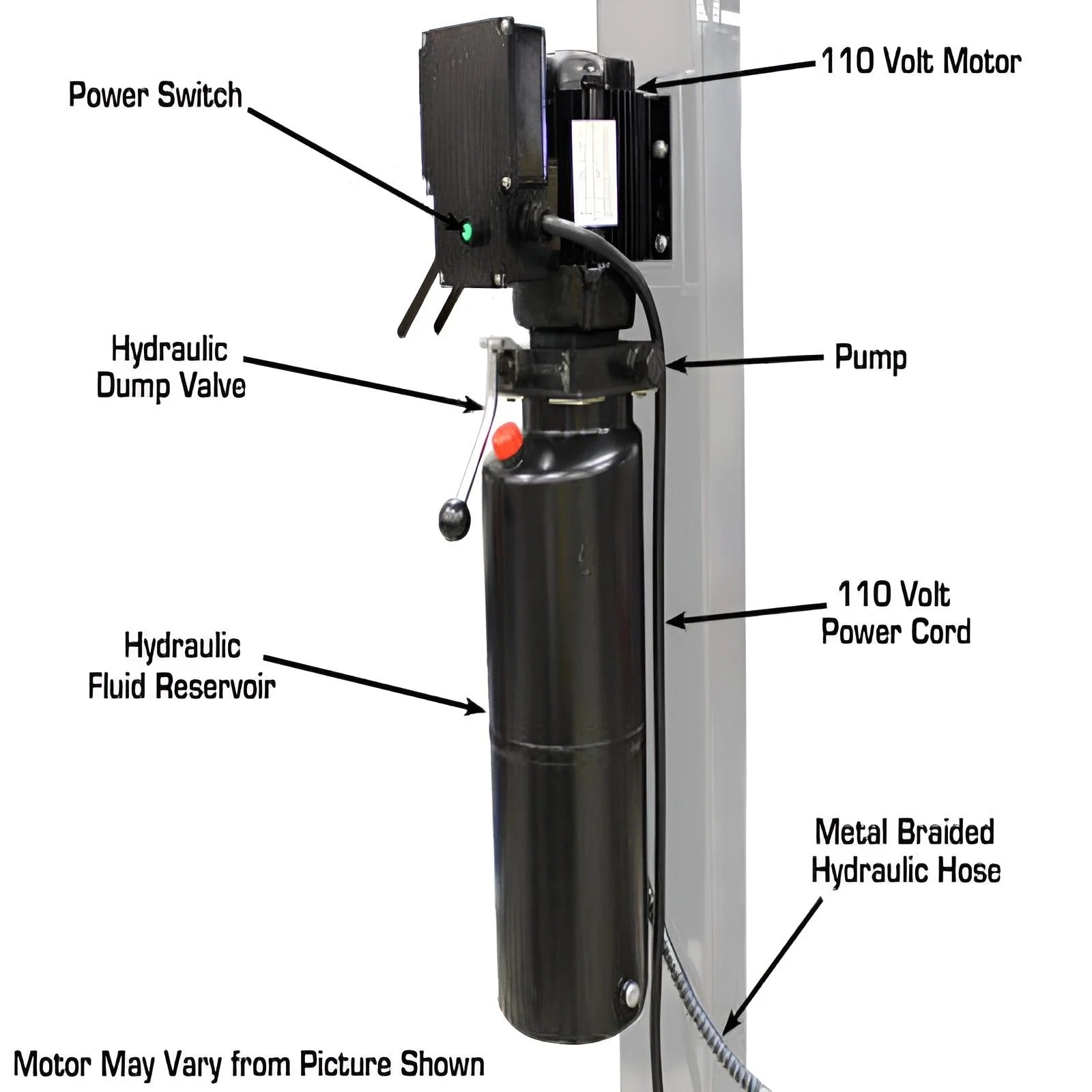

| Motor / Electrical Requirement | 110V — 30 amp breaker required |
| Shipping Weight | 1,850 lb |
