Atlas Garage PRO 8000EXT-L 4-Post Lift – 8,000 lb Extra Tall & ...

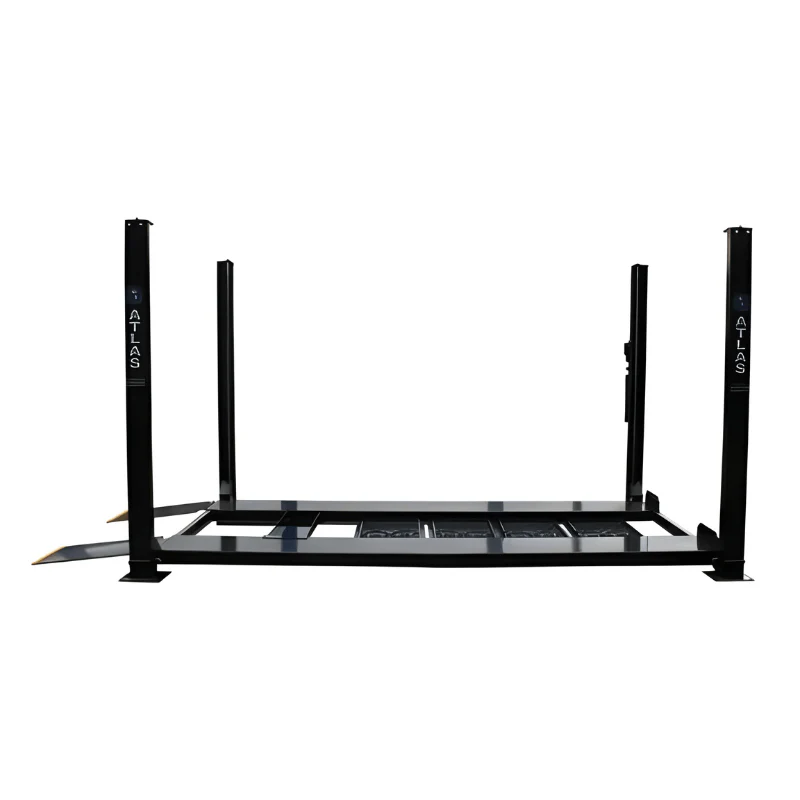

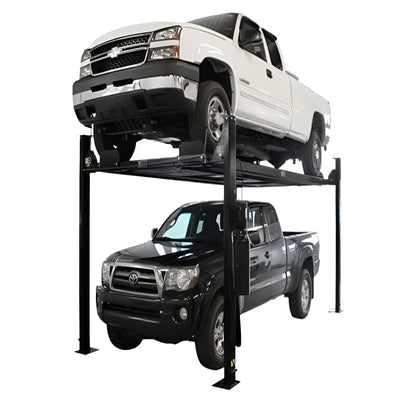

The Atlas Garage PRO8000EXT-L is an upgraded 4-post lift designed for users who need additional height and runway length to accommodate larger vehicles while maximizing storage space. With an 8,000 lb lifting capacity, it is ideal for home garages and restoration shops looking to store or service longer wheelbase vehicles.
This model combines the increased lifting height of the EXT version with extended runways and a wider footprint. Compared to the standard PRO8000, it is approximately 20 inches longer, 3 inches wider, and 14 inches taller, providing improved clearance and capacity for larger vehicles. The extended runway length allows it to accommodate most long-wheelbase pickup trucks, though it is not designed for dually trucks due to width limitations.

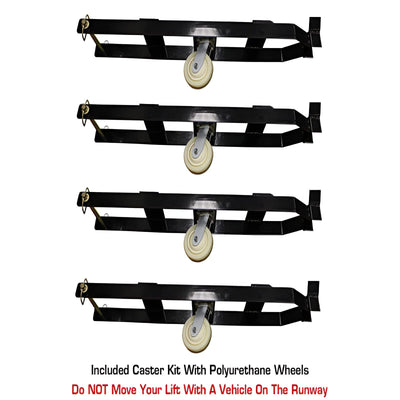

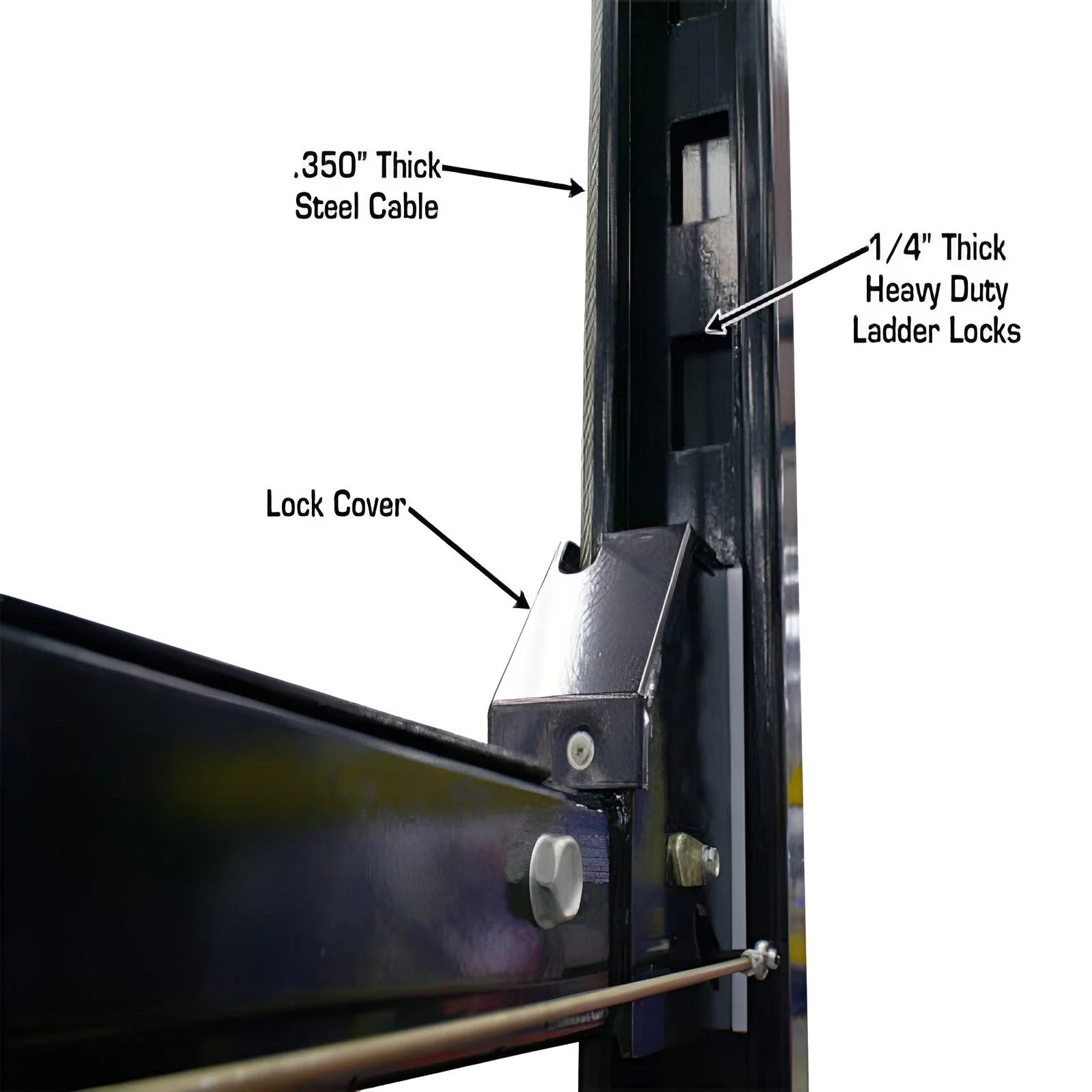

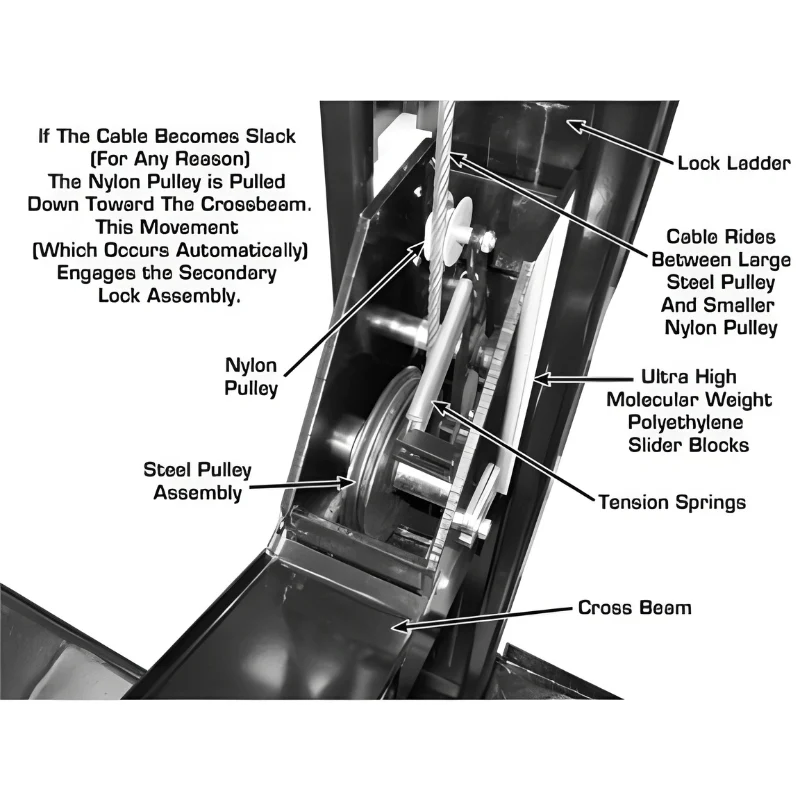

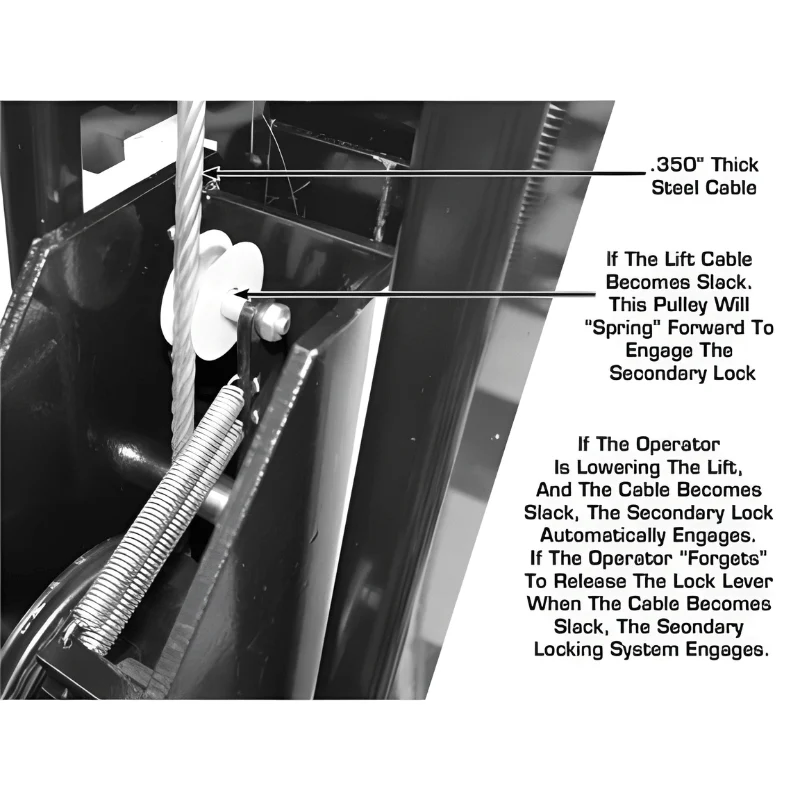

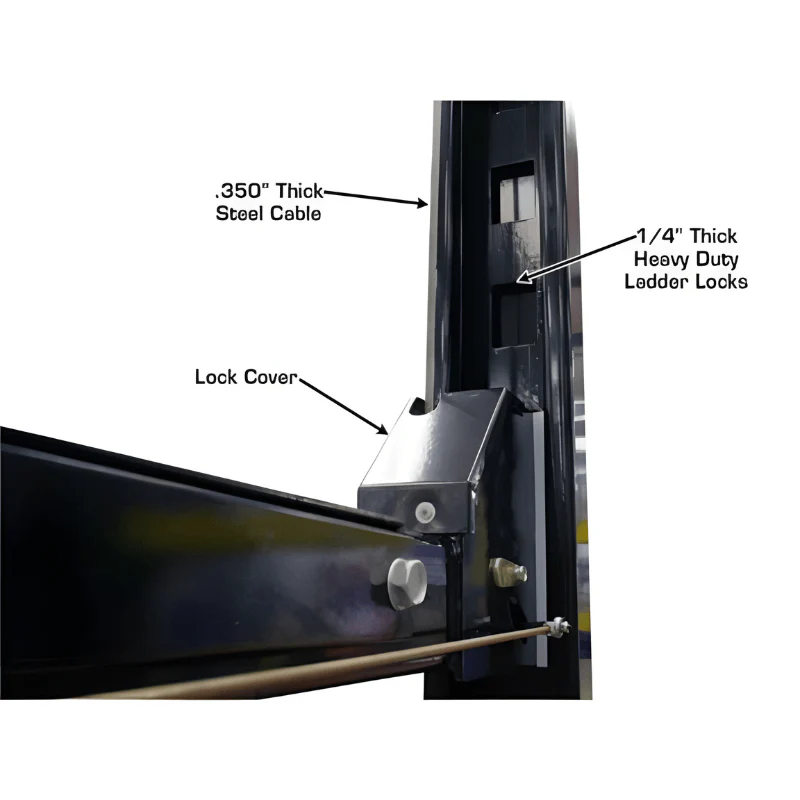

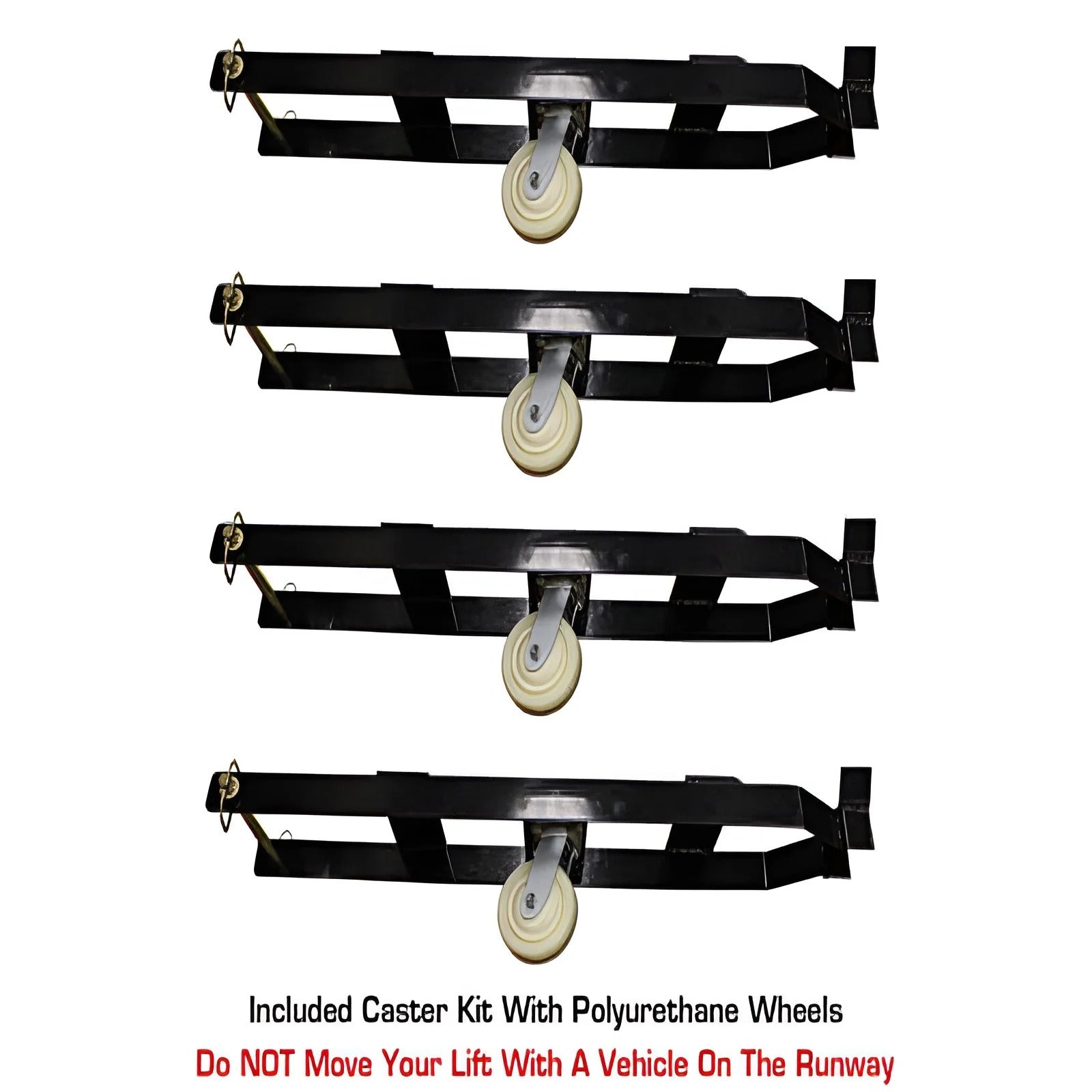

Built with a free-standing, portable design, the lift includes a caster kit with polyurethane wheels, allowing it to be easily repositioned within a workspace. Diamond-plated runways provide added traction and durability, while the lock ladder system and double lock safety system ensure secure operation.

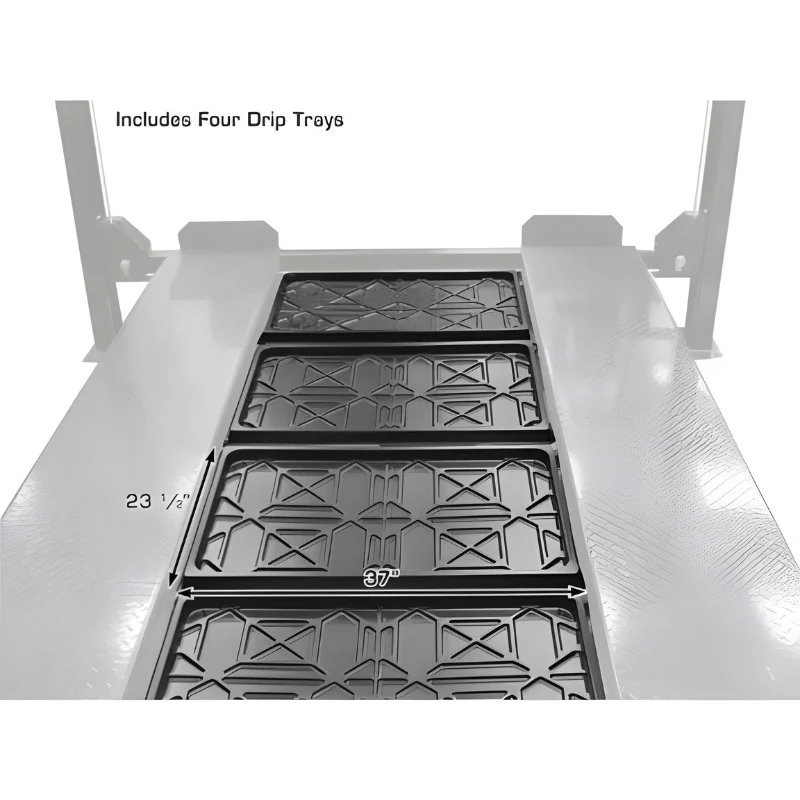

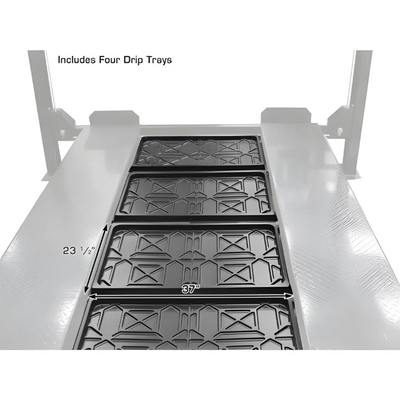

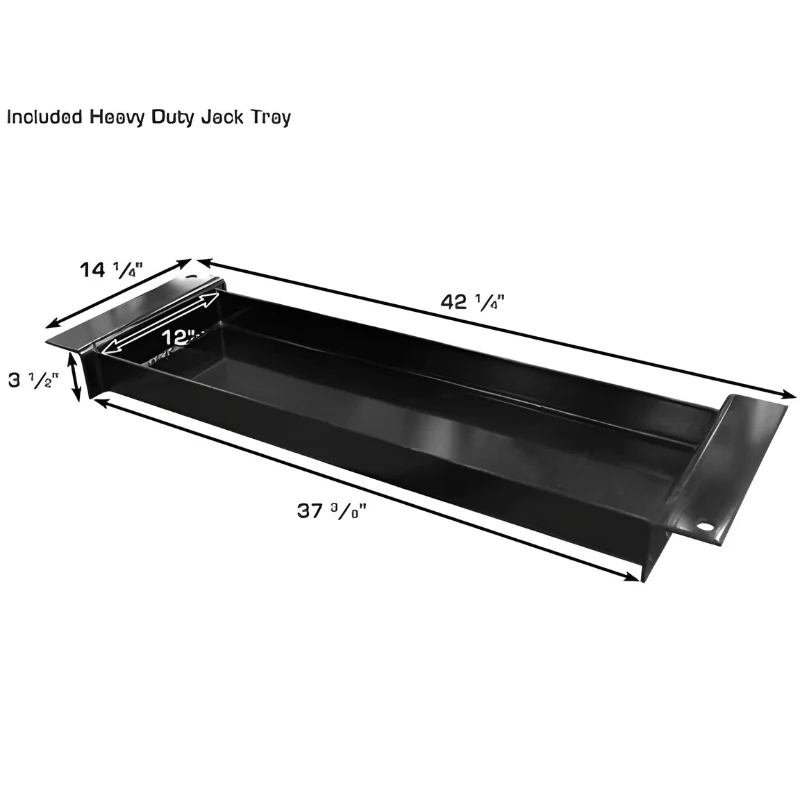

The lift is equipped with a single-point lock release for ease of use and operates on a 110V electrical system (30 amp breaker required). It also includes essential accessories such as approach ramps, a steel jack tray, plastic drip trays, wheel stops, and rubber wheel chocks, making it a complete solution for storage and light service work.
This lift is intended for residential and light-duty applications and is not designed for high-cycle commercial shop use.
| Specifications | Details |
|---|---|
| Capacity | 8,000 lb |

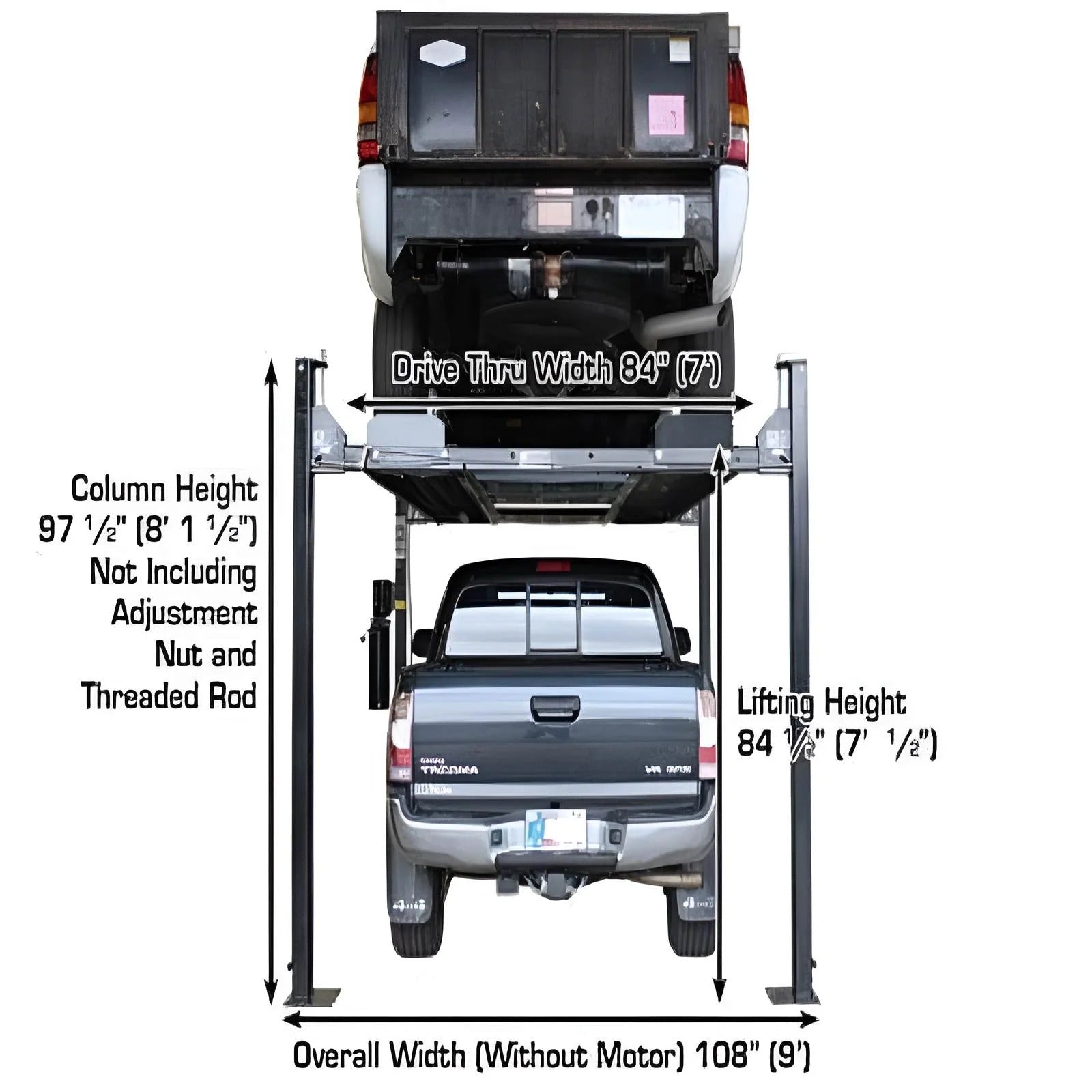

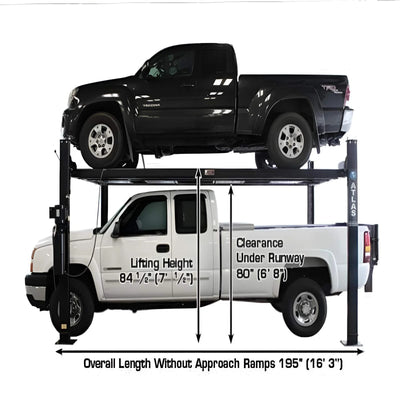

| Lifting Height To Top Of Runway | 84" (7’) |
| Clearance Under Runways | 78 1/2" (6’ 6 1/2") |

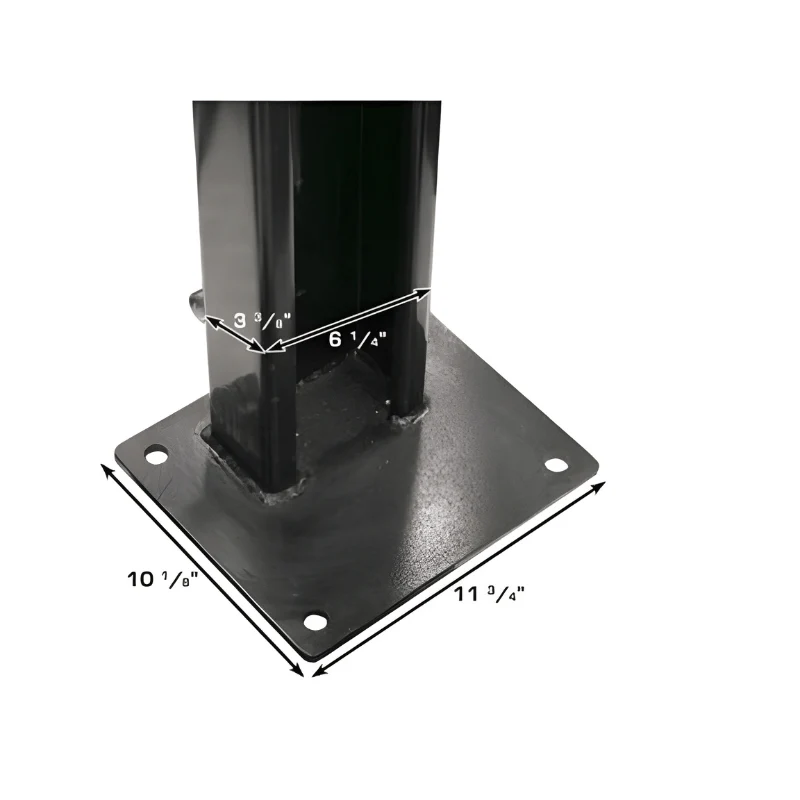

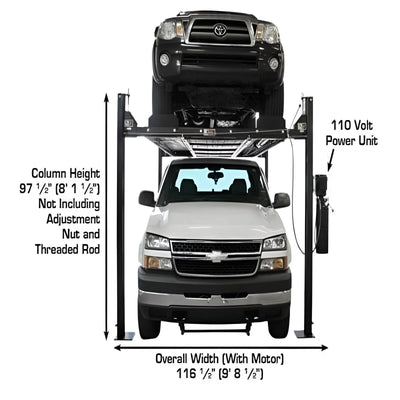

| Height Of Columns | 98 1/2" (8’ 2 1/2") |
| Overall Width (Without Motor) | 108" (9’) |
| Overall Width (With Motor) | 116 1/2" (9’ 8 1/2") |
| Overall Length With Approach Ramp | 222" (18’ 6") |

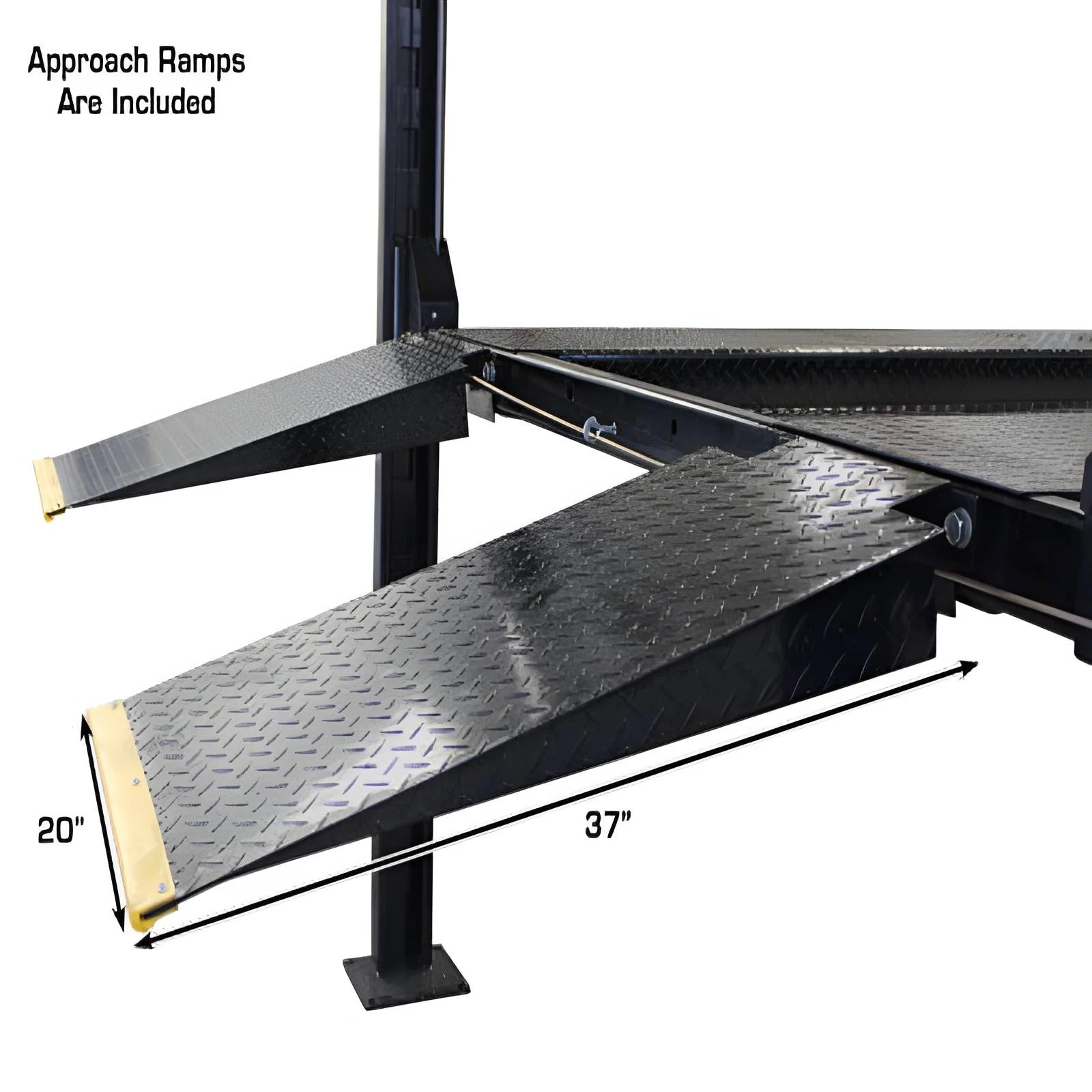

| Approach Ramp | 37" (3’ 1") |

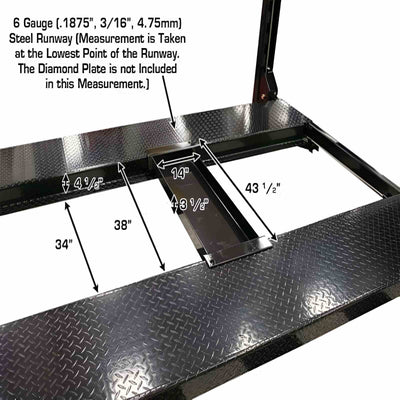

| Runway Width | 22" (w/ Rails) or 18 3/4" (Driving Surface) |

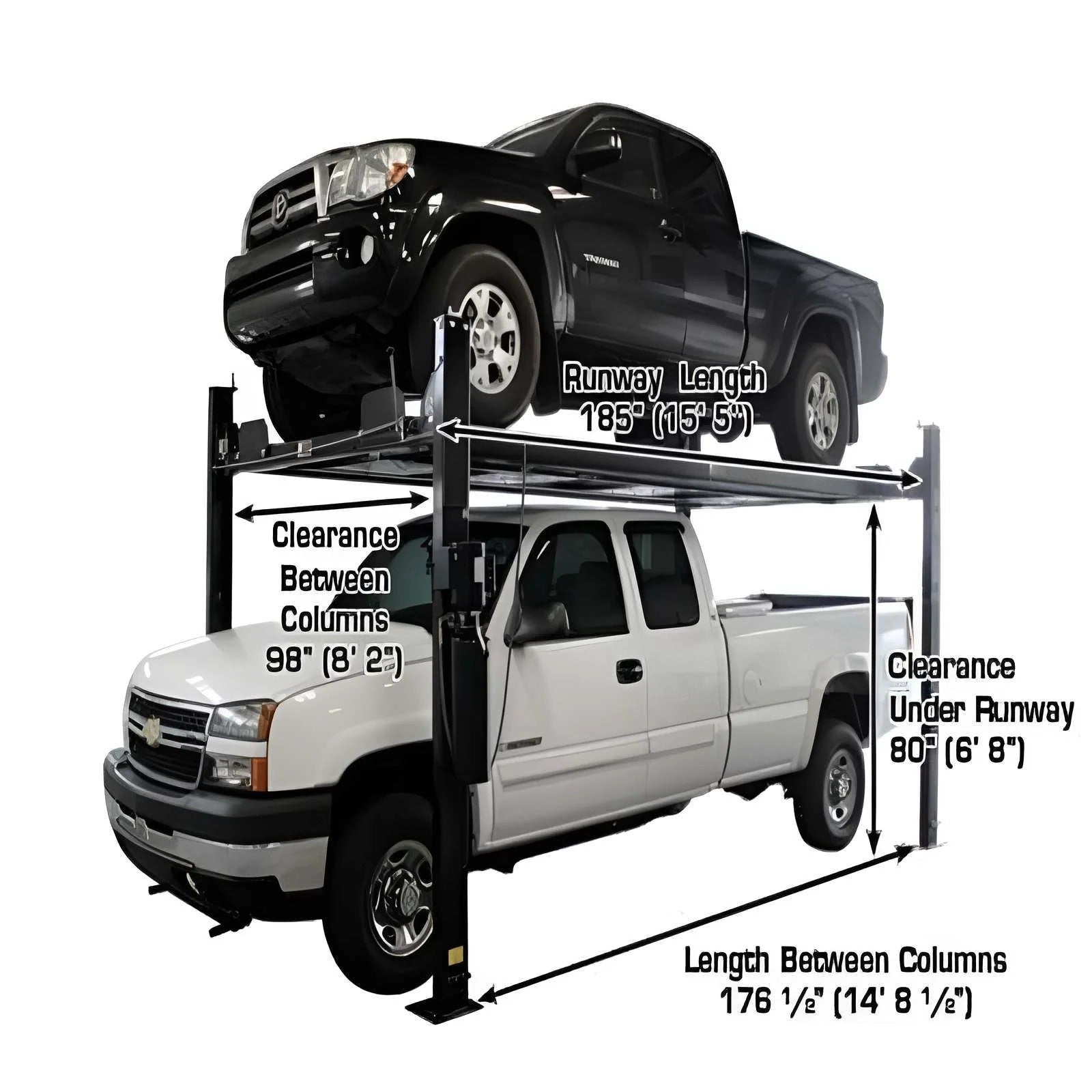

| Runway Length | 185" (15’ 5") |

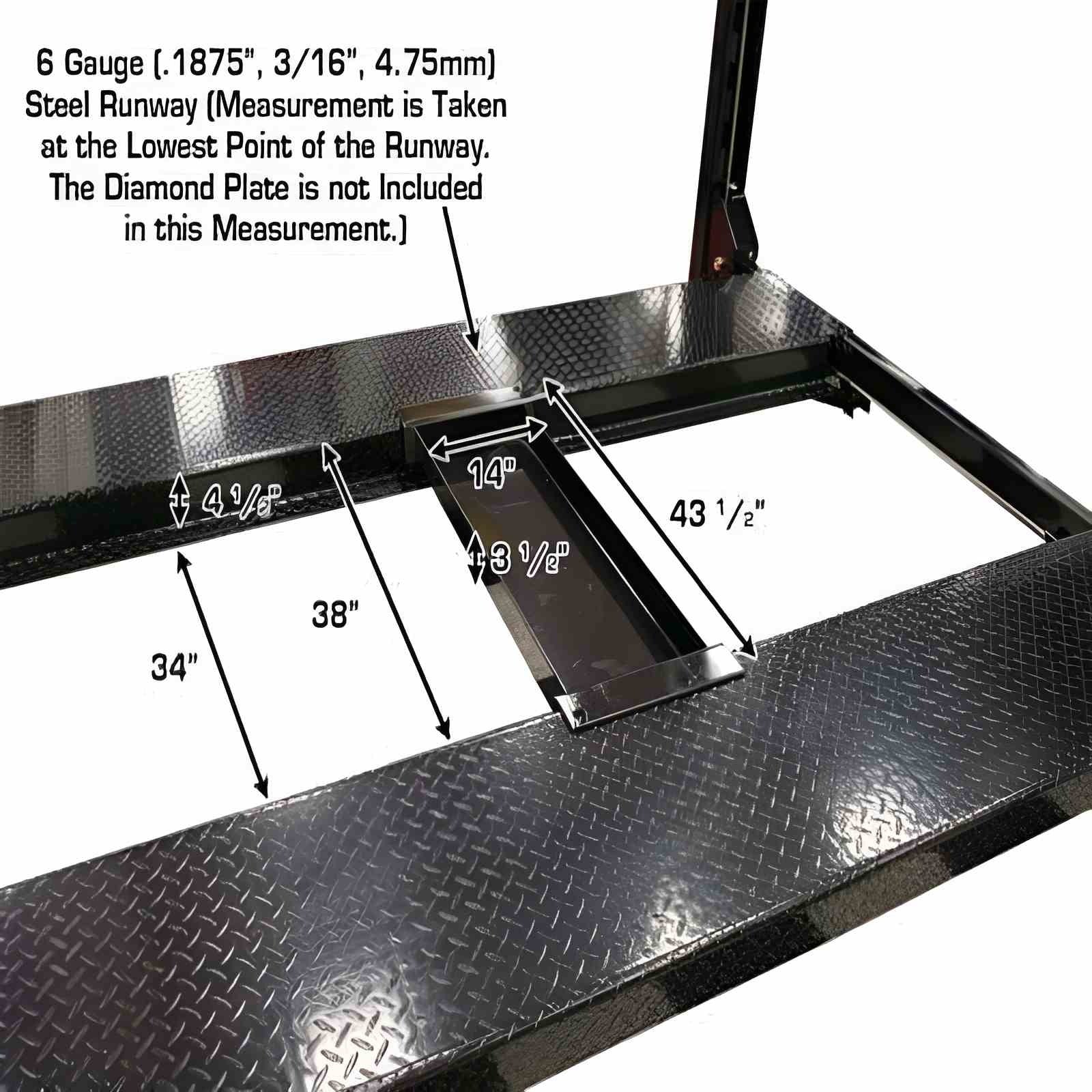

| Runway Thickness | 4 1/2" |
| Width Between Runways | 38" (3’ 2") |
| Width Between Runway Rails | 34" (2’ 10") |
| Outside Runway To Outside Runway | 77 3/4" (6’ 5 3/4") |

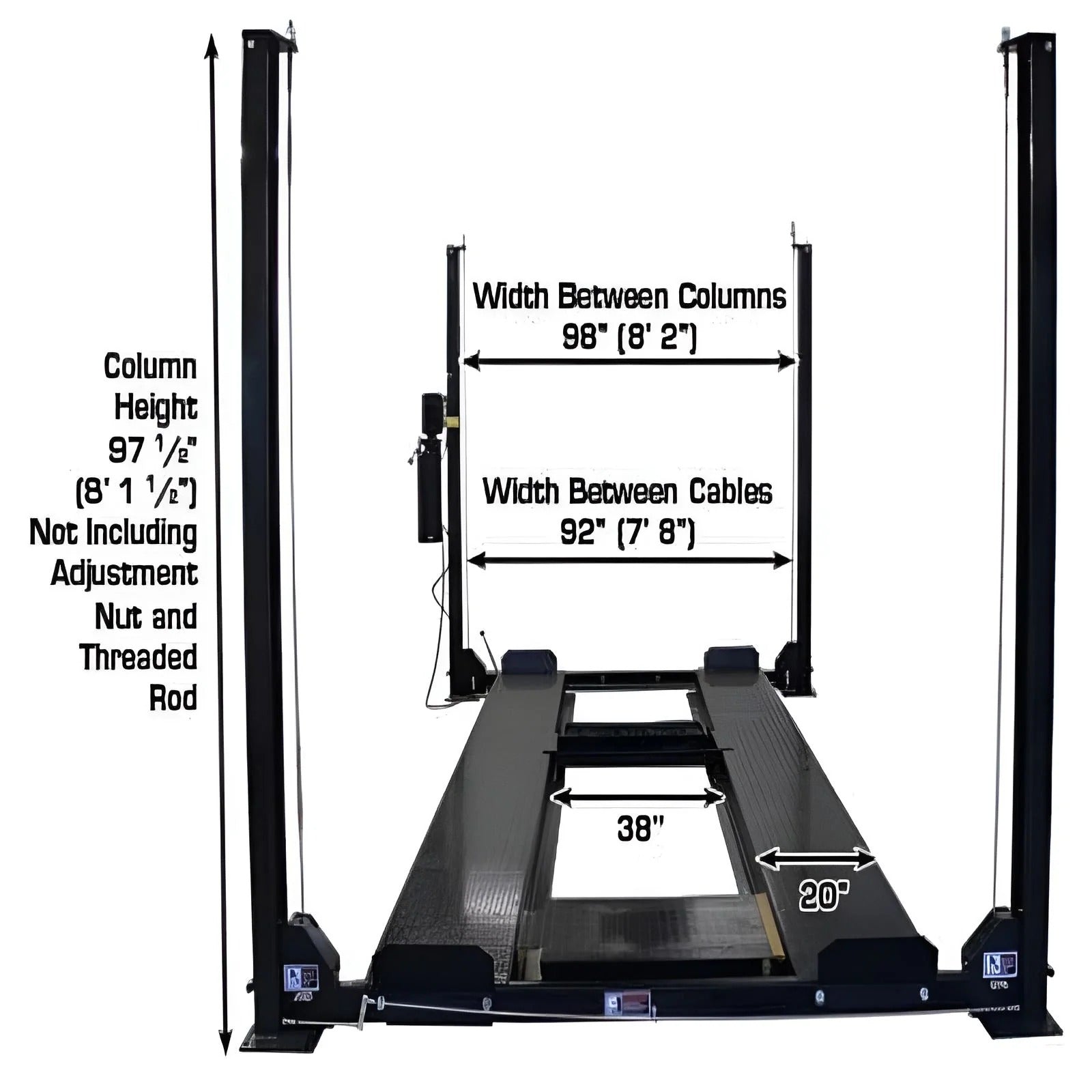

| Clearance Between Columns | 98" (8’ 2") |

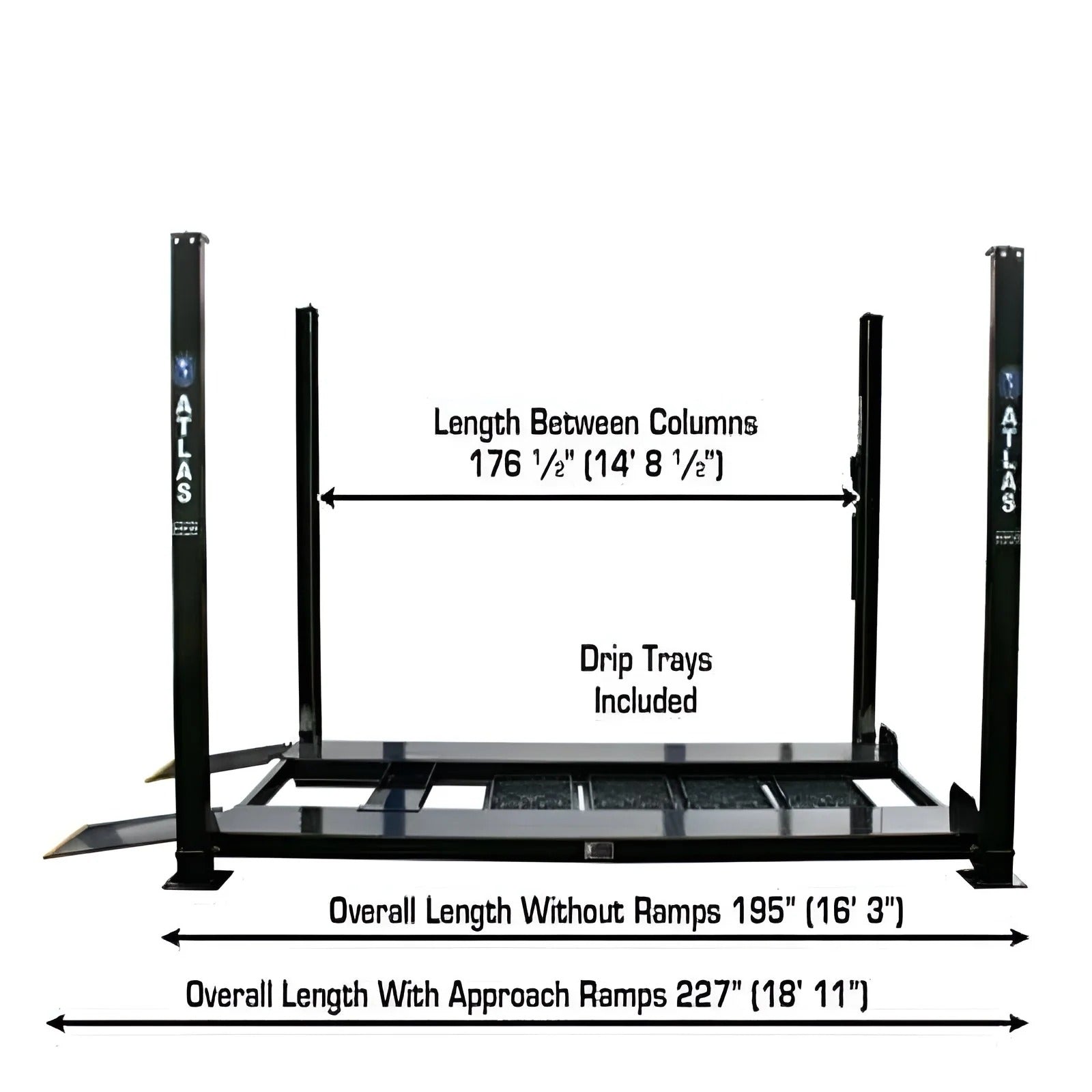

| Length Between Columns | 176 1/2" (14’ 8 1/2") |

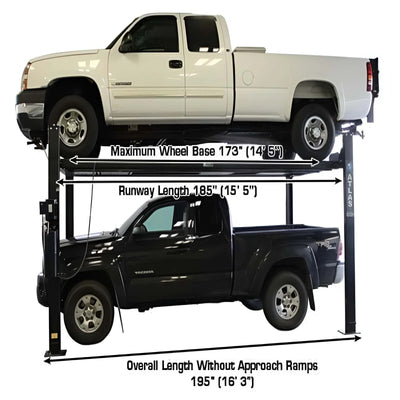

| Maximum Wheel Base | 173" (14’ 5") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 84" (7’) |

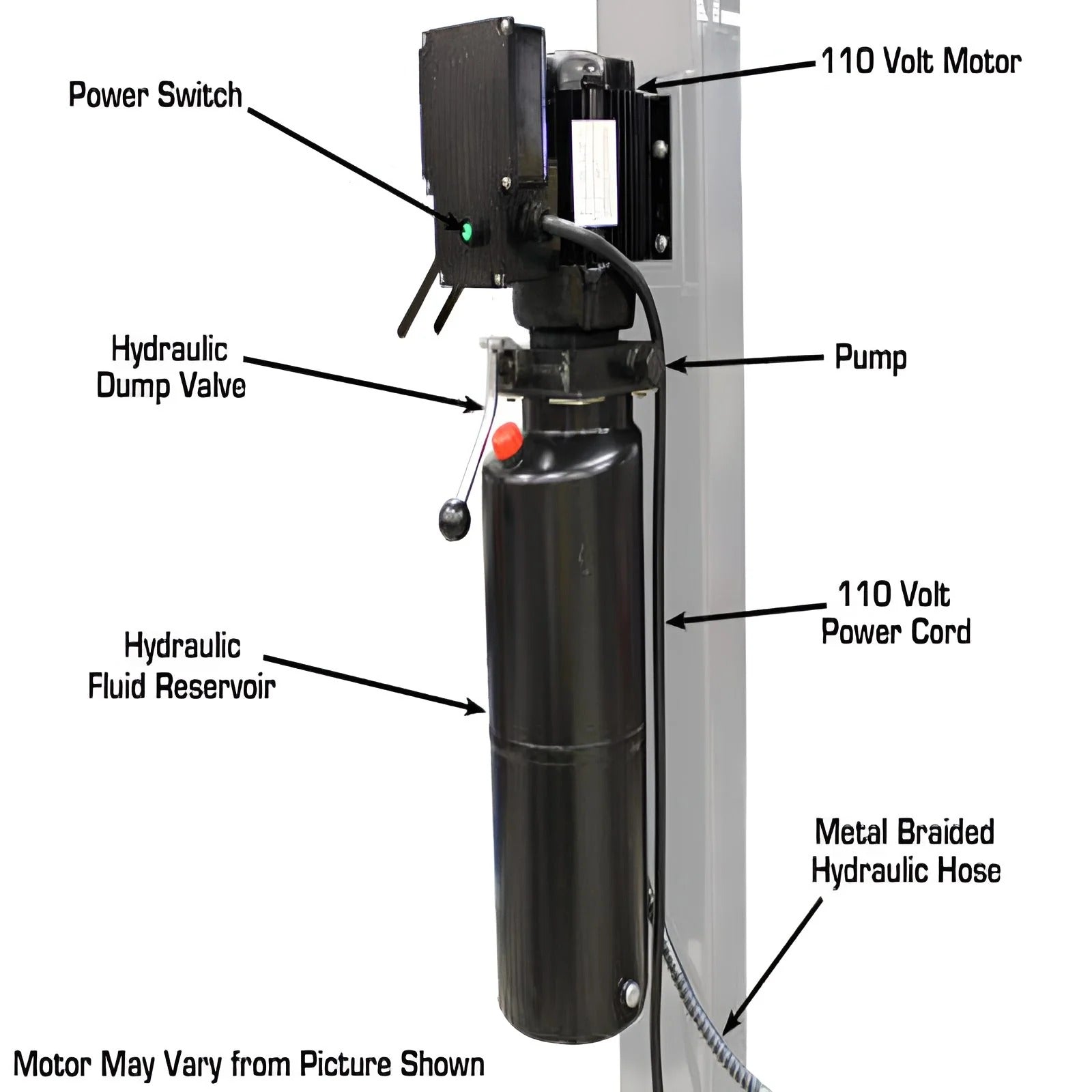

| Motor / Electrical Requirement | 110V — 30 amp breaker required |

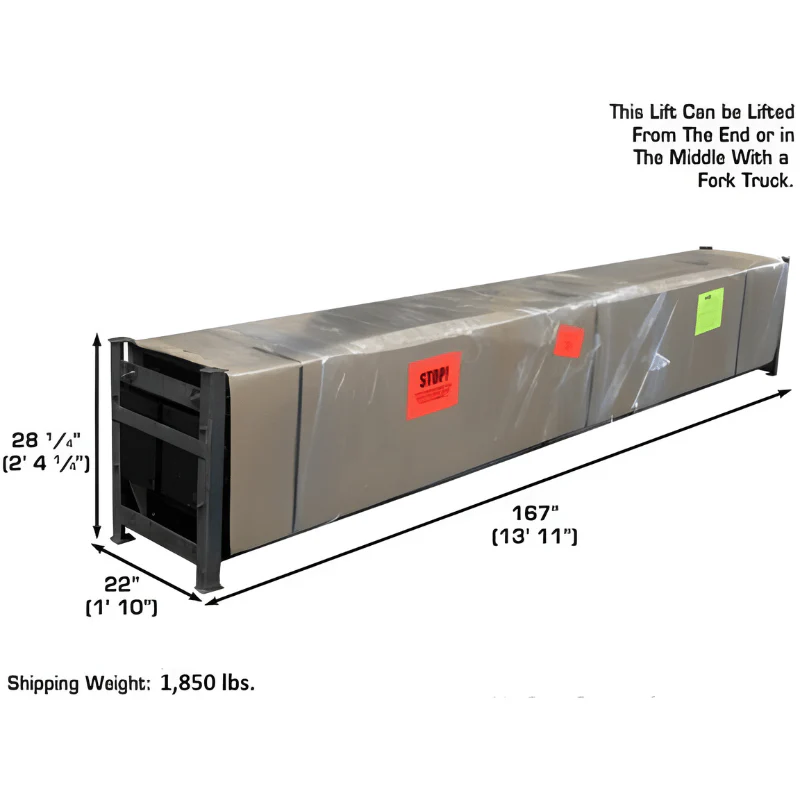

| Shipping Weight | 1,900 lb |
