Atlas PRO9000 9,000 lb Capacity 4-Post Garage Vehicle Lift
SKU: ATEXH-PRO9000
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

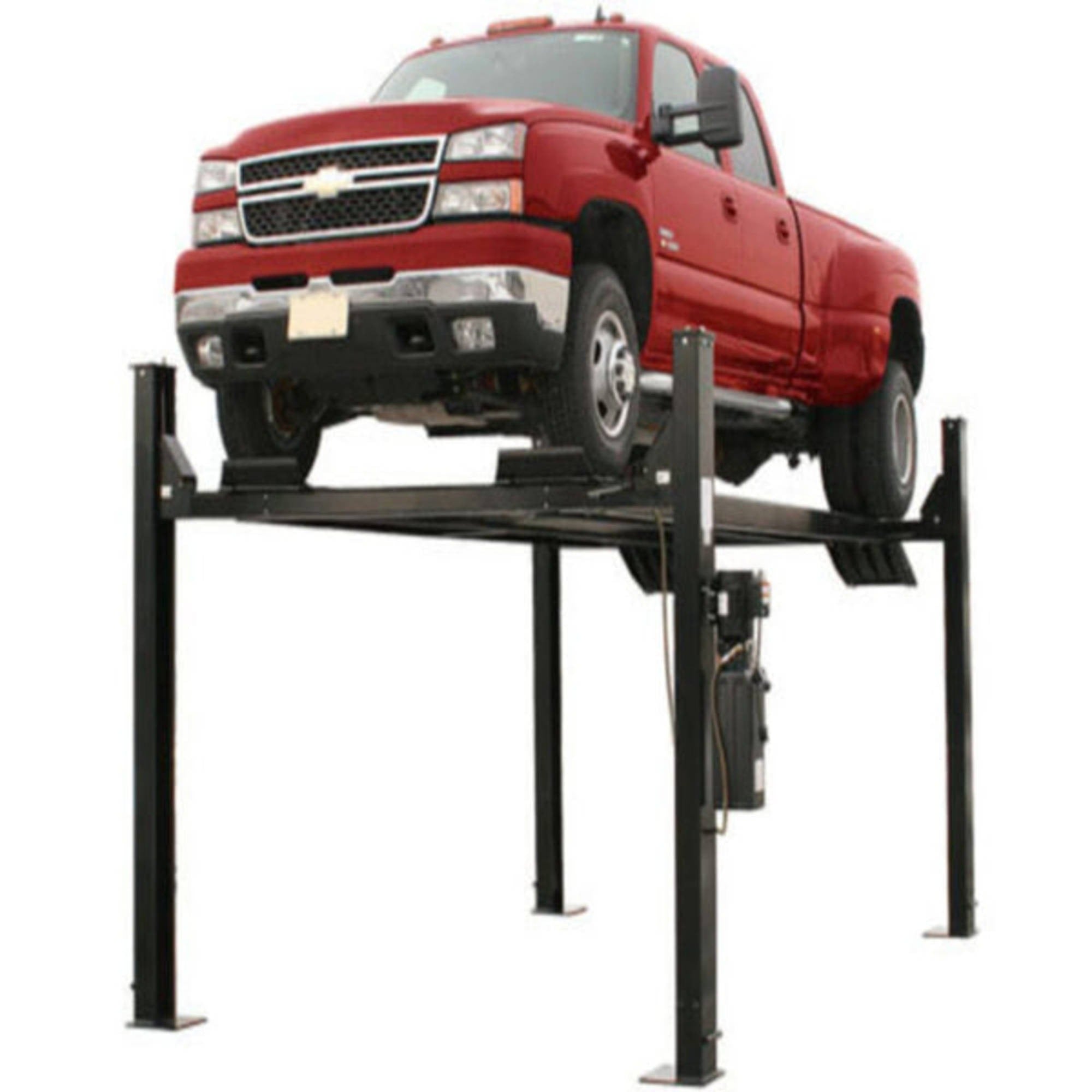

The Atlas Garage PRO9000 is a heavy-duty portable 4-post lift built for both serious home garages and light commercial use. With a 9,000 lb capacity and one of the longest runway designs in its class, this lift is engineered to handle long wheelbase vehicles, trucks, and even diesel duallys.
Designed with an extra tall, extra wide, and extra long footprint, the PRO9000 allows users to maximize storage by stacking vehicles while still maintaining excellent accessibility for service work. Its free-standing portable design, combined with the included caster kit, allows the lift to be repositioned easily within your garage or shop.
Built with a lock ladder system and double lock safety system, the PRO9000 ensures secure operation. It also includes a full set of accessories such as approach ramps, drip trays, and a jack tray, making it a complete solution for both storage and light service applications.
Features and Benefits
• 9,000 lb capacity
• Free-standing portable design
• Heavy-duty construction
• Extra tall, extra wide, and extra long design
• Single-point lock release

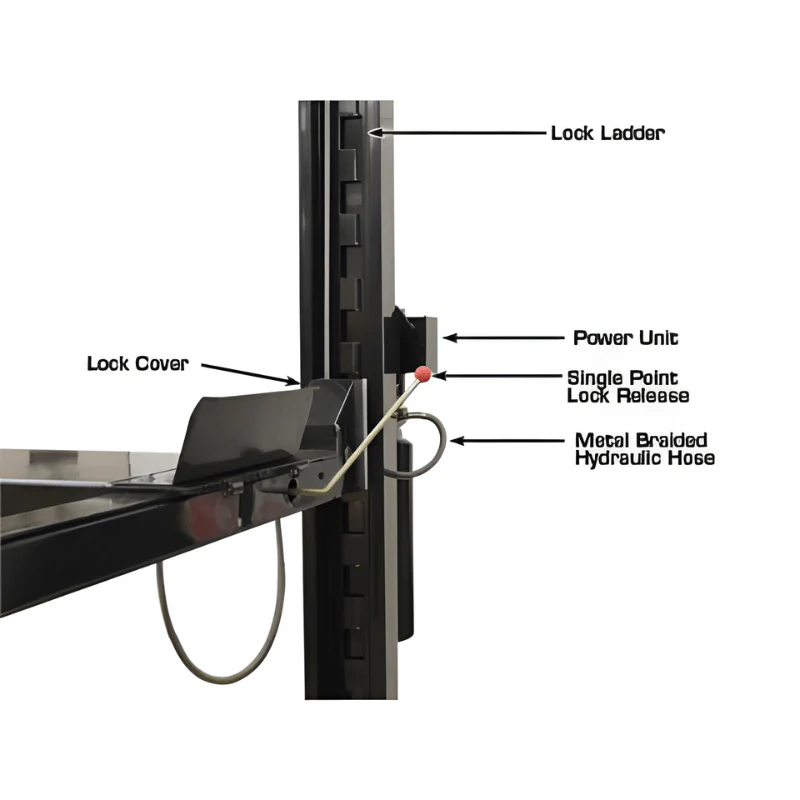

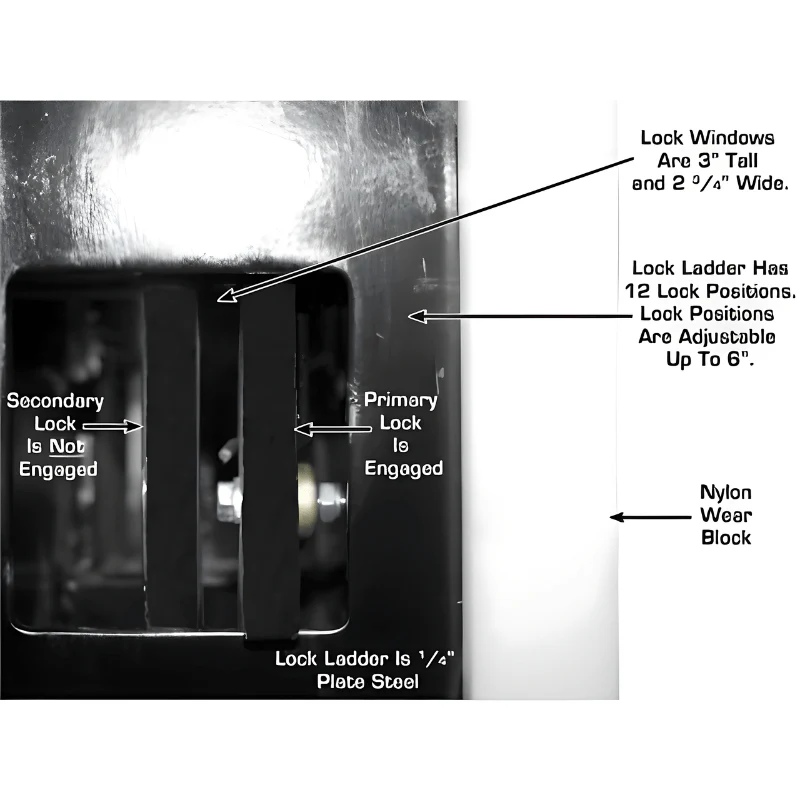

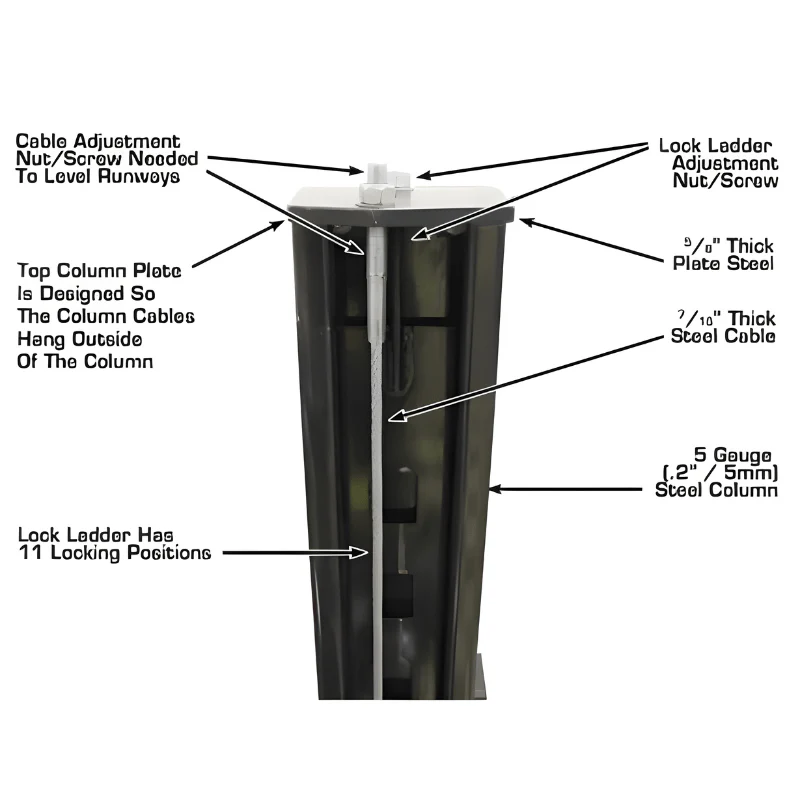

• Lock ladder design

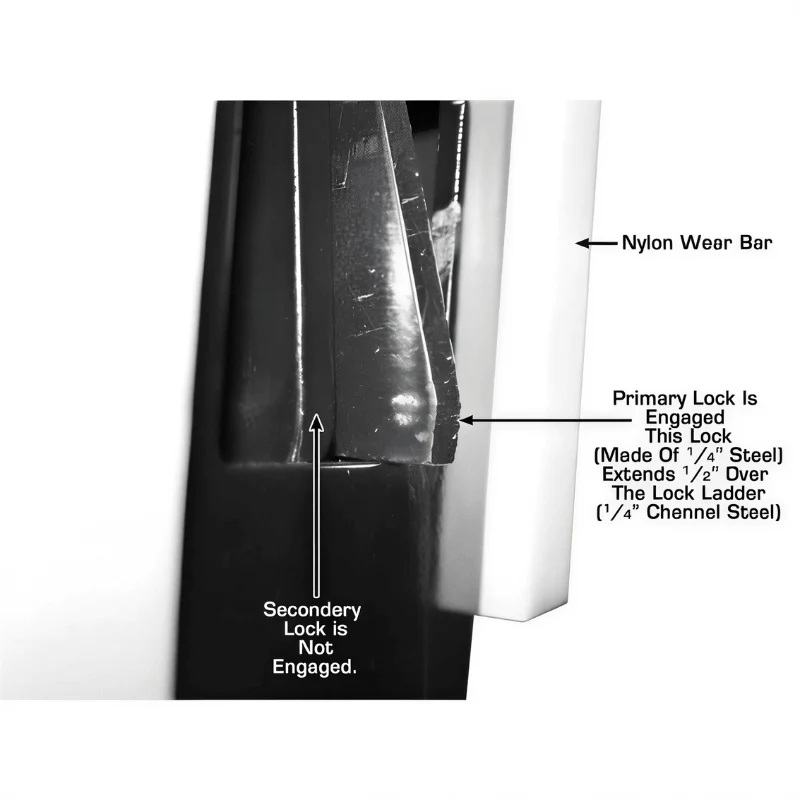

• Double lock safety system

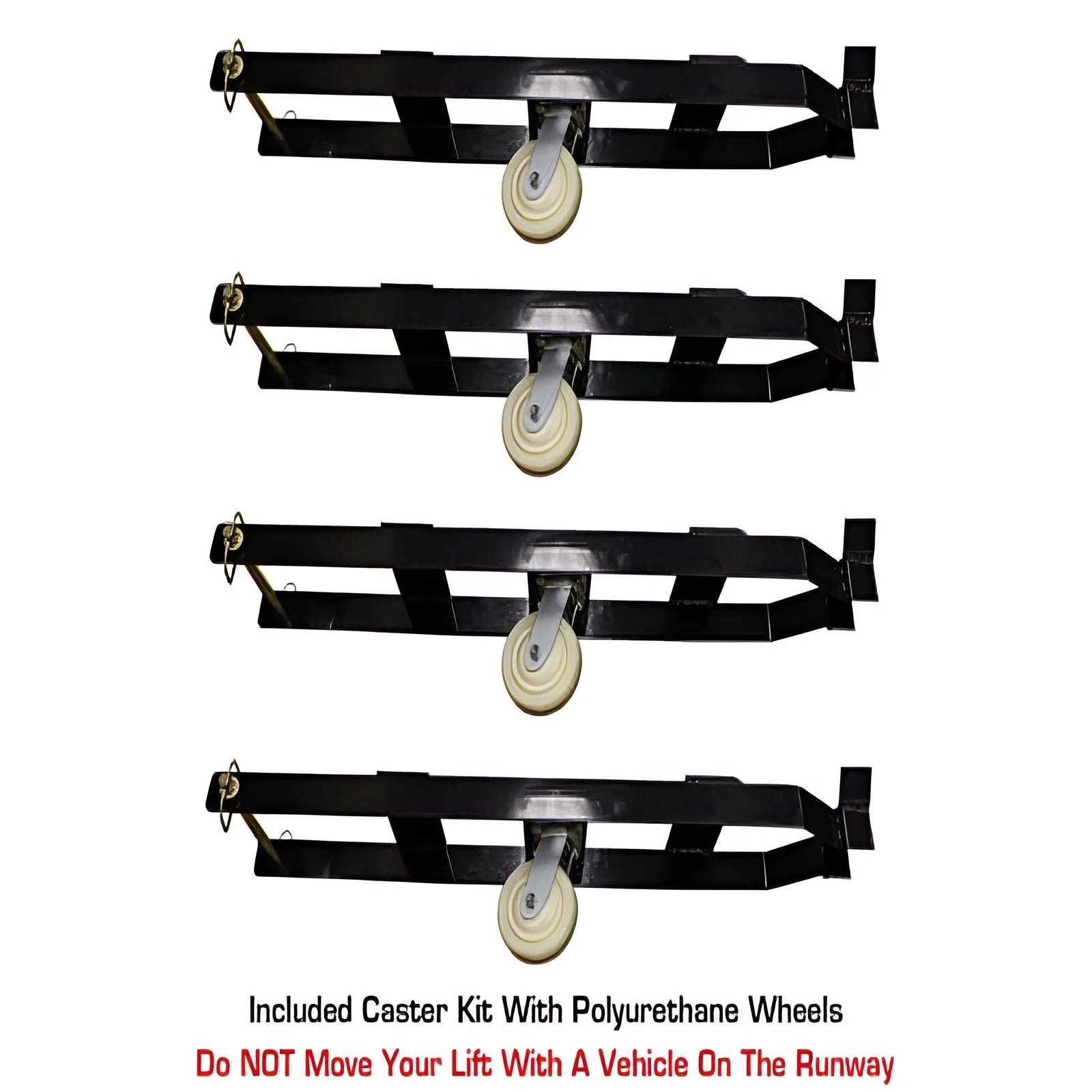

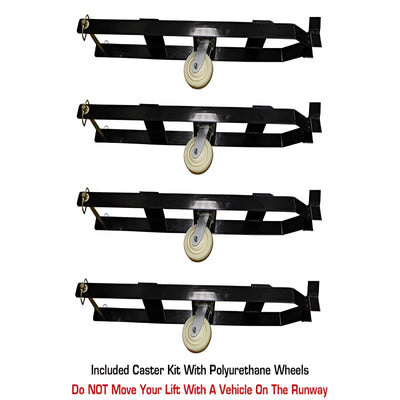

• Caster kit with polyurethane wheels included

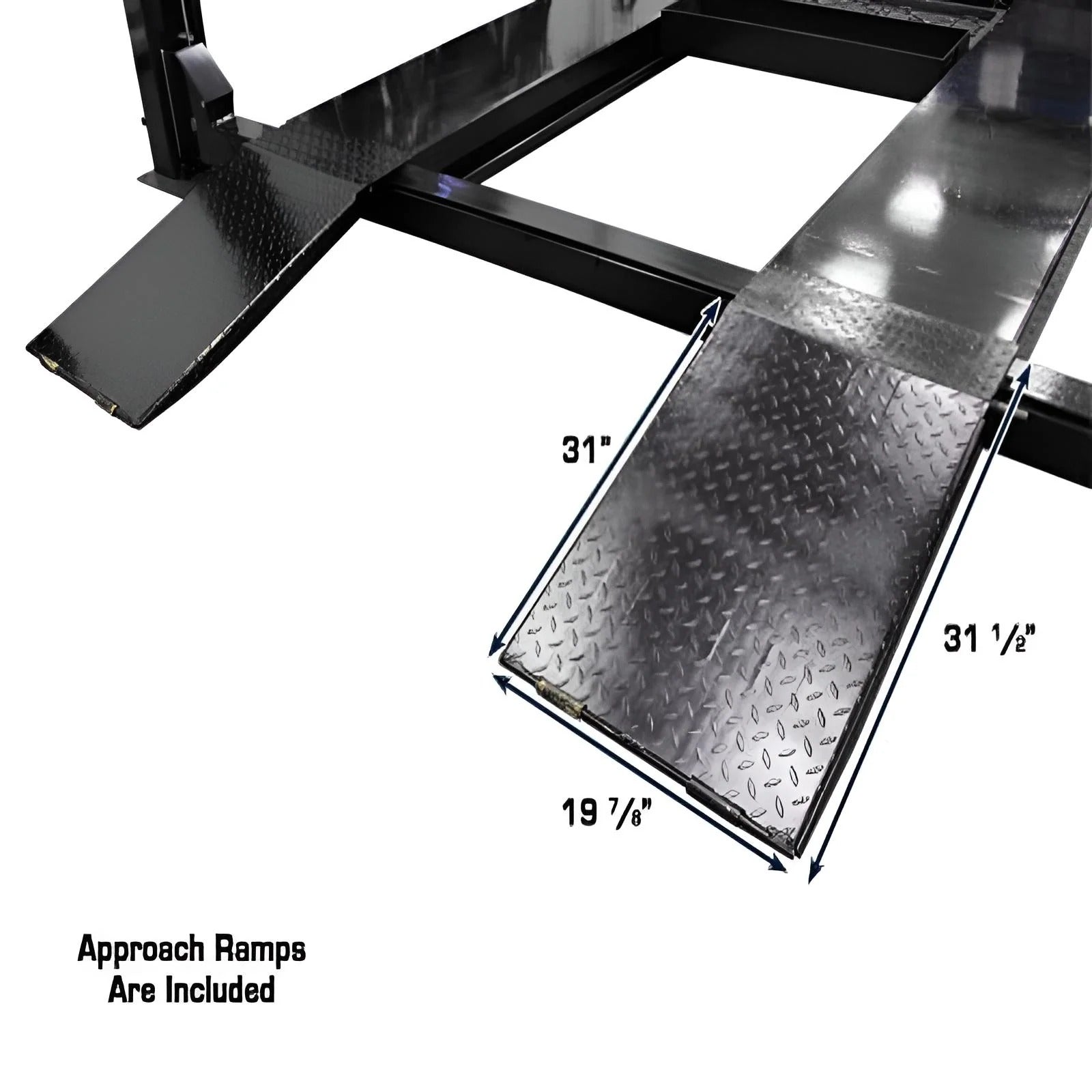

• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included

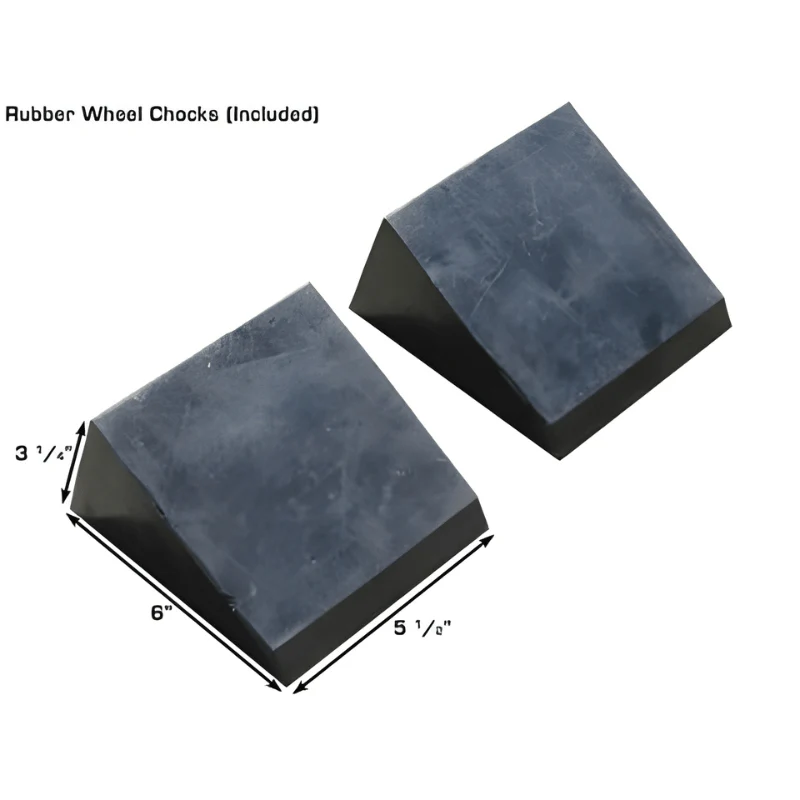

• Two rubber wheel chocks included
• Compatible with rolling bridge jacks (tracks built into runways)
• Ideal for storage or working on vehicles
• 110V operation (30 amp breaker required)
• 2-year structural, 1-year hydraulic warranty (parts only)

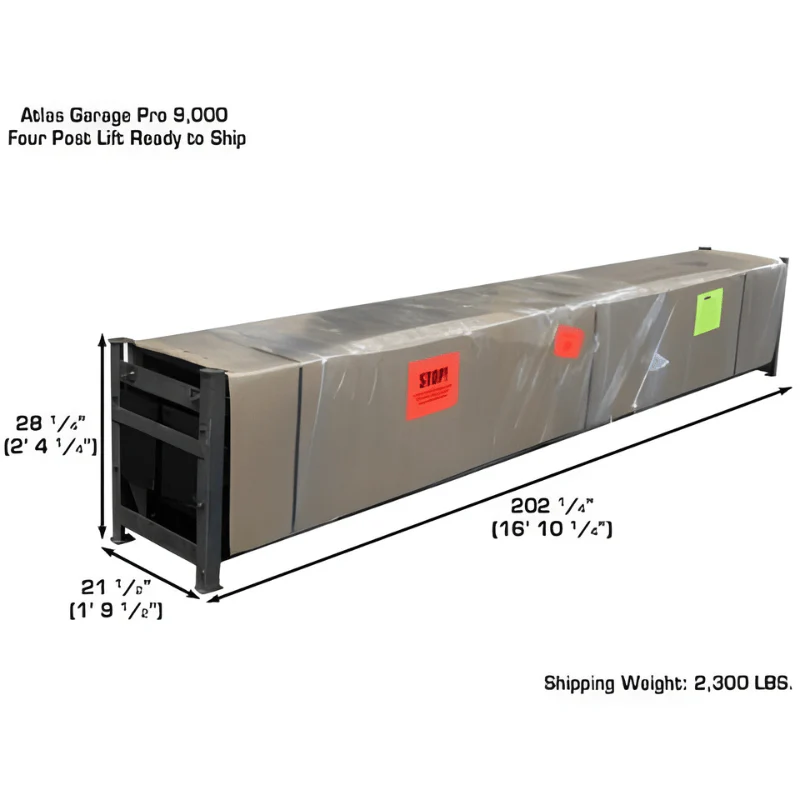

• Shipping weight: 2,300 lbs

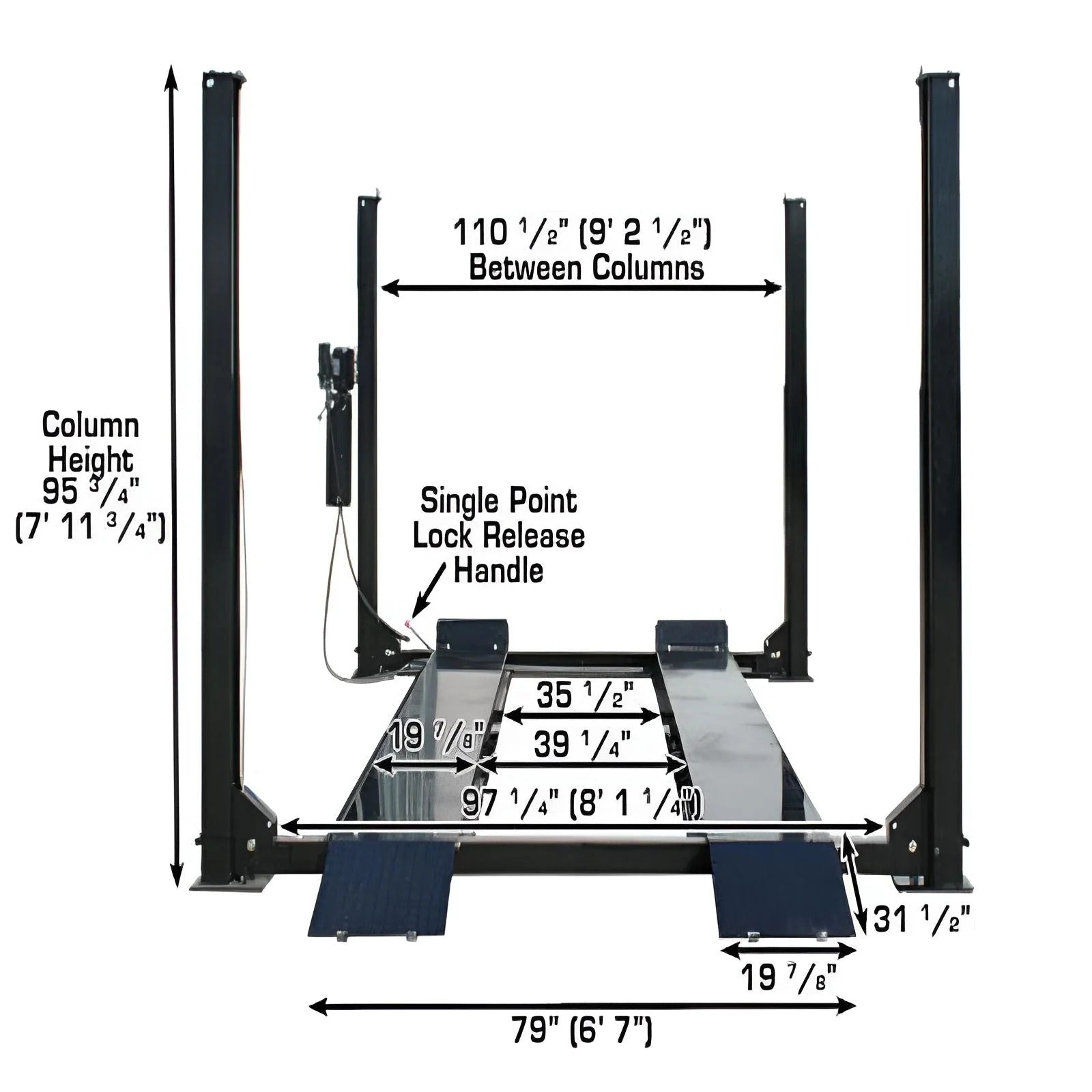

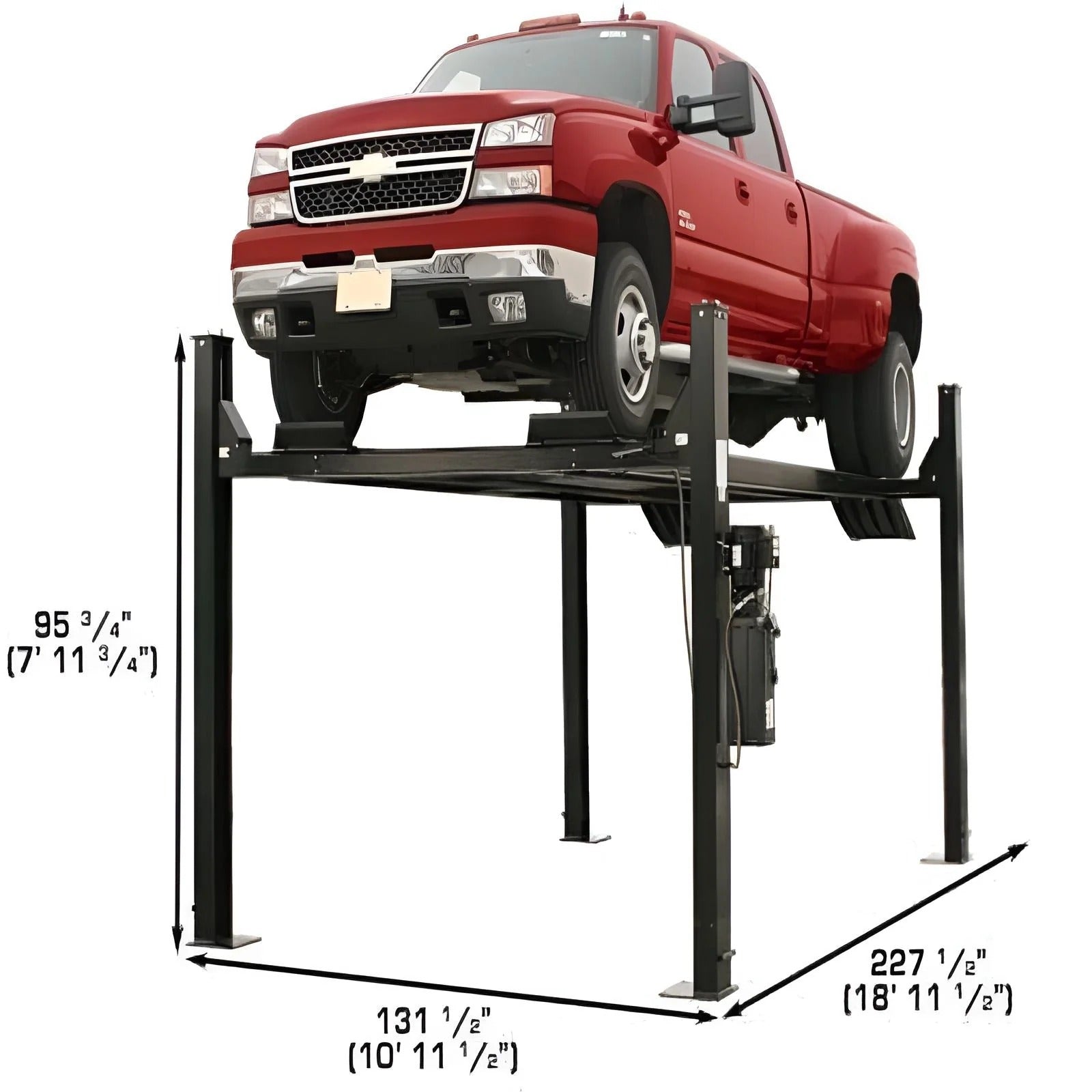

| Specifications | Details |
|---|---|
| Capacity | 9,000 lb. |

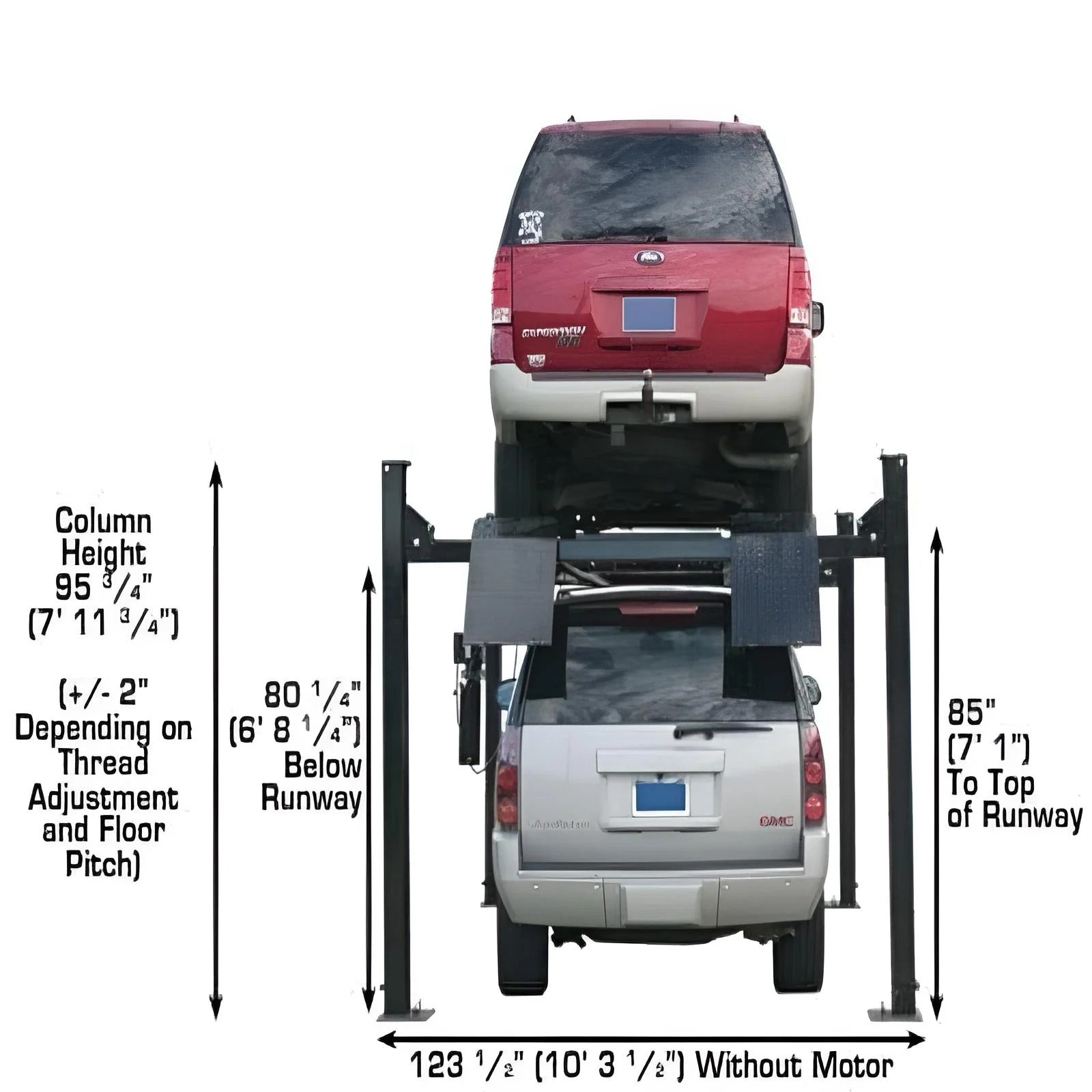

| Lifting Height To Top Of Runway | 85" (7' 1") |

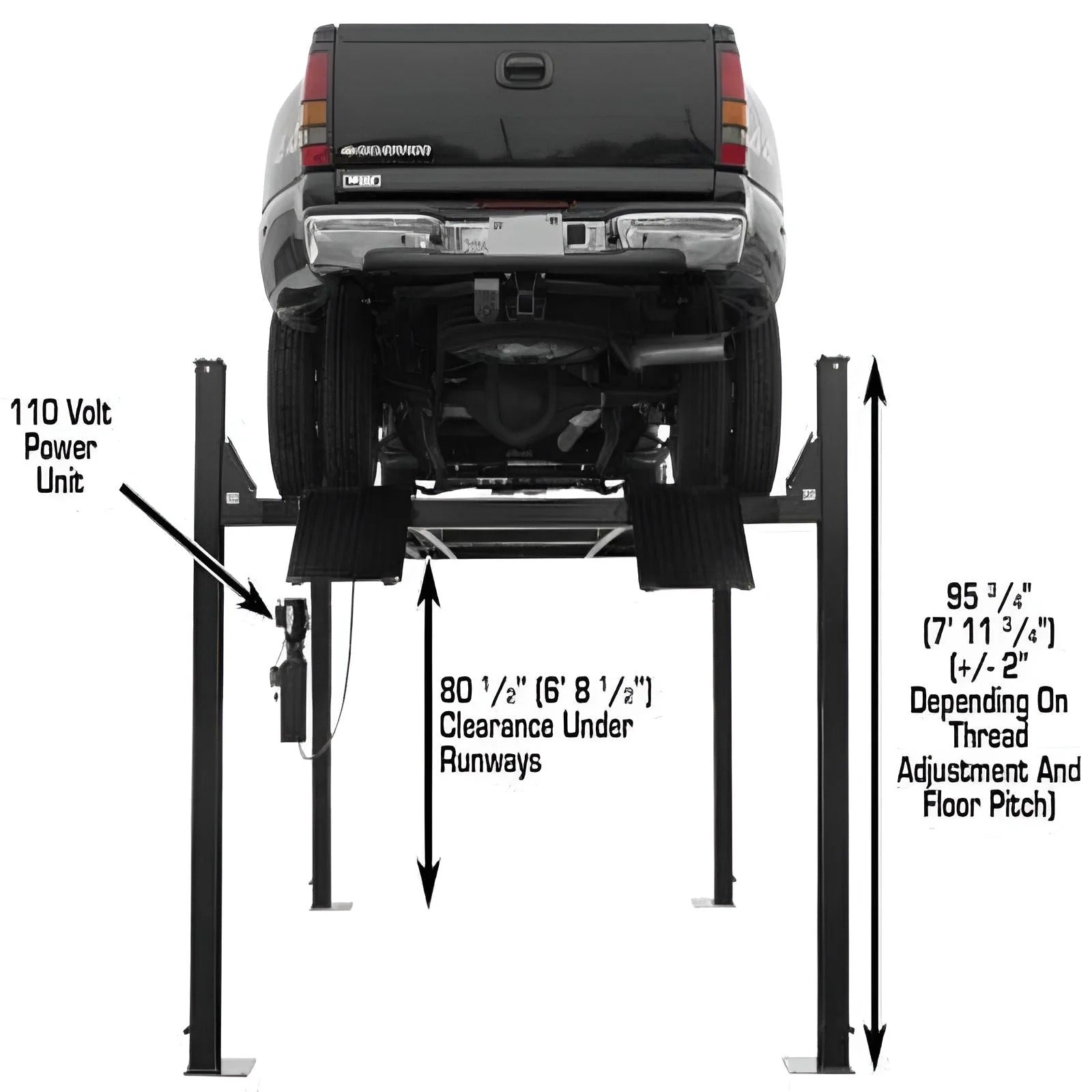

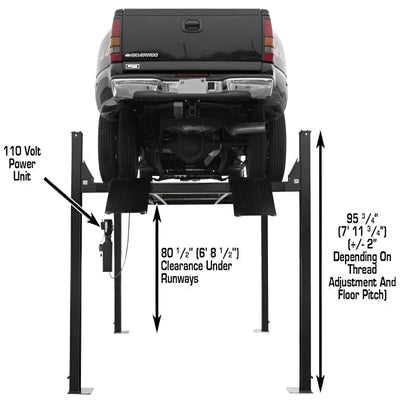

| Clearance Under Runways | 80 1/4" (6' 8 1/4") |

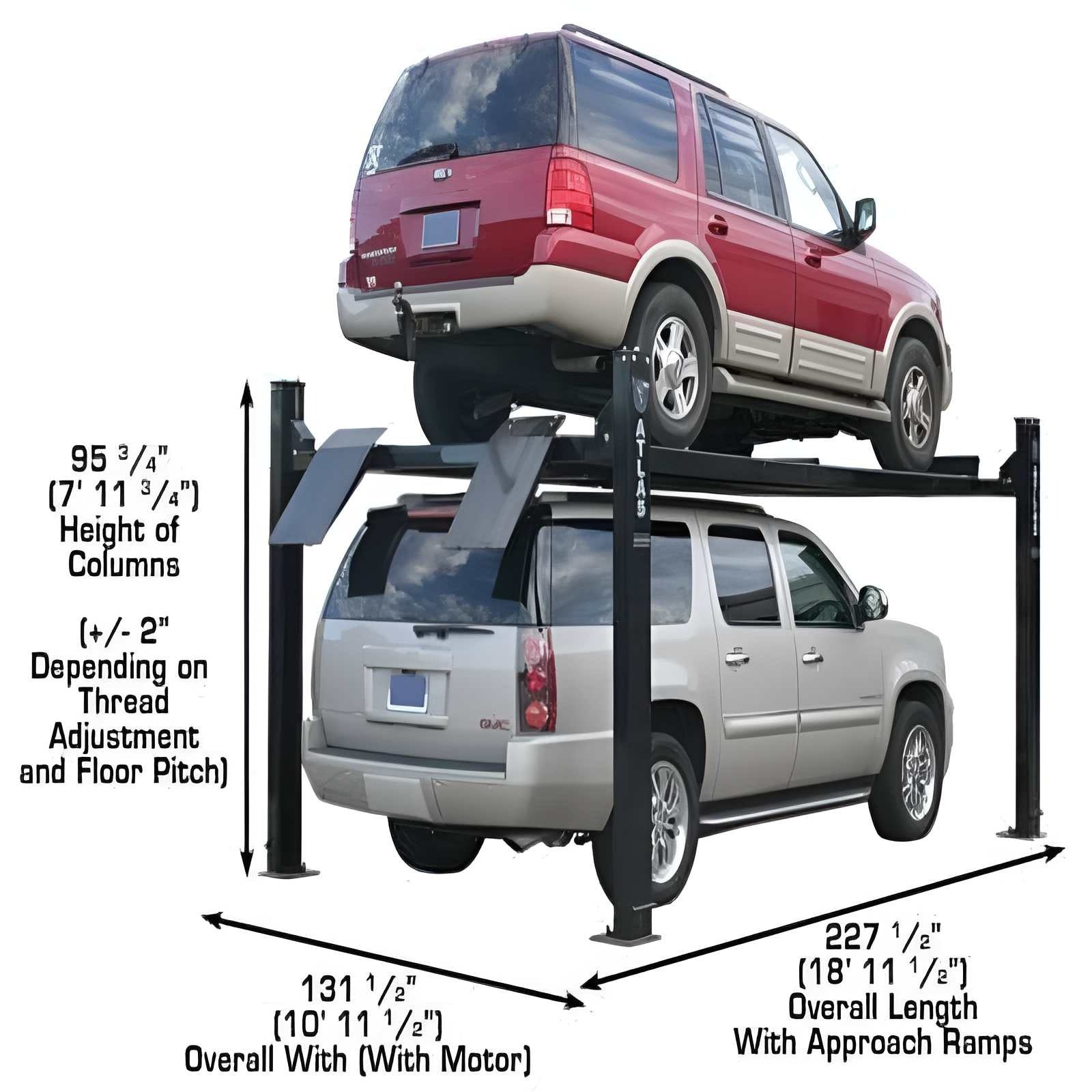

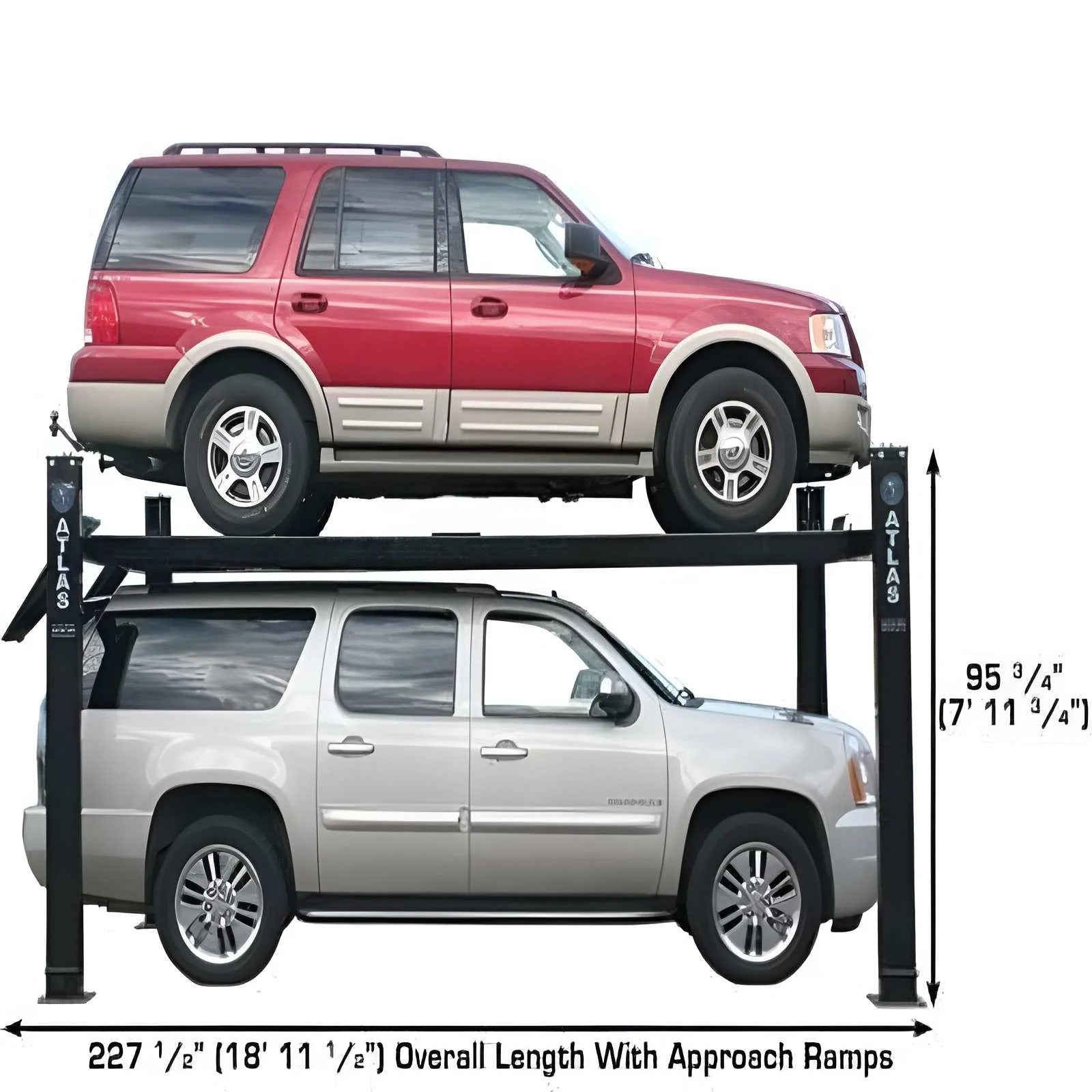

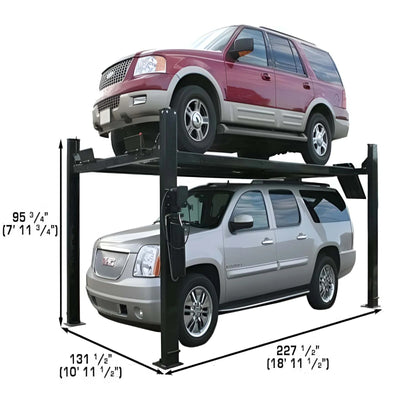

| Height Of Columns | 95 3/4" (7' 11 3/4") |
| Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |

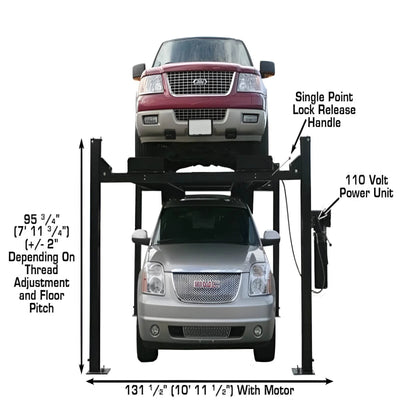

| Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |

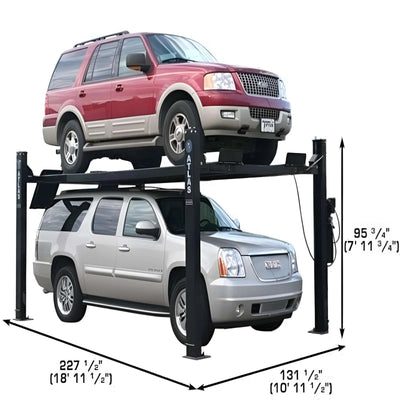

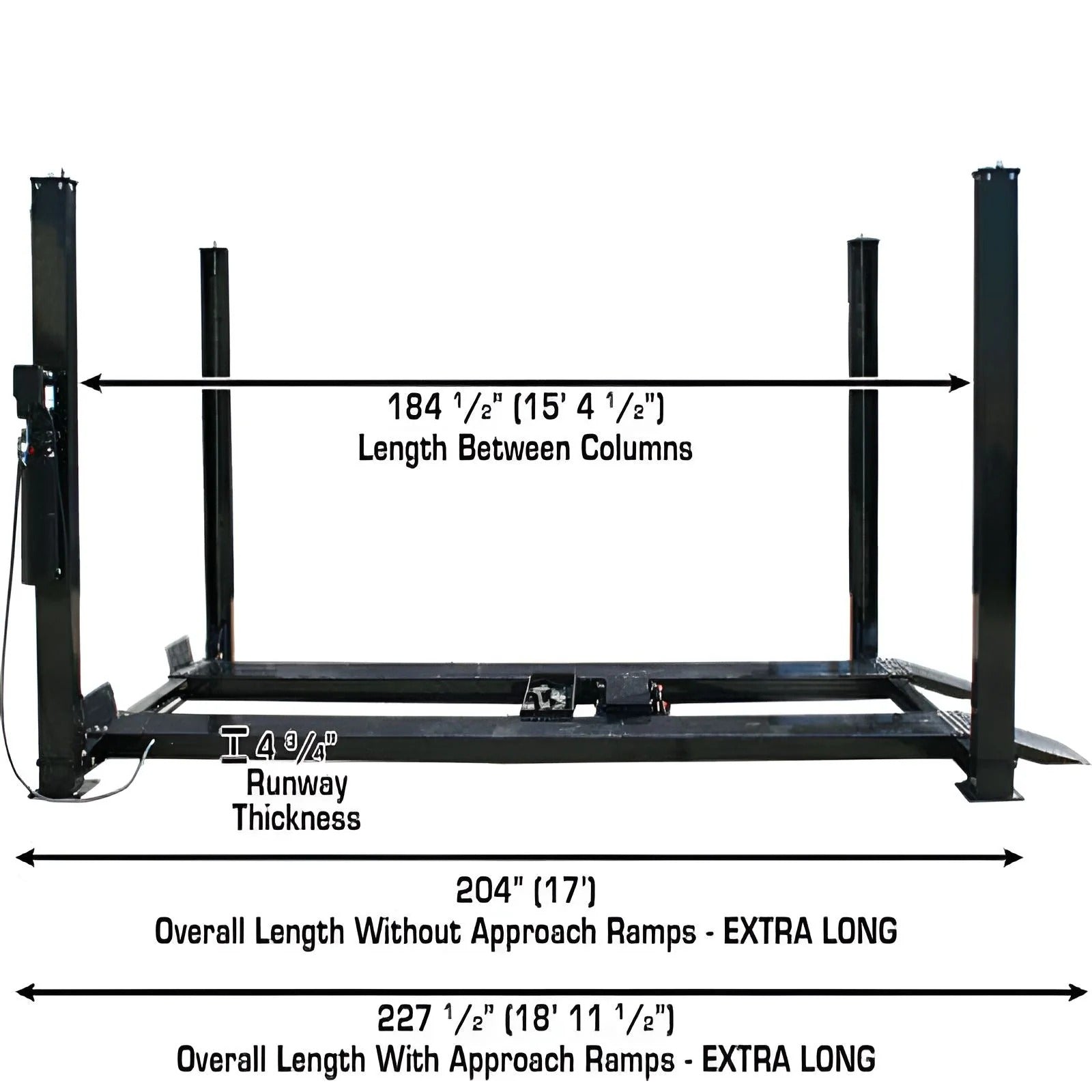

| Overall Length With Approach Ramp | 227 1/2" (18' 11 1/2") |
| Approach Ramp | 31" (2' 7") |

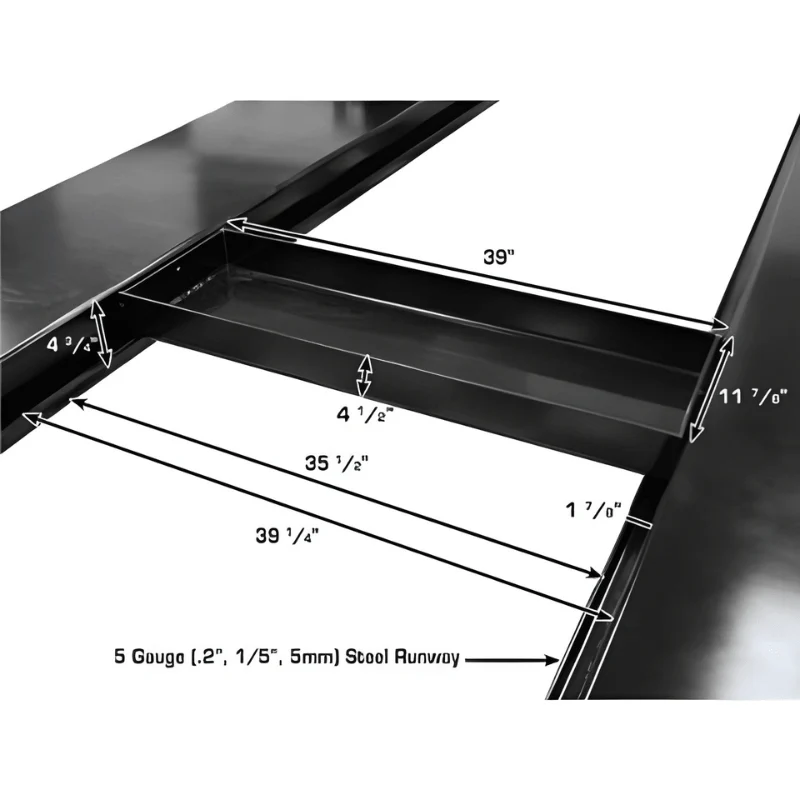

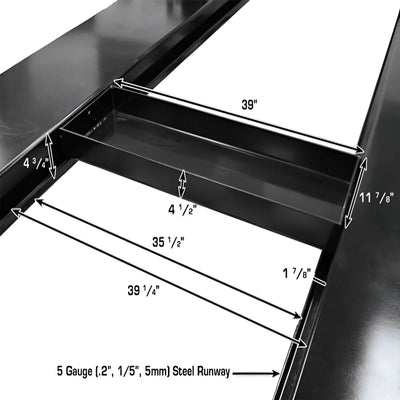

| Runway Width | 21 1/4" (w/ Rails) or 20" (Driving Surface) |
| Runway Length | 199 1/2" (16' 7 1/2") |

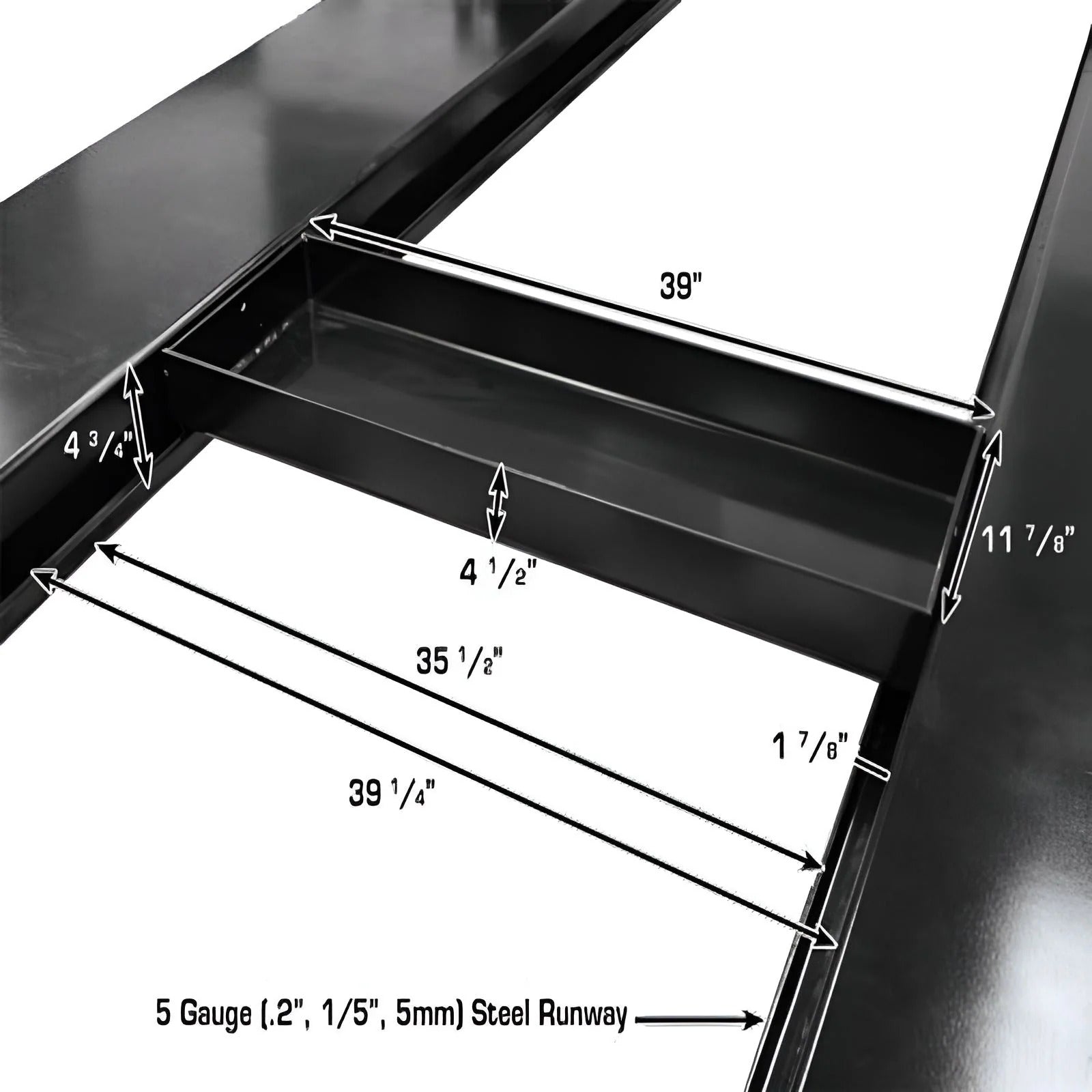

| Runway Thickness | 4 3/4" |
| Width Between Runways | 39 1/4" (3' 3 1/4") |
| Width Between Runway Rails | 35 1/2" (2' 11 1/2") |
| Outside Runway To Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 110 1/2" (9' 2 1/2") |
| Length Between Columns | 184 1/2" (15' 4 1/2") |
| Maximum Wheel Base | 187" (15' 7") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 97 1/4" (8' 1 1/4") |
| Motor/Electrical Requirement | 110V, 30 AMP Breaker Required |
| Shipping Weight | 2,300 lbs. |
