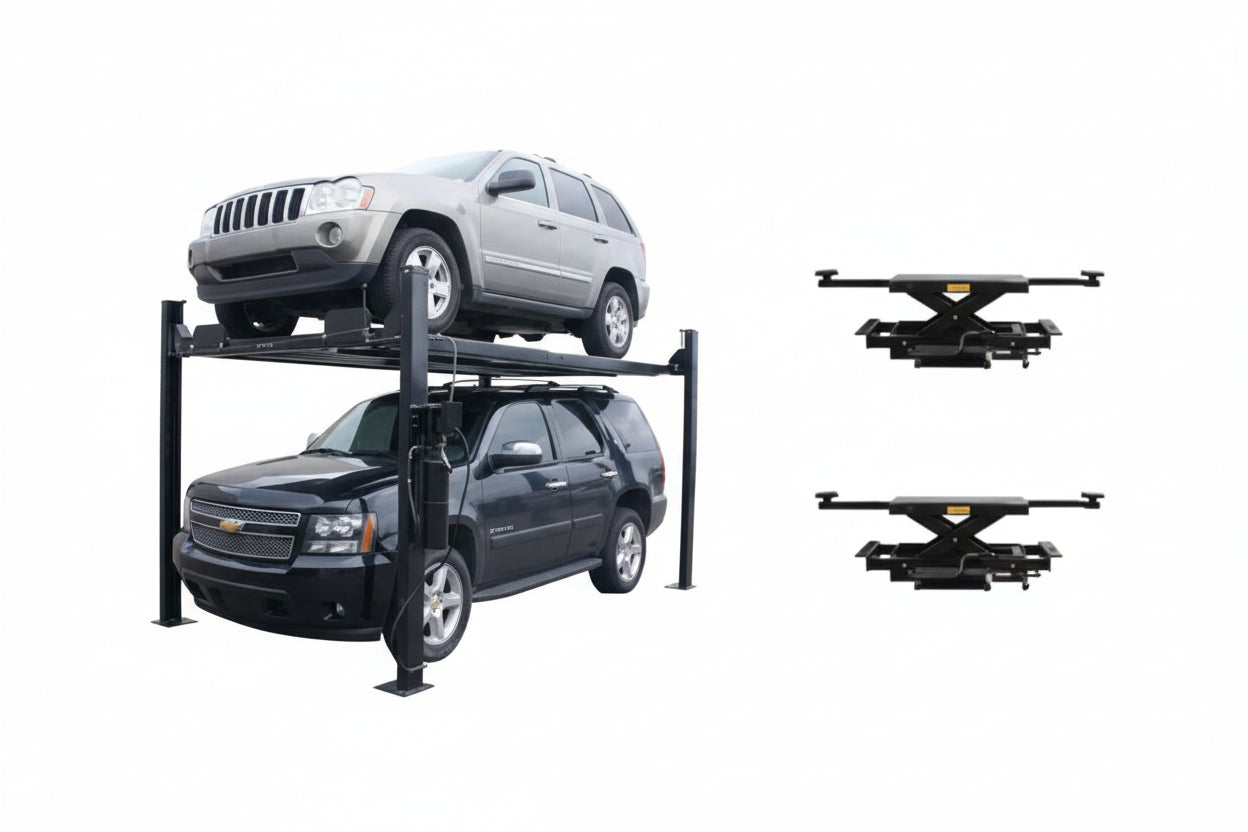

Atlas PRO8000 4-Post Vehicle Lift with RJ35 Sliding Bridge Jacks Combo
SKU: ATEXH-PRO8-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

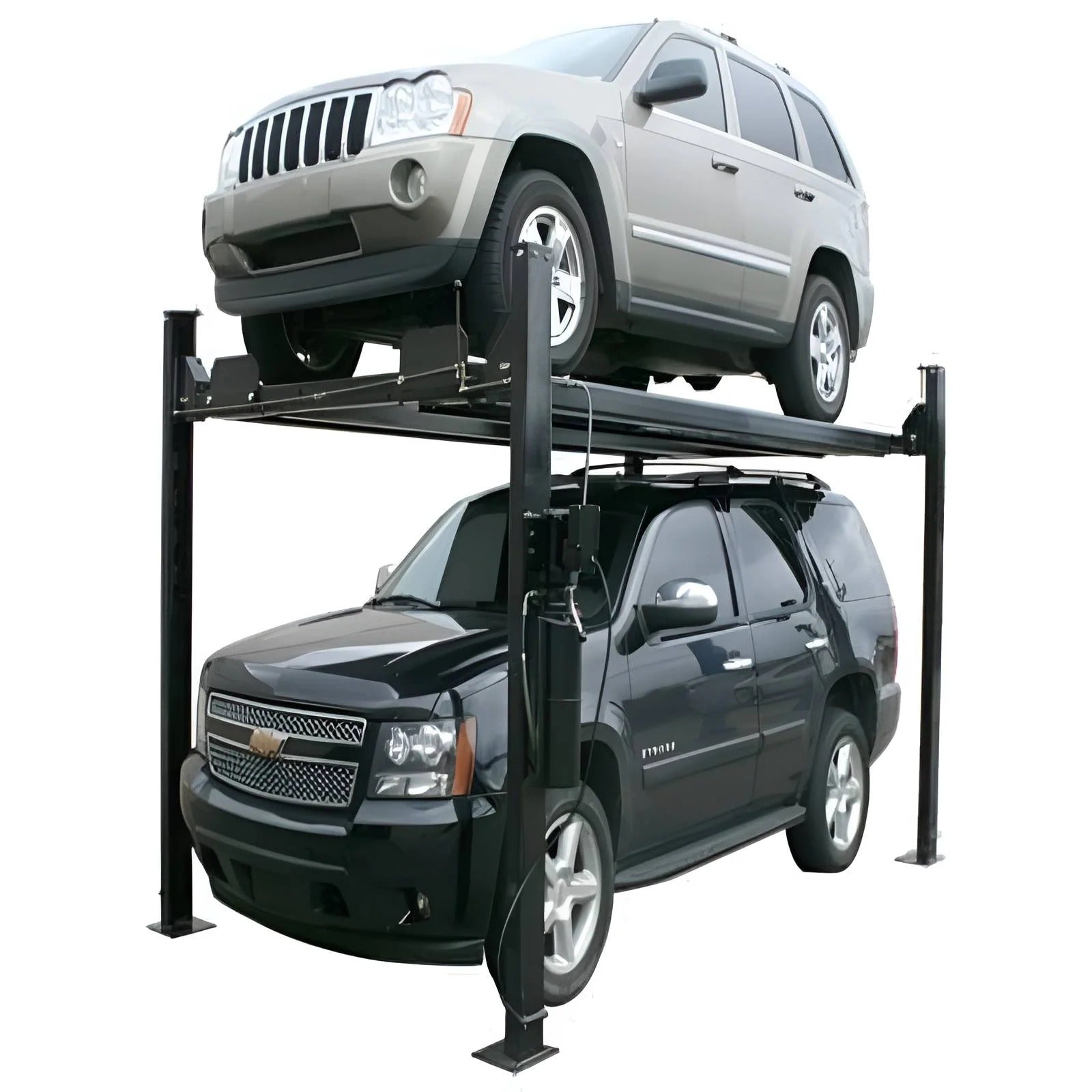

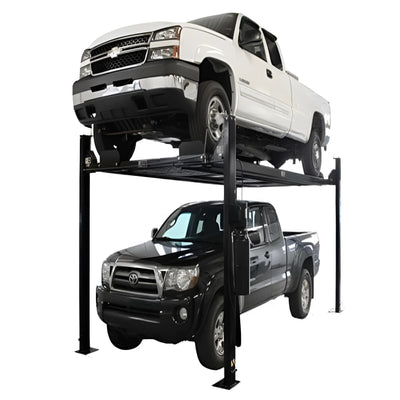

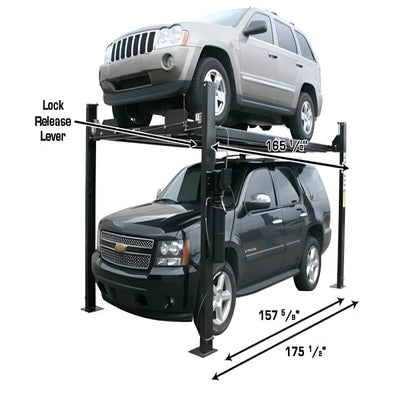

The Atlas PRO8000 combo package delivers a versatile 4-post lift solution designed for vehicle storage and light-duty service. With an 8,000 lb capacity, this system allows you to safely lift and store one vehicle while keeping another underneath, maximizing garage space efficiently.
This package also includes two RJ35 sliding bridge jacks, allowing you to lift vehicles off the runways for wheel, brake, and suspension work.
Ideal for Home Garages & Restoration Shops
Built for residential garages and restoration environments, the PRO8000 is a popular choice for enthusiasts who need additional storage and occasional service capability. It is designed for lighter-duty usage rather than continuous commercial shop operation.
Added Functionality with Sliding Bridge Jacks
The included RJ35 bridge jacks allow you to raise a vehicle from the frame while it is on the lift, giving full access to wheels and undercarriage components for maintenance tasks.
Key Features
- 8,000 lb lifting capacity
- Includes two RJ35 sliding bridge jacks

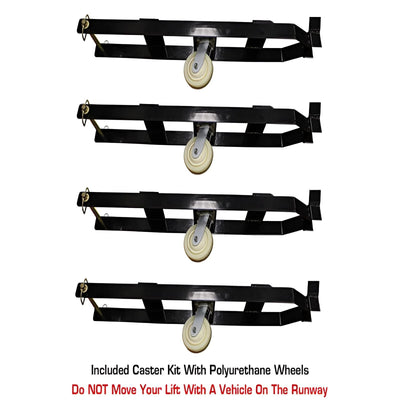

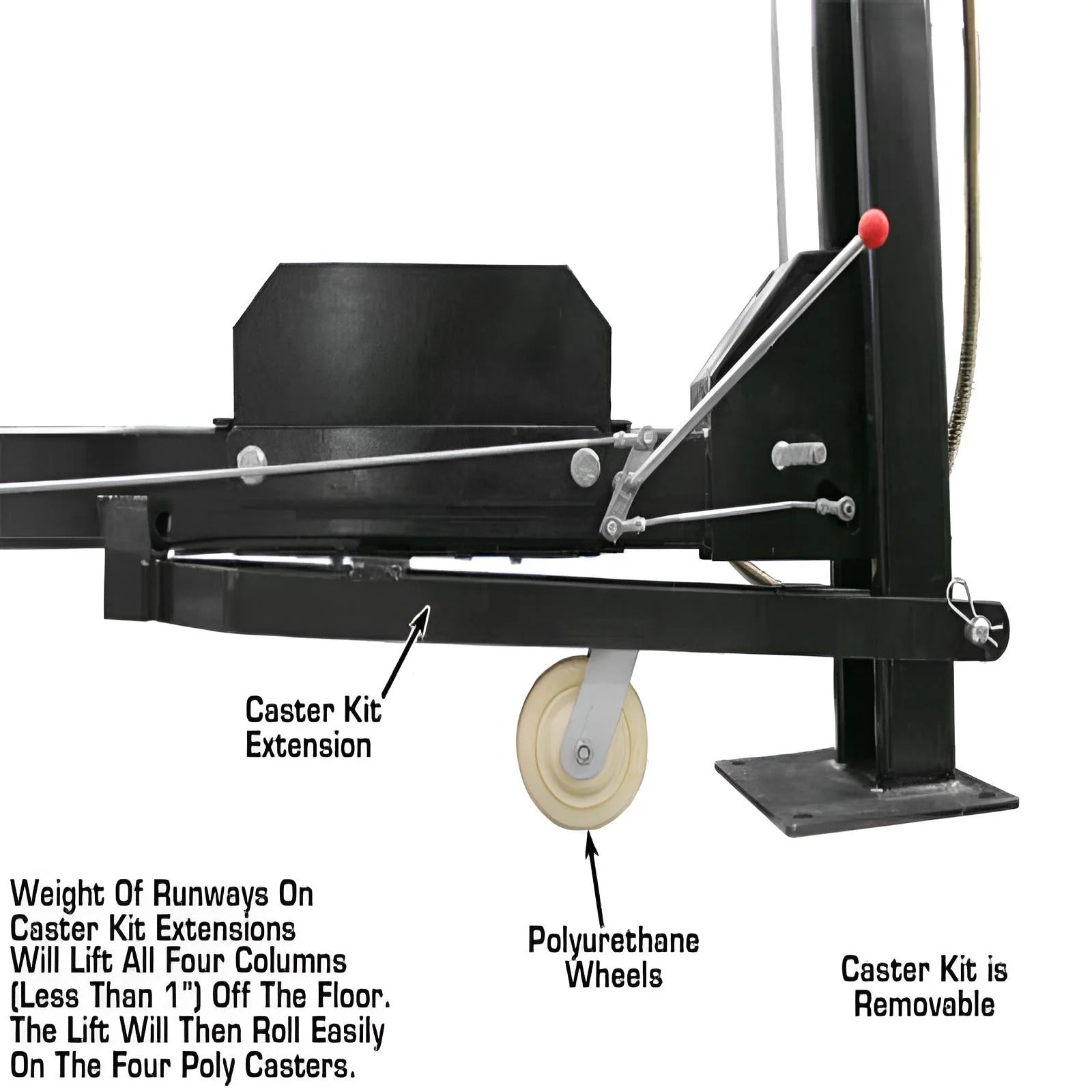

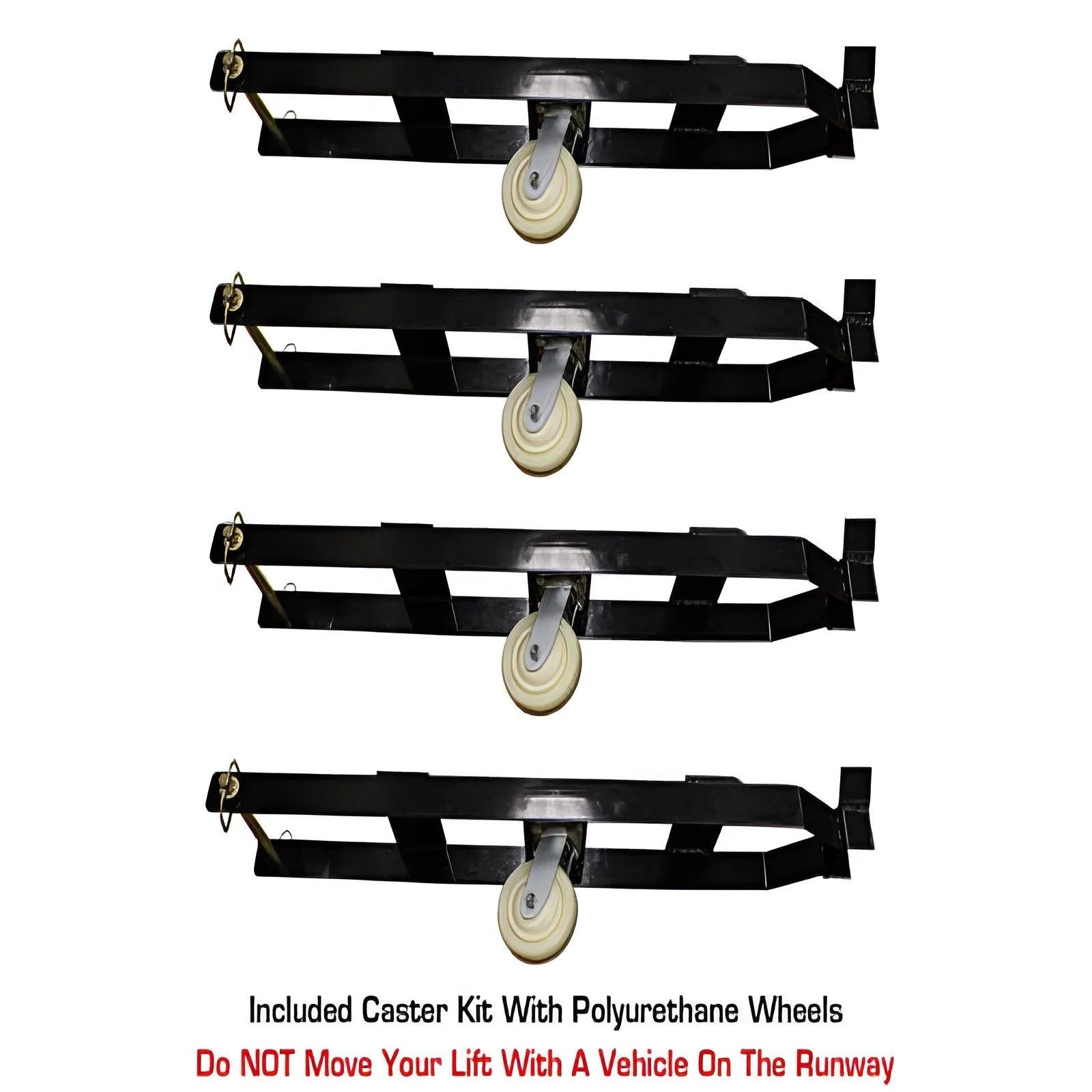

- Caster kit with polyurethane wheels included
- Steel approach ramps included

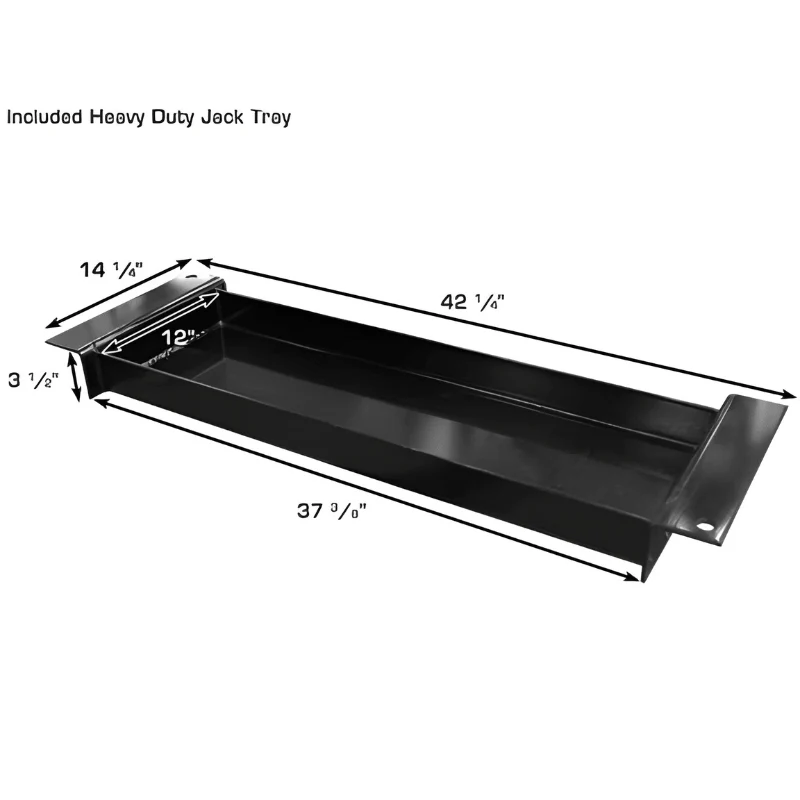

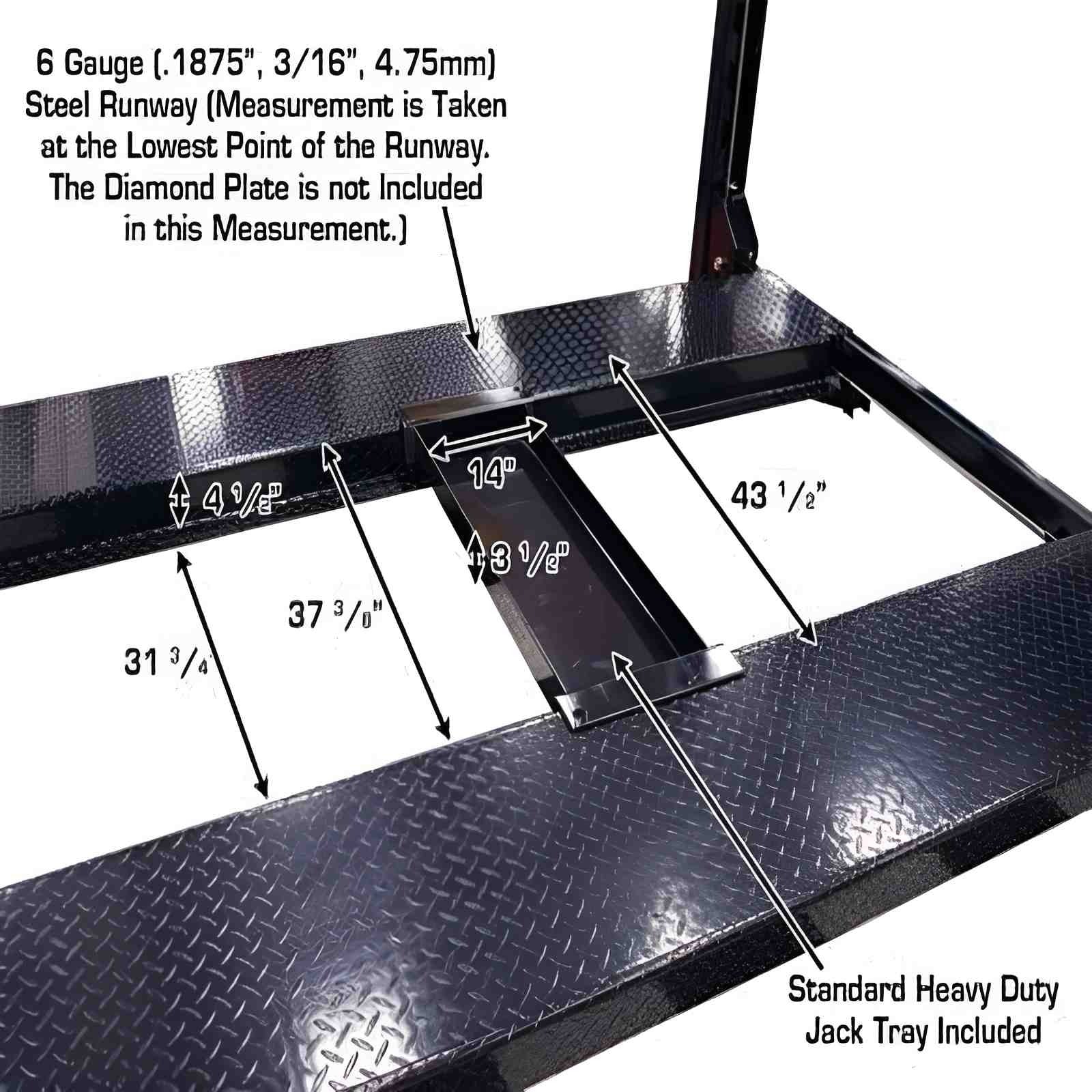

- Steel jack tray included

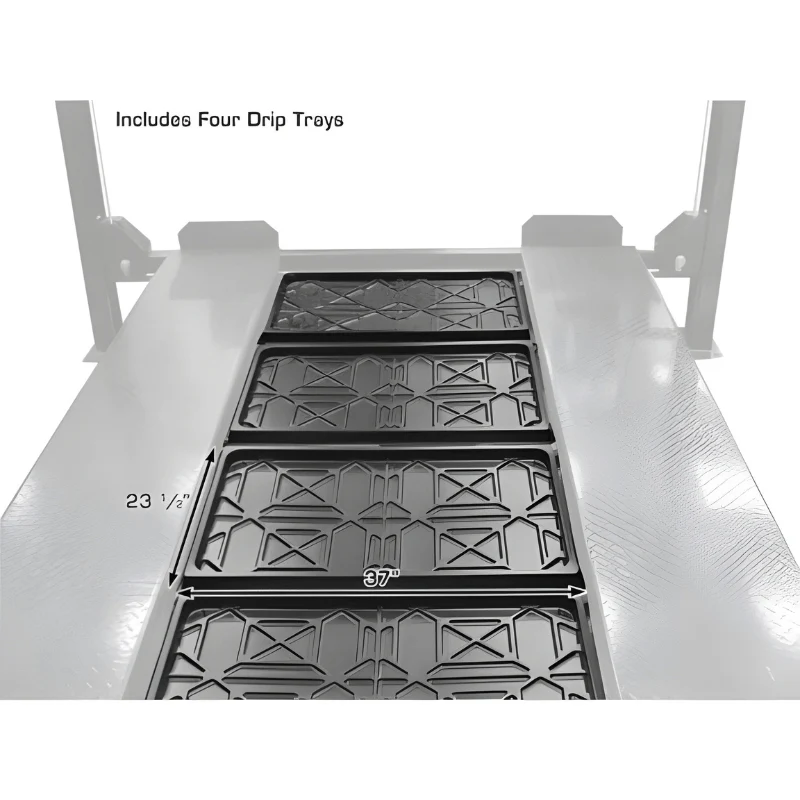

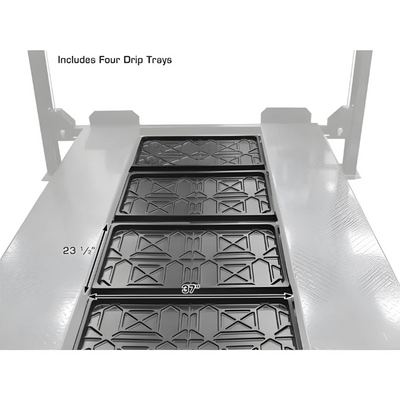

- Four plastic drip trays included
- Wheel stops included

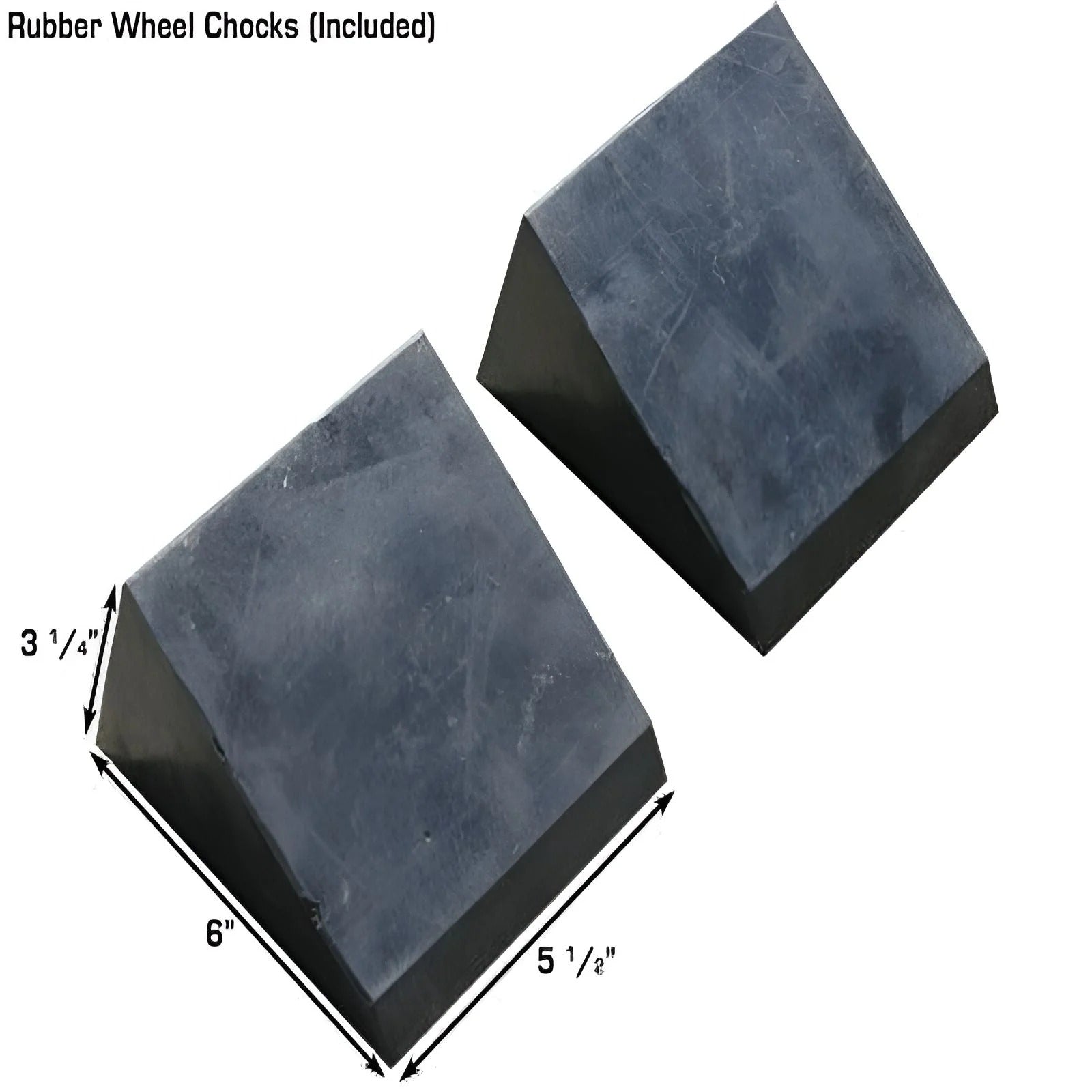

- Two rubber wheel chocks included

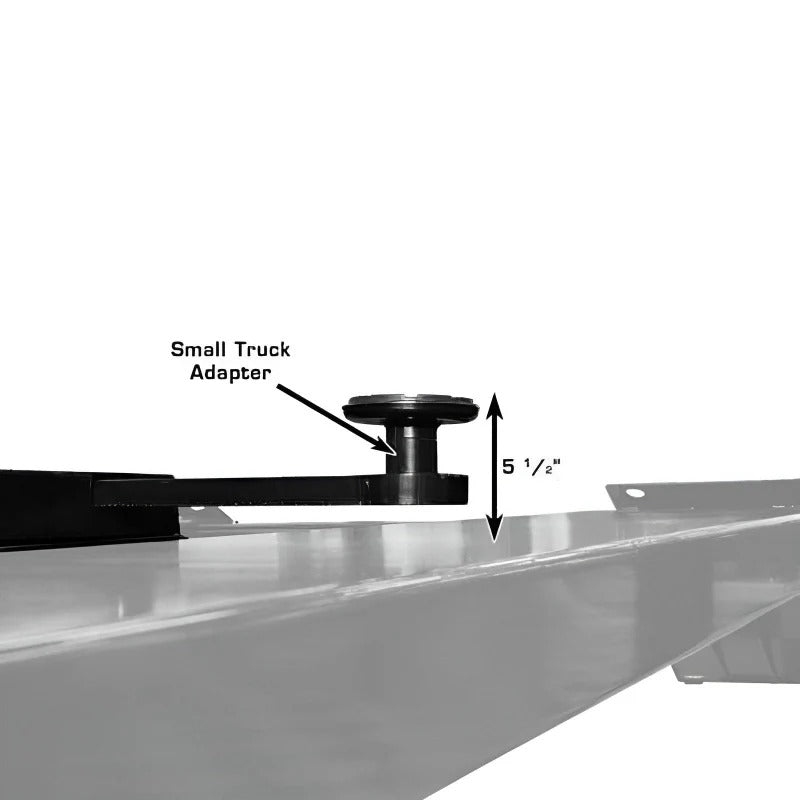

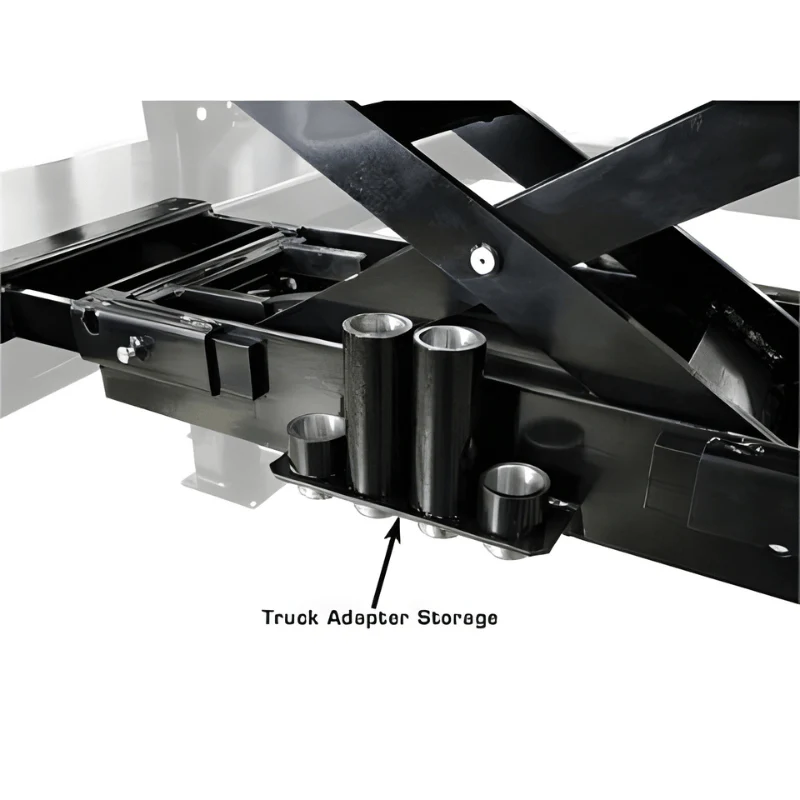

- Truck adapter set included for each jack
- Designed for storage and light-duty service
- Freight prepaid (FPD)

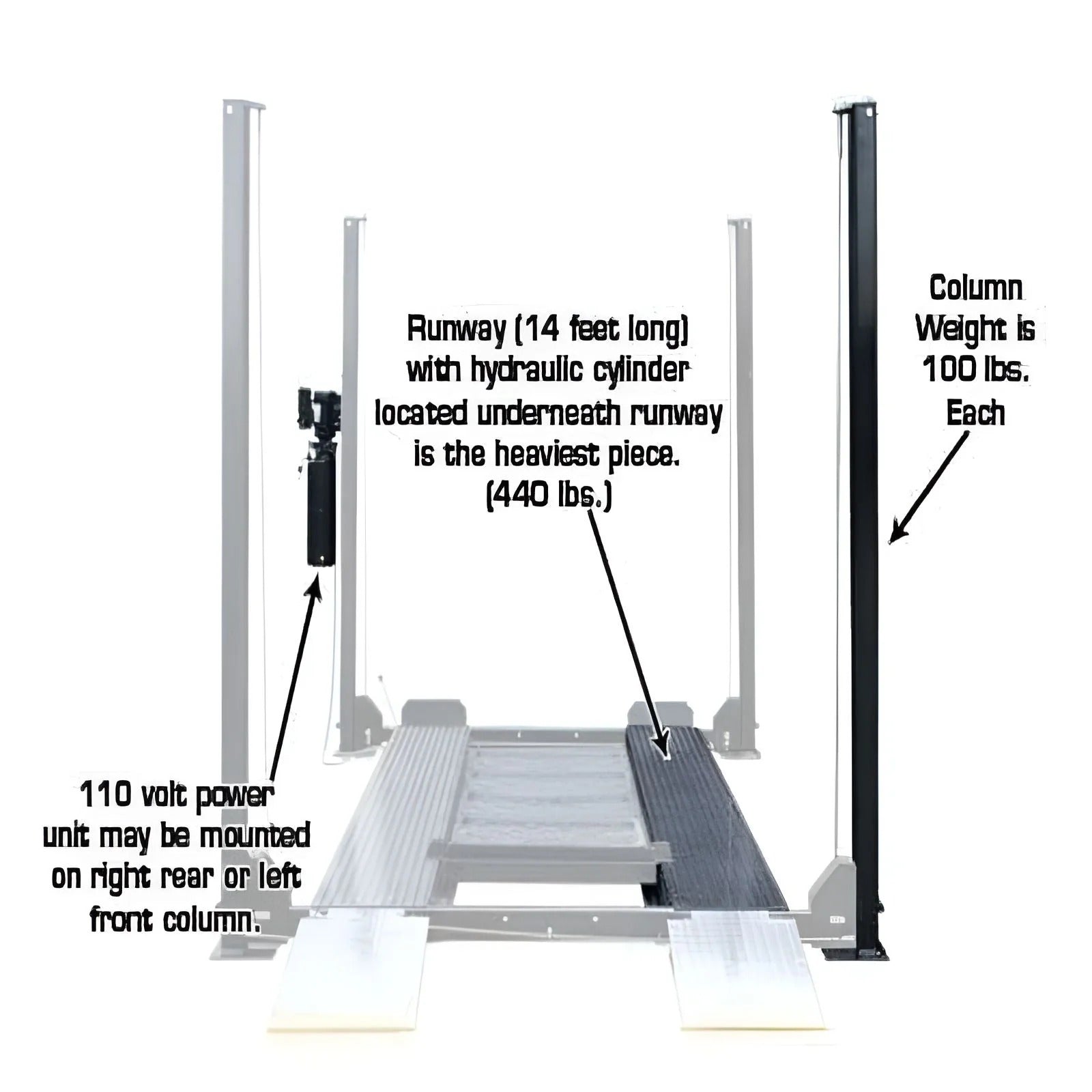

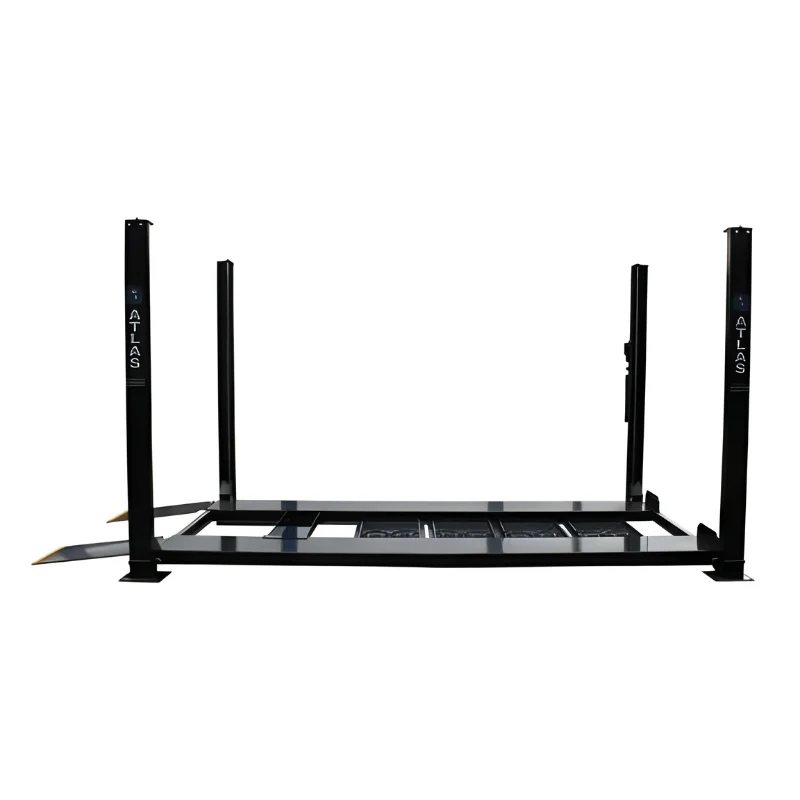

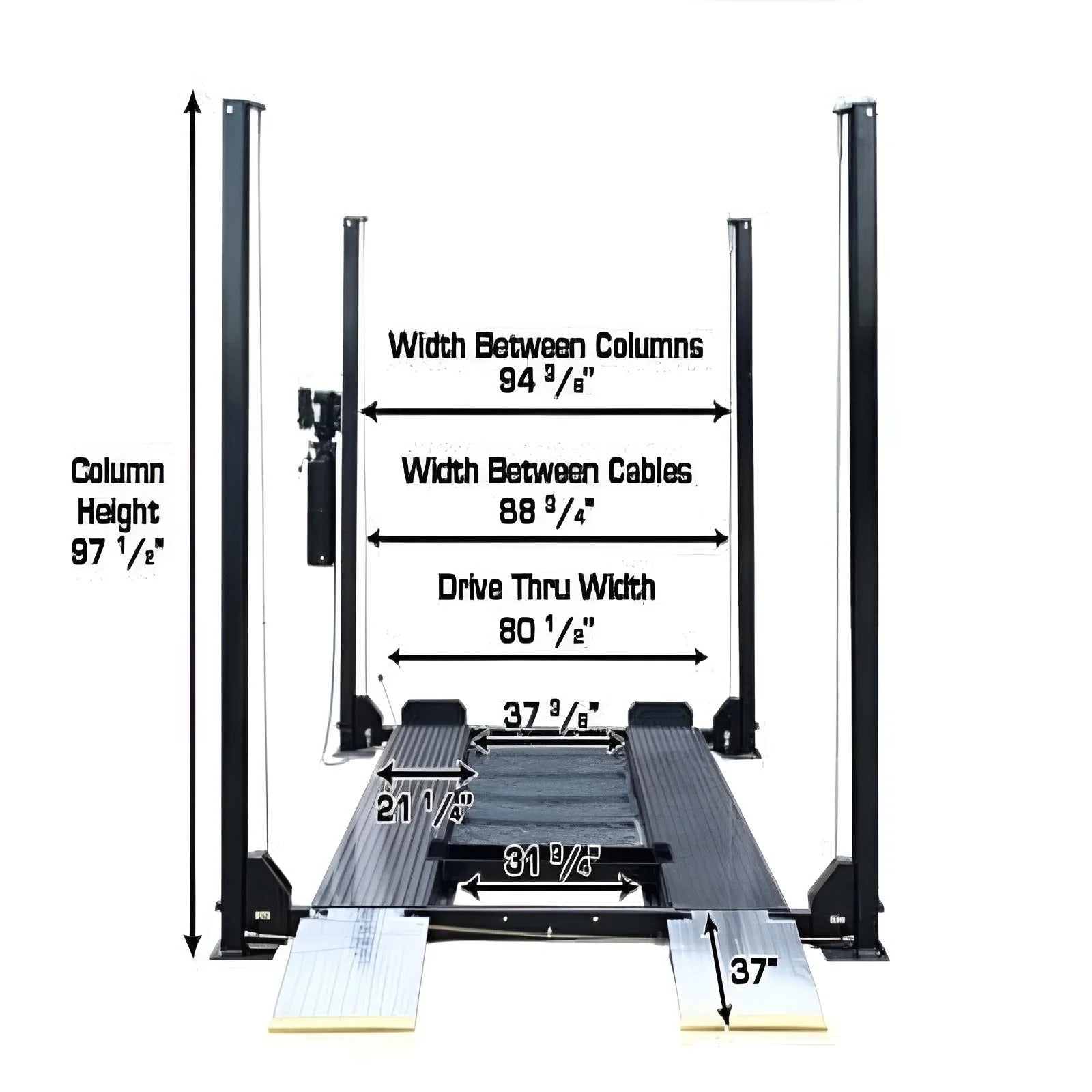

Atlas Garage PRO8000
| Specifications | Details |
|---|---|
| Capacity | 8,000 lb. |

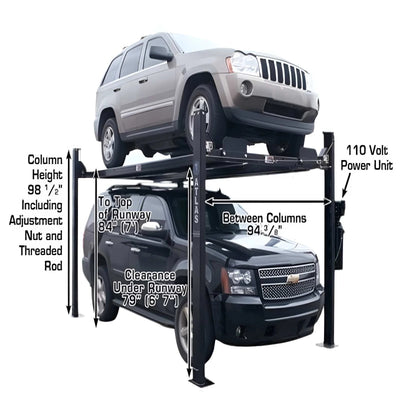

| Lifting Height to Top of Runway | 72" (6') |

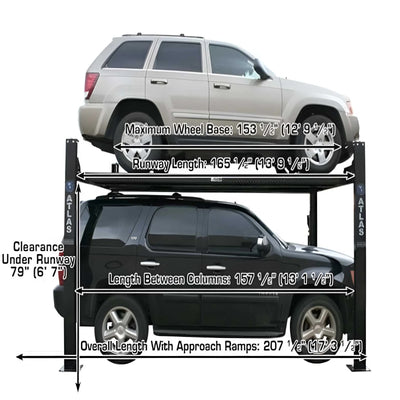

| Clearance Under Runways | 67" (5' 7") |

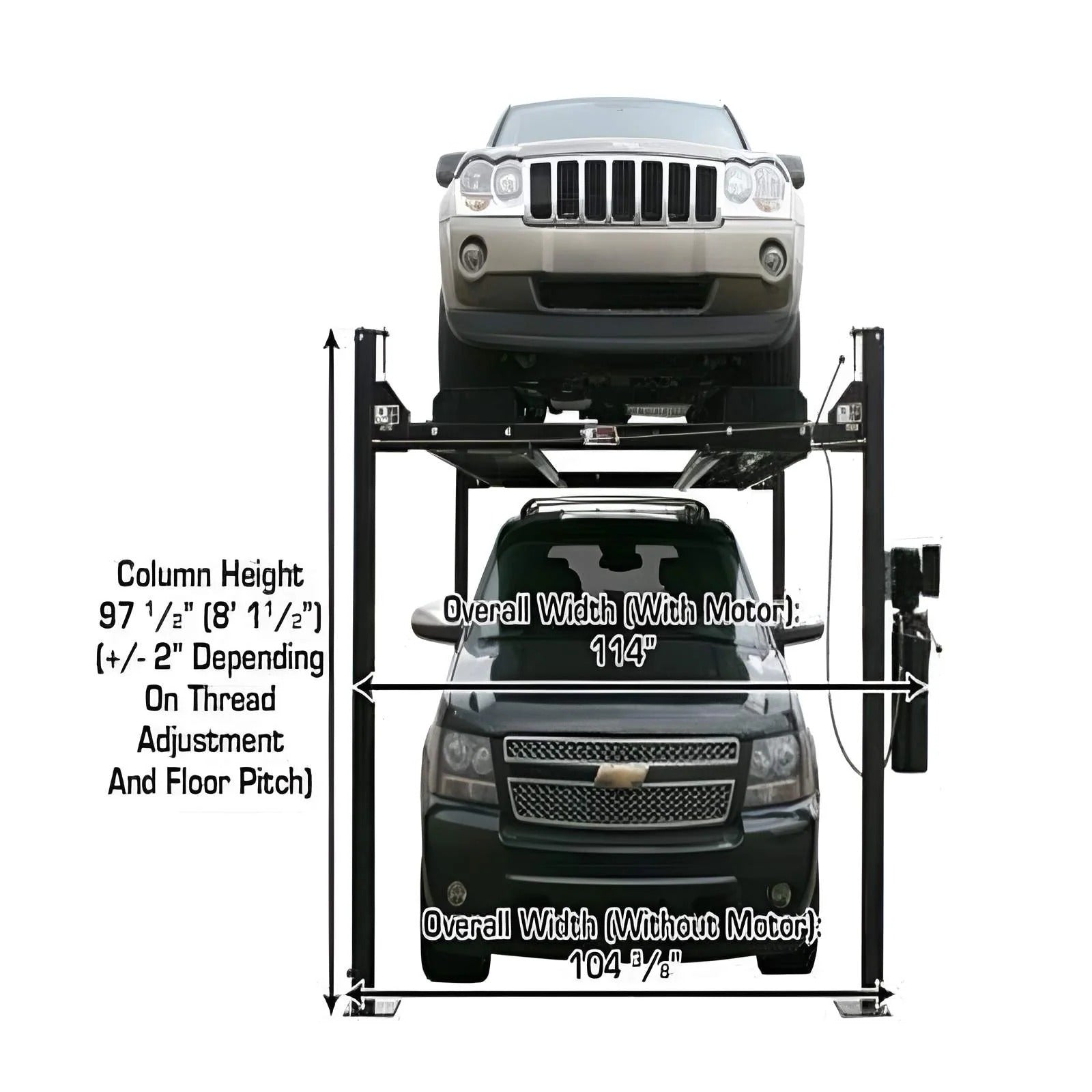

| Height of Columns | 83" (6' 11") |
| Overall Width (Without Motor) | 104 1/2" (8' 8 1/2") |
| Overall Width (With Motor) | 115" (9' 7") |
| Overall Length With Approach Ramp | 206 3/4" (17' 2 3/4") |

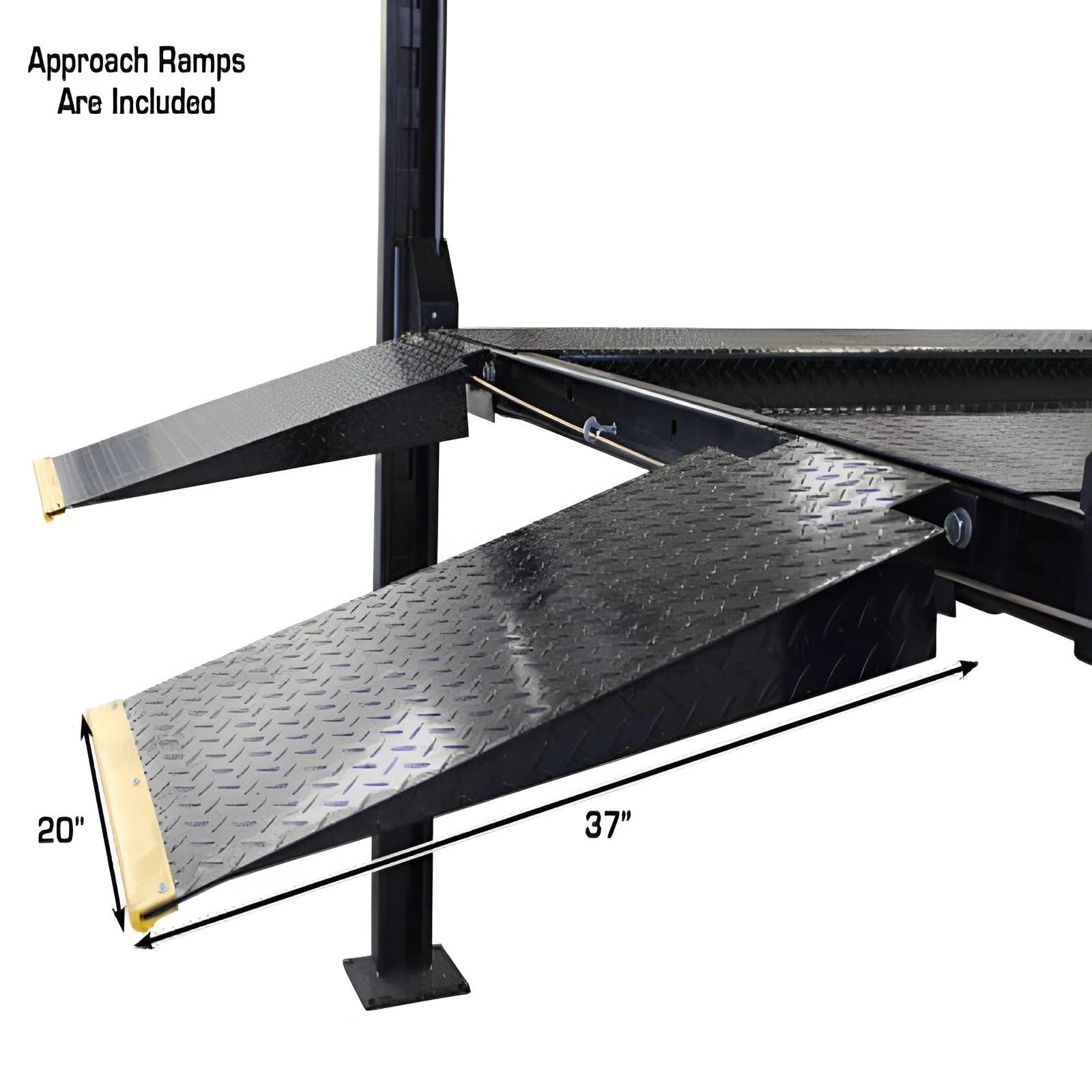

| Approach Ramp | 37" (3' 1") |

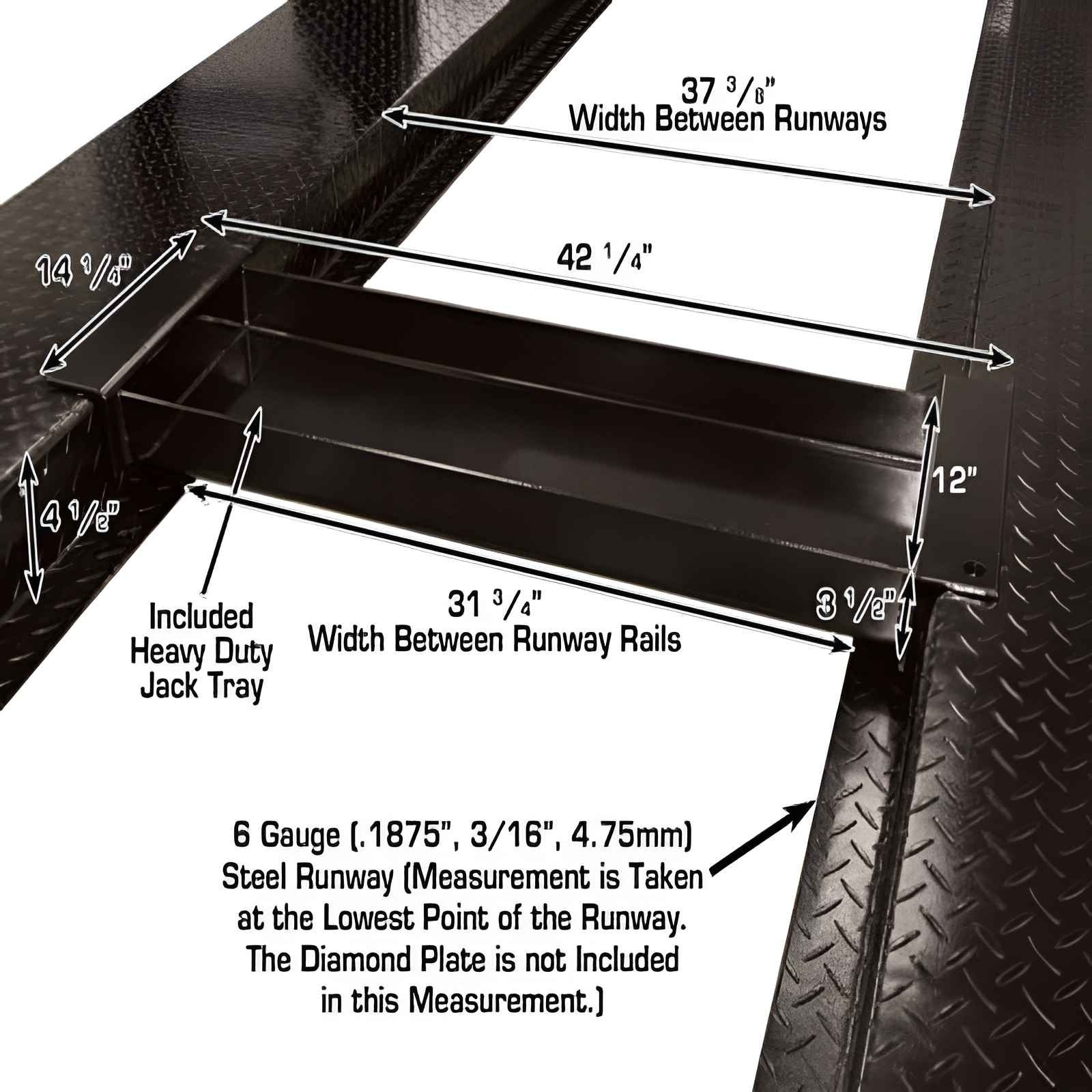

| Runway Width | 21 1/2" (w/ Rails) / 18 3/4" (Driving Surface) |
| Runway Length | 165 3/4" (13' 9 3/4") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31 1/2" (2' 7 1/2") |
| Outside Runway to Outside Runway | 74 5/8" (6' 2 5/8") |
| Clearance Between Columns | 94 1/2" (7' 10 1/2") |
| Length Between Columns | 157 1/2" (13' 1 1/2") |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru (Outside of Tire to Outside of Tire) | 80 1/2" (6' 8 1/2") |

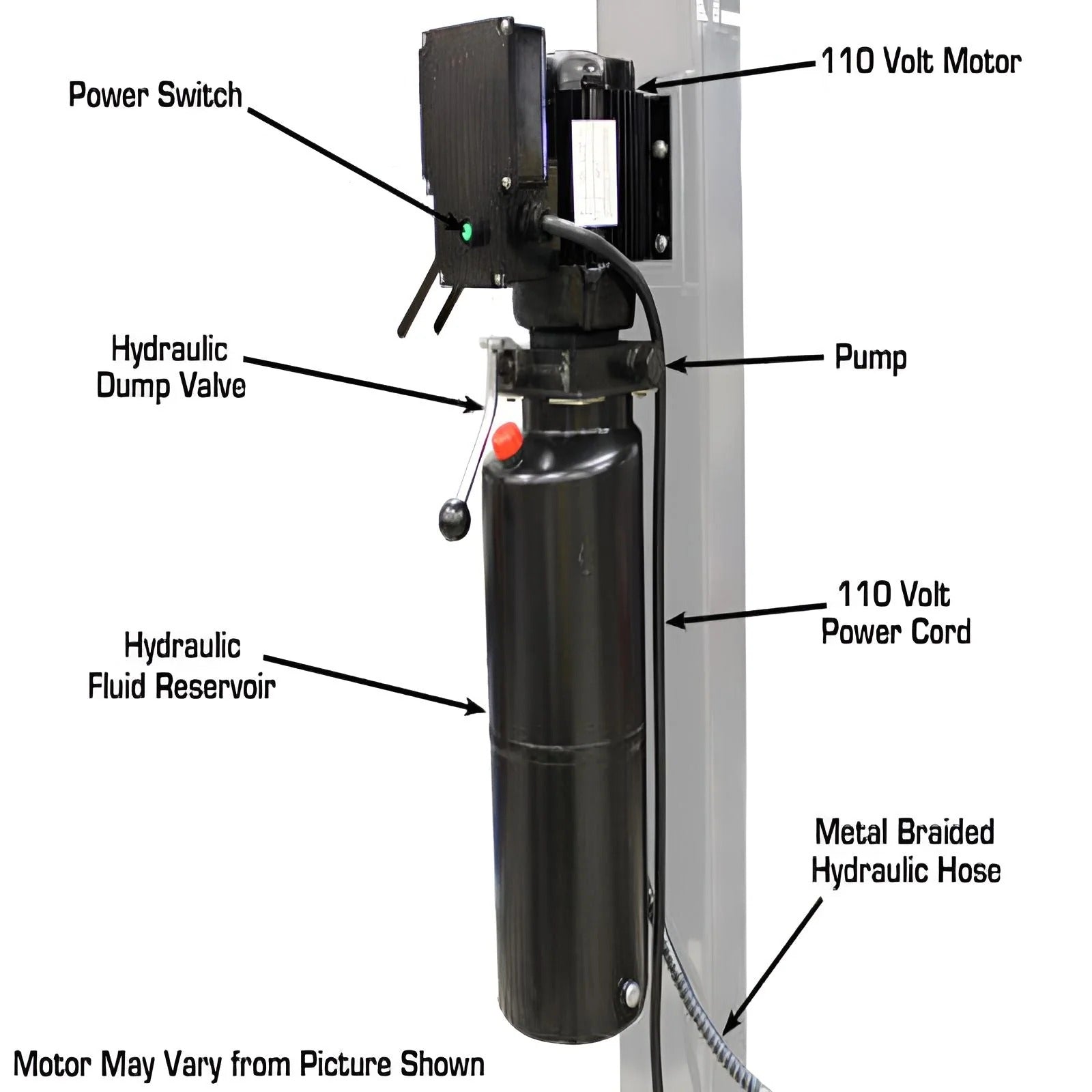

| Motor/Electrical Requirement | 110V, 30 Amp Breaker Required |

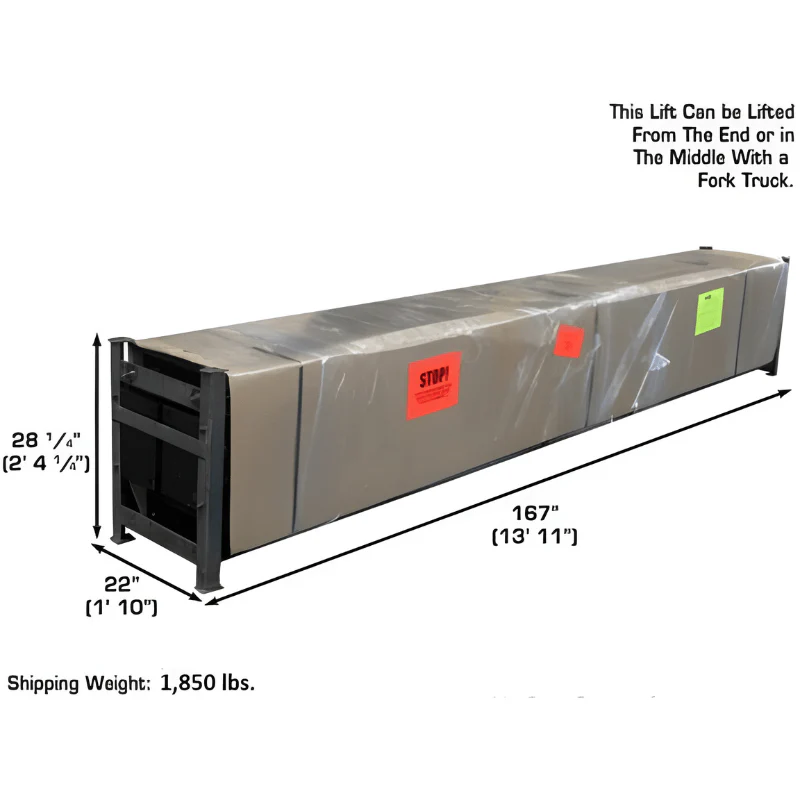

| Shipping Weight | 1,800 lb. |

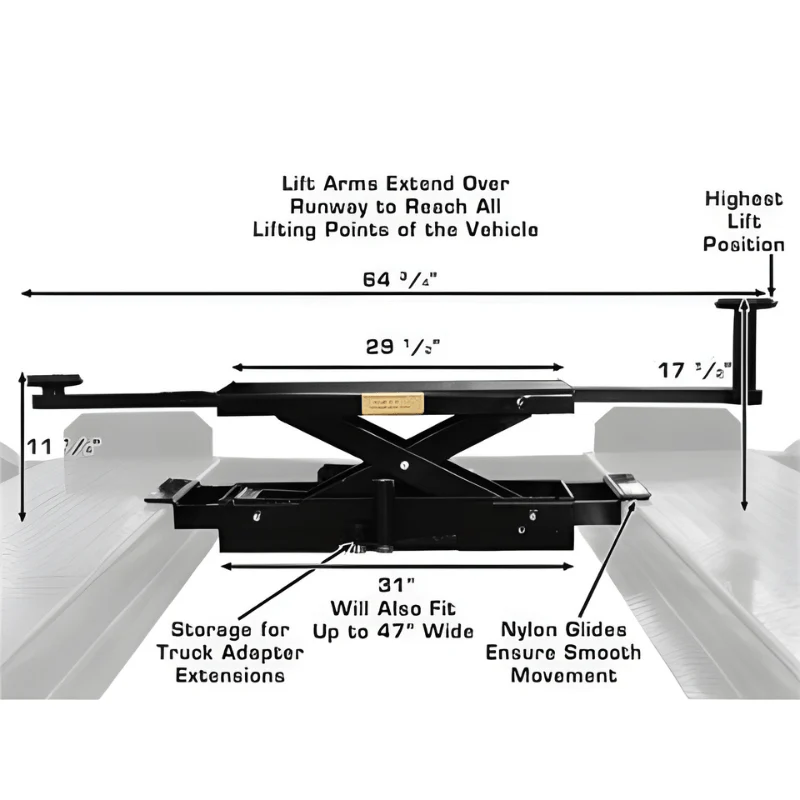

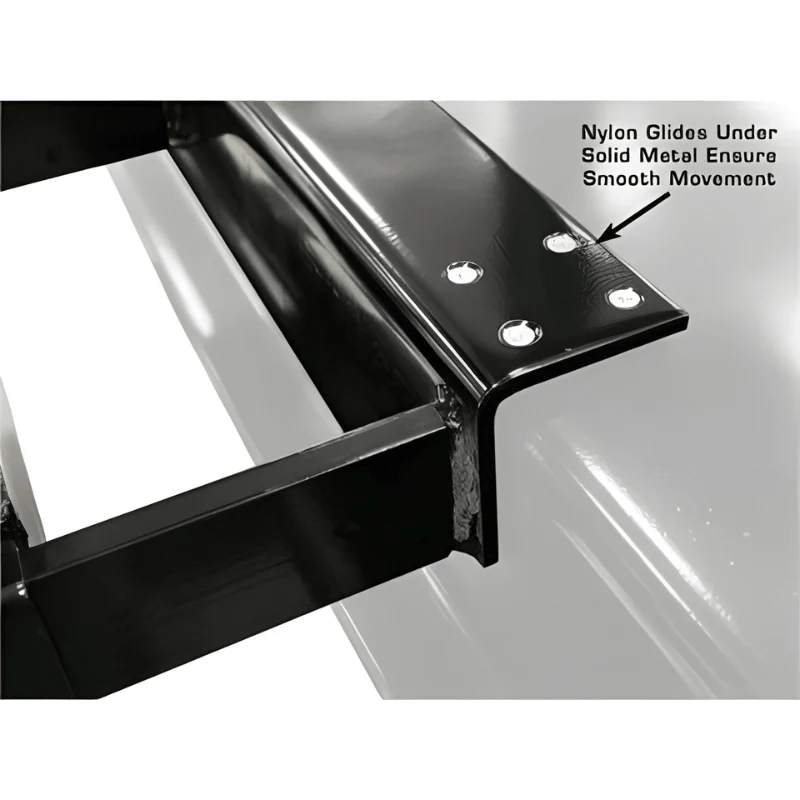

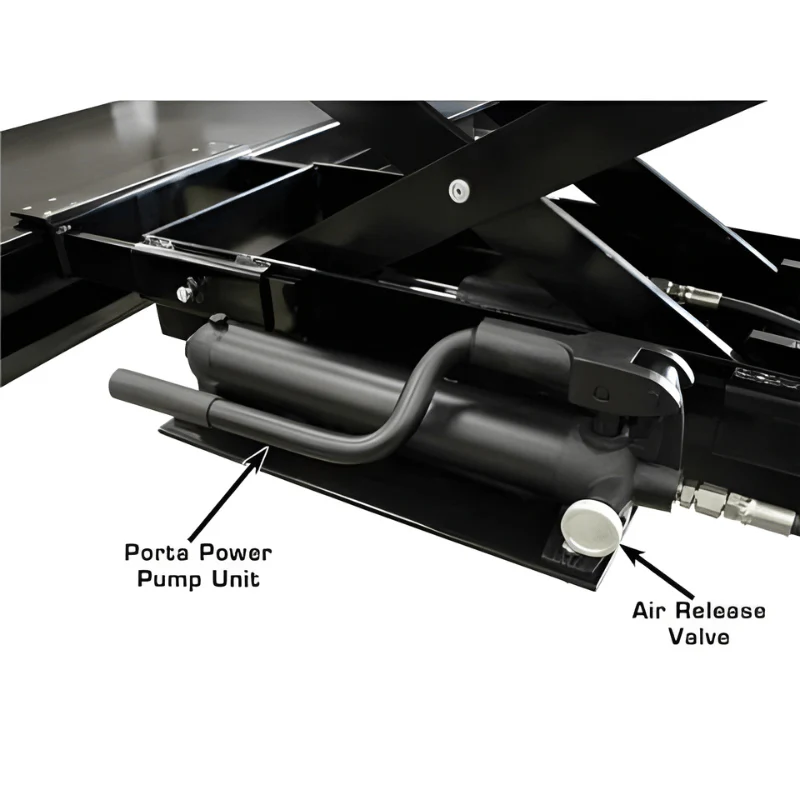

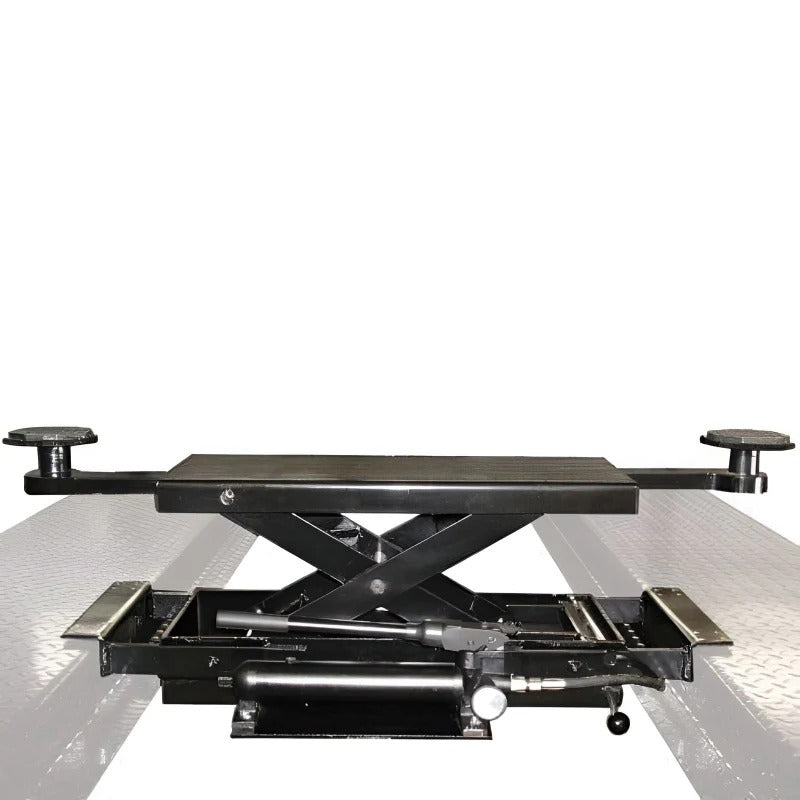

Atlas RJ35 Sliding Jack
| Specifications | Details |
|---|---|
| Capacity | 3,500 lbs. |

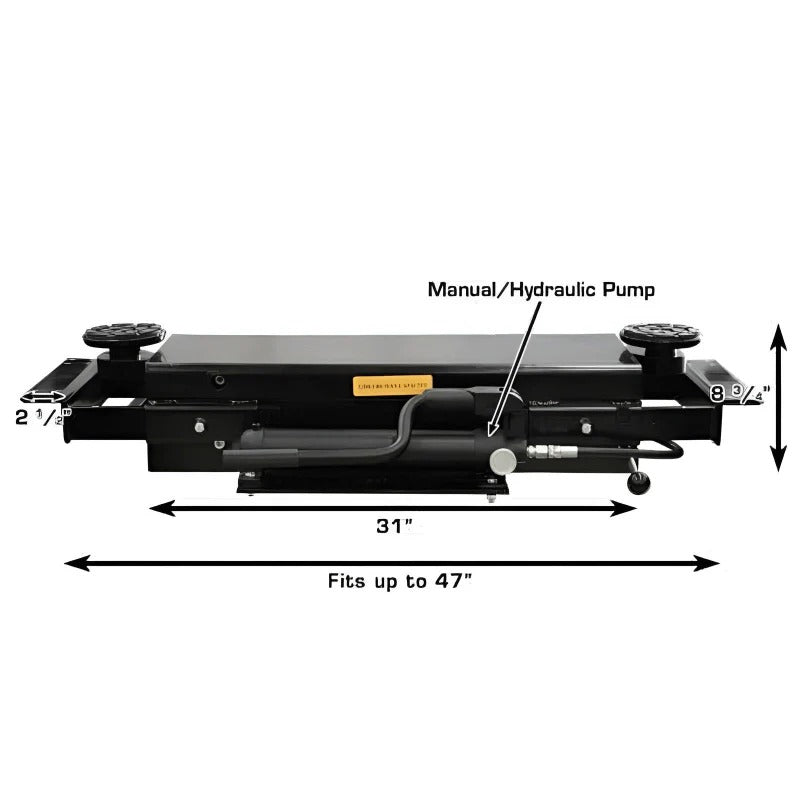

| Lower Extension Width (Between Runway) | 20 1/2" – 47" |
| Top Width (Arms Retracted & Extended) | 39 1/2" – 64 3/4" |
| Min. Pad Height Above Runway | 3 1/2" (may vary by lift) |
| Lift Pad Height Above Arm | 1 3/8" |

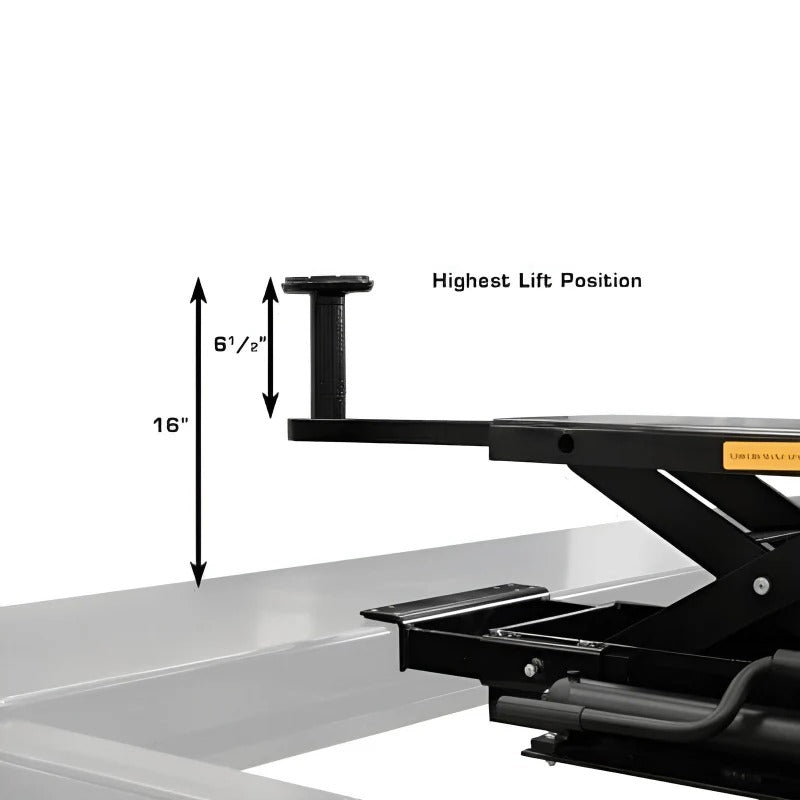

| Max Height Raised (Without Adapter) | 11" |
| Max Height Raised (With Adapters) | 17 1/4" |

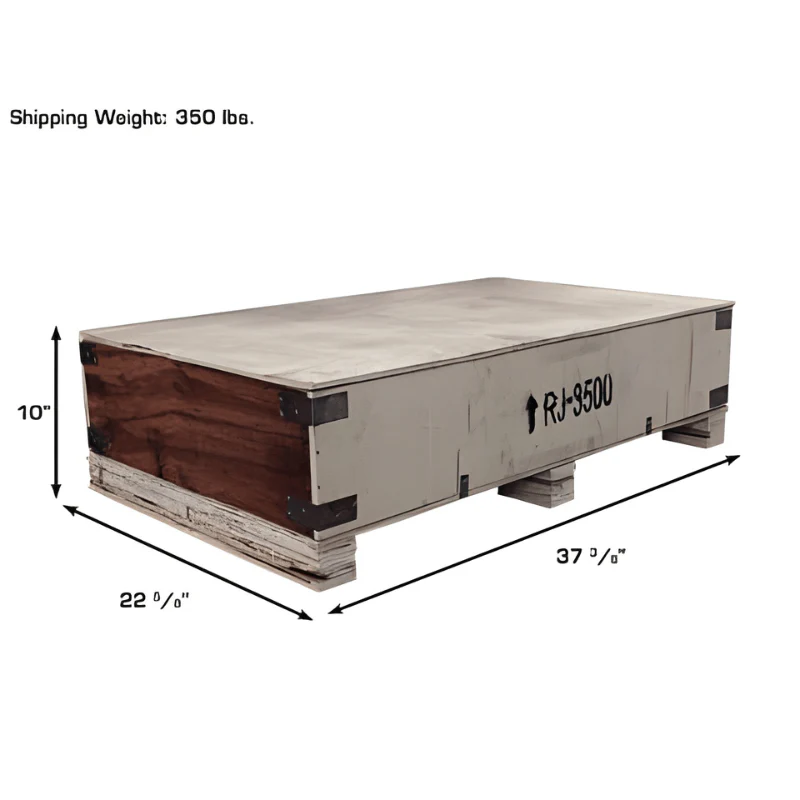

| Shipping Weight | 350 lbs. |

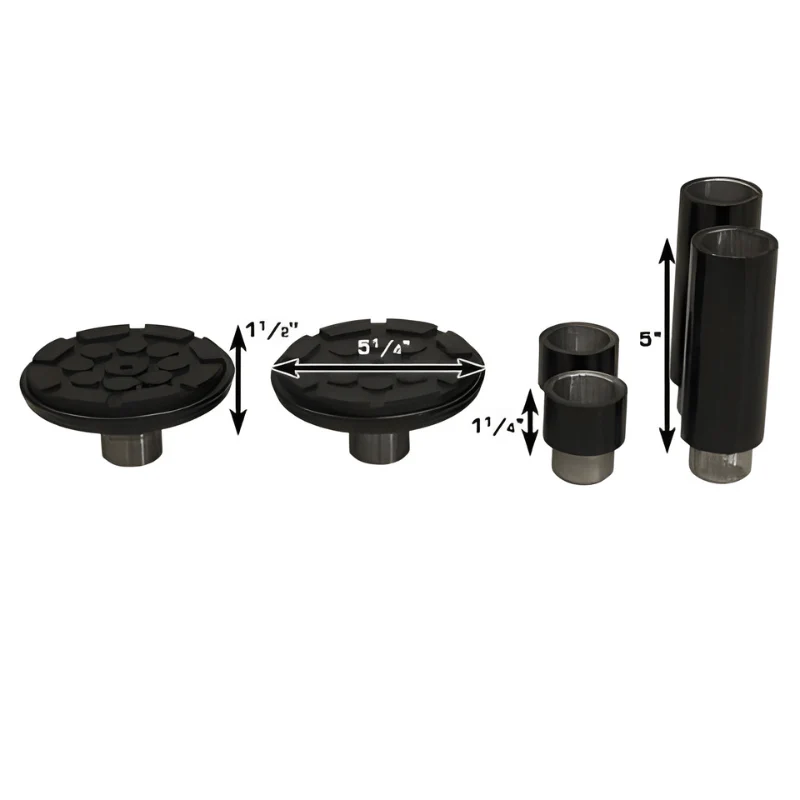

| Adapter Heights | 2 Each: 1 1/2", 5" |
| Arm Hole/Adapter Peg Size | 1 1/2" |
