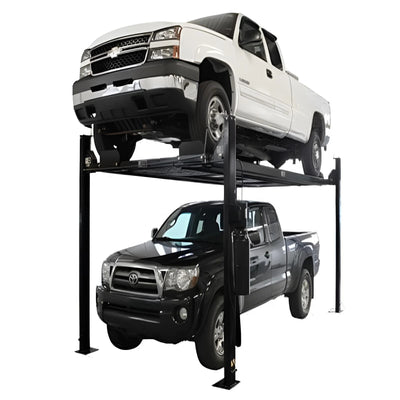

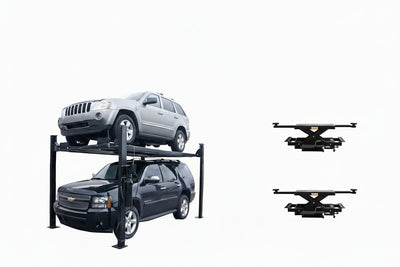

Atlas PRO8000EXT-L 8,000 lb 4-Post Lift with Dual RJ35 Sliding Bridge Jacks Combo
SKU: ATEXH-PRO8EXTL-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas PRO8000EXT-L combo package is a versatile 4-post lift solution designed for garages and light commercial shops that need extra length, height, and wheel service capability. This extended version is longer, wider, and taller than the standard PRO8000, making it ideal for accommodating longer wheelbase vehicles such as pickup trucks (excluding duallys). The included dual RJ35 sliding bridge jacks allow operators to lift vehicles off the runways, making tire, brake, and suspension work easy and efficient. With a portable design, caster kit, and included accessories, this combo delivers both storage and service functionality in one complete package.
Key Features & Benefits
- 8,000 lb lifting capacity for cars, trucks, and SUVs
- Extended length, width, and height for larger vehicles
- Includes two RJ35 sliding bridge jacks for wheel service

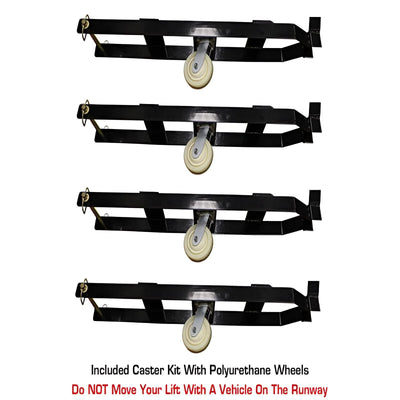

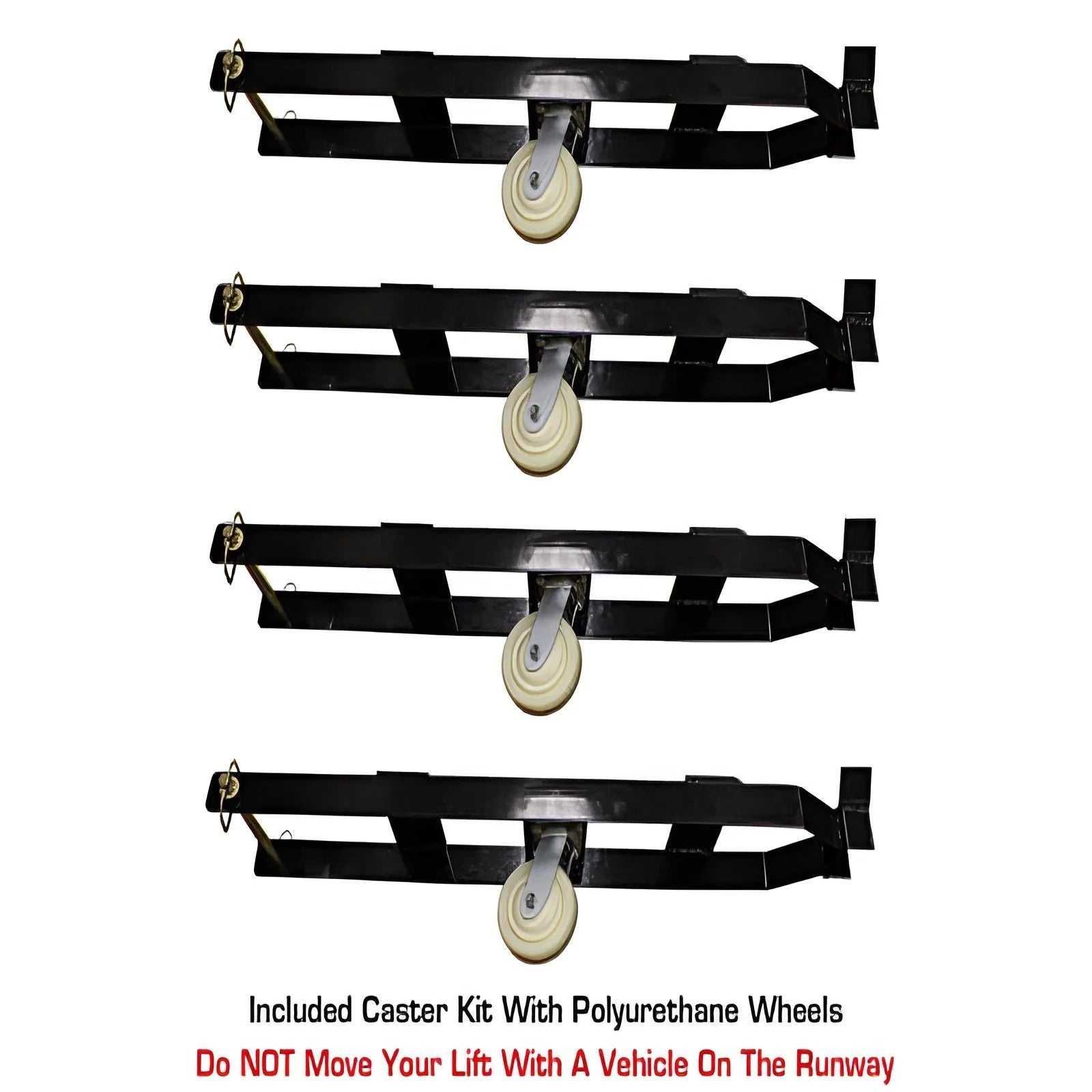

- Portable design with caster kit and polyurethane wheels included

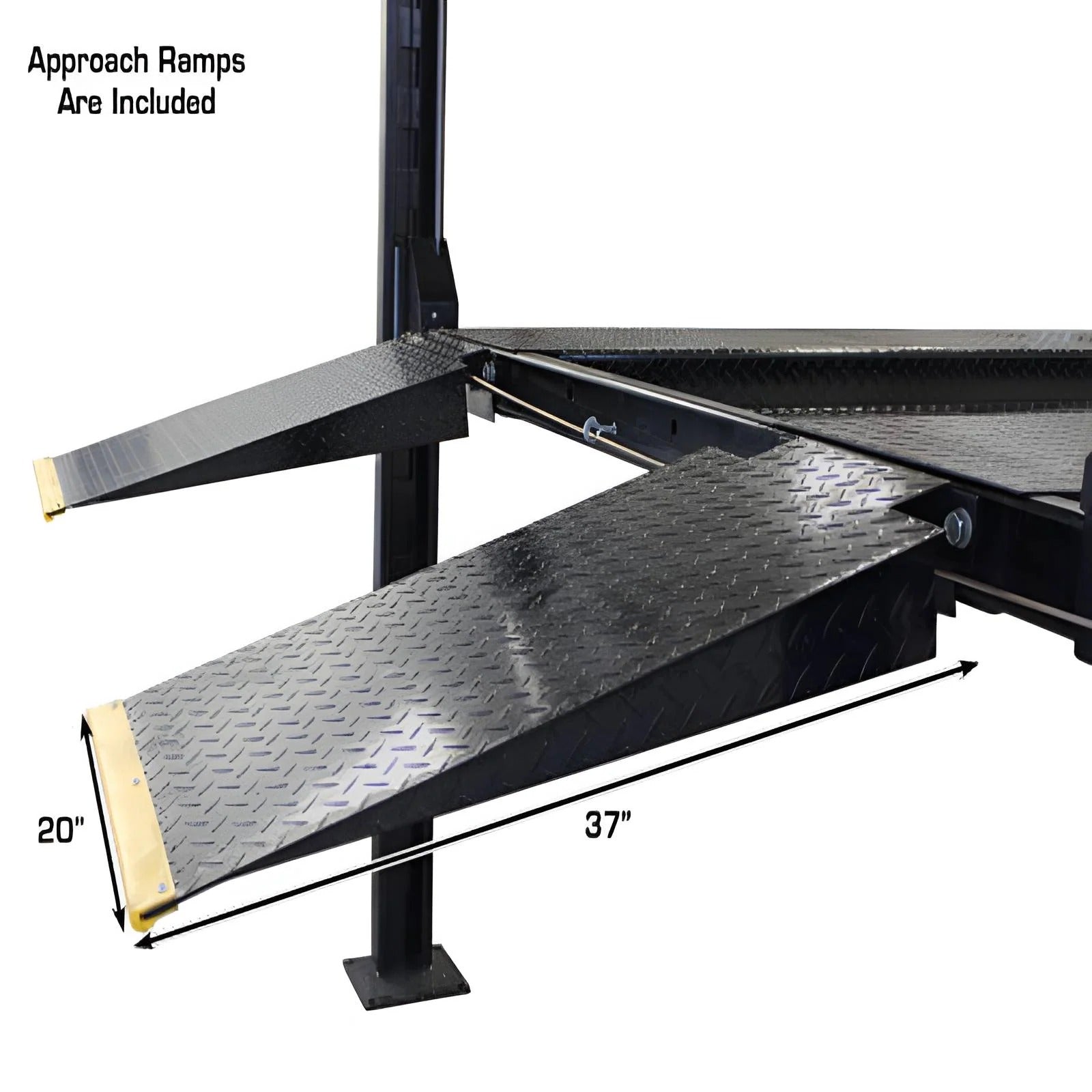

- Steel approach ramps included for easy vehicle loading

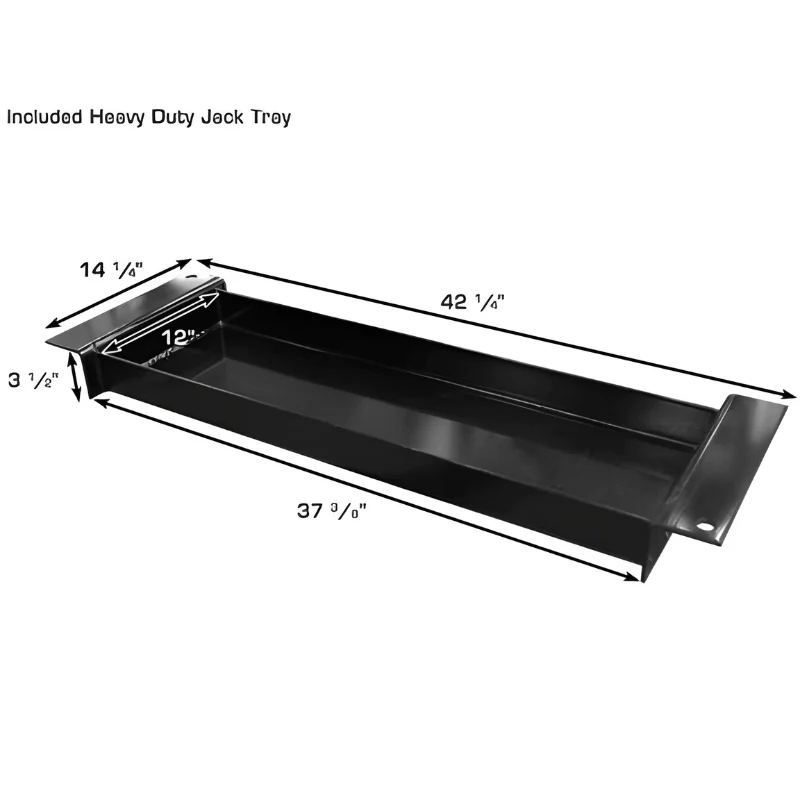

- Steel jack tray included for added versatility

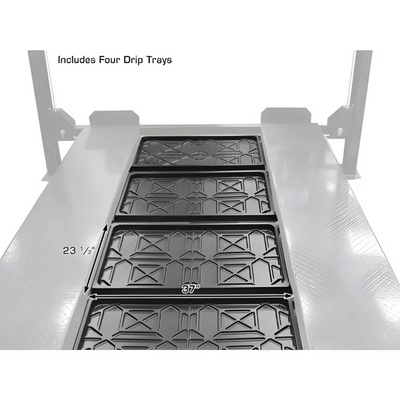

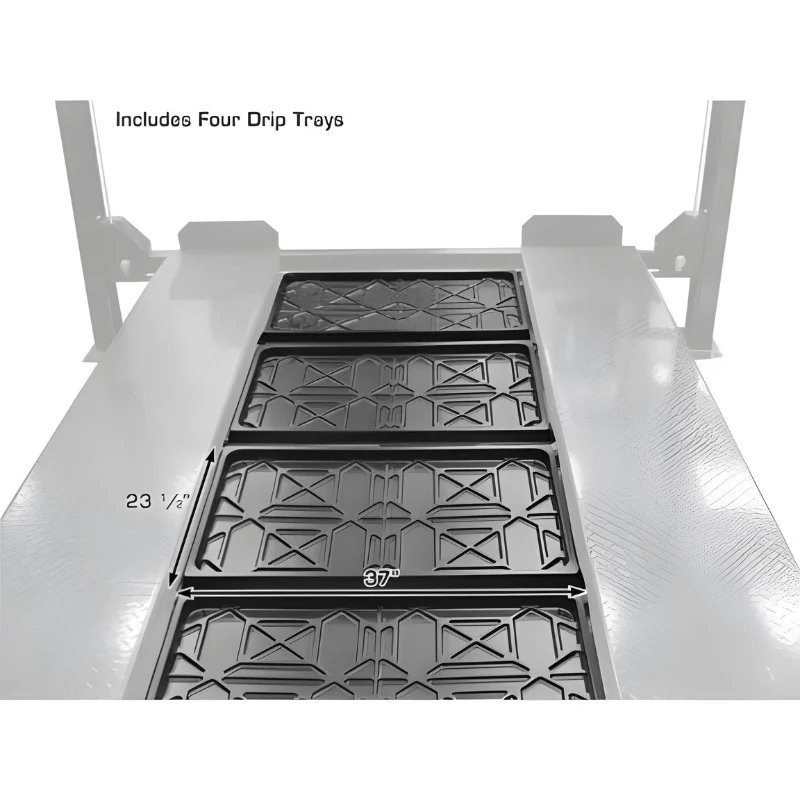

- Four plastic drip trays included to protect stored vehicles
- Wheel stops included for added safety
- Two rubber wheel chocks included

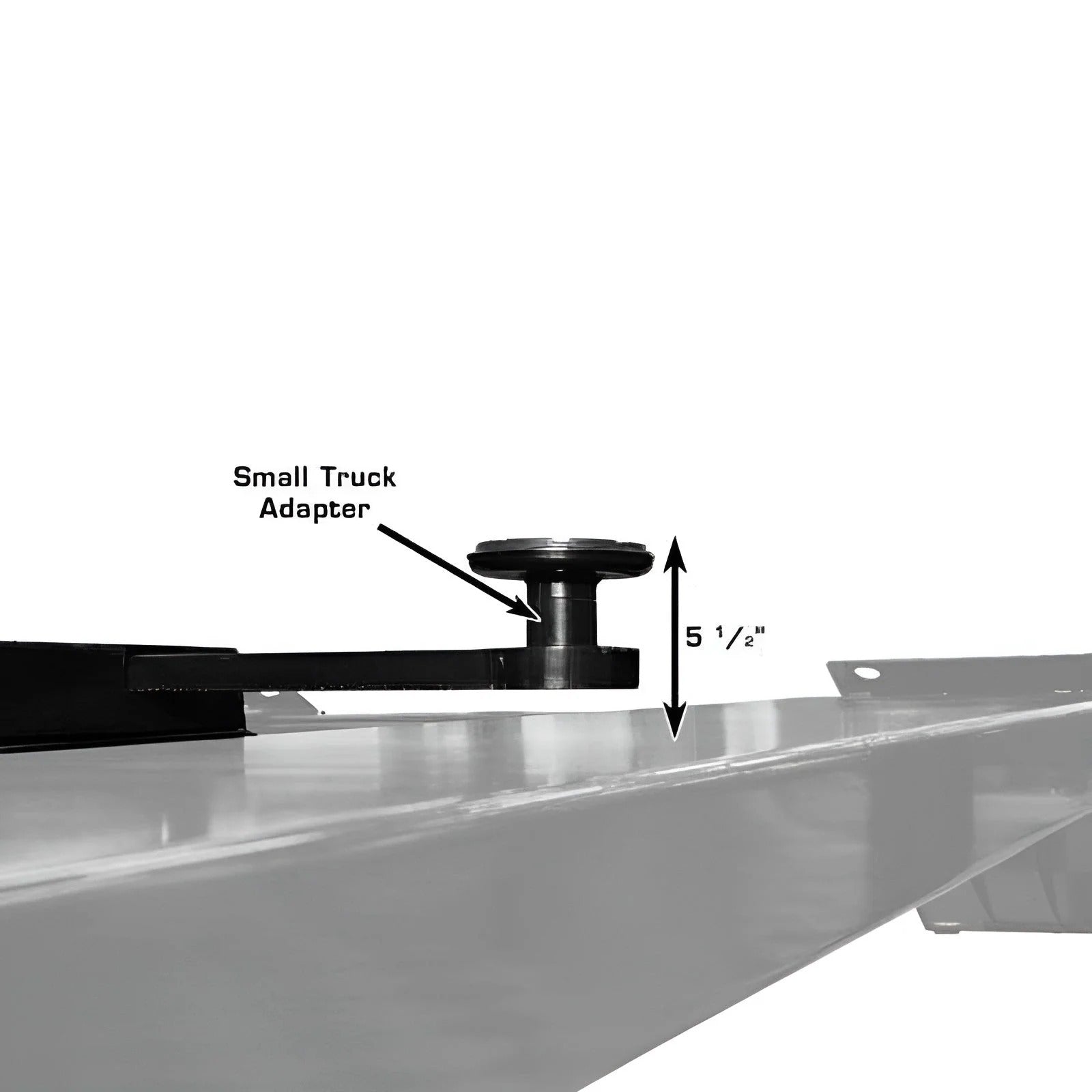

- Truck adapter sets included for each bridge jack
- Ideal for both vehicle storage and maintenance

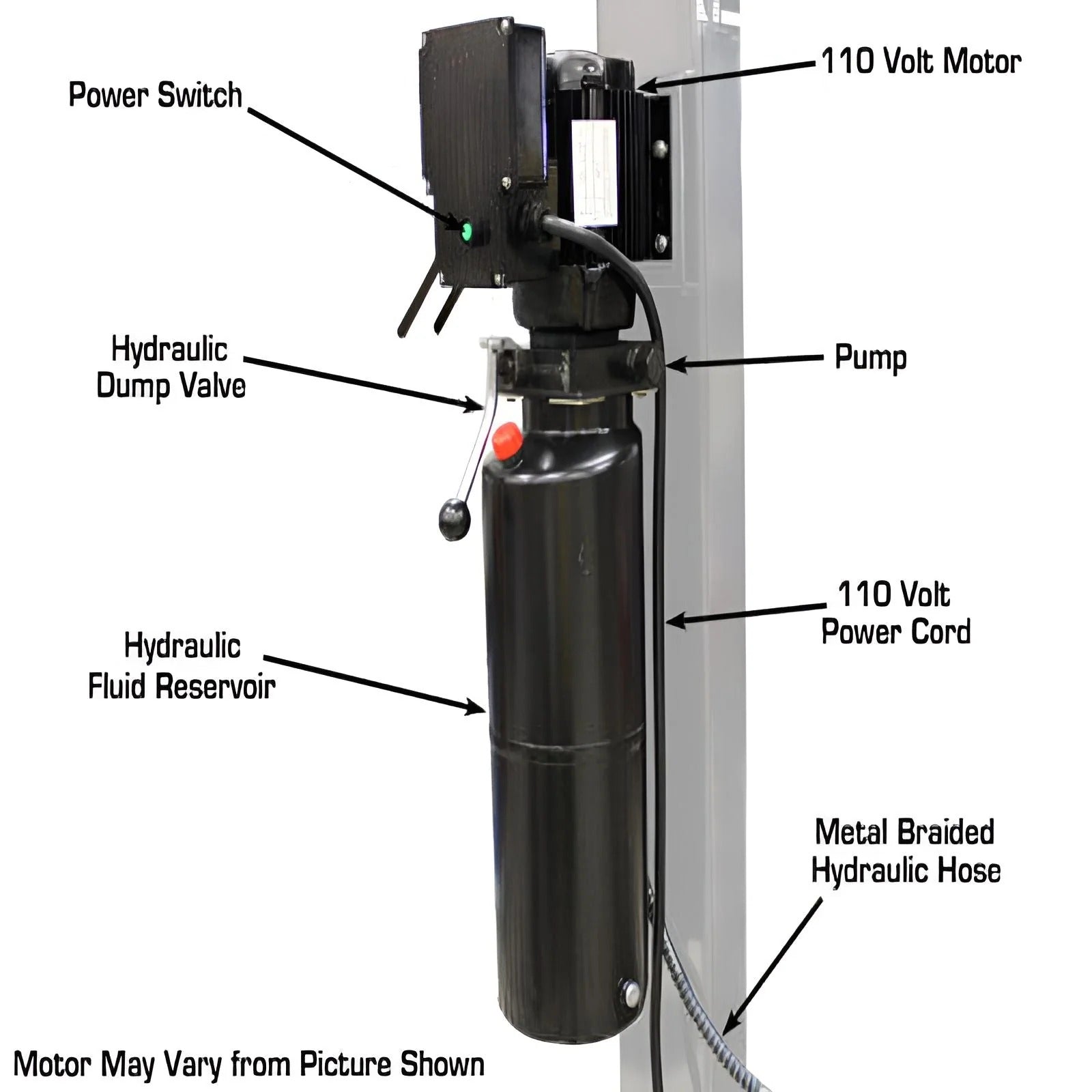

- 110V operation (30 amp breaker required)
- Freight prepaid for this package
Performance & Design Highlights
The PRO8000EXT-L is designed for users who need a lift that goes beyond standard garage dimensions. Its extended runways provide additional space for longer vehicles, while the increased height allows for better stacking and storage options. The included RJ35 bridge jacks transform the lift from a storage unit into a full-service workstation, enabling easy access to wheels and suspension components. The portable caster system allows the lift to be repositioned as needed, while the durable steel construction ensures long-term reliability.

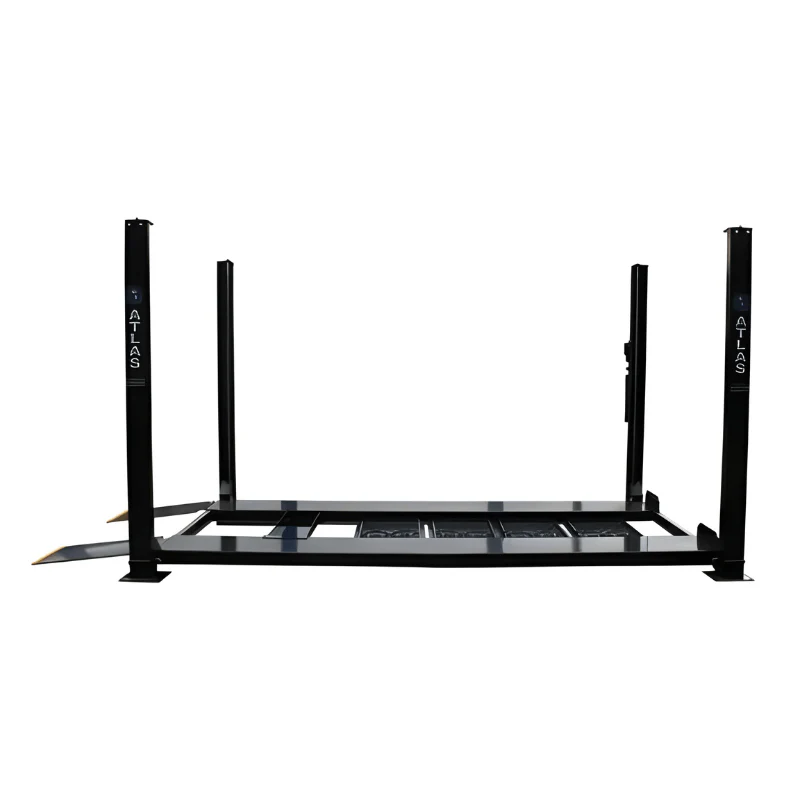

Atlas PRO8000EXT-L
| Specifications | Details |
|---|---|
| Capacity | 8,000 lbs. |

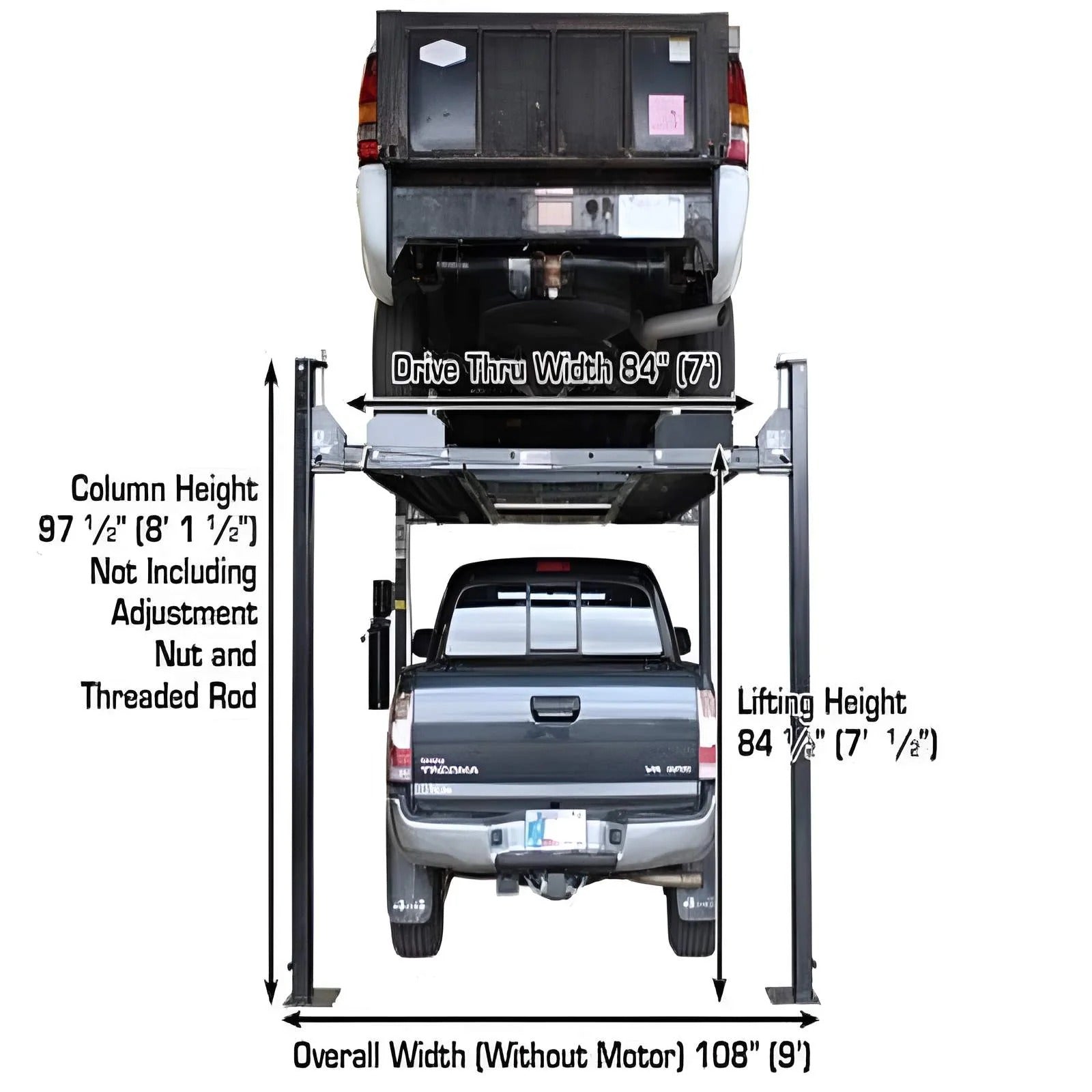

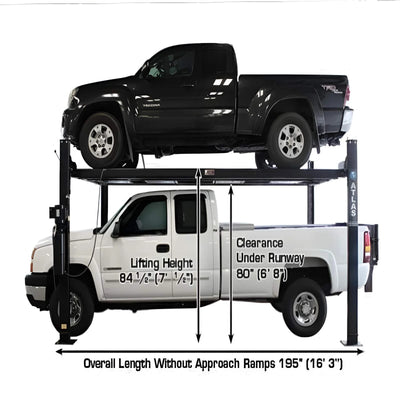

| Lifting Height (Top of Runway) | 84" |
| Clearance Under Runways | 78 1/2" |

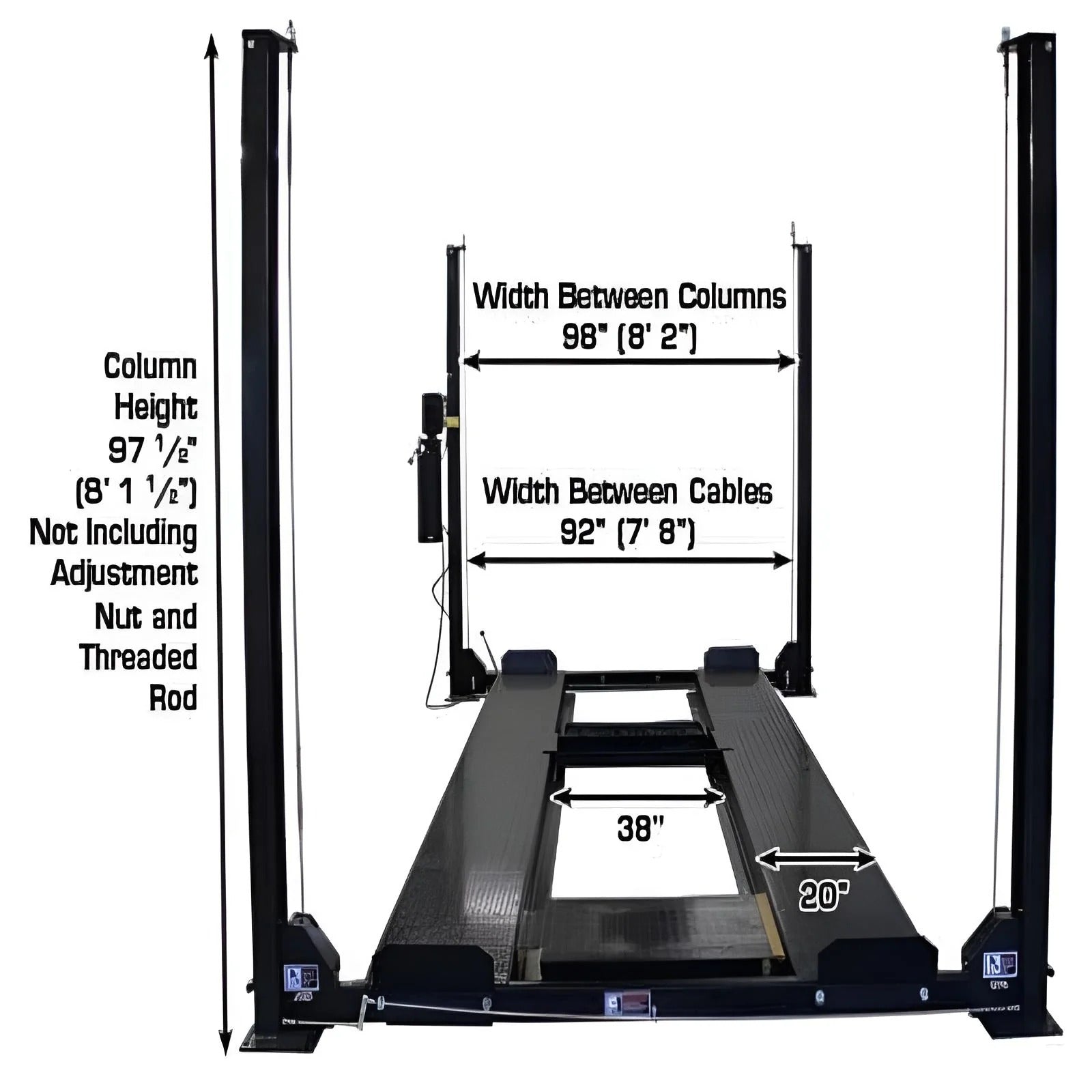

| Column Height | 98 1/2" |
| Overall Width (No Motor) | 108" |

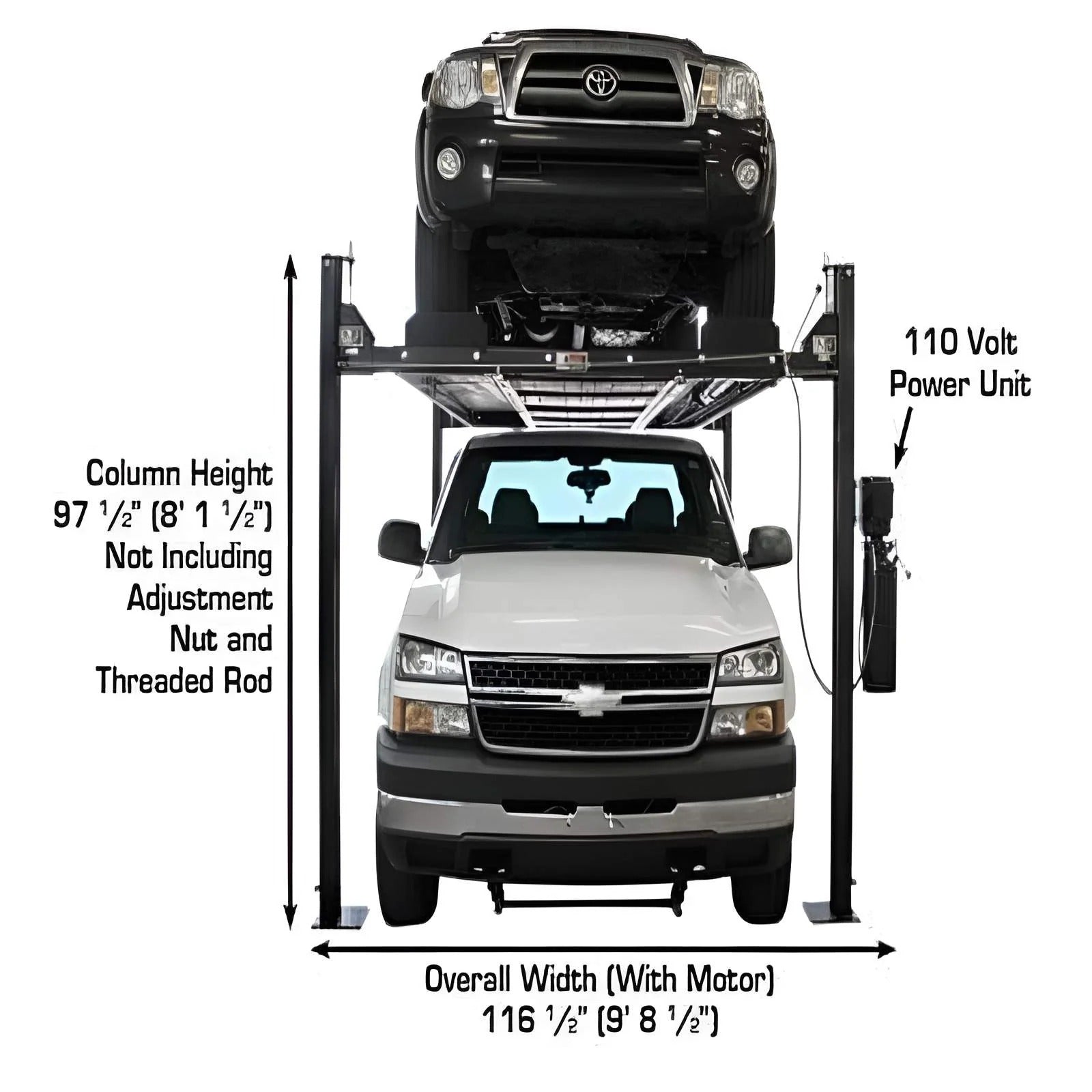

| Overall Width (With Motor) | 116 1/2" |
| Overall Length (With Ramps) | 222" |

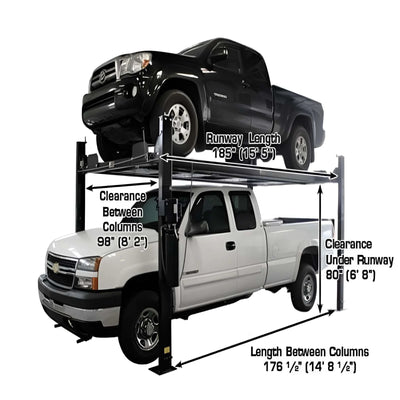

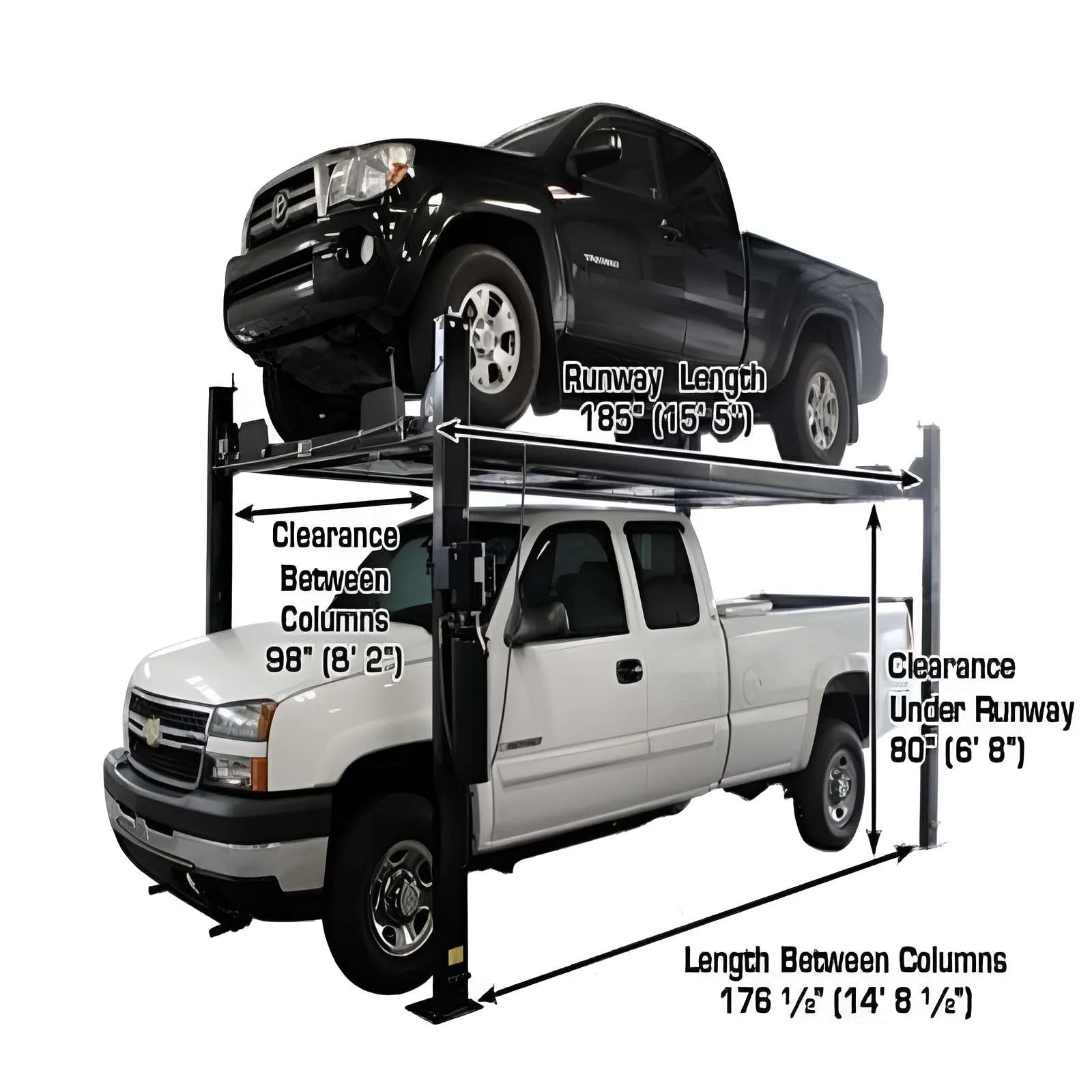

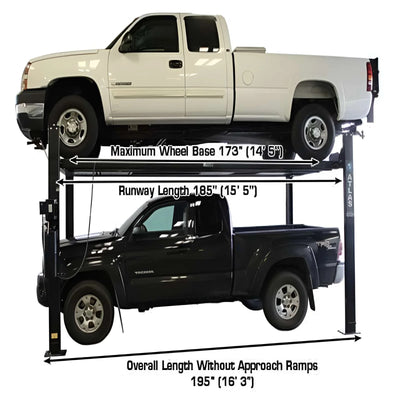

| Runway Length | 185" |

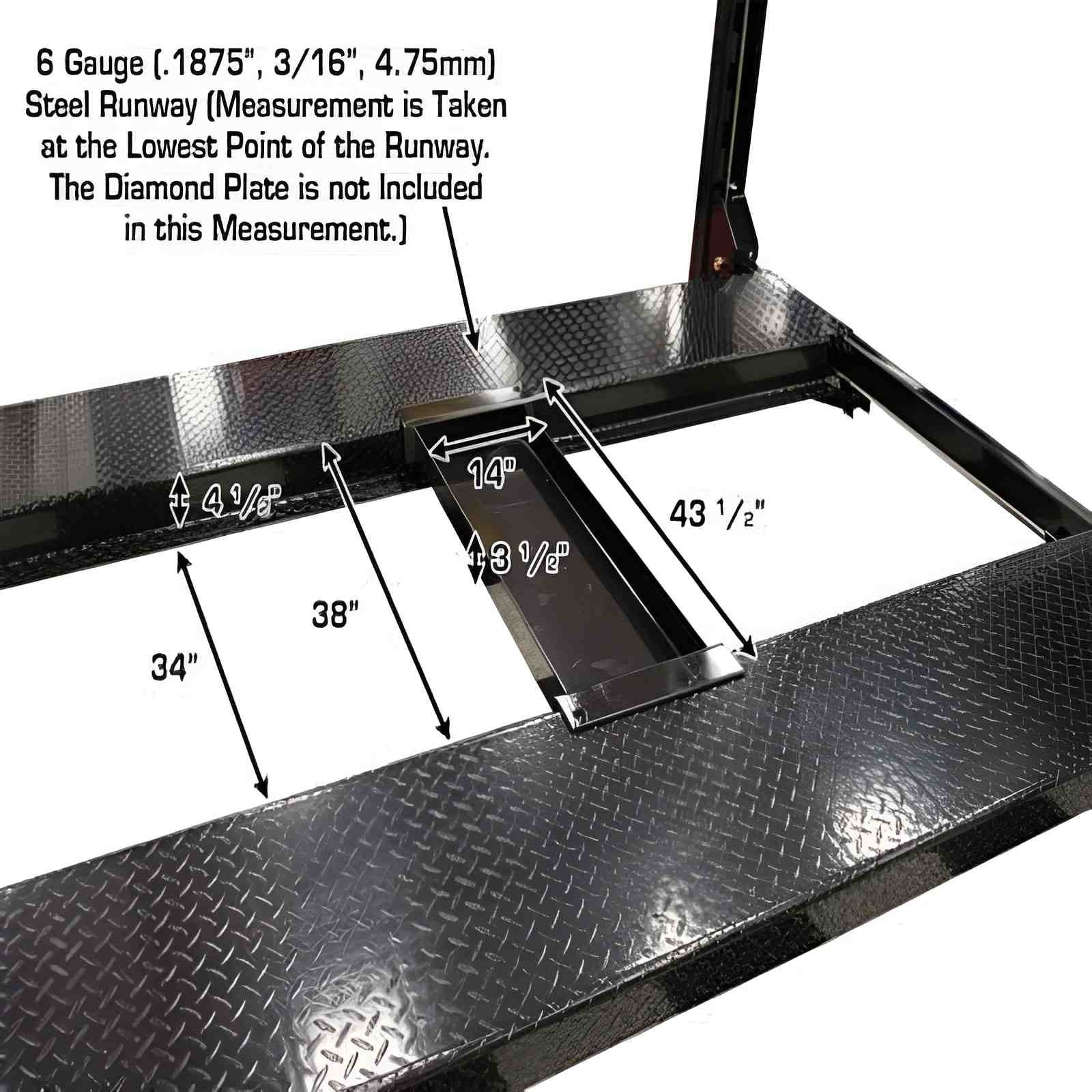

| Runway Width | 22" (rails) / 18 3/4" (drive surface) |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 38" |
| Width Between Rails | 34" |
| Outside Runway Width | 77 3/4" |
| Clearance Between Columns | 98" |

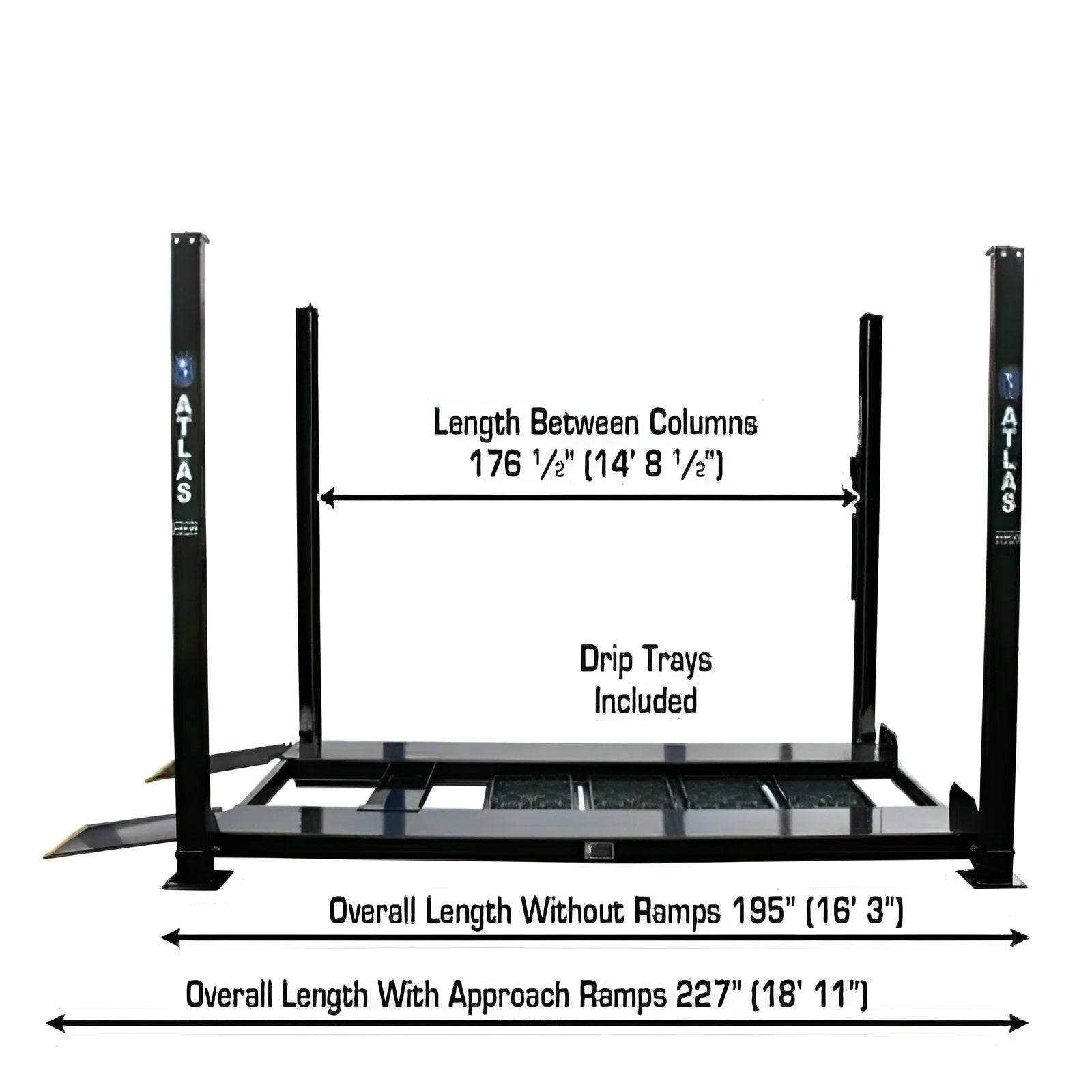

| Length Between Columns | 176 1/2" |
| Max Wheelbase | 173" |
| Drive-Thru Width | 84" |
| Power Requirement | 110V / 30 Amp |

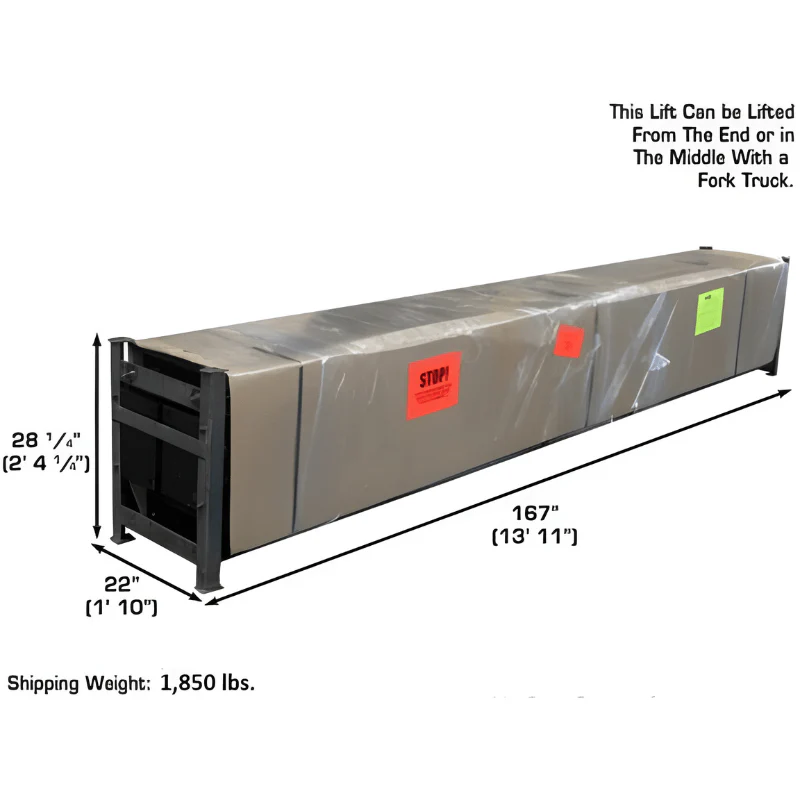

| Shipping Weight | 1,900 lbs. |

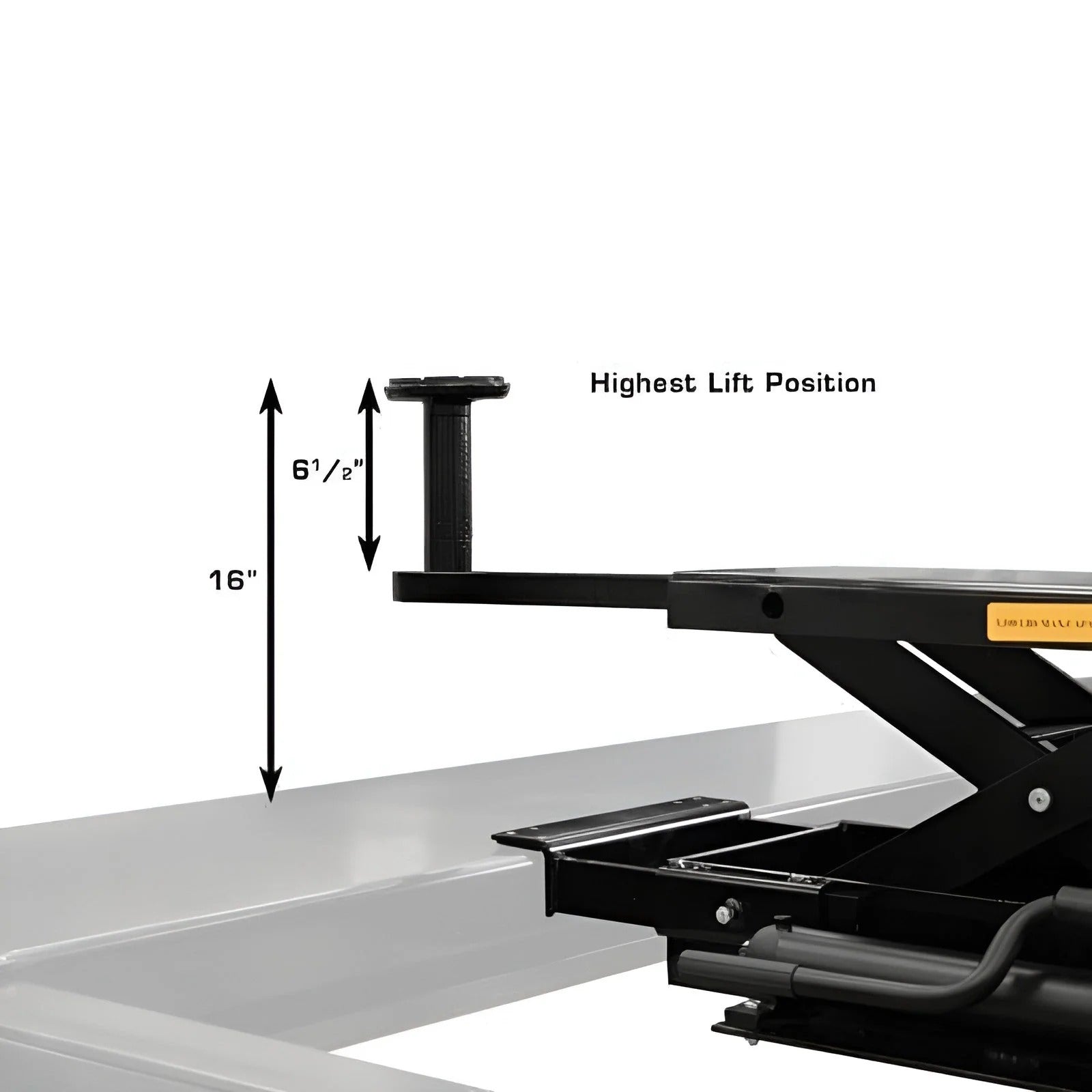

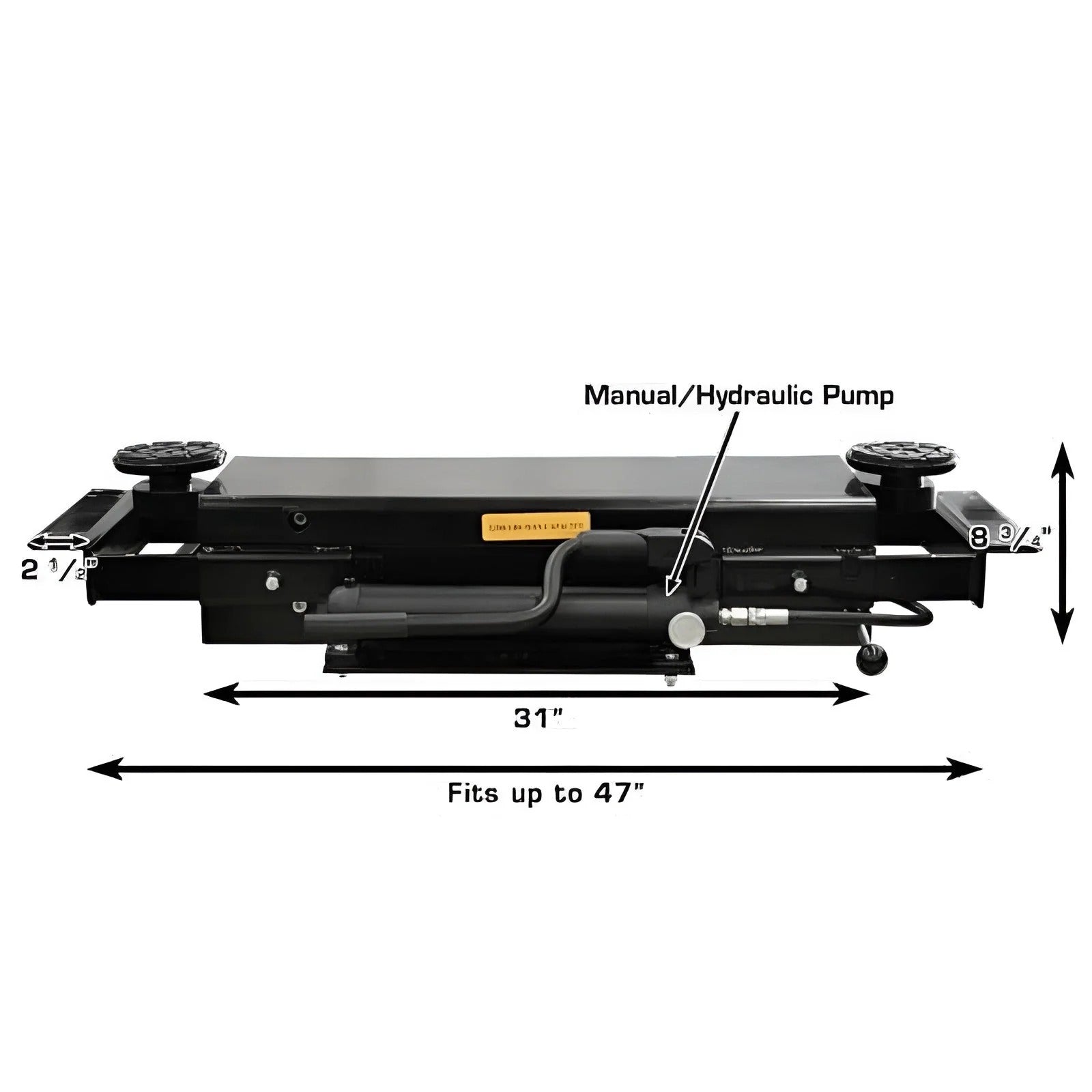

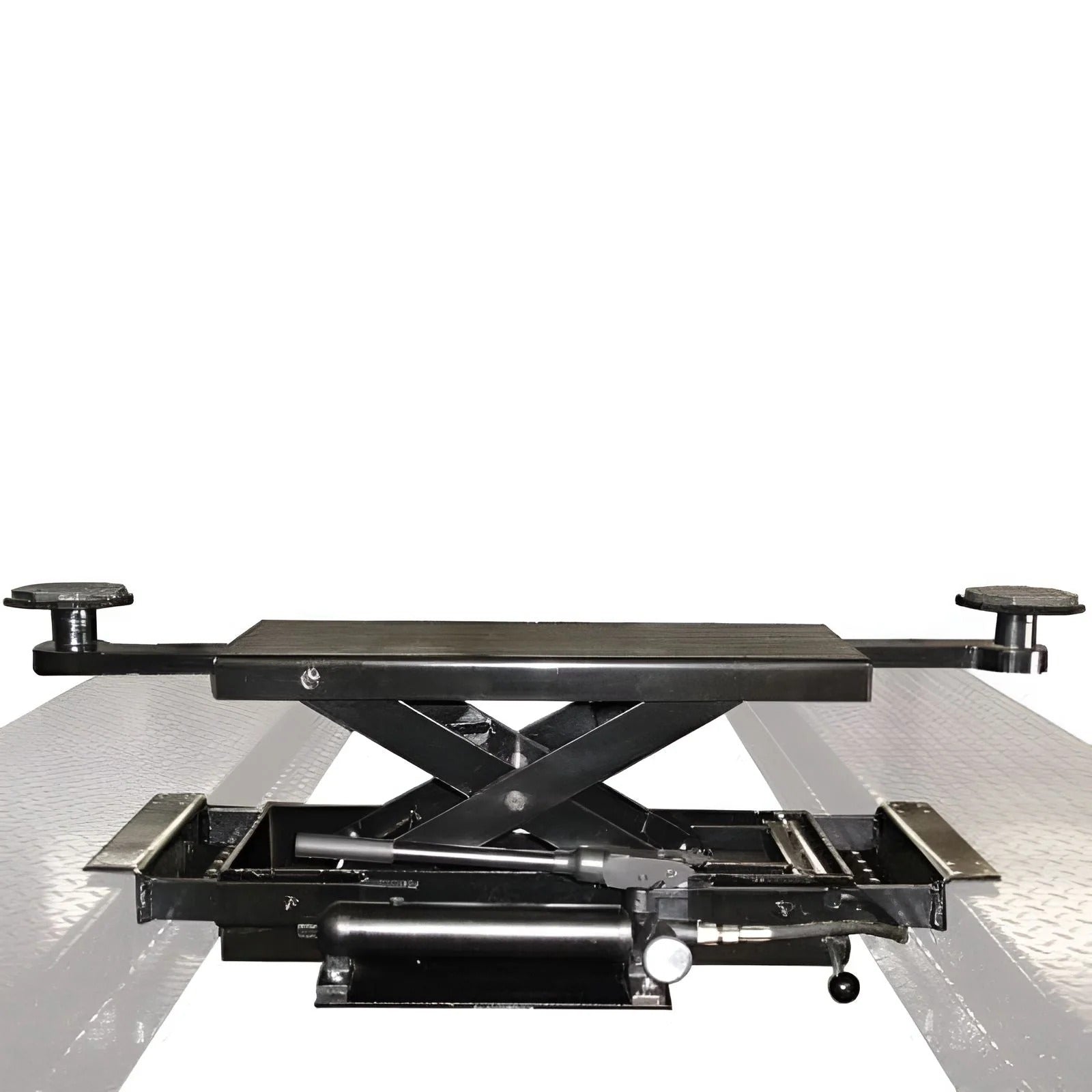

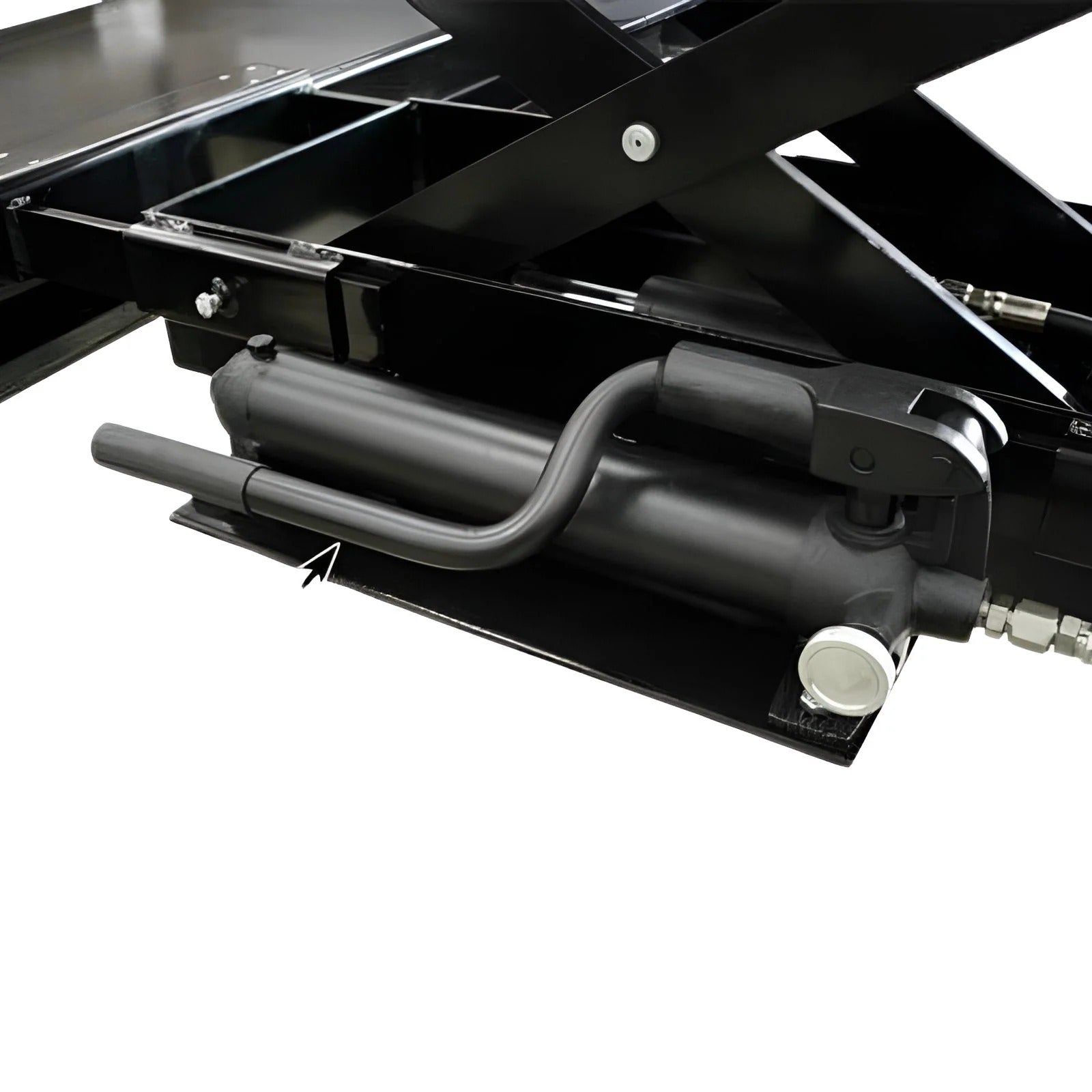

Atlas RJ35 Sliding Bridge Jack
| Specifications | Details |
|---|---|
| Capacity | 3,500 lbs. (each) |
| Extension Width Range | 20 1/2" – 47" |
| Arm Width Range | 39 1/2" – 64 3/4" |
| Min Pad Height | 3 1/2" |
| Lift Pad Height | 1 3/8" |
| Max Lift Height (No Adapter) | 11" |
| Max Lift Height (With Adapters) | 17 1/4" |

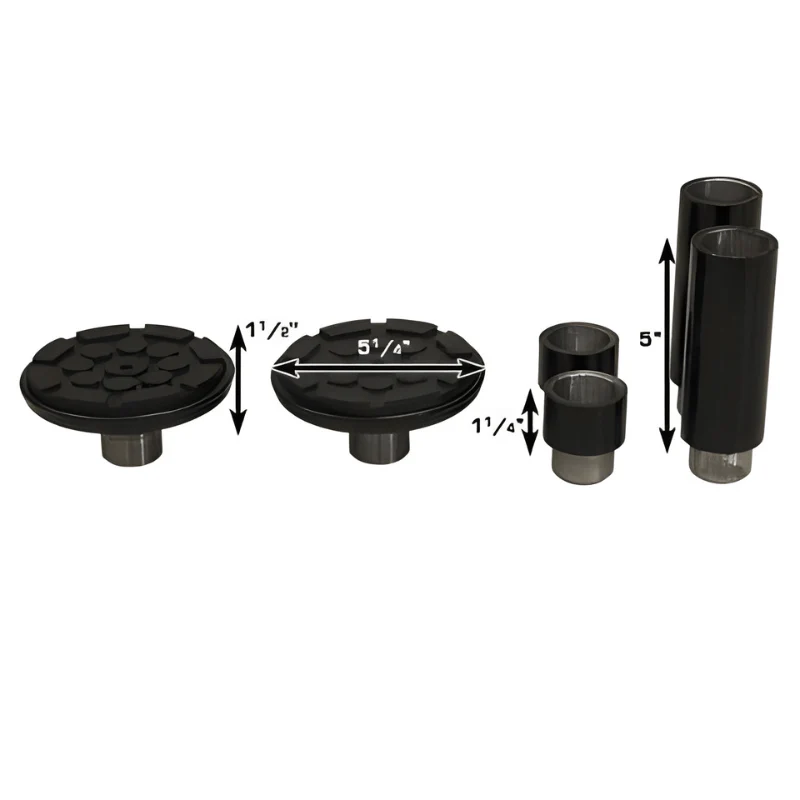

| Adapter Heights | 1 1/2" and 5" |
| Adapter Peg Size | 1 1/2" |

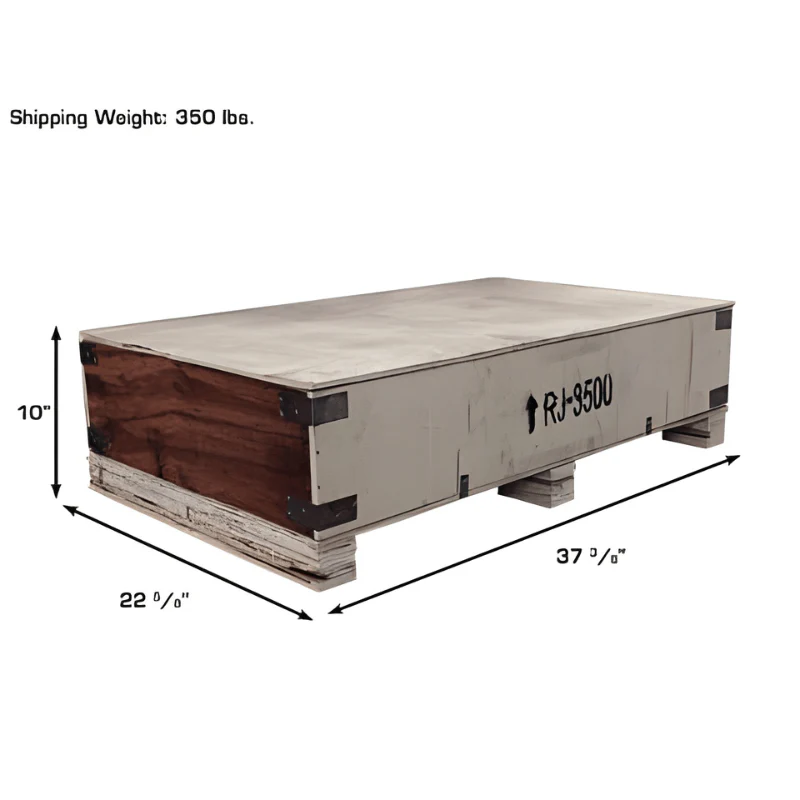

| Shipping Weight | 350 lbs. per jack |
