Katool KT-4H150 15,000 lb 4-Post Alignment Lift with Rolling Jack Included
SKU: KT-4H150
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

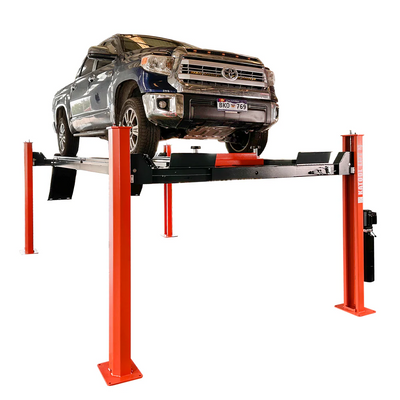

When your shop needs serious lifting power, the Katool KT-4H150 steps in. This 15,000 lb heavy-duty four-post alignment lift is built to handle larger vehicles while giving you the versatility to perform alignment work, maintenance, and even long-term storage—all on one platform.
Designed for demanding environments, the KT-4H150 provides the strength and stability required for trucks, vans, and commercial vehicles. Its wide runway design, high lift height, and included rolling jack make it a complete solution for shops that want to streamline workflow without switching equipment between jobs.
With reinforced construction, advanced safety systems, and flexible installation options, this lift is engineered for consistent performance in high-volume service bays.
Key Features & Benefits
- 15,000 lb Lifting Capacity – Built for trucks, vans, SUVs, and commercial vehicles
- Full-Rise Lift Height (~76") – Provides comfortable undercar access
- CE Certified Safety – Tested to 115% dynamic and 150% static load standards

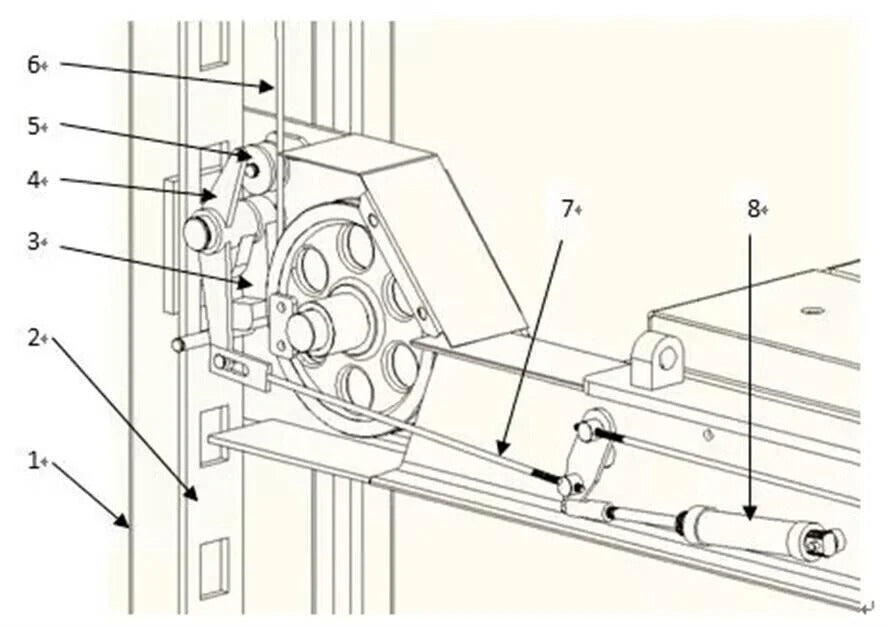

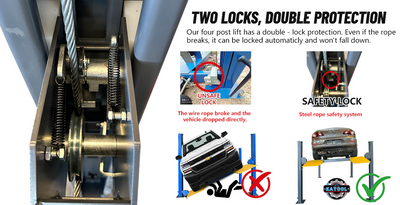

- Mechanical Locking System – Primary and secondary locks for secure positioning
- Single-Point Lock Release – Controlled and convenient lowering

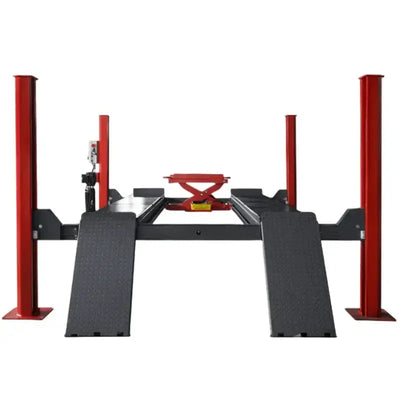

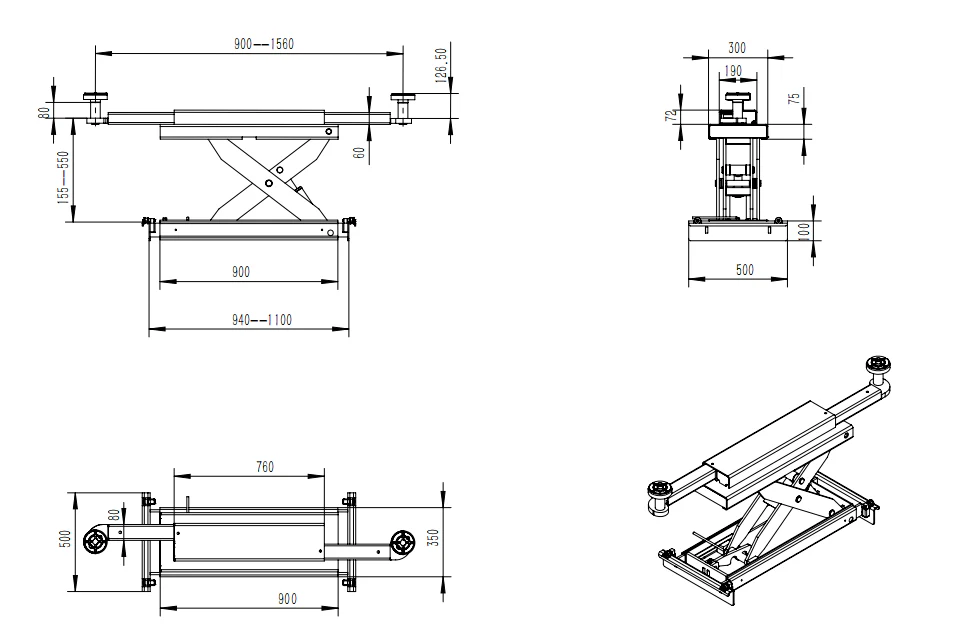

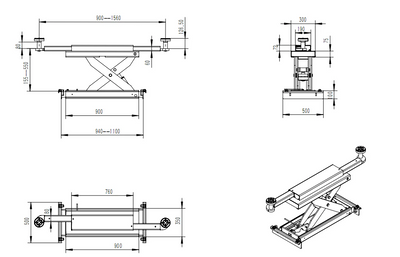

- 6,000 lb Rolling Jack Included – Enables wheel service without removing the vehicle
- Flexible Power Column Installation – Install front, rear, left, or right side
- Diamond-Plate Runways – Non-slip surface for safe vehicle positioning
- Alignment-Ready Design – Compatible with optional turntables
- Heavy-Duty Steel Construction – Built for daily commercial use
- Handles Heavy Workloads – Ideal for large vehicles and fleet service
- Multi-Function Lift – Alignment, repair, and storage in one system
- Stable & Balanced Lifting – Designed for consistent performance under load
| Specifications | Details |
|---|---|
| Model | KT-4H150 |
| Product Type | Four-Post Alignment Lift |
| Lifting Capacity | 15,000 lbs (≈ 6,803 kg) |
| Max Lifting Height | ~76" |
| Minimum Runway Height | ~9.3" |
| Lifting Time | ~60 seconds |
| Lowering Time | ~55 seconds |
| Post Height | ~92" (2175 mm) |
| Overall Width | ~136.06" (3456 mm) |
| Overall Length (with ramps) | ~245.31" (6231 mm) |
| Width Between Columns | ~118.11" (3000 mm) |
| Motor / Power | 3 kW / 220V / 60Hz / 1PH (110V optional) |
| Rolling Jack Capacity | 6,000 lbs |
| Construction | Heavy-duty steel |
| Net Weight | ~4,850 lbs (2,200 kg) |
| Certifications | CE Certified (115% dynamic / 150% static tested) |
What's Included
- Four-post lift system
- 6,000 lb rolling bridge jack
- Integrated safety locking system
Documents
