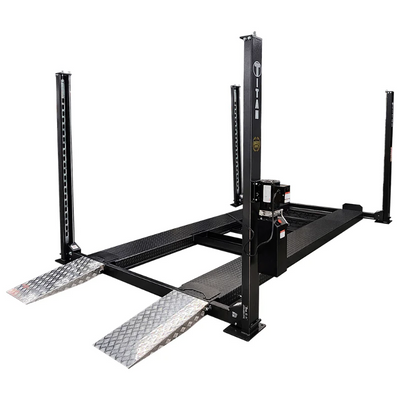

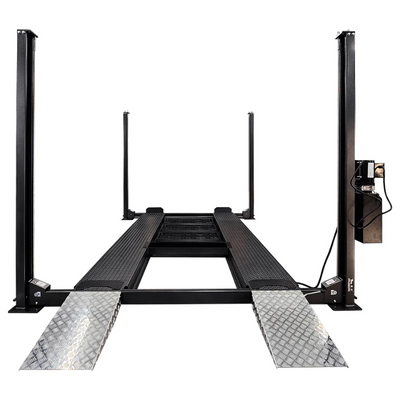

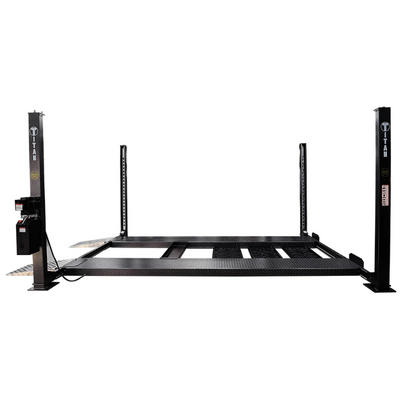

Titan SDPL-9KMS-XLT 9,000 lb 4-Post Lift Master Series
SKU: SDPL-9KMS-XLT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Titan SDPL-9KMS-XLT is a heavy-duty 4-post lift designed for vehicle storage and light-duty service work. With a 9,000 lb lifting capacity and a standard 110V power unit, it's ideal for residential garages and workshops looking to safely store cars, trucks, or recreational equipment while maximizing space.
Built for Strength and Everyday Use
Constructed with diamond-plated one-piece steel runways and reinforced support structures, this lift is engineered for durability and stability. The hammered dark powder-coated finish helps protect against wear and corrosion, ensuring long-term performance in both home and shop environments.
User-Friendly Operation and Clean Design

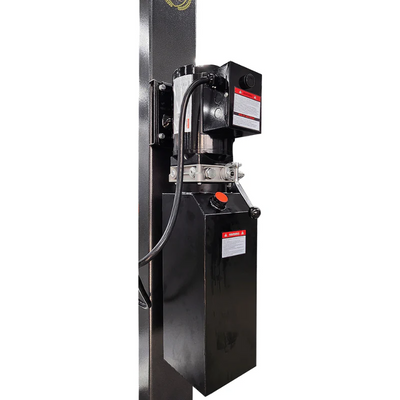

The single-point safety lock release is positioned near the power unit, allowing for easier operation without excessive bending. Internal linkage rods are neatly integrated into the design, keeping components protected while still accessible for adjustments when needed.
Versatile for Storage and Light Service Work
This lift is not only ideal for parking and storage but also allows users to perform maintenance tasks while the vehicle is elevated. Features like the included jack tray and optional sliding bridge jack expand its functionality for wheel and suspension work.
Expandable with Optional Accessories
Optional add-ons such as a caster kit allow the lift to be repositioned within your garage, while additional accessories like a sliding bridge jack or center deck package increase versatility for different applications.
Key Features
- 9,000 lb lifting capacity
- Hammered dark powder-coated finish
- Internal linkage rod system
- Single-point safety lock release
- Metal hydraulic tank reservoir
- Diamond-plated one-piece steel runways
- Reinforced runway support structure
- Greaseable pulleys for smooth operation
Included
- Aluminum approach ramps
- Three drip trays
- Jack tray
- Four wheel stops
Optional Accessories
- Caster kit
- Sliding bridge jack
| Specifications | Details |
|---|---|
| Center of Baseplates Width | 112-3/16" |
| Outside of Baseplates Width | 121-1/2" |
| Outside of Columns Width | 118-3/4" |
| Inside of Columns Width | 112" |
| Overall Width with Motor | 133-7/8" |
| Drive-Thru Width | 99-1/2" |
| Between Runways | 43-1/2" |
| Runway Width | 19-7/8" |
| Runway Length | 189-9/16" |
| Ramp Length | 36-5/8" |
| Overall Length with Ramps | 231" |
| Lifting Height | 5-1/2" – 87-3/16" |
| Overall Height | 97-5/16" |
| Lifting Capacity | 9,000 lb |
| Shipping Weight | 2,002 lb |
