Auxx-Lift Auxx-One 400 lbs Garage Storage Lift
SKU: AUXX-ONE
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

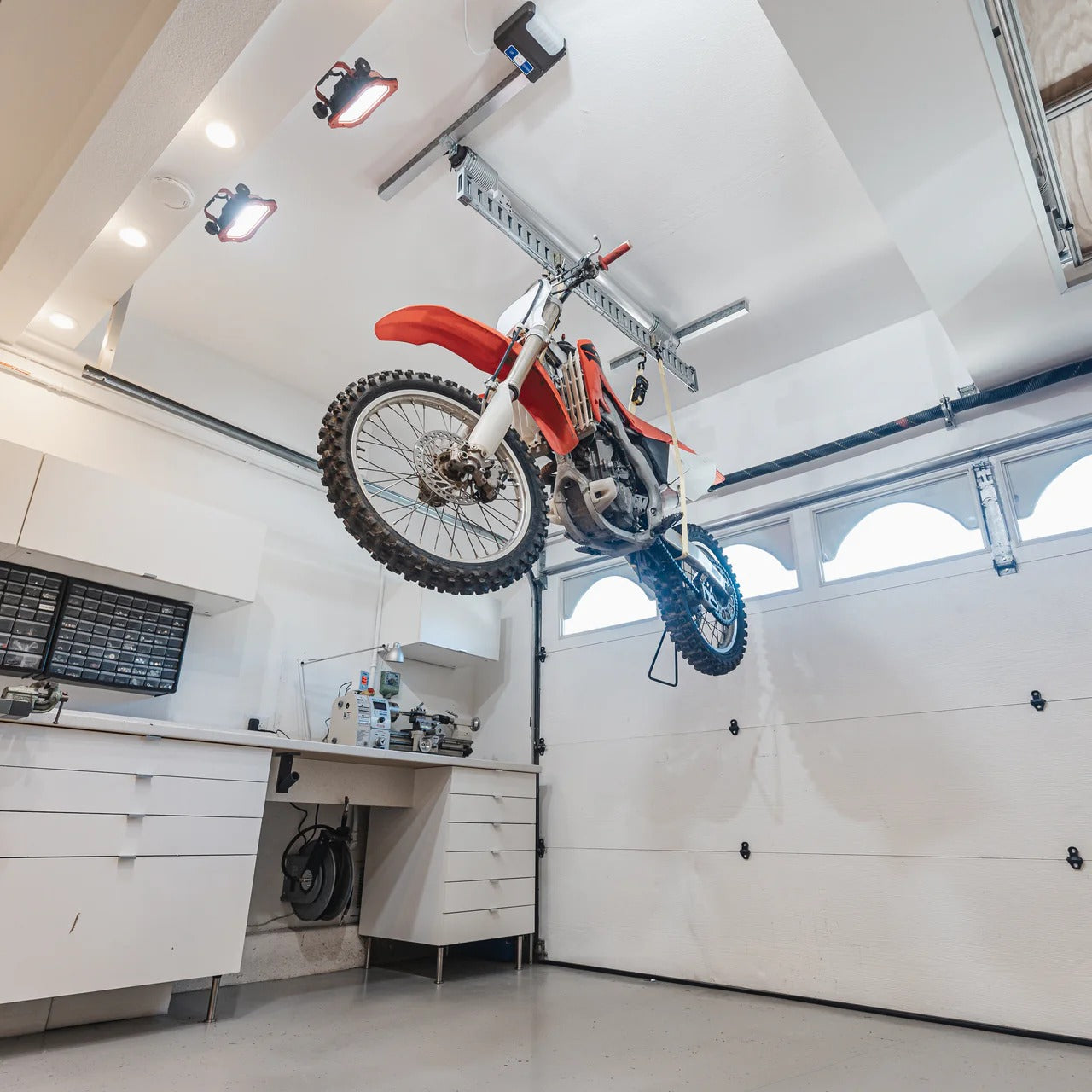

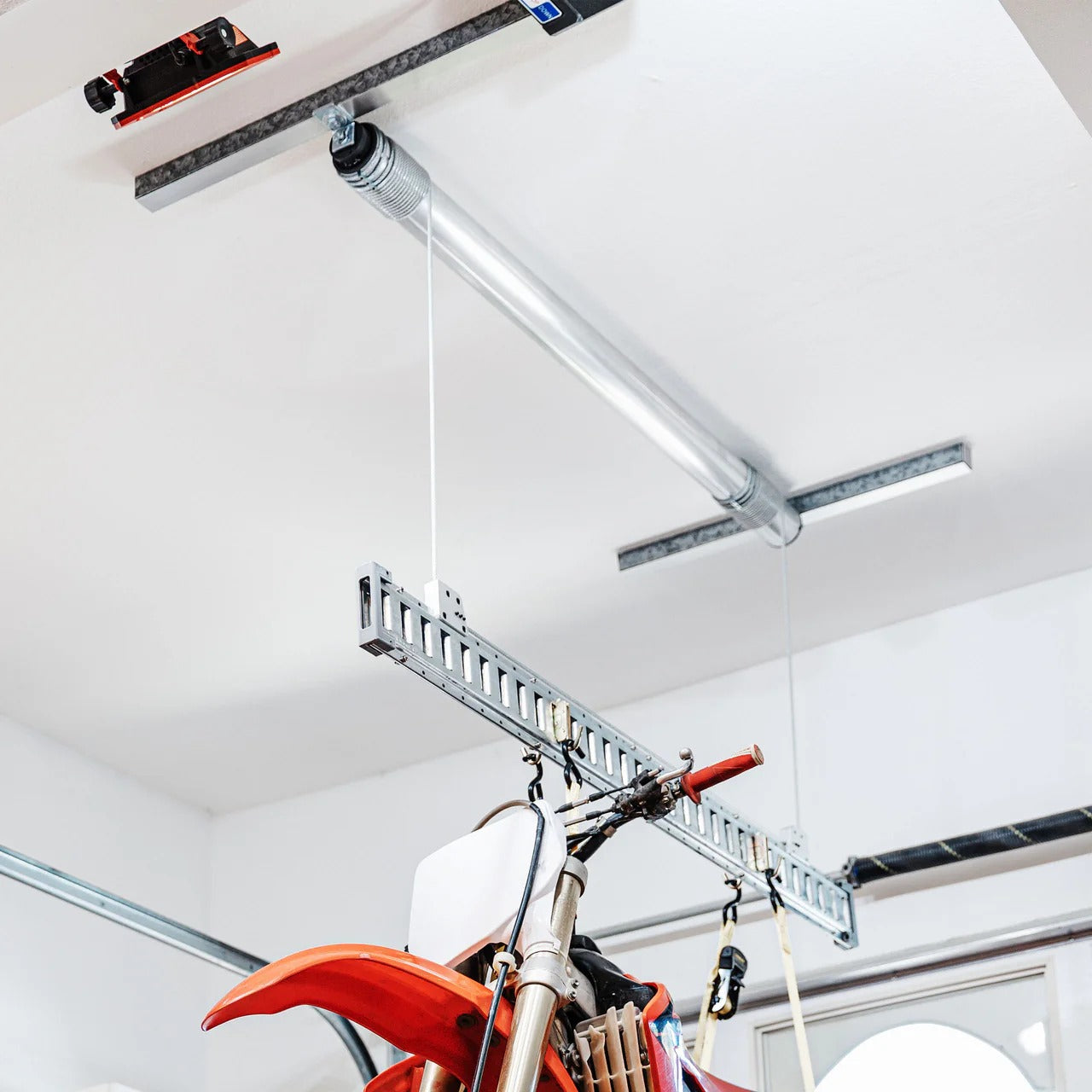

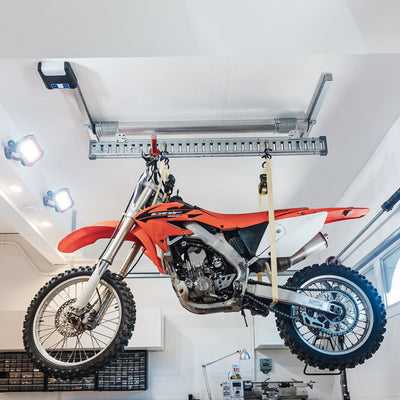

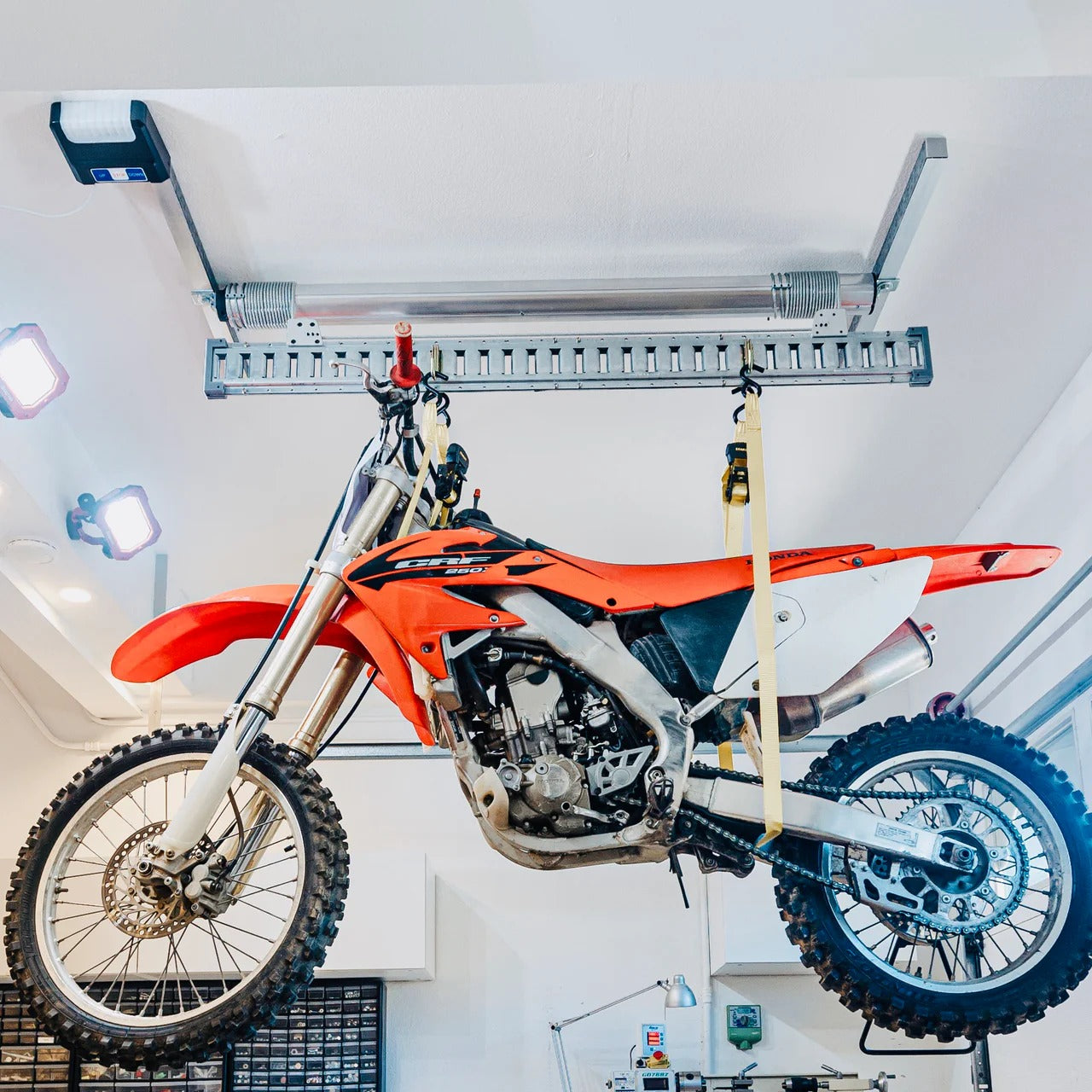

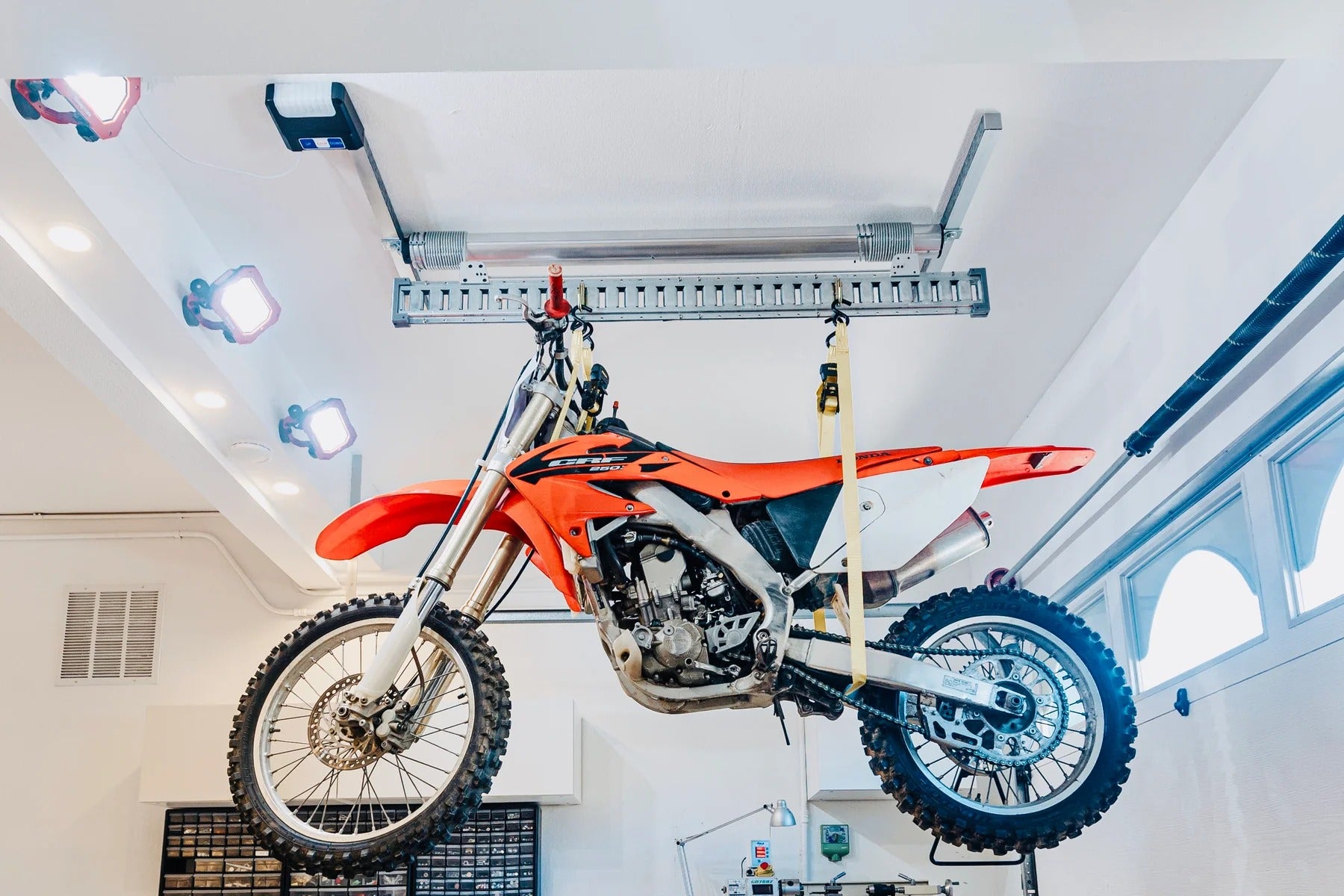

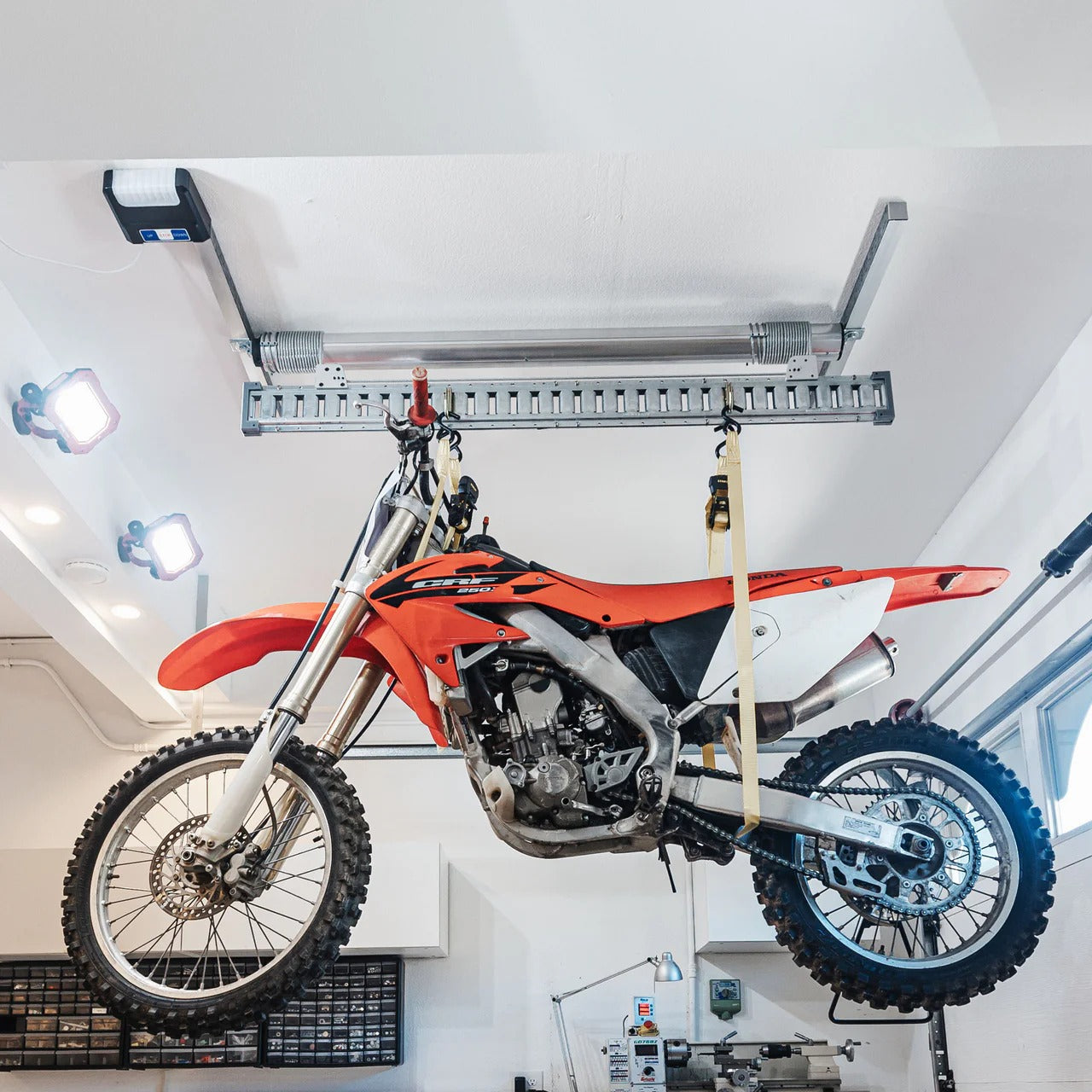

The Auxx-One 1400 is a motorized overhead lifting system designed to safely store and lift heavy, bulky items with precision and control. With a lifting capacity of up to 400 lbs and a maximum travel distance of up to 22 ft (with extended cable), this system provides a flexible solution for garages, workshops, and storage spaces.
Built with a durable galvanized steel E-beam lifting frame and powered by a high-performance motor, the Auxx-One 1400 delivers smooth, controlled lifting through a wireless remote system. Its compact mounting design and strong cable system make it ideal for lifting large equipment while maximizing overhead space.
Built for Heavy-Duty Storage and Lifting
This system is ideal for:
- Truck tops and Jeep tops
- Rooftop tents
- Canoes and kayaks
- Bikes and recreational equipment
- Fifth wheel hitches
- Large or bulky storage items
The extended lifting range and strong cable system allow for efficient vertical storage in a wide range of environments.
Features
High-Capacity Lifting System
- Lifts up to 400 lbs
- Maximum travel distance up to 22 ft (with extended cable)
- Smooth and controlled lifting operation
Heavy-Duty Cable System
- 3/16” vinyl-coated steel cable (7x19)
- Rated strength of 4,200 lbs
- Designed for durability and long-term use

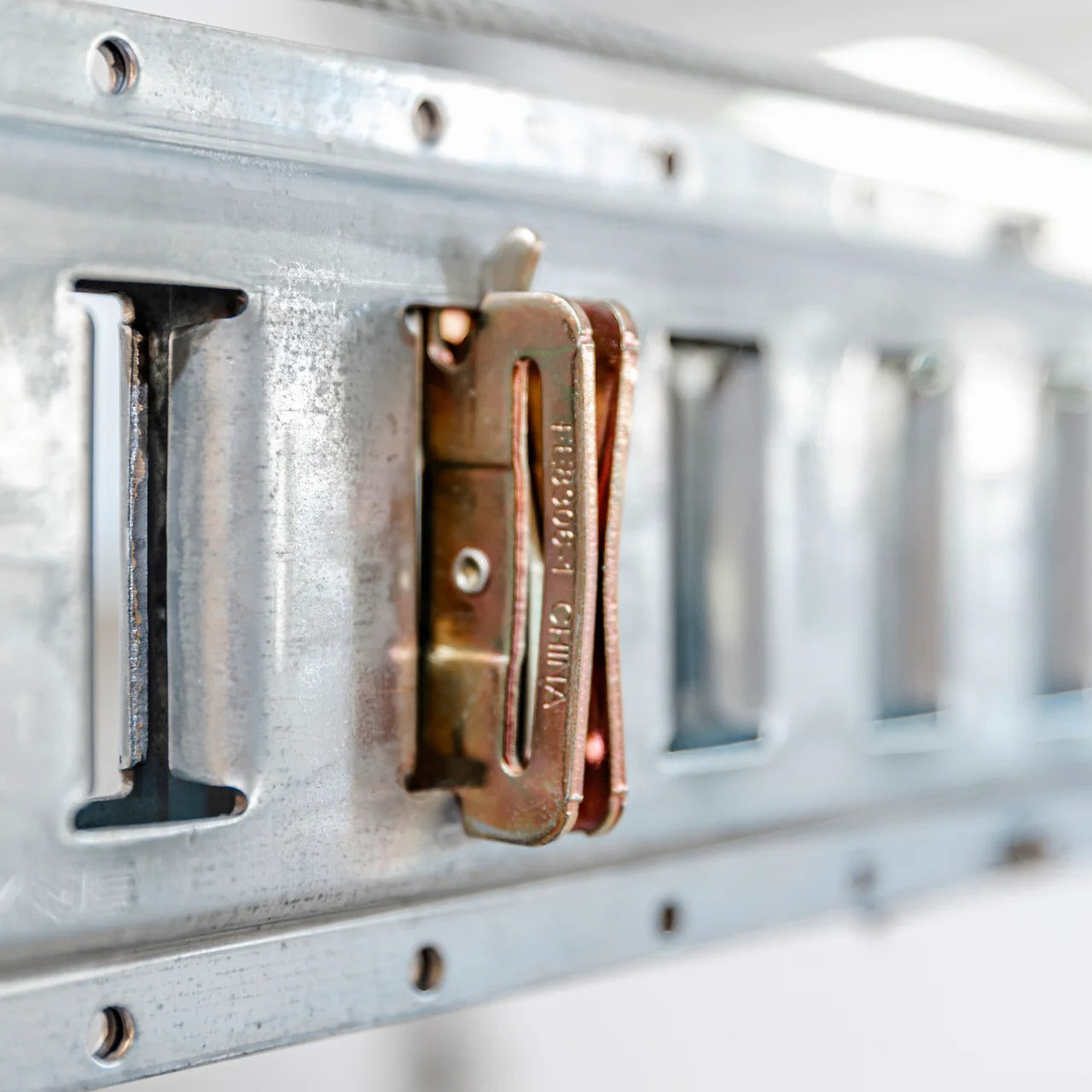

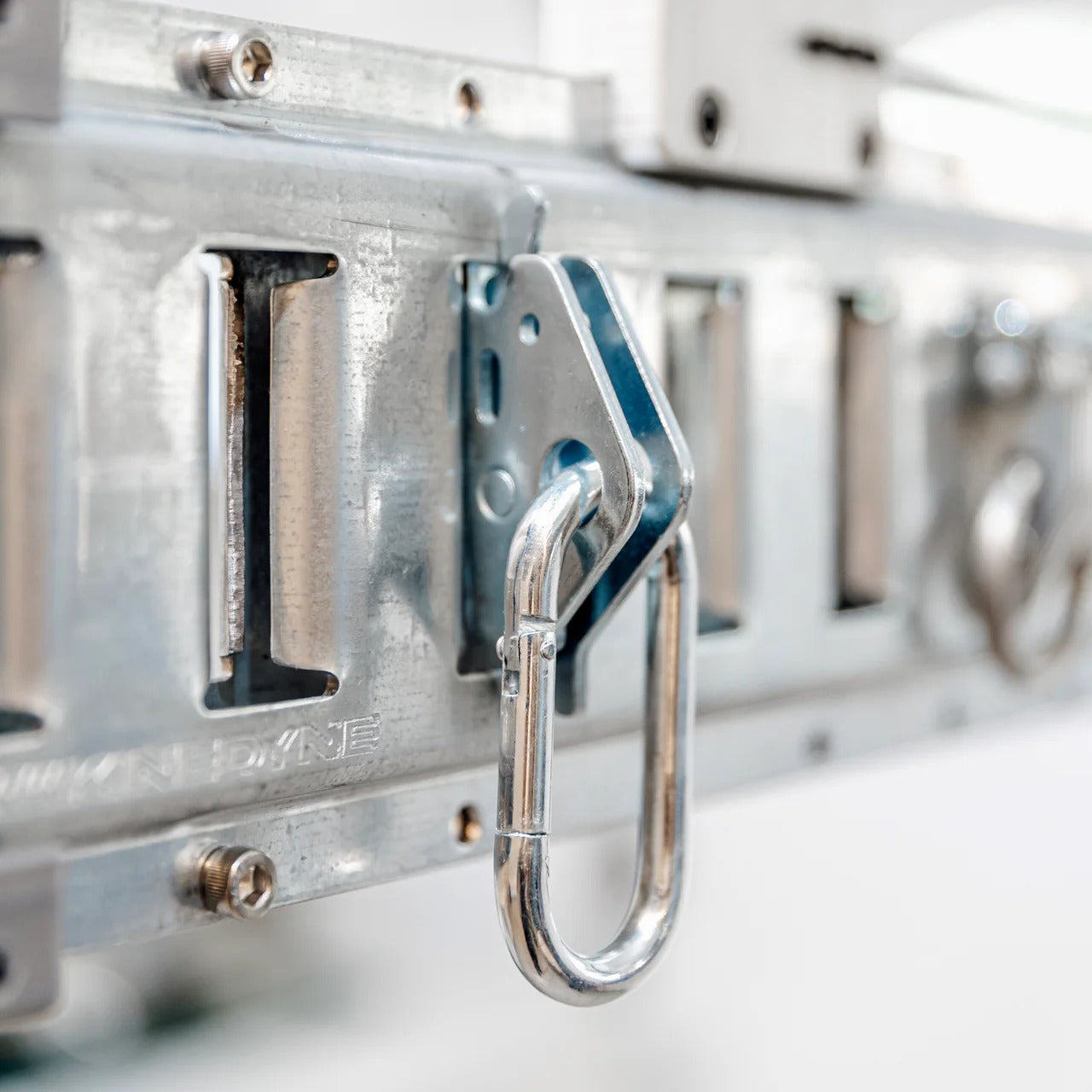

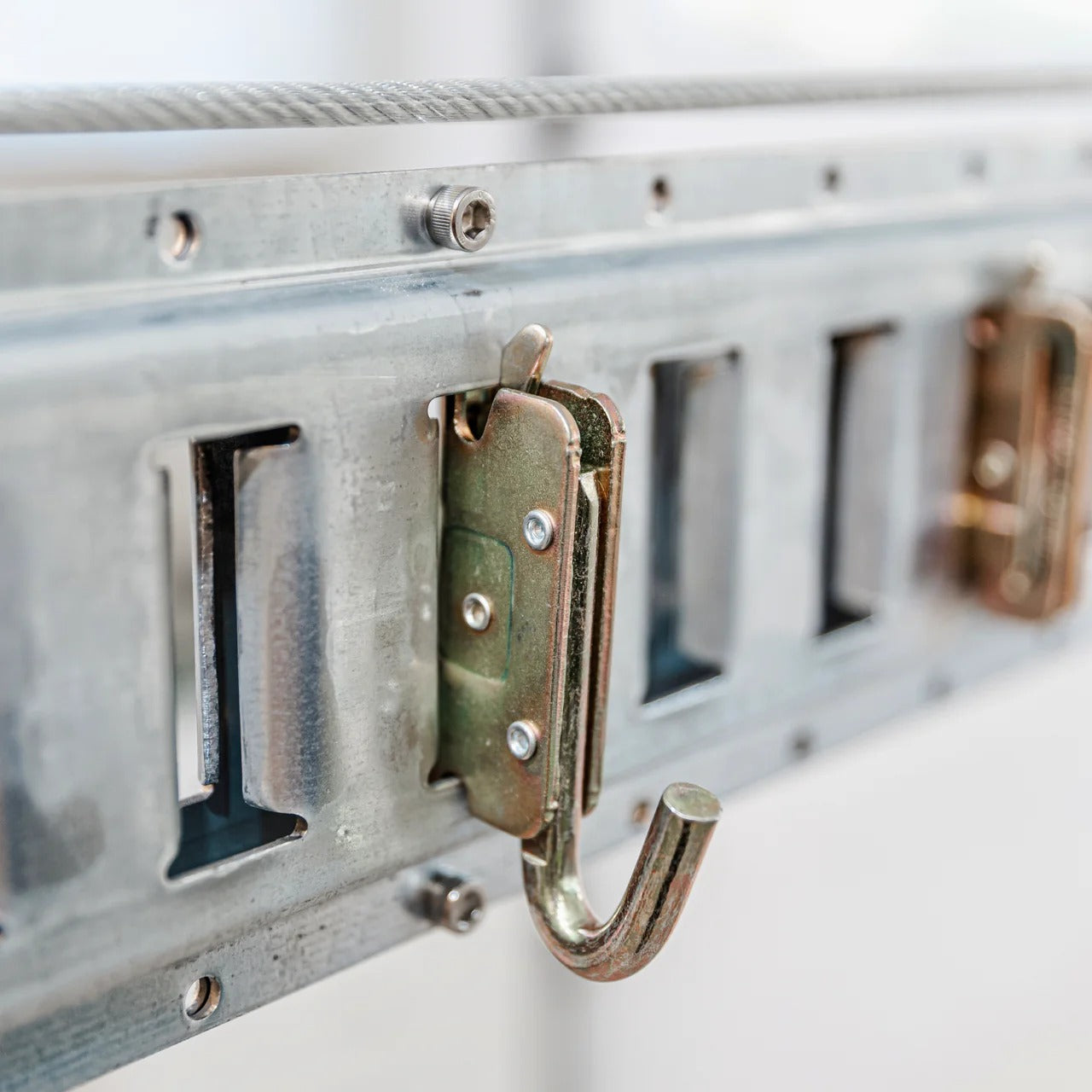

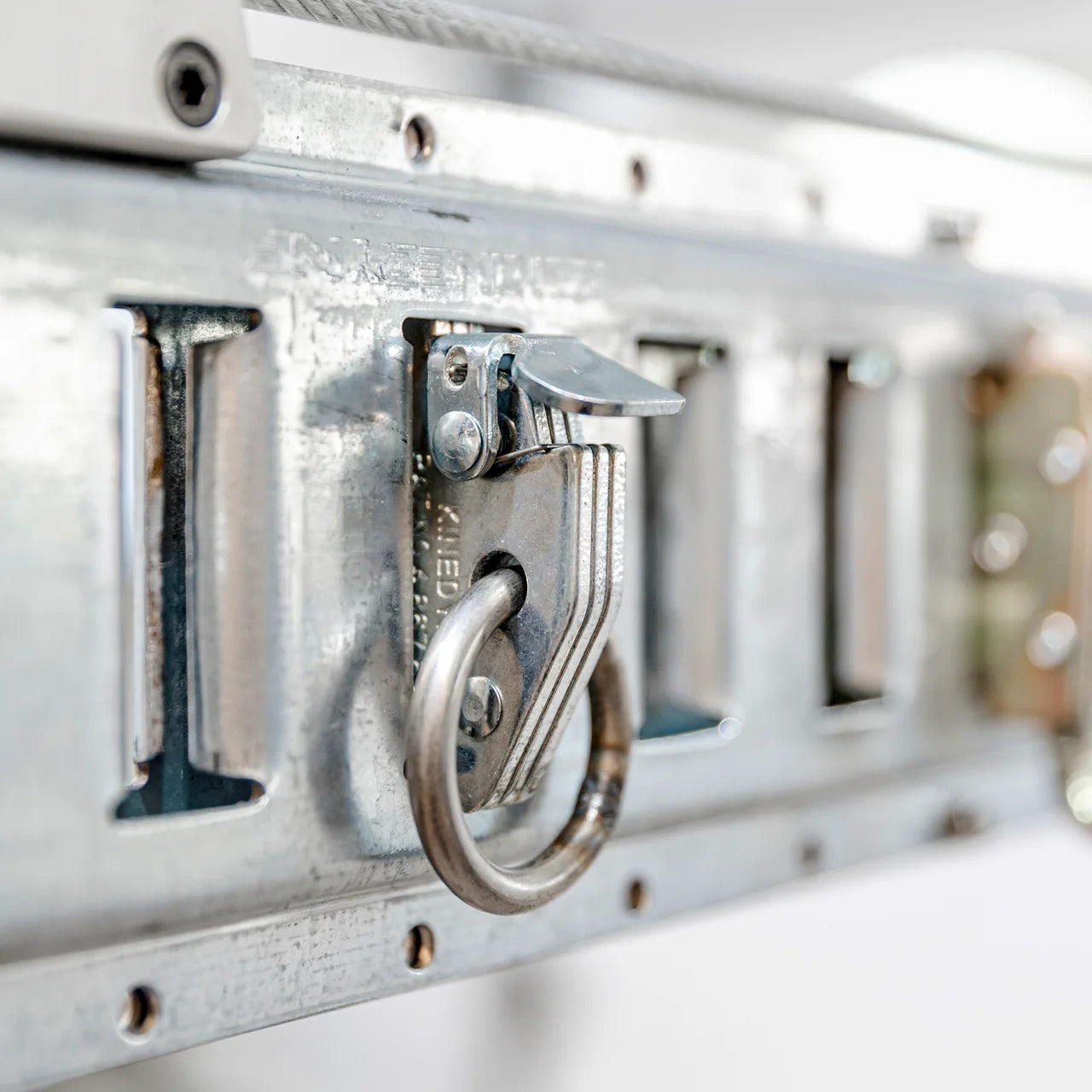

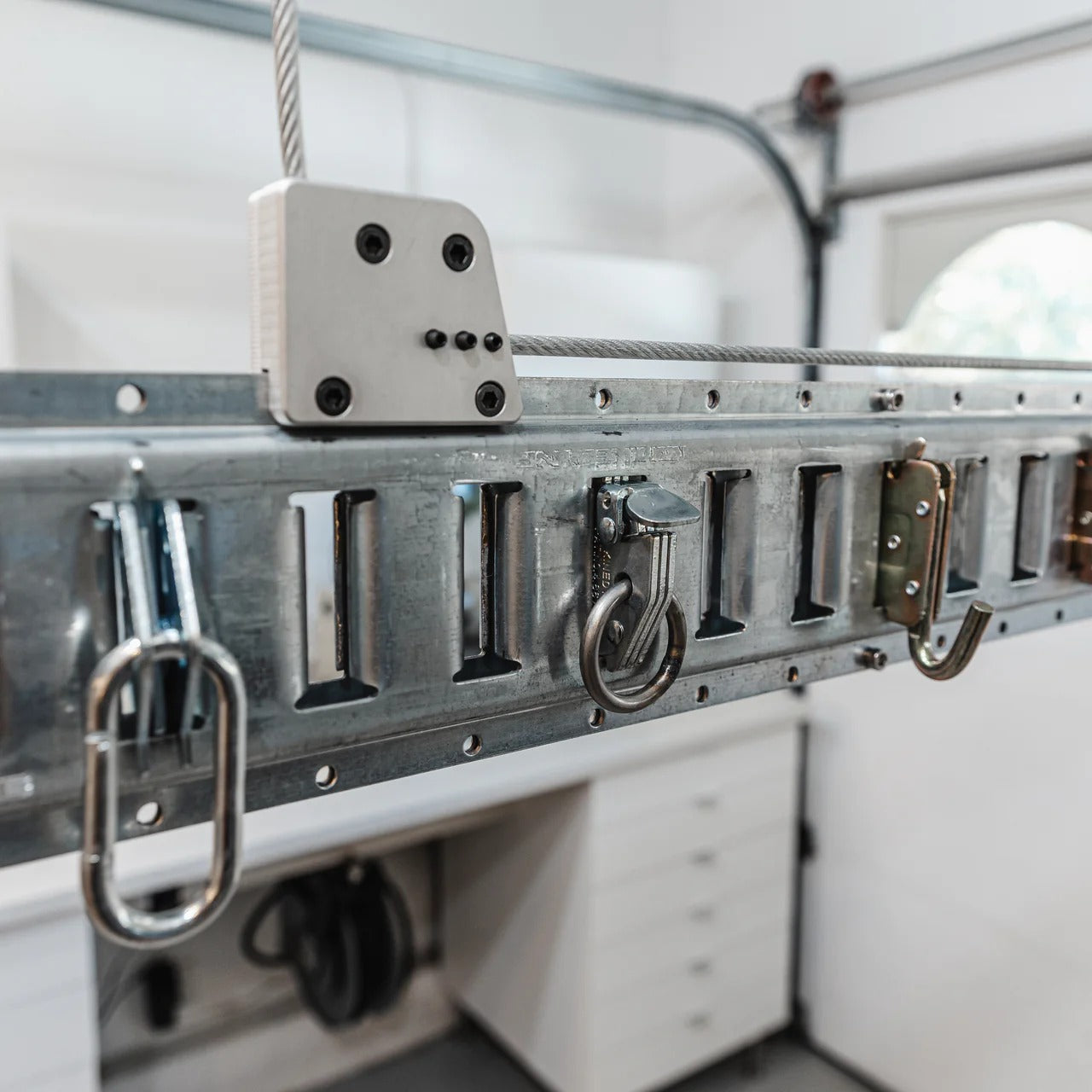

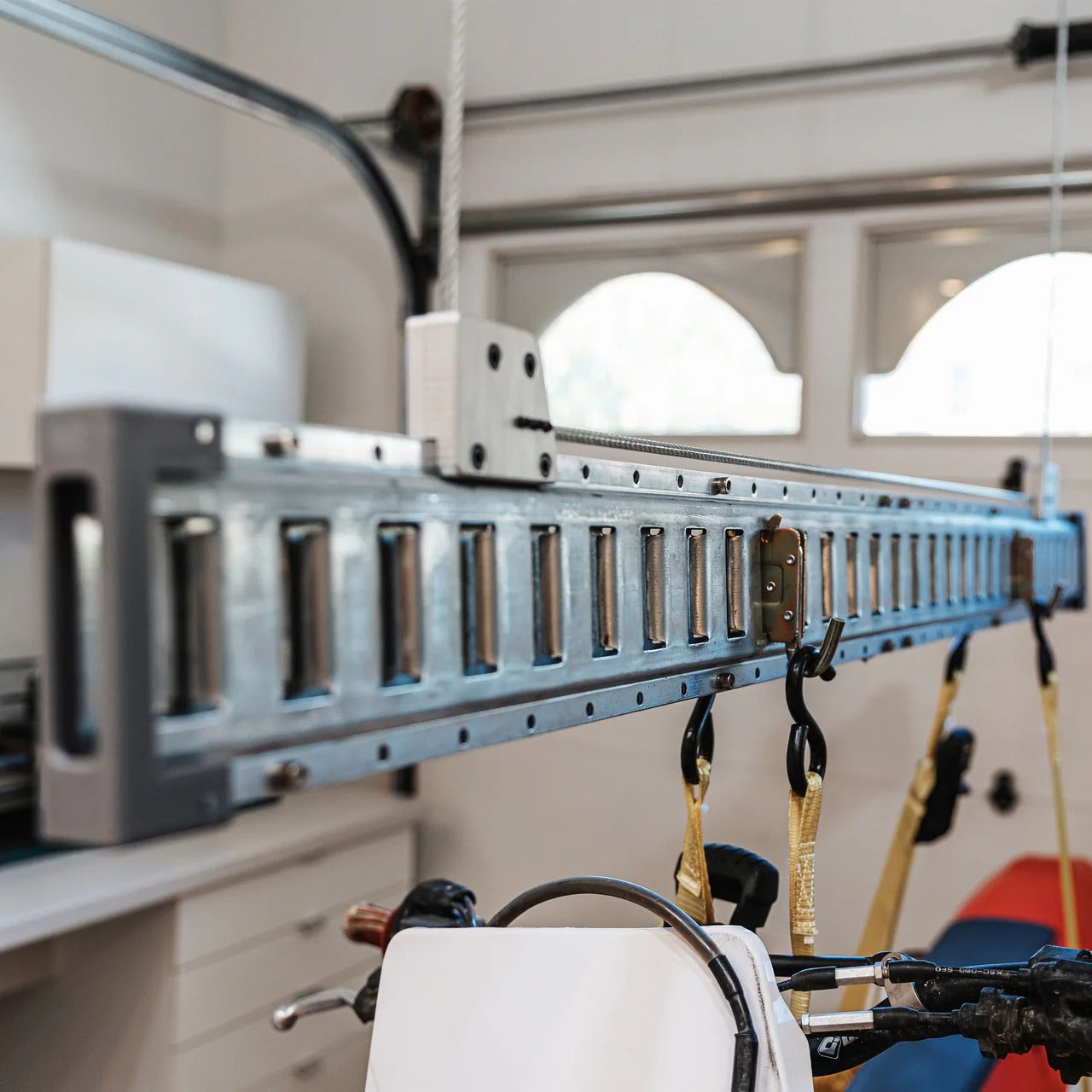

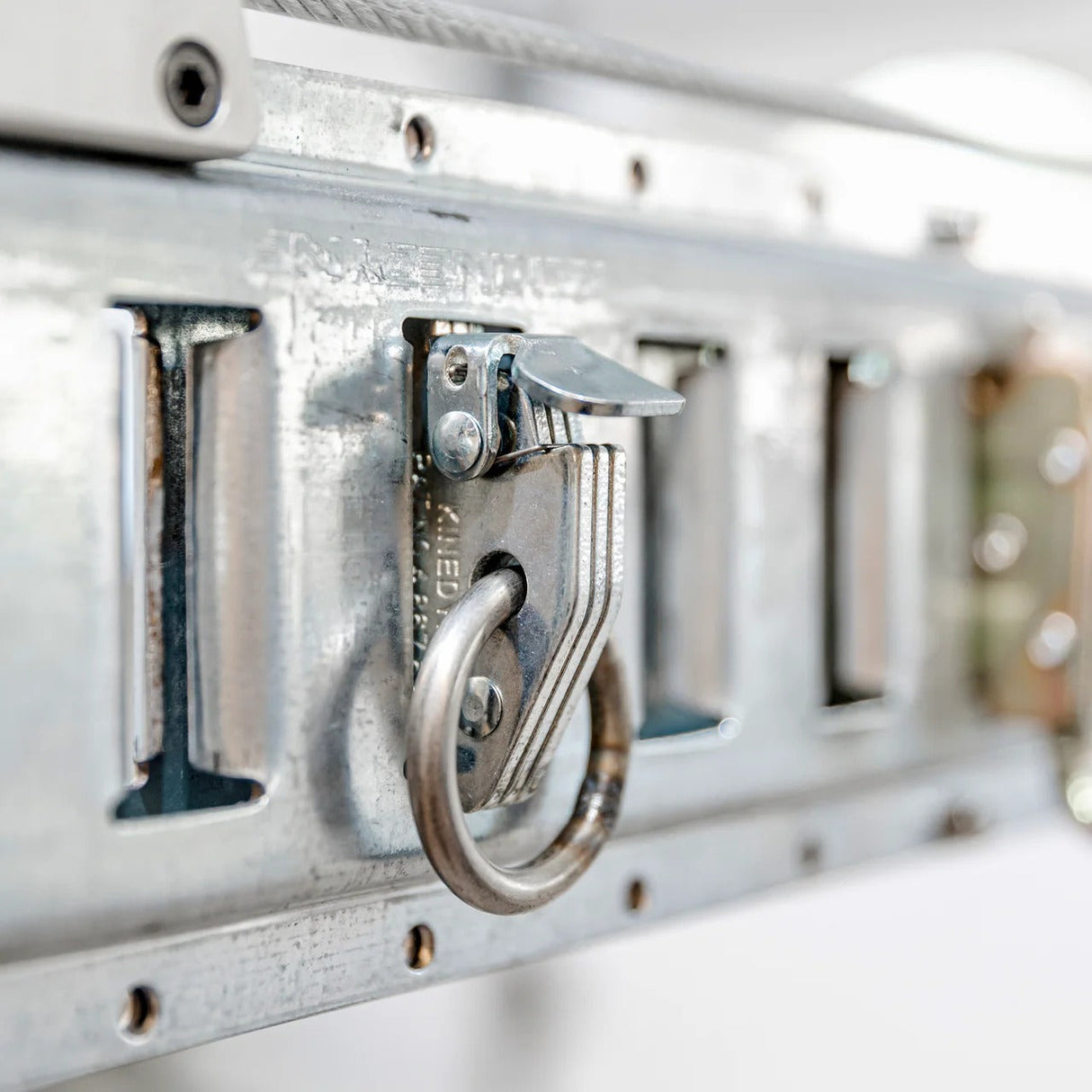

Galvanized Steel E-Beam Frame
- 5 ft length with 5-inch height
- Galvanized steel construction for corrosion resistance
- 2-inch on-center slot spacing for flexible mounting
Motorized Operation
- IP44-rated T-Motor
- Wireless remote control operation
- Consistent lifting speed (~30 seconds for 9 ft ceilings)
Ceiling Mount System
- Dual 1-5/8” x 30” strut channels
- Includes (6) 5/16” x 4” SPAX® lag bolts
- Designed for secure installation
What’s Included
- Motor
- Controller
- Remote control
- (2) C-strut channels
- E-beam lifting frame
- Mounting hardware
Operating Requirements
- 110V / 120V standard household power
- Minimum 15 amp circuit
- 10 ft power cord (16 gauge, NEMA 5-15)
- Wireless transmitter (433.92 MHz)
Important Notes
- The Auxx-One can be equipped with extended cable to allow up to 22 ft of travel distance.
- Cable strength refers to ultimate tensile strength.
- The motor includes a safety duty cycle: after approximately 3 minutes of continuous operation, the system will automatically shut off and require a cool-down period of up to 15 minutes.
| Specifications | Details |
|---|---|
| Model | Auxx-One 1400 |
| Lifting Capacity | Up to 400 lbs |
| Max Travel Distance | Up to 22 ft (with extended cable) |
| Speed | ~30 sec (9 ft ceiling) |
| Voltage | 110V / 120V |
| Minimum Circuit | 15 amp |
| Transmitter | 433.92 MHz |
| Power Cord | 10 ft / 16 gauge / NEMA 5-15 |
| Cable Type | 3/16” Vinyl-Coated Steel (7x19) |
| Cable Strength | 4,200 lbs |
| Ceiling Support | (2) 1-5/8” x 30” Strut Channels |
| Fasteners | (6) 5/16” x 4” SPAX® Lag Bolts |
| E-Beam Height | 5 in |
| E-Beam Length | 5 ft |
| Material | Galvanized Steel |
| Slot Spacing | 2 in on center |
| Motor Type | IP44 T-Motor |
| Rated Power | 680 W |
| Rated Current | 6.0 A |
| Voltage / Phase | 100–120V AC / Single |
| Tube Diameter | 70 mm (2-3/4 in) |
| Motor Speed | 13 RPM |
| Duty Cycle | 3 min on / 15 min off |
