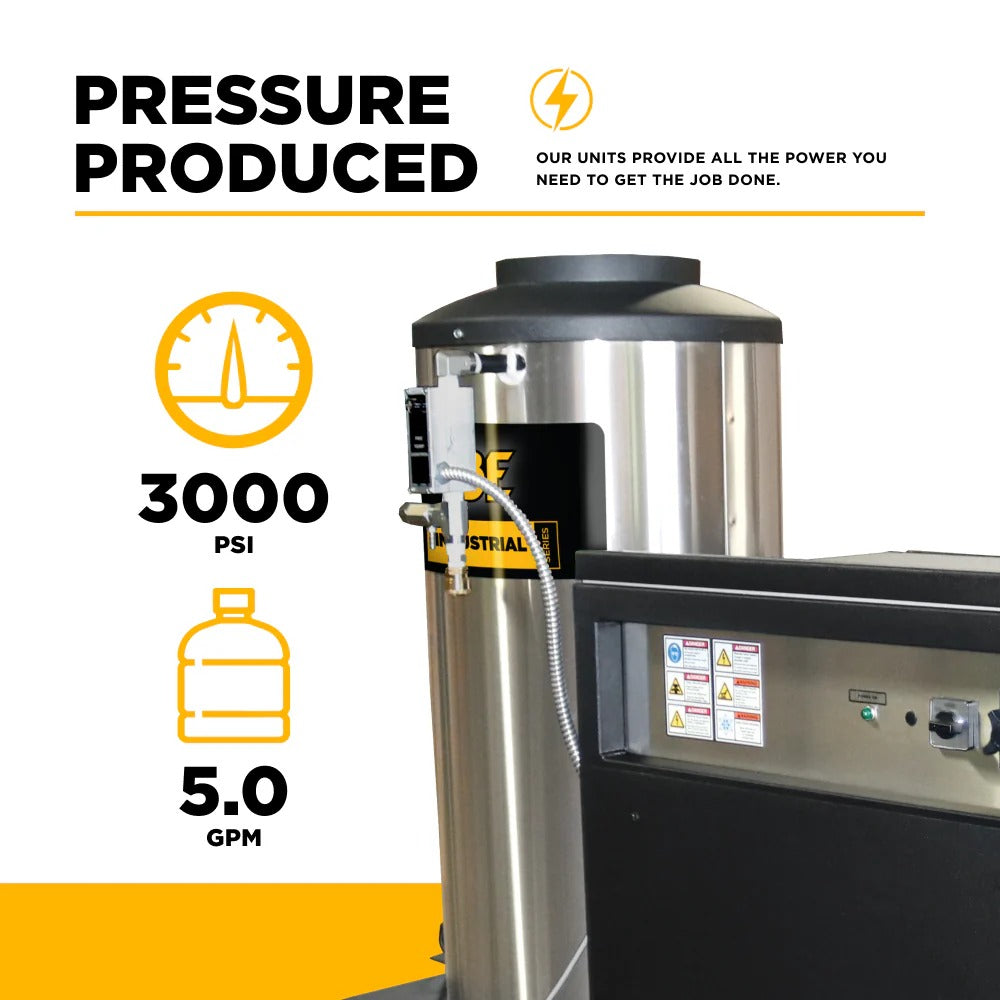

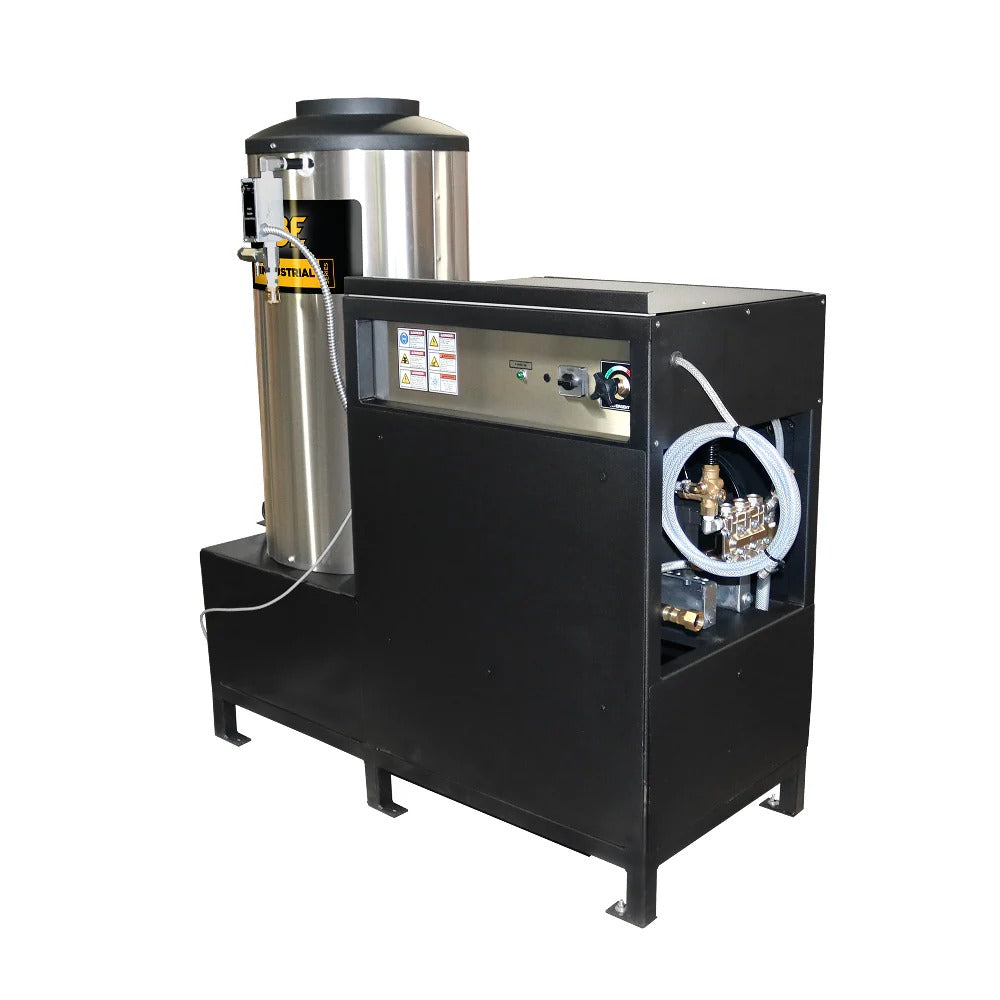

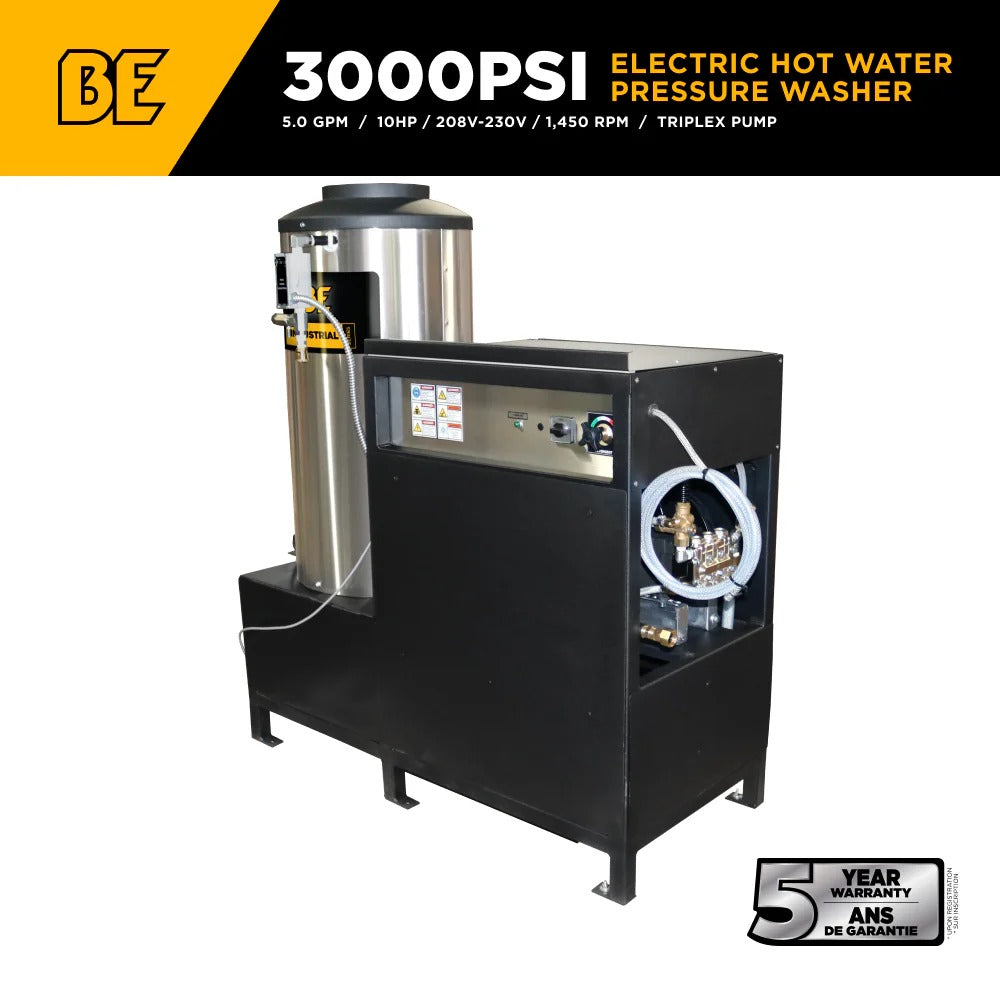

Built for demanding industrial environments, this hot water pressure washer delivers 3,000 PSI at 5.0 GPM, providing a powerful combination of pressure, flow, and heat for removing grease, oil, sludge, and heavy buildup. Designed for stationary installation, it is ideal for facilities that require consistent, high-performance cleaning.
Powered by a 10 HP Baldor three-phase electric motor, this unit delivers reliable, continuous-duty performance with efficient operation. A belt-driven General triplex pump reduces vibration, heat, and mechanical stress, helping extend component life while maintaining smooth and consistent pressure output.
The integrated gas-fired burner system operates on natural gas or LP and produces up to 440,000 BTU, heating water up to 200°F (93°C) for improved cleaning efficiency. An adjustable thermostat allows precise temperature control, helping reduce cleaning time and chemical usage.
Built on a heavy-duty industrial frame, this unit is engineered for durability and long-term use in harsh environments. Advanced features such as time-delay shutdown and an hour meter help protect components and simplify maintenance.
Additional safety features include a flow switch and pressure relief valve to help ensure consistent and reliable operation. The unit includes a 50-foot high-pressure hose, spray gun, wand, and quick-connect nozzles for immediate use.

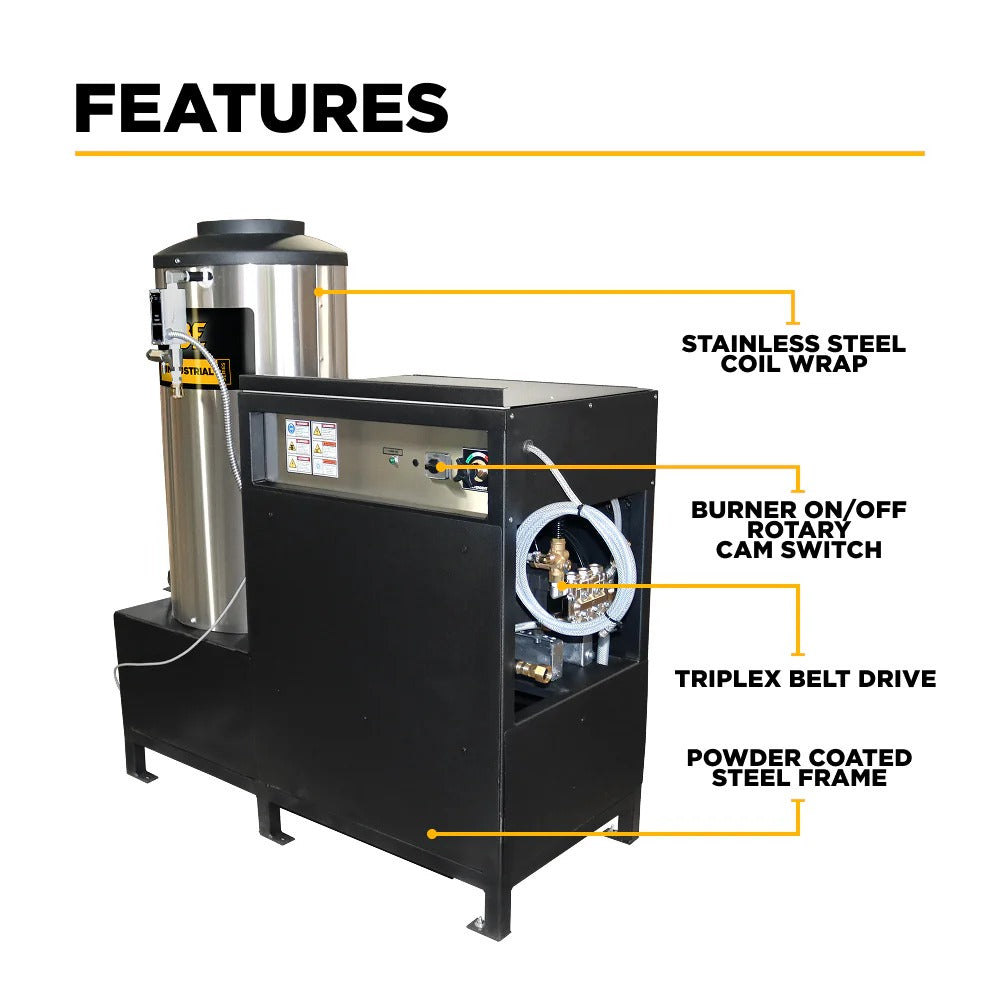

Key Features
- 3,000 PSI at 5.0 GPM for industrial hot water cleaning
- 10 HP Baldor three-phase electric motor for continuous-duty performance
- Belt-driven General triplex pump for reduced wear and extended lifespan
- External unloader for improved cooling and pressure regulation
- Gas-fired burner (natural gas or LP) with up to 440,000 BTU output
- Heats water up to 200°F (93°C) for effective degreasing and sanitation
- Adjustable thermostat for precise temperature control
- Adjustable chemical injection for added cleaning flexibility
- Heavy-duty industrial frame for stationary installation
- Time-delay shutdown system for component protection
- Hour meter for maintenance tracking
- Integrated safety systems including flow switch and pressure relief

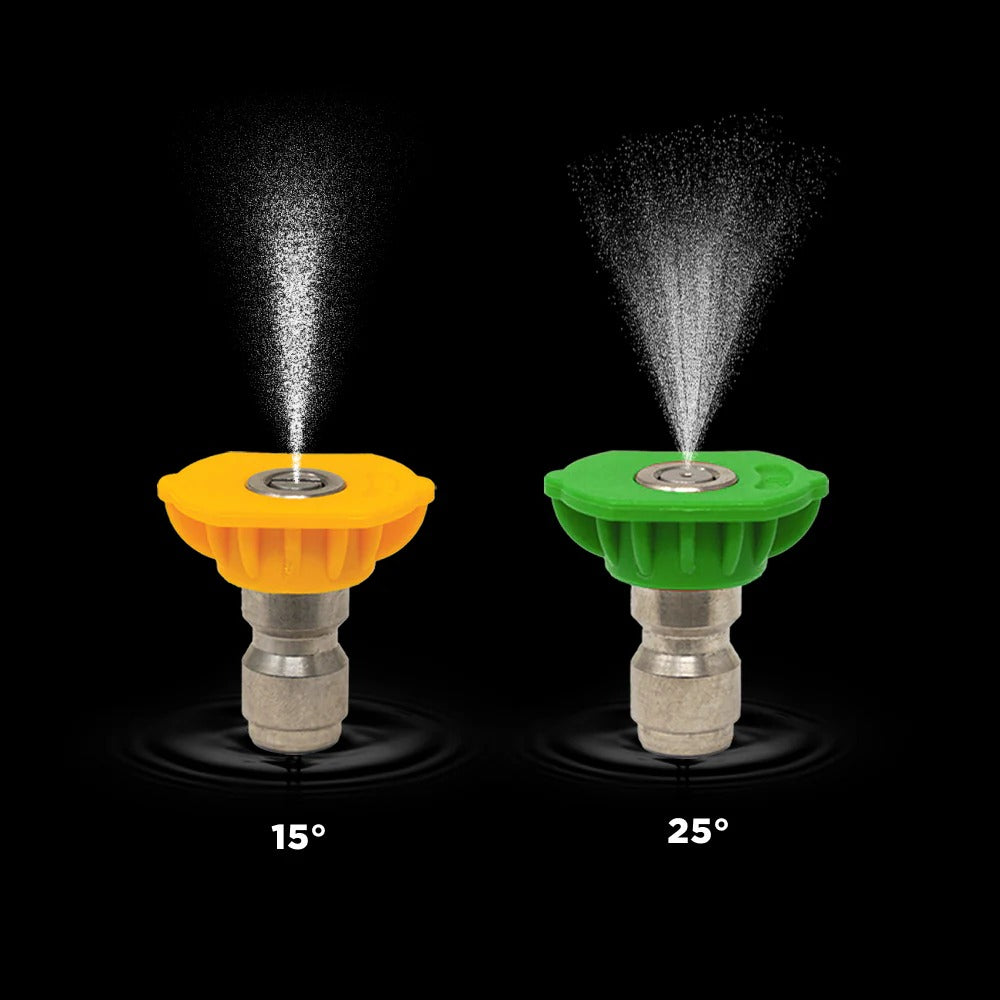

- Includes 50 ft. hose, spray gun, wand, and quick-connect nozzles
| Specifications |
Details |
| Model |
67HD-3 |
| Pressure |
3,000 PSI |
| Flow Rate |
5.0 GPM |
| Motor |
Baldor Electric |
| Horsepower |
10 HP |
| Phase |
Three-Phase |
| Voltage |
230V |
| Amperage |
35–34A |
| Motor Speed |
1,450 RPM |
| Pump |
General TSS1511 Triplex |
| Pump Class |
P8 |
| Unloader |
External |
| Chemical Injection |
Adjustable High-Pressure Metering Valve |
| Burner |
Natural Gas / LP (Electronic Ignition) |
| BTU Output |
440,000 |
| Maximum Temperature |
200°F (93°C) |

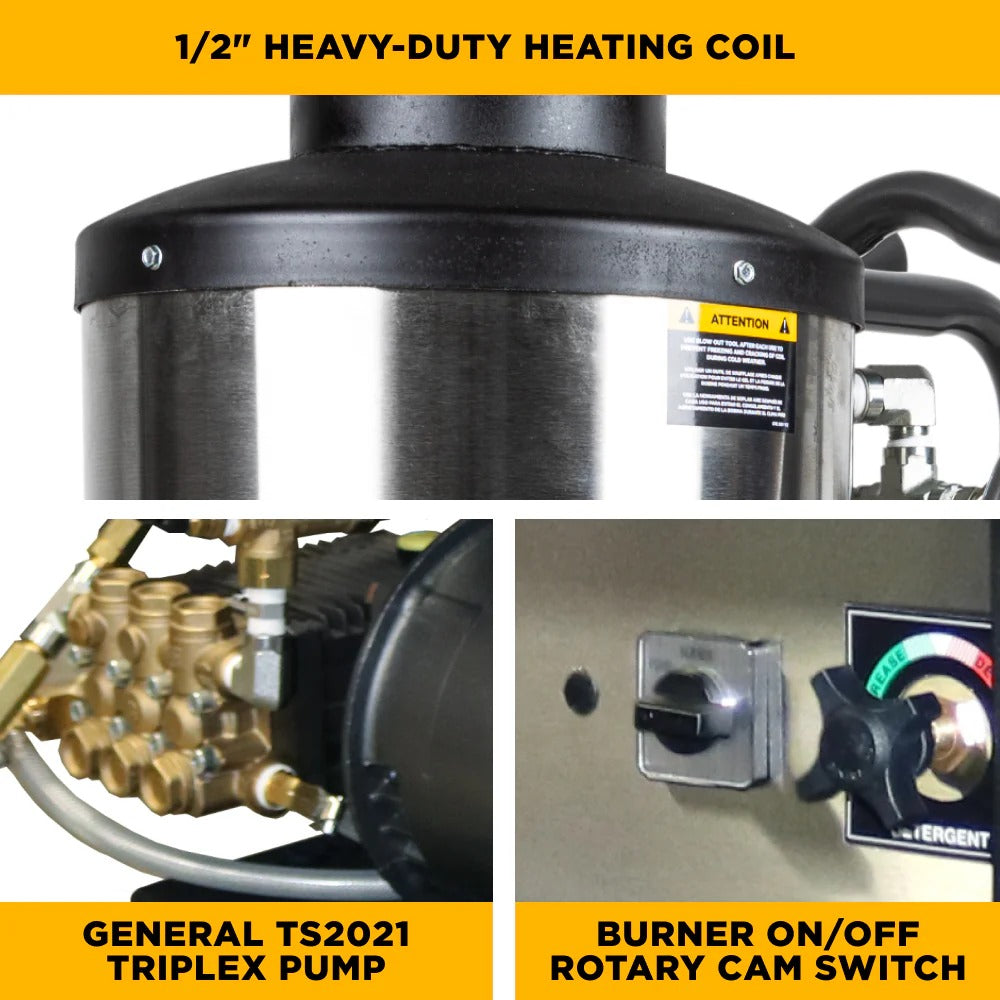

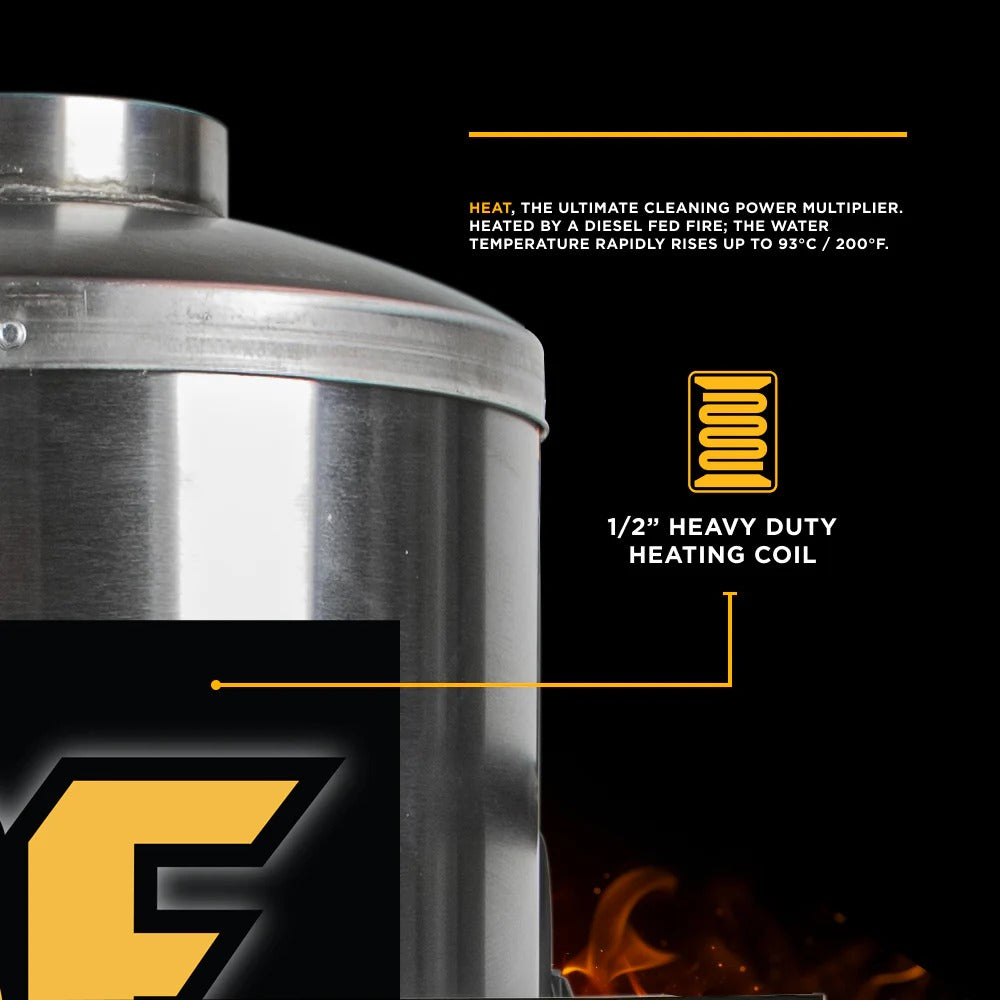

| Heating Coil |
147 ft. x 1/2" Cold Rolled Steel |
| Thermostat |
Adjustable |
| Time-Delay Shutdown |
Yes |
| Hour Meter |
Yes |
| Flow Switch |
Yes |
| Pressure Relief Valve |
Yes |
| Burner Switch |
Rotary Cam |
| Cord / Plug |
10 ft / No Plug |

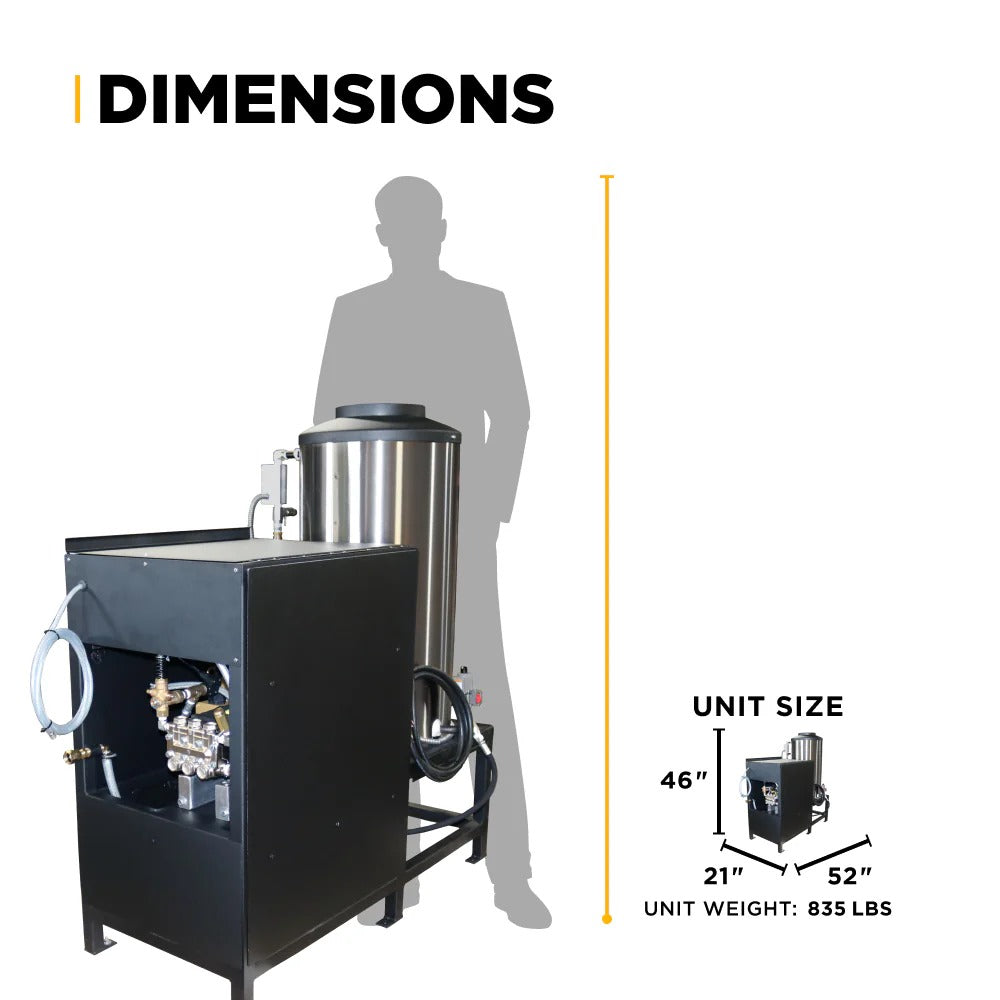

| Unit Dimensions (L × W × H) |
52" × 21" × 46" |
| Unit Weight |
835 lbs |
