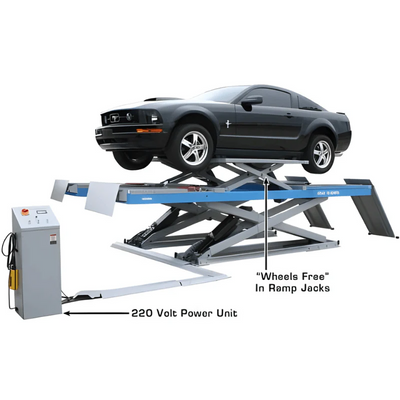

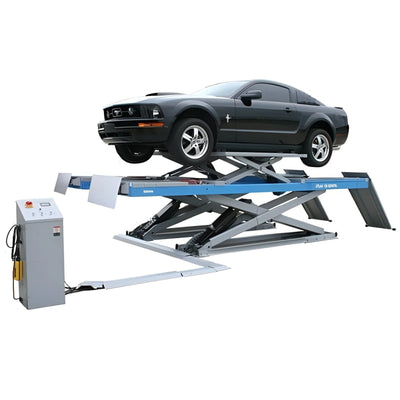

Atlas 12AWFSL 12,000 lb Alignment Scissor Lift with Wheels-Free System
SKU: ATEATTD-12AWFSL-N
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

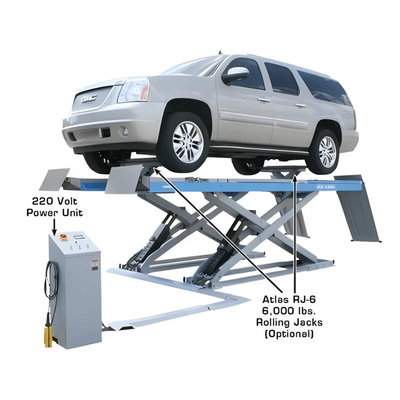

The Atlas 12AWFSL is a commercial-grade scissor alignment lift designed for precision alignment work, full undercar access, and high-volume shop performance. With a 12,000 lb capacity and an integrated "wheels-free" lifting system, this lift allows technicians to raise vehicles by the frame, lifting the wheels off the runways for easier service and accurate alignments.
Built with an open-center design, the 12AWFSL provides excellent access to the underside of the vehicle, making it ideal for alignment, suspension, and general service work. It comes standard with built-in slip plates and alignment turntables, eliminating the need for additional alignment accessories.
The lift features an air-operated single-point lock release system and a full airline kit, ensuring safe and efficient operation. A separate self-contained control panel allows convenient operation, while an emergency manual lowering pump provides added safety in case of power loss.
Designed for flexibility, the lift can be surface-mounted or flush-mounted depending on shop requirements. Its full-frame construction and rear cross beam enhance stability, while the extra-long ramps accommodate a wide range of vehicles.
Features and Benefits
- 12,000 lb capacity
- Commercial-grade construction
- Scissor alignment lift

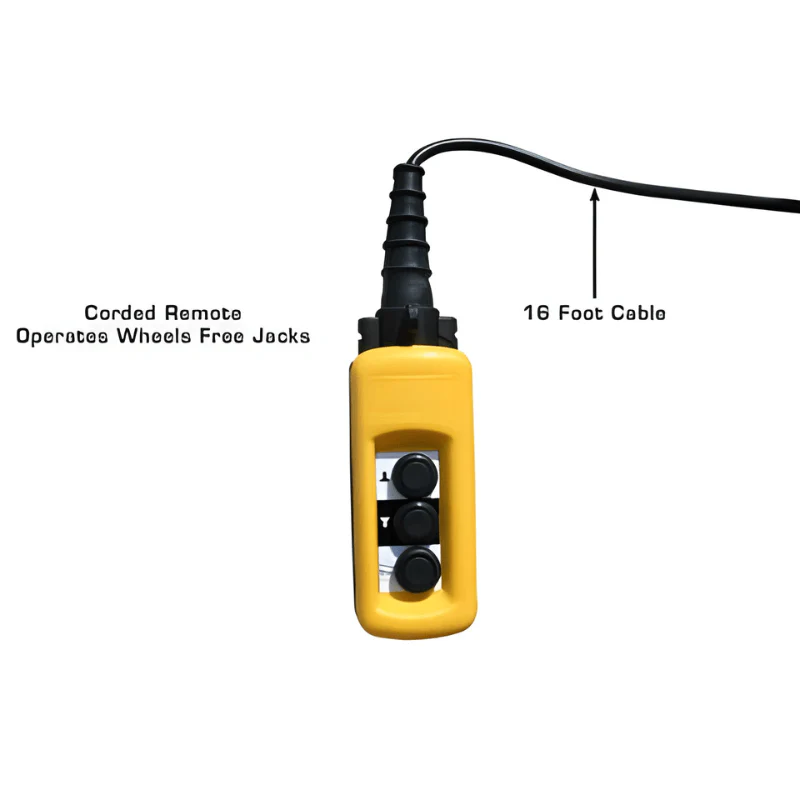

- Built-in "wheels-free" lifting system

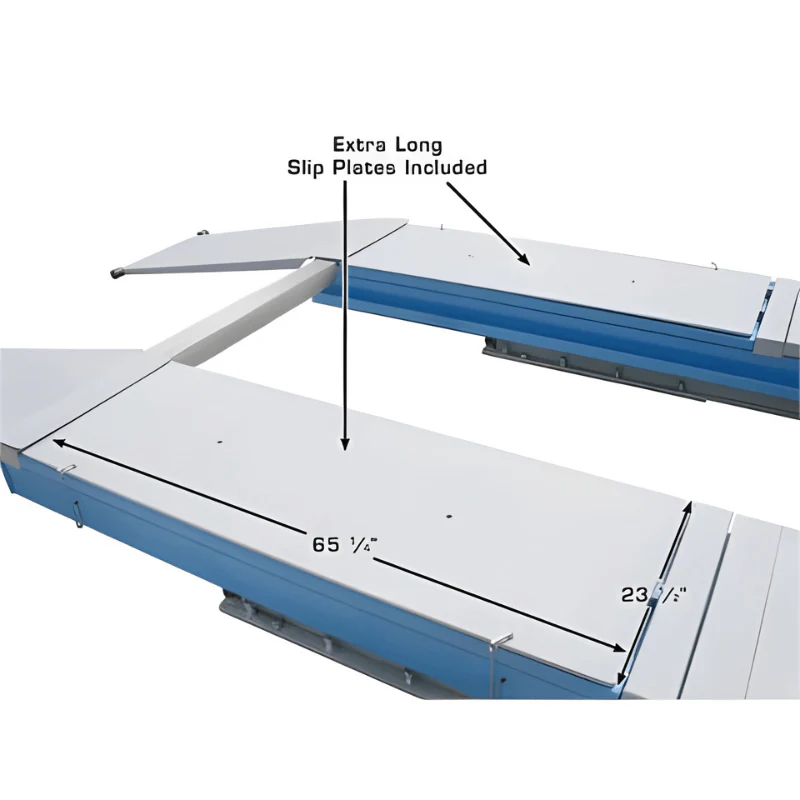

- Built-in slip plates and alignment turntables included
- Turntable covers included
- Open center design for easy access

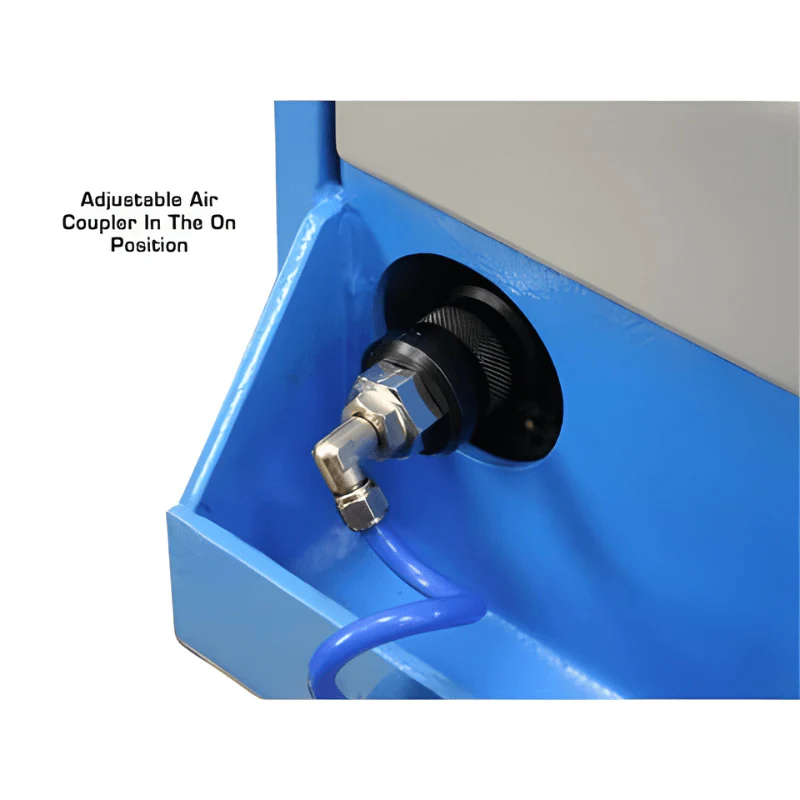

- Air-operated single-point lock release (external air required)
- Airline kit included

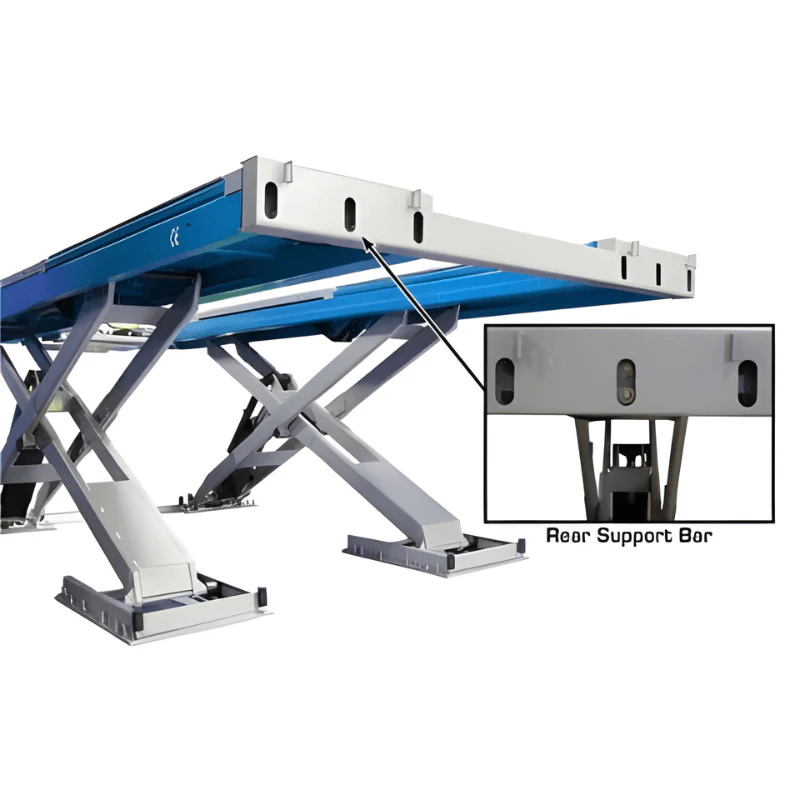

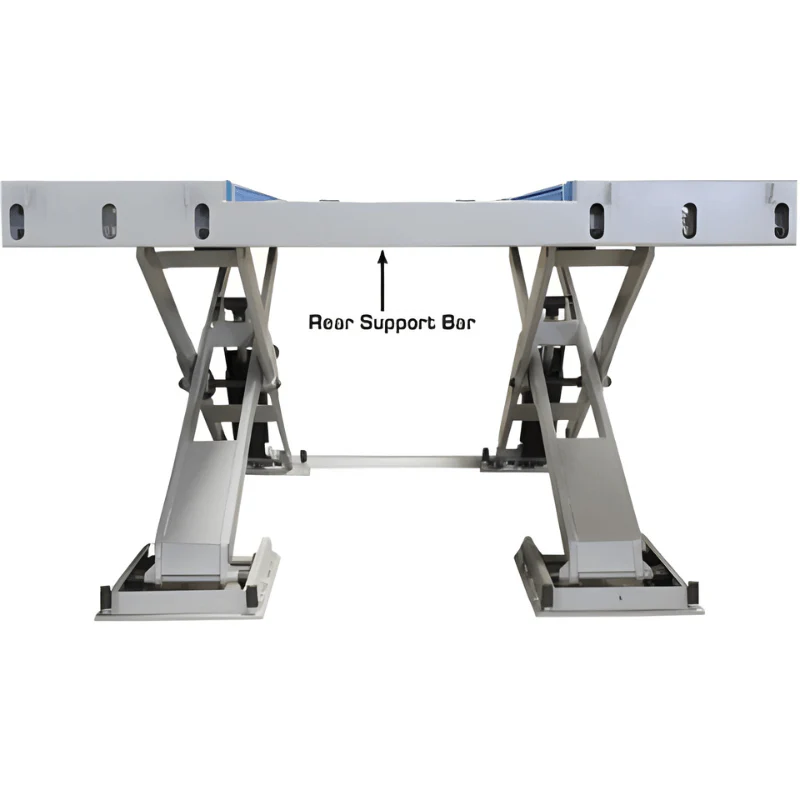

- Rear cross beam for added stability
- Extra-long 72" ramps
- Precise platform leveling

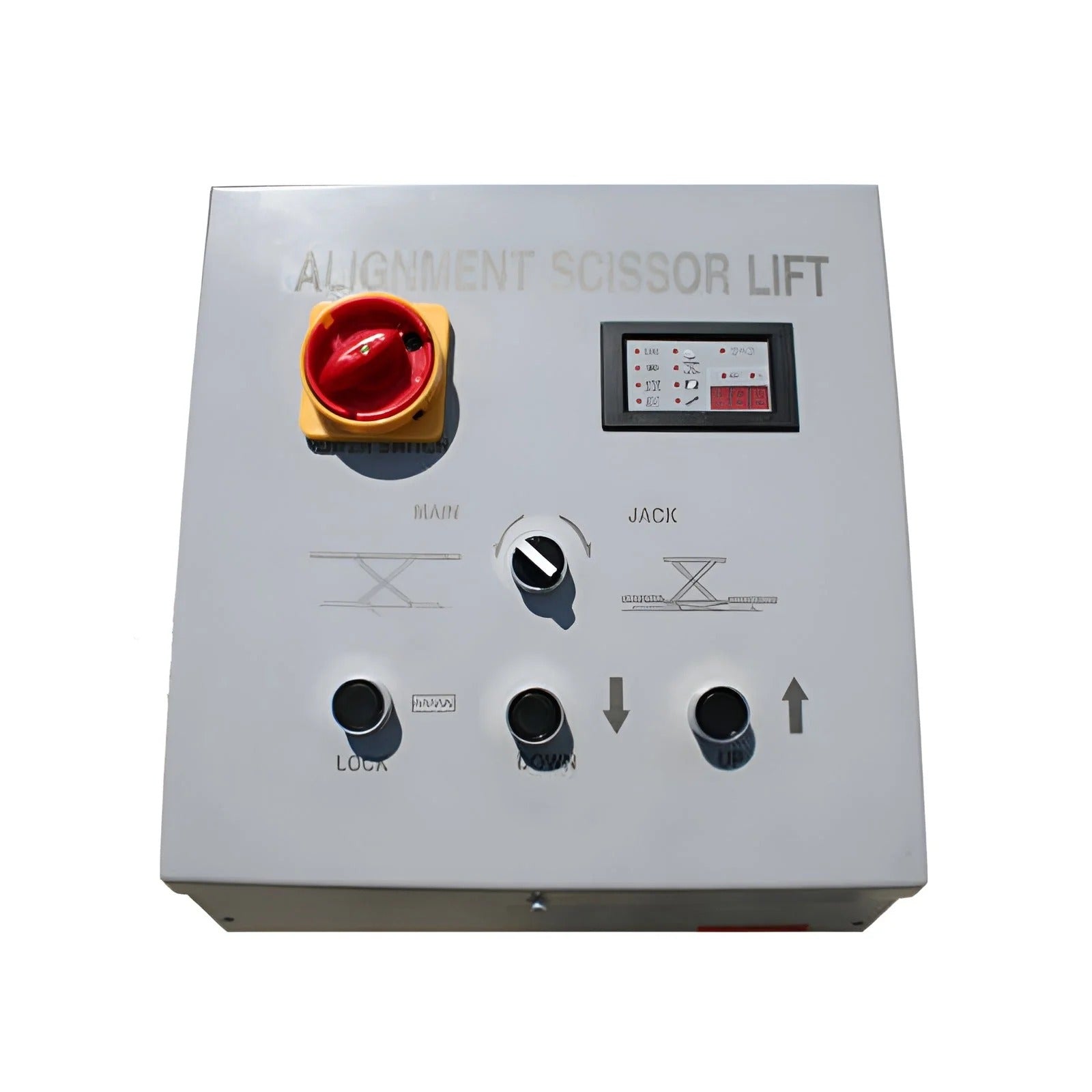

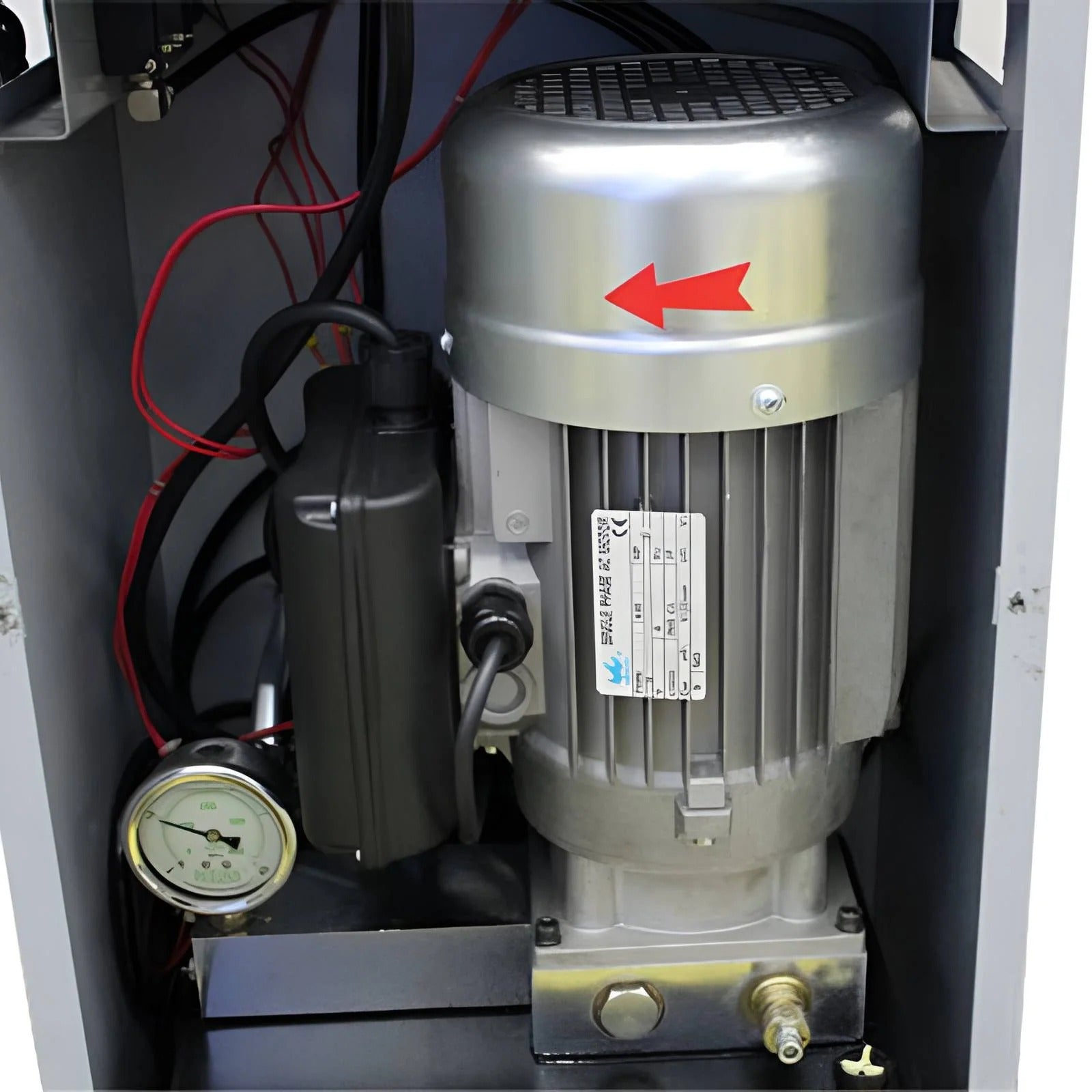

- Separate control panel
- Emergency manual lowering pump

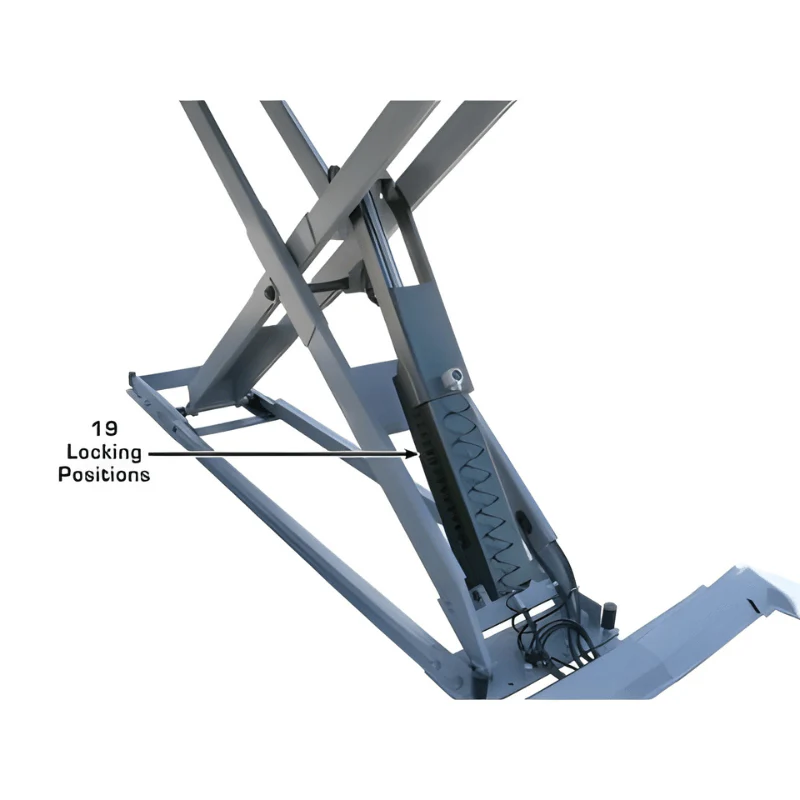

- 19 locking positions
- CE certified

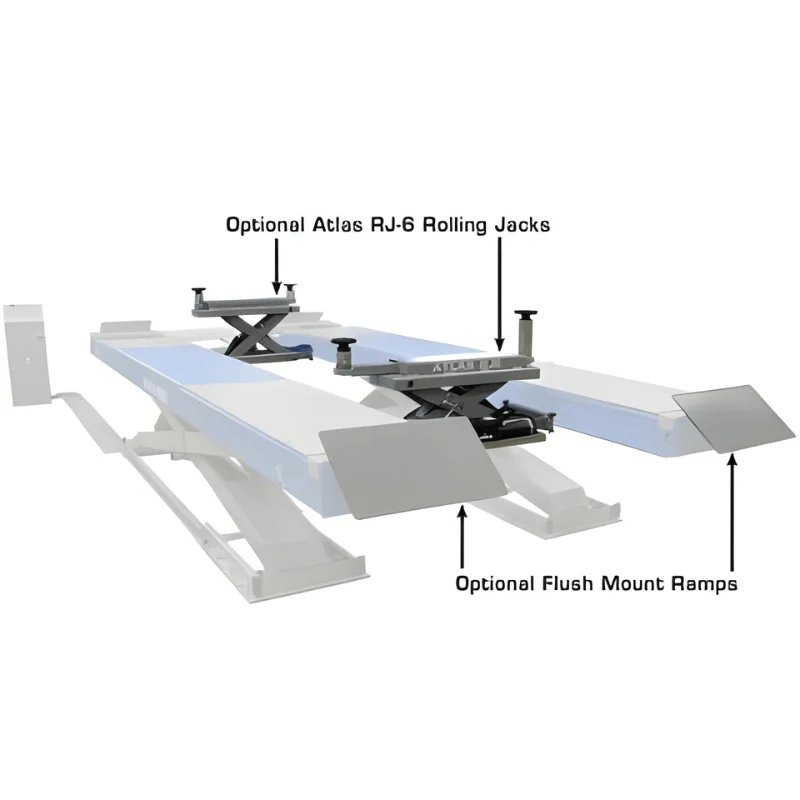

- Surface or flush mount installation

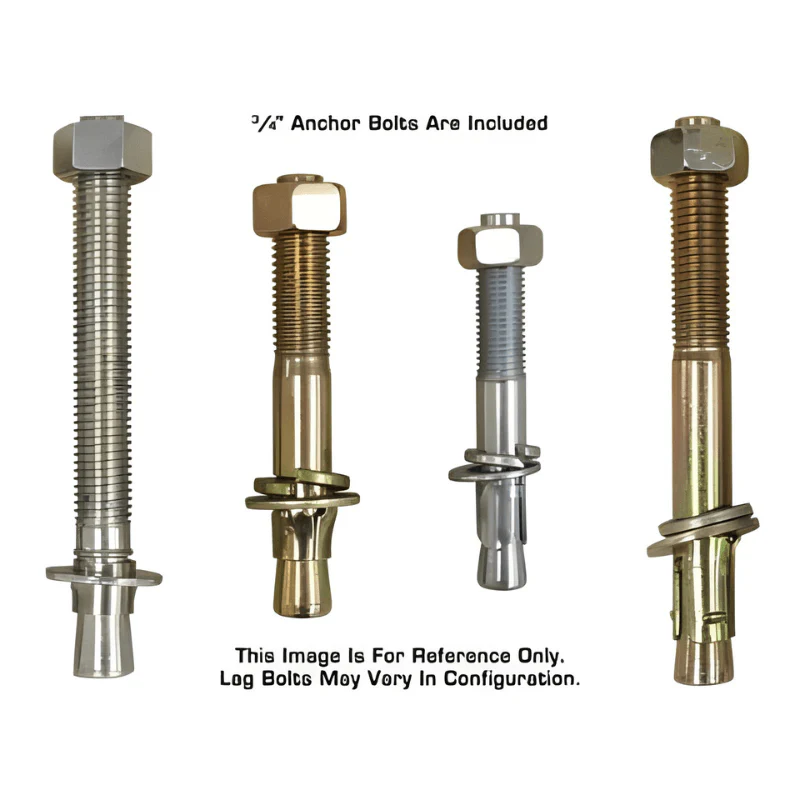

- Mounting hardware included
- 220V single-phase operation (30 amp breaker required)
| Specifications | Details |
|---|---|
| Capacity | 12,000 lbs |

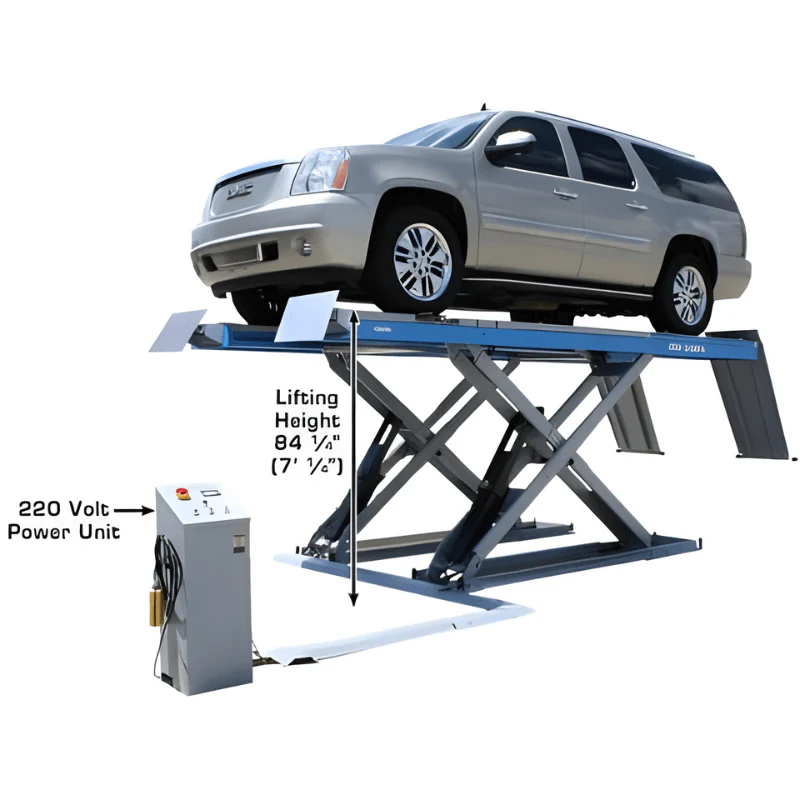

| Lifting Height | 84 1/4" (surface mounted) |
| Wheels-Free Lift Height | 17" above runway |
| Lowered Height | 11 1/2" |
| Overall Width | 86 3/8" |

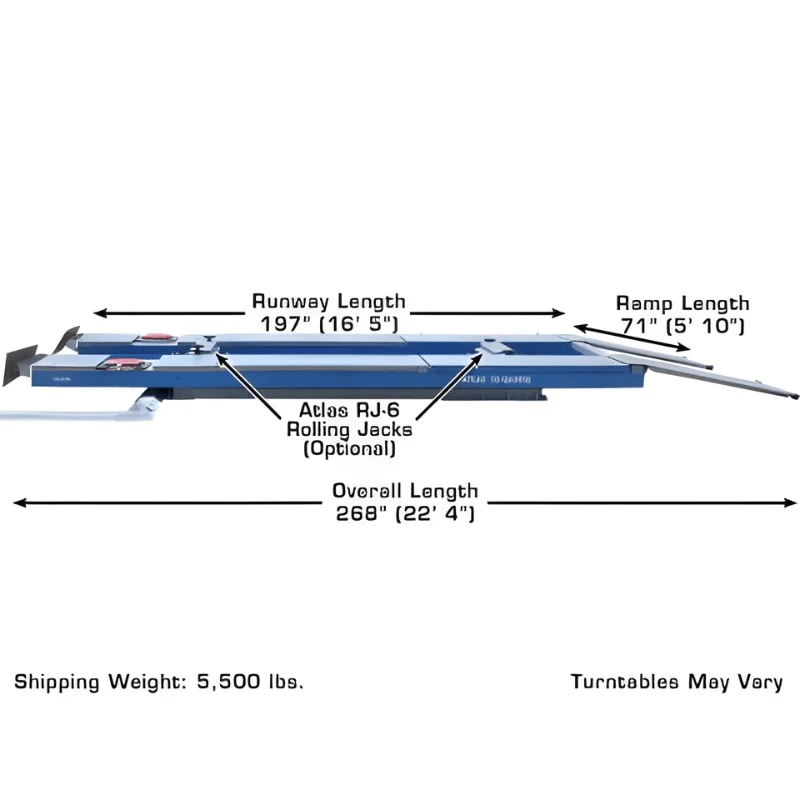

| Overall Length (with ramps) | 250" |

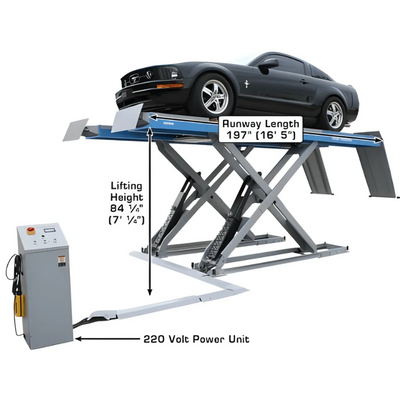

| Overall Length (without ramps) | 197" |
| Approach Ramp Length | 72" |
| 4-Wheel Alignment Wheelbase | 90" – 168" |
| 2-Wheel Alignment Wheelbase | 86" – 172" |
| Runway Width (including rail) | 23 3/4" |
| Width Between Runways | 39 1/4" |
| Width Between Rails | 34 3/8" |
| Air Requirement | 90–120 PSI |
| Power Requirement | 220V single-phase (30 amp breaker required) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |

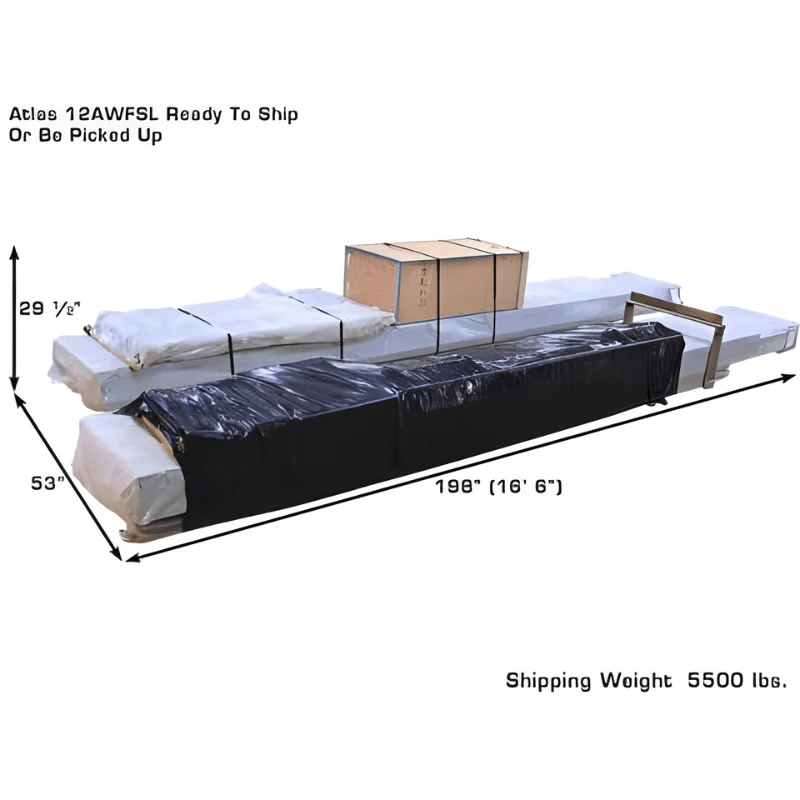

| Shipping Weight | 5,000 lbs |
| Concrete Requirement | Minimum 6" thick, 3000 PSI rating |
