Atlas 9KBPX 9,000 lb Baseplate 2-Post Vehicle Lift
SKU: ATEXH-9KBPX
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

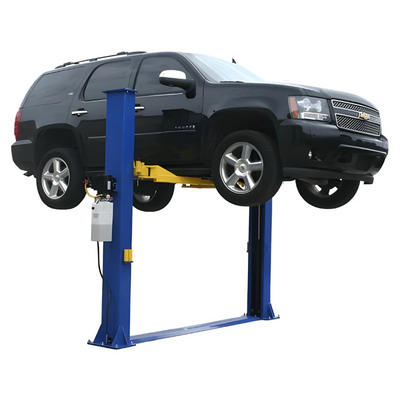

The Atlas 9KBPX is a baseplate-style 2-post lift designed for garages with limited ceiling height. With a total column height just over 9 feet, it can be installed in spaces with ceilings as low as 9 feet 6 inches while still delivering a 9,000 lb lifting capacity.
This makes it a strong option for home garages and smaller shops that need reliable lifting power without requiring a tall ceiling.
Low-Ceiling Friendly Lift with Strong Performance

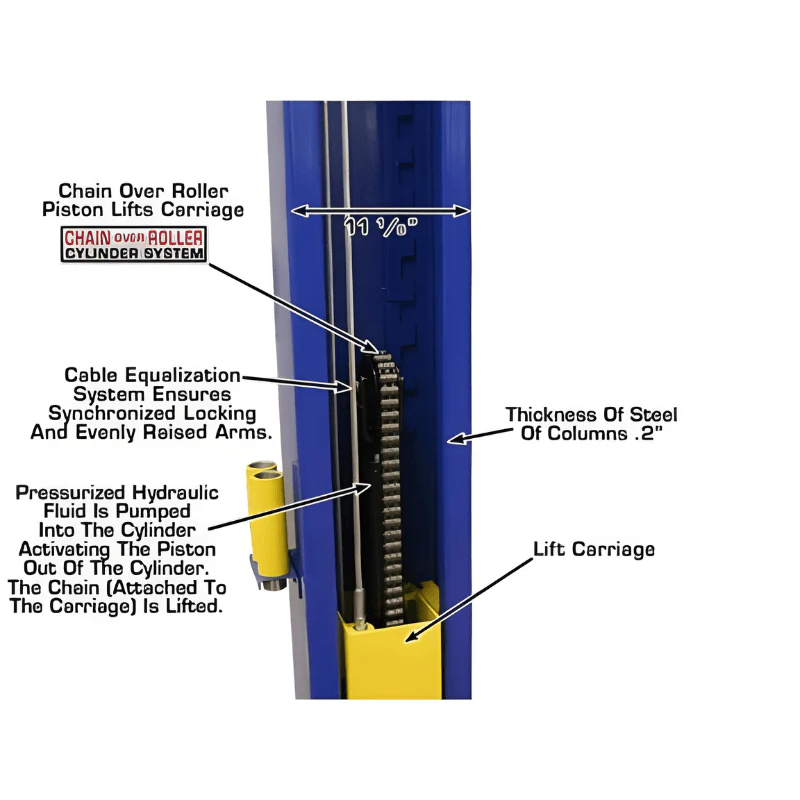

This model uses a dual hydraulic chain-drive system for consistent lifting performance. The chain-over roller design helps maintain smooth operation, while the secondary lock system automatically engages if slack is detected.

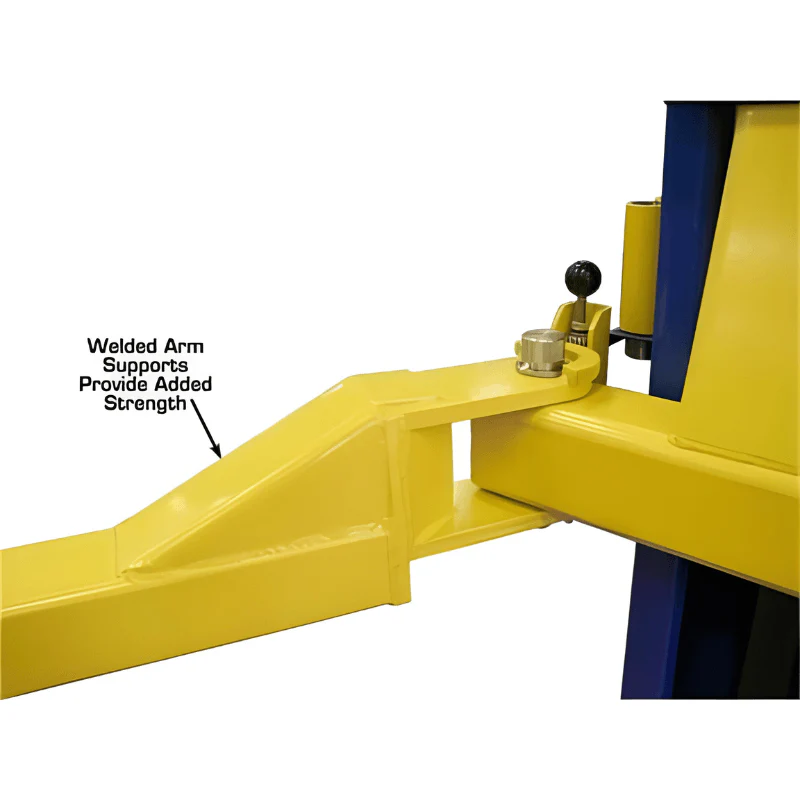

Symmetric arms and automatic arm restraints help ensure proper vehicle positioning, and the dual-point lock release allows for controlled lowering.
Designed for Everyday Vehicles

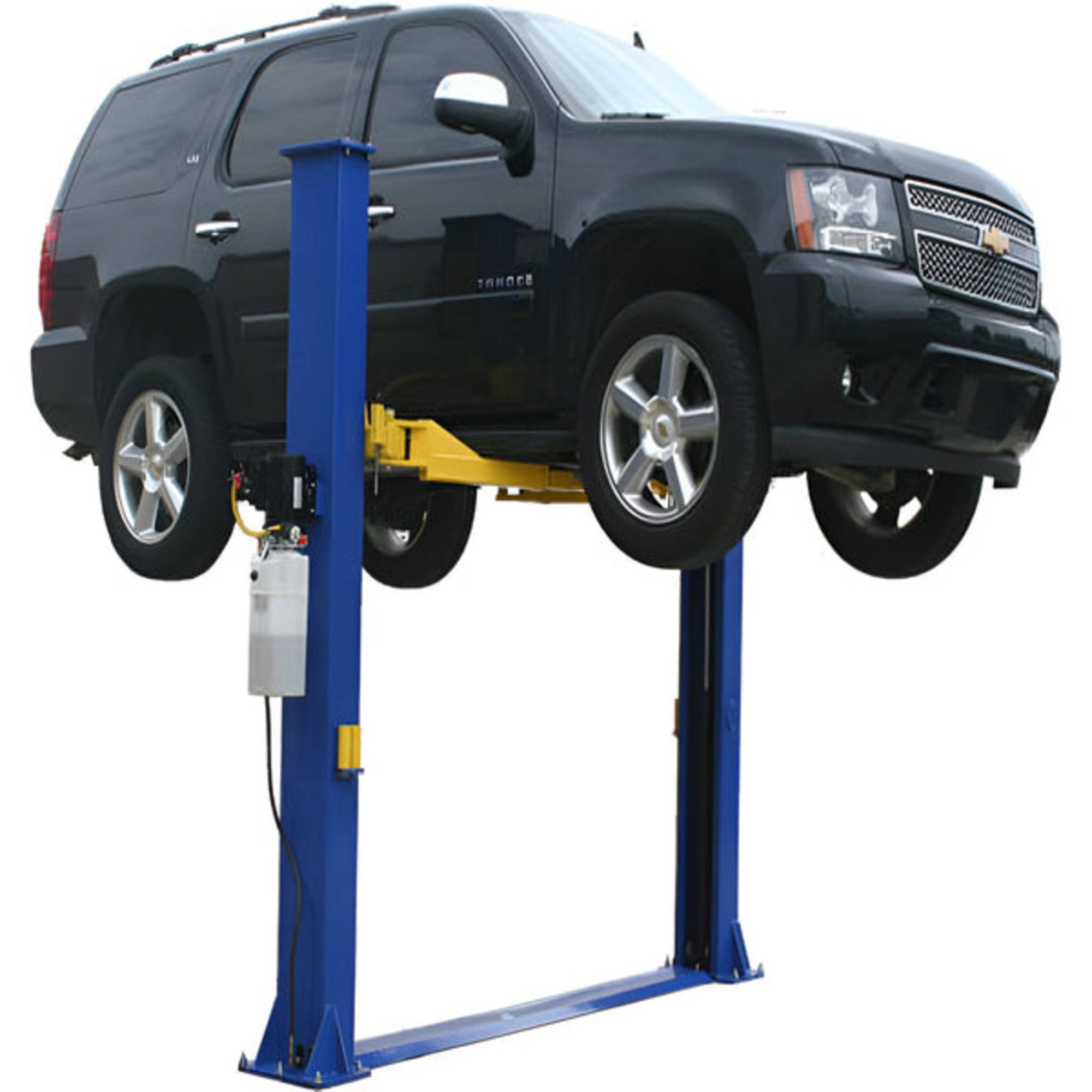

The 9KBPX is well-suited for cars, SUVs, and light-duty trucks. Its compact footprint and dependable construction make it ideal for general maintenance and repair work.
Key Features
- 9,000 lb lifting capacity
- Baseplate, open-top design
- Designed for low ceiling installations
- Dual hydraulic chain-drive cylinders
- Secondary lock system (SLS)

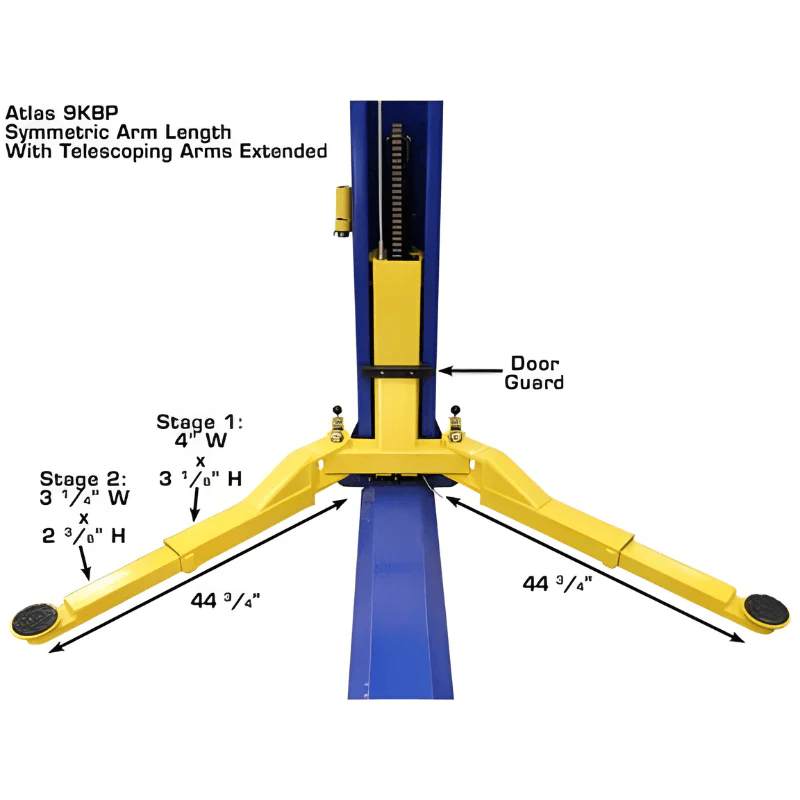

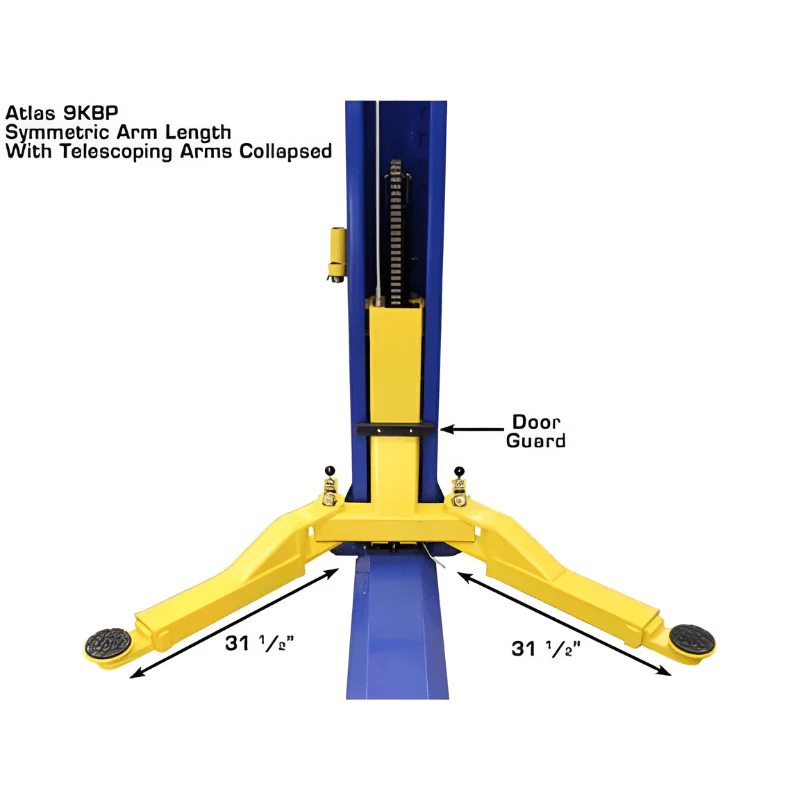

- Symmetric lifting arms

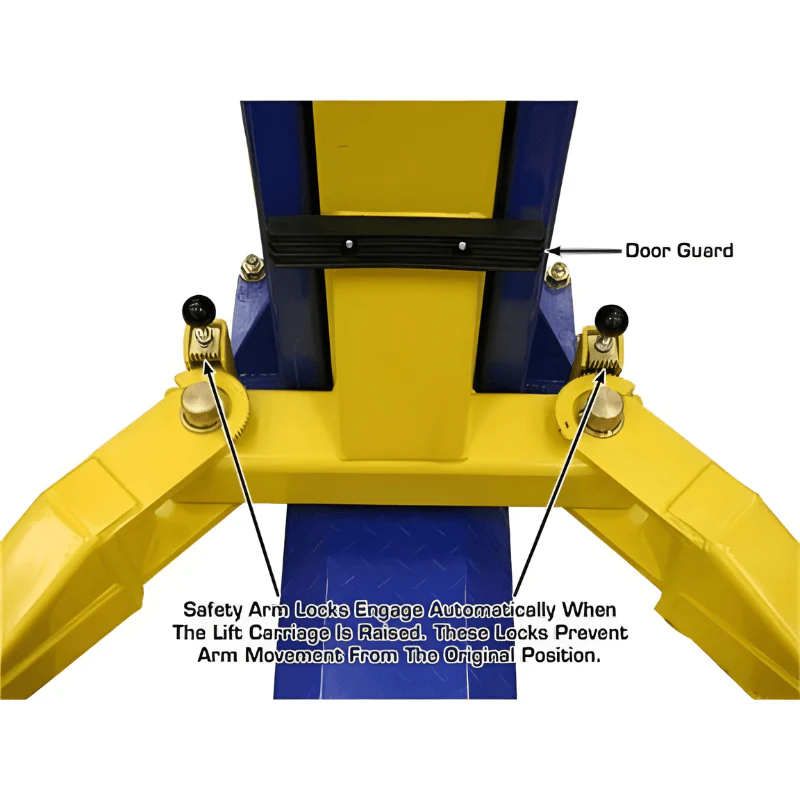

- Automatic arm restraints
- Dual-point lock release

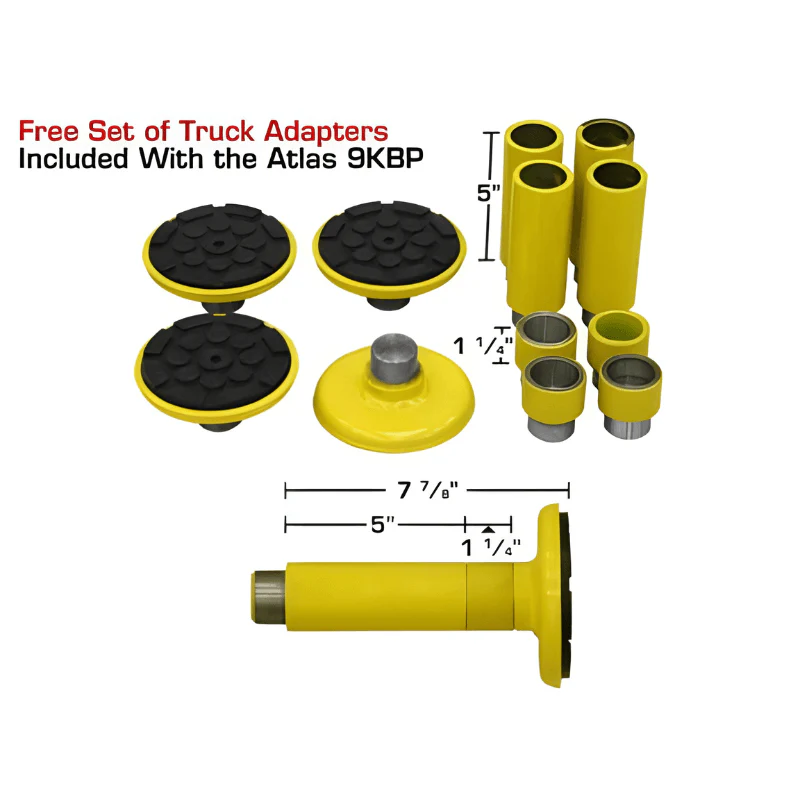

- Includes 8-piece truck adapter set

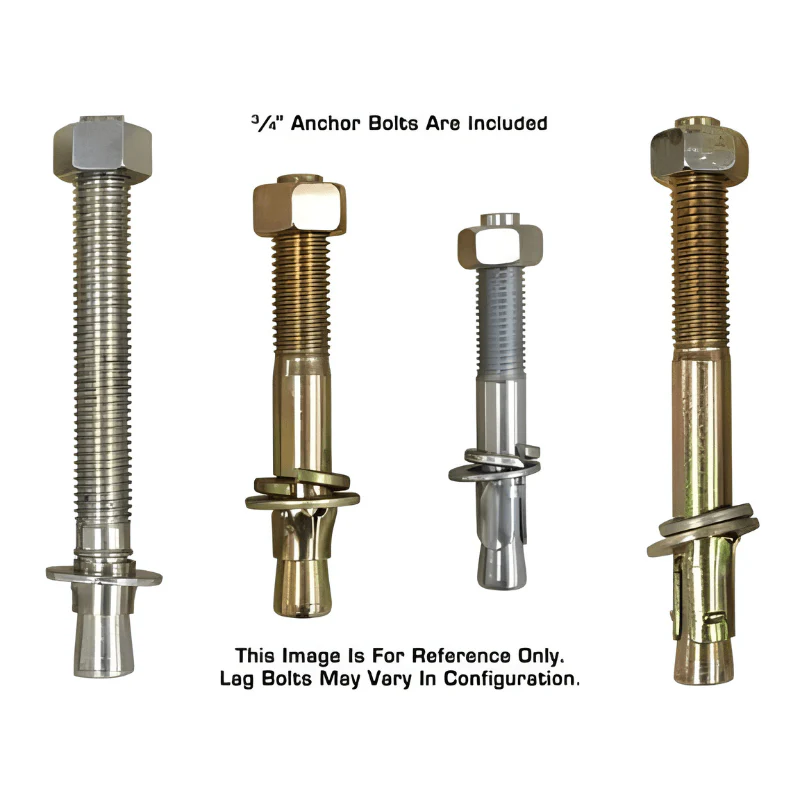

- Mounting hardware included
- Freight prepaid (FPD)
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb. |

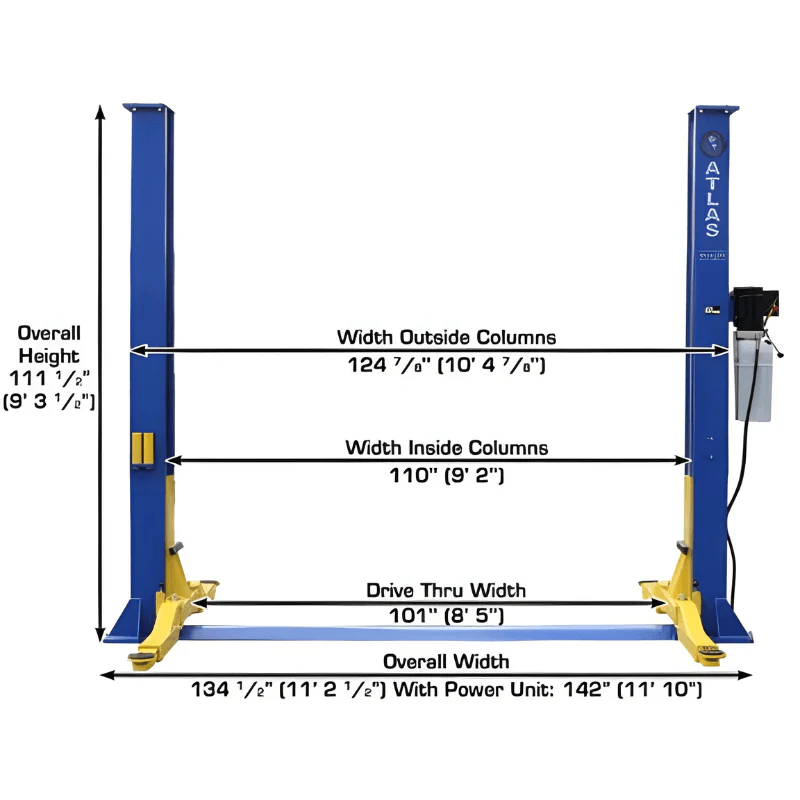

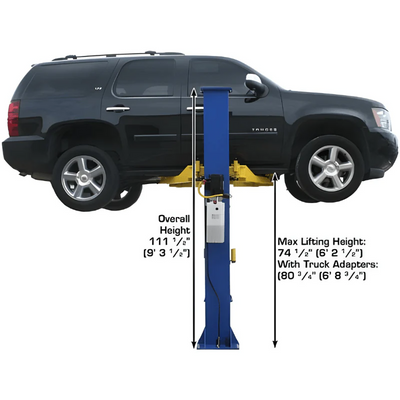

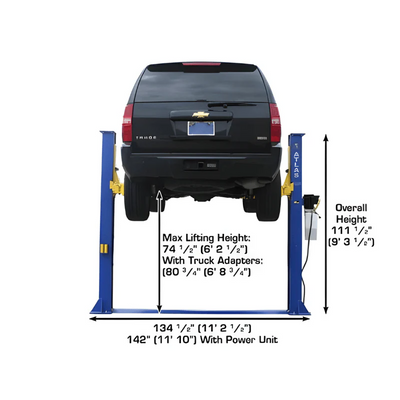

| Overall Height | 111 1/2" (9' 3 1/2") |
| Overall Floor Width | 134 1/2" (11' 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10' 4 7/8") |

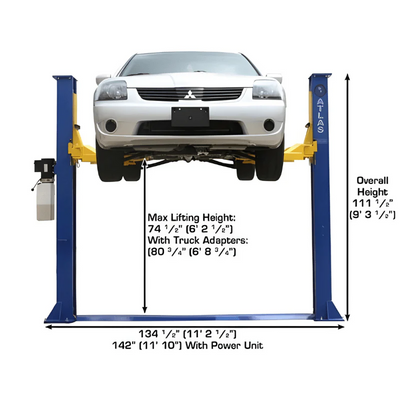

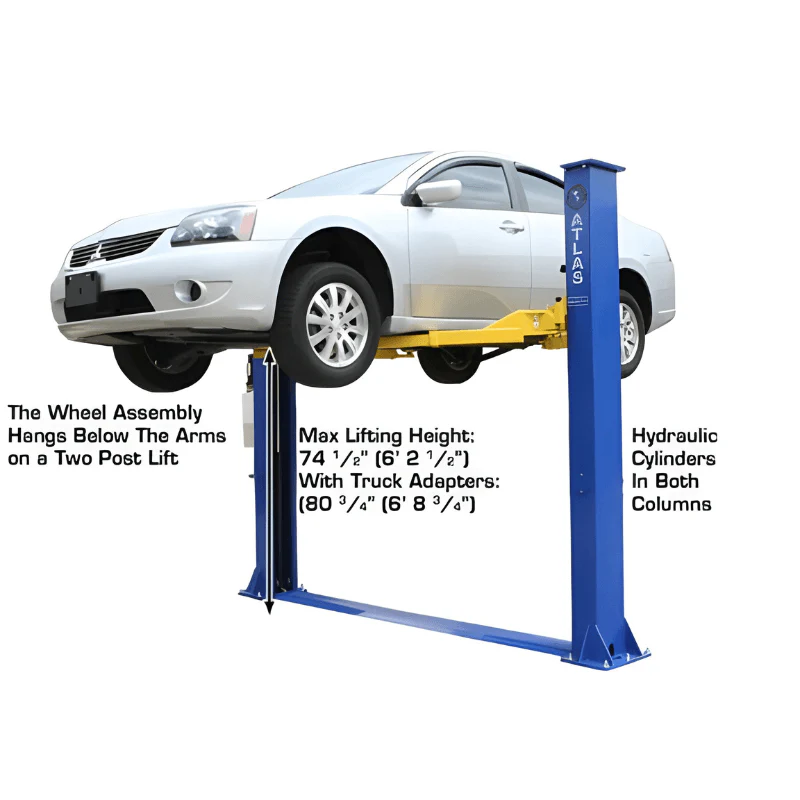

| Maximum Lift Height (Without Adapters) | 74 1/2" |
| Maximum Lift Height (With Adapters) | 81" |
| Minimum Arm Height | 4" |
| Inside Column | 110" (9' 2") |
| Drive Thru | 101" (8' 5") |

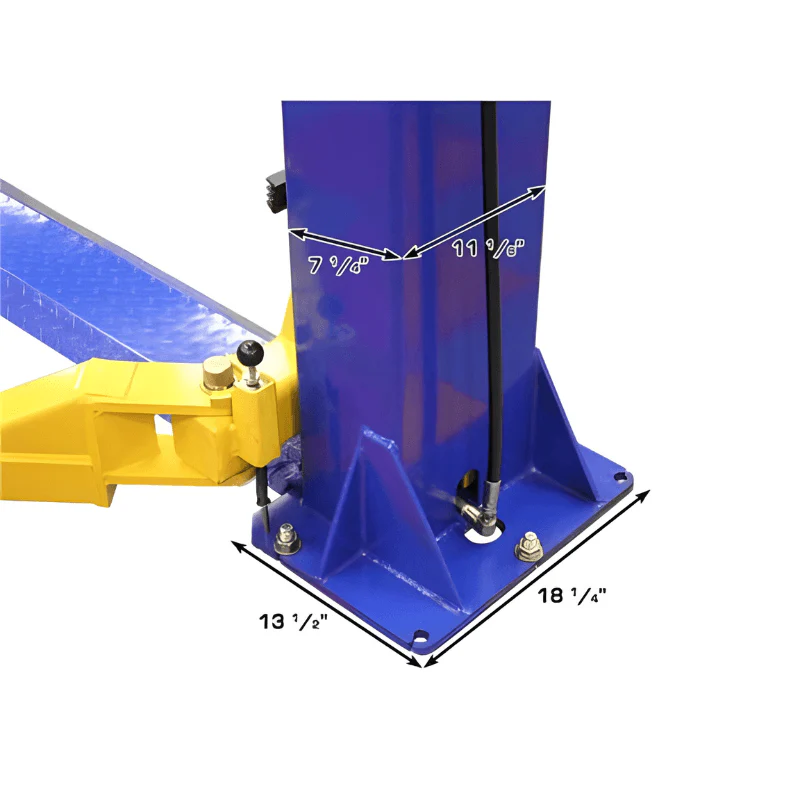

| Column Size | 7 1/4" x 11" |
| Column Thickness of Steel | 5mm |
| Base of Lift | 14 1/4" x 18 1/4" |

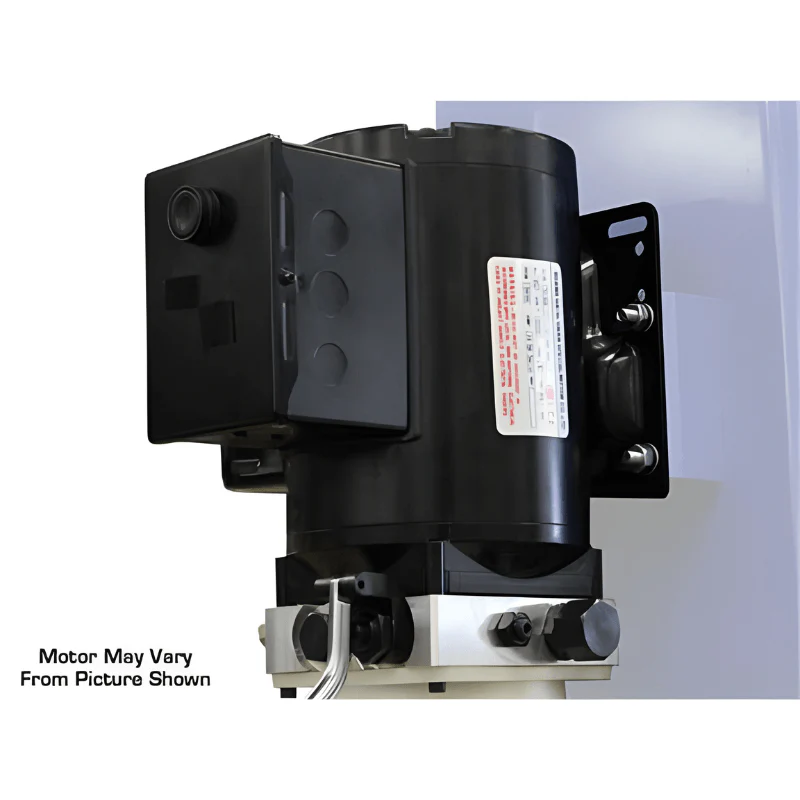

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

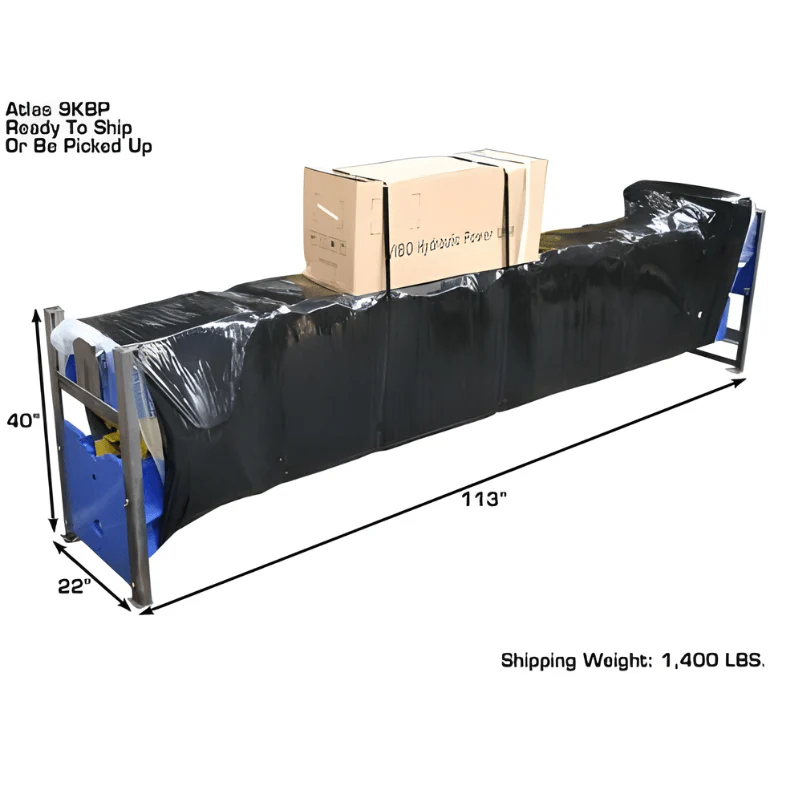

| Shipping Weight | 1,400 lbs. |

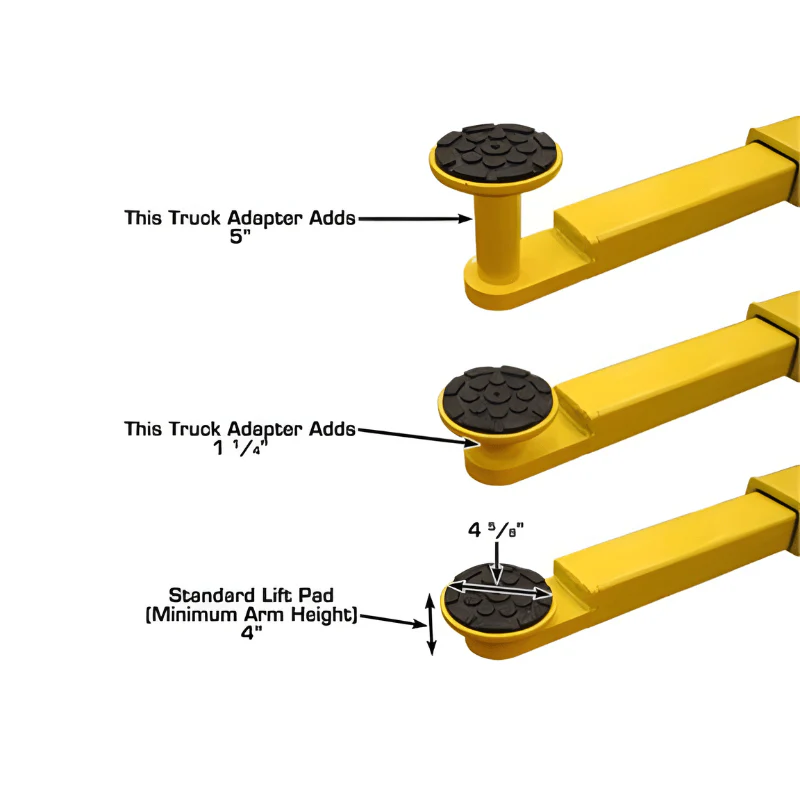

| Adapter Heights | 4 Each: 1.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" concrete with 3,000 PSI rating |
