Atlas 9OHSC 9,000 lb Overhead 2-Post Lift
SKU: ATEATTD-9OHSC-SS
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 9OHSC is a heavy-duty overhead 2-post lift designed for both small commercial repair facilities and home garages seeking reliable performance and strong value. With a true 9,000 lb lifting capacity, it is capable of servicing a wide range of vehicles, from compact cars to larger SUVs.
Featuring an overhead, open-floor design, this lift provides a clean working area without floor obstructions. It is built with a single-piece column structure and extended carriages, increasing overall strength and durability while supporting consistent long-term performance.

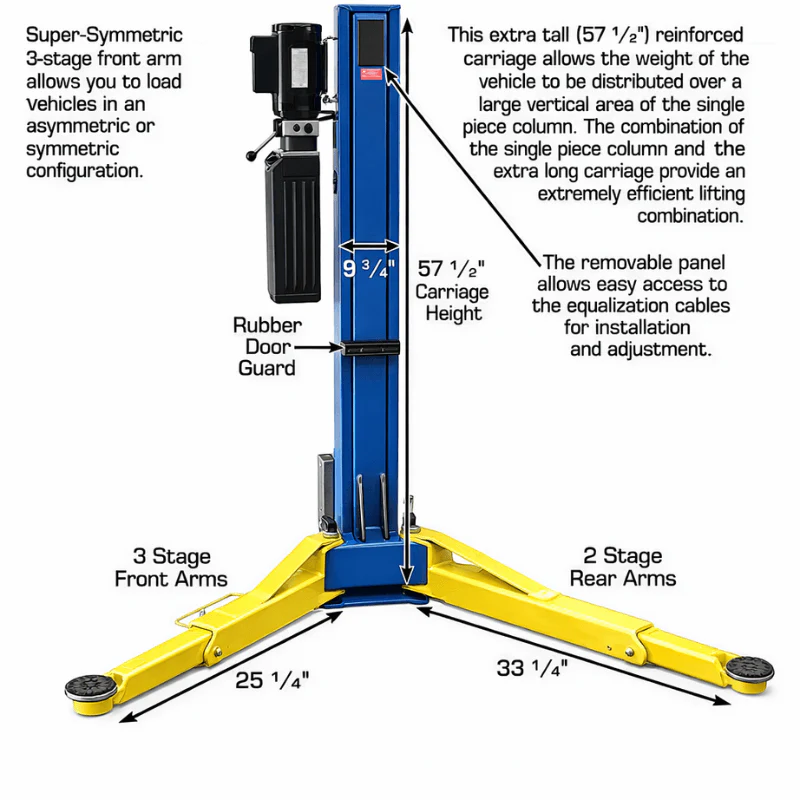

The lift is equipped with 3-stage front arms and 2-stage rear arms, allowing flexible positioning for different vehicle sizes and improving accessibility during service. Automatic arm restraints help keep vehicles securely in place, while the single-point lock release simplifies operation.
Dual hydraulic chain-drive cylinders provide smooth and reliable lifting performance. Rubber guards on the carriages help protect vehicle doors during use, and a free 12-piece truck adapter set expands the lift’s capability for handling a variety of vehicles.
The one-piece column design requires sufficient ceiling height for installation, making it important to ensure proper clearance during setup.
Features and Benefits
- 9,000 lb capacity

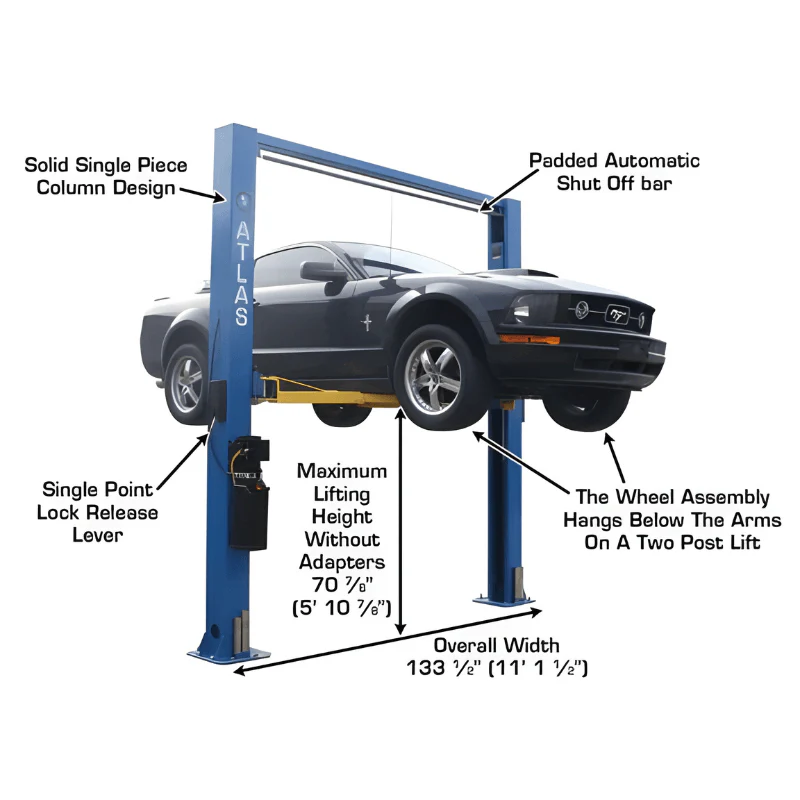

- Overhead open-floor design
- Single-piece column construction
- Overall height: 142" (11’ 10")

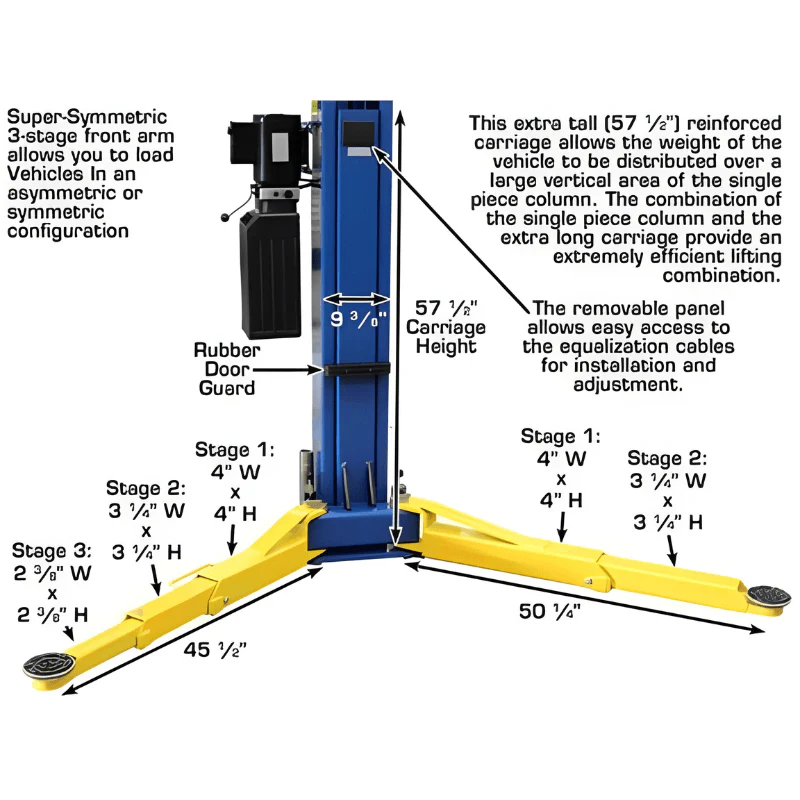

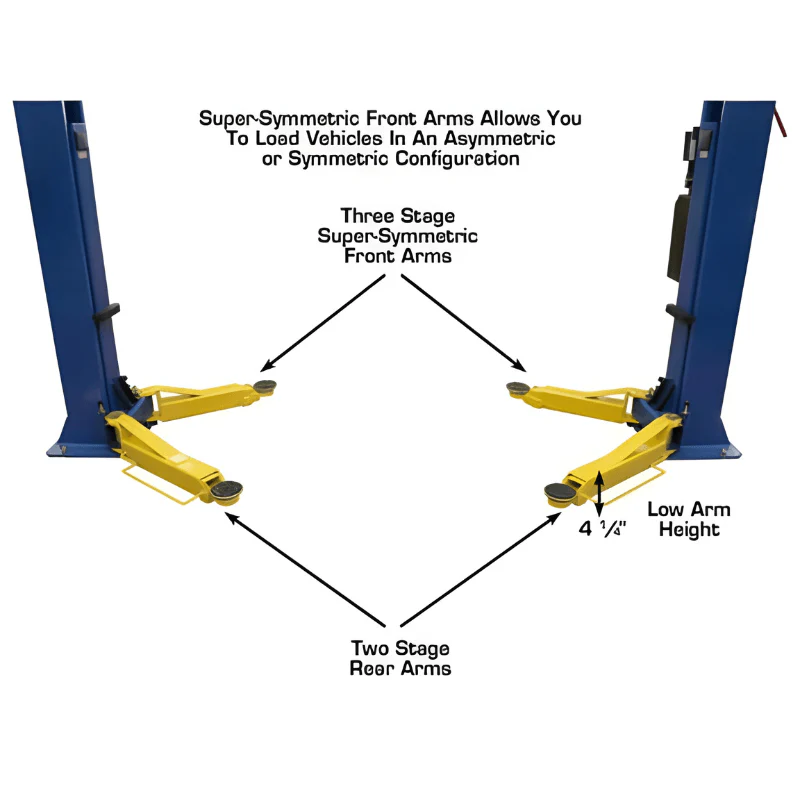

- 3-stage front arms and 2-stage rear arms

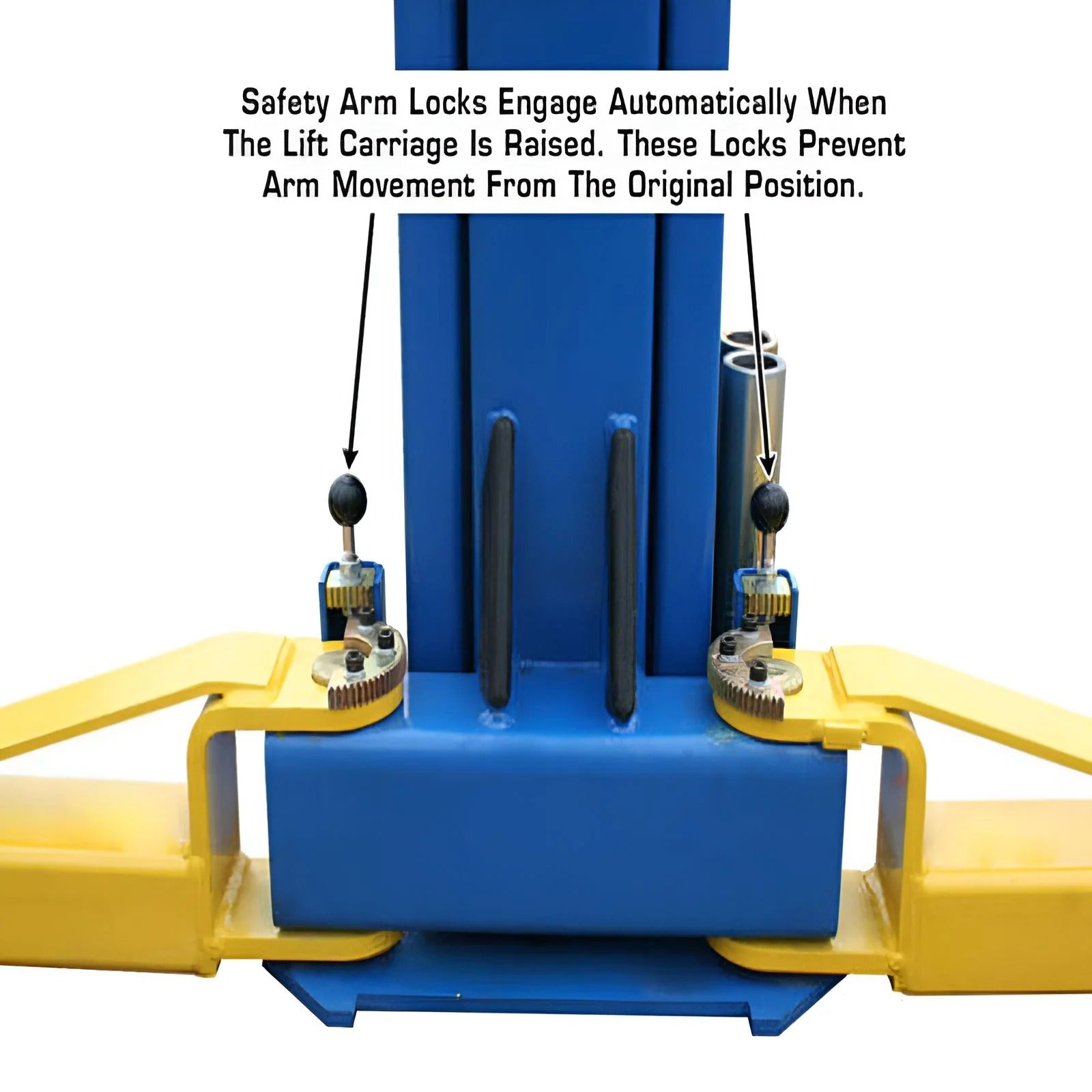

- Automatic arm restraints

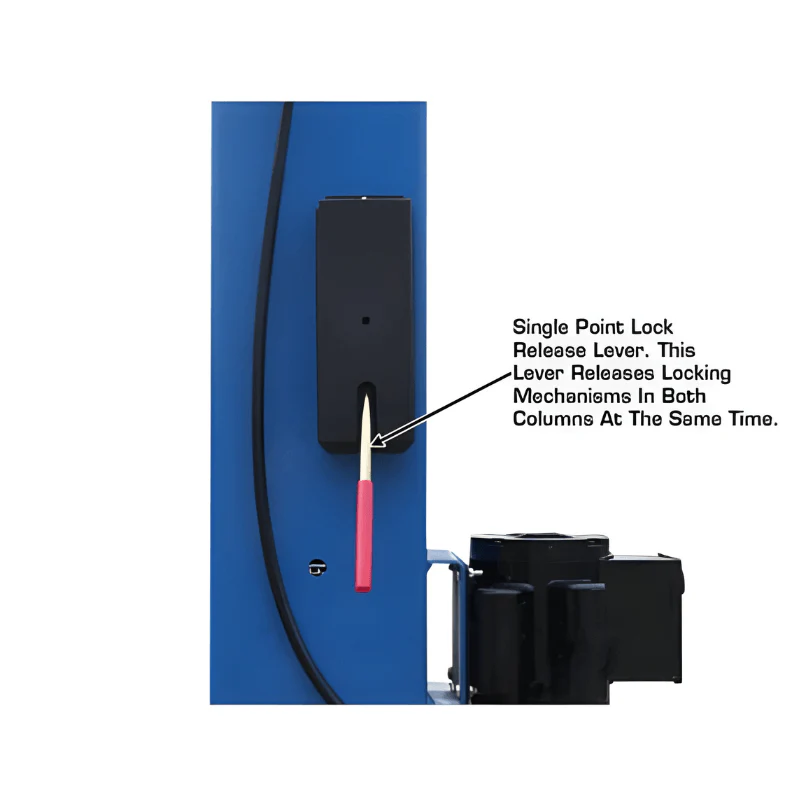

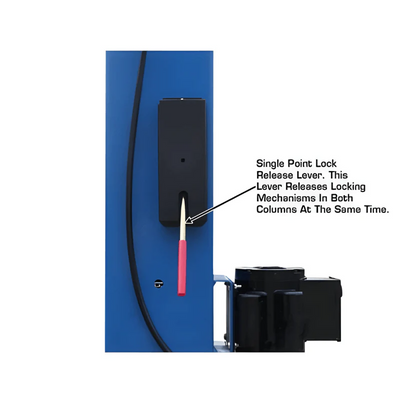

- Single-point lock release
- Rubber guards on carriages

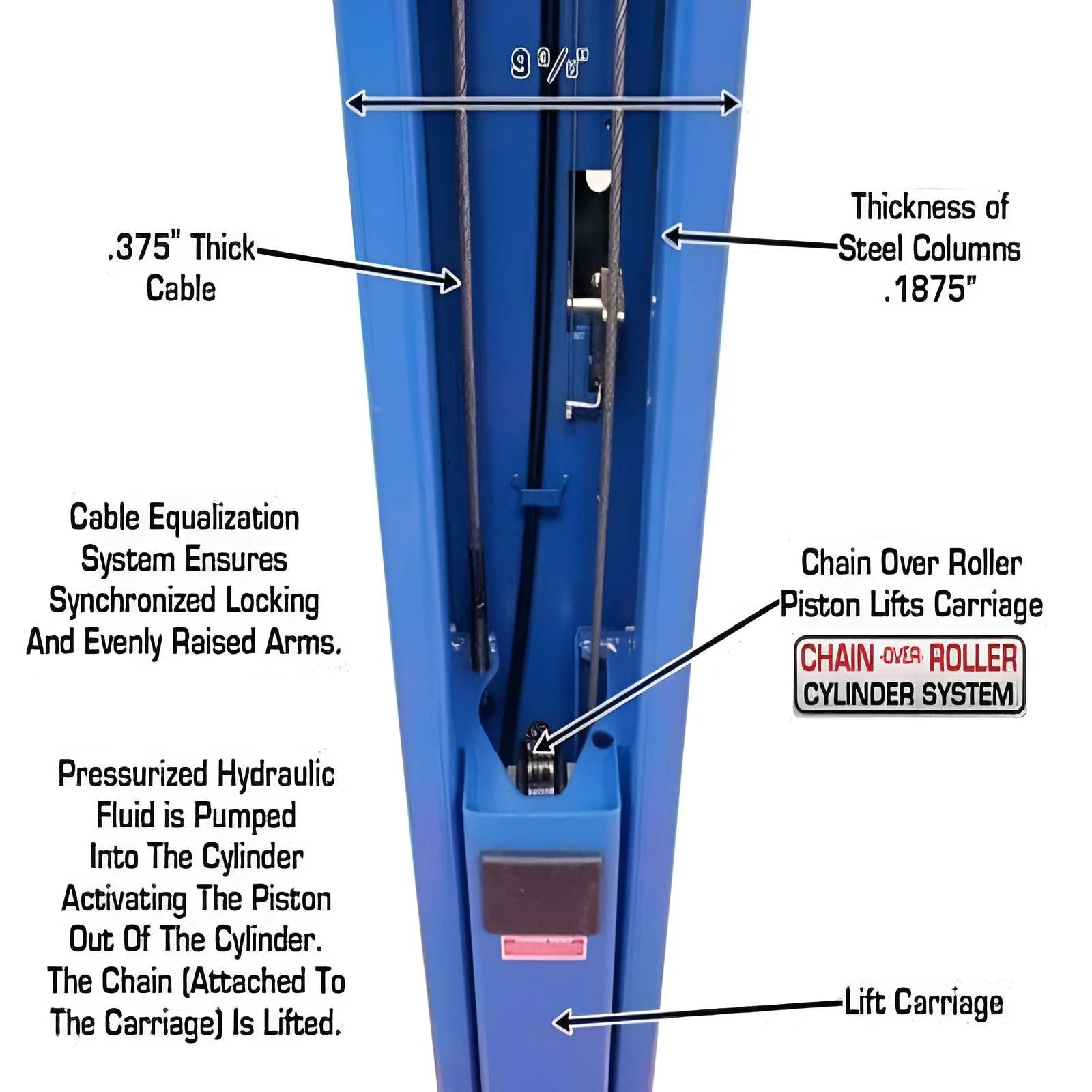

- Dual hydraulic chain-drive cylinders

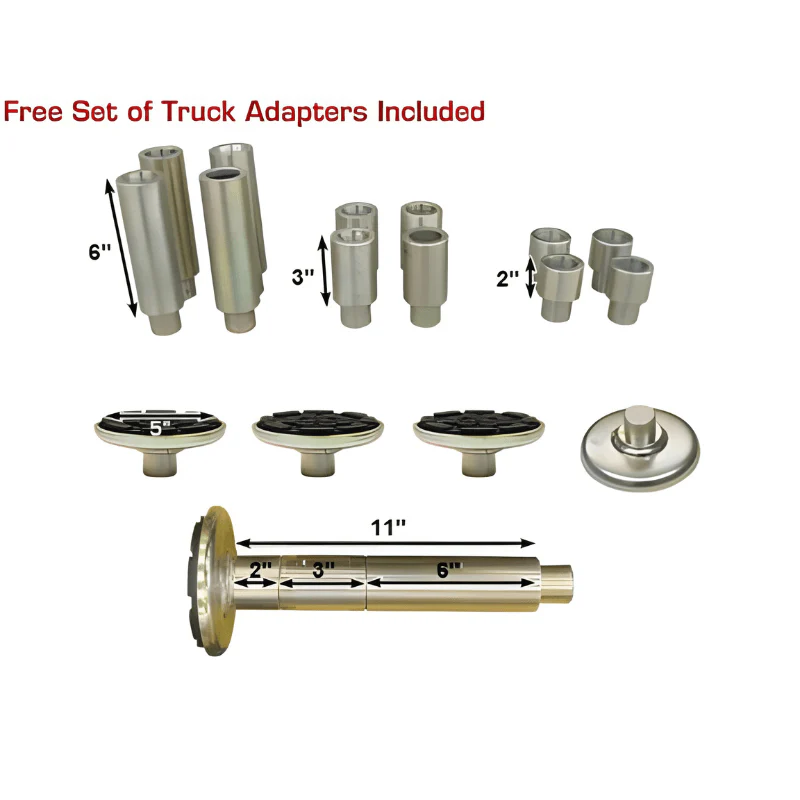

- Free 12-piece truck adapter set included
- Mounting hardware included
- 5-year structural warranty, 2-year hydraulic warranty (parts only)

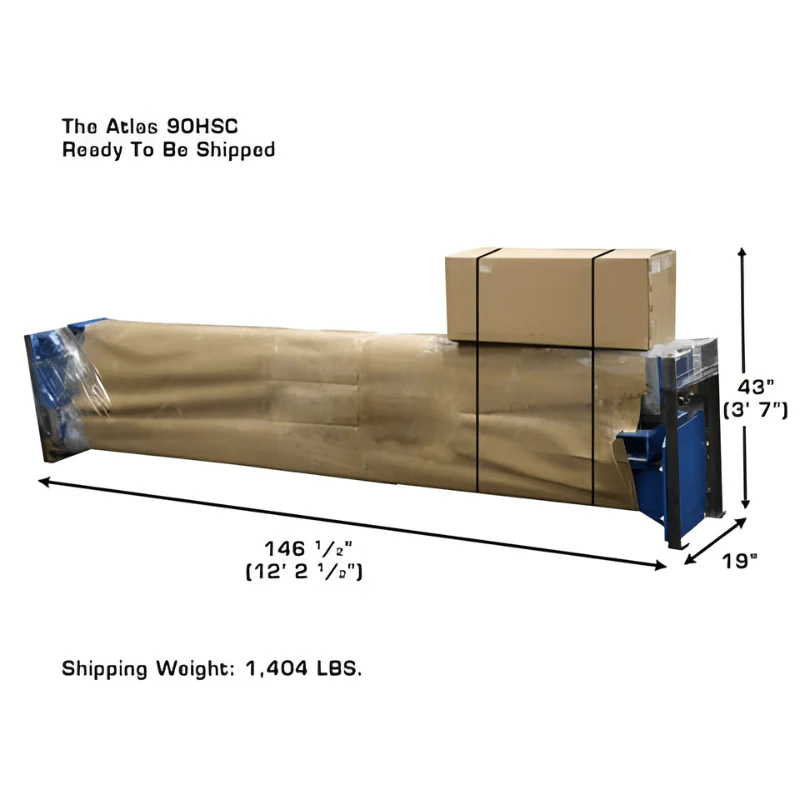

- Shipping weight: 1,430 lbs
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb |

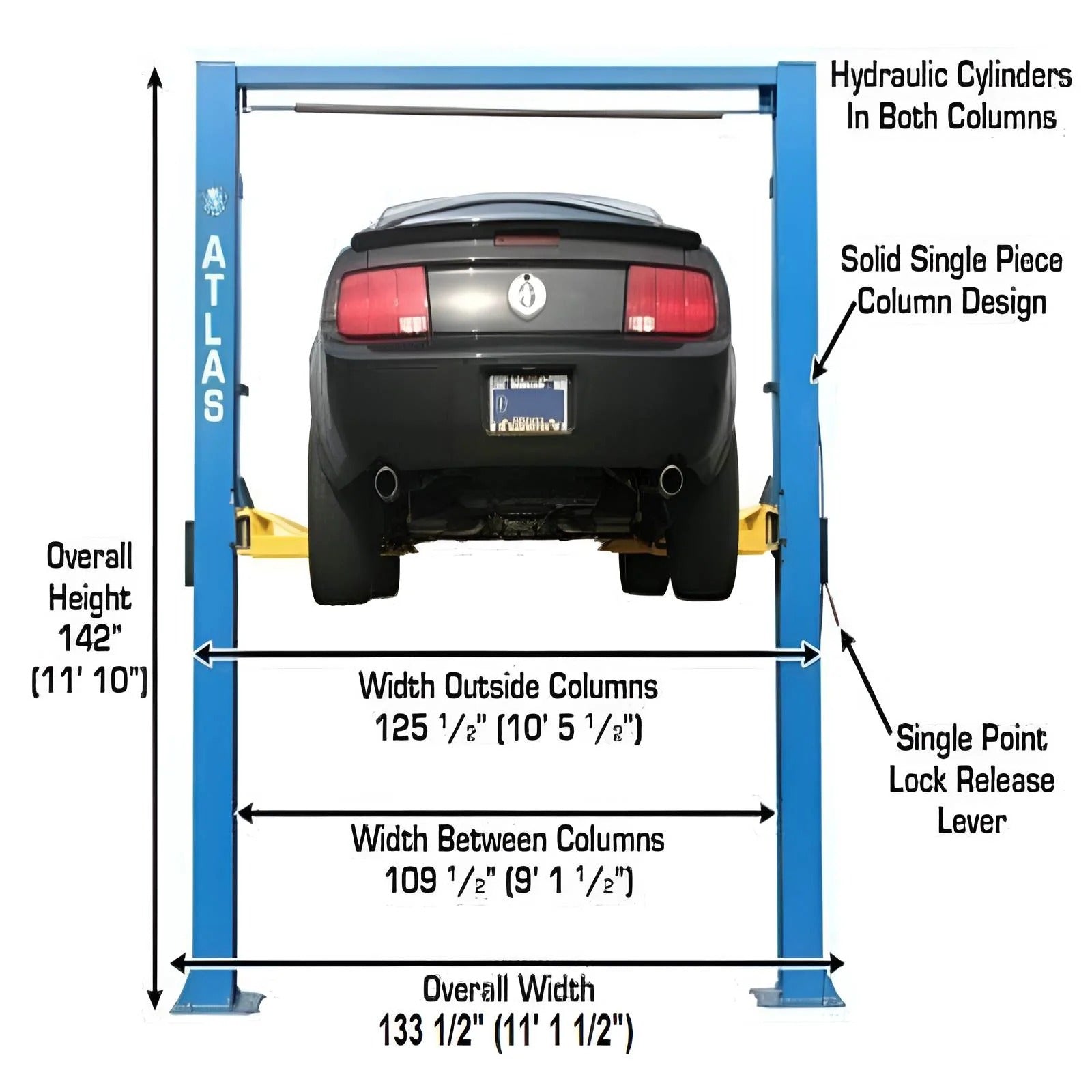

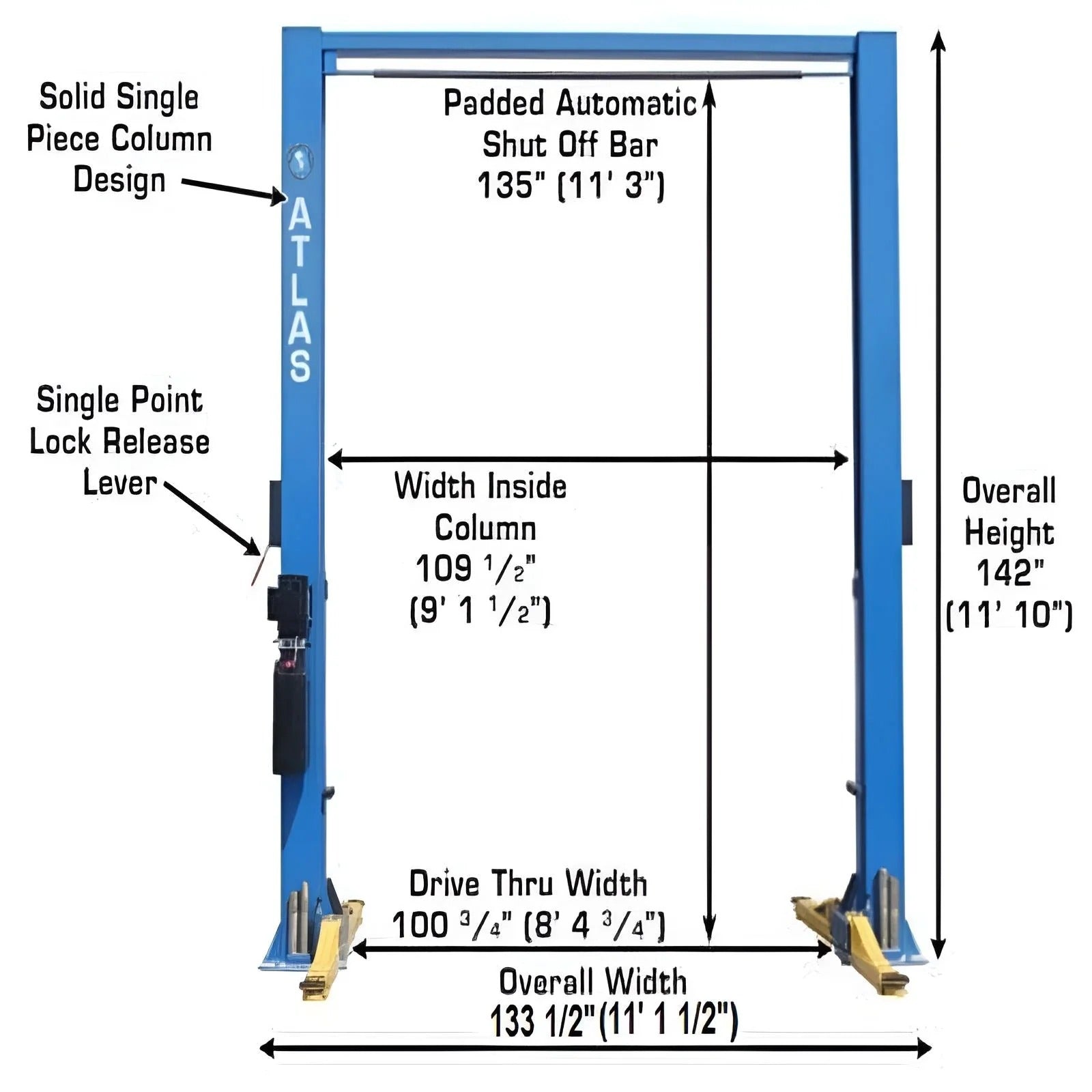

| Overall Height | 142" (11’ 10") |
| Overall Floor Width | 133 1/2" (11’ 1 1/2") |
| Outside Column to Outside Column | 125 1/2" (10’ 5 1/2") |
| Inside Column | 109 1/2" (9’ 1 1/2") |

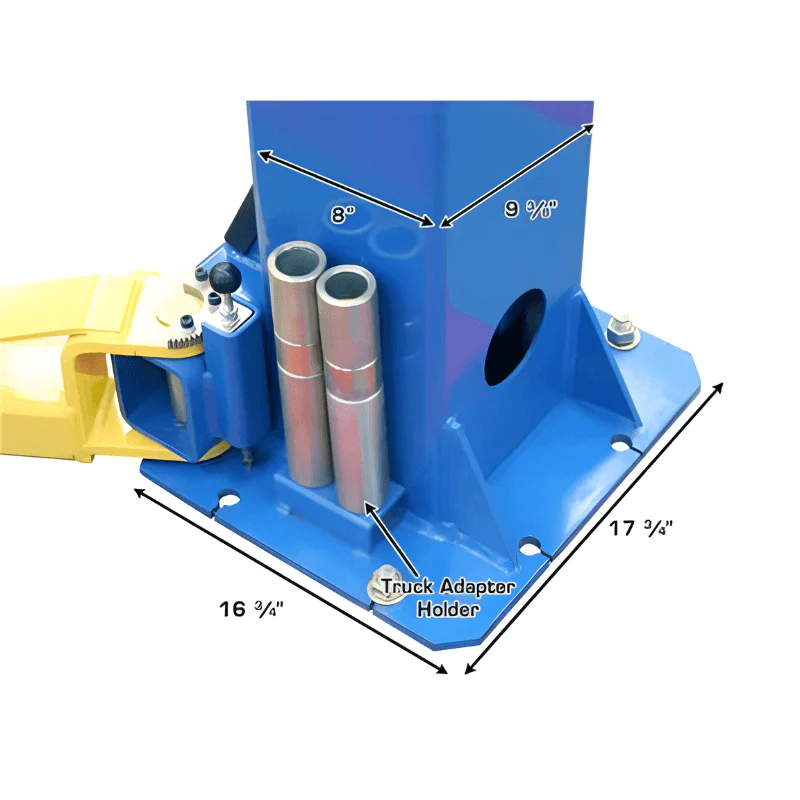

| Column Size | 8" x 9 3/8" |
| Base of Lift | 16 3/4" x 17 3/4" |

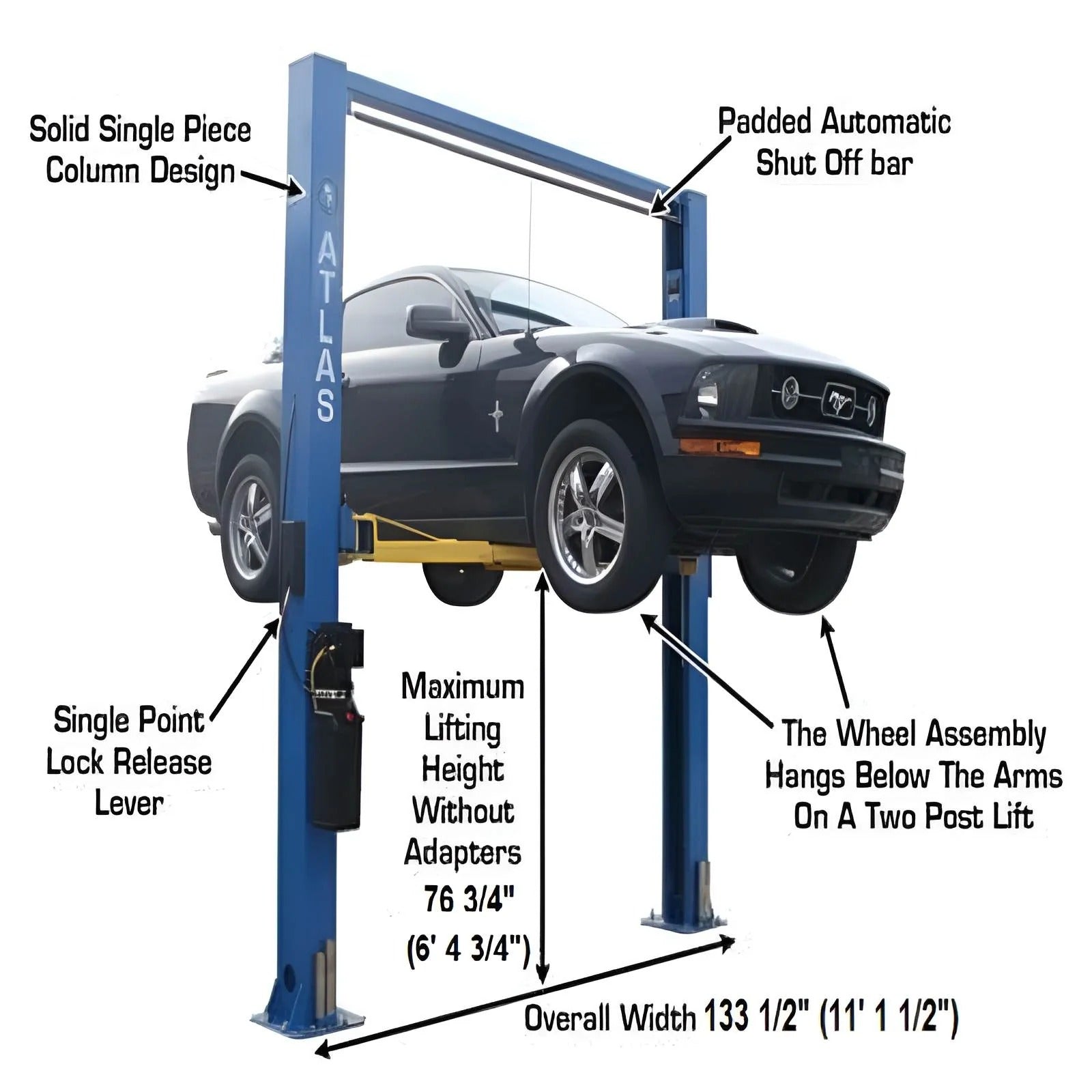

| Maximum Lift Height (Without Adapters) | 76 3/4" |

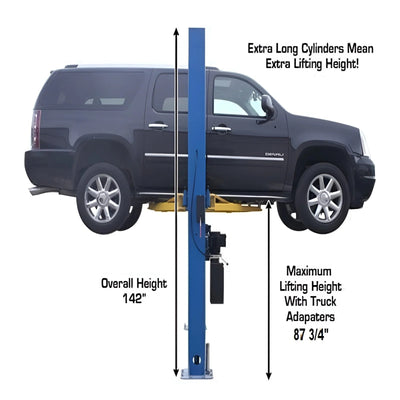

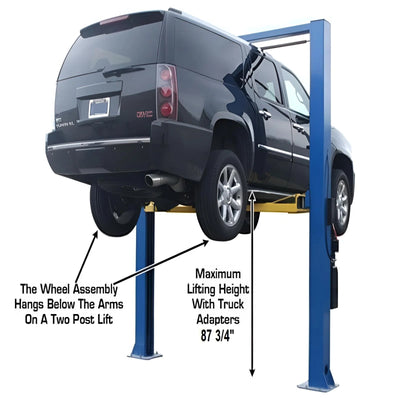

| Maximum Lift Height (With Adapters) | 87 3/4" |
| Minimum Arm Height | 4" |
| Drive Thru | 100 1/2" (8’ 4 1/2") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

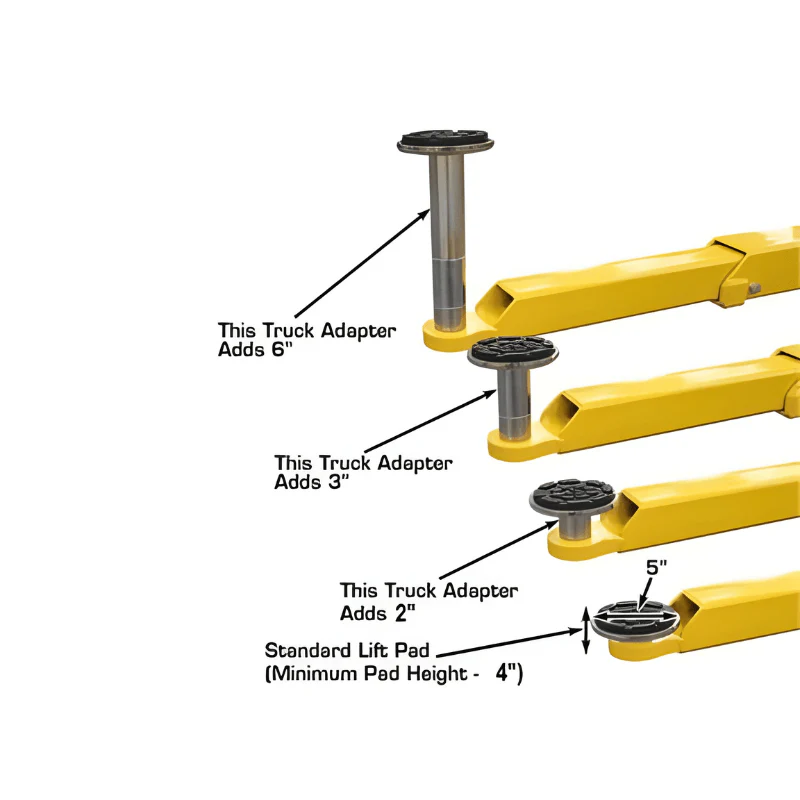

| Adapter Heights | 4 Each: 2", 3", 6" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI rating |
| Shipping Weight | 1,430 lbs |
