Atlas BP8000 8,000 lb Baseplate 2-Post Lift – Low Ceiling Garage So...

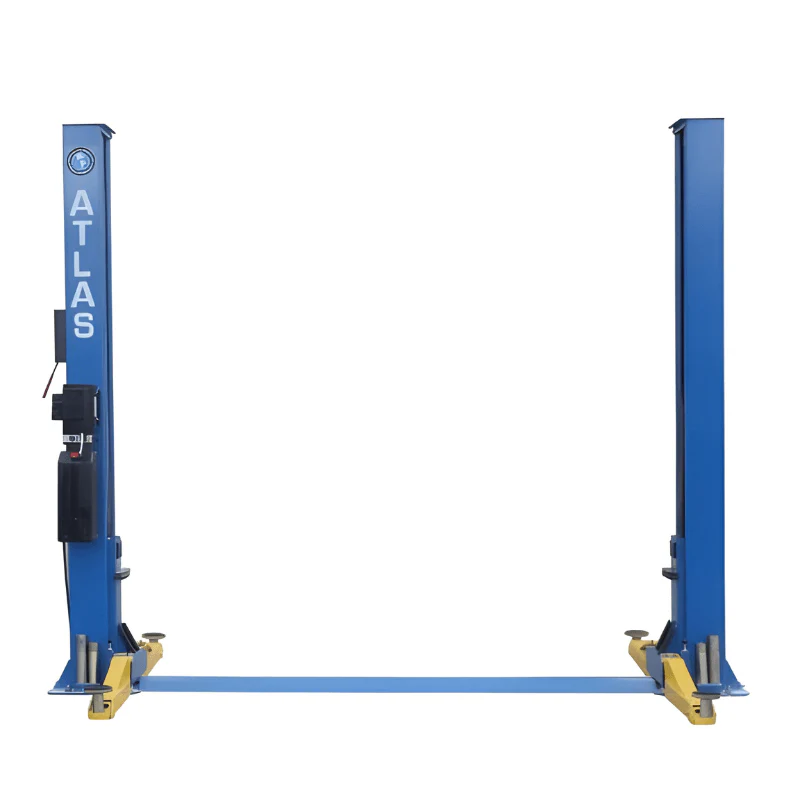

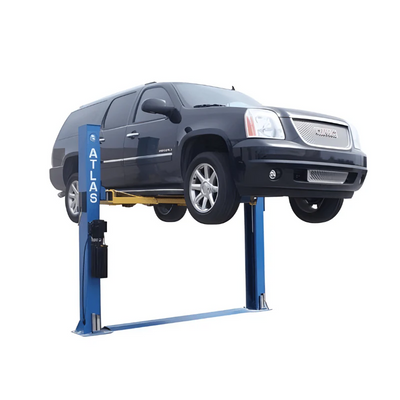

The Atlas BP8000 is a space-efficient 2-post lift designed specifically for garages with limited ceiling height. With an overall height of just 108 inches (9 feet), this baseplate-style lift can be installed in spaces where traditional overhead lifts won't fit, making it an excellent option for home garages and smaller shops.
With an 8,000 lb lifting capacity, the BP8000 is well-suited for servicing cars, light trucks, and SUVs. Designed as a hobbyist-grade lift, it provides dependable lifting power for routine maintenance and repair work without the need for a full commercial setup.
The Atlas BP8000 is perfect for users who need a functional lift in a limited space. Its compact design and practical features make it a strong choice for hobbyists and light-duty automotive work.
Built with many of the same features found on larger lifts, the BP8000 delivers solid performance in a smaller footprint. It's a practical solution for those who want reliable lifting capability without requiring a tall garage ceiling.
| Specifications | Details |
|---|---|
| Capacity | 8,000 lb. |

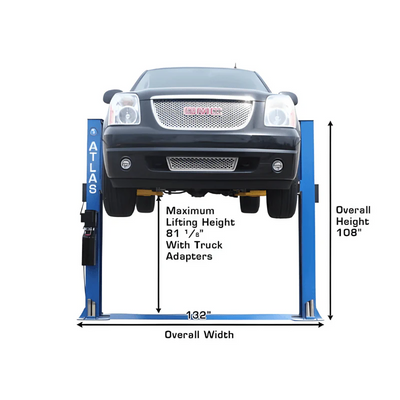

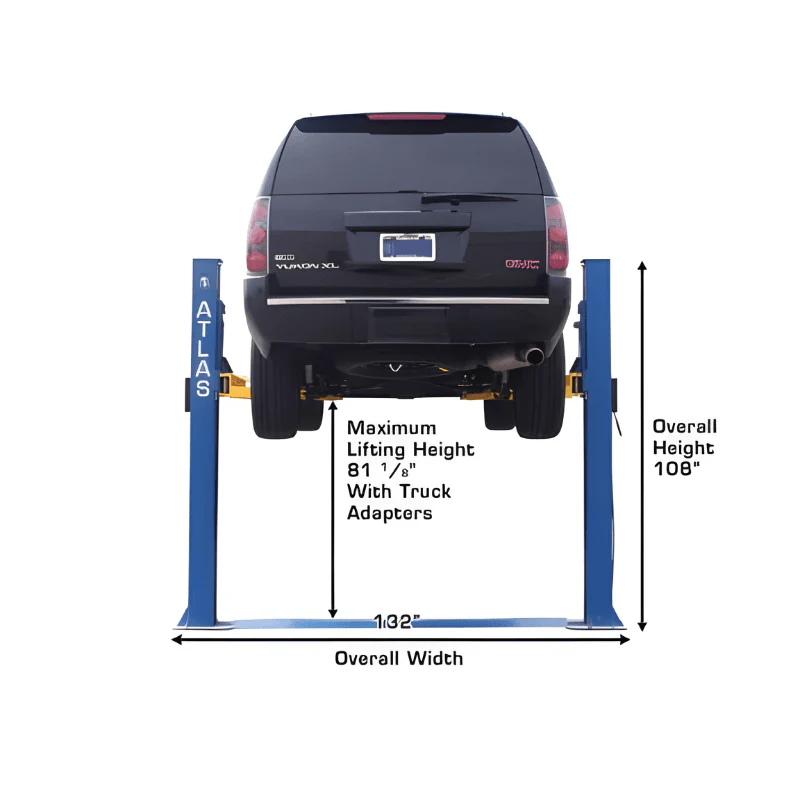

| Overall Height | 108" (9') |
| Overall Floor Width | 132" (11') |
| Outside Column to Outside Column | 124" (10' 4") |
| Maximum Lift Height (Without Adapters) | 75 1/2" |

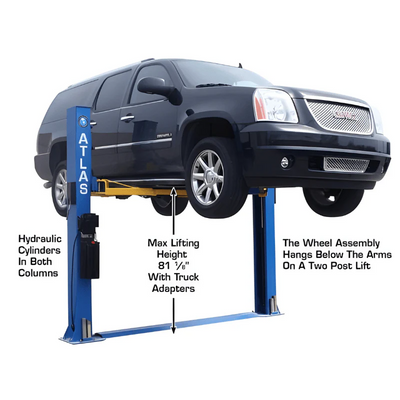

| Maximum Lift Height (With Adapters) | 86 1/2" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/8" (9' 1 1/8") |
| Drive Thru | 99" (8' 3") |

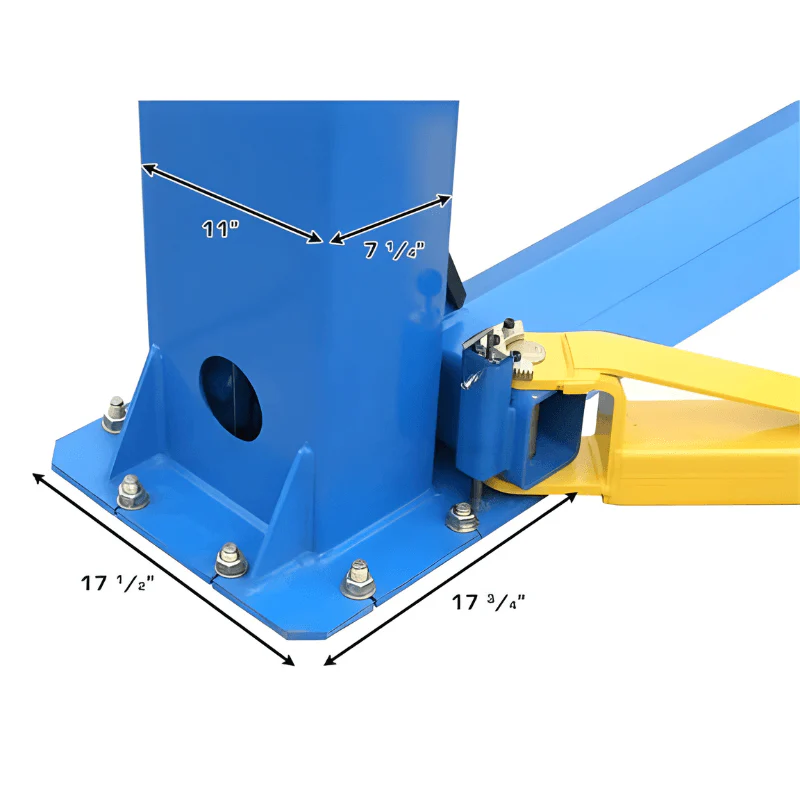

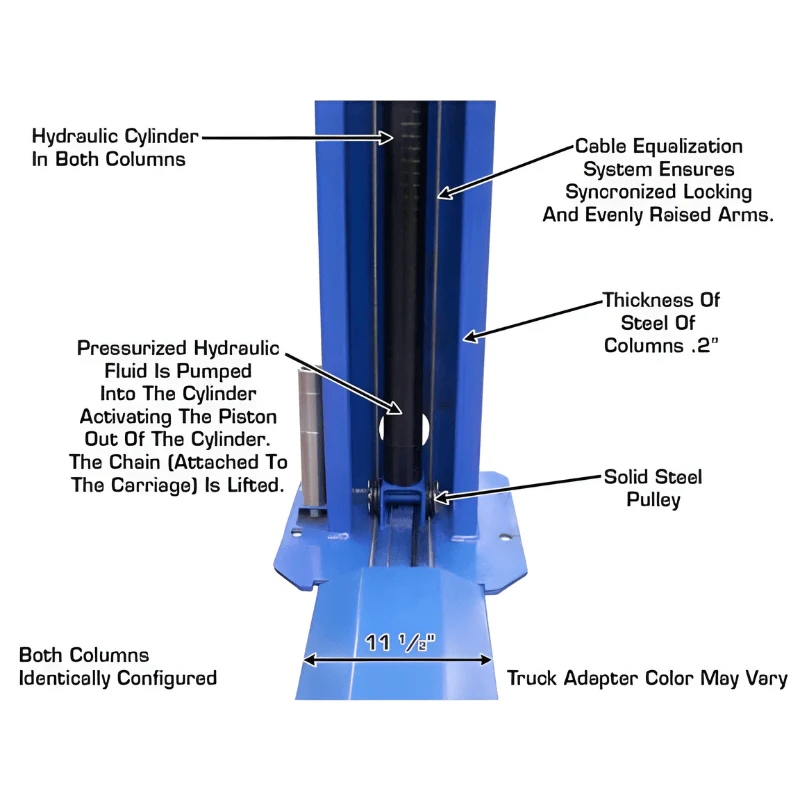

| Column Size | 7 1/4" x 11" |

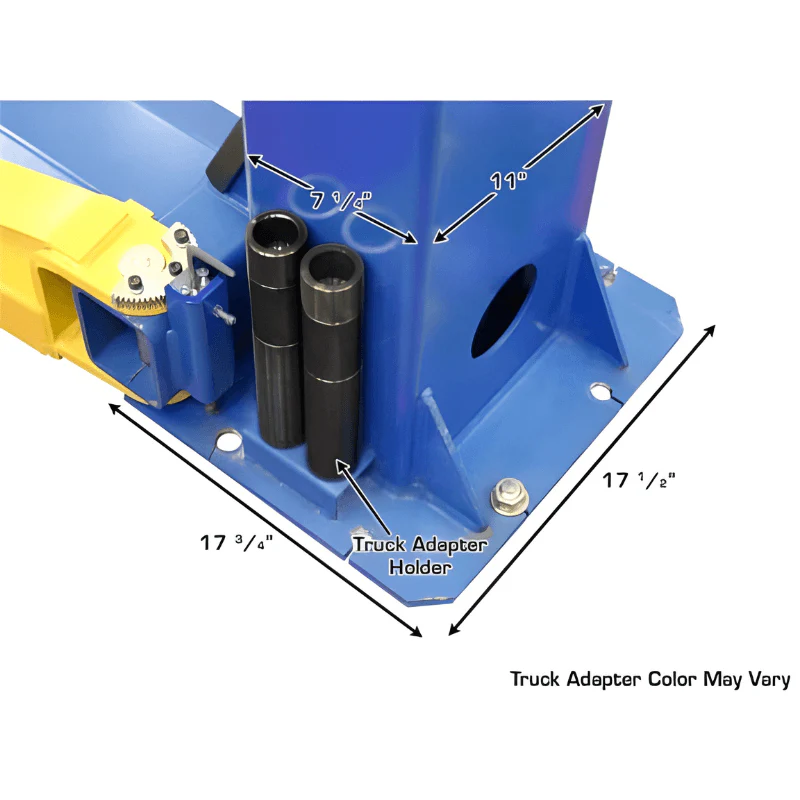

| Base Of Lift | 17 1/2" x 17 3/4" |

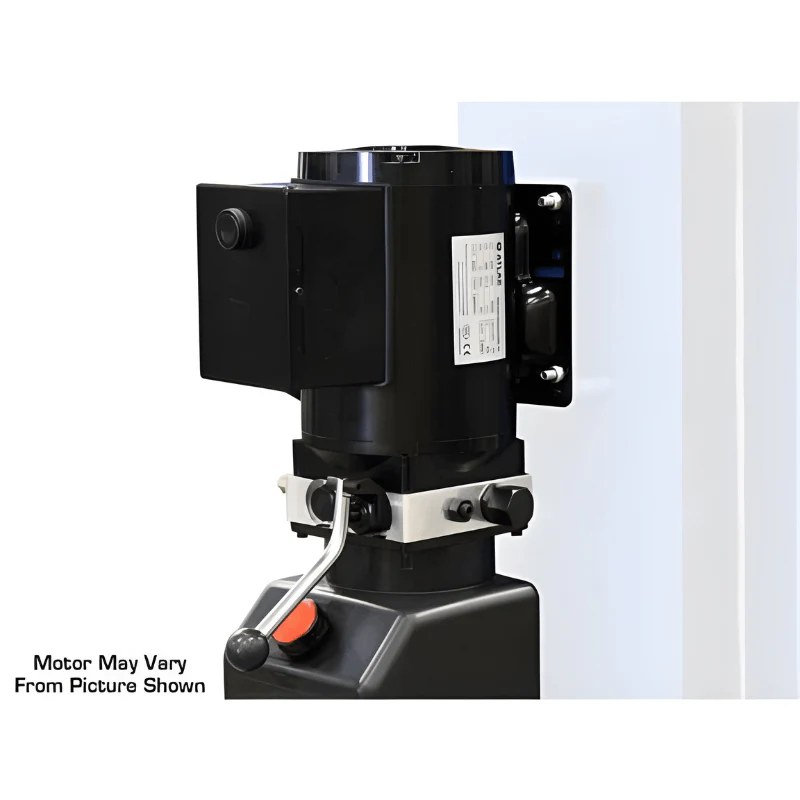

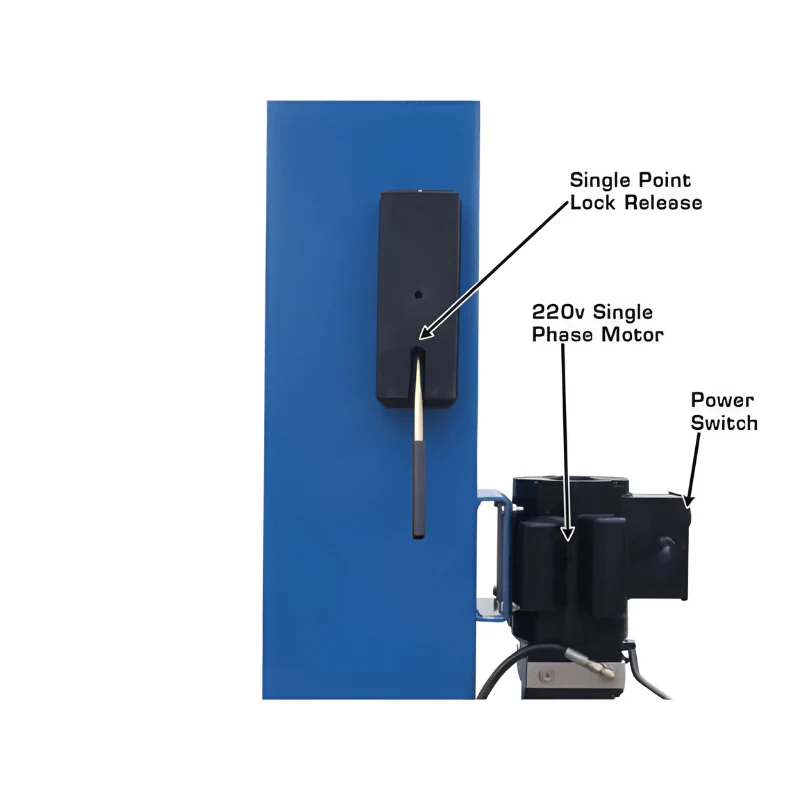

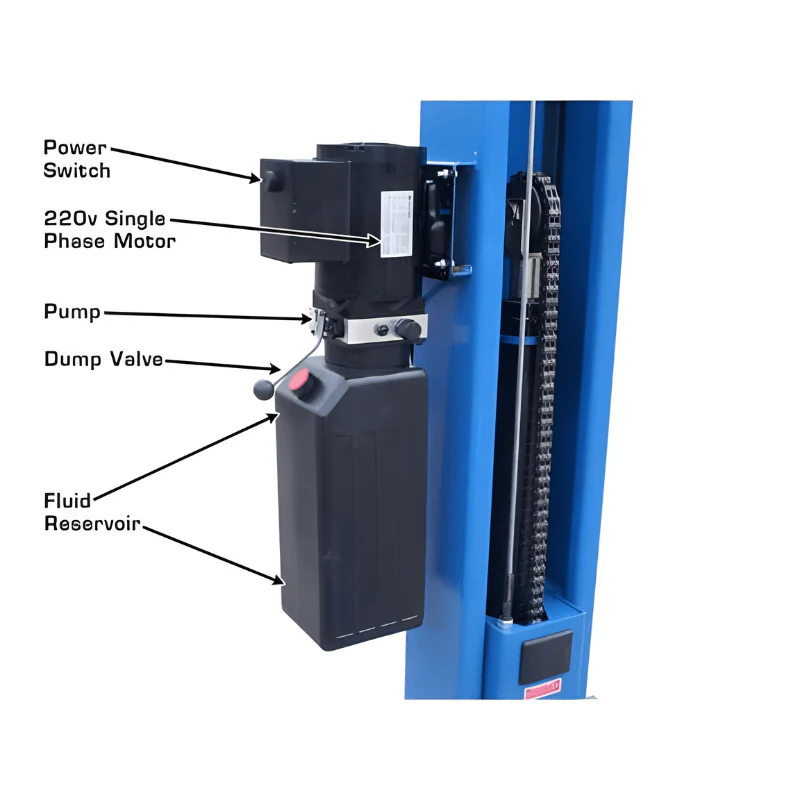

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 1,300 lbs. |

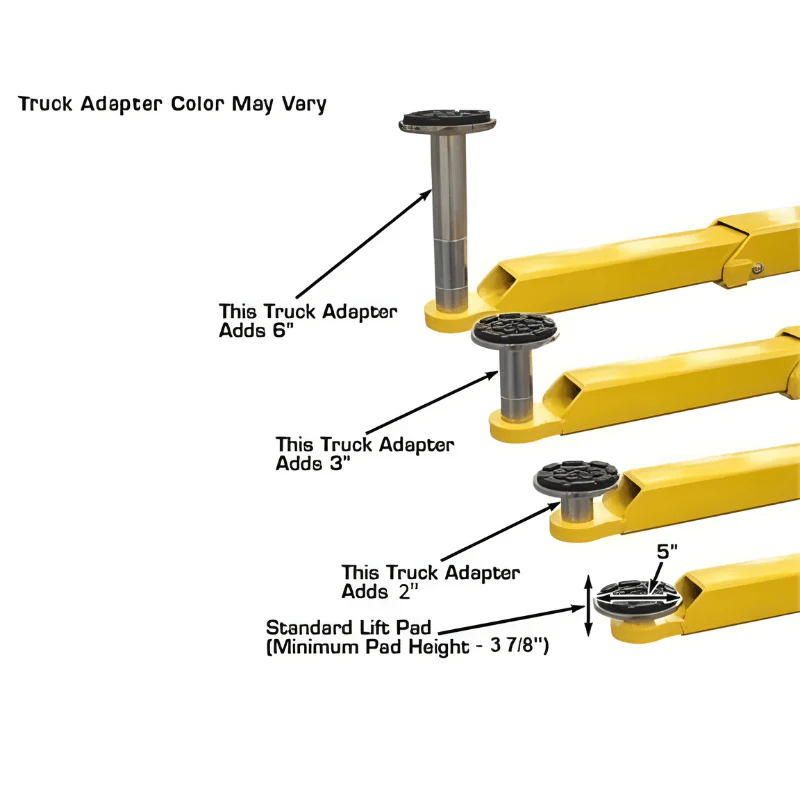

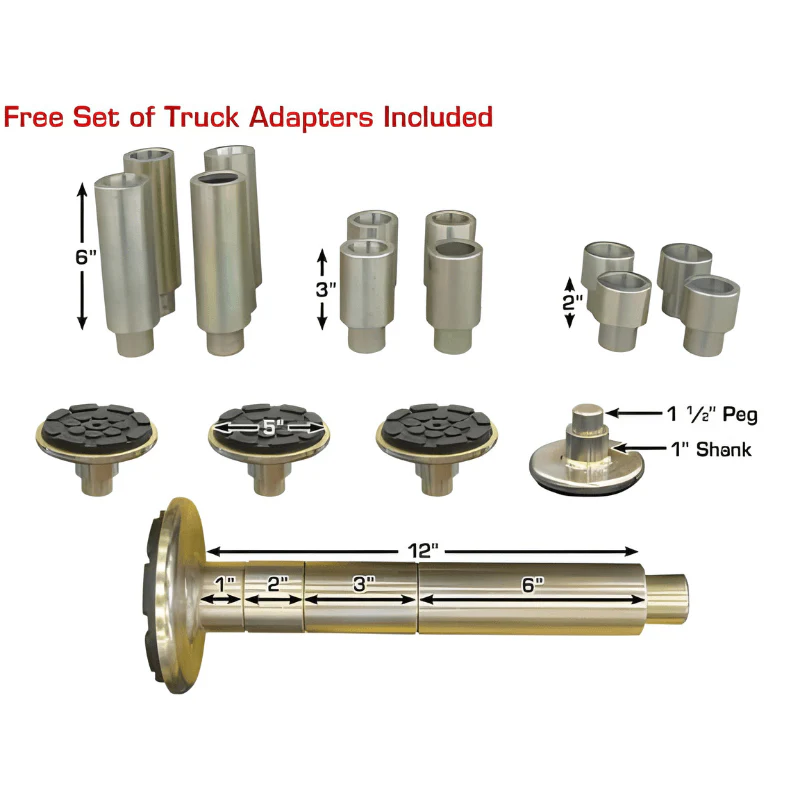

| Adapter Heights | 4 Each: 2", 3", 6" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" concrete with 3,000 PSI rating |
