Atlas BP10000X 10,000 lb Baseplate 2-Post Lift
SKU: ATEATTD-BP10000X
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas BP10000X is a commercial-grade 2-post baseplate lift designed specifically for garages with lower ceiling heights while still delivering full 10,000 lb lifting capability. With an overall height of just under 9’ 4", it is ideal for spaces with limited vertical clearance without sacrificing performance.

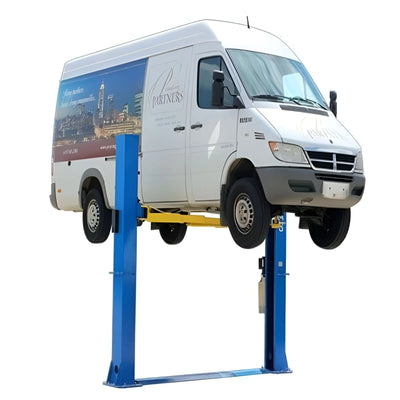

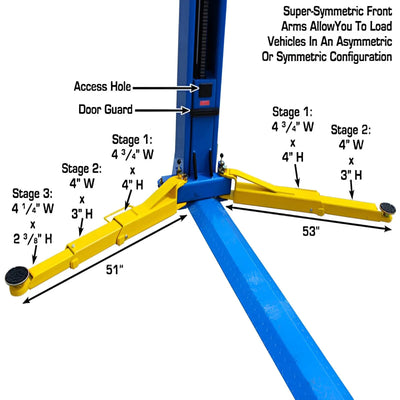

This baseplate, open-top style lift is built for versatility, capable of safely lifting a wide range of vehicles from compact cars to one-ton dually trucks. Its super-symmetric arm design allows for flexible positioning, making it easier to service both small and large vehicles efficiently.

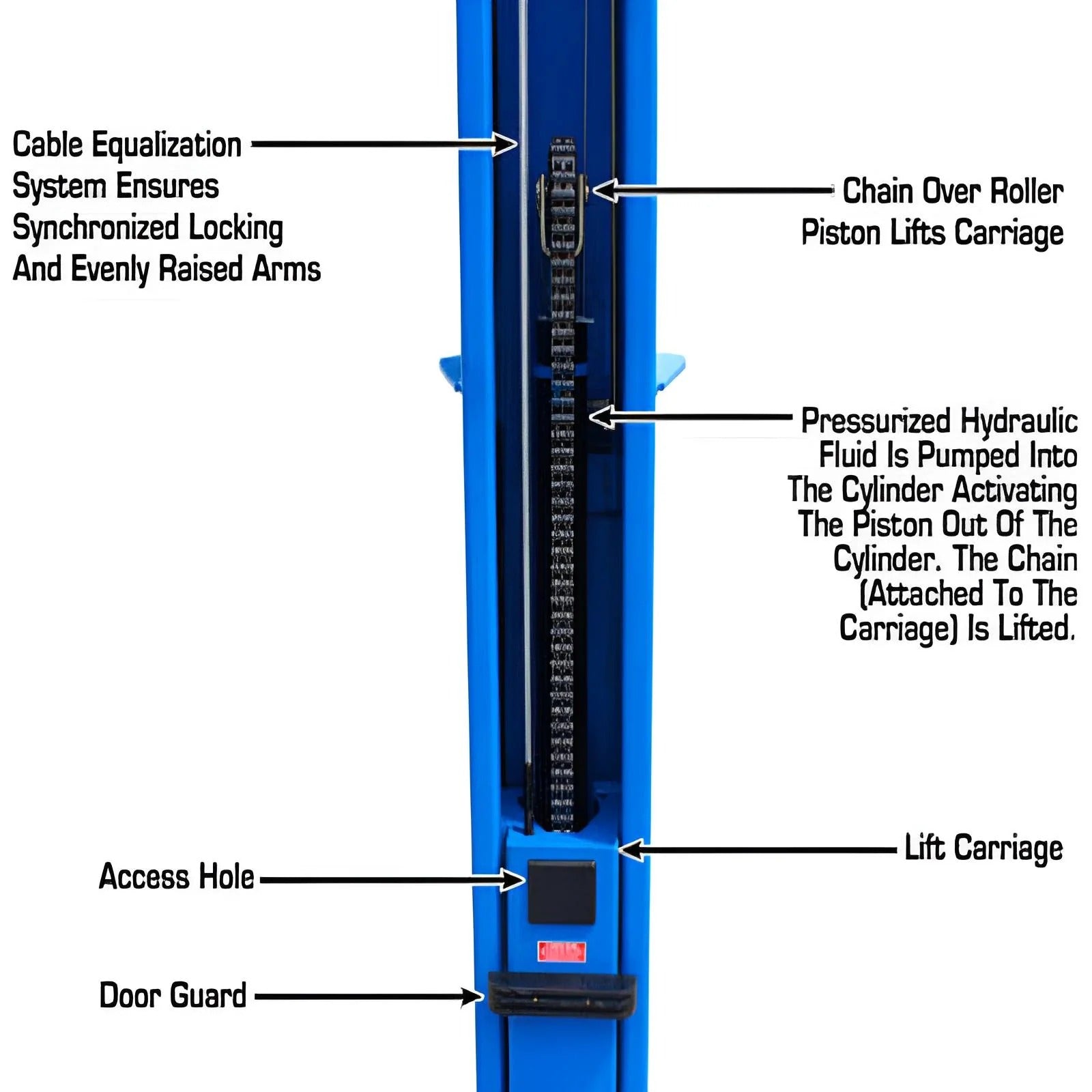

The lift features a single-point lock release system that allows both columns to disengage simultaneously, simplifying operation. Dual hydraulic chain-drive cylinders, built to ANSI standards, provide smooth and reliable lifting performance. Reinforced columns with welded support gussets add structural strength and long-term durability.

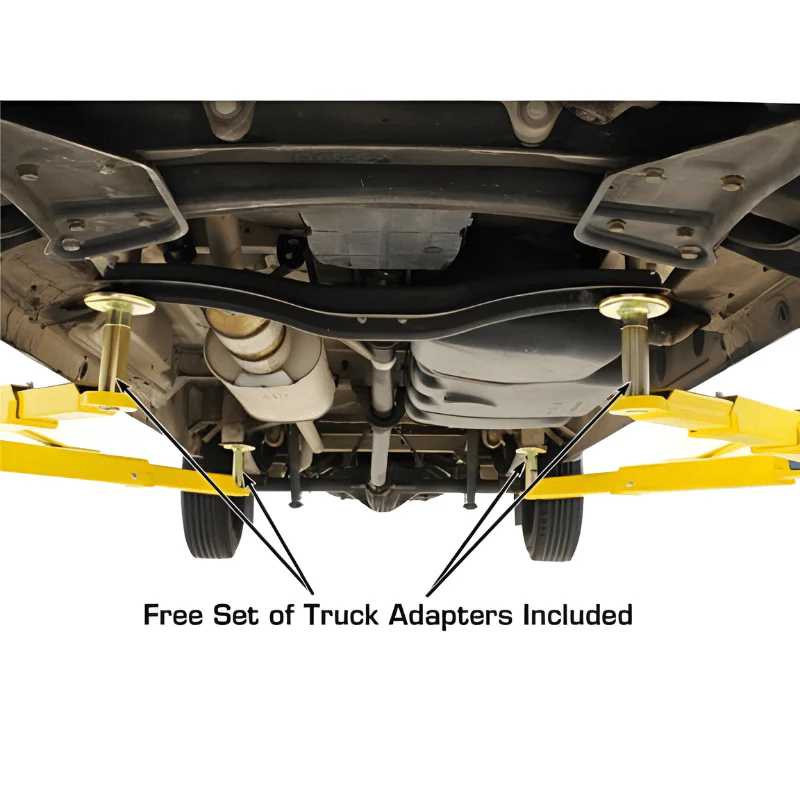

Additional features include automatic arm restraints for safety and a durable powder coat finish for protection against wear. A free 12-piece truck adapter set is included, expanding the lift’s capability for servicing larger vehicles.
This model is an excellent solution for users who need a heavy-duty lift in a low-ceiling environment, offering a balance of strength, reliability, and space efficiency.
Features and Benefits
- 10,000 lb capacity
- Commercial-grade construction
- Baseplate open-top design for low ceiling installations
- Overall height: 111 7/8"

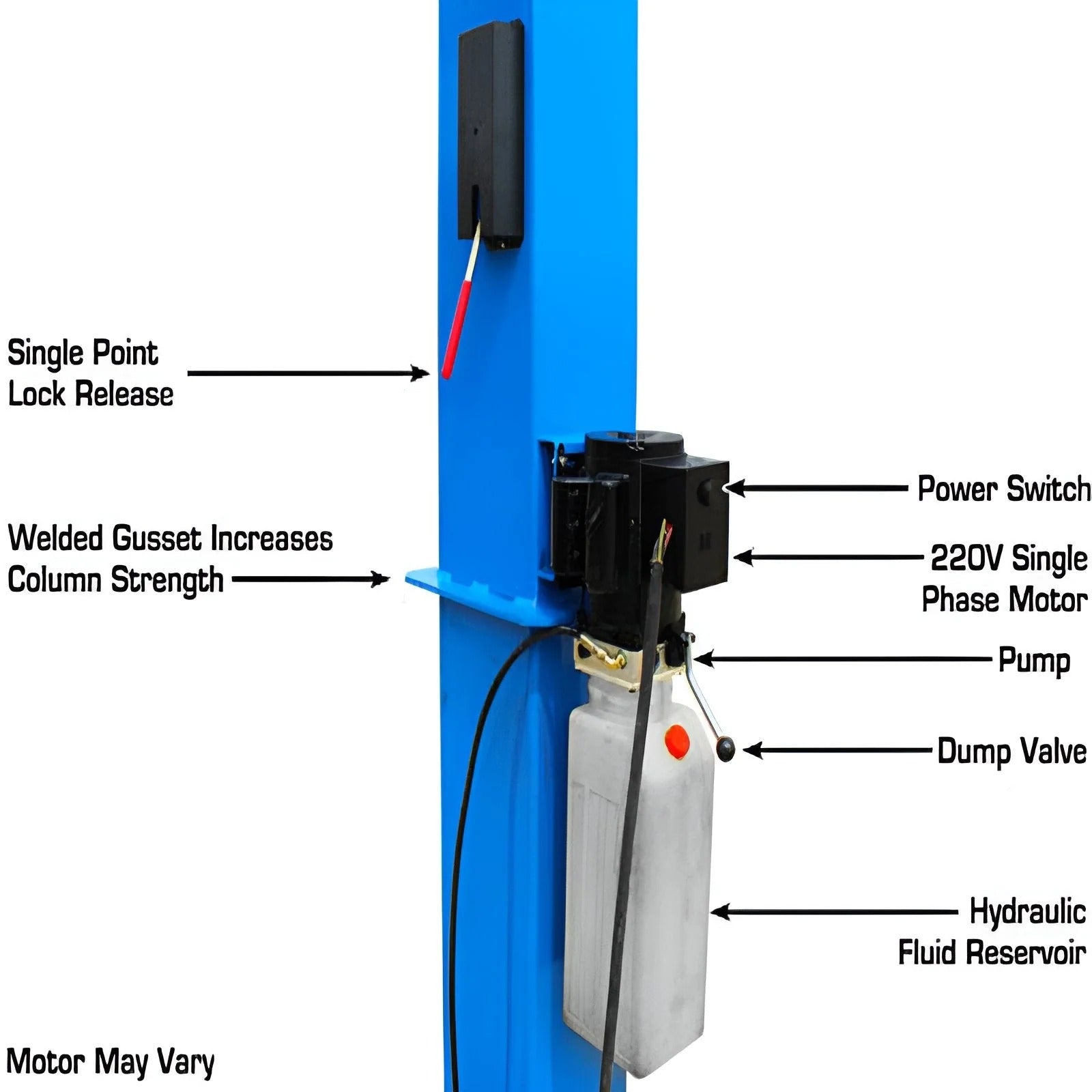

- Single-point lock release system

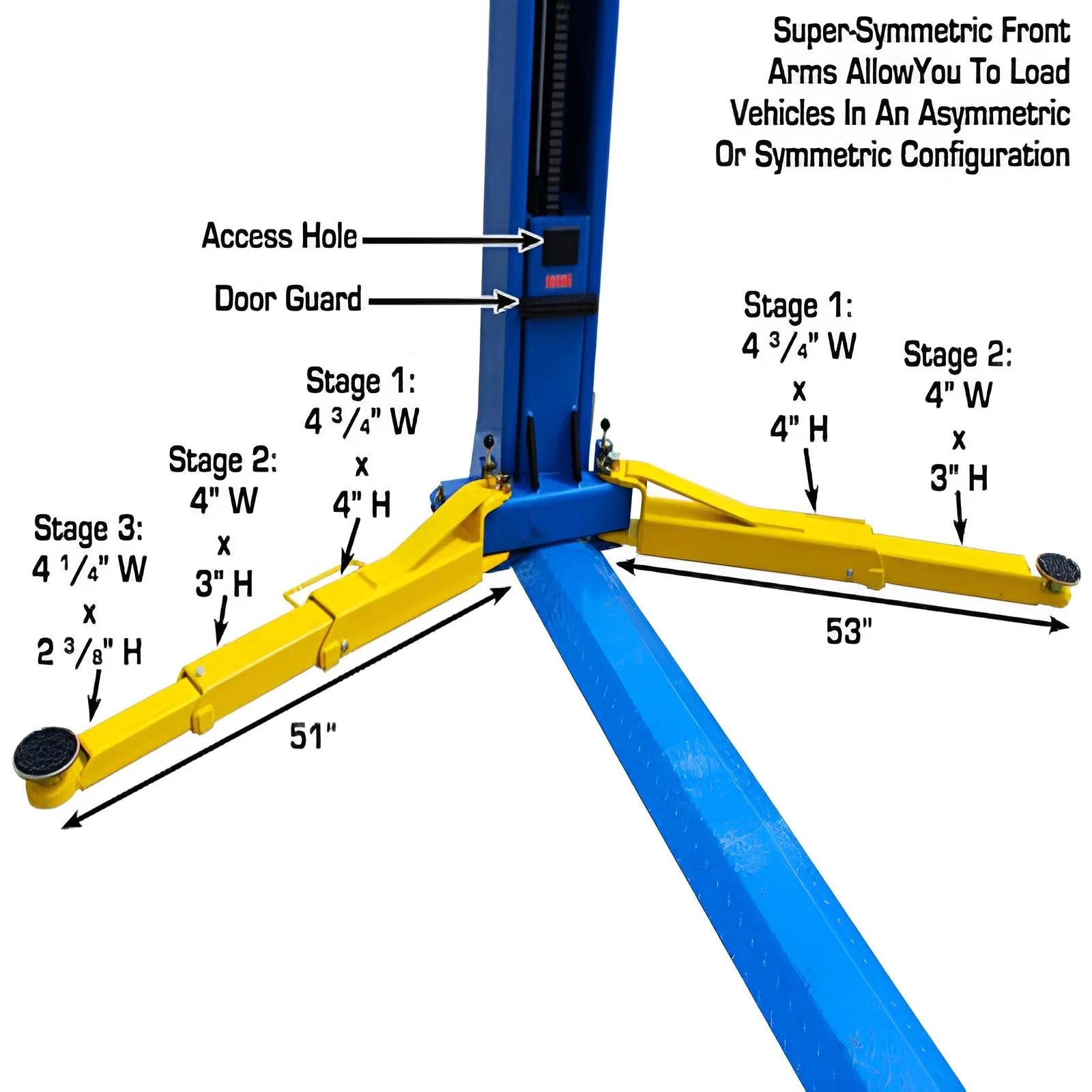

- Super-symmetric arm configuration
- Dual hydraulic chain-drive cylinders (ANSI standard)
- Reinforced columns with welded support gussets

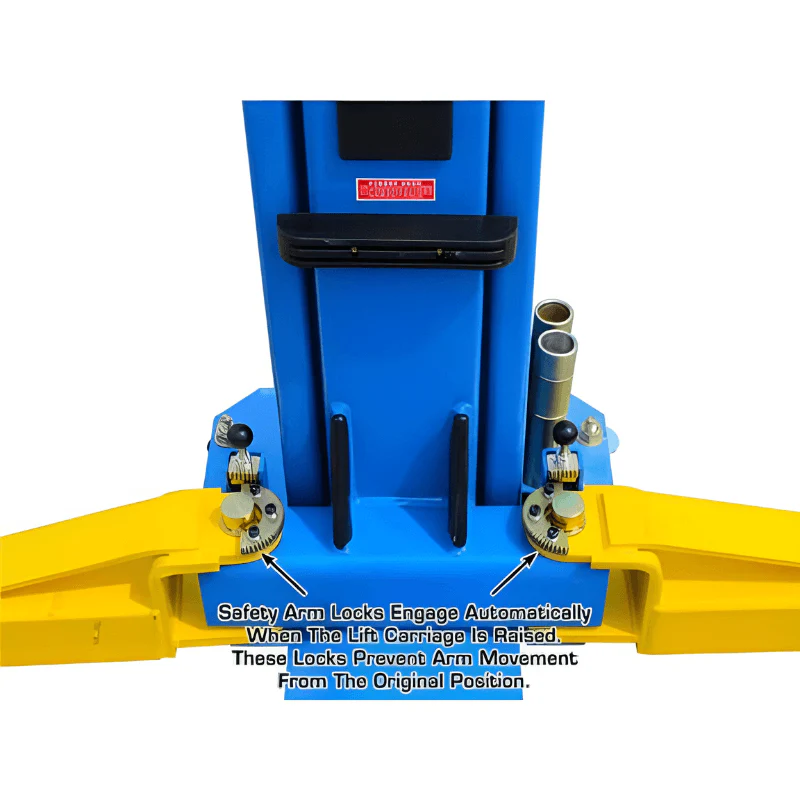

- Automatic arm restraints
- Powder coat finish
- Free 12-piece truck adapter set included
- 5-year structural warranty, 2-year hydraulic warranty (parts only)
- Shipping weight: 1,640 lbs
| Specifications | Details |
|---|---|
| Capacity | 10,000 lb |

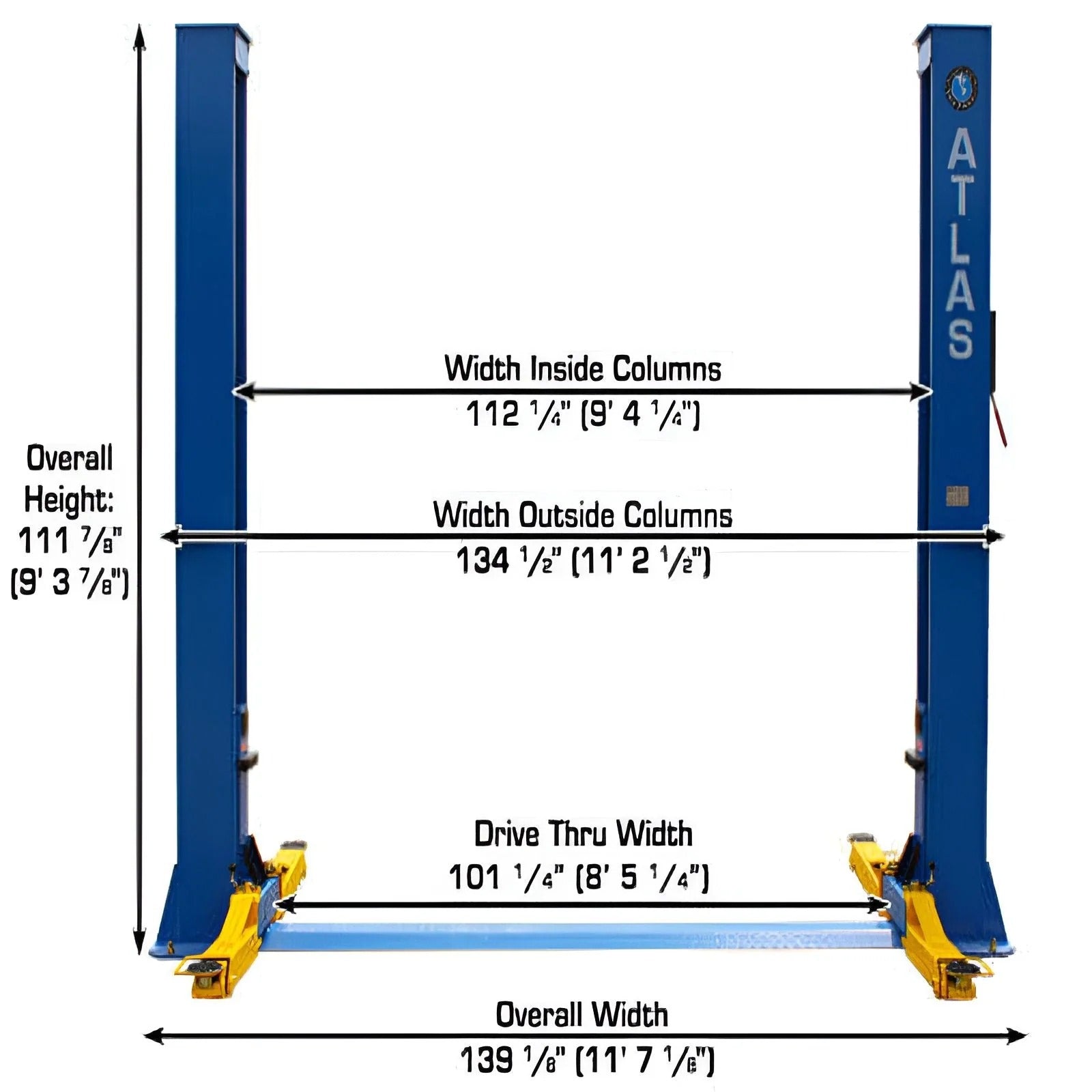

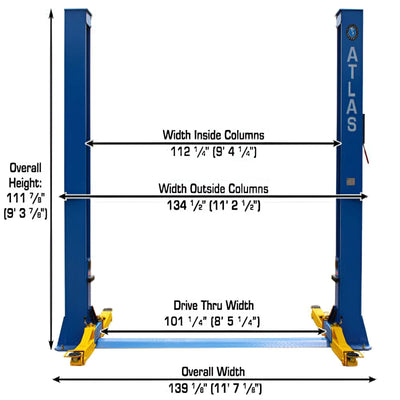

| Overall Height | 111 7/8" (9’ 3 7/8") |

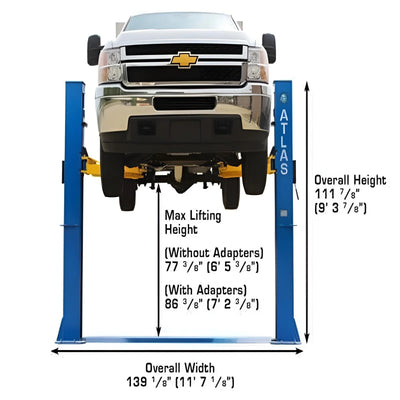

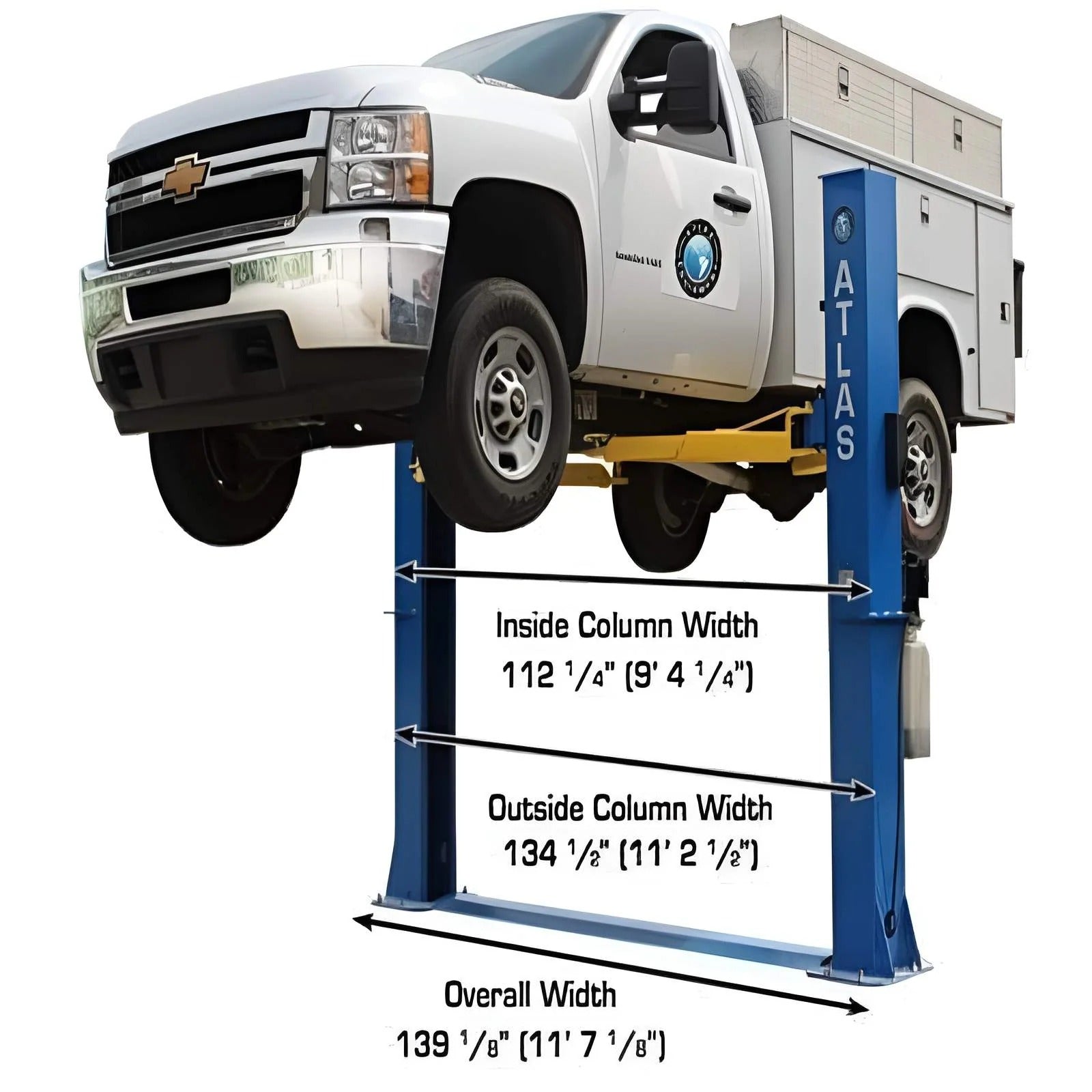

| Overall Floor Width | 139 1/8" (11’ 7 1/8") |
| Outside Column to Outside Column | 134 1/2" (11’ 2 1/2") |

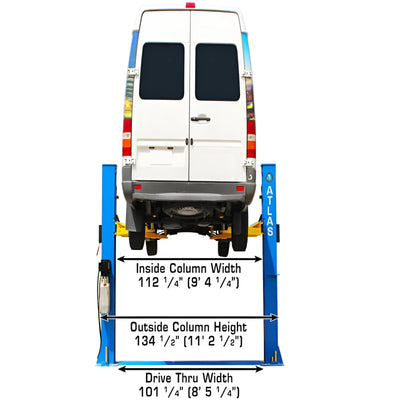

| Inside Column | 112 1/4" (9’ 4 1/4") |

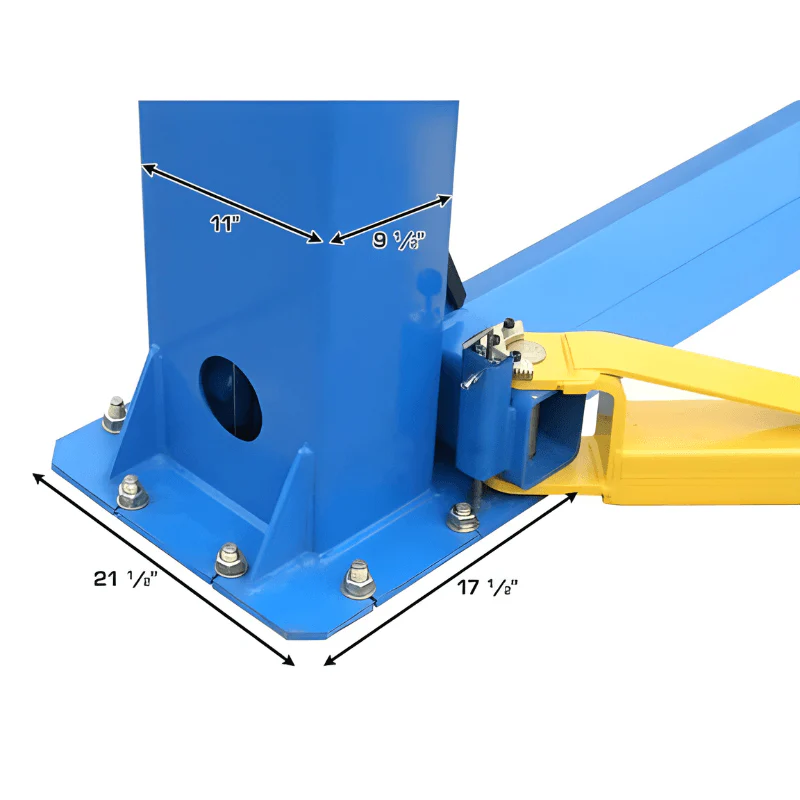

| Column Size | 9 1/2" x 11" |

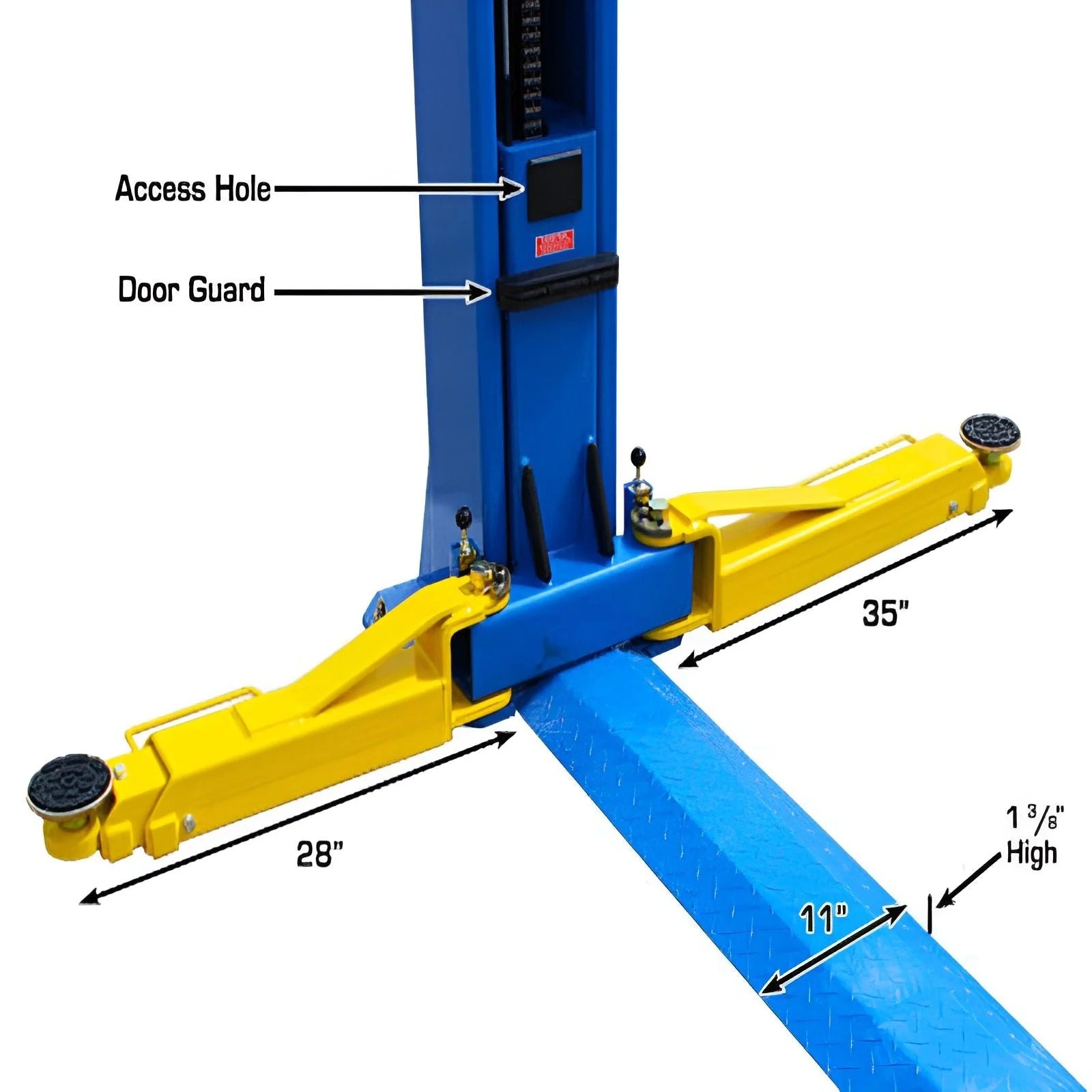

| Base of Lift | 17 1/2" x 21 1/2" |

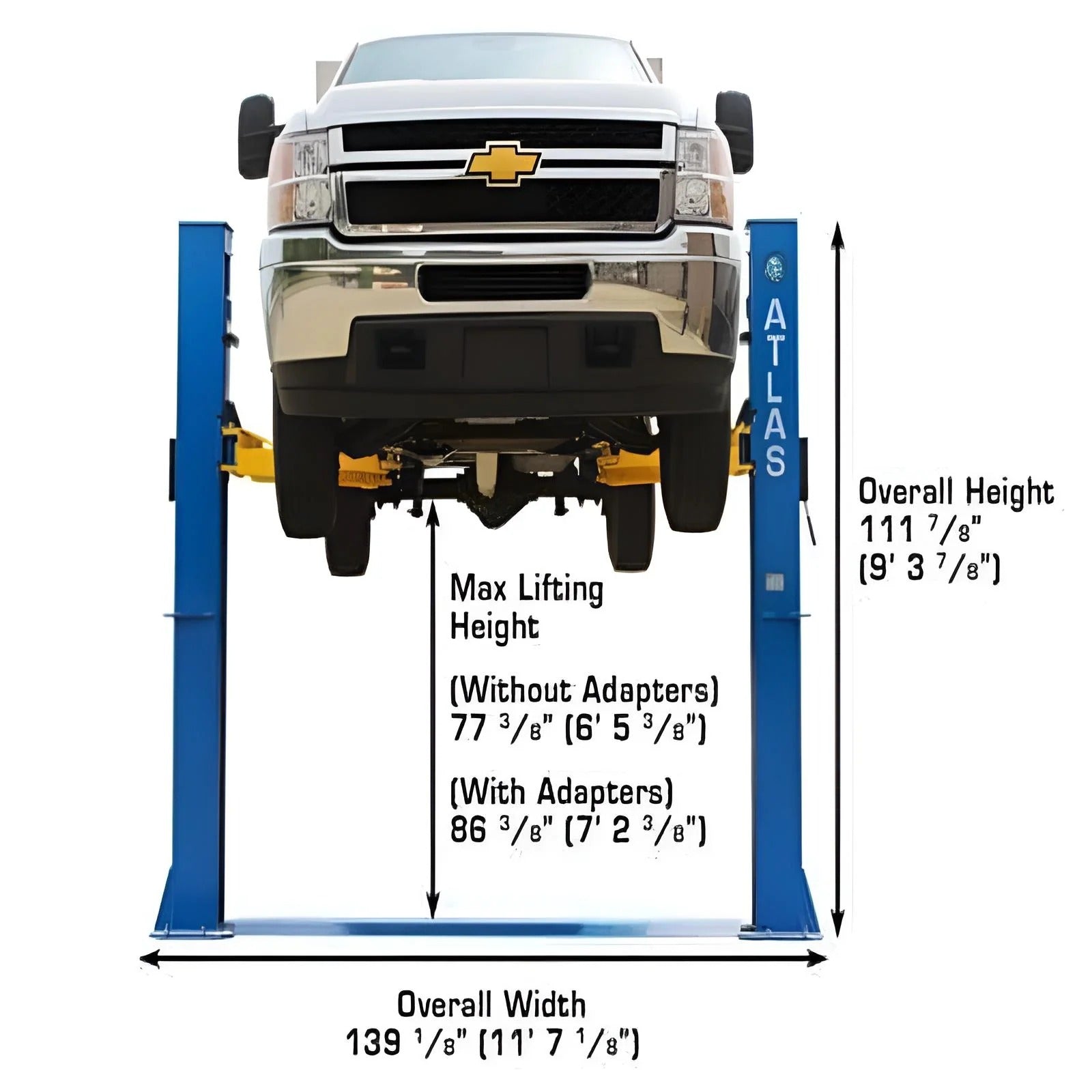

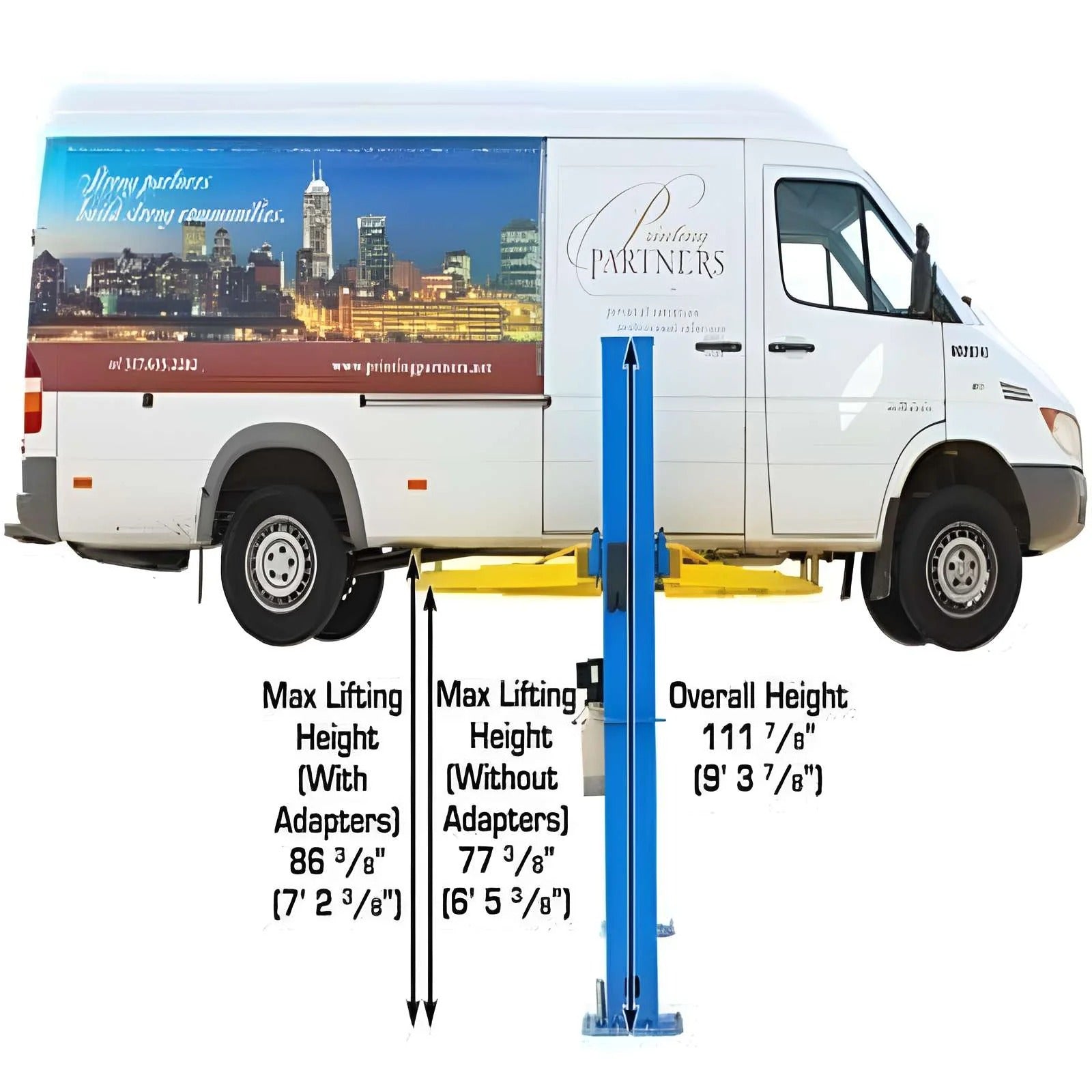

| Maximum Lift Height (Without Adapters) | 77 3/8" |

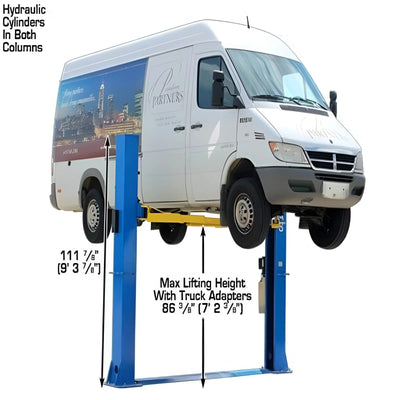

| Maximum Lift Height (With Adapters) | 86 3/8" |
| Minimum Arm Height | 4" |

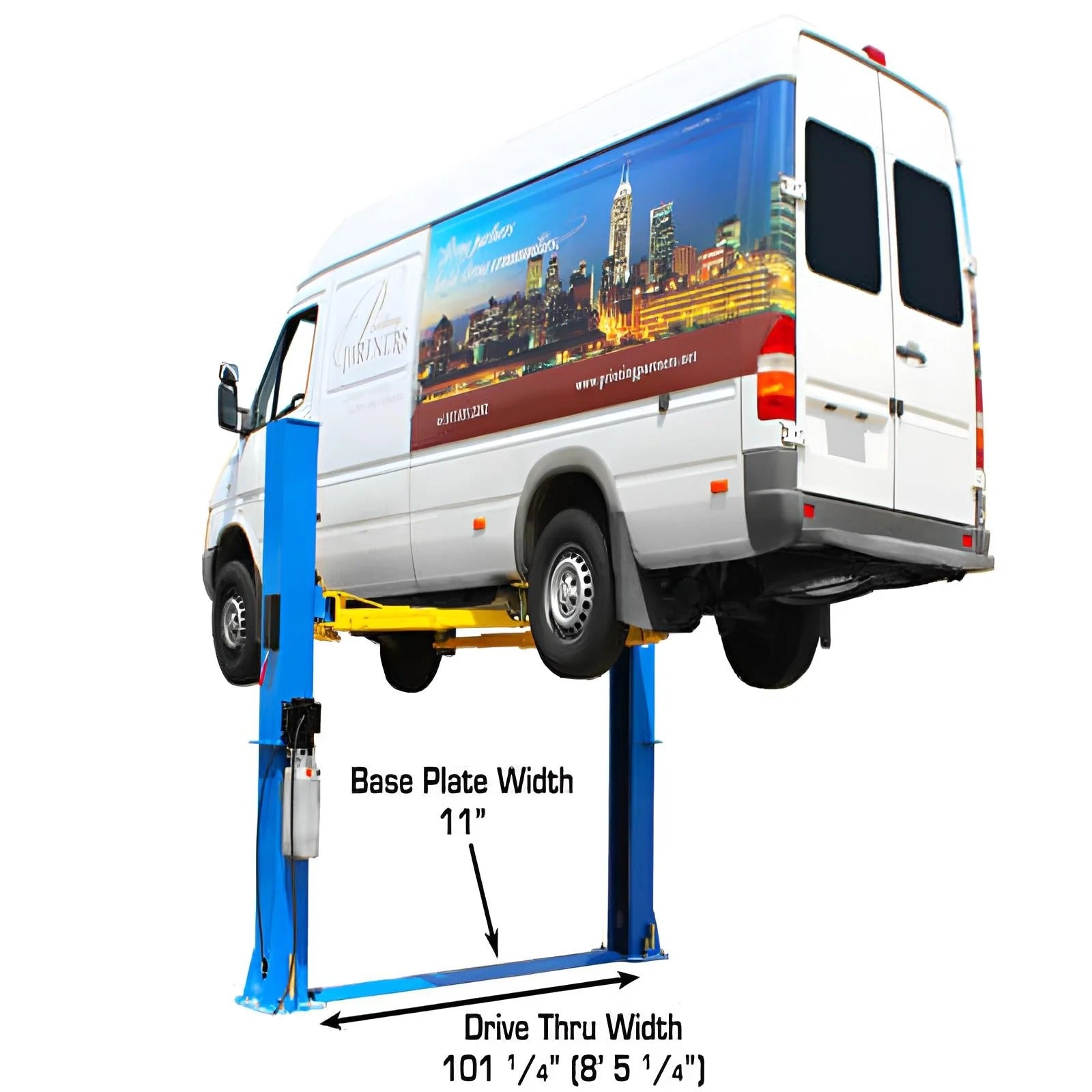

| Drive Thru | 101 1/4" (8’ 5 1/4") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

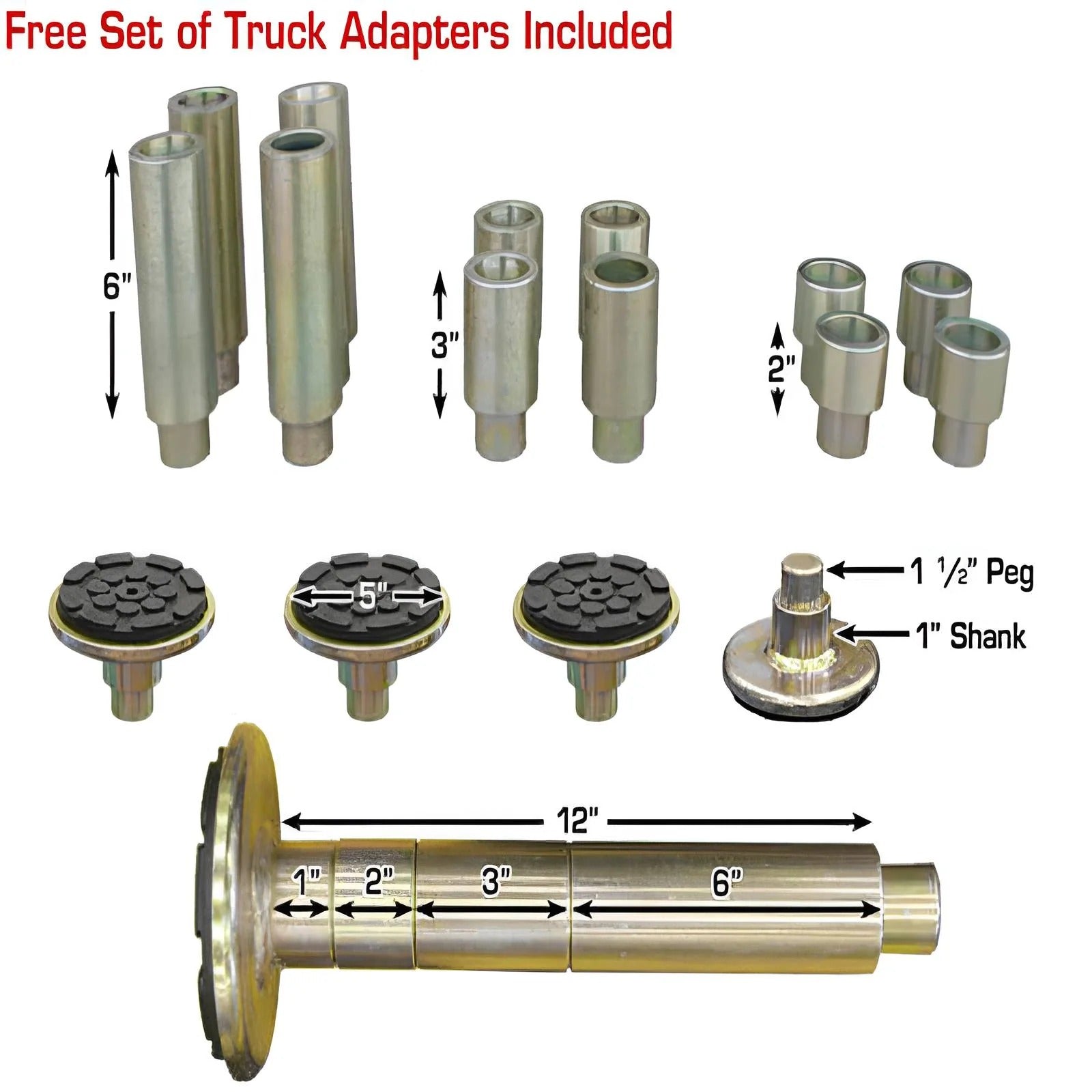

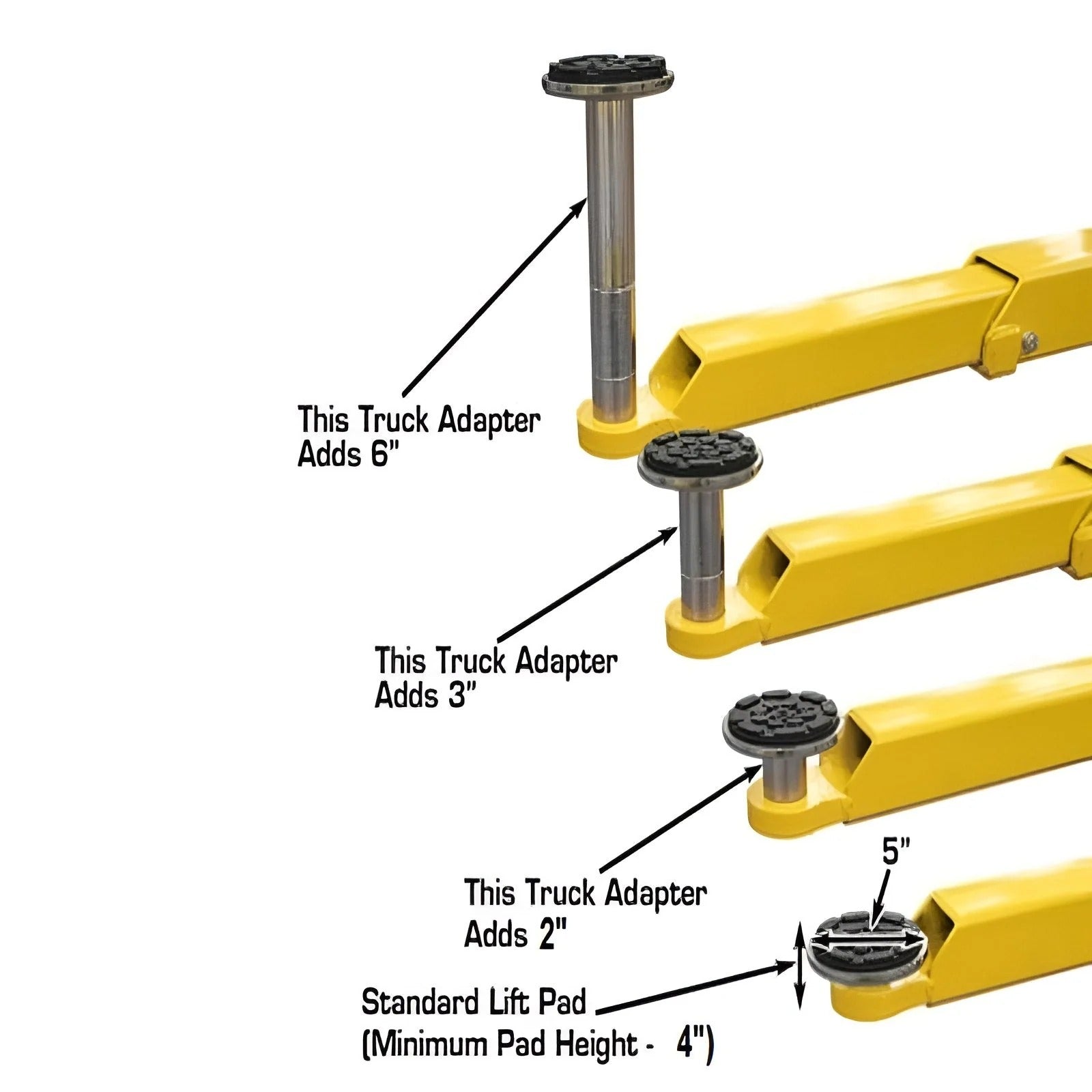

| Adapter Heights | 4 Each: 2", 3", 6" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI rating |
| Shipping Weight | 1,640 lbs |
