Atlas PSP-6000 Portable Single Post Lift 6,000 lb Capacity
SKU: ATEXH-PSP-6000
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

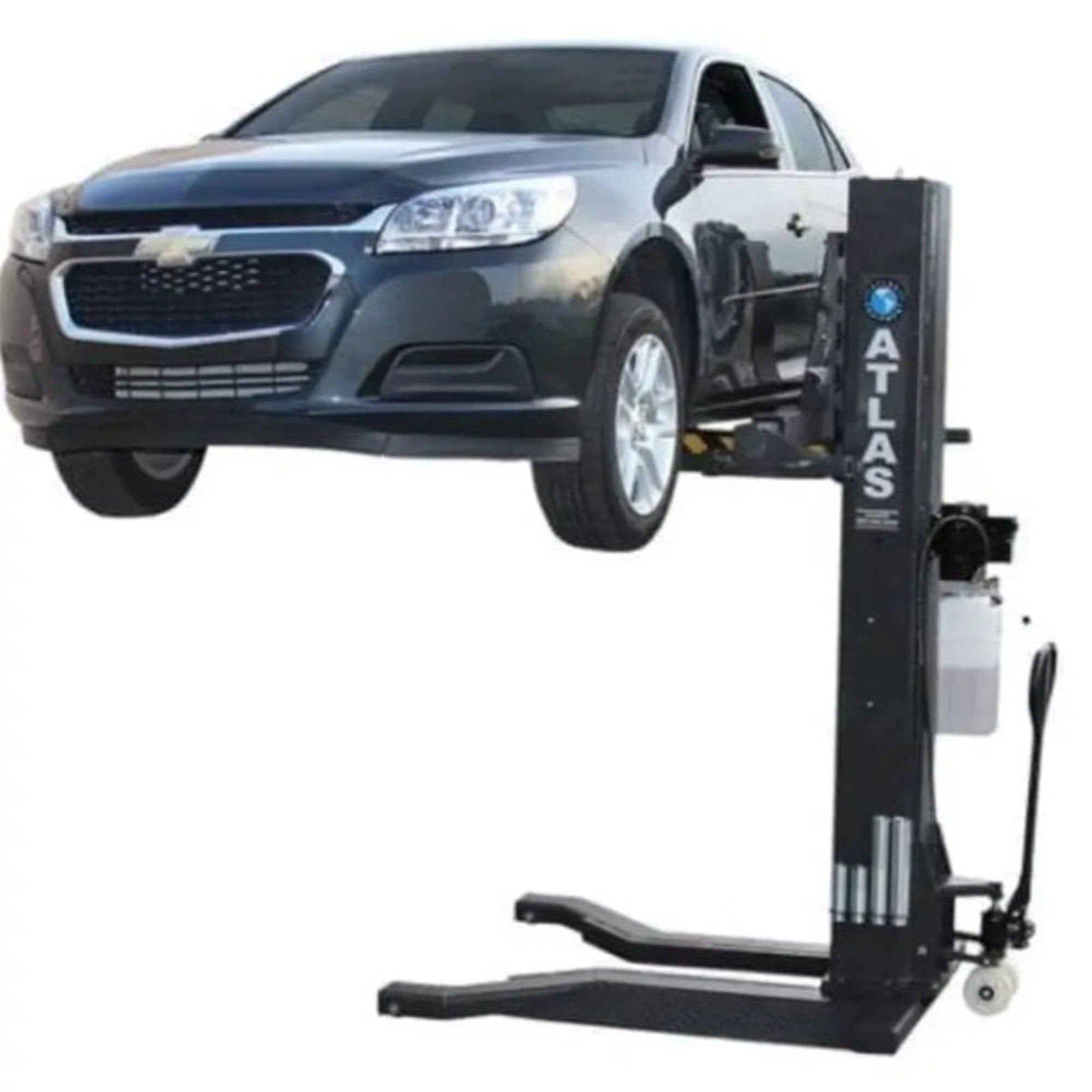

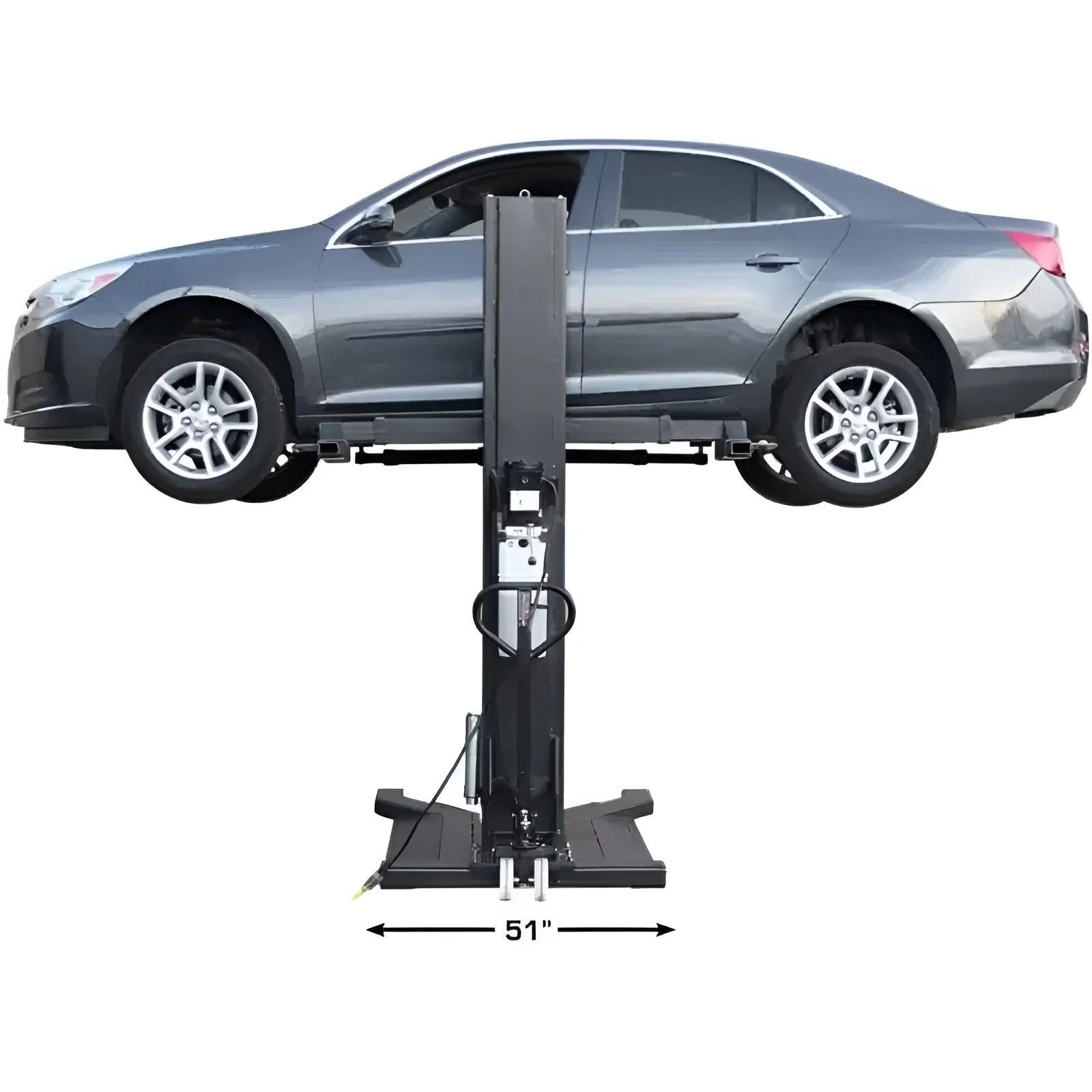

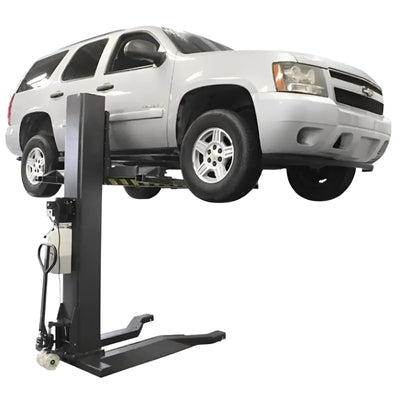

The Atlas PSP-6000 is a portable single-post lift designed for flexibility, space efficiency, and convenience. With a 6,000 lb capacity, it's ideal for both home garages and light commercial shops that need lifting capability without dedicating permanent floor space.
Unlike traditional lifts, the PSP-6000 features a fully portable design, allowing it to be rolled out of the way when not in use. Its built-in drive-over ramps make positioning vehicles easy while maximizing usable garage space. This makes it perfect for users who want lifting capability without sacrificing bay availability.
The lift utilizes two-stage telescoping swing arms with locking restraints for secure vehicle positioning. A single-point lock release and chain break safety mechanism ensure safe operation, automatically locking the carriage in place in the unlikely event of a chain failure.
With a low-profile base and the ability to fit under a 9-foot ceiling, the PSP-6000 offers excellent accessibility while still providing enough lifting height for wheel service, brake work, and general maintenance.
Features and Benefits
• 6,000 lb capacity
• Portable single-post design
• Low profile base construction
• Built-in drive-over ramps
• Single-point lock release
• Two-stage telescoping swing arms
• Locking arm restraints
• Chain break safety mechanism
• Rigid base for stability
• Allows access around and under vehicle
• Fits under standard 9 ft ceilings
• 110V operation (30 amp breaker required)

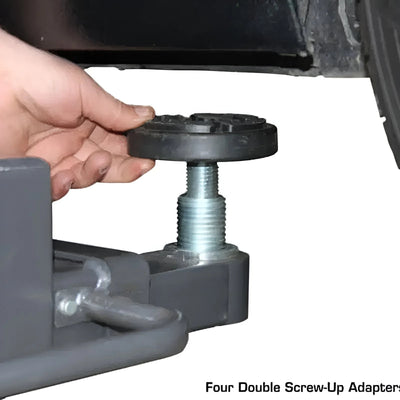

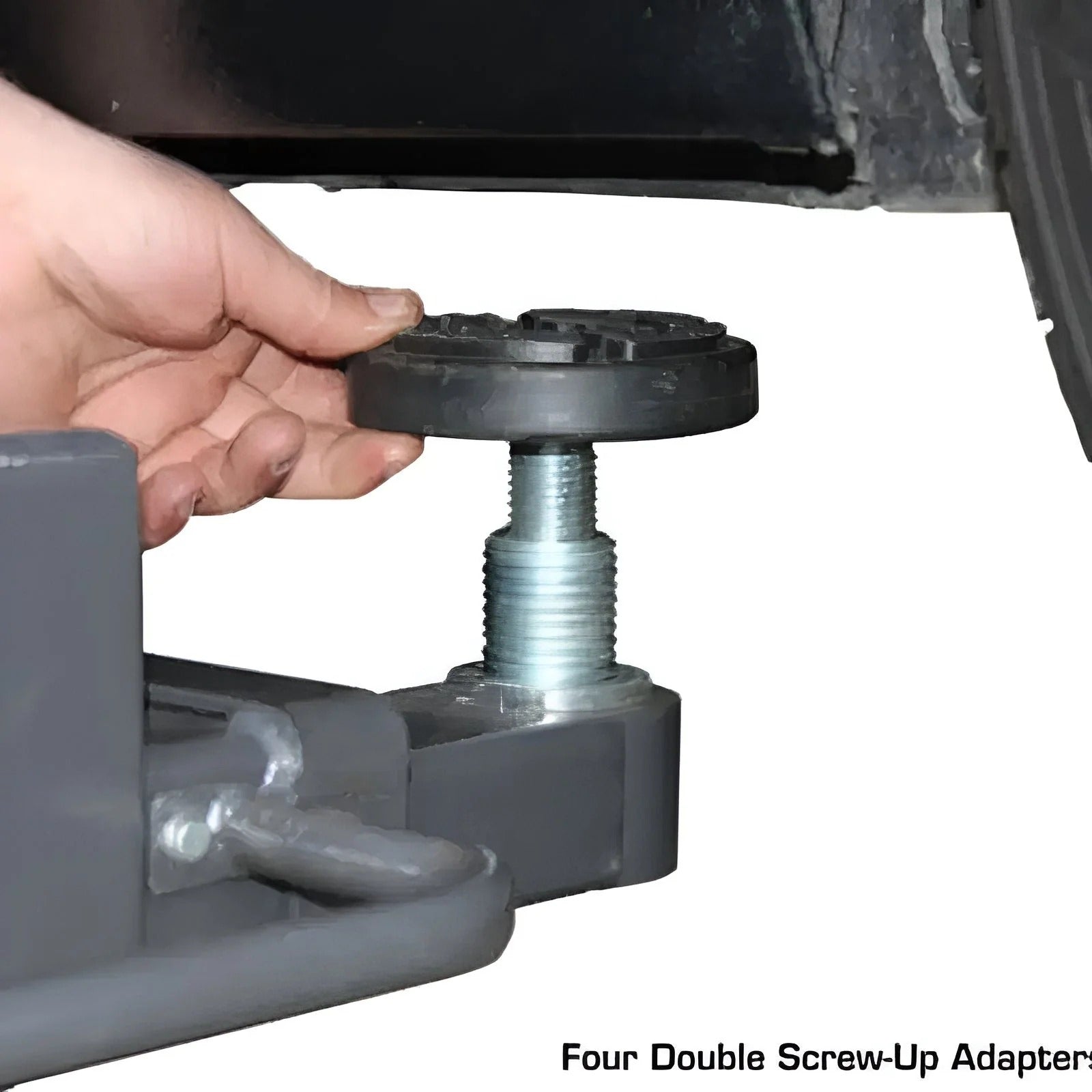

• Includes double screw-up adapters
• Free 8-piece truck adapter set included
• Freight prepaid
| Specifications | Details |
|---|---|
| Capacity | 6,000 lb. |

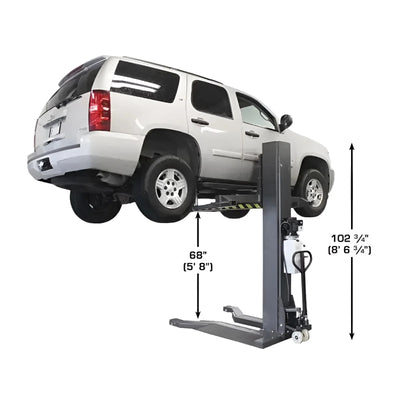

| Overall Height | 102 3/4" (8' 6 3/4") |

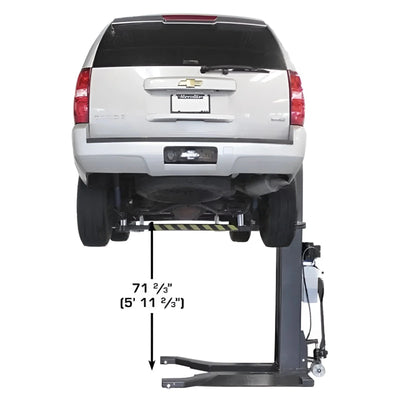

| Max. Lifting Height (Without Truck Adapters) | 71 2/3" (5' 11 2/3") |
| Max. Clearance | 68" (5' 8") |
| Minimum Height | 5" |
| Overall Maximum Dimensions | L: 111 1/2" x W: 96" x H: 102 3/4" |
| Column Size | 10 1/2" x 12 1/2" |
| Distance Between Lifting Pads (Column Side to Offside) | 39 1/2" – 81" |

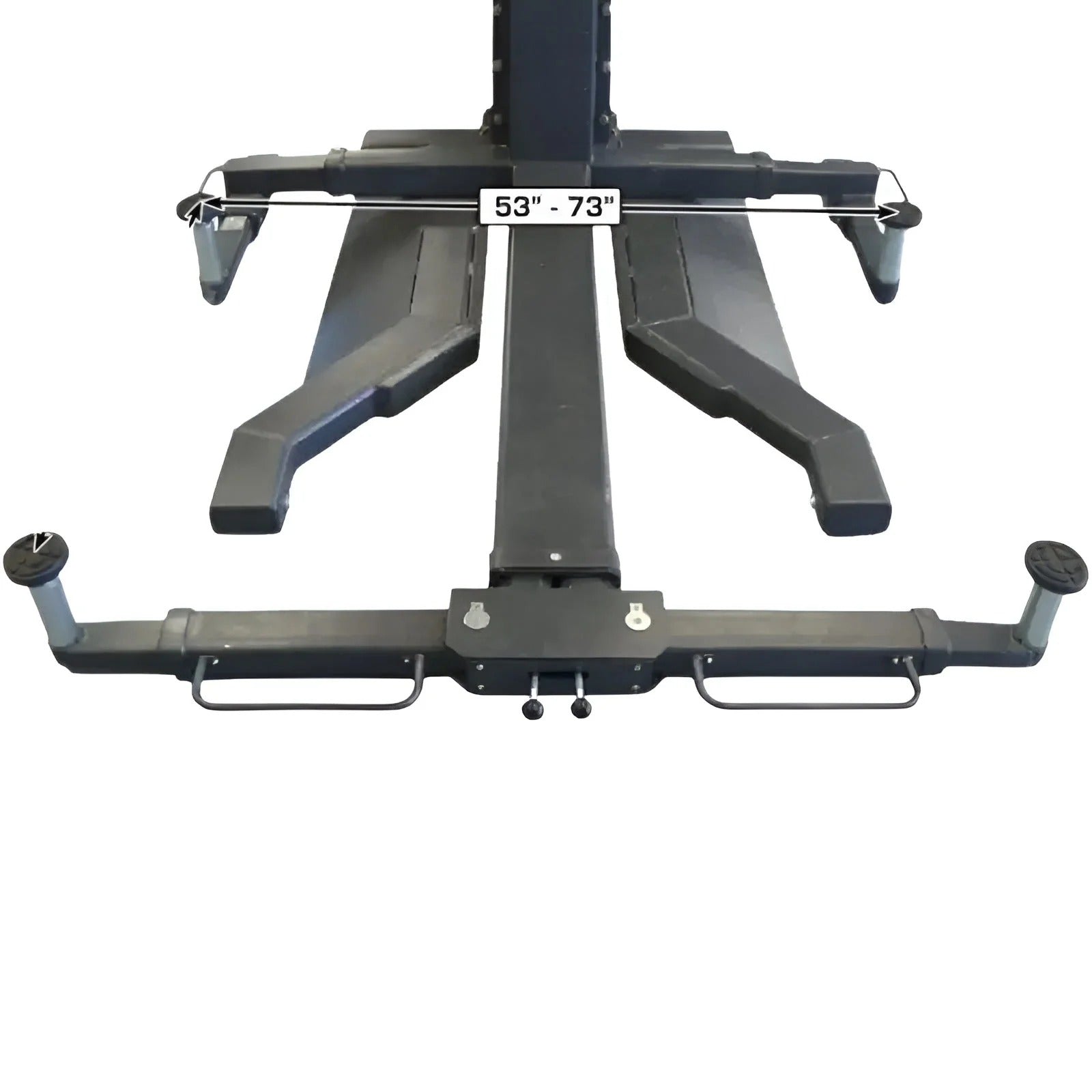

| Distance Between Lifting Pads (Column Side to Column Side) | 53" – 73" |
| Distance Between Lifting Pads (Offside to Offside) | 54 1/3" – 91 1/2" |
| Motor/Electrical Requirement | 110V, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |
| Adapter Heights | 4 Each: 2.75", 6" |
| Arm Hole/Adapter Peg Size | 2" |
| Structural Warranty | 2 Years (Parts Only) |
| Hydraulic Warranty | 1 Year (Parts Only) |

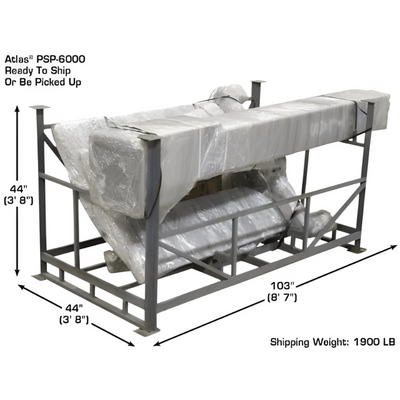

| Shipping Weight | 1,900 lbs. |
