Atlas PV12PX 12,000 lb Overhead 2-Post Lift
SKU: ATEXH-PV12PX
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

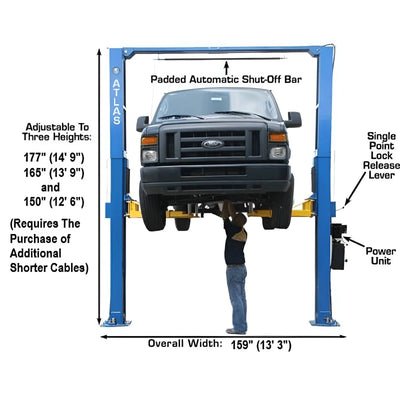

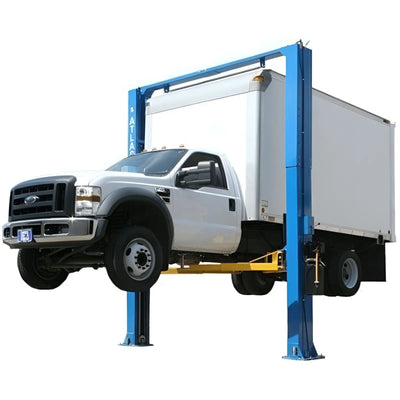

The Atlas PV12PX 2-post lift is a commercial-grade solution designed for lifting a wide range of vehicles, including long wheelbase trucks, vans, and passenger cars. With a 12,000 lb capacity and an extra tall, extra wide design, this lift is built to handle demanding shop environments while providing flexibility for different vehicle sizes.

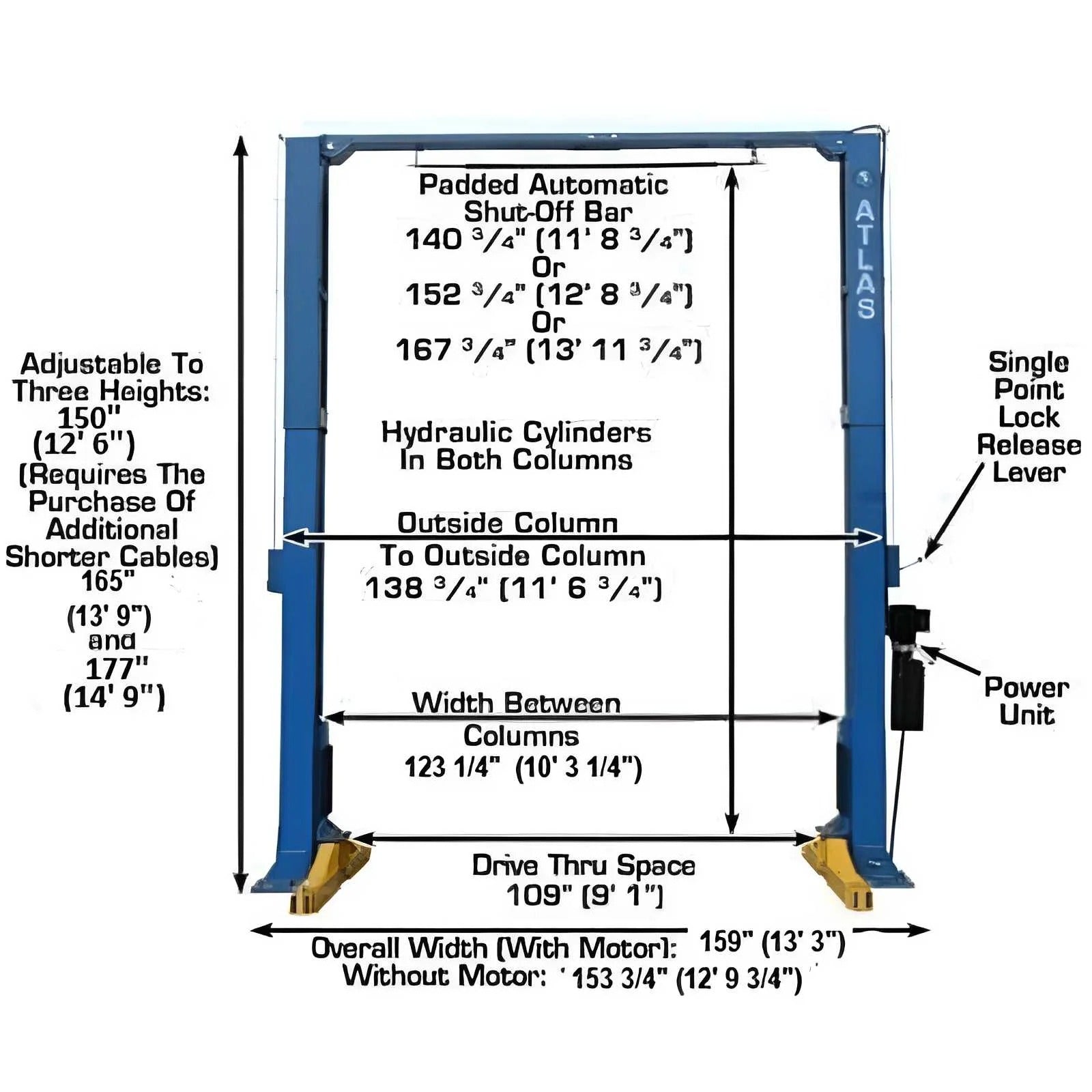

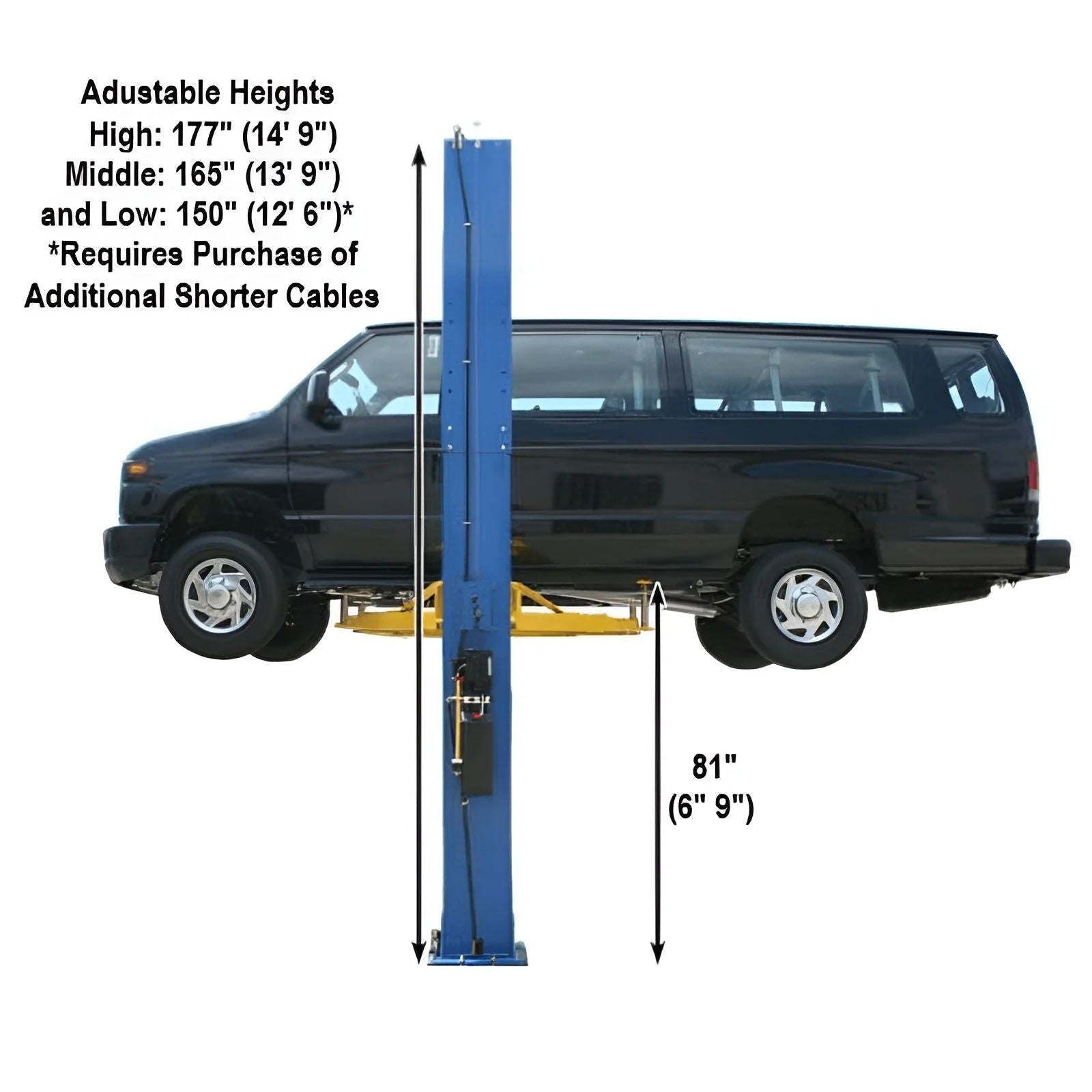

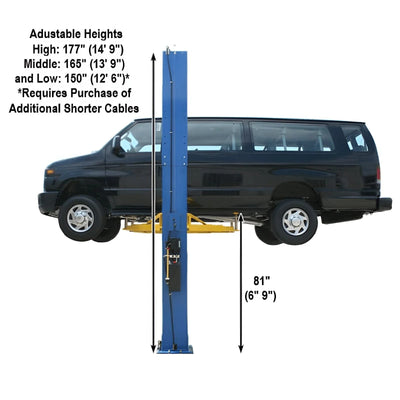

The PV12PX offers multiple height configurations, including 165" (13’ 9") and 177" (14’ 9"), along with an optional low-height setup of 150" (12’ 6") when used with additional cables. Its wide column spacing and extended arm reach allow for easier access and positioning of larger vehicles, including those with wide mirrors or running boards.

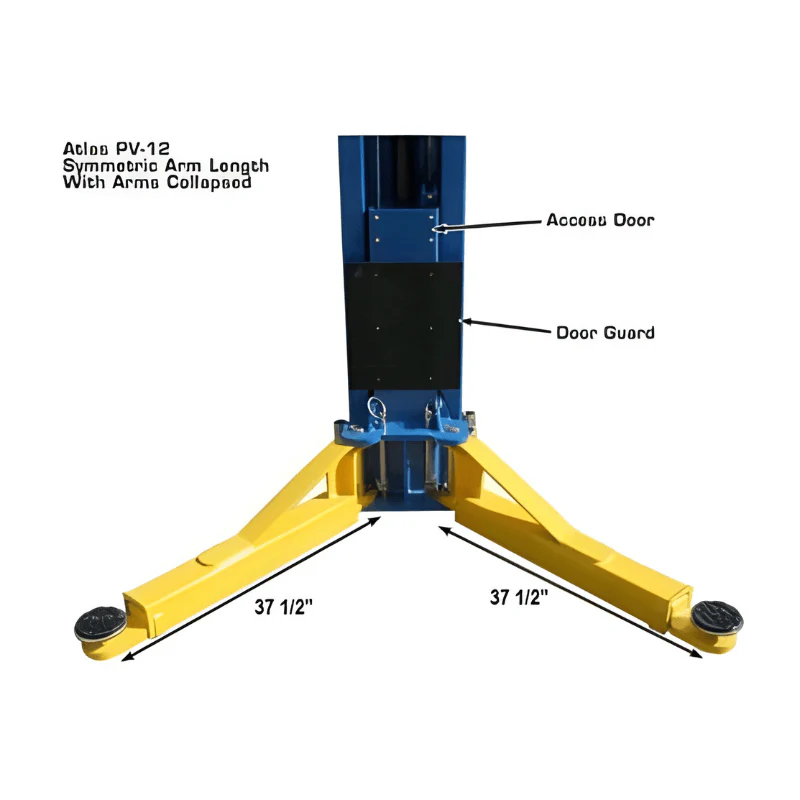

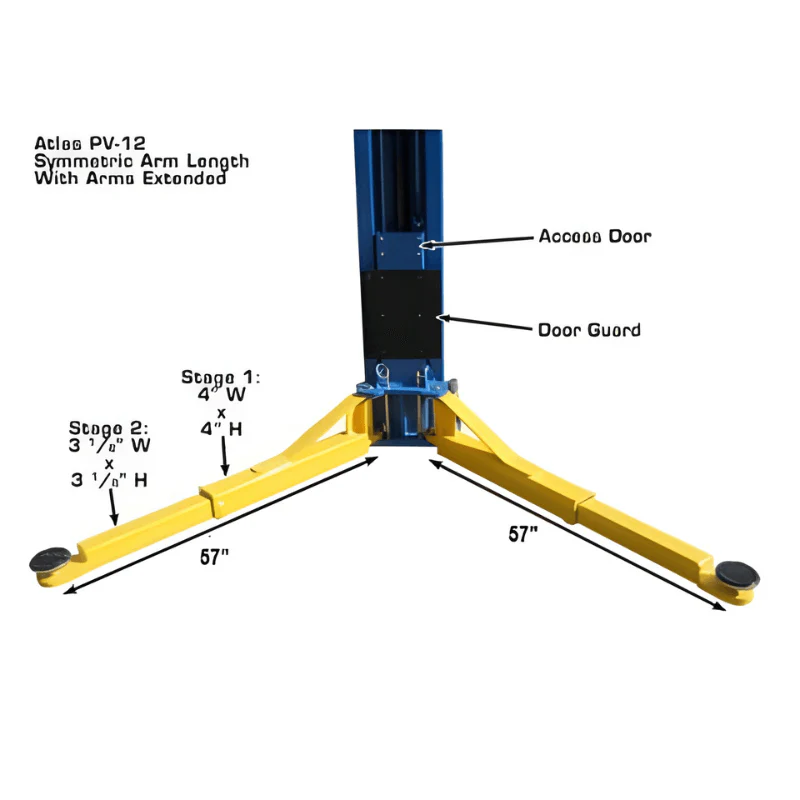

Equipped with symmetric arms and a low pad height, the lift can safely accommodate both larger trucks and lower-profile passenger vehicles. The increased distance between columns and generous drive-through clearance provide added convenience when positioning vehicles.

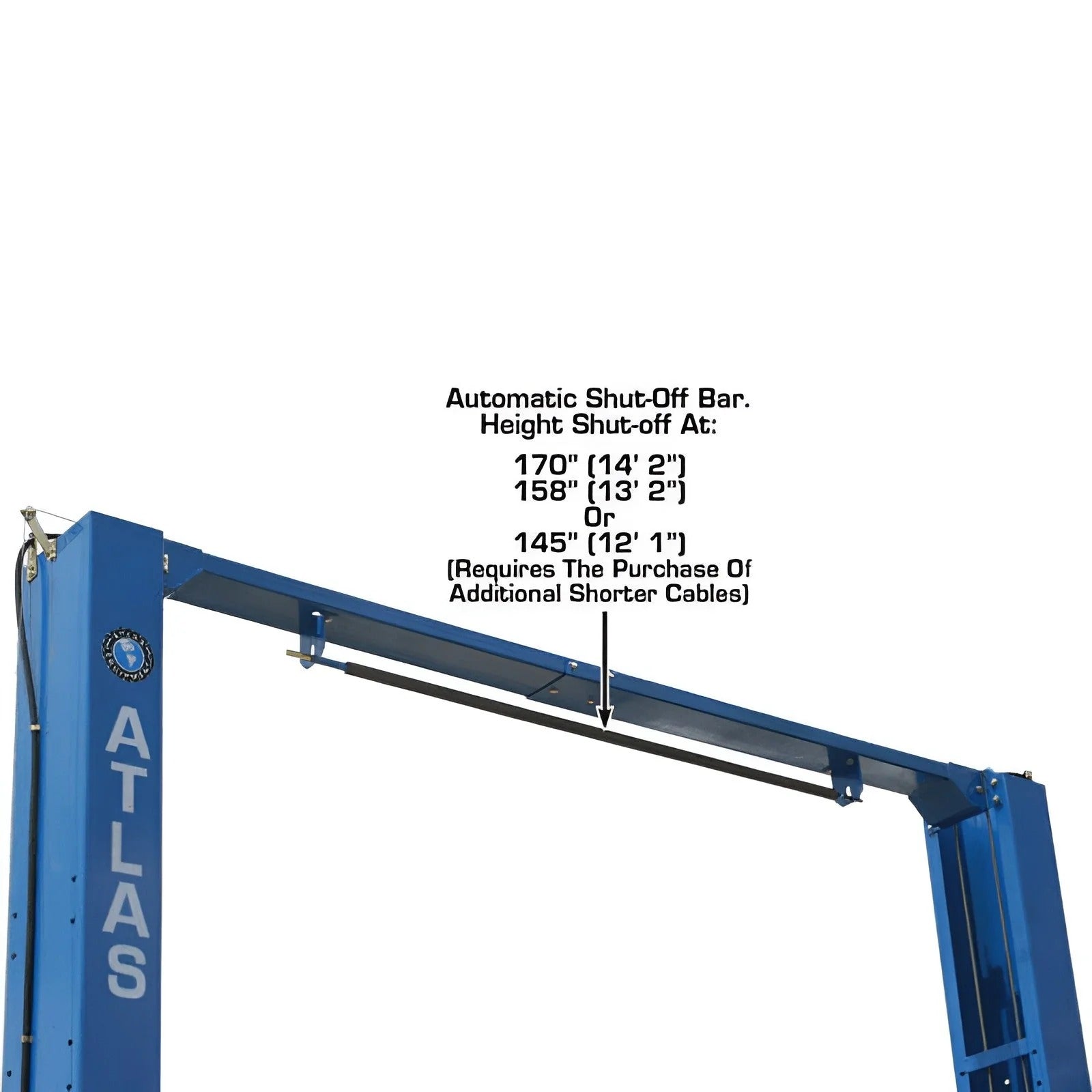

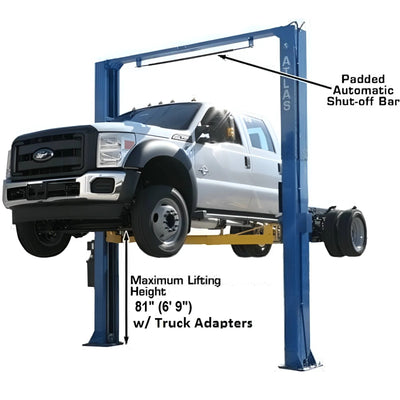

Designed for durability and long-term use, the lift features direct-drive cylinders with fewer moving parts, helping ensure consistent performance over time. Additional safety and convenience features include automatic arm restraints, a padded shut-off bar to protect vehicles from overhead contact, and door guards on the carriages to help prevent damage during use.

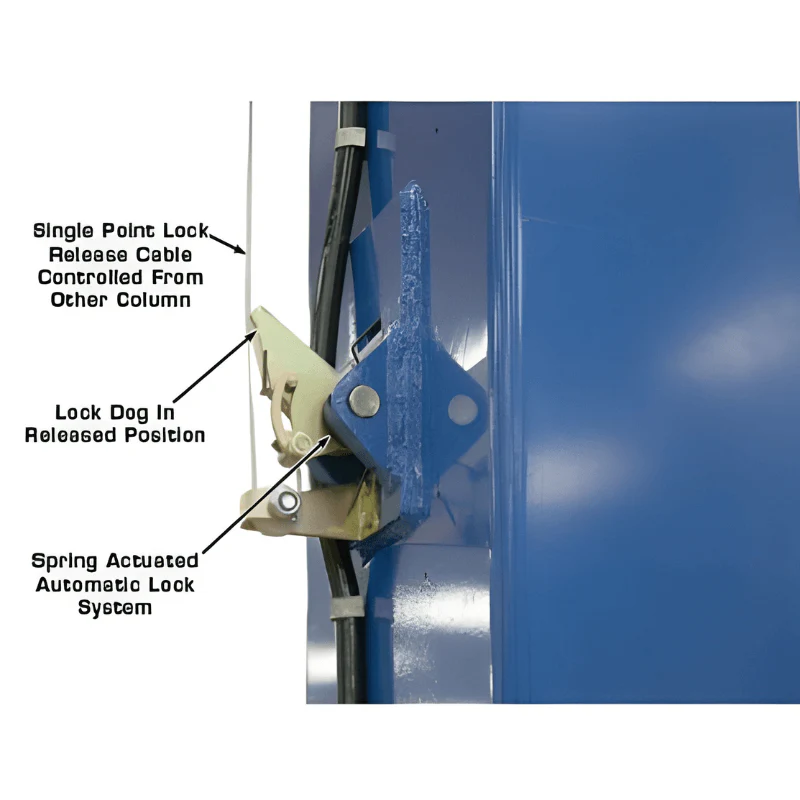

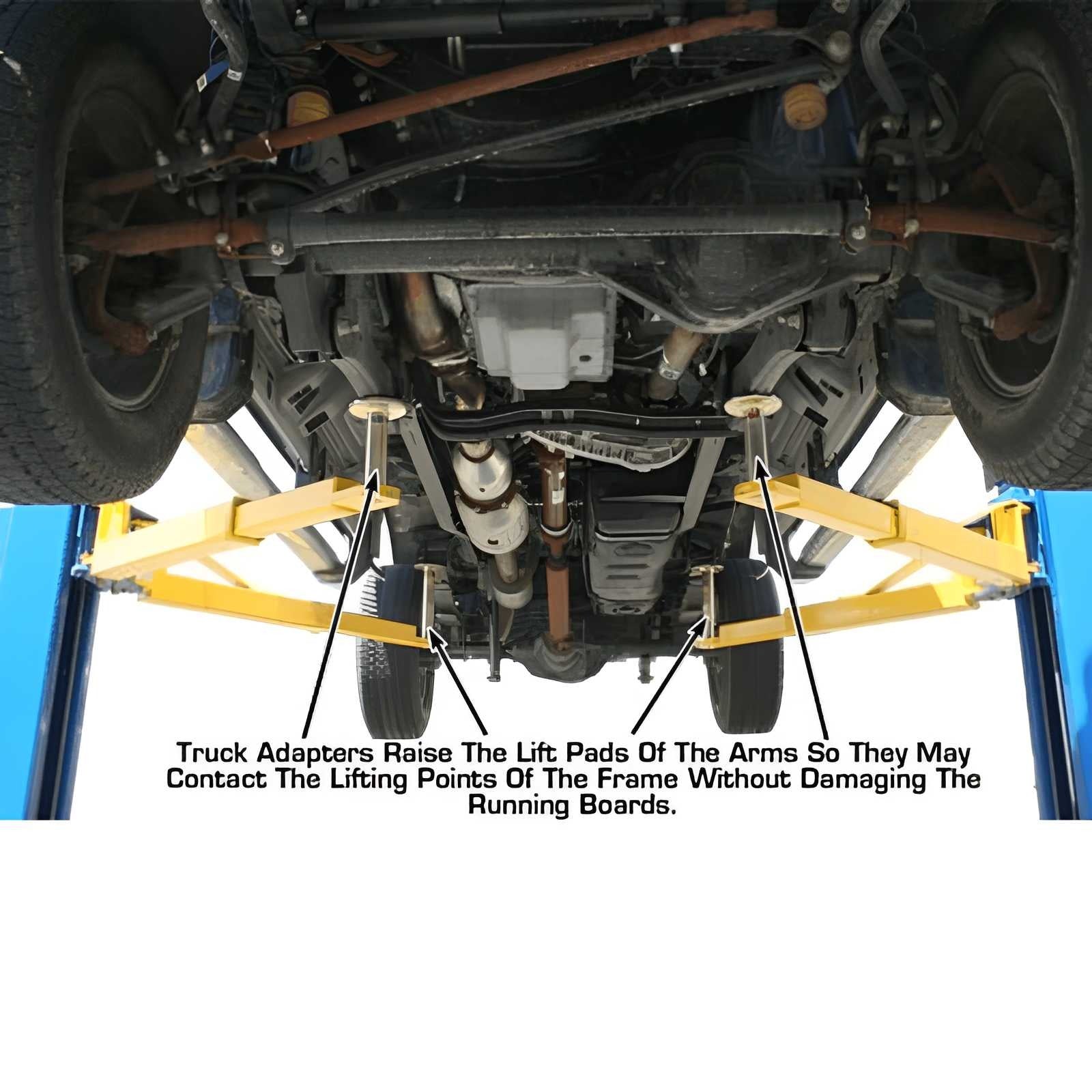

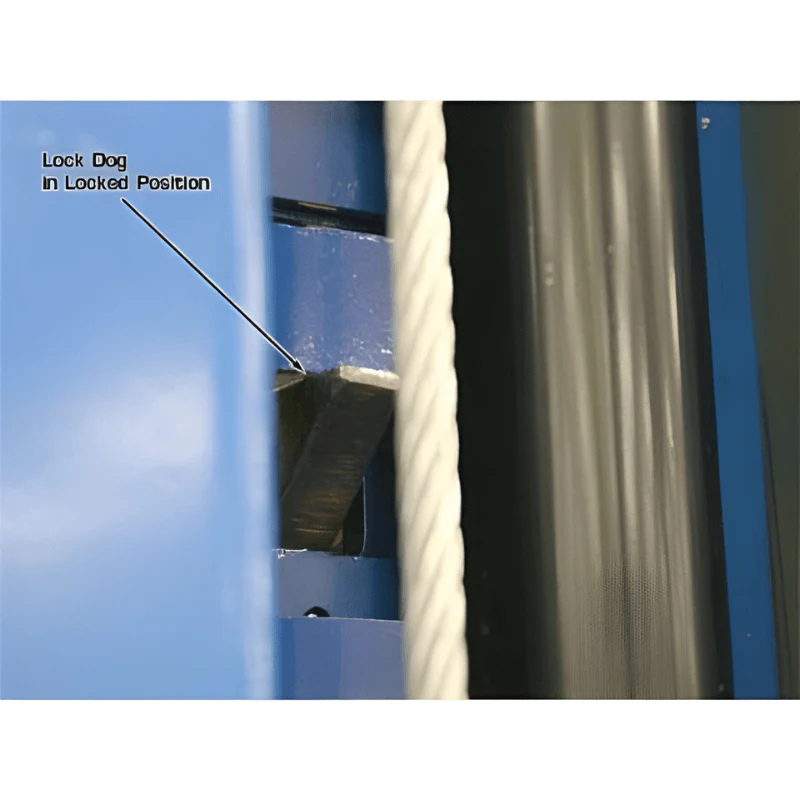

The lift includes a single-point lock release system for easy operation, along with a durable powder coat finish for added protection. A free 12-piece truck adapter set and mounting hardware are also included.
The PV series has been widely used for years and is known for delivering strong value and dependable performance in both commercial and high-end personal garage applications.
Features and Benefits
- 12,000 lb capacity
- Extra tall and extra wide design
- Commercial-grade construction
- Adjustable height options: 150", 165", or 177"
- Optional low-height configuration (requires additional cables)

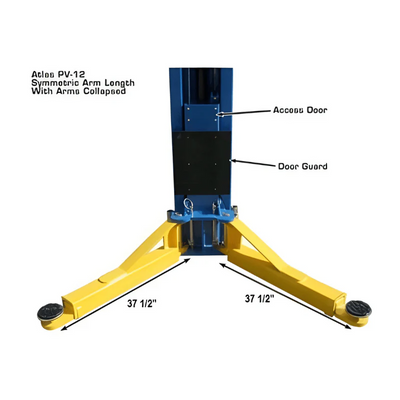

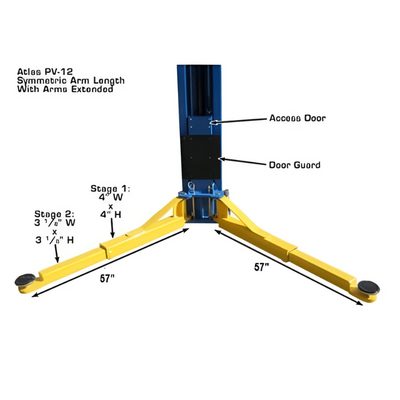

- Symmetric arm configuration
- Automatic arm restraints
- Padded shut-off bar
- Door guards on carriages

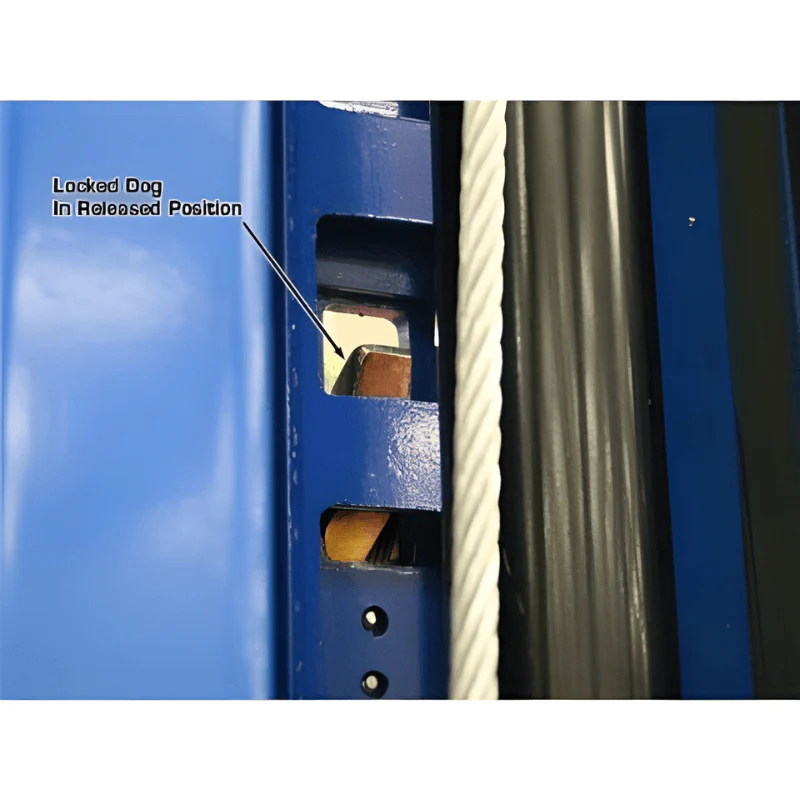

- Single-point lock release

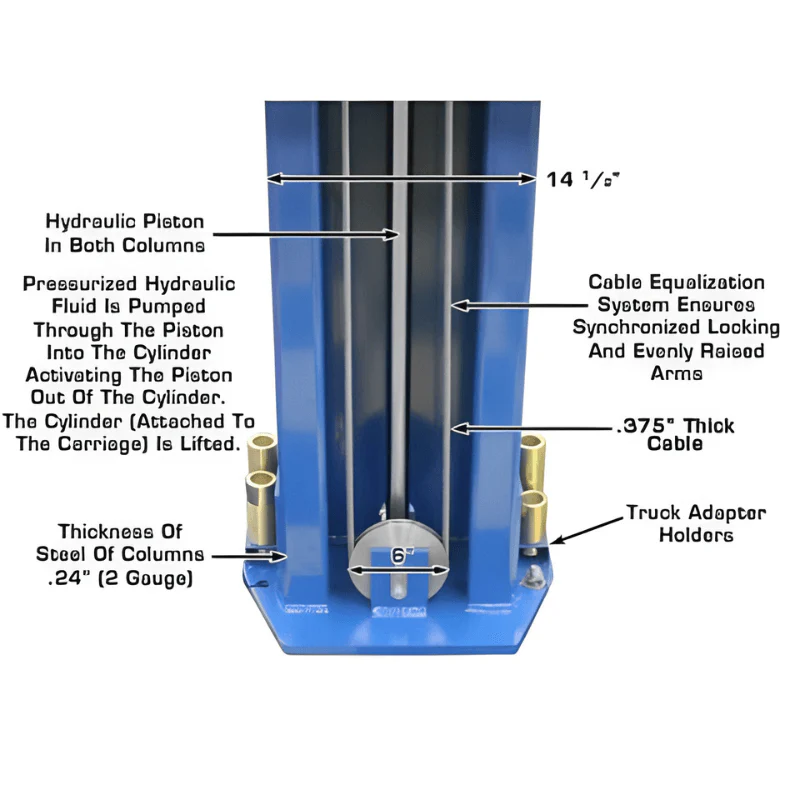

- Direct-drive cylinders
- Powder coat finish

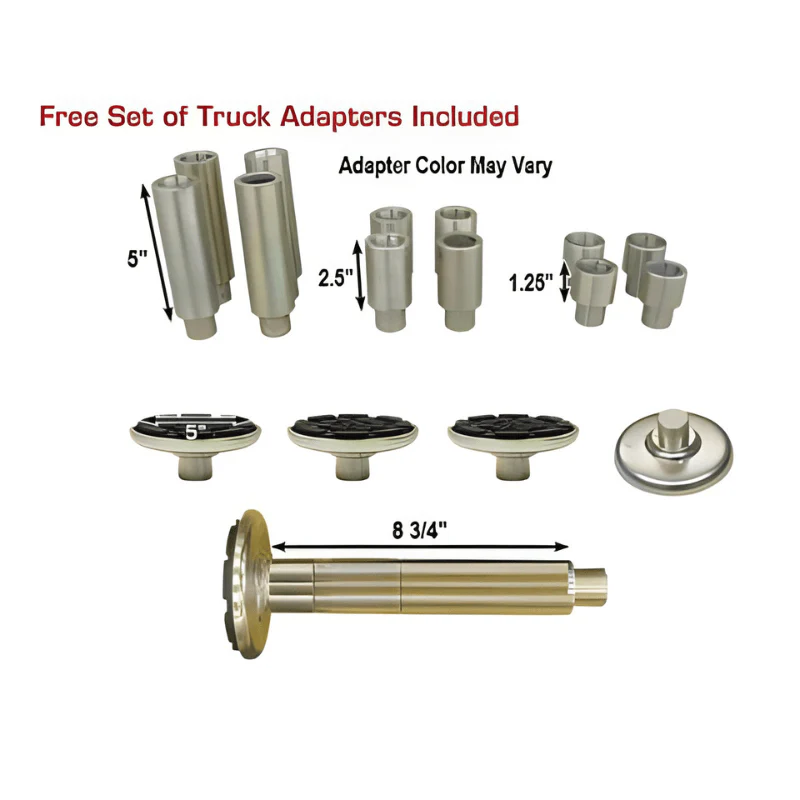

- Free 12-piece truck adapter set
- Mounting hardware included
- 5-year structural, 2-year hydraulic, 1-year power unit warranty (parts only)
- Shipping weight: 2,160 lbs
| Specifications | Details |
|---|---|
| Capacity | 12,000 lb |
| Overall Height | 165" (13’ 9") or 177" (14’ 9") |
| Special Low Height | 150" (12’ 6") — requires purchase of extra cables |
| Overall Floor Width | 150 3/4" (12’ 6 3/4") |
| Outside Column to Outside Column | 139 1/8" (11’ 7 1/8") |
| Inside Column | 123 1/2" (10’ 3 1/2") |

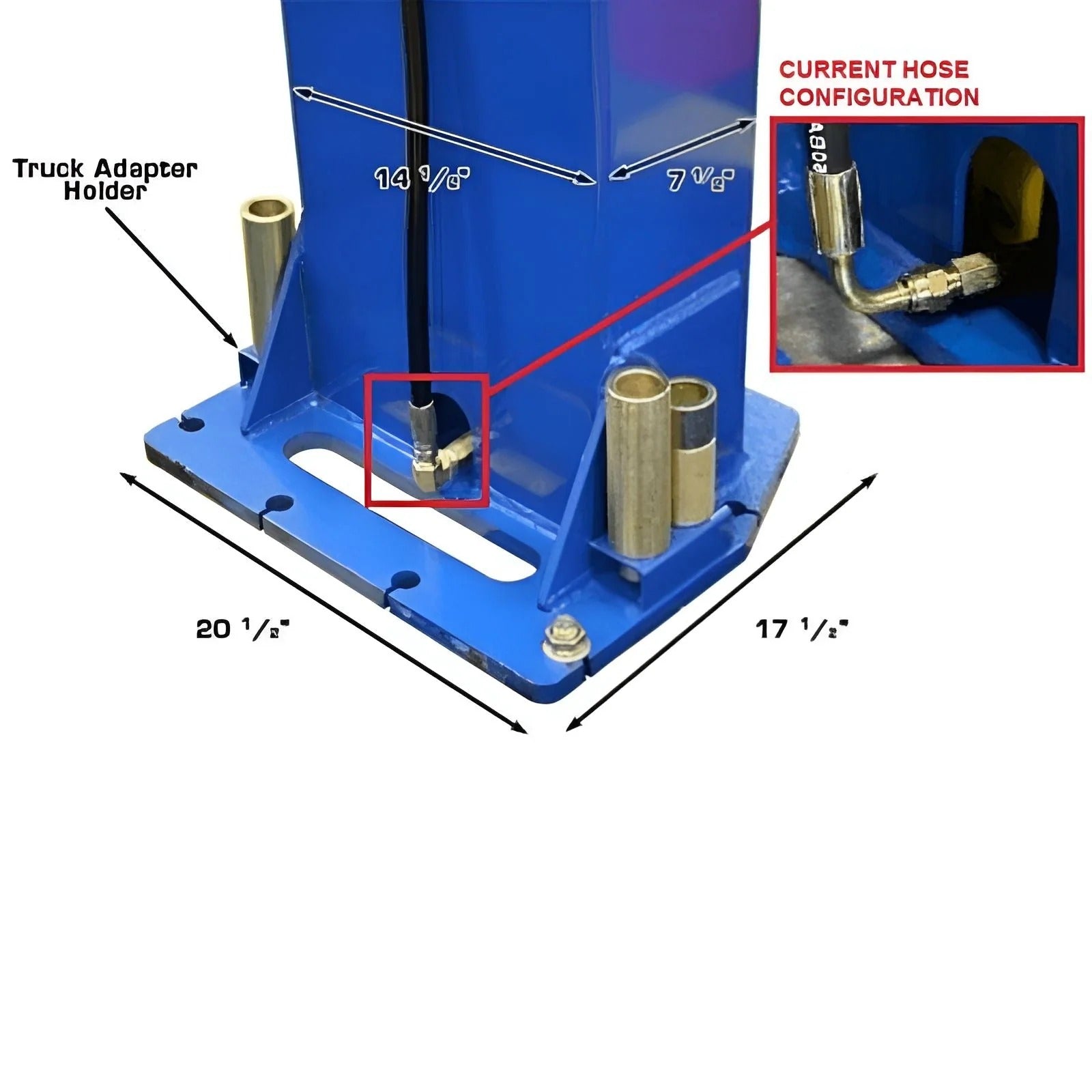

| Column Size | 7 1/2" x 14 1/2" |
| Base of Lift | 17 1/2" x 20 1/2" |
| Maximum Lift Height (Without Adapters) | 72 1/4" |

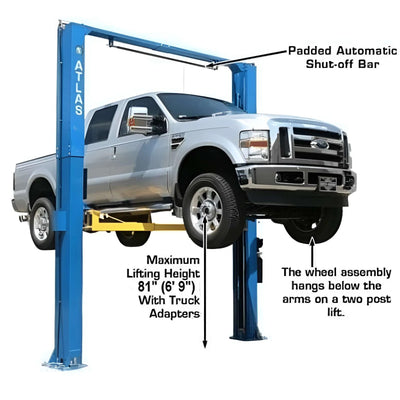

| Maximum Lift Height (With Adapters) | 81" |
| Minimum Arm Height | 4 1/2" |
| Drive Thru | 109 1/2" (9’ 1 1/2") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

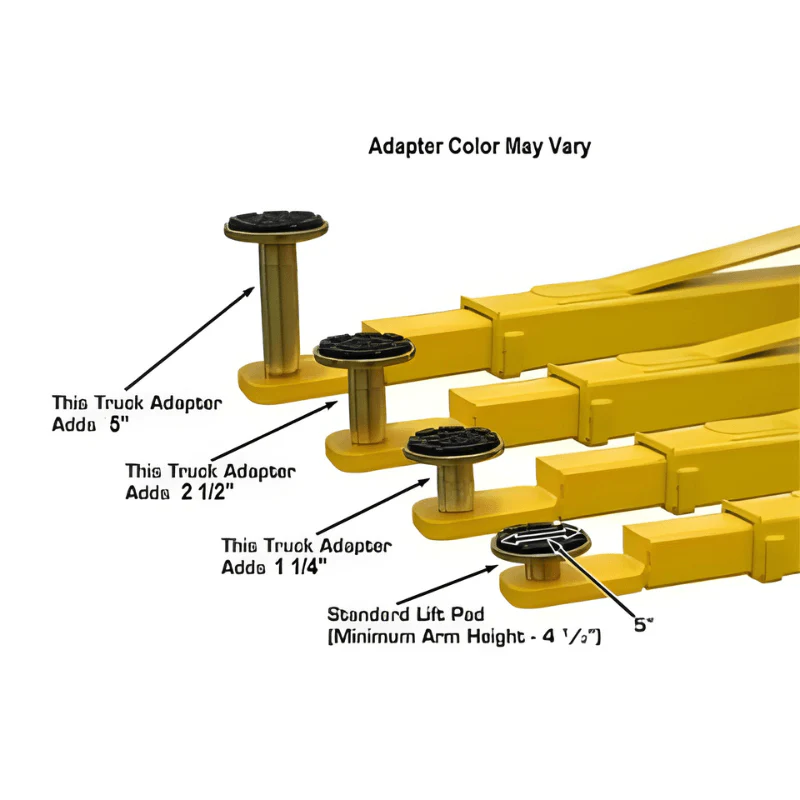

| Adapter Heights | 4 Each: 1.25", 2.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |

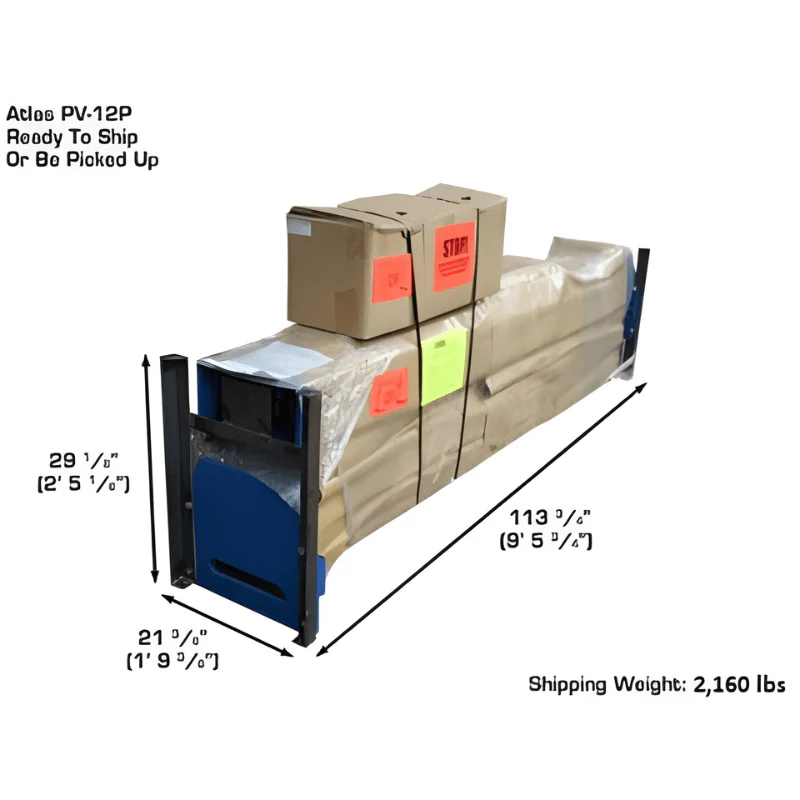

| Shipping Weight | 2,160 lbs |
