Atlas PVL9BP 9,000 lb ALI Certified Baseplate 2-Post Lift
SKU: ATEAP-PVL9BP
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

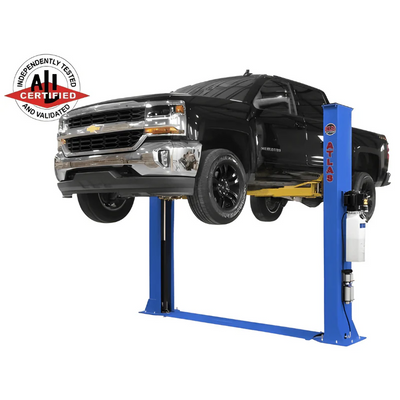

The Atlas Platinum PVL9BP is a commercial-grade, ALI-certified baseplate 2-post lift designed for professional service environments that require reliable performance in low-ceiling spaces. With a 9,000 lb lifting capacity, it is capable of handling a wide range of vehicles, including passenger cars, full-size pickups, and light commercial vehicles.
Built with an open-top baseplate design, this lift eliminates the need for overhead clearance, making it ideal for garages with ceiling height limitations. With a column height of just over 9 feet, it can be installed in spaces where traditional overhead lifts are not practical.

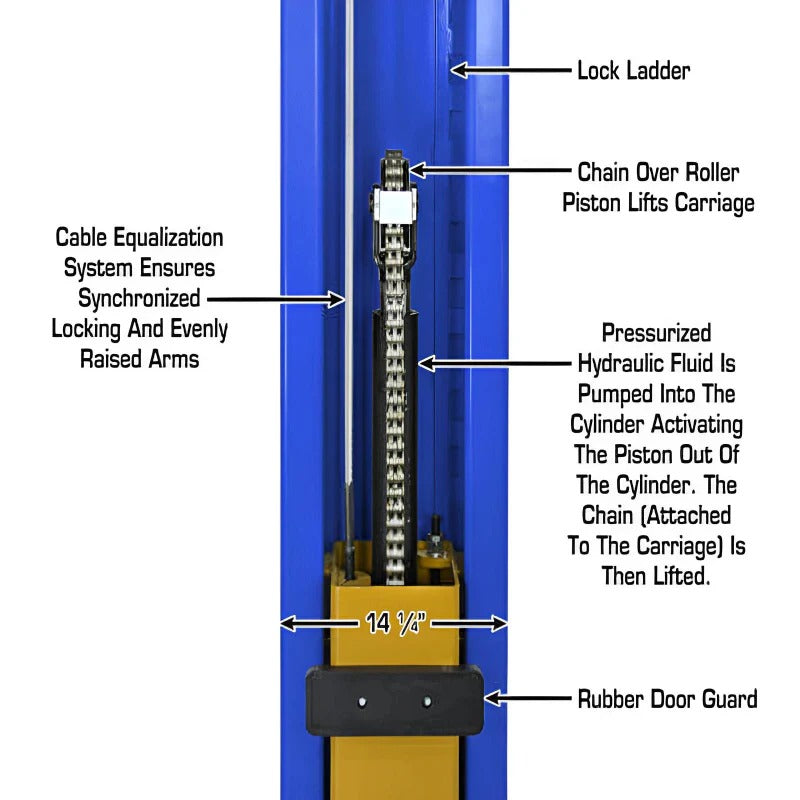

The PVL9BP features 3-stage symmetric arms, allowing for flexible and stable vehicle positioning. Its low minimum arm height makes it easier to access vehicles with low lifting points. Dual hydraulic chain-drive cylinders provide smooth and consistent lifting, while the Secondary Lock System (SLS) automatically engages in the event of chain slack for added safety.
Designed for durability and efficiency, the lift includes automatic arm restraints and a dual-point lock release system for simplified operation. It comes standard with double screw-up adapters and a free 8-piece truck adapter set, expanding its capability for servicing a variety of vehicles.

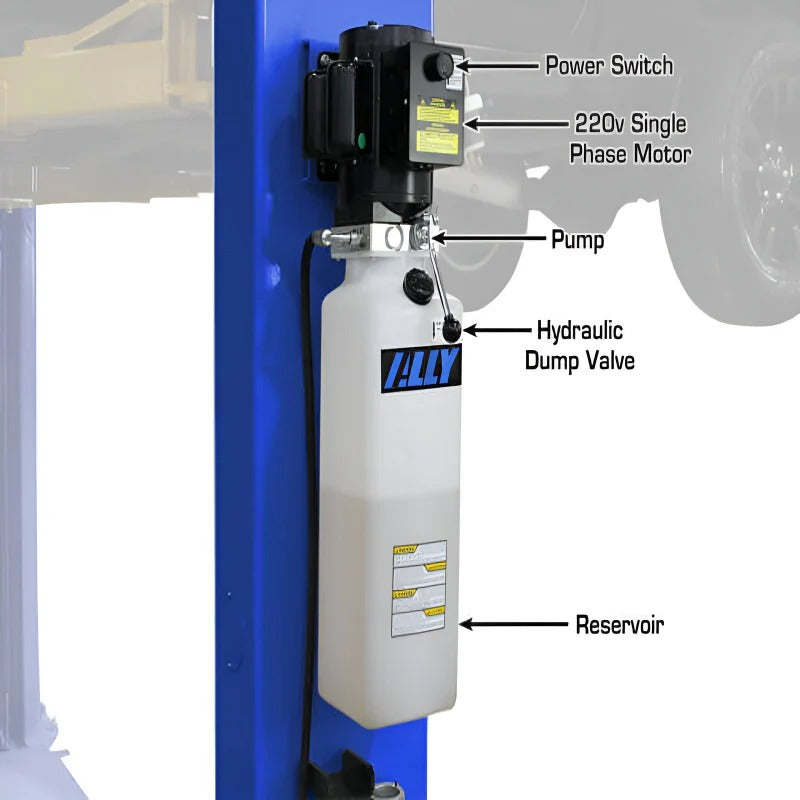

This model is equipped with a premium ALLY power unit, certified for electrical compliance in both the United States and Canada. The upgraded internal components help reduce heat buildup and maintain consistent torque throughout the lifting process, supporting reliable long-term performance.
Backed by strong warranty coverage and ALI certification, the PVL9BP delivers a high level of safety, durability, and performance for demanding applications.
Features and Benefits
- ALI certified
- 9,000 lb capacity
- Commercial-grade construction

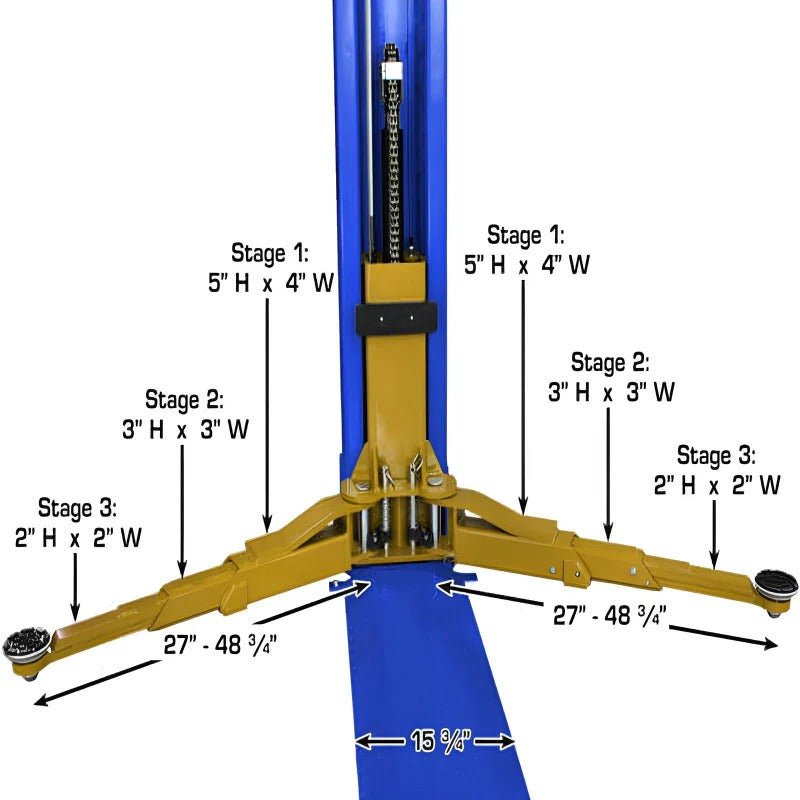

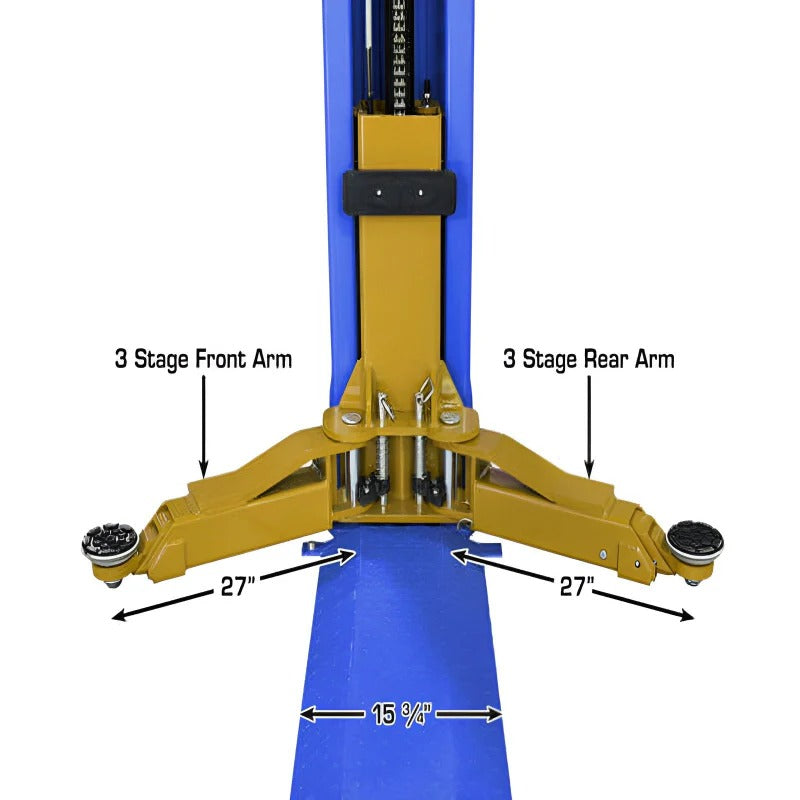

- 3-stage symmetric arms
- Baseplate open-top design
- Designed for low ceiling clearance (9’ 3 1/8" column height)
- Dual hydraulic chain-drive cylinders
- Secondary Lock System (SLS)

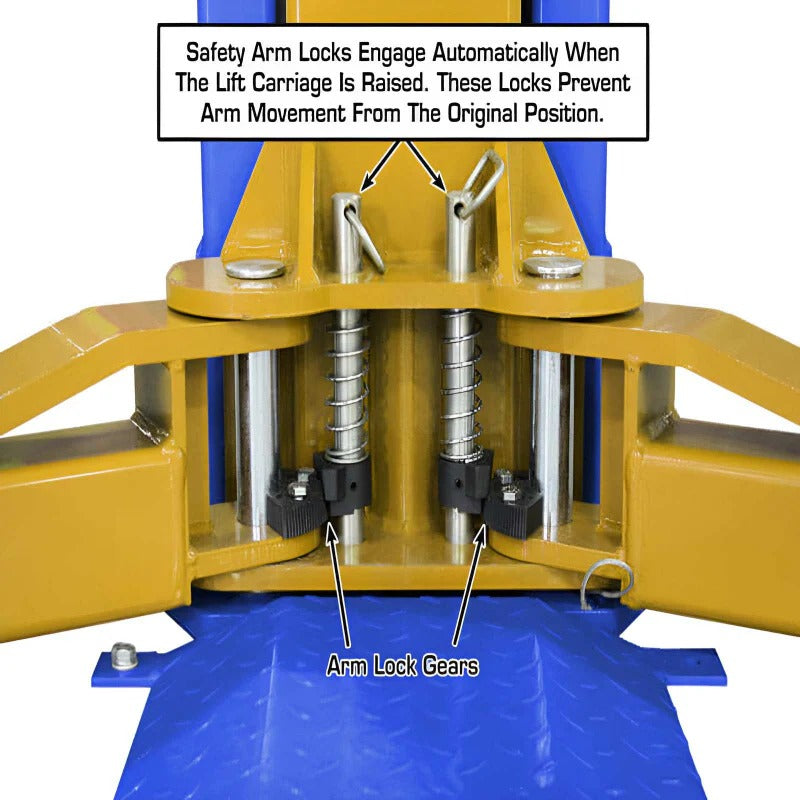

- Automatic arm restraints

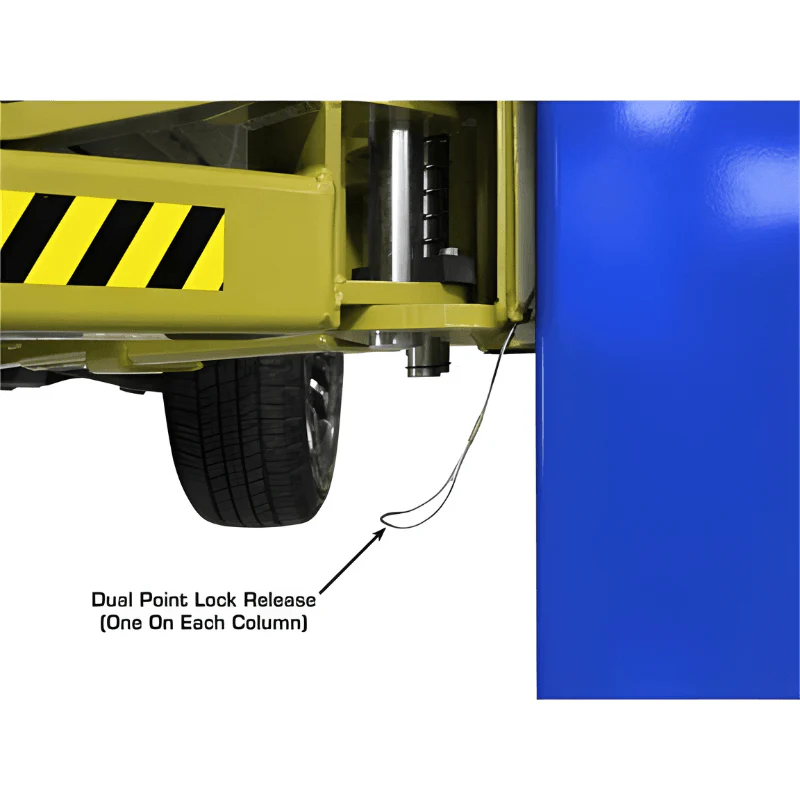

- Dual-point lock release

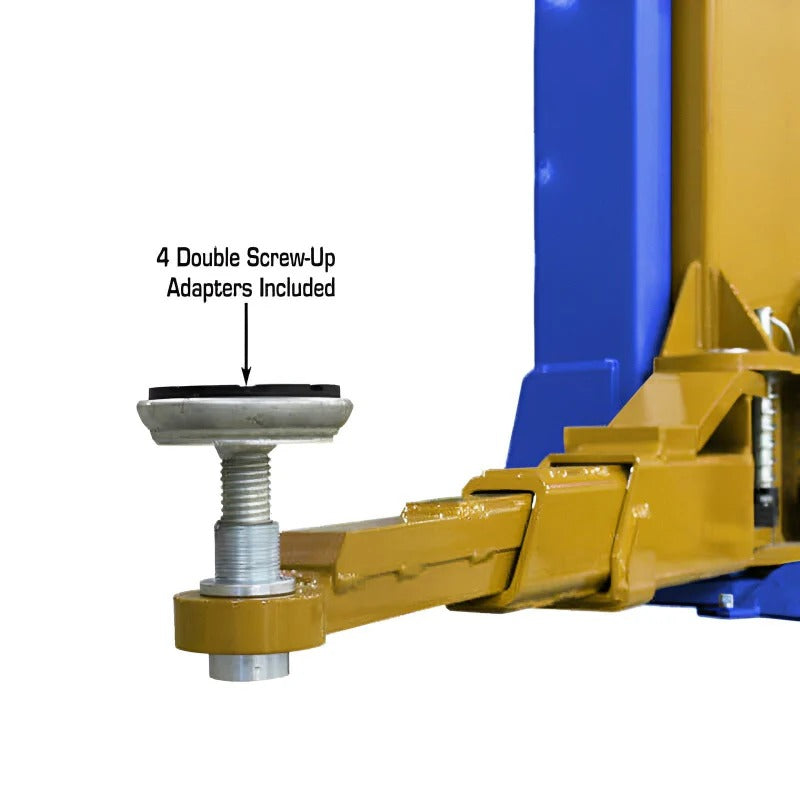

- Includes double screw-up adapters

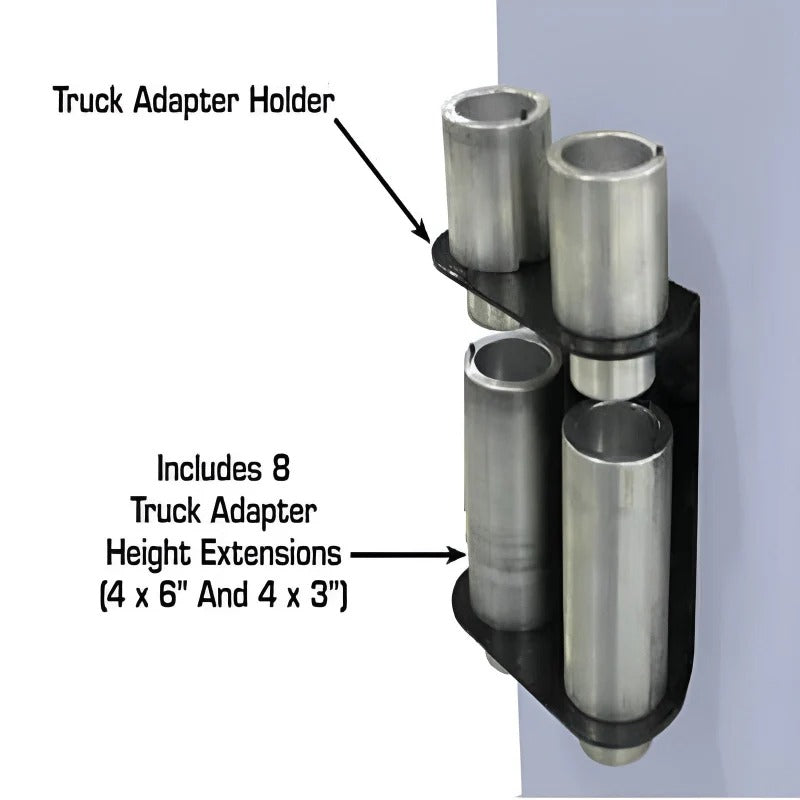

- Free 8-piece truck adapter set included
- Premium ALLY power unit (MET Laboratories certified)
- Mounting hardware included
- Freight prepaid
- 5-year structural, 2-year hydraulic, 2-year power unit warranty

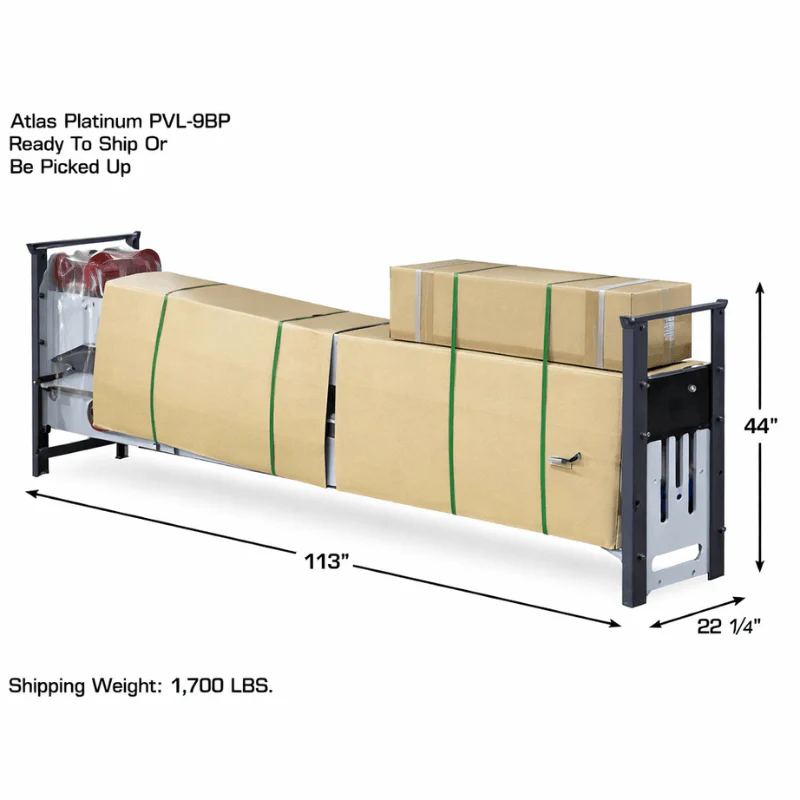

- Shipping weight: 1,700 lbs
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb |

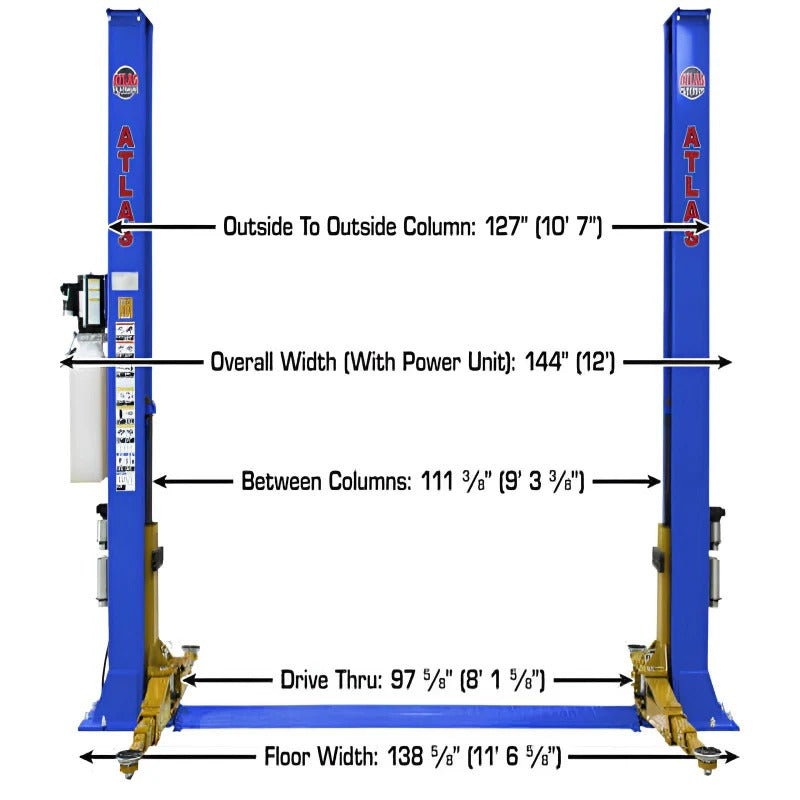

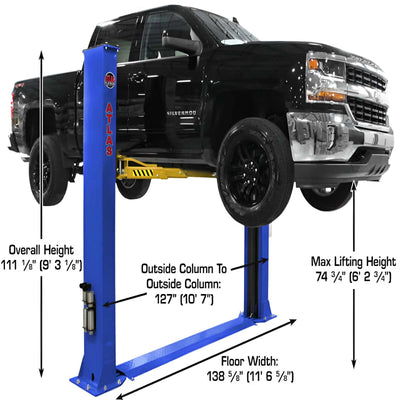

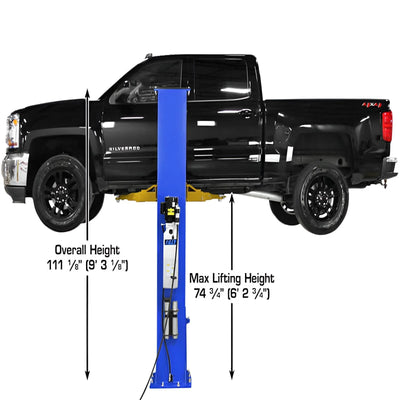

| Overall Height | 111 1/8" (9’ 3 1/8") |

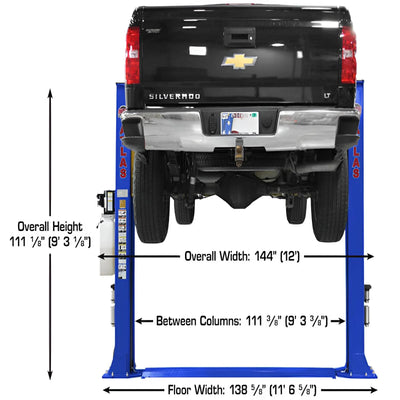

| Overall Floor Width | 138 5/8" (11’ 6 5/8") |
| Outside Column to Outside Column | 127 1/2" (10’ 7 1/2") |
| Inside Column | 111 3/8" (9’ 3 3/8") |
| Column Size | 7 5/8" x 14 1/4" |
| Column Thickness of Steel | 6mm |

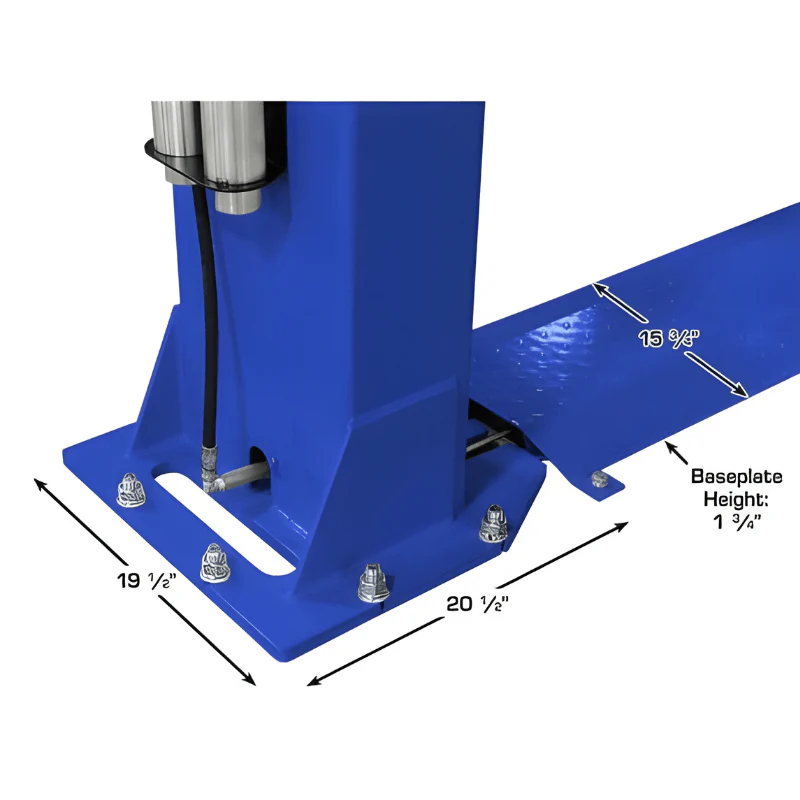

| Base of Lift | 19 1/2" x 20 1/2" |
| Maximum Lift Height (Without Adapters) | 74 3/4" |
| Maximum Lift Height (With Adapters) | 83 3/4" |
| Minimum Arm Height | 4 1/2" |
| Drive Thru | 97 5/8" (8’ 1 5/8") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

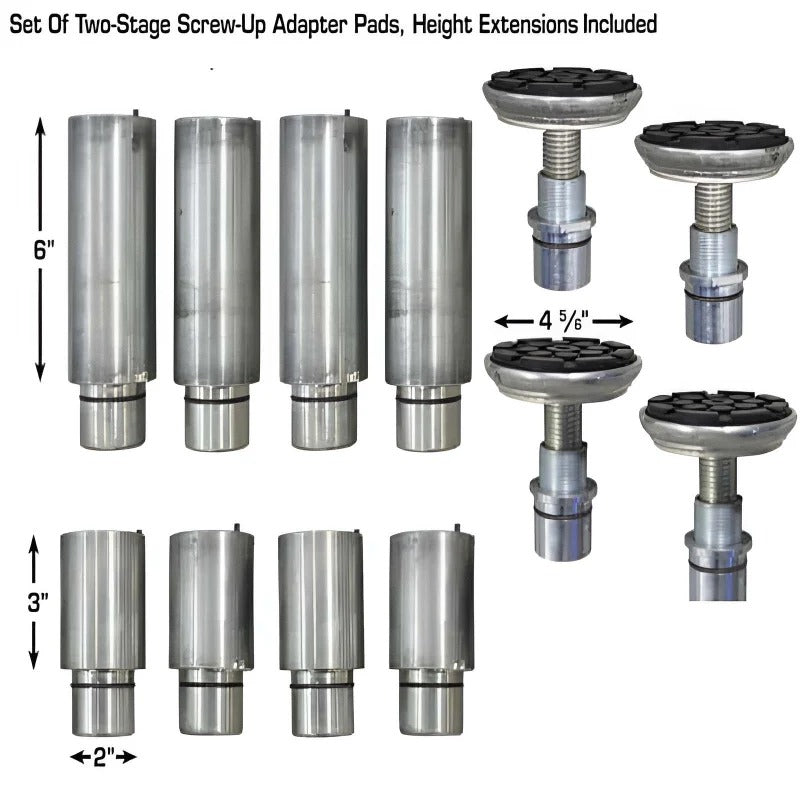

| Adapter Heights | 4 Each: 3", 6" |
| Arm Hole / Adapter Peg Size | 2" |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |
| Shipping Weight | 1,700 lbs |
