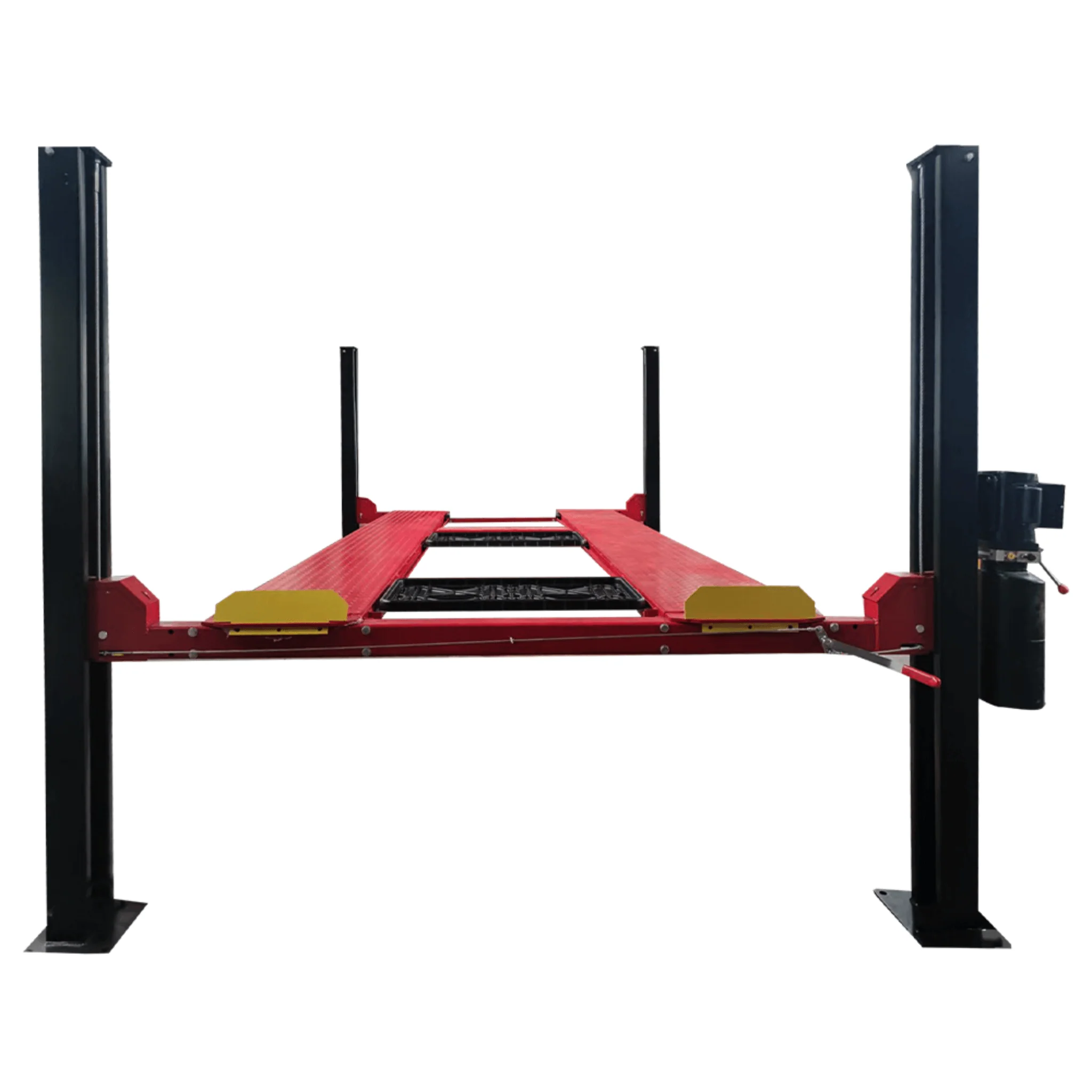

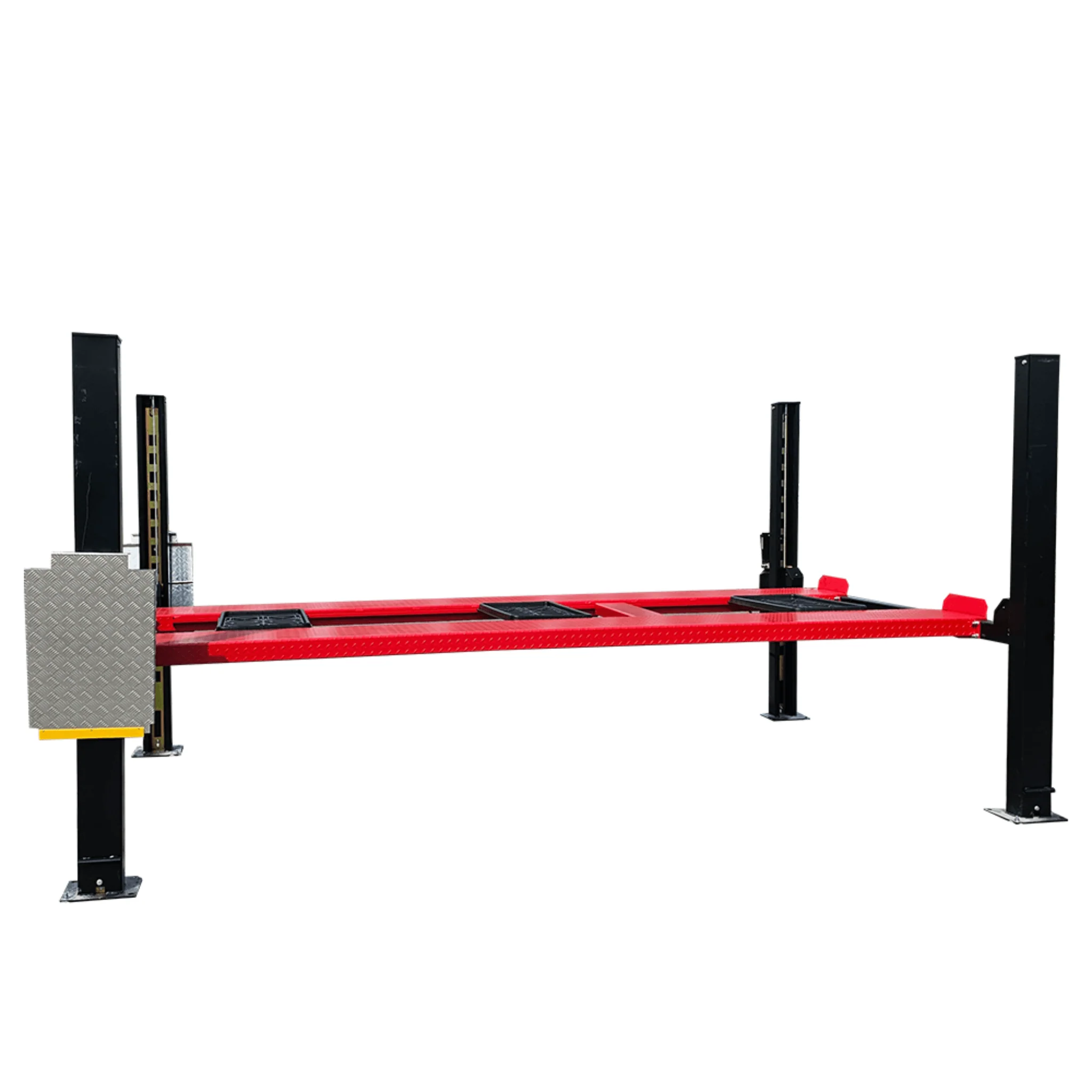

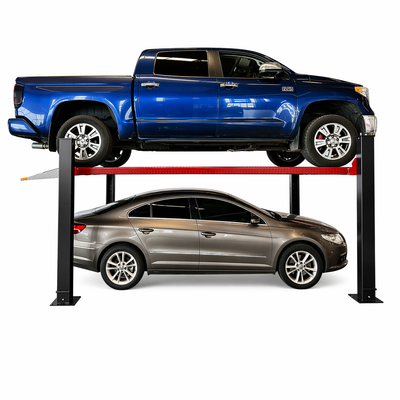

Katool KT-4H950 9,500 lb Heavy-Duty 4-Post Parking and Storage Lift
SKU: KT-4H950
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

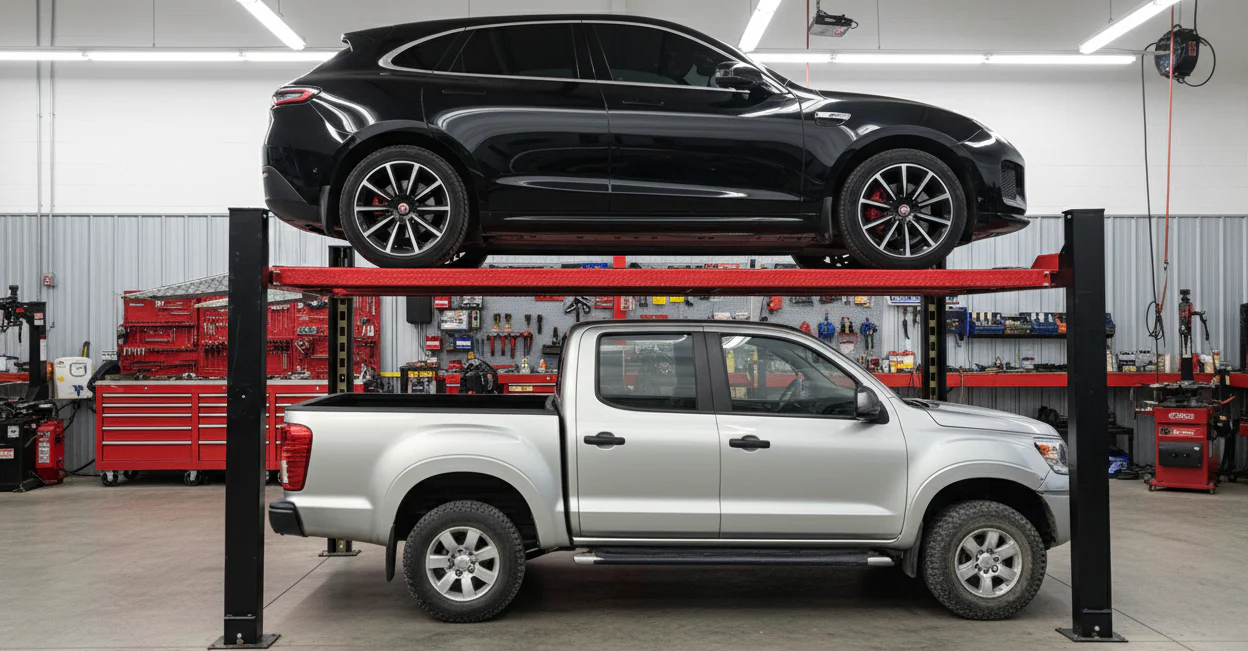

The Katool KT-4H950 is a 9,500 lb four-post lift built for vehicle storage and light-duty service applications. Its drive-on design allows straightforward positioning, while the four-column structure provides balanced support for cars, SUVs, and light trucks.
With a lift height exceeding 80 inches, the KT-4H950 enables vertical storage and basic undercar access when needed. The hydraulic system delivers steady lifting and lowering, supported by a multi-position mechanical locking system for secure operation.
Constructed for repeated use, this lift combines structural strength with practical accessories that support both storage and routine service workflows.
Key Features & Benefits
- 9,500 lb Lifting Capacity – Supports cars, SUVs, and light trucks
- Four-Post Drive-On Design – Stable platform for storage and service

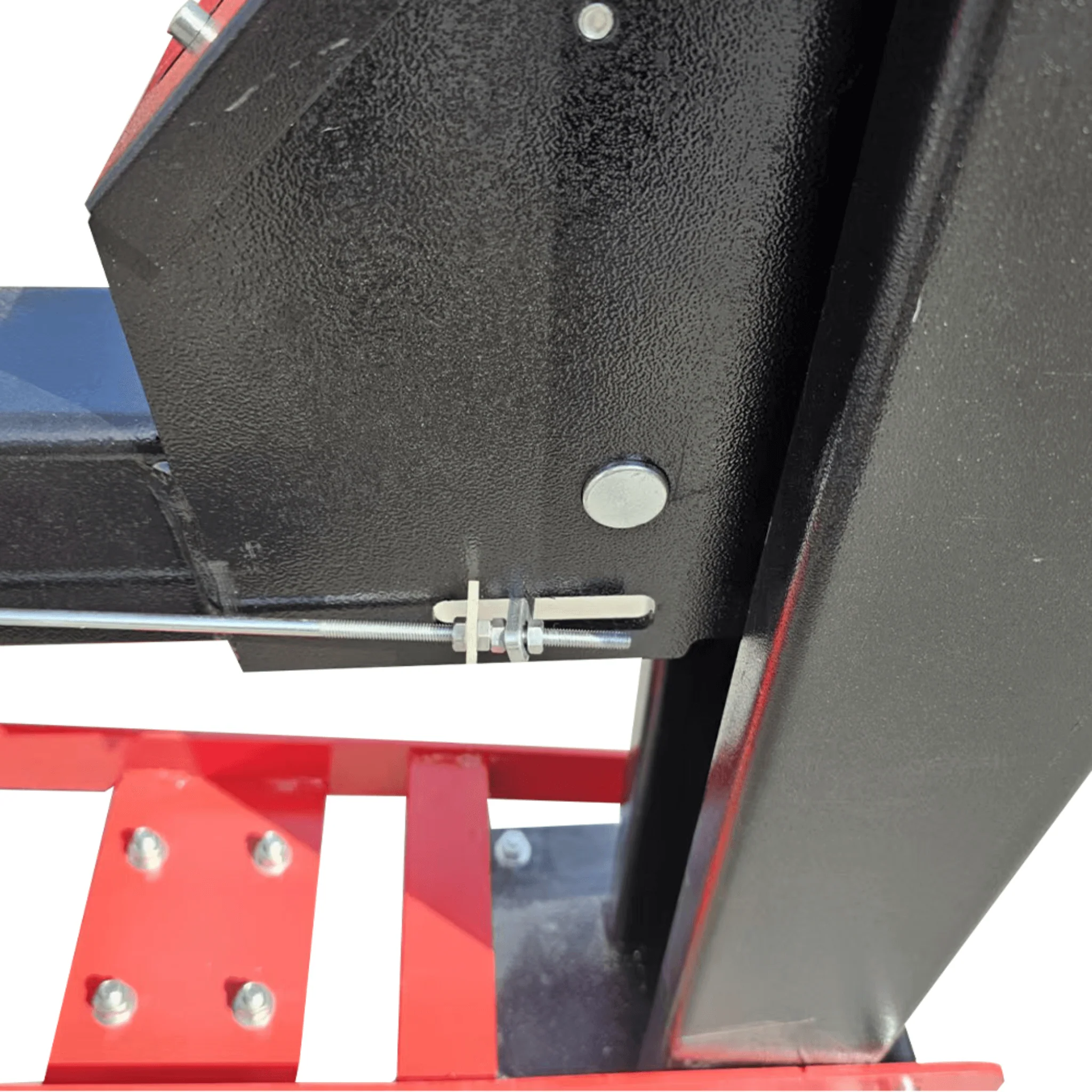

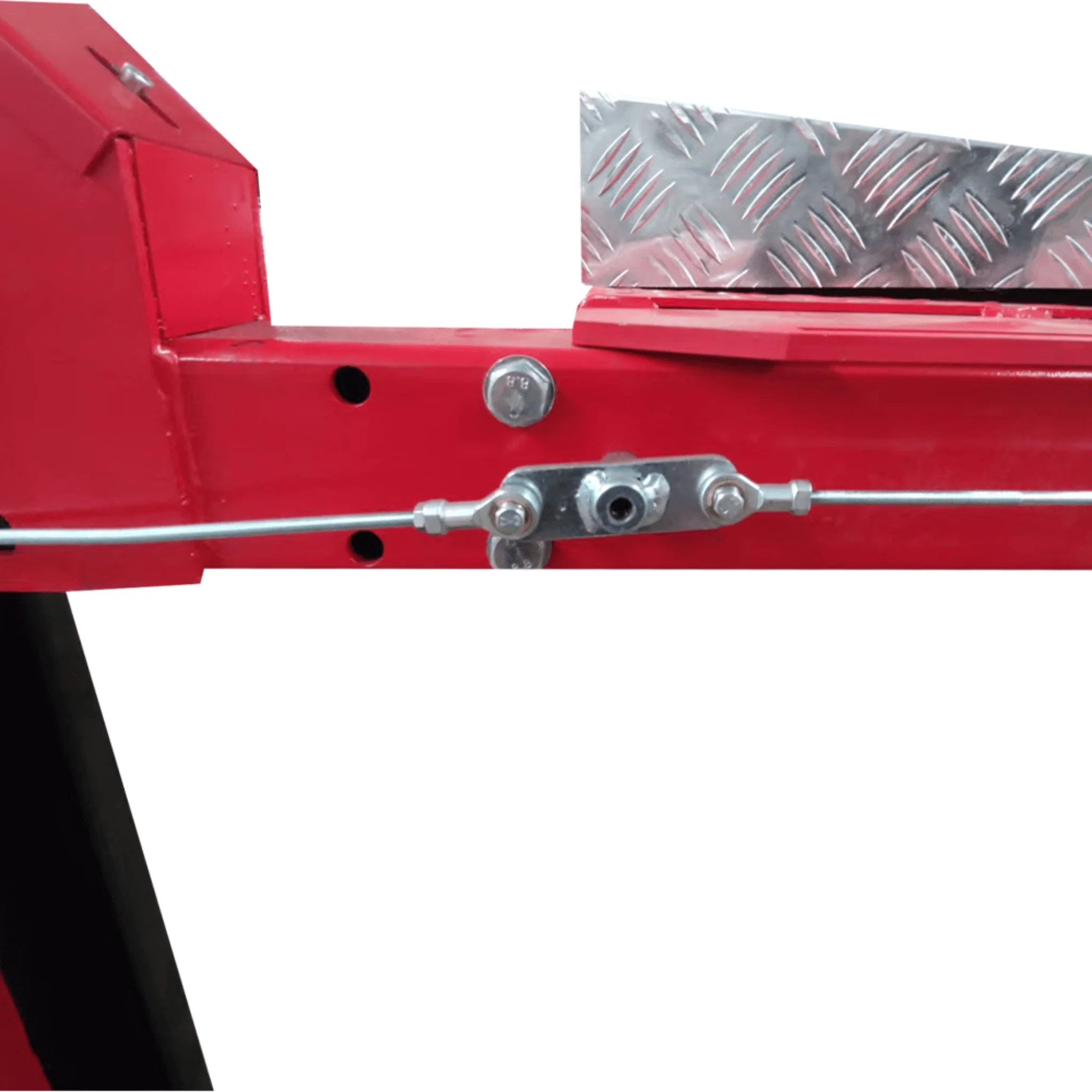

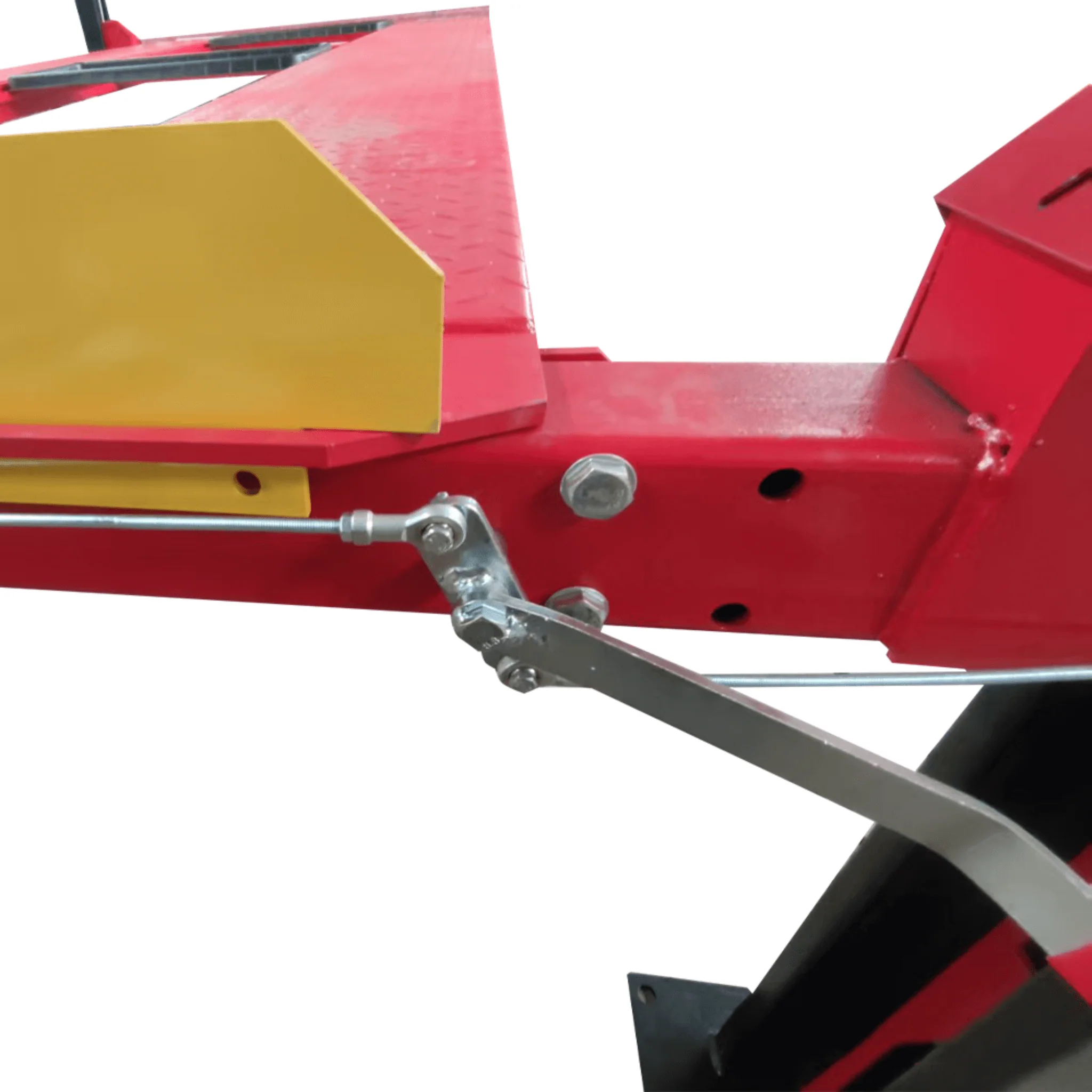

- Mechanical Locking System – Multiple lock positions for secure holding
- Diamond-Plate Runways – Non-slip surface for vehicle positioning
- Hydraulic Operation – Controlled lifting and lowering
- Single-Phase Power – Compatible with standard electrical setups

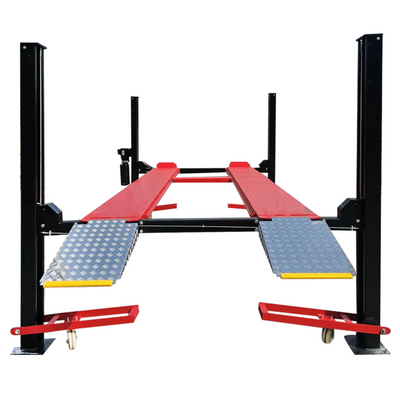

- Portable Capability (Unloaded) – Can be repositioned using included casters
- Heavy-Duty Steel Construction – Built for durability and repeated use
- Suitable for vehicle storage and parking applications
- Provides access for light maintenance and inspections
- Supports space optimization in garages and shops
| Specifications | Details |
|---|---|
| Model | KT-4H950 |
| Product Type | Four-Post Storage / Parking Lift |

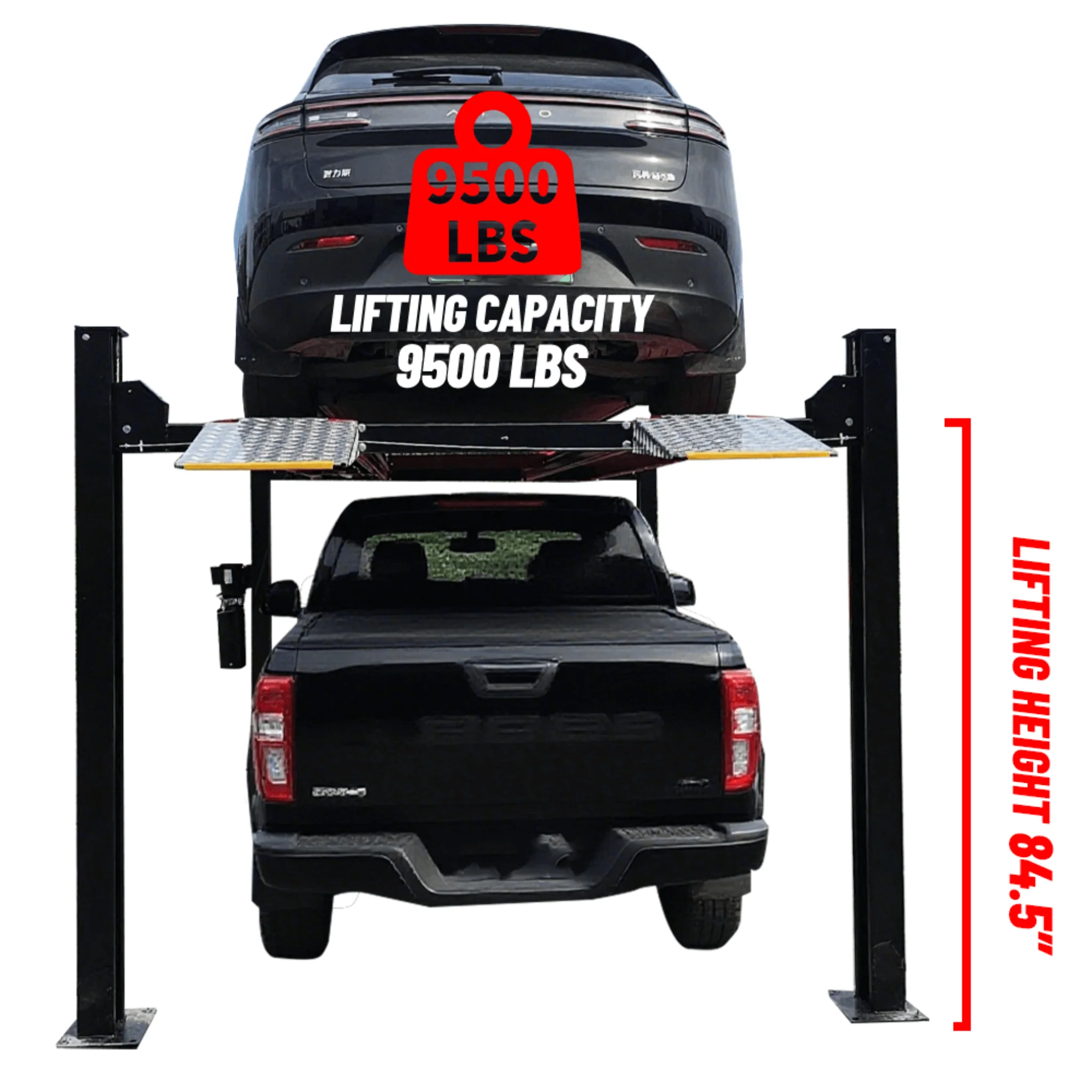

| Lifting Capacity | 9,500 lbs (4.3 T) |
| Maximum Lifting Height | ~84.5 in |
| Clearance Height | ~79 in |
| Lifting Time | ~50 seconds |

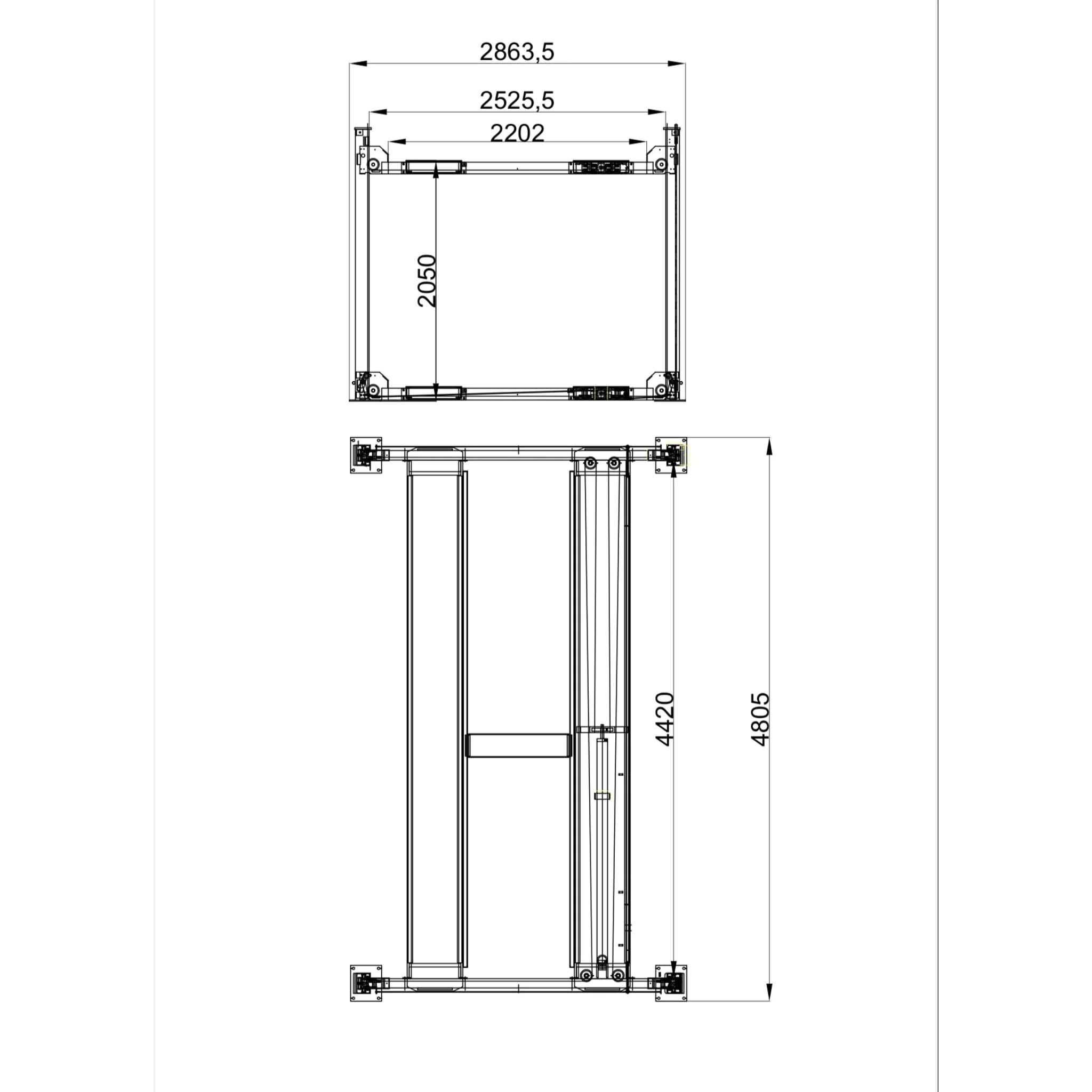

| Overall Length | 189 in (with baseplates) |
| Overall Width | 113 in |
| Width Between Columns | 99 in |
| Overall Height | ~97 in |
| Motor | 110V / 3.0 HP |
| Power Requirement | Single-phase |
| Runway Surface | Diamond-plate steel |
| Safety System | Multi-level mechanical locks |
| Construction | Heavy-duty steel |
| Concrete Thickness (Min) | ~4 inches |
| Concrete Strength (Recommended) | 3,000 PSI |
What's Included
- Casters

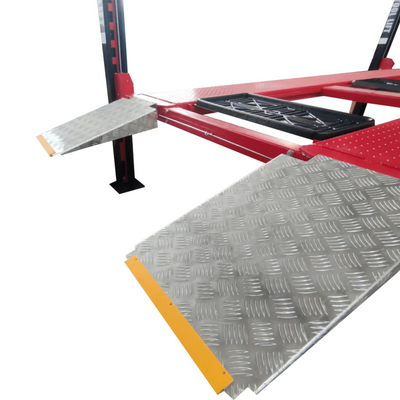

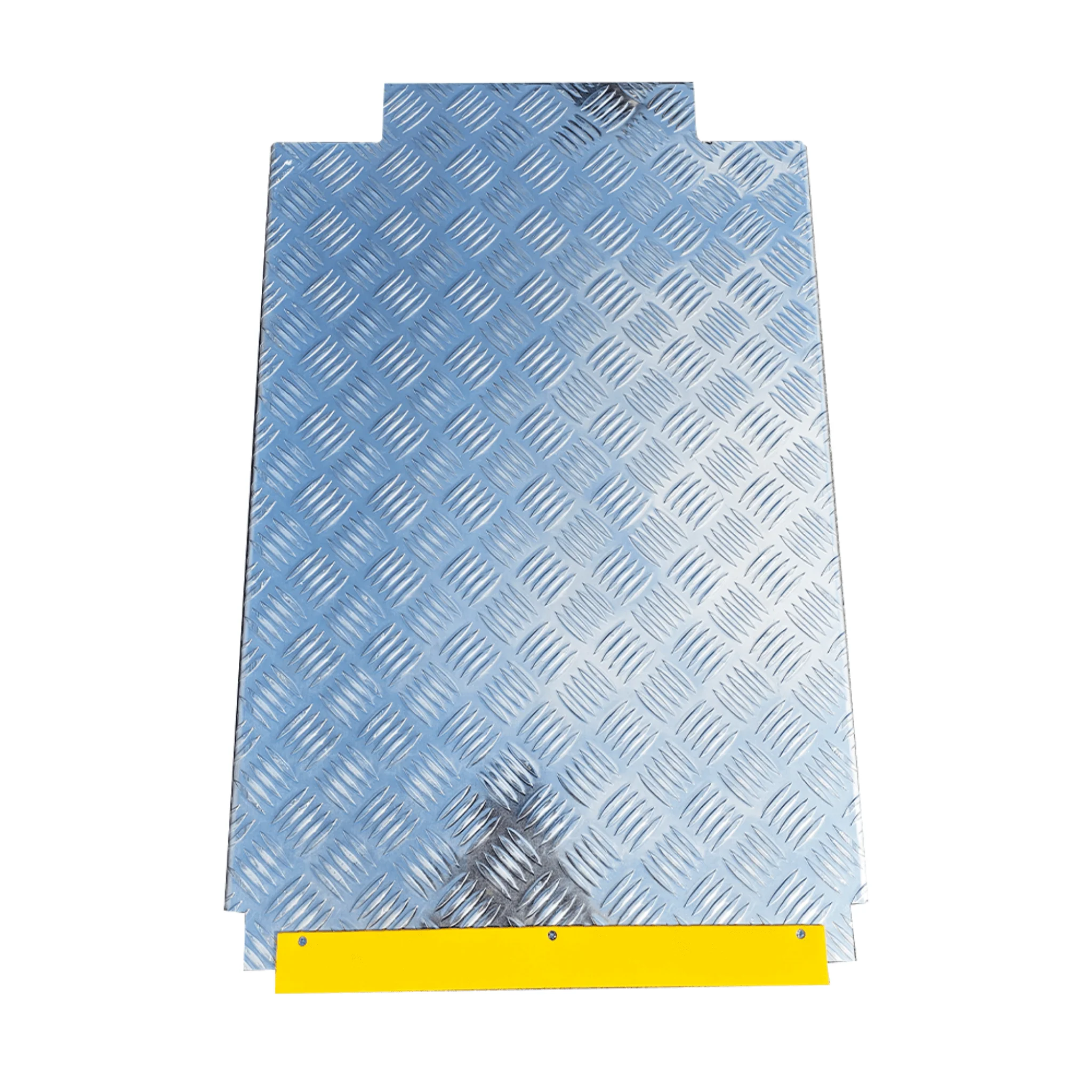

- Aluminum ramps

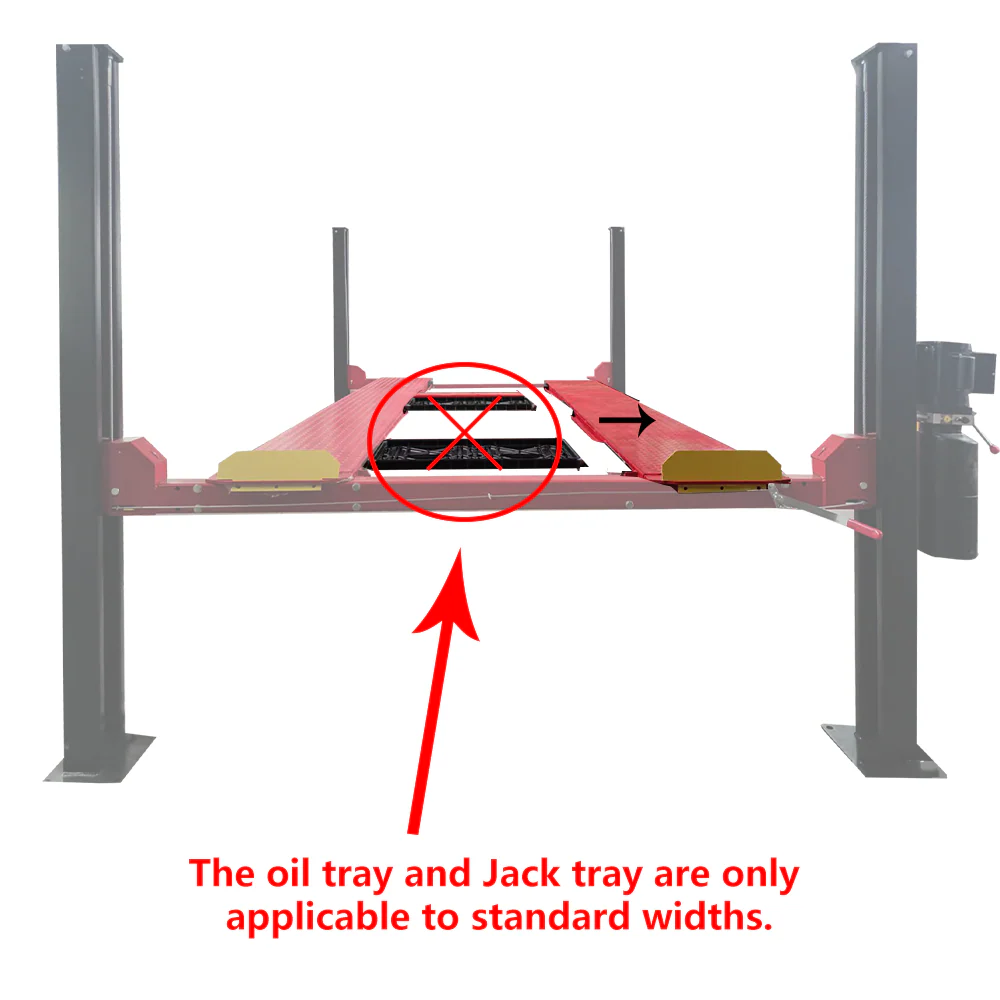

- Jack tray

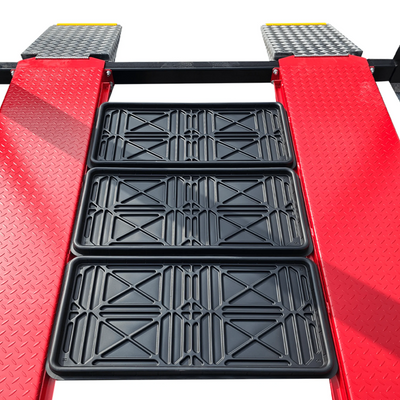

- Drip trays
Documents
